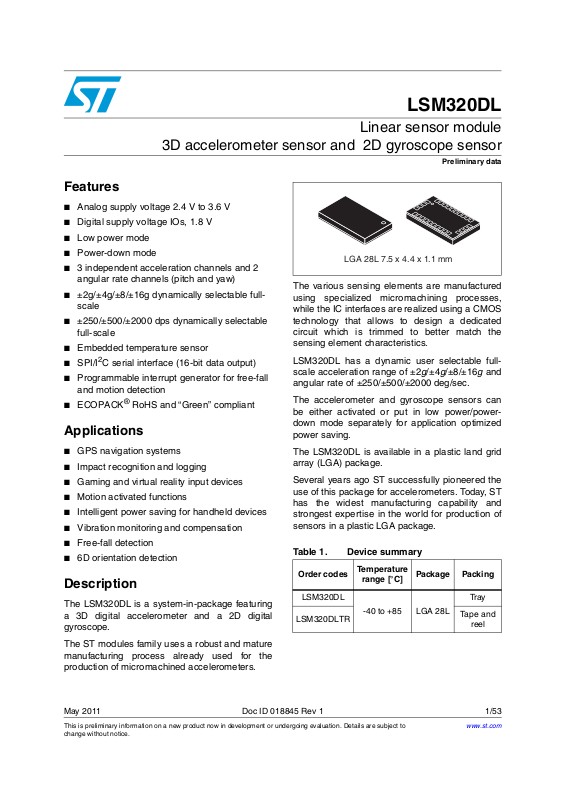

Page 1

3D accelerometer sensor and 2D gyroscope sensor

Features

■ Analog supply voltage 2.4 V to 3.6 V

■ Digital supply voltage IOs, 1.8 V

■ Low power mode

■ Power-down mode

■ 3 independent acceleration channels and 2

angular rate channels (pitch and yaw)

■ ±2g/±4g/±8/±16g dynamically selectable full-

scale

■ ±250/±500/±2000 dps dynamically selectable

full-scale

■ Embedded temperature sensor

■ SPI/I

■ Programmable interrupt generator for free-fall

■ ECOPACK

Applications

C serial interface (16-bit data output)

and motion detection

RoHS and “Green” compliant

LSM320DL

Linear sensor module

Preliminary data

LGA 28L 7.5 x 4.4 x 1.1 mm

The various sensing elements are manufactured using specialized micromachining processes, while the IC interfaces are realized using a CMOS technology that allows to design a dedicated circuit which is trimmed to better match the sensing element characteristics.

LSM320DL has a dynamic user selectable fullscale acceleration range of ±2g/±4g/±8/±16g and angular rate of ±250/±500/±2000 deg/sec.

The accelerometer and gyroscope sensors can be either activated or put in low power/powerdown mode separately for application optimized power saving.

■ GPS navigation systems

■ Impact recognition and logging

■ Gaming and virtual reality input devices

■ Motion activated functions

■ Intelligent power saving for handheld devices

■ Vibration monitoring and compensation

■ Free-fall detection

■ 6D orientation detection

Description

The LSM320DL is a system-in-package featuring a 3D digital accelerometer and a 2D digital gyroscope.

The LSM320DL is available in a plastic land grid array (LGA) package.

Several years ago ST successfully pioneered the use of this package for accelerometers. Today, ST has the widest manufacturing capability and strongest expertise in the world for production of sensors in a plastic LGA package.

Table 1. Device summary

Order codes

LSM320DL

LSM320DLTR

Temperature

range [°C]

-40 to +85 LGA 28L

Package Packing

Tr ay

Tape and

reel

The ST modules family uses a robust and mature manufacturing process already used for the production of micromachined accelerometers.

May 2011 Doc ID 018845 Rev 1 1/53

This is preliminary information on a new product now in development or undergoing evaluation. Details are subject to change without notice.

www.st.com

Page 2

Contents LSM320DL

Contents

1 Block diagram and pin description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

1.1 Block diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

1.2 Pin description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

2 Module specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

2.1 Mechanical characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

2.2 Electrical characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

2.3 Temperature sensor characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

2.4 Communication interface characteristics . . . . . . . . . . . . . . . . . . . . . . . . . 15

2.4.1 SPI - serial peripheral interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

2.4.2 I2C - inter IC control interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

2.5 Absolute maximum ratings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

2.6 Terminology . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

2.6.1 Sensitivity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

2.6.2 Zero level . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

3 Functionality . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

3.1 Factory calibration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

4 Application hints . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

4.1 External capacitors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

4.2 Soldering information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

5 Digital interfaces . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

5.1 I2C serial interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

5.1.1 I2C operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

5.2 SPI bus interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

5.2.1 SPI read . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

5.2.2 SPI write . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

5.2.3 SPI read in 3-wire mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

6 Register mapping . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

2/53 Doc ID 018845 Rev 1

Page 3

LSM320DL Contents

7 Registers description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

7.1 CTRL_REG1_A (20h) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

7.2 CTRL_REG2_A (21h) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

7.3 CTRL_REG3_A (22h) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

7.4 CTRL_REG4_A (23h) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

7.5 CTRL_REG5_A (24h) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

7.6 CTRL_REG6_A (25h) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

7.7 REFERENCE/DATACAPTURE_A (26h) . . . . . . . . . . . . . . . . . . . . . . . . . . 33

7.8 STATUS_REG_A (27h) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

7.9 OUT_X_L_A (28h), OUT_X_H_A (29h) . . . . . . . . . . . . . . . . . . . . . . . . . . 34

7.10 OUT_Y_L_A (2Ah), OUT_Y_H_A (2Bh) . . . . . . . . . . . . . . . . . . . . . . . . . 34

7.11 OUT_Z_L _A(2Ch), OUT_Z_H_A (2Dh) . . . . . . . . . . . . . . . . . . . . . . . . . 34

7.12 FIFO_CTRL_REG_A (2Eh) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

7.13 FIFO_SRC_REG_A (2Fh) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

7.14 INT1_CFG_A (30h) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

7.15 INT1_SRC_A (31h) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

7.16 INT1_THS_A (32h) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

7.17 INT1_DURATION_A (33h) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

7.18 CLICK_CFG _A (38h) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

7.19 CLICK_SRC_A (39h) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

7.20 CLICK_THS_A (3Ah) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

7.21 TIME_LIMIT_A (3Bh) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

7.22 TIME_LATENCY_A (3Ch) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

7.23 TIME WINDOW_A (3Dh) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

7.24 CTRL_REG1_G (20h) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

7.25 CTRL_REG2_G (21h) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40

7.26 CTRL_REG3_G (22h) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41

7.27 CTRL_REG4_G (23h) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42

7.28 CTRL_REG5_G (24h) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42

7.29 REFERENCE/DATACAPTURE_G (25h) . . . . . . . . . . . . . . . . . . . . . . . . . 44

7.30 OUT_TEMP_G (26h) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44

7.31 STATUS_REG_G (27h) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44

7.32 OUT_X_L_G (28h), OUT_X_H_G (29h) . . . . . . . . . . . . . . . . . . . . . . . . . 45

Doc ID 018845 Rev 1 3/53

Page 4

Contents LSM320DL

7.33 OUT_Z_L_G (2Ch), OUT_Z_H_G (2Dh) . . . . . . . . . . . . . . . . . . . . . . . . . 45

7.34 FIFO_CTRL_REG_G (2Eh) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45

7.35 FIFO_SRC_REG_G (2Fh) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45

7.36 INT1_CFG_G (30h) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46

7.37 INT1_SRC_G (31h) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46

7.38 INT1_THS_XH_G (32h) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47

7.39 INT1_THS_XL_G (33h) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47

7.40 INT1_THS_ZH_G (36h) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47

7.41 INT1_THS_ZL_G (37h) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48

7.42 INT1_DURATION_G (38h) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48

8 Package information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50

9 Revision history . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52

4/53 Doc ID 018845 Rev 1

Page 5

LSM320DL List of tables

List of tables

Table 1. Device summary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

Table 2. Pin description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Table 3. Mechanical characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Table 4. Electrical characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Table 5. Temperature sensor characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Table 6. SPI slave timing values. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Table 7. I2C slave timing values . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Table 8. Absolute maximum ratings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Table 9. Part list . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Table 10. Serial interface pin description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Table 11. Serial interface pin description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Table 12. Transfer when master is writing one byte to slave . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Table 13. Transfer when master is writing multiple bytes to slave:. . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Table 14. Transfer when master is receiving (reading) one byte of data from slave: . . . . . . . . . . . . . 23

Table 15. Transfer when master is receiving (reading) multiple bytes of data from slave . . . . . . . . . 23

Table 16. Linear acceleration SAD+Read/Write patterns . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

Table 17. Angular rate SAD+Read/Write patterns . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

Table 18. Register address map. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

Table 19. CTRL_REG1_A register . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

Table 20. CTRL_REG1_A description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

Table 21. Data rate configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

Table 22. CTRL_REG2_A register . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

Table 23. CTRL_REG2_A description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

Table 24. High pass filter mode configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

Table 25. CTRL_REG3_A register . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

Table 26. CTRL_REG3_A description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

Table 27. CTRL_REG4_A register . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

Table 28. CTRL_REG4_A description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

Table 29. CTRL_REG5_A register . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

Table 30. CTRL_REG5_A description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

Table 31. CTRL_REG6_A register . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

Table 32. CTRL_REG6 description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

Table 33. REFERENCE_A register . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

Table 34. REFERENCE register description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

Table 35. STATUS_REG_A register . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

Table 36. STATUS_REG_A register description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

Table 37. FIFO_CTRL_REG_A register . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

Table 38. FIFO_CTRL_REG_A register description. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

Table 39. FIFO mode configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

Table 40. FIFO_SRC_REG_A register . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

Table 41. INT1_CFG_REG_A register . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

Table 42. INT1_CFG_REG_A description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

Table 43. Interrupt mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

Table 44. INT1_SRC_A register . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

Table 45. INT1_SRC_A description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

Table 46. INT1_THS_A register . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

Table 47. INT1_THS_A description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

Table 48. INT1_DURATION_Aregister . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

Doc ID 018845 Rev 1 5/53

Page 6

List of tables LSM320DL

Table 49. INT1_DURATION_A description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

Table 50. CLICK_CFG_A register . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

Table 51. CLICK_CFG_A description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

Table 52. CLICK_SRC_A register . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

Table 53. CLICK_SRC_A description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

Table 54. CLICK_THS_A register. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

Table 55. CLICK_SRC_A description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

Table 56. TIME_LIMIT_A register. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

Table 57. TIME_LIMIT_A description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

Table 58. TIME_LATENCY_A register . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

Table 59. TIME_LATENCY_A description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

Table 60. TIME_WINDOW_A register . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

Table 61. TIME_WINDOW_A description. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

Table 62. CTRL_REG1_G register . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

Table 63. CTRL_REG1_G description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

Table 64. DR and BW configuration setting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40

Table 65. Power mode selection configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40

Table 66. CTRL_REG2_G register . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40

Table 67. CTRL_REG2_G description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41

Table 68. High pass filter mode configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41

Table 69. High pass filter cut-off frequency configuration [Hz] . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41

Table 70. CTRL_REG1_G register . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41

Table 71. CTRL_REG3_G description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41

Table 72. CTRL_REG4_G register . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42

Table 73. CTRL_REG4_G description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42

Table 74. CTRL_REG5_G register . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42

Table 75. CTRL_REG5_G description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42

Table 76. Out_Sel configuration setting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43

Table 77. INT_SEL configuration setting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43

Table 78. REFERENCE_G register . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44

Table 79. REFERENCE_G register description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44

Table 80. OUT_TEMP_G register . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44

Table 81. OUT_TEMP_G register description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44

Table 82. STATUS_REG_G register . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44

Table 83. STATUS_REG_G description. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44

Table 84. REFERENCE_G register . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45

Table 85. REFERENCE_G register description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45

Table 86. FIFO mode configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45

Table 87. FIFO_SRC_G register . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45

Table 88. FIFO_SRC_G register description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46

Table 89. INT1_CFG_G register. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46

Table 90. INT1_CFG_G description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46

Table 91. INT1_SRC_G register. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46

Table 92. INT1_SRC_G description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47

Table 93. INT1_THS_XH_G register . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47

Table 94. INT1_THS_XH_G description. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47

Table 95. INT1_THS_XL_G register. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47

Table 96. INT1_THS_XL_G description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47

Table 97. INT1_THS_ZH_G register . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47

Table 98. INT1_THS_ZH_G description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48

Table 99. INT1_THS_ZL_G register . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48

6/53 Doc ID 018845 Rev 1

Page 7

LSM320DL List of tables

Table 100. INT1_THS_ZL_G description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48

Table 101. INT1_DURATION_G register . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48

Table 102. INT1_DURATION_G description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48

Table 103. LGA 28L 7.5 x 4.4 x 1.1 mechanical data. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51

Table 104. Document revision history . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52

Doc ID 018845 Rev 1 7/53

Page 8

List of figures LSM320DL

List of figures

Figure 1. Block diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Figure 2. Pin connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Figure 3. SPI slave timing diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Figure 4. I2C slave timing diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Figure 5. LSM320DL electrical connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Figure 6. Read and write protocol . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

Figure 7. SPI read protocol . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

Figure 8. Multiple bytes SPI read protocol (2 bytes example) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

Figure 9. SPI write protocol . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

Figure 10. Multiple bytes SPI write protocol (2 bytes example) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

Figure 11. SPI read protocol in 3-wire mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

Figure 12. INT1_Sel and Out_Sel configuration block diagram. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43

Figure 13. Wait disabled . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49

Figure 14. Wait enabled . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49

Figure 15. LGA 28L 7.5 x 4.4 x 1.1 package drawing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51

8/53 Doc ID 018845 Rev 1

Page 9

LSM320DL Block diagram and pin description

1 Block diagram and pin description

1.1 Block diagram

Figure 1. Block diagram

I (a)

I (Ω)

Sensing Block

Feedback+

Feedback-

Drive-

Drive+

X+

Sensing Interface

Y+

Z+

Z-

Y-

X-

X+

Z+

Z-

X-

MUX

VOLTAGE

GAIN

AMPLIFIER

CHARGE AMPLIFIER

DEMODULATOR

ANALOG CONDITIONING

A/D Control

LOW-PASS

FILTER

AUTOMATIC

GAIN

CONTROL

Logicconverter

I2C/SPI

CS_A/G

SDA/SDI_A/G

SDO_A/G

INT1_A

INT2_A

INT_G

DRDY_G

SCL_A/G

REFERENCE

CONTROL LOGIC

INTERRUPT GEN.

TRIMMING

CIRCUITS

SET/RESET

CIRCUITS

CLOCK

PHASE

GENERATOR

AM09273V1

Doc ID 018845 Rev 1 9/53

Page 10

Block diagram and pin description LSM320DL

1.2 Pin description

Figure 2. Pin connection

+ Ω

DIRECTION OF DETECTABLE

ACCELERATIONS

DIRECTION OF

+Ω

DETECTABLE

VddIO_A

Res

VCONT

GND

ANGULAR RATE

Res

SDO_A

SDA/SDI_A

(BOTTOM VIEW)

Res

Vdd

SCL_A

LSM320DL

INT_G

Res

DRDY_G

INT1_A

FILTVDD

FILTIN Y

Res

SDO_G

INT2_A

CS_A

CS_G

SDA/SDI_G

Res

Vdd_IO_G

SCL_G

Res

Vdd

Res

AM09274V1

Table 2. Pin description

Pin# Name Function

Accelerometer:

1SDA/SDI_A

2 Res Reserved connect to GND

3SDO_A

4SCL_A

5 DRDY_G Gyroscope data ready

6 INT1_A Accelerometer interrupt signal

I2C serial data (SDA) SPI serial data input (SDI) 3-wire interface serial data output (SDO)

Accelerometer: SPI serial data output (SDO)

C least significant bit of the device address (SA0)

Accelerometer:

C serial clock (SCL)

SPI serial port clock (SPC)

Gyroscope:

7SDO_G

SPI serial data output (SDO)

C least significant bit of the device address (SA0)

8 INT2_A Accelerometer interrupt signal

Gyroscope:

9SDA/SDI_G

I2C serial data (SDA) SPI serial data input (SDI) 3-wire interface serial data output (SDO)

10/53 Doc ID 018845 Rev 1

Page 11

LSM320DL Block diagram and pin description

Table 2. Pin description (continued)

Pin# Name Function

Gyroscope:

10 CS_G

11 Res Reserved connect to GND

12 VddIO_G Gyroscope power supply for IO pins

13 SCL_G

14 Res Reserved connect to GND

15 Vdd Power supply

16 Res Reserved connect to GND

17 CS_A

18 Res Reserved connect to GND

19 Res Reserved connect to GND

SPI enable

C/SPI mode selection (1: SPI idle mode / I2C communication

I enabled; 0: SPI communication mode / I2C disabled)

Gyroscope:

C serial clock (SCL)

SPI serial port clock (SPC)

Accelerometer: SPI enable

C/SPI mode selection (1: SPI idle mode / I2C communication

I enabled; 0: SPI communication mode / I

C disabled)

20 Res Reserved connect to GND

21 INT_G Gyroscope interrupt signal

22 Vdd Power supply

23 Res Reserved connect to GND

24 Res Reserved connect to GND

25 GND 0 V power supply

26 VCONT PLL filter connection

27 Res Reserved connect to GND

28 VddIO_A Accelerometer power supply for IO pins

Doc ID 018845 Rev 1 11/53

Page 12

Module specifications LSM320DL

zHz

2 Module specifications

2.1 Mechanical characteristics

@ Vdd = 3V, T = 25 °C unless otherwise noted

Table 3. Mechanical characteristics

Symbol Parameter Test conditions Min. Typ.

FS bit set to 00 ±2.0

LA_FS

G_FS

LA_So

G_So Angular rate sensitivity

LA_So

G_So

LA_TyOff

G_TyOff Typical zero-rate level

LA_TCOff

G_TCOff

An Acceleration noise density

Rn Rate noise density FS bit set to 00 0.03 °/s/

Top Operating temperature range -40 +85 °C

Linear acceleration measurement range

Angular rate measurement range

Linear acceleration sensitivity

Linear acceleration sensitivity change vs.

temperature

Angular rate sensitivity change vs. temperature

Typical Zero-g level offset accuracy

Zerotemperature

Zero-rate level change vs. temperature

(3)

g level change vs.

(2)

(4)

FS bit set to 01 ±4.0

FS bit set to 10 ±8.0

FS bit set to 11 ±16.0

FS bit set to 00 ±250

FS bit set to 10 ±2000

FS bit set to 00 1

FS bit set to 01 2

FS bit set to 10 4

FS bit set to 11 12

FS bit set to 00 8.75

FS bit set to 01 17.5

FS bit set to 10 70

FS bit set to 00 ±0.05 %/°C

From -40 to +85 °C ±2 %

FS bit set to 00 ±60 mg

FS bit set to 00 10 LSb

Max. delta from 25 °C ±0.5 m

FS bit set to 00 from -40 to +85 °C

FS bit set to 00 Normal mode, ODR bit set to

1001

(a)

(1)

Max. Unit

dpsFS bit set to 01 ±500

mg/digit

mdps/

digit

g/°C

±0.03 dps/°C

220 µ

a. The product is factory calibrated at 3 V. The operational power supply range is from 2.4 V to 3.6 V.

12/53 Doc ID 018845 Rev 1

Page 13

LSM320DL Module specifications

1. Typical specifications are not guaranteed.

2. Verified by wafer level test and measurement of initial offset and sensitivity.

3. Typical Zero-g level offset value after MSL3 preconditioning.

4. Offset can be eliminated by enabling the built-in high pass filter.

2.2 Electrical characteristics

@ Vdd = 3 V, T = 25 °C unless otherwise noted.

Table 4. Electrical characteristics

Symbol Parameter Test conditions Min. Typ.

Vdd Supply voltage 2.4 3.6 V

Vdd_IO Power supply for I/O 1.71 Vdd+0.1 V

(1)

Max. Unit

LA_Idd

LA_IddLowP

LA_IddPdn

G_Idd

G_IddSL

G_IddPdn

LA current consumption in normal mode

LA current consumption in low power mode

LA current consumption in power-down mode

AR current consumption in normal mode

Supply current in sleep mode

(2)

AR current consumption in power-down mode

ODR = 50Hz 11

ODR = 1Hz 2

ODR = 50Hz 6 µA

T = 25°C 0.5 µA

6mA

1.5 mA

T = 25 °C 5 µA

VIH Digital high level input voltage 0.8*Vdd_IO V

VIL Digital low level input voltage 0.2*Vdd_IO V

VOH High level output voltage 0.9*Vdd_IO V

VOL Low level output voltage 0.1*Vdd_IO V

Top Operating temperature range -40 +85 °C

1. Typical specifications are not guaranteed.

2. Sleep mode introduces a faster turn-on time compared to power-down mode.

µA

Doc ID 018845 Rev 1 13/53

Page 14

Module specifications LSM320DL

2.3 Temperature sensor characteristics

@ Vdd =3.0 V, T= 25 °C, unless otherwise noted.

Table 5. Temperature sensor characteristics

Symbol Parameter Test condition Min. Typ.

Temperature sensor

TSDr

TODR

To p

1. Typical specifications are not guaranteed.

output change vs. temperature

Temperature refresh rate

Operating temperature range

(b)

(1)

-1 °C/digit

1Hz

-40 +85 °C

Max. Unit

b. The product is factory calibrated at 3.0 V.

14/53 Doc ID 018845 Rev 1

Page 15

LSM320DL Module specifications

2.4 Communication interface characteristics

2.4.1 SPI - serial peripheral interface

Subject to general operating conditions for Vdd and Top.

Table 6. SPI slave timing values

(1)

Val ue

Symbol Parameter

Min. Max.

tc(SPC) SPI clock cycle 100 ns

fc(SPC) SPI clock frequency 10 MHz

tsu(CS) CS setup time 6

th(CS) CS hold time 8

tsu(SI) SDI input setup time 5

th(SI) SDI input hold time 15

tv(SO) SDO valid output time 50

th(SO) SDO output hold time 9

tdis(SO) SDO output disable time 50

Unit

1. Values are guaranteed at 10 MHz clock frequency for SPI with both 4 and 3 wires, based on characterization results, not tested in production.

(c)

h(SI)

h(CS)

LSB IN

LSB OUT

dis(SO)

v(SO)

c(SPC)

h(SO)

Figure 3. SPI slave timing diagram

(3)

su(CS)

SPC

(3)

su(SI)

(3)

SDI

(3)

SDO

3. When no communication is on-going, data on CS, SPC, SDI, and SDO are driven by internal pull-up resistors.

MSB IN

MSB OUT

(3)

c. Measurement points are done at 0.2·Vdd_IO and 0.8·Vdd_IO, for both input and output ports.

Doc ID 018845 Rev 1 15/53

Page 16

Module specifications LSM320DL

2.4.2 I2C - inter IC control interface

Subject to general operating conditions for Vdd and Top.

Table 7. I2C slave timing values

Symbol Parameter

I2C standard mode

(1)

I2C fast mode

Min. Max. Min. Max.

(1)

Unit

(SCL)

w(SCLL)

w(SCLH)

su(SDA)

h(SDA)

r(SDA) tr(SCL)

f(SDA) tf(SCL)

h(ST)

su(SR)

su(SP)

w(SP:SR)

1. Data based on standard I2C protocol requirement, not tested in production.

2. Cb = total capacitance of one bus line, in pF.

Figure 4. I

SCL clock frequency 0 100 0 400 KHz

SCL clock low time 4.7 1.3

SCL clock high time 4.0 0.6

SDA setup time 250 100 ns

SDA data hold time 0,01 3.45 0 0.9 µs

SDA and SCL rise time 1000

SDA and SCL fall time 300

START condition hold time 4 0.6

Repeated START condition setup time

4.7 0.6

STOP condition setup time 4 0.6

Bus free time between STOP and START condition

C slave timing diagram

(d)

4.7 1.3

20 + 0.1C

(2)

µs

300

µs

START

SDA

f(SDA)

r(SDA)

su(SDA)

h(SDA)

SCL

w(SCLL)

h(ST)

d. Measurement points are done at 0.2·Vdd_IO and 0.8·Vdd_IO, for both ports.

w(SCLH)

r(SCL)

f(SCL)

16/53 Doc ID 018845 Rev 1

su(SR)

su(SP)

w(SP:SR)

REPEATED

START

STOP

AM09238V1

Page 17

LSM320DL Module specifications

2.5 Absolute maximum ratings

Stresses above those listed as “absolute maximum ratings” may cause permanent damage to the device. This is a stress rating only and functional operation of the device under these conditions is not implied. Exposure to maximum rating conditions for extended periods may affect device reliability.

Table 8. Absolute maximum ratings

Symbol Ratings Maximum value Unit

Vdd Supply voltage -0.3 to 4.8 V

Vdd_IO I/O pins supply voltage -0.3 to 4.8 V

Vin Input voltage on any control pin (SCL, SDA/SDI) -0.3 to Vdd_IO +0.3 V

POW

Acceleration (any axis, powered, Vdd = 3 V)

10000 g for 0.1 ms

3000 g for 0.5 ms

UNP

STG

Acceleration (any axis, unpowered)

10000 g for 0.1 ms

Operating temperature range -40 to +85 °C

Storage temperature range -40 to +125 °C

ESD Electrostatic discharge protection 2 (HBM) kV

This is a mechanical shock sensitive device, improper handling can cause permanent damage to the part

This is an ESD sensitive device, improper handling can cause permanent damage to the part

Doc ID 018845 Rev 1 17/53

Page 18

Module specifications LSM320DL

2.6 Terminology

2.6.1 Sensitivity

Linear acceleration sensitivity can be determined, for example, by applying 1 g acceleration to the device. As the sensor can measure DC accelerations this can be done easily by pointing the axis of interest towards the center of the Earth, noting the output value, rotating the sensor by 180 degrees (pointing to the sky) and noting the output value again. By doing so, ±1 g acceleration is applied to the sensor. Subtracting the larger output value from the smaller one, and dividing the result by 2, leads to the actual sensitivity of the sensor. This value changes very little over temperature and also very little over time. The sensitivity tolerance describes the range of sensitivities of a large population of sensors.

Angular rate sensitivity describes the angular rate gain of the sensor and can be determined by applying a defined angular velocity to it. This value changes very little over temperature and also very little over time.

2.6.2 Zero level

Linear acceleration Zero-g level offset (TyOff) describes the deviation of an actual output signal from the ideal output signal if no acceleration is present. A sensor in a steady-state on a horizontal surface measures 0 g in the X axis and 0 g in the Y axis, whereas the Z axis measures 1 g. The output is ideally in the middle of the dynamic range of the sensor (content of OUT registers 00h, data expressed as 2’s complement number). A deviation from the ideal value in this case is called Zero-g offset. Offset is, to some extent, a result of stress to the MEMS sensor and therefore the offset can slightly change after mounting the sensor onto a printed circuit board or exposing it to extensive mechanical stress. The offset changes little over temperature, see “Zero-g level change vs. temperature”. The Zero-g level tolerance (TyOff) describes the standard deviation of the range of Zero-g levels of a population of sensors.

Angular rate zero-rate level describes the actual output value if there is no angular rate present. The zero-rate level of precise MEMS sensors is, to some extent, a result of stress to the sensor and therefore zero-rate level can slightly change after mounting the sensor onto a printed circuit board or after exposing it to extensive mechanical stress. This value changes very little over temperature and also very little over time.

18/53 Doc ID 018845 Rev 1

Page 19

LSM320DL Functionality

3 Functionality

The LSM320DL is a system-in-package featuring a 3D digital accelerometer and a 2D digital gyroscope.

The complete device includes specific sensing elements and two IC interfaces able to measure both the acceleration and angular rate applied to the module and to provide a signal to the external world through an SPI/I

The LSM320DL may also be configured to generate an inertial wake-up and free-fall interrupt signal according to a programmed acceleration event along the enabled axes.

3.1 Factory calibration

The IC interface is factory calibrated for sensitivity and zero level. The trimming values are stored inside the device by a non-volatile memory. Any time the device is turned on, the trimming parameters are downloaded into the registers to be used during the normal operation. This allows the user to use the device without further calibration.

C serial interface.

Doc ID 018845 Rev 1 19/53

Page 20

Application hints LSM320DL

4 Application hints

Figure 5. LSM320DL electrical connection

Vdd_IO

Reserved pins have to be connected to GND

SDA/SDI_G

GND

CS_G

Res

Vdd_IO_G

SCL_G

Res

Vdd

Digital signal from/to signal controller.Signals levels are defined by proper selection of Vdd

Table 9. Part list

Component Typical value

DRDY_G

SDO_G

INT2_A

INT1_A

LSM320DL

(TOP VIEW)

FILTVDD

FILTIN Y

CS_A

Res

Vdd_IO

SDA/SDI_A

SDO_A

SCL_A

Res

VddIO_A

Res

VCONT

GND

Res

INT_G

Vdd

Res

R2C2

DIRECTION OF DETECTABLE ACCELERATIONS

+Ω

DIRECTION OF DETECTABLE ANGULAR RATE

+Ω

GND

AM09275V1

C1 10 nF

C2 470 nF

C3 10 µF

C4 100 nF

C5 100 nF

R2 10 kOhm

4.1 External capacitors

The device core is supplied through Vdd line. Power supply decoupling capacitors (C4=100 nF ceramic, C3=10 µF Al) should be placed as near as possible to the supply pin of the device (common design practice).

All the voltage and ground supplies must be present at the same time to have proper behavior of the IC (refer to Figure 5).

The functionality of the device and the measured acceleration/angular rate data is selectable and accessible through the SPI/I

C interface.

20/53 Doc ID 018845 Rev 1

Page 21

LSM320DL Application hints

The functions, the threshold, and the timing of the two interrupt pins for each sensor can be completely programmed by the user though the SPI/I

4.2 Soldering information

The LGA package is compliant with the ECOPACK®, RoHS and “Green” standard. It is qualified for soldering heat resistance according to JEDEC J-STD-020D.

Leave “Pin 1 Indicator” unconnected during soldering.

Land pattern and soldering recommendations are available at www.st.com/mems

C interface.

Doc ID 018845 Rev 1 21/53

Page 22

Digital interfaces LSM320DL

5 Digital interfaces

The registers embedded inside the LSM320DL may be accessed through both the I2C and SPI serial interfaces. The latter may be SW configured to operate either in 3-wire or 4-wire interface mode.

To select/exploit the I

Table 10. Serial interface pin description

Pin name Pin description

C interface, CS line must be tied high (i.e. connected to Vdd_IO).

CS_A

CS_G

SCL_A SCL_G

SDA/SDI_A

SDA/SDI_G

SDO_A SDO_G

Linear acceleration SPI enable Linear acceleration I2C/SPI mode selection (1: I2C mode; 0: SPI enabled)

Angular Rate SPI enable Angular Rate I

C serial clock (SCL)

I SPI serial port clock (SPC)

C serial data (SDA) SPI serial data input (SDI) 3-wire interface serial data output (SDO)

C less significant bit of the device address (SA0)

I SPI serial data output (SDO)

5.1 I2C serial interface

The LSM320DL I2C is a bus slave. The I2C is employed to write the data into the registers whose content can also be read back.

The relevant I

Table 11. Serial interface pin description

C terminology is given in the table below.

Term Description

C/SPI mode selection (1: I2C mode; 0: SPI enabled)

Transmitter The device which sends data to the bus

Receiver The device which receives data from the bus

Master

Slave The device addressed by the master

The device which initiates a transfer, generates clock signals and terminates a transfer

There are two signals associated with the I2C bus: the serial clock line (SCL) and the serial data line (SDA). The latter is a bidirectional line used for sending and receiving the data to/from the interface.

22/53 Doc ID 018845 Rev 1

Page 23

LSM320DL Digital interfaces

5.1.1 I2C operation

The transaction on the bus is started through a START (ST) signal. A START condition is defined as a HIGH to LOW transition on the data line while the SCL line is held HIGH. After this has been transmitted by the master, the bus is considered busy. The next byte of data transmitted after the start condition contains the address of the slave in the first 7 bits and the eighth bit tells whether the master is receiving data from the slave or transmitting data to the slave. When an address is sent, each device in the system compares the first seven bits after a start condition with its address. If they match, the device considers itself addressed by the master.

Data transfer with acknowledge is mandatory. The transmitter must release the SDA line during the acknowledge pulse. The receiver must then pull the data line LOW so that it remains stable low during the HIGH period of the acknowledge clock pulse. A receiver which has been addressed is obliged to generate an acknowledge after each byte of data received.

The I

C embedded inside the LSM320DL behaves as a slave device and the following protocol must be adhered to. After the start condition (ST), a slave address is sent, once a slave acknowledge (SAK) has been returned, an 8-bit sub-address (SUB) is transmitted: the 7 LSb represent the actual register address while the MSB enables address auto increment. If the MSb of the SUB field is ‘1’, the SUB (register address) is automatically increased to allow multiple data read/write.

Table 12. Transfer when master is writing one byte to slave

Master ST SAD + W SUB DATA SP

Slave SAK SAK SAK

Table 13. Transfer when master is writing multiple bytes to slave:

Master ST SAD + W SUB DATA DATA SP

Slave SAK SAK SAK SAK

Table 14. Transfer when master is receiving (reading) one byte of data from slave:

Master ST SAD + W SUB SR SAD + R NMAK SP

Slave SAK SAK SAK DATA

Table 15. Transfer when master is receiving (reading) multiple bytes of data from slave

Master ST SAD+W SUB SR SAD+R MAK MAK NMAK SP

Slave SAK SAK SAK DATA DATA DATA

Data are transmitted in byte format (DATA). Each data transfer contains 8 bits. The number of bytes transferred per transfer is unlimited. Data is transferred with the most significant bit (MSb) first. If a receiver can’t receive another complete byte of data until it has performed some other function, it can hold the clock line, SCL LOW, to force the transmitter into a wait

Doc ID 018845 Rev 1 23/53

Page 24

Digital interfaces LSM320DL

state. Data transfer only continues when the receiver is ready for another byte and releases the data line. If a slave receiver doesn’t acknowledge the slave address (i.e. it is not able to receive because it is performing some real time function), the data line must be left HIGH by the slave. The master can then abort the transfer. A LOW to HIGH transition on the SDA line while the SCL line is HIGH is defined as a STOP condition. Each data transfer must be terminated by the generation of a STOP (SP) condition.

In order to read multiple bytes, it is necessary to assert the most significant bit of the subaddress field. In other words, SUB(7) must be equal to 1 while SUB(6-0) represents the address of the first register to be read.

In the presented communication format, MAK is Master Acknowledge, and NMAK is No Master Acknowledge.

Default address:

The SDO/SA0 pad can be used to modify less significant bits of the device address. If the SA0 pad is connected to voltage supply, LSb is ‘1’ (ex. address 0011001b), or else, if the SA0 pad is connected to ground, the LSb value is ‘0’ (ex address 0011000b).

The slave address is completed with a Read/Write bit. If the bit is ‘1’ (Read), a repeated START (SR) condition must be issued after the two sub-address bytes; if the bit is ‘0’ (Write) the master transmits to the slave with direction unchanged. Table 16 and Table 17 explain how the SAD+Read/Write bit pattern is composed, listing all the possible configurations.

Linear acceleration address: the default (factory) 7-bit slave address is 001100xb.

Table 16. Linear acceleration SAD+Read/Write patterns

Command SAD[6:1] SAD[0] = SA0 R/W SAD+R/W

Read 001100 0 1 00110001 (31h)

Write 001100 0 0 00110000 (30h)

Read 001100 1 1 00110011 (33h)

Write 001100 1 0 00110010 (32h)

Angular rate sensor: the default (factory) 7-bit slave address is 110100xb.

Table 17. Angular rate SAD+Read/Write patterns

Command SAD[6:1] SAD[0] = SA0 R/W SAD+R/W

Read 110100 0 1 11010001 (F1h)

Write 110100 0 0 11010000 (F0h)

Read 110100 1 1 11010011 (F3h)

Write 110100 1 0 11010010 (F2h)

24/53 Doc ID 018845 Rev 1

Page 25

LSM320DL Digital interfaces

5.2 SPI bus interface

The LSM320DL SPI is a bus slave. The SPI allows to write and read the registers of the device.

The serial interface interacts with the outside world with 4 wires: CS, SPC, SDI, and

SDO.(SPC, SDI, SD0 are common)

Figure 6. Read and write protocol

SPC

SDI

AD5 AD4 AD3 AD2 AD1 AD0

SDO

CS is the serial port enable and it is controlled by the SPI master. It goes low at the start of the transmission and returns to high at the end. SPC is the serial port clock and it is controlled by the SPI master. It is stopped high when CS is high (no transmission). SDI and SDO are respectively the serial port data input and output. Those lines are driven at the falling edge of SPC and should be captured at the rising edge of SPC.

DI7DI6DI5DI4DI3DI2DI1DI0

DO7DO6DO5DO4DO3DO2DO1DO0

Both the read register and write register commands are completed in 16 clock pulses or in multiples of 8 in case of multiple bytes read/write. Bit duration is the time between two falling edges of SPC. The first bit (bit 0) starts at the first falling edge of SPC after the falling edge of CS while the last bit (bit 15, bit 23, ...) starts at the last falling edge of SPC just before the rising edge of CS.

bit 0: RW

bit. When 0, the data DI(7:0) is written into the device. When 1, the data DO(7:0)

from the device is read. In the latter case, the chip drives SDO at the start of bit 8.

bit 1: MS

bit. When 0, the address remains unchanged in multiple read/write commands.

When 1, the address is auto incremented in multiple read/write commands.

bit 2-7: address AD(5:0). This is the address field of the indexed register.

bit 8-15: data DI(7:0) (write mode). This is the data that is written into the device (MSb first).

bit 8-15: data DO(7:0) (read mode). This is the data that is read from the device (MSb first).

In multiple read/write commands, further blocks of 8 clock periods are added. When the MS bit is ‘0’, the address used to read/write data remains the same for every block. When the MS

bit is ‘1’, the address used to read/write data is increased at every block.

The function and the behavior of SDI and SDO remain unchanged.

Doc ID 018845 Rev 1 25/53

Page 26

Digital interfaces LSM320DL

5.2.1 SPI read

Figure 7. SPI read protocol

SPC

SDI

AD5 AD4 AD3 AD2 AD1 AD0

SDO

DO7 DO6 DO5DO4 DO3 DO2 DO1 DO0

The SPI Read command is performed with 16 clock pulses. Multiple byte read command is performed adding blocks of 8 clock pulses at the previous one.

bit 0: READ bit. The value is 1.

bit 1: MS

bit. When 0, do not increment address, when 1, increment address in multiple

reading.

bit 2-7: address AD(5:0). This is the address field of the indexed register.

bit 8-15: data DO(7:0) (read mode). This is the data that is read from the device (MSb first).

bit 16-... : data DO(...-8). Further data in multiple byte reading.

Figure 8. Multiple bytes SPI read protocol (2 bytes example)

SPC

SDI

SDO

5.2.2 SPI write

Figure 9. SPI write protocol

AD5 AD4 AD3 AD2 AD1 AD0

DO7DO6DO5DO4DO3DO2DO1DO0

DO15 DO14 DO13 DO12 DO11 DO10 DO9 DO8

SPC

SDI

AD5 AD4 AD3 AD2 AD1 AD0MS

DI7 DI6 DI5 DI4 DI3 DI2 DI1 DI0

The SPI write command is performed with 16 clock pulses. Multiple byte write command is performed adding blocks of 8 clock pulses at the previous one.

26/53 Doc ID 018845 Rev 1

Page 27

LSM320DL Digital interfaces

bit 0: WRITE bit. The value is 0.

bit 1: MS

bit. When 0, do not increment address, when 1, increment address in multiple

writing.

bit 2 -7: address AD(5:0). This is the address field of the indexed register.

bit 8-15: data DI(7:0) (write mode). This is the data that is written inside the device (MSb

first).

bit 16-... : data DI(...-8). Further data in multiple byte writing.

Figure 10. Multiple bytes SPI write protocol (2 bytes example)

SPC

SDI

AD5 AD4 AD3 AD2 AD1 AD0

5.2.3 SPI read in 3-wire mode

3-wire mode is entered by setting to ‘1’ bit SIM (SPI serial interface mode selection) in CTRL_REG4.

DI7 DI6 DI5 DI4 DI3 DI2 DI1 DI0 DI15 DI14 DI13 DI12 DI11 DI10 DI9 DI8

Figure 11. SPI read protocol in 3-wire mode

SPC

SDI/O

AD5 AD4 AD3 AD2 AD1 AD0

DO7 DO6 DO5 DO4 DO3 DO2 DO1 DO0

The SPI read command is performed with 16 clock pulses:

bit 0: READ bit. The value is 1.

bit 1: MS

bit. When 0, do not increment address, when 1, increment address in multiple

reading.

bit 2-7: address AD(5:0). This is the address field of the indexed register.

bit 8-15: data DO(7:0) (read mode). This is the data that is read from the device (MSb first).

Multiple read command is also available in 3-wire mode.

Doc ID 018845 Rev 1 27/53

Page 28

6 Register mapping

Table 18 below provides a listing of the 8-bit registers embedded in the device and the

related addresses:

Table 18. Register address map

Name

Reserved (do not modify) 001100xb 00 - 1F Reserved

CTRL_REG1_A 001100xb rw 20 010 0000 00000111

CTRL_REG2_A 001100xb rw 21 010 0001 00000000

CTRL_REG3_A 001100xb rw 22 010 0010 00000000

CTRL_REG4_A 001100xb rw 23 010 0011 00000000

CTRL_REG5_A 001100xb rw 24 010 0100 00000000

CTRL_REG6_A 001100xb rw 25 010 0101 00000000

REFERENCE_A 001100xb rw 26 010 0110 00000000

STATUS_REG_A 001100xb r 27 010 0111 00000000

OUT_X_L_A 001100xb r 28 010 1000 output

OUT_X_H_A 001100xb r 29 010 1001 output

OUT_Y_L_A 001100xb r 2A 010 1010 output

OUT_Y_H_A 001100xb r 2B 010 1011 output

OUT_Z_L_A 001100xb r 2C 010 1100 output

OUT_Z_H_A 001100xb r 2D 010 1101 output

FIFO_CTRL_REG 001100xb rw 2E 010 1110 00000000

Slave

Address

Typ e

Default Comment

Hex Binary

FIFO_SRC_REG 001100xb r 2F 010 1111

INT1_CFG_A 001100xb rw 30 011 0000 00000000

INT1_SOURCE_A 001100xb r 31 011 0001 00000000

INT1_THS_A 001100xb rw 32 011 0010 00000000

INT1_DURATION_A 001100xb rw 33 011 0011 00000000

INT2_CFG_A 001100xb rw 34 011 0100 00000000

INT2_SOURCE_A 001100xb r 35 011 0101 00000000

INT2_THS_A 001100xb rw 36 011 0110 00000000

INT2_DURATION_A 001100xb rw 37 011 0111 00000000

CLICK_CFG_A 001100xb rw 38 011 1000 00000000 CLICK_SRC_A 001100xb rw 39 011 1001 00000000 CLICK_THS_A 001100xb rw 3A 011 1010 00000000 TIME_LIMIT_A 001100xb rw 3B 011 1011 00000000

28/53 Doc ID 018845 Rev 1

Page 29

LSM320DL Register mapping

Table 18. Register address map (continued)

Name

TIME_LATENCY_A 001100xb rw 3C 011 1 100 00000000 TIME_WINDOW_A 001100xb rw 3D 01 1 1101 00000000

Reserved (do not modify) 001100xb 3E-3F - - Reserved

Reserved 110100xb - 00-1E - - Reserved

CTRL_REG1_G 110100xb rw 20 010 0000 00000111

CTRL_REG2_G 110100xb rw 21 010 0001 00000000

CTRL_REG3_G 110100xb rw 22 010 0010 00000000

CTRL_REG4_G 110100xb rw 23 010 0011 00000000

CTRL_REG5_G 110100xb rw 24 010 0100 00000000

REFERENCE_G 110100xb rw 25 010 0101 00000000

OUT_TEMP_G 110100xb r 26 010 0110 output

STATUS_REG_G 110100xb r 27 010 0111 output

OUT_X_L_G 110100xb r 28 010 1000 output

OUT_X_H_G 110100xb r 29 010 1001 output

Reserved 110100xb r 2A - - Reserved

Slave

Address

Typ e

Default Comment

Hex Binary

Reserved 110100xb r 2B - - Reserved

OUT_Z_L_G 110100xb r 2C 010 1100 output

OUT_Z_H_G 110100xb r 2D 010 1101 output

FIFO_CTRL_REG_G 110100xb rw 2E 010 1110 00000000

FIFO_SRC_REG_G 110100xb r 2F 010 1111 output

INT1_CFG_G 110100xb rw 30 011 0000 00000000

INT1_SRC_G 110100xb r 31 011 0001 output

INT1_TSH_XH_G 110100xb rw 32 011 0010 00000000

INT1_TSH_XL_G 110100xb rw 33 011 0011 00000000

Reserved 110100xb rw 34 - - Reserved

Reserved 110100xb rw 35 - - Reserved

INT1_TSH_ZH_G 110100xb rw 36 011 0110 00000000

INT1_TSH_ZL_G 110100xb rw 37 011 0111 00000000

INT1_DURATION_G 110100xb rw 38 011 1000 00000000

Registers marked as Reserved must not be changed. The writing to those registers may cause permanent damage to the device.

The content of the registers that are loaded at boot should not be changed. They contain the factory calibration values. Their content is automatically restored when the device is powered up.

Doc ID 018845 Rev 1 29/53

Page 30

Registers description LSM320DL

7 Registers description

The device contains a set of registers which are used to control its behavior and to retrieve acceleration, angular rate and temperature data. The registers address, made of 7 bits, is used to identify them and to write the data through serial interface.

7.1 CTRL_REG1_A (20h)

Table 19. CTRL_REG1_A register

ODR3 ODR2 ODR1 ODR0 LPen Zen Yen Xen

Table 20. CTRL_REG1_A description

ODR3-0

LPen

Zen

Ye n

Xen

Data rate selection. Default value: 0 (0000: power-down; Others: refer to Table 21., “Data rate configuration”)

Low power mode enable. Default value: 0 (0: normal mode; 1: low power mode)

Z axis enable. Default value: 1 (0: Z axis disabled; 1: Z axis enabled)

Y axis enable. Default value: 1 (0: Y axis disabled; 1: Y axis enabled)

X axis enable. Default value: 1 (0: X axis disabled; 1: X axis enabled)

ODR<3:0> is used to set power mode and ODR selection. In Table 21 all the frequencies resulting in a combination of ODR<3:0> are reported.

Table 21. Data rate configuration

ODR3 ODR2 ODR1 ODR0 Power mode selection

0000Power down mode

0 0 0 1 Normal / low power mode (1 Hz)

0 0 1 0 Normal / low power mode (10 Hz)

0 0 1 1 Normal / low power mode (25 Hz)

0 1 0 0 Normal / low power mode (50 Hz)

0 1 0 1 Normal / low power mode (100 Hz)

0 1 1 0 Normal / low power mode (200 Hz)

0 1 1 1 Normal / low power mode (400 Hz)

1000Low power mode (1.620 kHz)

1 0 0 1 Normal (1.344 kHz) / Low Power mode (5.376 kHz)

30/53 Doc ID 018845 Rev 1

Page 31

LSM320DL Registers description

7.2 CTRL_REG2_A (21h)

Table 22. CTRL_REG2_A register

HPM1 HPM0 HPCF2 HPCF1 FDS HPCLICK HPIS2 HPIS1

Table 23. CTRL_REG2_A description

HPM1 -HPM0 High pass filter mode selection. Default value: 00

Refer to Table 24

HPCF2 HPCF1

FDS

HPCLICK

HPIS2 High pass filter enabled for AOI function on interrupt 2,

HPIS1 High pass filter enabled for AOI function on interrupt 1,

High pass filter cut-off frequency selection

Filtered data selection. Default value: 0 (0: internal filter bypassed; 1: data from internal filter sent to output register and FIFO)

High pass filter enabled for CLICK function. (0: filter bypassed; 1: filter enabled)

(0: filter bypassed; 1: filter enabled)

Table 24. High pass filter mode configuration

HPM1 HPM0 High pass filter mode

0 0 Normal mode (reset reading HP_RESET_FILTER)

0 1 Reference signal for filtering

1 0 Normal mode

1 1 Autoreset on interrupt event

7.3 CTRL_REG3_A (22h)

Table 25. CTRL_REG3_A register

I1_CLICK I1_AOI1 0

1. This bit must be set to ‘0’ for correct operation.

Table 26. CTRL_REG3_A description

I1_CLICK CLICK interrupt on INT1. Default value 0.

I1_AOI1 AOI1 interrupt on INT1. Default value 0.

(1)

(0: disable; 1: enable)

I1_DRDY1 I1_DRDY2 I1_WTM I1_OVERRUN --

Doc ID 018845 Rev 1 31/53

Page 32

Registers description LSM320DL

Table 26. CTRL_REG3_A description (continued)

I1_DRDY1 DRDY1 interrupt on INT1. Default value 0.

(0: disable; 1: enable)

I1_DRDY2 DRDY2 interrupt on INT1. Default value 0.

(0: disable; 1: enable)

I1_WTM FIFO Watermark interrupt on INT1. Default value 0.

(0: disable; 1: enable)

I1_OVERRUN FIFO Overrun interrupt on INT1. Default value 0.

(0: disable; 1: enable)

7.4 CTRL_REG4_A (23h)

Table 27. CTRL_REG4_A register

(1)

1. This bit must be set to ‘0’ for correct operation.

BLE FS1 FS0 HR 0

Table 28. CTRL_REG4_A description

BLE Big/little endian data selection. Default value 0.

(0: data LSB @ lower address; 1: data MSB @ lower address)

FS1-FS0 Full scale selection. default value: 00

(00: +/- 2G; 01: +/- 4G; 10: +/- 8G; 11: +/- 16G)

HR High resolution output mode: default value: 0

(0: high resolution disable; 1: high resolution enable)

(1)

SIM

SIM SPI serial interface mode selection. Default value: 0

(0: 4-wire interface; 1: 3-wire interface).

7.5 CTRL_REG5_A (24h)

Table 29. CTRL_REG5_A register

BOOT FIFO_EN -- -- LIR_INT1 D4D_INT1 0

1. This bit must be set to ‘0’ for correct operation.

Table 30. CTRL_REG5_A description

BOOT Reboot memory content. Default value: 0

(0: normal mode; 1: reboot memory content)

FIFO_EN FIFO enable. Default value: 0

(0: FIFO disable; 1: FIFO enable)

LIR_INT1 Latch interrupt request on INT1_SRC register, with INT1_SRC register

cleared by reading INT1_SRC itself. Default value: 0. (0: interrupt request not latched; 1: interrupt request latched)

D4D_INT1 4D enable: 4D detection is enabled on INT1 when 6D bit on INT1_CFG is set

to 1.

(1)

32/53 Doc ID 018845 Rev 1

Page 33

LSM320DL Registers description

7.6 CTRL_REG6_A (25h)

Table 31. CTRL_REG6_A register

I2_CLICKen I2_INT1 0

1. This bit must be set to ‘0’ for correct operation.

(1)

BOOT_I2 0

(1)

-- H_LACTIVE --

Table 32. CTRL_REG6 description

I2_CLICKen Click interrupt on INT2. Default value 0.

I2_INT1 Interrupt 1 function enabled on INT2. Default 0.

BOOT_I2 Boot on INT2.

H_LACTIVE 0: interrupt active high; 1: interrupt active low.

7.7 REFERENCE/DATACAPTURE_A (26h)

Table 33. REFERENCE_A register

Ref7 Ref6 Ref5 Ref4 Ref3 Ref2 Ref1 Ref0

Table 34. REFERENCE register description

Ref 7-Ref0 Reference value for interrupt generation. Default value: 0

7.8 STATUS_REG_A (27h)

Table 35. STATUS_REG_A register

ZYXOR ZOR YOR XOR ZYXDA ZDA YDA XDA

Table 36. STATUS_REG_A register description

ZYXOR X, Y, and Z axis data overrun. Default value: 0

(0: no overrun has occurred; 1: a new set of data has overwritten the previous ones)

ZOR Z axis data overrun. Default value: 0

(0: no overrun has occurred; 1: a new data for the Z-axis has overwritten the previous one)

YOR Y axis data overrun. Default value: 0

(0: no overrun has occurred; 1: a new data for the Y-axis has overwritten the previous one)

XOR X axis data overrun. Default value: 0

(0: no overrun has occurred; 1: a new data for the X-axis has overwritten the previous one)

ZYXDA X, Y, and Z axis new data available. Default value: 0

(0: a new set of data is not yet available; 1: a new set of data is available)

Doc ID 018845 Rev 1 33/53

Page 34

Registers description LSM320DL

Table 36. STATUS_REG_A register description (continued)

ZDA Z axis new data available. Default value: 0

(0: a new data for the Z-axis is not yet available; 1: a new data for the Z-axis is available)

YDA Y axis new data available. Default value: 0

(0: a new data for the Y-axis is not yet available; 1: a new data for the Y-axis is available)

7.9 OUT_X_L_A (28h), OUT_X_H_A (29h)

X-axis acceleration data. The value is expressed in 2’s complement.

7.10 OUT_Y_L_A (2Ah), OUT_Y_H_A (2Bh)

Y-axis acceleration data. The value is expressed in 2’s complement.

7.11 OUT_Z_L _A(2Ch), OUT_Z_H_A (2Dh)

Z-axis acceleration data. The value is expressed in 2’s complement.

7.12 FIFO_CTRL_REG_A (2Eh)

Table 37. FIFO_CTRL_REG_A register

FM1 FM0 TR FTH4 FTH3 FTH2 FTH1 FTH0

Table 38. FIFO_CTRL_REG_A register description

FM1-FM0

TR Trigger selection. Default value: 0

FTH4:0 Default value: 0

Table 39. FIFO mode configuration

0 0 Bypass mode

0 1 FIFO mode

1 0 Stream mode

FIFO mode selection. Default value: 00 (see

0: trigger event linked to trigger signal on INT1 1: trigger event linked to trigger signal on INT2

FM1 FM0 FIFO mode

Table 39)

1 1 Trigger mode

34/53 Doc ID 018845 Rev 1

Page 35

LSM320DL Registers description

7.13 FIFO_SRC_REG_A (2Fh)

Table 40. FIFO_SRC_REG_A register

WTM OVRN_FIFO EMPTY FSS4 FSS3 FSS2 FSS1 FSS0

7.14 INT1_CFG_A (30h)

Table 41. INT1_CFG_REG_A register

AOI 6D ZHIE/

ZUPE

Table 42. INT1_CFG_REG_A description

AOI AND/OR combination of interrupt events. Default value: 0. Refer to Table 43

6D 6-direction detection function enabled. Default value: 0. Refer to Table 43

ZHIE/ ZUPE

Enable interrupt generation on Z high event or on direction recognition. Default value: 0 (0: disable interrupt request;1: enable interrupt request)

ZLIE/

ZDOWNE

YHIE/

YUPE

YLIE/

YDOWNE

XHIE/

XUPE

XLIE/

XDOWNE

ZLIE/ ZDOWNE

YHIE/ YUPE

YLIE/ YDOWNE

XHIE/ XUPE

XLIE/XDOWNE Enable interrupt generation on X low event or on direction recognition. Default

Enable interrupt generation on Z low event or on direction recognition. Default value: 0 (0: disable interrupt request; 1: enable interrupt request)

Enable interrupt generation on Y high event or on direction recognition. Default value: 0 (0: disable interrupt request; 1: enable interrupt request.)

Enable interrupt generation on Y low event or on direction recognition. Default value: 0 (0: disable interrupt request; 1: enable interrupt request.)

Enable interrupt generation on X high event or on direction recognition. Default value: 0 (0: disable interrupt request; 1: enable interrupt request.)

value: 0 (0: disable interrupt request; 1: enable interrupt request.)

Content of this register is loaded at boot.

Write operation at this address is possible only after system boot.

Table 43. Interrupt mode

AOI 6D Interrupt mode

0 0 OR combination of interrupt events

0 1 6-direction movement recognition

1 0 AND combination of interrupt events

1 1 6-direction position recognition

Difference between AOI-6D = ‘01’ and AOI-6D = ‘11’.

Doc ID 018845 Rev 1 35/53

Page 36

Registers description LSM320DL

AOI-6D = ‘01’ is movement recognition. An interrupt is generated when orientation moves from unknown zone to known zone. The interrupt signal stays for a duration ODR.

AOI-6D = ‘11’ is direction recognition. An interrupt is generated when orientation is inside a known zone. The interrupt signal stays until orientation is inside the zone.

7.15 INT1_SRC_A (31h)

Table 44. INT1_SRC_A register

0 IA ZHZLYHYLXHXL

Table 45. INT1_SRC_A description

Interrupt active. Default value: 0

(0: no interrupt has been generated; 1: one or more interrupts have been generated)

Z high. Default value: 0

(0: no interrupt, 1: Z high event has occurred)

Z low. Default value: 0

(0: no interrupt; 1: Z low event has occurred)

Y high. Default value: 0

(0: no interrupt, 1: Y high event has occurred)

Y low. Default value: 0

(0: no interrupt, 1: Y low event has occurred)

X high. Default value: 0

(0: no interrupt, 1: X high event has occurred)

X low. Default value: 0

(0: no interrupt, 1: X low event has occurred)

Interrupt 1 source register. Read only register.

Reading at this address clears the INT1_SRC IA bit (and the interrupt signal on the INT 1 pin) and allows the refreshment of data in the INT1_SRC register if the latched option is chosen.

7.16 INT1_THS_A (32h)

Table 46. INT1_THS_A register

0 THS6 THS5 THS4 THS3 THS2 THS1 THS0

Table 47. INT1_THS_A description

THS6 - THS0 Interrupt 1 threshold. Default value: 000 0000

36/53 Doc ID 018845 Rev 1

Page 37

LSM320DL Registers description

7.17 INT1_DURATION_A (33h)

Table 48. INT1_DURATION_Aregister

0 D6D5D4D3D2D1D0

Table 49. INT1_DURATION_A description

D6 - D0 Duration value. Default value: 000 0000

D6 - D0 bits set the minimum duration of the interrupt 1 event to be recognized. Duration steps and maximum values depend on the ODR chosen.

7.18 CLICK_CFG _A (38h)

Table 50. CLICK_CFG_A register

-- -- ZD ZS YD YS XD XS

Table 51. CLICK_CFG_A description

ZD Enable interrupt double CLICK on Z axis. Default value: 0

(0: disable interrupt request; 1: enable interrupt request on measured accel. value higher than preset threshold)

ZS Enable interrupt single CLICK on Z axis. Default value: 0

(0: disable interrupt request; 1: enable interrupt request on measured accel. value higher than preset threshold)

YD Enable interrupt double CLICK on Y axis. Default value: 0

(0: disable interrupt request; 1: enable interrupt request on measured accel. value higher than preset threshold)

YS Enable interrupt single CLICK on Y axis. Default value: 0

(0: disable interrupt request; 1: enable interrupt request on measured accel. value higher than preset threshold)

XD Enable interrupt double CLICK on X axis. Default value: 0

(0: disable interrupt request; 1: enable interrupt request on measured accel. value higher than preset threshold)

XS Enable interrupt single CLICK on X axis. Default value: 0

(0: disable interrupt request; 1: enable interrupt request on measured accel. value higher than preset threshold)

7.19 CLICK_SRC_A (39h)

Table 52. CLICK_SRC_A register

-- IA DCLICK SCLICK Sign Z Y X

Doc ID 018845 Rev 1 37/53

Page 38

Registers description LSM320DL

Table 53. CLICK_SRC_A description

IA Interrupt active. Default value: 0

(0: no interrupt has been generated; 1: one or more interrupts have been generated)

DCLICK Double CLICK-CLICK enable. Default value: 0 (0: double CLICK-CLICK detection dis-

able, 1: double CLICK-CLICK detection enable)

SCLICK Single CLICK-CLICK enable. Default value: 0 (0: single CLICK-CLICK detection dis-

able, 1: single CLICK-CLICK detection enable)

Sign CLICK-CLICK Sign. 0: positive detection, 1: negative detection

Z Z CLICK-CLICK detection. Default value: 0

(0: no interrupt, 1: Z high event has occurred)

Y Y CLICK-CLICK detection. Default value: 0

(0: no interrupt, 1: Y high event has occurred)

X X CLICK-CLICK detection. Default value: 0

(0: no interrupt, 1: X high event has occurred)

7.20 CLICK_THS_A (3Ah)

Table 54. CLICK_THS_A register

-- Ths6 Ths5 Ths4 Ths3 Ths2 Ths1 Ths0

Table 55. CLICK_SRC_A description

Ths6-Ths0 CLICK-CLICK threshold. Default value: 000 0000

7.21 TIME_LIMIT_A (3Bh)

Table 56. TIME_LIMIT_A register

-- TLI6 TLI5 TLI4 TLI3 TLI2 TLI1 TLI0

Table 57. TIME_LIMIT_A description

TLI7-TLI0 CLICK-CLICK time limit. Default value: 000 0000

7.22 TIME_LATENCY_A (3Ch)

Table 58. TIME_LATENCY_A register

TLA7 TLA6 TLA5 TLA4 TLA3 TLA2 TLA1 TLA0

38/53 Doc ID 018845 Rev 1

Page 39

LSM320DL Registers description

Table 59. TIME_LATENCY_A description

TLA7-TLA0 CLICK-CLICK time latency. Default value: 000 0000

7.23 TIME WINDOW_A (3Dh)

Table 60. TIME_WINDOW_A register

TW7 TW6 TW5 TW4 TW3 TW2 TW1 TW0

Table 61. TIME_WINDOW_A description

TW7-TW0 CLICK-CLICK time window

7.24 CTRL_REG1_G (20h)

Table 62. CTRL_REG1_G register

DR1 DR0 BW1 BW0 PD Zen 0

1. This bit must be set to ‘0’ for correct operation.

(1)

Xen

Table 63. CTRL_REG1_G description

DR1-DR0 Output data rate selection. Refer to Table 64

BW1-BW0 Bandwidth selection. Refer to Table 64

Zen Z axis enable. Default value: 1

Xen X axis enable. Default value: 1

Power-down mode enable. Default value: 0 (0: power-down mode, 1: normal mode or sleep mode)

(0: Z axis disabled; 1: Z axis enabled)

(0: X axis disabled; 1: X axis enabled)

DR<1:0> is used to set ODR selection. BW <1:0> is used to set Bandwidth selection.

Table 64 shows all frequencies resulting in combination of DR / BW bits.

Doc ID 018845 Rev 1 39/53

Page 40

Registers description LSM320DL

Table 64. DR and BW configuration setting

DR <1:0> BW <1:0> ODR [Hz] Cut-off

00 00 100 12.5

00 01 100 25

00 10 100 25

00 11 100 25

01 00 200 12.5

01 01 200 25

01 10 200 50

01 11 200 70

10 00 400 20

10 01 400 25

10 10 400 50

10 11 400 110

11 00 800 30

11 01 800 35

11 10 800 50

11 11 800 110

Combination of PD, Zen, Xen are used to set the device in different modes (powerdown/normal/sleep mode) according to the following table.

Table 65. Power mode selection configuration

Mode PD Zen Xen

Power-down 0 - -

Sleep100

Normal 1 - -

7.25 CTRL_REG2_G (21h)

Table 66. CTRL_REG2_G register

(1)

1. Value loaded at boot. This value must not be changed.

(1)

HPM1 HPM1 HPCF3 HPCF2 HPCF1 HPCF0

40/53 Doc ID 018845 Rev 1

Page 41

LSM320DL Registers description

Table 67. CTRL_REG2_G description

HPM1HPM0

High pass filter mode selection. Default value: 00 Refer to Table 68

HPCF3HPCF0

High pass filter cut-off frequency selection Refer to Table 69

Table 68. High pass filter mode configuration

HPM1 HPM0 High pass filter mode

0 0 Normal mode (reset reading HP_RESET_FILTER

0 1 Reference signal for filtering

1 0 Normal mode

1 1 Autoreset an interrupt event

Table 69. High pass filter cut-off frequency configuration [Hz]

HPCF-0 ODR = 100 Hz ODR = 200 Hz ODR = 400 Hz ODR = 800 Hz

00008 153056

0001 4 8 15 30

0010 2 4 8 15

00111248

0100 0.5 1 2 4

0101 0.2 0.5 1 2

0110 0.1 0.2 0.5 1

0111 0.05 0.1 0.2 0.5

1000 0.02 0.05 0.1 0.2

1001 0.01 0.02 0.05 0.1

7.26 CTRL_REG3_G (22h)

Table 70. CTRL_REG1_G register

I1_Int1 I1_Boot H_Lactive PP_OD I2_DRDY I2_WTM I2_ORun I2_Empty

Table 71. CTRL_REG3_G description

I1_Int1 Interrupt enable on INT1 pin. Default value 0. (0: disable; 1: enable)

I1_Boot Boot status available on INT1. Default value 0. (0: disable; 1: enable)

H_Lactive Interrupt active configuration on INT1. Default value 0. (0: high; 1:low)

Doc ID 018845 Rev 1 41/53

Page 42

Registers description LSM320DL

Table 71. CTRL_REG3_G description (continued)

PP_OD Push-pull/open drain. Default value: 0. (0: push-pull; 1: open drain)

I2_DRDY Date ready on DRDY/INT2. Default value 0. (0: disable; 1: enable)

I2_WTM FIFO watermark interrupt on DRDY/INT2. Default value: 0. (0: disable; 1: enable)

I2_ORun FIFO overrun interrupt on DRDY/INT2. Default value: 0. (0: disable; 1: enable)

I2_Empty FIFO empty interrupt on DRDY/INT2. Default value: 0. (0: disable; 1: enable)

7.27 CTRL_REG4_G (23h)

Table 72. CTRL_REG4_G register

BDU BLE FS1 FS0 -- 0

1. This bit must be set to ‘0’ for correct operation.

Table 73. CTRL_REG4_G description

BDU Block data update. Default value: 0

(0: continuous update; 1: output registers not updated until MSB and LSB reading)

BLE Big/little endian data selection. Default value 0.

(0: data LSB @ lower address; 1: data MSB @ lower address)

FS1-FS0 Full scale selection. Default value: 00

(00: 250 dps; 01: 500 dps; 10: 2000 dps; 11: 2000 dps)

SIM SPI serial interface mode selection. Default value: 0

(0: 4-wire interface; 1: 3-wire interface).

(1)

SIM

7.28 CTRL_REG5_G (24h)

Table 74. CTRL_REG5_G register

BOOT FIFO_EN -- HPen INT1_Sel1 INT1_Sel0 Out_Sel1 Out_Sel0

Table 75. CTRL_REG5_G description

BOOT Reboot memory content. Default value: 0

(0: normal mode; 1: reboot memory content)

FIFO_EN FIFO enable. Default value: 0

(0: FIFO disable; 1: FIFO enable)

HPen High pass filter enable. Default value: 0

(0: HPF disabled; 1: HPF enabled, see Figure 12)

42/53 Doc ID 018845 Rev 1

Page 43

LSM320DL Registers description

Table 75. CTRL_REG5_G description (continued)

INT1_Sel1INT1_Sel0

Out_Sel1Out_Sel0

INT1 selection configuration. Default value: 0 (see Table 77)

Out selection configuration. Default value: 0 (see Table 76)

Figure 12. INT1_Sel and Out_Sel configuration block diagram

Out_Sel <1:0>

LPF2

ADC

LPF1

HPF

HPen

Table 76. Out_Sel configuration setting

Hpen OUT_SEL1 OUT_SEL0 Description

x00

x01

01x

Data in DataReg and FIFO are non-highpass-filtered

Data in DataReg and FIFO are high-passfiltered

Data in DataReg and FIFO are low-passfiltered by LPF2

00 01

10 11

INT1_Sel <1:0>

10 11

DataReg

FIFO

32x16x3

Interrupt

generator

AM09276V1

11x

Data in DataReg and FIFO are high-pass and low-pass-filtered by LPF2

Table 77. INT_SEL configuration setting

Hpen INT_SEL1 INT_SEL2 Description

x00

x01

Doc ID 018845 Rev 1 43/53

Non-high-pass-filtered data are used for interrupt generation

High-pass-filtered data are used for interrupt generation

Page 44

Registers description LSM320DL

Table 77. INT_SEL configuration setting (continued)

Hpen INT_SEL1 INT_SEL2 Description

01x

11x

Low-pass-filtered data are used for interrupt generation

High-pass and low-pass-filtered data are used for interrupt generation

7.29 REFERENCE/DATACAPTURE_G (25h)

Table 78. REFERENCE_G register

Ref7 Ref6 Ref5 Ref4 Ref3 Ref2 Ref1 Ref0

Table 79. REFERENCE_G register description

Ref 7-Ref0 Reference value for interrupt generation. Default value: 0

7.30 OUT_TEMP_G (26h)

Table 80. OUT_TEMP_G register

Temp7 Temp6 Temp5 Temp4 Temp3 Temp2 Temp1 Temp0

Table 81. OUT_TEMP_G register description

Temp7-Temp0 Temperature data (1LSB/deg - 8 bit resolution). The value is expressed as

two’s complement.

7.31 STATUS_REG_G (27h)

Table 82. STATUS_REG_G register

ZXOR ZOR - XOR ZXDA ZDA -- XDA

Table 83. STATUS_REG_G description

X, Z-axis data overrun. Default value: 0

ZXOR

ZOR

XOR

(0: no overrun has occurred, 1: new data has overwritten the previous one before it was read)

Z-axis data overrun. Default value: 0 (0: no overrun has occurred, 1: a new data for the Z-axis has overwritten the previous one)

X-axis data overrun. Default value: 0 (0: no overrun has occurred, 1: a new data for the X-axis has overwritten the previous one)

44/53 Doc ID 018845 Rev 1

Page 45

LSM320DL Registers description

Table 83. STATUS_REG_G description (continued)

ZXDA X, Z-axis new data available. Default value: 0

(0: a new set of data is not yet available; 1: a new set of data is available)

ZDA Z-axis new data available. Default value: 0

(0: a new data for the Z-axis is not yet available; 1: a new data for the Z-axis is available)

XDA X-axis new data available. Default value: 0

(0: a new data for the X-axis is not yet available; 1: a new data for the X-axis is available)

7.32 OUT_X_L_G (28h), OUT_X_H_G (29h)

X-axis angular rate data. The value is expressed as 2’s complement.

7.33 OUT_Z_L_G (2Ch), OUT_Z_H_G (2Dh)

Z-axis angular rate data. The value is expressed as 2’s complement.

7.34 FIFO_CTRL_REG_G (2Eh)

Table 84. REFERENCE_G register

FM2 FM1 FM0 WTM4 WTM3 WTM2 WTM1 WTM0

Table 85. REFERENCE_G register description

FM2-FM0 FIFO mode selection. Default value: 00 (see Table 86)

WTM4-WTM0 FIFO threshold. Watermark level setting

Table 86. FIFO mode configuration

FM2 FM1 FM0 FIFO mode

000Bypass mode

001FIFO mode

010Stream mode

011Stream-to-FIFO mode

100Bypass-to-stream mode

7.35 FIFO_SRC_REG_G (2Fh)

Table 87. FIFO_SRC_G register

WTM OVRN EMPTY FSS4 FSS3 FSS2 FSS1 FSS0

Doc ID 018845 Rev 1 45/53

Page 46

Registers description LSM320DL

Table 88. FIFO_SRC_G register description

WTM Watermark status. (0: FIFO filling is lower than WTM level; 1: FIFO filling is equal

or higher than WTM level)

OVRN Overrun bit status.

(0: FIFO is not completely filled; 1:FIFO is completely filled)

EMPTY FIFO empty bit.

(0: FIFO not empty; 1: FIFO empty)

FSS4-FSS1 FIFO stored data level

7.36 INT1_CFG_G (30h)

Table 89. INT1_CFG_G register

AND/OR LIR ZHIE ZLIE 0

1. This bit must be set to ‘0’ for correct operation.

Table 90. INT1_CFG_G description

AND/OR

LIR

AND/OR combination of interrupt events. Default value: 0 (0: OR combination of interrupt events 1: AND combination of interrupt events

Latch interrupt request. Default value: 0 (0: interrupt request not latched; 1: interrupt request latched) Cleared by reading INT1_SRC reg.

(1)

XHIE XLIE

Enable interrupt generation on Z high event. Default value: 0

ZHIE

ZLIE

XHIE

XLIE

(0: disable interrupt request; 1: enable interrupt request on measured accel. value higher than preset threshold)

Enable interrupt generation on Z low event. Default value: 0 (0: disable interrupt request; 1: enable interrupt request on measured accel. value

lower than preset threshold)

Enable interrupt generation on X high event. Default value: 0 (0: disable interrupt request; 1: enable interrupt request on measured accel. value

higher than preset threshold)

Enable interrupt generation on X low event. Default value: 0 (0: disable interrupt request; 1: enable interrupt request on measured accel. value

lower than preset threshold)

Configuration register for interrupt source.

7.37 INT1_SRC_G (31h)

Table 91. INT1_SRC_G register

0IAZHZL----XHXL

46/53 Doc ID 018845 Rev 1

Page 47

LSM320DL Registers description

Table 92. INT1_SRC_G description

ZH Z high. Default value: 0 (0: no interrupt; 1: Z high event has occurred)

ZL Z low. Default value: 0 (0: no interrupt; 1: Z low event has occurred)

XH X high. Default value: 0 (0: no interrupt; 1: X high event has occurred)

XL X low. Default value: 0 (0: no interrupt; 1: X low event has occurred)

Interrupt active. Default value: 0 (0: no interrupt has been generated; 1: one or more interrupts have been generated)

Interrupt source register. Read only register.

Reading at this address clears the INT1_SRC IA bit (and eventually the interrupt signal on the INT1 pin) and allows the refreshment of data in the INT1_SRC register if the latched option is chosen.

7.38 INT1_THS_XH_G (32h)

Table 93. INT1_THS_XH_G register

-- THSX14 THSX13 THSX12 THSX11 THSX10 THSX9 THSX8

Table 94. INT1_THS_XH_G description

THSX14 - THSX9 Interrupt threshold. Default value: 0000 0000

7.39 INT1_THS_XL_G (33h)

Table 95. INT1_THS_XL_G register

THSX7 THSX6 THSX5 THSX4 THSX3 THSX2 THSX1 THSX0

Table 96. INT1_THS_XL_G description

THSX7 - THSX0 Interrupt threshold. Default value: 0000 0000

7.40 INT1_THS_ZH_G (36h)

Table 97. INT1_THS_ZH_G register

-- THSZ14 THSZ13 THSZ12 THSZ11 THSZ10 THSZ9 THSZ8

Doc ID 018845 Rev 1 47/53

Page 48

Registers description LSM320DL

Table 98. INT1_THS_ZH_G description

THSZ14 - THSZ9 Interrupt threshold. Default value: 0000 0000

7.41 INT1_THS_ZL_G (37h)

Table 99. INT1_THS_ZL_G register

THSZ7 THSZ6 THSZ5 THSZ4 THSZ3 THSZ2 THSZ1 THSZ0

Table 100. INT1_THS_ZL_G description

THSZ7 - THSZ0 Interrupt threshold. Default value: 0000 0000

7.42 INT1_DURATION_G (38h)

Table 101. INT1_DURATION_G register

WAIT D6 D5 D4 D3 D2 D1 D0

Table 102. INT1_DURATION_G description

WAIT WAIT enable. Default value: 0 (0: disable; 1: enable)

D6 - D0 Duration value. Default value: 000 0000

D6 - D0 bits set the minimum duration of the interrupt event to be recognized. Duration steps and maximum values depend on the ODR chosen.

WAI T bit has the following meaning:

Wait =’0’: the interrupt falls immediately if signal crosses the selected threshold

Wait =’1’: if signal crosses the selected threshold, the interrupt falls only after the duration has counted a number of samples at the selected data rate, written into the duration counter register.

48/53 Doc ID 018845 Rev 1

Page 49

LSM320DL Registers description

Figure 13. Wait disabled

!-6

Figure 14. Wait enabled

!-6

Doc ID 018845 Rev 1 49/53

Page 50

Package information LSM320DL

8 Package information

In order to meet environmental requirements, ST offers these devices in different grades of ECOPACK specifications, grade definitions, and product status are available at: www.st.com. ECOPACK is an ST trademark.

packages, depending on their level of environmental compliance. ECOPACK

50/53 Doc ID 018845 Rev 1

Page 51

LSM320DL Package information

Table 103. LGA 28L 7.5 x 4.4 x 1.1 mechanical data

Dim.

Min. Typ. Max.

A1 1.1

A2 0.855

A3 0.2

D1 4.25 4.4 4.55

E1 7.25 7.5 7.55

N1 0.3

L1 5.4

L2 1.8

P2 1.2

T1 0.6

T2 0.4

M 0.1

d 0.3

k 0.05

h 0.1

Figure 15. LGA 28L 7.5 x 4.4 x 1.1 package drawing

Pin 1 Indicator



1 D

TOP VIEW







Seating Plane





2 P

2 L

Doc ID 018845 Rev 1 51/53

Page 52

Revision history LSM320DL

9 Revision history

Table 104. Document revision history

Date Revision Changes

18-May-2011 1 Initial release.

52/53 Doc ID 018845 Rev 1

Page 53

LSM320DL

Please Read Carefully:

Information in this document is provided solely in connection with ST products. STMicroelectronics NV and its subsidiaries (“ST”) reserve the right to make changes, corrections, modifications or improvements, to this document, and the products and services described herein at any time, without notice.

All ST products are sold pursuant to ST’s terms and conditions of sale.

Purchasers are solely responsible for the choice, selection and use of the ST products and services described herein, and ST assumes no liability whatsoever relating to the choice, selection or use of the ST products and services described herein.

No license, express or implied, by estoppel or otherwise, to any intellectual property rights is granted under this document. If any part of this document refers to any third party products or services it shall not be deemed a license grant by ST for the use of such third party products or services, or any intellectual property contained therein or considered as a warranty covering the use in any manner whatsoever of such third party products or services or any intellectual property contained therein.

UNLESS OTHERWISE SET FORTH IN ST’S TERMS AND CONDITIONS OF SALE ST DISCLAIMS ANY EXPRESS OR IMPLIED WARRANTY WITH RESPECT TO THE USE AND/OR SALE OF ST PRODUCTS INCLUDING WITHOUT LIMITATION IMPLIED WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE (AND THEIR EQUIVALENTS UNDER THE LAWS OF ANY JURISDICTION), OR INFRINGEMENT OF ANY PATENT, COPYRIGHT OR OTHER INTELLECTUAL PROPERTY RIGHT.

UNLESS EXPRESSLY APPROVED IN WRITING BY AN AUTHORIZED ST REPRESENTATIVE, ST PRODUCTS ARE NOT RECOMMENDED, AUTHORIZED OR WARRANTED FOR USE IN MILITARY, AIR CRAFT, SPACE, LIFE SAVING, OR LIFE SUSTAINING APPLICATIONS, NOR IN PRODUCTS OR SYSTEMS WHERE FAILURE OR MALFUNCTION MAY RESULT IN PERSONAL INJURY, DEATH, OR SEVERE PROPERTY OR ENVIRONMENTAL DAMAGE. ST PRODUCTS WHICH ARE NOT SPECIFIED AS "AUTOMOTIVE GRADE" MAY ONLY BE USED IN AUTOMOTIVE APPLICATIONS AT USER’S OWN RISK.

Resale of ST products with provisions different from the statements and/or technical features set forth in this document shall immediately void any warranty granted by ST for the ST product or service described herein and shall not create or extend in any manner whatsoever, any liability of ST.

ST and the ST logo are trademarks or registered trademarks of ST in various countries.

Information in this document supersedes and replaces all information previously supplied.

The ST logo is a registered trademark of STMicroelectronics. All other names are the property of their respective owners.

STMicroelectronics group of companies

Australia - Belgium - Brazil - Canada - China - Czech Republic - Finland - France - Germany - Hong Kong - India - Israel - Italy - Japan -

Malaysia - Malta - Morocco - Philippines - Singapore - Spain - Sweden - Switzerland - United Kingdom - United States of America

www.st.com

Doc ID 018845 Rev 1 53/53
