Under Development

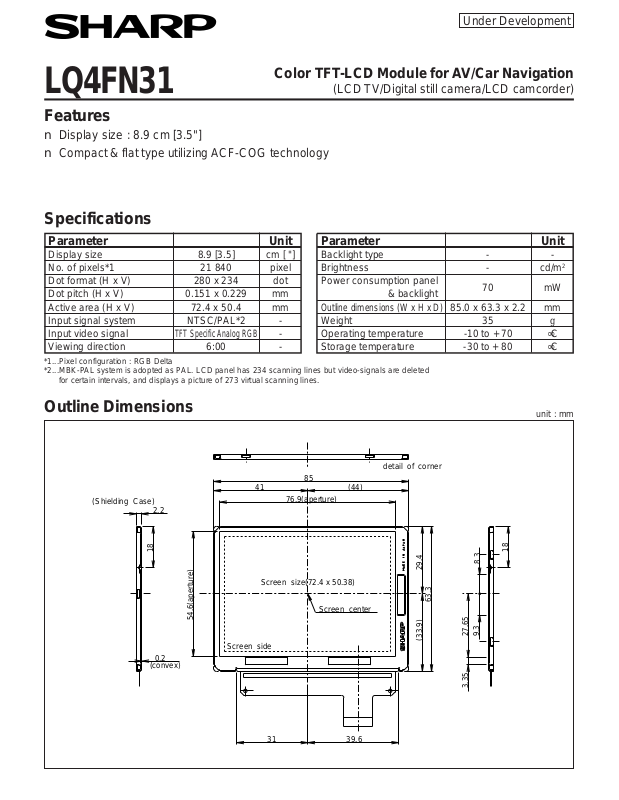

Color TFT-LCD Module for AV/Car Navigation
LQ4FN31 (LCD TV/Digital still camera/LCD camcorder)
Features
n Display size : 8.9 cm [3.5"]
n Compact & flat type utilizing ACF-COG technology
Specifications
Parameter Unit Parameter Unit
Display size 8.9 [3.5] cm [ "] Backlight type - No. of pixels*1 21 840 pixel Brightness - cd/m
Dot format (H x V) 280 x 234 dot Power consumption panel
Dot pitch (H x V) 0.151 x 0.229 mm & backlight
Active area (H x V) 72.4 x 50.4 mm
Outline dimensions (W x H x D)
85.0 x 63.3 x 2.2 mm
70 mW
Input signal system NTSC/PAL*2 - Weight 35 g
Input video signal
TFT Specific Analog RGB
- Operating temperature -10 to + 70 ∞C
Viewing direction 6:00 - Storage temperature -30 to + 80 ∞C
*1...Pixel configuration : RGB Delta
*2...MBK-PAL system is adopted as PAL. LCD panel has 234 scanning lines but video-signals are deleted
for certain intervals, and displays a picture of 273 virtual scanning lines.
2
Outline Dimensions
(Shielding Case)
2.2
18
0.2
(convex)
54.6(aperture)
Screen side
41
85
76.9(aperture)
Screen size(72.4 x 50.38)
Screen center
(44)
detail of corner
29.4
63.3
(33.9)
8.3
27.65
9.3
3.35
unit : mm
18
31
39.6
