AMERICAS
LPX110
5810 Van Allen Way
Carlsbad, CA 92008
Telephone: 760-930-4600
Facsimile: 760-930-0698
COVER

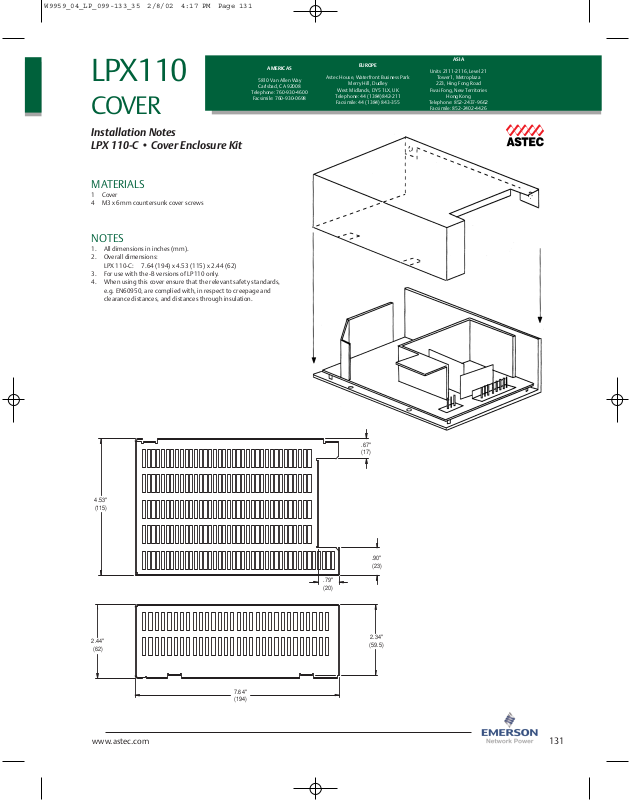

Installation Notes
LPX 110-C • Cover Enclosure Kit
MATERIALS
1Cover
4 M3 x 6mm countersunk cover screws
NOTES
1. All dimensions in inches (mm).
2. Overall dimensions:
LPX 110-C: 7.64 (194) x 4.53 (115) x 2.44 (62)
3. For use with the -B versions of LP110 only.
4. When using this cover ensure that the relevant safety standards,
e.g. EN60950, are complied with, in respect to creepage and
clearance distances, and distances through insulation.
EUROPE
Astec House, Waterfront Business Park
Merry Hill, Dudley
West Midlands, DY5 1LX, UK
Telephone: 44 (1384)842-211
Facsimile: 44 (1384) 843-355
ASIA
ASIA
Units 2111-2116, Level 21
Units 2111-2116, Level 21
Tower1, Metroplaza
Tower1, Metroplaza
223, Hing Fong Road
223, Hing Fong Road
Fwai Fong, New Territories
Fwai Fong, New Territories
Hong Kong
Telephone: 852-2437-9662
Facsimile: 852-2402-4426
Hong Kong
Telephone: 852-2437-9662
Facsimile: 852-2402-4426
4.53"
(115)
2.44"
(62)
.67"
(17)
.90"
(23)
.79"
(20)
2.34"
(59.5)
7.64"
(194)
www.astec.com
