Datasheet LNBH24L Datasheet (ST)

LNBH24L

Dual LNBS supply and control IC with step-up and I²C interface

Features

■ Complete interface between LNBS and I²C bus

■ Built-in DC-DC converter for single 12 V supply

operation and high efficiency (typ. 93%@0.5 A)

■ Selectable output current limit by external

resistor

■ Compliant with main satellite receivers output

voltage specification

■ Auxiliary modulation input (EXTM) facilitates

DiSEqC™ 1.X encoding

■ Low-drop post regulator and high efficiency

step-up PWM with integrated power N-MOS allow low power losses

■ Overload and over-temperature internal

protections with I²C diagnostic bits

■ Output voltage and output current level

diagnostic feedback by I²C bits

■ LNB short circuit dynamic protection

■ +/- 4 kV ESD tolerant on output power pins

QFN32 5 x 5 mm (ePad)

Description

Intended for analog and digital DUAL satellite receivers/Sat-TV, Sat-PC cards, the LNBH24L is a monolithic voltage regulator and interface IC, assembled in QFN 5x5 ePAD, specifically designed to provide the 13 / 18 V power supply and the 22 kHz tone signaling for two independent LNB down-converters in the antenna dishes and/or multi-switch box. In this application field, it offers a dual tuner STBs complete solution with extremely low component count, low power dissipation together with simple design and I²C standard interfacing.

Table 1. Device summary

Order code Package Packaging

LNBH24LQTR QFN32 5 x 5 (Exposed pad) Tape and reel

March 2010 Doc ID 16857 Rev 2 1/25

www.st.com

25

Contents LNBH24L

Contents

1 Block diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

2 Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

2.1 Application information (valid for each section A/B) . . . . . . . . . . . . . . . . . . 5

2.2 DiSEqC™ data encoding . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

2.3 DiSEqC™ 1.X implementation by EXTM pin . . . . . . . . . . . . . . . . . . . . . . . 5

2.4 DISEQC™ 1.X implementation with VoTX and EXTM pin connection . . . . 5

2.5 PDC optional circuit for DISEQC™ 1.X applications using

VoTX signal on to EXTM pin . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

2.6 I²C interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

2.7 Output voltage selection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

2.8 Diagnostic and protection functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

2.9 Over-current and short circuit protection and diagnostic . . . . . . . . . . . . . . 7

2.10 Thermal protection and diagnostic . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

2.11 Output current limit selection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

3 Pin configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

4 Maximum ratings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

5 Application circuits . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

6 I²C bus interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

6.1 Data validity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

6.2 Start and stop condition . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

6.3 Byte format . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

6.4 Acknowledge . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

6.5 Transmission without acknowledge . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

7 LNBH24 software description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

7.1 Interface protocol . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

7.2 System register (SR, 1 Byte for each section A and B) . . . . . . . . . . . . . . 15

7.3 Transmitted data (I²C bus write mode) for each sections A/B . . . . . . . . . 15

2/25 Doc ID 16857 Rev 2

LNBH24L Contents

7.4 Diagnostic received data (I²C read mode) for both sections A/B . . . . . . . 16

7.5 Power-ON I²C interface reset . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

7.6 Address pins . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

7.7 DiSEqC™ implementation for each section A/B . . . . . . . . . . . . . . . . . . . 17

8 Electrical characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

9 Package mechanical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

10 Revision history . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

Doc ID 16857 Rev 2 3/25

Block diagram LNBH24L

1 Block diagram

Figure 1. Block diagram

A

TTX-

A

-

LX-

PWM

Rsense

A

P-GND-

- -

P-GND-

- -

A

-

Vup -

A

-

VoRX -

A

TTX-

A

-

VoTX-

A

EXTM-

-

EXTM-

-

A

DSQIN-

-

DSQIN-

-

A

PDC

-

PDC

-

PWM

Controller

Pull Down

Pull Down Controller

Controller

A

ISEL-

A

EN-

A

VSEL-

A

ISEL-

Linear Post-reg

Linear Post-reg +Protections

+Protections +Diagnostics

+Diagnostics

FB

FBFBFB

FB

FBFBFB

A

ADDR-

-

ADDR-

-

TEN-

EN-

VSEL-

TTX-

VOUT-AControl

-

VOUT-AControl

-

22 kHz

22 kHz Oscillator

Oscillator

A

TEN-

SDA SCL

A

-

A

-

A

-

A

-

I²C Diagnostics

²

I²C Diagnostics

²

LNBH24L

B

ADDR-

- -- - -

ADDR-

- -- - -

VOUT-BControl

I²C interface

I

I²C interface

I

TEN-

EN-

VSEL-

TTX-

-

BypVcc

Preregulator

Preregulator +U.V.lockout

+U.V.lockout +P.ON reset

+P.ON reset

B

-

B

-

Linear Post-reg

Linear Post-reg +Protections

+Protections +Diagnostics

+Diagnostics

22 kHz

Oscillator

TEN-

L

Vcc -

VSEL-

ISEL-

-

FB

B

EN-

ISEL-

B

Pull Down

Controller

TTX-

PWM

B

Rsense

Controller

B

TTX-

B

-

LX-

P-GND-

B

-

Vup -

VoRX-

VoTX-

EXTM-

DSQIN-

PDC

-

PDC

-

B

-

B

-

B

-

B

-

B

A-GND

-

4/25 Doc ID 16857 Rev 2

LNBH24L Introduction

2 Introduction

The LNBH24L includes two completely independent sections. Unless for the VCC and I²C inputs, each circuit can be separately controlled and have its independent external components. All the below specification must be considered equal for both sections (A/B).

2.1 Application information (valid for each section A/B)

This IC has a built-in DC-DC step-up converter that, from a single source from 8 V to 15 V, generates the voltages (V dissipated power of 0.55 W typ. @ 500 mA load per channel (the linear post-regulator drop voltage is internally kept at V disable the whole circuit when the supplied V typically).

) that let the linear post-regulator to work at a minimum

UP

- V

= 1.1 V typ.). An under voltage lockout circuit will

OUT

drops below a fixed threshold (6.7 V

CC

Note: In this document the V

output (V

oRX

pin).

is intended as the voltage present at the linear post-regulator

OUT

2.2 DiSEqC™ data encoding

The new internal 22 kHz tone generator is factory trimmed in accordance to the standards, and can be selected by I²C interface TTX bit (or TTX pin) and activated by a dedicated pin (DSQIN) that allows immediate DiSEqC™ data encoding, or through TEN I²C bit in case the 22 kHz presence is requested in continuous mode. In stand-by condition (EN bit LOW) the TTX function must be disabled setting TTX to LOW.

2.3 DiSEqC™ 1.X implementation by EXTM pin

In order to improve design flexibility and reduce the total application cost, an analogic modulation input pin is available (EXTM) to generate the 22 kHz tone superimposed to the V

DC output voltage. An appropriate DC blocking capacitor must be used to couple the

oRX

modulating signal source to the EXTM pin. If the EXTM solution is used the output R-L filter can be removed (see Section 5: Application circuits) saving the external components cost.The pin EXTM modulates the V that:

voltage through the series decoupling capacitor, so

oRX

GVV ×=

)AC(EXTM)AC(oRX

EXTM

Where V

(AC) and V

oRX

and EXTM pins while G

(AC) are, respectively, the peak to peak voltage on the V

EXTM

is the voltage gain from EXTM to V

EXTM

2.4 DISEQC™ 1.X implementation with V connection

If an external 22 kHz tone source is not available, it is possible to use the internal 22 kHz tone generator signal available through the V

Doc ID 16857 Rev 2 5/25

pin to drive the EXTM pin. By this way the

oTX

.

oRX

and EXTM pin

oTX

oRX

Introduction LNBH24L

V

22 kHz signal will be superimposed to the V

oTX

22 kHz tone (see internal 22 kHz tone generator available through the V 22 kHz transmission by DSQIN pin or by the TEN bit.The DSQIN internal circuit activates the 22 kHz tone on the V presence on the DSQIN pin, and it stops with 1 cycles ± 25 µs delay after the TTL signal is expired. The V can be controlled both through the TTX pin and by I²C bit. As soon as the tone transmission is expired, the V supply is always provided to the LNB from the V

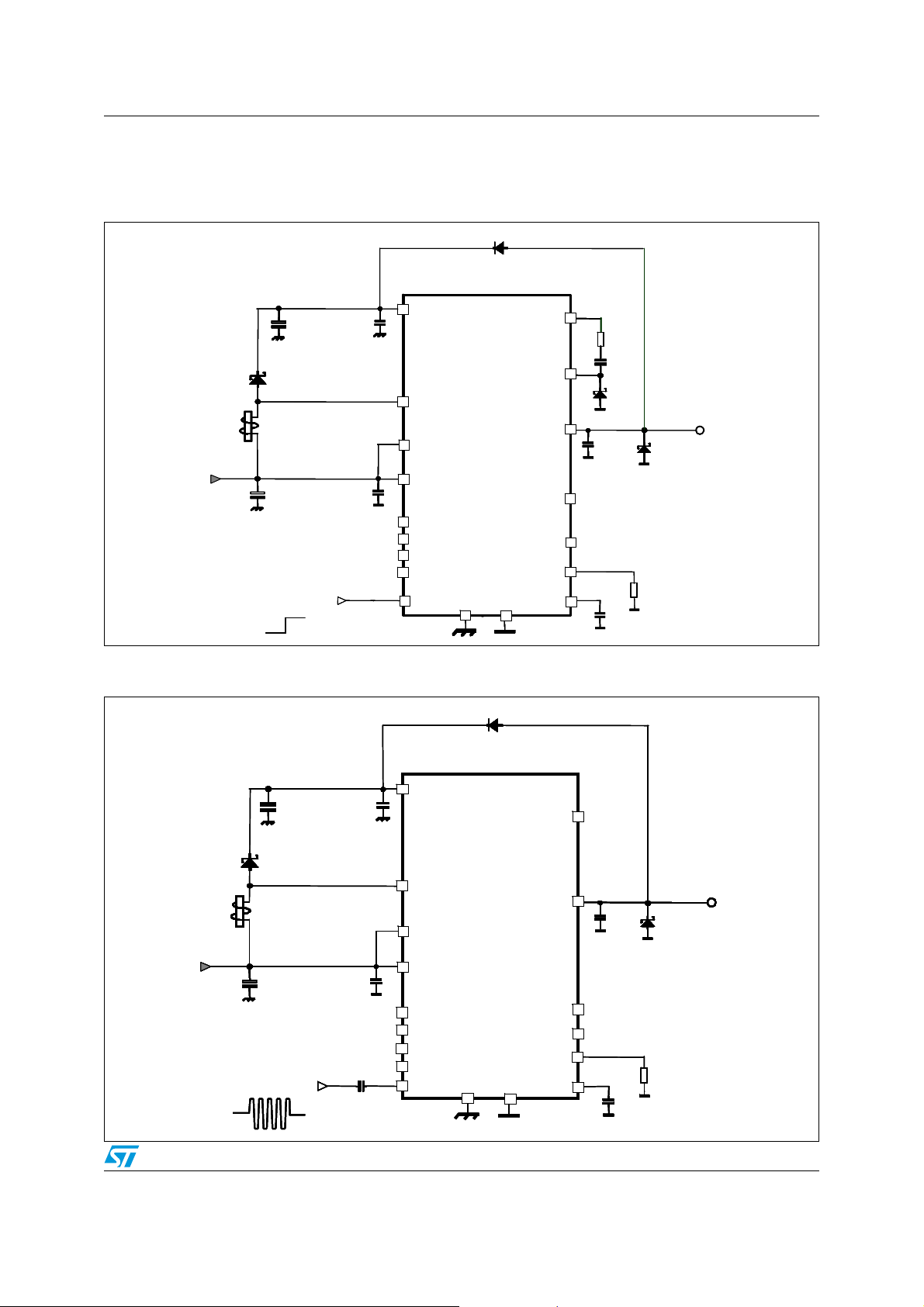

Figure 3: LNBH24L with internal tone for DiSEqC 1.X applications). The

output with 0.5 cycles ± 25 µs delay from the TTL signal

oTX

pin internal circuit must be preventively set ON by the TTX function. This

oTX

must be disabled by setting the TTX to LOW. The 13 / 18 V power

oTX

DC voltage to generate the LNB output

oRX

pin must be activated during the

oTX

pin.

oRX

2.5 PDC optional circuit for DISEQC™ 1.X applications using V

signal on to EXTM pin

oTX

In some applications, at light output current (< 50 mA) and in case of heavy output capacitive load, the 22 kHz tone can be distorted. In this case it is possible to add the "Optional" external components shown in the typical application circuit (see

DiSEqC 1.x using external 22 kHz tone generator source through EXTM pin

between V output capacitance only when the internal 22 kHz tone is activated.

and PDC pin. This optional circuit acts as an active pull-down discharging the

oRX

Figure 4:

) connected

2.6 I²C interface

The main functions of the IC are controlled via I²C bus by writing 6 bits on the system register (SR 8 bits in write mode). On the same register there are 5 bits that can be read back (SR 8 bits in read mode) to provide the diagnostic flags of two internal monitoring functions (OTF, OLF) and three output voltage register status (EN, VSEL, LLC) received by the IC (see bits (TEST1-2-3) that must be disregarded from the MCU. While, in write mode, there 2 Test bits (TEST4-5) that must be always set LOW. Each section (A/B) has two selectable I²C addresses selectable respectively, by the ADDR-A and ADDR-B pins (see

Address pins characteristics

Section 2.8: Diagnostic and protection functions). In read mode there are 3 test

).

2.7 Output voltage selection

When the IC sections are in stand-by mode (EN bit LOW), the power blocks are disabled. When the regulator blocks are active (EN bit HIGH), the output can be logic controlled to be 13 or 18 V by mean of the VSEL bit (voltage SELect) for remote controlling of non-DiSEqC LNBs. Additionally, the LNBH24L is provided with the LLC I²C bit that increase the selected voltage value to compensate possible voltage drop along the output line. In stand-by condition (EN bit LOW) all the I²C bits and the TTX pin must be set LOW (if the TTX pin is not used it can be left floating but the TTX bit must be set LOW during the stand-by condition).

Ta bl e 11 :

2.8 Diagnostic and protection functions

The LNBH24L has two diagnostic internal functions provided via I²C bus by reading 2 bits on the system register (SR bits in read mode). The diagnostic bits are, in normal operation (no

6/25 Doc ID 16857 Rev 2

LNBH24L Introduction

failure detected), set to LOW. The diagnostic bits are dedicated to the over-temperature and over-load protections status (OTF and OLF).

2.9 Over-current and short circuit protection and diagnostic

In order to reduce the total power dissipation during an overload or a short circuit condition, the device is provided with a dynamic short circuit protection. It is possible to set the short circuit current protection either statically (simple current clamp) or dynamically by the PCL bit of the I²C SR. When the PCL (pulsed current limiting) bit is set lo LOW, the over current protection circuit works dynamically: as soon as an overload is detected, the output is shutdown for a time T system register is set to "1". After this time has elapsed, the output is resumed for a time

= 1/10 T

T

ON

OFF

protection circuit will cycle again through T overload is detected, normal operation is resumed and the OLF diagnostic bit is reset to LOW. Typical T operation can greatly reduce the power dissipation in short circuit condition, still ensuring excellent power-on start-up in most conditions. However, there could be some cases in which a highly capacitive load on the output may cause a difficult start-up when the dynamic protection is chosen. This can be solved by initiating any power start-up in static mode (PCL=1) and, then, switching to the dynamic mode (PCL=0) after a chosen amount of time depending on the output capacitance. When in static mode, the diagnostic OLF bit goes to "1" when the current clamp limit is reached and returns LOW when the overload condition is cleared.

, typically 900 ms. Simultaneously the diagnostic OLF I²C bit of the

OFF

= 90 ms (typ.). At the end of TON, if the overload is still detected, the

and TON. At the end of a full TON in which no

OFF

ON

+ T

time is 990 ms and an internal timer determines it. This dynamic

OFF

2.10 Thermal protection and diagnostic

The LNBH24L is also protected against overheating: when the junction temperature exceeds 150°C (typ.), the step-up converter and the liner regulator are shut-off, and the diagnostic OTF SR bit is set to "1". Normal operation is resumed and the OTF bit is reset to LOW when the junction is cooled down to 135°C (typ.)

2.11 Output current limit selection

The linear regulator current limit threshold can be set by an external resistor connected to ISEL pin. The resistor value defines the output current limit by the equation:

Equation 1

10000

=

[A]I

MAX

where R

is the resistor connected between I

SEL

application circuit). The highest selectable current limit threshold is 0.9 A typ. with R

Ω. The above equation defines the typical threshold value for each output. However, it is

k suggestible to not exceed for a long period a total amount of current of 1 A from both sections (I

OUT_A

+ I

< 1 A) in order to avoid the over temperature protection triggering.

OUT_B

Note: External components are needed to comply to bidirectional DiSEqC™ bus hardware

requirements. Full compliance of the whole application with DiSEqC™ specifications is not implied by the bare use of this IC. NOTICE: DiSEqC™ is a trademark of EUTELSAT.

R

SEL

and GND (see R2 in the typical

SEL

= 11

Doc ID 16857 Rev 2 7/25

Pin configuration LNBH24L

3 Pin configuration

Figure 2. Pin connections (bottom view)

Table 2. Pin description

Pin n°

(sec. A/B)

21 V

20 V

Symbol Name Pin function

CC

L Supply Input 8 to 15 V analog power supply.

CC–

Supply Input 8 to 15 V IC DC-DC power supply.

5 / 2 LX-A / LX-B N-MOS Drain Integrated N-channel Power MOSFETs drain.

16 /

25

18 /

23

17 /

24

V

UP

VUP-B

V

oRX

V

oRX

V

oTX –

V

oTX –

-A /

-B

A /

Step-Up Voltage

LDO Output Port

Output Port during

B

22KHz Tone TX

Input of the linear post-regulators. The voltage on these pins is monitored by the internal step-up controllers to keep a minimum dropout across the linear pass transistors.

Outputs of the integrated low drop linear regulators. See

Ta bl e 7 for voltage selections and description.

Tone outputs to the LNB. See Ta b le 7 for selection.

6 SDA Serial Data Bidirectional data from / to I²C bus.

7 SCL Serial Clock Clock from I²C bus.

These pins will accept the DiSEqC code from the main

10 /

31

DSQIN-A /

DSQIN-B

DiSEqC Inputs

microcontroller. The LNBH24L will uses this code to modulate the internally generated 22 kHz carrier. Set to ground if not used.

These pins can be used, as well as the TTX I²C bits of the

12 /

29

TTX-A /

TTX-B

TTX Enable

system register, to control the TTX function enable before to start the 22 kHz tone transmission. Set floating or to GND if not used.

11 / 30 Reserved Reserved To be connected to GND.

9 / 32

PDC – A /

PDC – B

Pull Down Control

To be connected to the external NPN transistors base to reduce the 22 kHz tone distortion in case of heavy capacitive load at light output current. If not used they can be left floating.

8/25 Doc ID 16857 Rev 2

LNBH24L Pin configuration

Table 2. Pin description (continued)

Pin n°

(sec. A/B)

Symbol Name Pin function

External modulation inputs act on V

13 /

28

EXTM-A /

EXTM-B

External

Modulation

outputs to superimpose an external 22 kHz signal. Need DC decoupling to the AC source. If not used they can be left floating.

4 /

3

Epad Epad Exposed Pad

P-GND-A /

P-GND-B

Power Grounds DC-DC converters power grounds.

To be connected with power grounds and to the ground layer through vias to dissipate the heat.

22 A-GND Analog Grounds Analog circuits grounds.

Needed for internal pre-regulator filtering. The BYP pin is

19 BYP By-pass Capacitor

intended only to connect an external ceramic capacitor. Any connection of this pin to external current or voltage sources may cause permanent damage to the device.

8 /

1

15/

26

14 /

27

ADDR-A /

ADDR-B

ISEL-A /

ISEL-B

Address Setting

Current selection

Reserved Reserved To be left floating. Do Not connect to GND.

Two I²C addresses available for each section by setting the Address pins voltage level. See address pin characteristics table.

The resistors “R the linear regulators current limit protection threshold by the equation: I

max(typ)

” connected between I

SEL

= 10000 / R

SEL

linear regulator

oRX

SEL

.

and GND define

Doc ID 16857 Rev 2 9/25

Maximum ratings LNBH24L

4 Maximum ratings

Table 3. Absolute maximum ratings (valid for both sections A/B)

Symbol Parameter Value Unit

V

, VCCDC power supply input voltage pins -0.3 to 16 V

CC-L

I

OUT

V

oRX

V

oTX

LX LX input voltage -0.3 to 25 V

Output current Internally limited mA

DC output pin voltage -0.3 to 25 V

Tone output pin voltage -0.3 to 25 V

V

UP

V

OH

EXTM

BYP

DC input voltage -0.3 to 24 V

Logic input voltage (TTX, SDA, SCL, DSQIN, ADDR pins) -0.3 to 7 V

I

Logic high output voltage (PDC pin) -0.3 to 7 V

EXTM pin voltage -0.3 to 2 V

Internal reference pin voltage

(1)

-0.3 to 4.6 V

ISEL Current selection pin voltage -0.3 to 4.6 V

T

STG

T

Storage temperature range -50 to 150 °C

Junction temperature range -25 to 150 °C

J

ESD rating with human body model (HBM) for all pins unless 4, 21, 22 2 kV

ESD

ESD rating with human body model (HBM) for pins 21, 22 4

ESD rating with human body model (HBM) for pin 4 0.6

1. The BYP pin is intended only to connect an external ceramic capacitor. Any connection of this pin to external current or

voltage sources may cause permanent damage to the device.

Note: Absolute maximum ratings are those values beyond which damage to the device may occur.

These are stress ratings only and functional operation of the device at these conditions is not implied. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability. All voltage values are with respect to network ground terminal.

Table 4. Operating ratings

Symbol Parameter Value Unit

V

, V

CC-L

CC

T

J

Table 5. Thermal data

DC power supply input voltage pins 8 to 15 V

Junction temperature range 0 to 125 °C

Symbol Parameter Value Unit

R

thJC

R

thJA

Thermal resistance junction-case 2 °C/W

Thermal resistance junction-ambient with device soldered on 2s2p PC board

35 °C/W

10/25 Doc ID 16857 Rev 2

LNBH24L Application circuits

V

5 Application circuits

Figure 3. LNBH24L with internal tone for DiSEqC 1.X applications

Vup

C3

C3C3

12V

C3C3C3C3C3

D1

D1D1

D1

D1D1

L1

in

C1

Tone Enable control

TTL

C8

C8 220nF

220nF

220nF C8220nF

220nF

220nF C8220nF

C6

2.2µF

I2C Bus

LX

Vcc

Vcc-L

SDA

{

SCL

ADDR

TTX

DSQIN

D3

D3D3

D3

D3D3

LNBH24L

(sections A/B)

P-GND A-GND

P-GND A-GNDP-GND A-GND

P-GND A-GND

P-GND A-GNDP-GND A-GND

VoTX

EXTM

VoRX

PDC

EXTM

ISEL

Byp

2KOhm

C10

C10 220nF

220nF

R9

R9R9

R9

R9R9

C15

C15 47 nF

47 nF

D4

D4D4

C11

C11 220nF

220nF

D2D2D2

D2D2D2D2D2D2

R2 (RSEL)

R2 (RSEL) 15kOhm

15kOhm

to LNB

to LNB 500mA max

500mA max

Figure 4. DiSEqC 1.x using external 22 kHz tone generator source through EXTM pin

D3

Vup

VoTX

C3

Vin

Vin 12V

12V

C3

D1

L1

C1

22 kHz signal source

C8

C8 220nF

220nF

I2C Bus

C Bus

I2C Bus

C Bus

C15

C15 220nF

220nF

C6

µ

2.2µF

{

LX

Vcc

Vcc- L

SDA

SCL

ADDR

TTX

EXTM

LNBH24L

(sections A/B)

P-GND A-GND

---

P-GND A-GND

---

-

VoRX

PDC

DSQIN

ISEL

Byp

C10

C10 220nF

220nF

C11

C11 220nF

220nF

to LNB

to LNB 500mA max

500mA max

D2

R2 (RSEL)

R2 (RSEL) 15kOhm

15kOhm

Doc ID 16857 Rev 2 11/25

Application circuits LNBH24L

V

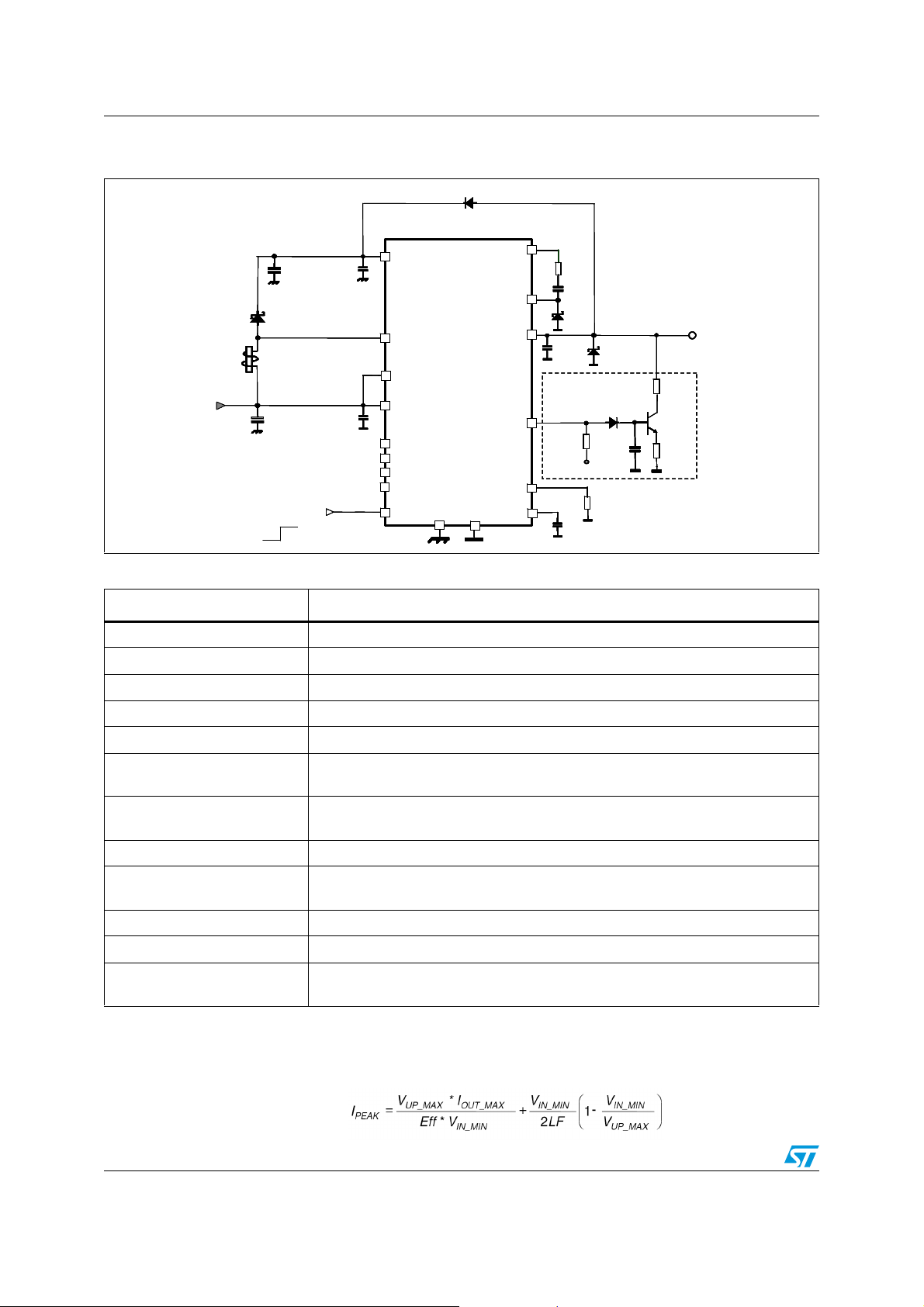

Figure 5. LNBH24L with PDC circuit for DiSEqC 1.X applications

Vup

C3

C3C3

12V

C3C3C3C3C3

D1

D1D1

D1

D1D1

L1

in

C1

Tone Enab le control

TTL

C8

C8 220nF

220nF

220nF C8220nF

220nF

220nF C8220nF

C6

2.2µF

I2C Bus

LX

Vcc

Vcc-L

SDA

{

SCL

ADDR

TTX

DSQIN

D3

D3D3

D3

D3D3

LNBH24L

(sections A/B)

P-GND A-GND

P-GND A-GNDP-GND A-GND

P-GND A-GND

P-GND A-GNDP-GND A-GND

VoTX

EXTM

VoRX

PDC

ISEL

Byp

R9

R9R9

R9

R9R9

2KOhm

C15

C15 47 nF

47 nF

D4

D4D4

C10

C10 220nF

220nF

*R5

2.2K Ohm

C11

C11 220nF

220nF

3.3V

D2

D2D2

D2

D2D2

D8

D8 1N4148

1N4148

*C14

*C14 1nF

1nF

R2 (RSEL)

R2 (RSEL) 15kOhm

15kOhm

to LNB

to LNB 500mA max

500mA max

*R8

*R8 150 Ohm

150 Ohm

*TR1

*R7

*R7 22 Ohm

22 Ohm

(*)OPTIONAL components.

(*)OPTIONAL components. To be used only in case

To be used only in case

of heavy capacitive load

Table 6. Bill of material (valid for A and B sections unless for C1, C2, C7, C8 and C11)

Component Notes

R2, R9, R5

(1)

R7

, R8

(1)

1/16 W resistors. Refer to the typical application circuit for the relative values

1/2 W resistors. Refer to the typical application circuit for the relative values

C1 25 V electrolytic capacitor, 100 µF or higher is suitable

C3 25 V, 220 µF electrolytic capacitor, ESR in the 100 mΩ to 350 mΩ range

(1)

C6, C8, C10, C11, C15, C14

D1

D2

25 V ceramic capacitors. Refer to the typ. appl. circuit for the relative values

STPS130A or similar schottky diode with V I

F(AV)

> I

OUT_MAX

x (V

UP_MAX

/ V

IN_MIN

)

> 25 V and IF(AV) higher than:

RRM

STPS130A, 1N5818 or similar schottky diode with VRRM>25V. To be placed as close as possible to VoRX pin

D3 1N4001-07 or any similar general purpose rectifier

D4

BAT54, STPS130A, BAT43, 1N5818, or similar schottky diode with VRRM>20V. To be placed as close as possible to EXTM pin

D8 1N4148 or similar

(1)

TR1

L1

1. These components can be added to avoid any 22 kHz tone distortion due to heavy capacitive output loads. If not needed

they can be removed leaving the PDC pin floating.

BC817 or similar NPN general-purpose transistor

22 µH inductor with I

sat

peak

where I

is the boost converter peak current:

peak

> I

(see Equation 2)

Equation 2

12/25 Doc ID 16857 Rev 2

LNBH24L I²C bus interface

6 I²C bus interface

Data transmission from main microprocessor to the LNBH24L and vice versa takes place through the 2 wires I²C bus interface, consisting of the 2 lines SDA and SCL (pull-up resistors to positive supply voltage must be externally connected).

6.1 Data validity

As shown in Figure 6, the data on the SDA line must be stable during the high semi-period of the clock. The HIGH and LOW state of the data line can only change when the clock signal on the SCL line is LOW.

6.2 Start and stop condition

As shown in Figure 7 a start condition is a HIGH to LOW transition of the SDA line while SCL is HIGH. The stop condition is a LOW to HIGH transition of the SDA line while SCL is HIGH. A STOP condition must be sent before each START condition.

6.3 Byte format

Every byte transferred to the SDA line must contain 8 bits. Each byte must be followed by an acknowledge bit. The MSB is transferred first.

6.4 Acknowledge

The master (microprocessor) puts a resistive HIGH level on the SDA line during the acknowledge clock pulse (see to pull-down (LOW) the SDA line during the acknowledge clock pulse, so that the SDA line is stable LOW during this clock pulse. The peripheral which has been addressed has to generate acknowledge after the reception of each byte, otherwise the SDA line remain at the HIGH level during the ninth clock pulse time. In this case the master transmitter can generate the STOP information in order to abort the transfer. The LNBH24L won't generate acknowledge if the V

supply is below the under-voltage lockout threshold (6.7 V typ.).

CC

Figure 8). The peripheral (LNBH24L) that acknowledges has

6.5 Transmission without acknowledge

Avoiding to detect the acknowledges of the LNBH24L, the microprocessor can use a simpler transmission: simply it waits one clock without checking the slave acknowledging, and sends the new data. This approach of course is less protected from misworking and decreases the noise immunity.

Doc ID 16857 Rev 2 13/25

I²C bus interface LNBH24L

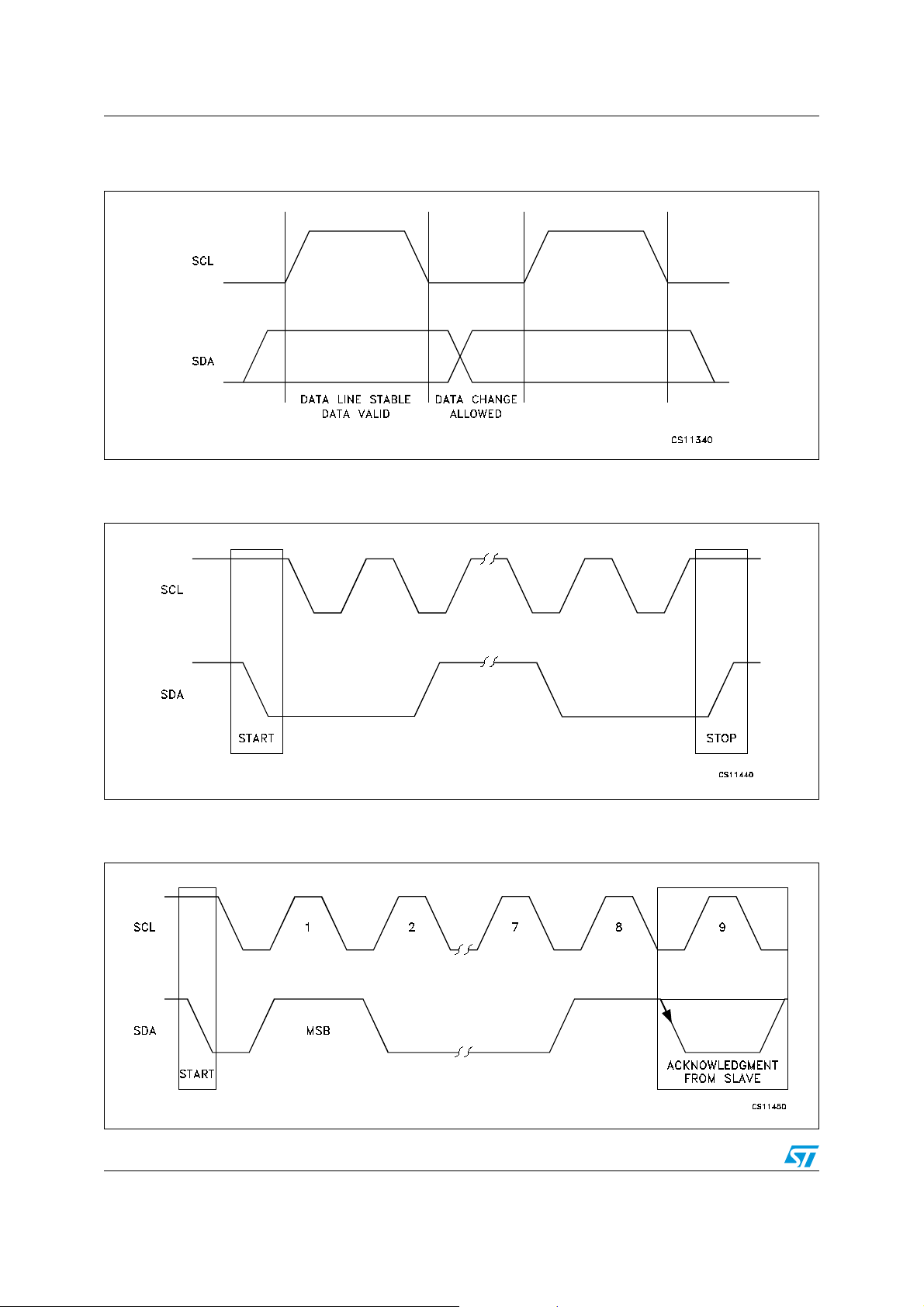

Figure 6. Data validity on the I²C bus

Figure 7. Timing diagram of I²C bus

Figure 8. Acknowledge on the I²C bus

14/25 Doc ID 16857 Rev 2

LNBH24L LNBH24 software description

7 LNBH24 software description

The LNBH24L I²C interface controls both the IC sections A and B depending on the address sent before the DATA byte. All the below description is valid for both sections.

7.1 Interface protocol

The interface protocol comprises:

● A start condition (S)

● A chip address byte [the LSB bit determines read (=1)/write (=0) transmission]

● A sequence of data (1 byte + acknowledge)

● A stop condition (P)

Section address (A or B) Data

MSB LSB MSB LSB

S 0 0 0 1 0 X X R/W ACK ACK P

ACK = Acknowledge

S = Start

P = Stop

R/W = 1/0, Read/Write bit

X = 0/1, two addresses for each section selectable by ADDR-A/B pins (see

Ta bl e 1 1 )

7.2 System register (SR, 1 Byte for each section A and B)

Mode MSB LSB

Write PCL TTX TEN LLC VSEL EN TEST4 TEST5

Read TEST1 TEST2 TEST3 LLC VSEL EN OTF OLF

Write = control bits functions in write mode

Read = diagnostic bits in read mode.

All bits reset to 0 at power on

7.3 Transmitted data (I²C bus write mode) for each sections A/B

When the R/W bit in the section address is set to 0, the main microprocessor can write on the system register (SR) of the relative section (A or B, depending on the 7 bit address value) via I²C bus. All and 8 bits are available and can be written by the microprocessor to control the device functions as per the below truth table (

Ta bl e 7 ).

Doc ID 16857 Rev 2 15/25

LNBH24 software description LNBH24L

Table 7. Truth table

PCL TTX TEN LLC VSEL EN TEST4 TEST5 Function

000100V

001100V

010100V

011100V

10 10 0

11 10 0

00 10 0

0100

1100

= 13.3 V, VUP=14.4 V, (VUP-V

oRX

= 18.2 V, VUP=19.3 V, (VUP-V

oRX

= 14.3 V, VUP=15.4 V, (VUP-V

oRX

= 19.2 V, VUP=20.3 V, (VUP-V

oRX

Internal 22 kHz controlled by DSQIN pin (only if TTX=1)

Internal 22 kHz tone output on V

is always

oTX

activated

Internal 22 kHz generator disabled, EXTM modulation enabled

output is ON, V

V

oRX

Tone generator output is

oTX

OFF

output is ON, V

V

oRX

Tone generator output is

oTX

ON

0 1 0 0 Pulsed (Dynamic) current limiting is selected

1 1 0 0 Static current limiting is selected

X X X X X 0 X X Power block disabled

=1.1 V typ.)

X = don't care

Values are typical unless otherwise specified

Valid with TTX pin floating

7.4 Diagnostic received data (I²C read mode) for both sections A/B

The LNBH24L can provide to the MCU master a copy of the diagnostic system register information via I²C bus in read mode. The read mode is master activated by sending the chip address with R/W bit set to 1. At the following master generated clocks bits, LNBH24L issues a byte on the SDA data bus line (MSB transmitted first). At the ninth clock bit the master can:

● Acknowledge the reception, starting in this way the transmission of another byte from

the LNBH24L

● No acknowledge, stopping the read mode communication

Three bits of the register are read back as a copy of the corresponding write output voltage register status (LLC, VSEL, EN), two bits convey diagnostic information about the overtemperature (OTF), output over-load (OLF) and three bit are for internal usage (TEST1-2-3) and must be disregarded by the MCU software. In normal operation the diagnostic bits are set to zero, while, if a failure is occurring, the corresponding bit is set to one. At start-up all the bits are reset to zero.

16/25 Doc ID 16857 Rev 2

LNBH24L LNBH24 software description

Table 8. Register

TEST1 TEST2 TEST3 LLC VSEL EN OTF OLF Function

XX X

< 135°C, normal operation

J

> 150°C, power blocks disabled

J

< I

0I

O

1I

> I

O

These bits status must be disregarded by the MCU.

, normal operation

OMAX

, Overload Protection triggered

OMAX

These bits are read

exactly the same as

they were left after

last write operation

0T

1T

X = don’t care

Note: Values are typical unless otherwise specified.

7.5 Power-ON I²C interface reset

The I²C interface built in the LNBH24L is automatically reset at power-on. As long as the

stays below the undervoltage lockout (UVL) threshold (6.7 V), the interface will not

V

CC

respond to any I²C command and the system registers (SR) are initialized to all zeroes, thus keeping the power blocks disabled. Once the V becomes operative and the SRs can be configured by the main microprocessor. This is due to 500 mV of hysteresis provided in the UVL threshold to avoid false re-triggering of the Power-ON reset circuit.

rises above 7.3 V typ. The I²C interface

CC

7.6 Address pins

For each section of the LNBH24L it is possible to select two I²C interface addresses by means of the relevant ADDR pin. The ADDR pins are TTL compatible and can be set as per hereafter address pins characteristics see

Ta bl e 1 1 .

7.7 DiSEqC™ implementation for each section A/B

LNBH24L helps system designer to implement DiSEqC 1.x protocol by allowing an easy PWK modulation of the 22 kHz carrier through the EXTM and V the system to the specification is thus not implied by the bare use of the LNBH24L (see DiSEqC 1.x operation descriptions and typical application circuits).

pins. Full compliance of

oTX

Doc ID 16857 Rev 2 17/25

Electrical characteristics LNBH24L

8 Electrical characteristics

Refer to the typical application circuits, TJ from 0 to 85 °C, EN=1, VSEL=LLC=TEN=PCL=TEST4=TEST5=TTX=0, R

= 50 mA, unless otherwise stated. Typical values are referred to TJ = 25°C.

I

OUT

V

OUT

= V

pin voltage. See software description section for I²C access to the system

oRX

=15 kΩ, DSQIN=LOW, V

SEL

register.

Table 9. Electrical characteristics of each sections A/B

Symbol Parameter Test conditions Min. Typ. Max. Unit

= 12 V,

IN

V

I

MAX

I

T

F

TONE

A

TONE

A

TONE

IN

I

IN

OUT

SC

OFF

ON

Supply voltage I

Supply current

= 500 mA, VSEL = LLC = 1 8 12 15 V

OUT

Both sections A and B enabled

= 0

I

OUT

20 30

Both sections A and B enabled, optional PDC circuit not connected.

EN = TEN = TTX = 1, I

OUT

= 0

50 70

mA

EN = 0 6

Output voltage

VSEL = 1

= 500 mA

I

OUT

LLC = 0 17.3 18.2 19

LLC = 1 19.2

V

Output voltage

VSEL = 0

= 500 mA

I

OUT

LLC = 0 12.6 13.3 14

LLC = 1 14.3

VSEL=0 5 40

Line regulation V

Load regulation VSEL=0 or 1, I

= 8 to 15 V

IN

from 50 to 500mA 200

OUT

mVVSEL=1 5 60

RSEL= 15 kΩ 500 800

Output current limiting

mA

RSEL= 11 kΩ 750 1000

Output short circuit current VSEL=0/1 800 mA

Dynamic overload protection OFF time

PCL=0, Output Shorted 900

ms

Dynamic overload protection ON time

PCL=0, Output Shorted

T

OFF

10

/

Tone frequency DSQIN=HIGH or TEN=1, TTX=1 18 22 26 kHz

DSQIN=HIGH or TEN=1, TTX=1, Tone amplitude using internal tone generator

DiSEqC 1.X configuration using

internal generator, C

250 nF, I

from 50 to 500 mA

OUT

from 0 to

BUS

0.4 0.650 0.9 V

PP

DSQIN=HIGH or TEN=1, TTX=1,

DiSEqC 1.X configuration using Tone amplitude using internal tone generator

internal generator, I

mA, C

optional circuit connected to LNB

bus

from 0 to 750 nF, PDC

OUT

(1)

from 0 to 500

OUT

0.4 0.650 0.9 V

PP

D

TONE

Internal tone duty cycle

DSQIN=HIGH or TEN=1, TTX=1

(using internal generator)

18/25 Doc ID 16857 Rev 2

40 50 60 %

LNBH24L Electrical characteristics

Table 9. Electrical characteristics of each sections A/B (continued)

Symbol Parameter Test conditions Min. Typ. Max. Unit

t

, t

r

V

PDC_OL

I

PDC_OZ

G

EXTM

V

EXTM

Z

EXTM

Eff

DC-DC

F

SW

V

I

IH

I

OBK

T

SHDN

ΔT

SHDN

Tone rise or Fall time

f

PDC pin logic LOW I

PDC pin leakage current V

External modulation Gain

External modulation input voltage

External modulation impedance

DC-DC converter efficiency I

DC-DC converter switching frequency

DSQIN,TTX, pin logic low 0.8 V

IL

DSQIN,TTX, pin logic high 2 V

IH

DSQIN,TTX, pin input current V

Output backward current EN = 0, V

DSQIN=HIGH or TEN=1, TTX=1

(using internal generator)

= 2 mA 0.3 V

PDC

= 5 V 1 µA

PDC

ΔV

OUT

/ ΔV

, freq. from 10 kHz to

EXTM

50 kHz

EXTM AC coupling

(2)

5 8 15 µs

1.8

400 mV

2kΩ

= 500 mA 93 %

OUT

220 kHz

= 5 V 15 µA

IH

= 21 V -6 -15 mA

OBK

PP

Thermal shut-down threshold 150 °C

Thermal shut-down hysteresis

15 °C

1. Guaranteed by design, but not tested in production

2. External signal maximum voltage for which the EXTM function is guaranteed

TJ from 0 to 85 °C, VI = 12 V.

Table 10. I²C electrical characteristics

Symbol Parameter Test conditions Min. Typ. Max. Unit

V

IL

V

IH

I

IN

V

OL

F

MAX

LOW Level input voltage SDA, SCL 0.8 V

HIGH Level input voltage SDA, SCL 2 V

Input current SDA, SCL, VI = 0.4 to 4.5 V -10 10 µA

Low level output voltage SDA (open drain), IOL = 6 mA 0.6 V

Maximum clock frequency SCL 400 kHz

Doc ID 16857 Rev 2 19/25

Electrical characteristics LNBH24L

TJ from 0 to 85 °C, VI = 12 V.

Table 11. Address pins characteristics

Symbol Parameter Test condition Min. Typ. Max. Unit

SECTION “A” ADDRESS SELECTION

V

ADDR-A1

V

ADDR-A2

V

ADDR-B1

V

ADDR-B2

“0001000(R/W)” Address pin voltage range for section A

“0001001(R/W)” Address pin voltage range for section A

SECTION “B” ADDRESS SELECTION

“0001010(R/W)” Address pin voltage range for section B

“0001011(R/W)” Address pin voltage range for section B

R/W bit determines the transmission mode: read (R/W=1) write (R/W=0)

00.8V

25V

00.8V

25V

20/25 Doc ID 16857 Rev 2

LNBH24L Package mechanical data

9 Package mechanical data

In order to meet environmental requirements, ST offers these devices in different grades of ECOPACK specifications, grade definitions and product status are available at: ECOPACK

®

packages, depending on their level of environmental compliance. ECOPACK®

®

is an ST trademark.

www.st.com.

Doc ID 16857 Rev 2 21/25

Package mechanical data LNBH24L

Table 12. QFN32 (5 x 5 mm) mechanical data

Dim.

Min. Typ. Max.

A 0.80 0.90 1.00

A1 0 0.02 0.05

A3 0.20

b 0.18 0.25 0.30

D 4.85 5.00 5.15

D2 3.20 3.70

E 4.85 5.00 5.15

E2 3.20 3.70

e0.50

L 0.30 0.40 0.50

ddd 0.08

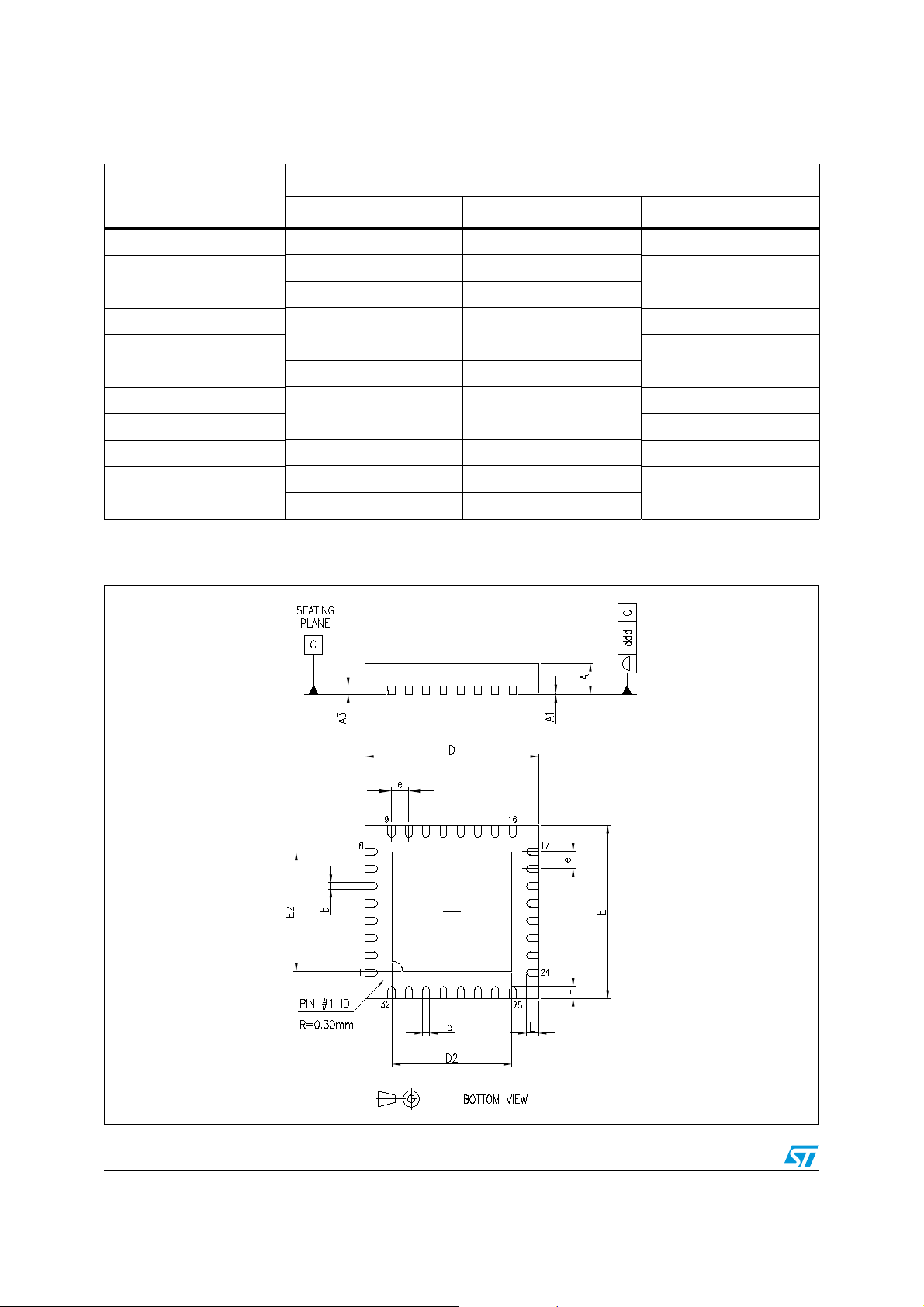

Figure 9. QFN32 package dimensions

(mm.)

22/25 Doc ID 16857 Rev 2

7376875/E

LNBH24L Package mechanical data

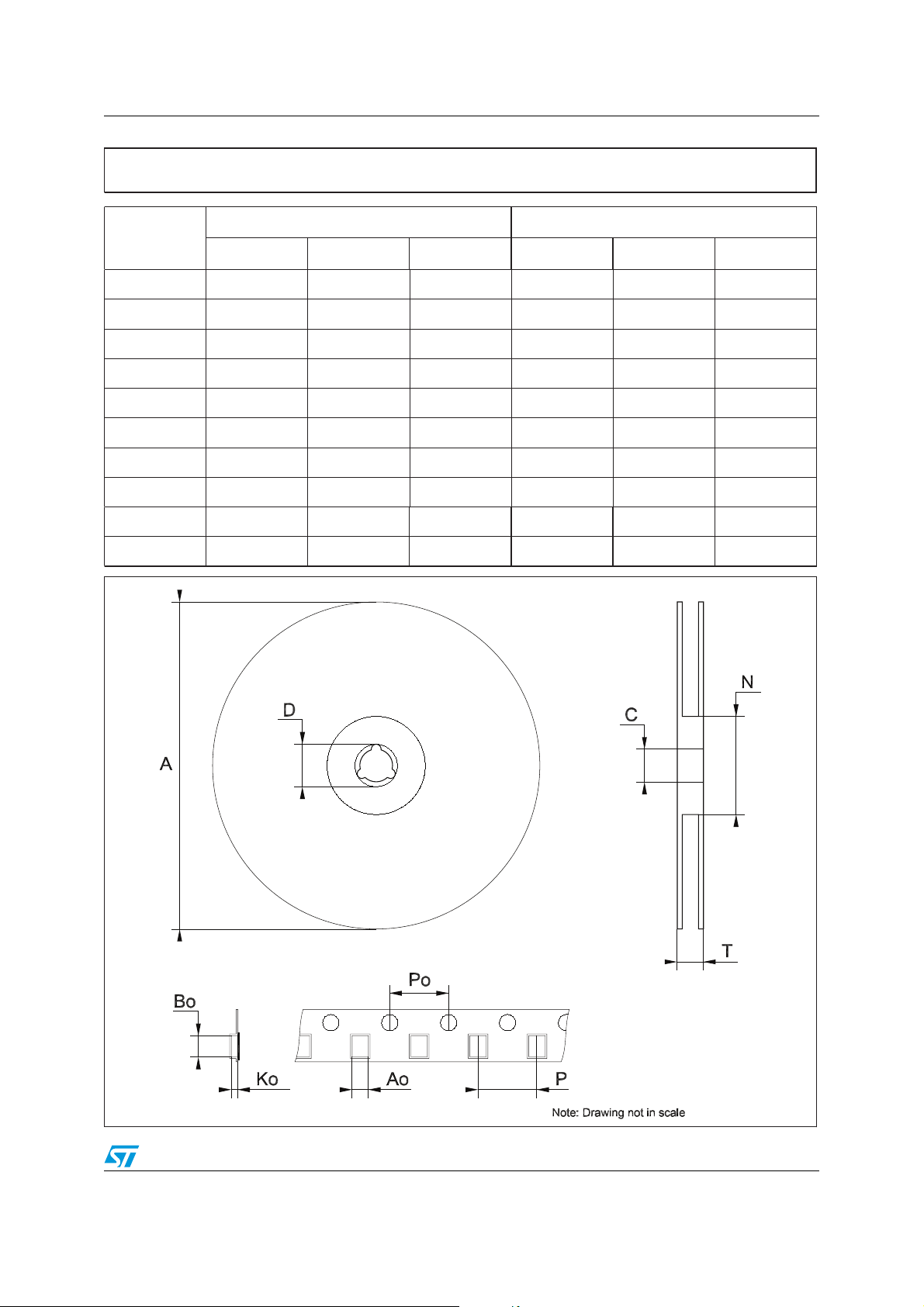

Tape & reel QFNxx/DFNxx (5x5 mm.) mechanical data

mm. inch.

Dim.

Min. Typ. Max. Min. Typ. Max.

A 330 12.992

C 12.8 13.2 0.504 0.519

D 20.2 0.795

N 99 101 3.898 3.976

T 14.4 0.567

Ao 5.25 0.207

Bo 5.25 0.207

Ko 1.1 0.043

Po 4 0.157

P 8 0.315

Doc ID 16857 Rev 2 23/25

Revision history LNBH24L

10 Revision history

Table 13. Document revision history

Date Revision Changes

03-Dec-2009 1 Initial release.

18-Mar-2010 2 Modified: Figure 3 on page 11 and Figure 5 on page 12.

24/25 Doc ID 16857 Rev 2

LNBH24L

Please Read Carefully:

Information in this document is provided solely in connection with ST products. STMicroelectronics NV and its subsidiaries (“ST”) reserve the right to make changes, corrections, modifications or improvements, to this document, and the products and services described herein at any time, without notice.

All ST products are sold pursuant to ST’s terms and conditions of sale.

Purchasers are solely responsible for the choice, selection and use of the ST products and services described herein, and ST assumes no liability whatsoever relating to the choice, selection or use of the ST products and services described herein.

No license, express or implied, by estoppel or otherwise, to any intellectual property rights is granted under this document. If any part of this document refers to any third party products or services it shall not be deemed a license grant by ST for the use of such third party products or services, or any intellectual property contained therein or considered as a warranty covering the use in any manner whatsoever of such third party products or services or any intellectual property contained therein.

UNLESS OTHERWISE SET FORTH IN ST’S TERMS AND CONDITIONS OF SALE ST DISCLAIMS ANY EXPRESS OR IMPLIED WARRANTY WITH RESPECT TO THE USE AND/OR SALE OF ST PRODUCTS INCLUDING WITHOUT LIMITATION IMPLIED WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE (AND THEIR EQUIVALENTS UNDER THE LAWS OF ANY JURISDICTION), OR INFRINGEMENT OF ANY PATENT, COPYRIGHT OR OTHER INTELLECTUAL PROPERTY RIGHT.

UNLESS EXPRESSLY APPROVED IN WRITING BY AN AUTHORIZED ST REPRESENTATIVE, ST PRODUCTS ARE NOT RECOMMENDED, AUTHORIZED OR WARRANTED FOR USE IN MILITARY, AIR CRAFT, SPACE, LIFE SAVING, OR LIFE SUSTAINING APPLICATIONS, NOR IN PRODUCTS OR SYSTEMS WHERE FAILURE OR MALFUNCTION MAY RESULT IN PERSONAL INJURY, DEATH, OR SEVERE PROPERTY OR ENVIRONMENTAL DAMAGE. ST PRODUCTS WHICH ARE NOT SPECIFIED AS "AUTOMOTIVE GRADE" MAY ONLY BE USED IN AUTOMOTIVE APPLICATIONS AT USER’S OWN RISK.

Resale of ST products with provisions different from the statements and/or technical features set forth in this document shall immediately void any warranty granted by ST for the ST product or service described herein and shall not create or extend in any manner whatsoever, any liability of ST.

ST and the ST logo are trademarks or registered trademarks of ST in various countries.

Information in this document supersedes and replaces all information previously supplied.

The ST logo is a registered trademark of STMicroelectronics. All other names are the property of their respective owners.

STMicroelectronics group of companies

Australia - Belgium - Brazil - Canada - China - Czech Republic - Finland - France - Germany - Hong Kong - India - Israel - Italy - Japan -

Malaysia - Malta - Morocco - Philippines - Singapore - Spain - Sweden - Switzerland - United Kingdom - United States of America

www.st.com

Doc ID 16857 Rev 2 25/25
