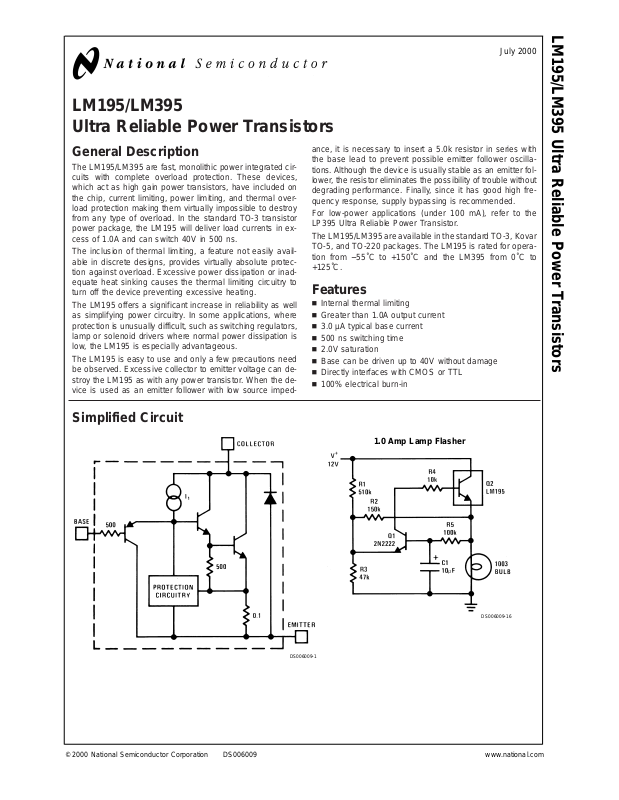

Datasheet LM395P, LM395K Datasheet (NSC)

LM195/LM395
Ultra Reliable Power Transistors

LM195/LM395 Ultra Reliable Power Transistors

July 2000

General Description

The LM195/LM395 are fast, monolithic power integrated cir­cuits with complete overload protection. These devices,
which act as high gain power transistors, have included on
the chip, current limiting, power limiting, and thermal over­load protection making them virtually impossible to destroy
from any type of overload. In the standard TO-3 transistor
power package, the LM195 will deliver load currents in ex­cess of 1.0A and can switch 40V in 500 ns.

The inclusion of thermal limiting, a feature not easily avail­able in discrete designs, provides virtually absolute protec­tion against overload. Excessive power dissipation or inad­equate heat sinking causes the thermal limiting circuitry to
turn off the device preventing excessive heating.

The LM195 offers a significant increase in reliability as well
as simplifying power circuitry. In some applications, where
protection is unusuallydifficult, such as switching regulators,
lamp or solenoid drivers where normal power dissipation is
low, the LM195 is especially advantageous.

The LM195 is easy to use and only a few precautions need
be observed. Excessive collector to emitter voltage can de­stroy the LM195 as with any power transistor. When the de­vice is used as an emitter follower with low source imped-

Simplified Circuit

ance, it is necessary to insert a 5.0k resistor in series with
the base lead to prevent possible emitter follower oscilla­tions. Although the device is usually stable as an emitter fol­lower,the resistor eliminates the possibility of trouble without
degrading performance. Finally, since it has good high fre­quency response, supply bypassing is recommended.

For low-power applications (under 100 mA), refer to the
LP395 Ultra Reliable Power Transistor.

The LM195/LM395 are available in the standard TO-3, Kovar
TO-5, and TO-220 packages. The LM195 is rated for opera­tion from −55˚C to +150˚C and the LM395 from 0˚C to
+125˚C.

Features

n Internal thermal limiting
n Greater than 1.0A output current
n 3.0 µA typical base current
n 500 ns switching time
n 2.0V saturation
n Base can be driven up to 40V without damage
n Directly interfaces with CMOS or TTL
n 100% electrical burn-in

1.0 Amp Lamp Flasher

DS006009-16

DS006009-1

© 2000 National Semiconductor Corporation DS006009 www.national.com

Connection Diagrams

LM195/LM395

TO-3 Metal Can Package

DS006009-2

Bottom View

Order Number LM195K/883

See NS Package Number K02A

(Note 5)

TO-220 Plastic Package

DS006009-3

Case is Emitter

Top View

Order Number LM395T

See NS Package Number T03B

TO-5 Metal Can Package

DS006009-4

Bottom View

Order Number LM195H/883

See NS Package Number H03B

(Note 5)

www.national.com 2

LM195/LM395

Absolute Maximum Ratings (Note 1)

If Military/Aerospace specified devices are required,
please contact the National Semiconductor Sales Office/
Distributors for availability and specifications.

Collector to Emitter Voltage

LM195 42V
LM395 36V

Collector to Base Voltage

LM195 42V

Base to Emitter Voltage (Reverse) 20V
Collector Current Internally Limited
Power Dissipation Internally Limited
Operating Temperature Range

LM195 −55˚C to +150˚C

LM395 0˚C to +125˚C
Storage Temperature Range −65˚C to +150˚C
Lead Temperature

(Soldering, 10 sec.) 260˚C

LM395 36V

Base to Emitter Voltage (Forward)

LM195
LM395

42V
36V

Preconditioning

100% Burn-In In Thermal Limit

Electrical Characteristics

(Note 2)

Parameter Conditions LM195 LM395 Units

Min Typ Max Min Typ Max

Collector-Emitter Operating Voltage I
(Note 4)
Base to Emitter Breakdown Voltage 0 ≤ V
Collector Current

TO-3, TO-220 V

TO-5 V
Saturation Voltage I
Base Current 0 ≤ I

Quiescent Current (IQ)V

Base to Emitter Voltage IC= 1.0A, TA= +25˚C 0.9 0.9 V
Switching Time V

Thermal Resistance Junction to TO-3 Package (K) 2.3 3.0 2.3 3.0 ˚C/W
Case (Note 3) TO-5 Package (H) 12 15 12 15 ˚C/W

Note 1: “Absolute Maximum Ratings” indicate limits beyond which damage to the device may occur. Operating Ratings indicate conditions for which the device is
functional, but do not guarantee specific performance limits.

Note 2: Unless otherwise specified, these specifications apply for −55˚C ≤ T
Note 3: Without a heat sink, the thermal resistance of the TO-5 package is about +150˚C/W, while that of the TO-3 package is +35˚C/W.
Note 4: Selected devices with higher breakdown available.
Note 5: Refer to RETS195H and RETS195K drawings of military LM195H and LM195K versions for specifications.

≤ IC≤ I

Q

CE
CE

C

0 ≤ V

be

0 ≤ V

CE

T

A

MAX

≤ V

CE

CEMAX

42 36 60 V

≤ 15V 1.2 2.2 1.0 2.2 A
≤ 7.0V 1.2 1.8 1.0 1.8 A

≤ 1.0A, TA= 25˚C 1.8 2.0 1.8 2.2 V

≤ I

C

MAX

≤ V

CE

CEMAX

=0

≤ V

CE

CEMAX

= 36V, RL=36Ω,

= 25˚C

3.0 5.0 3.0 10 µA

2.0 5.0 2.0 10 mA

500 500 ns

42 36 V

TO-220 Package (T) 4 6 ˚C/W

≤ +150˚C for the LM195 and 0˚C ≤ +125˚C for the LM395.

j

www.national.com3

Typical Performance Characteristics (for K and T Packages)

Collector Characteristics

LM195/LM395

Quiescent Current

DS006009-33

Short Circuit Current

Base Emitter Voltage

DS006009-34

Bias Current

DS006009-35

Base Current

Saturation Voltage

DS006009-36

DS006009-39

Response Time

DS006009-37

DS006009-40

DS006009-38

Response Time

DS006009-41

www.national.com 4

Typical Performance Characteristics (for K and T Packages) (Continued)

LM195/LM395

10V Transfer Function

Transconductance

DS006009-7

36V Transfer Function

DS006009-8

Small Signal Frequency
Response

DS006009-9

DS006009-10

www.national.com5

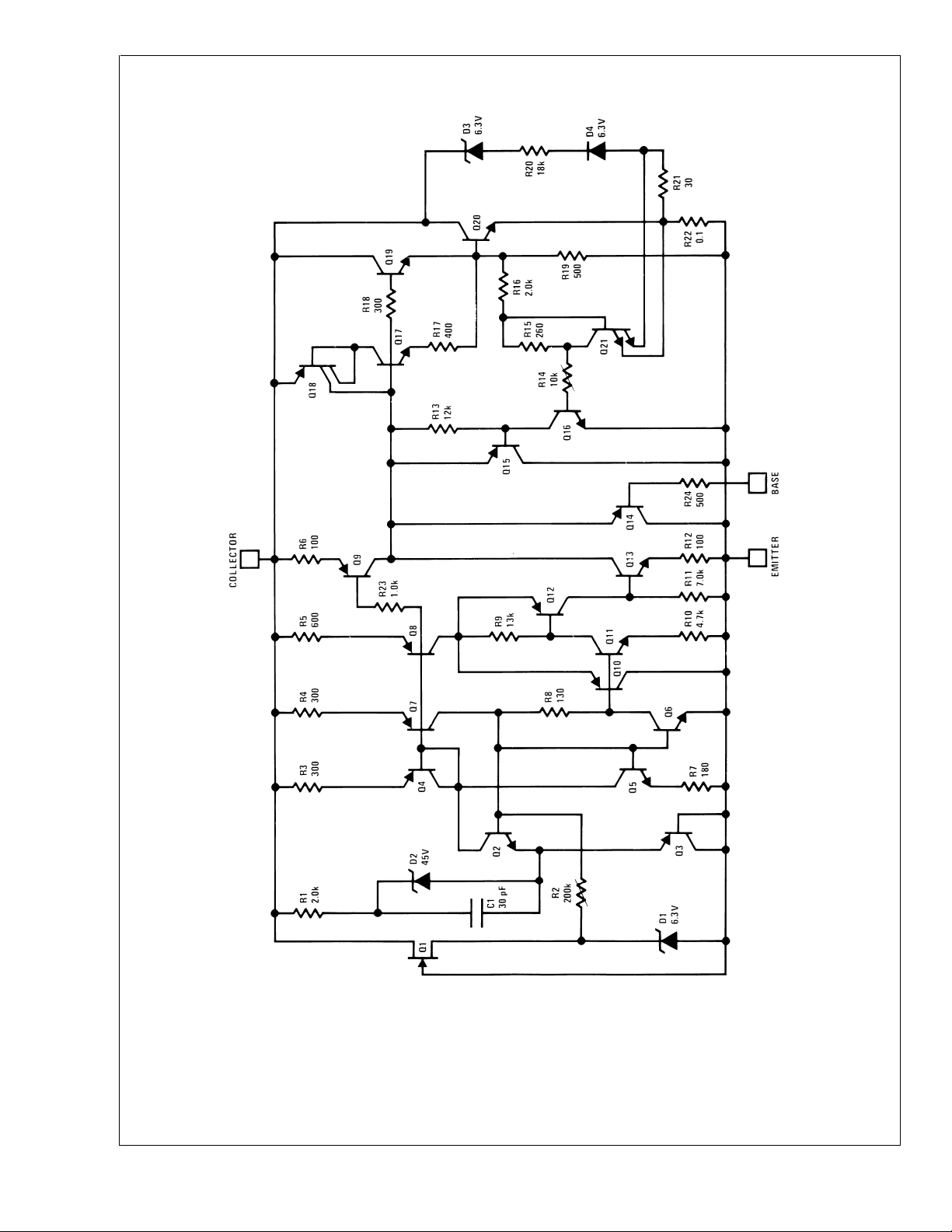

Schematic Diagram

LM195/LM395

DS006009-11

www.national.com 6

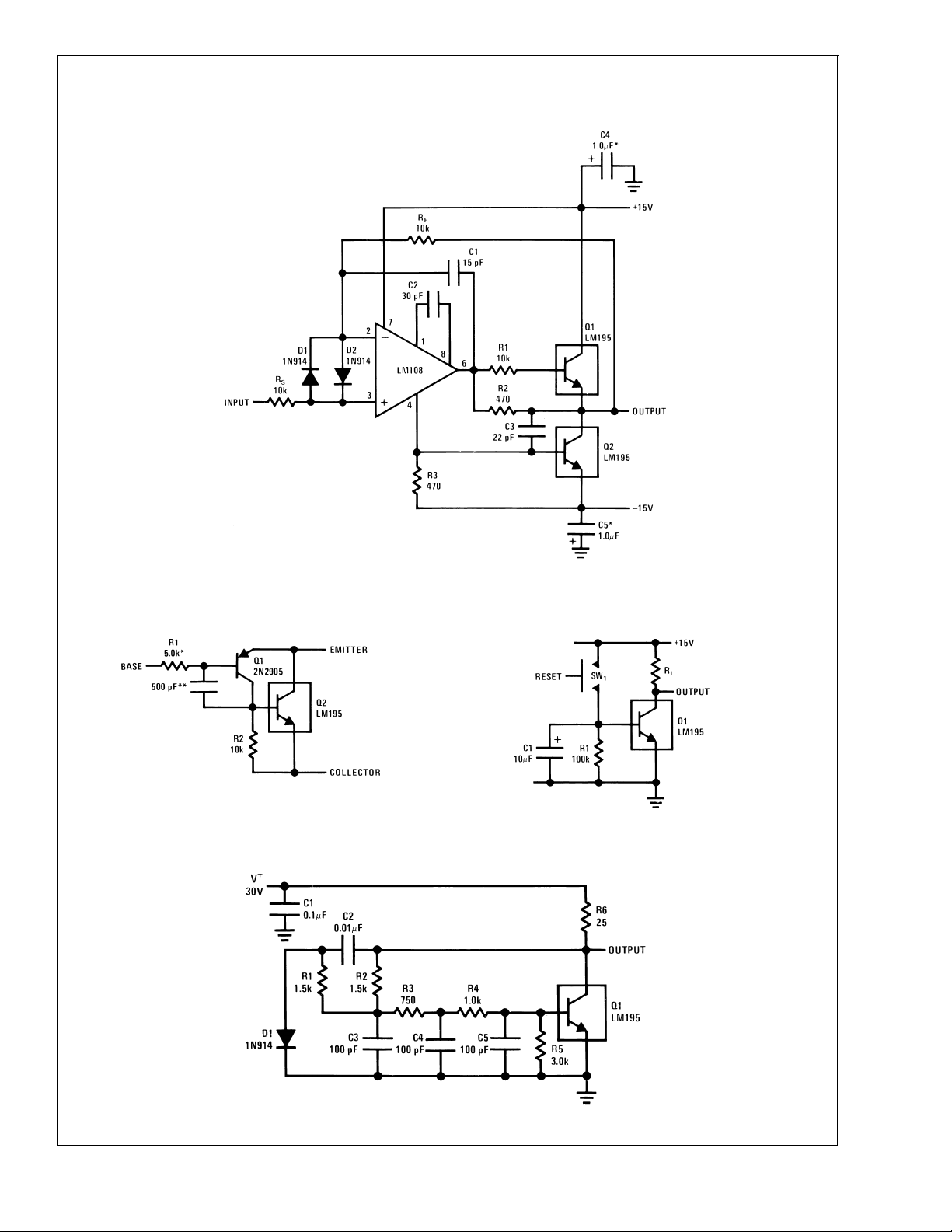

Typical Applications

LM195/LM395

1.0 Amp Voltage Follower

*

Solid Tantalum

Power PNP

*

Protects against excessive base drive

**

Needed for stability

DS006009-12

Time Delay

DS006009-13

DS006009-14

1.0 MHz Oscillator

DS006009-15

www.national.com7

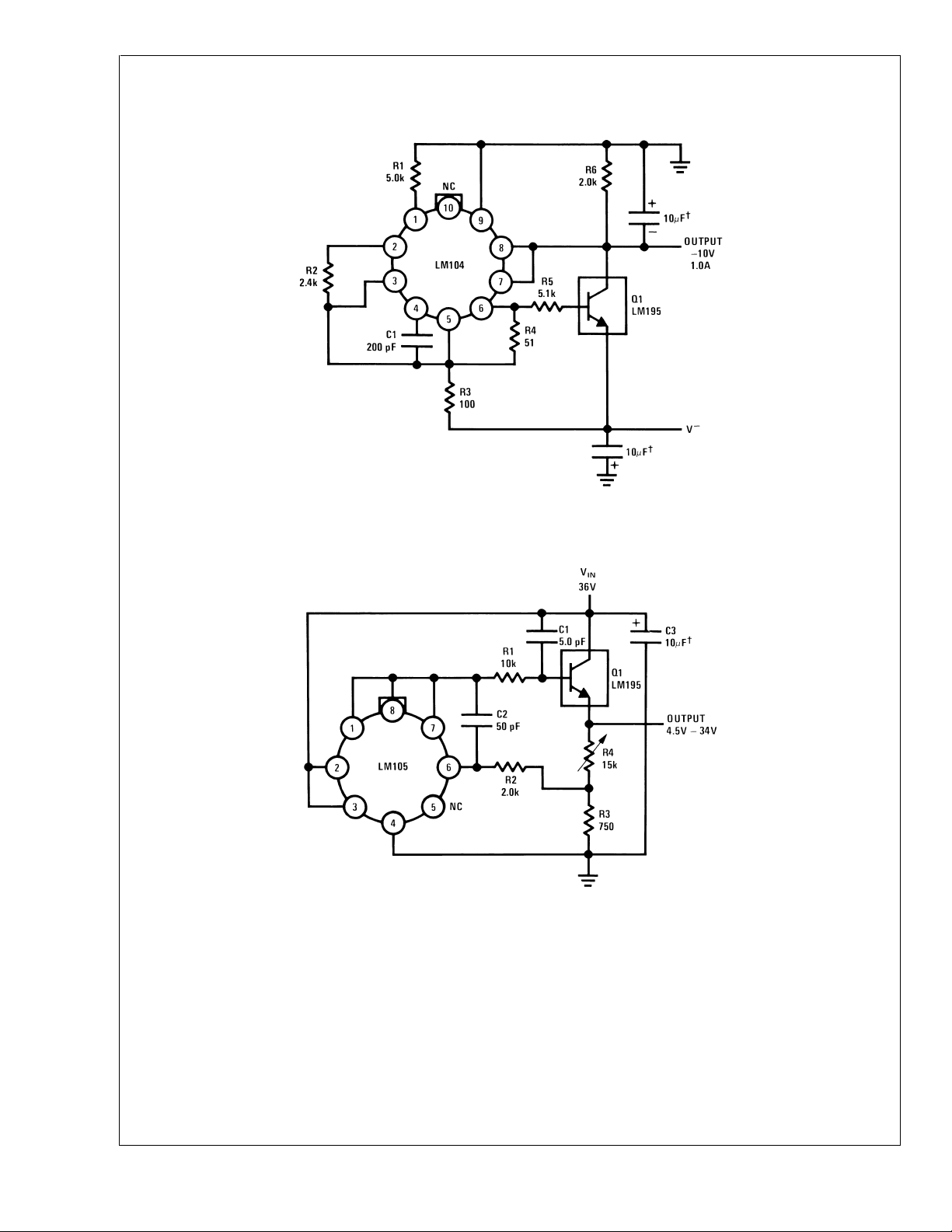

Typical Applications (Continued)

LM195/LM395

†

Solid Tantalum

1.0 Amp Negative Regulator

DS006009-17

†

Solid Tantalum

1.0 Amp Positive Voltage Regulator

DS006009-18

www.national.com 8

Typical Applications (Continued)

LM195/LM395

Fast Optically Isolated Switch

CMOS or TTL Lamp Interface

DS006009-21

Optically Isolated Power Transistor

DS006009-19

Two Terminal Current Limiter

DS006009-22

DS006009-20

40V Switch

*

Drive Voltage 0V to ≥ 10V ≤ 42V

DS006009-23

6.0V Shunt Regulator with Crowbar

DS006009-24

Two Terminal 100 mA Current Regulator

DS006009-25

www.national.com9

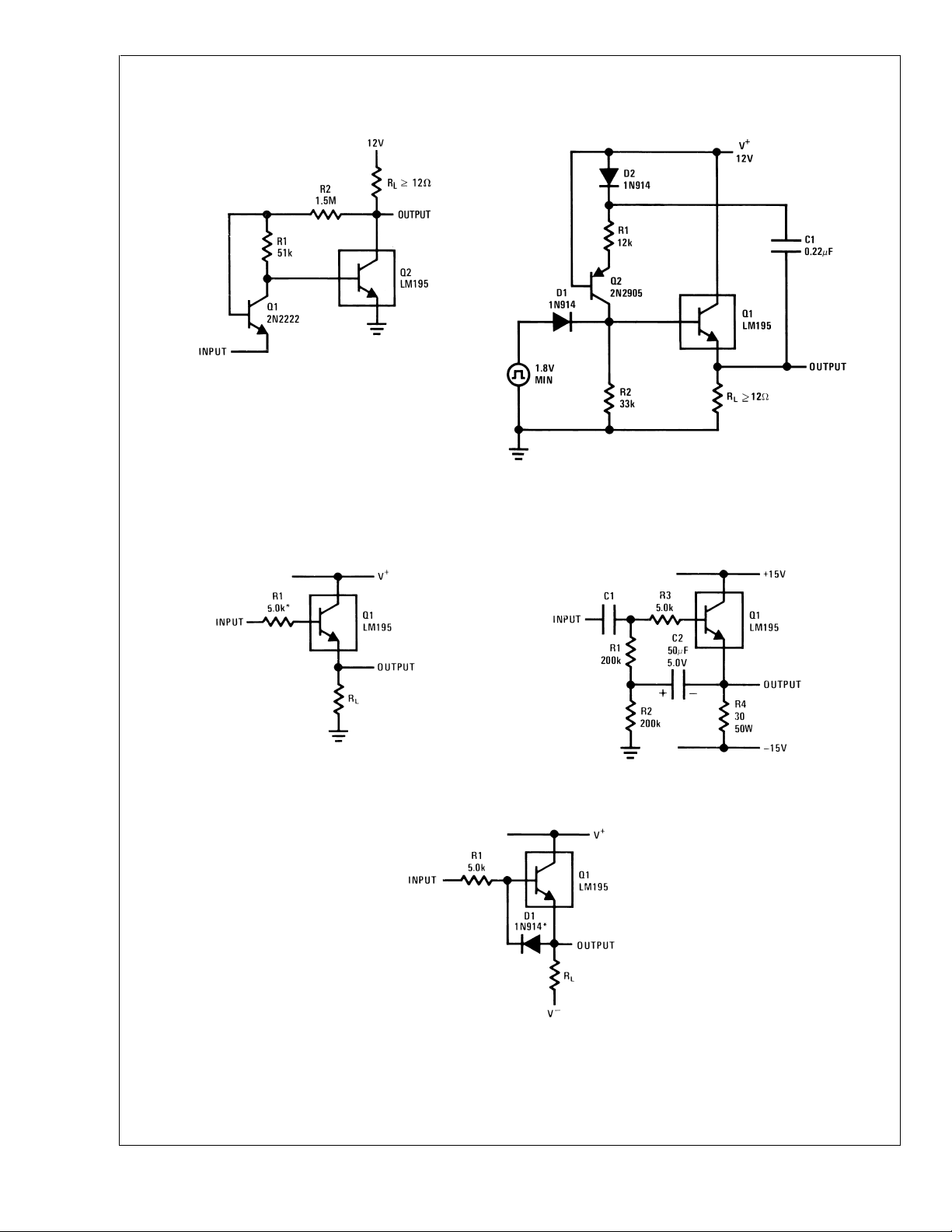

Typical Applications (Continued)

LM195/LM395

Turn ON = 350 mV
Turn OFF = 200 mV

Low Level Power Switch

Emitter Follower

Power One-Shot

DS006009-26

DS006009-27

T = R1C
R2 = 3R1
R2 ≤ 82k

High Input Impedance AC Emitter Follower

DS006009-28

*

Need for Stability

Fast Follower

*

Prevents storage with fast fall time square wave drive

www.national.com 10

DS006009-29

DS006009-30

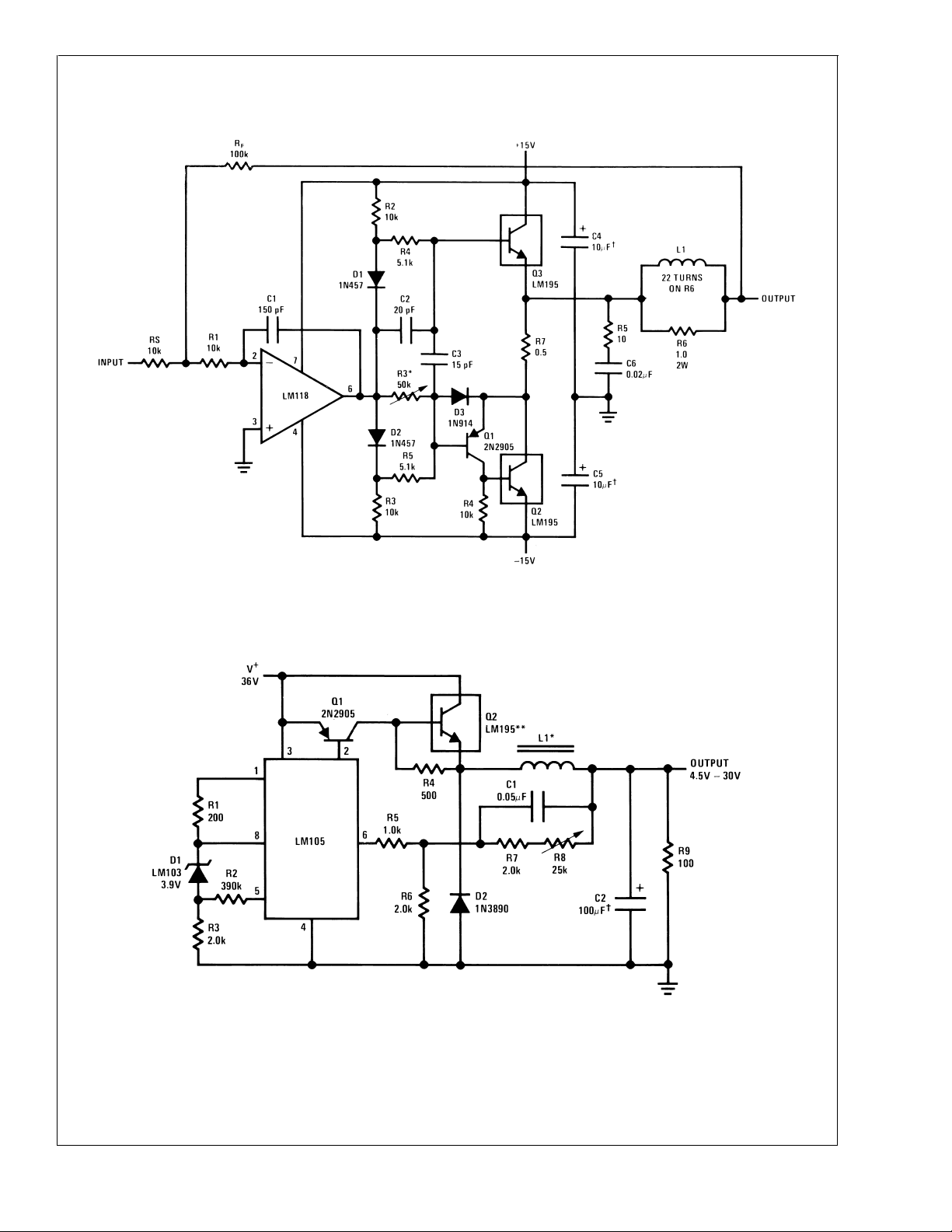

Typical Applications (Continued)

LM195/LM395

Power Op Amp

*

Adjust for 50 mA quiescent current

†

Solid Tantalum

*

Sixty turns wound on Arnold Type A-083081-2 core.

**

Four devices in parallel

†

Solid tantalum

DS006009-31

6.0 Amp Variable Output Switching Regulator

DS006009-32

www.national.com11

Physical Dimensions inches (millimeters) unless otherwise noted

LM195/LM395

TO-5 Metal Can Package

Order Number LM195H/883

NS Package Number H03B

TO-3 Metal Can Package

Order Number LM195K/883

NS Package Number K02A

www.national.com 12

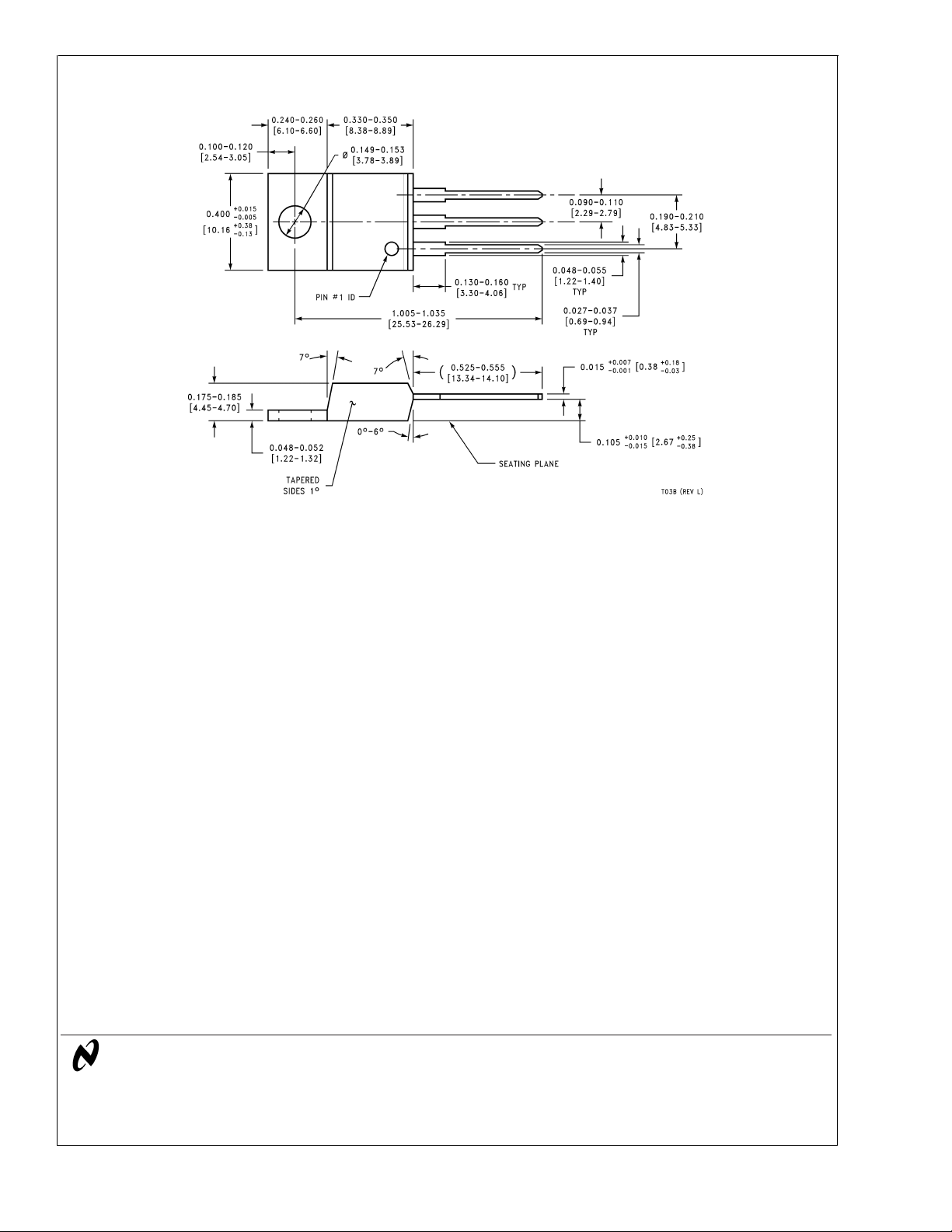

Physical Dimensions inches (millimeters) unless otherwise noted (Continued)

LM195/LM395 Ultra Reliable Power Transistors

TO-220 Plastic Package

Order Number LM395T

NS Package Number T03B
