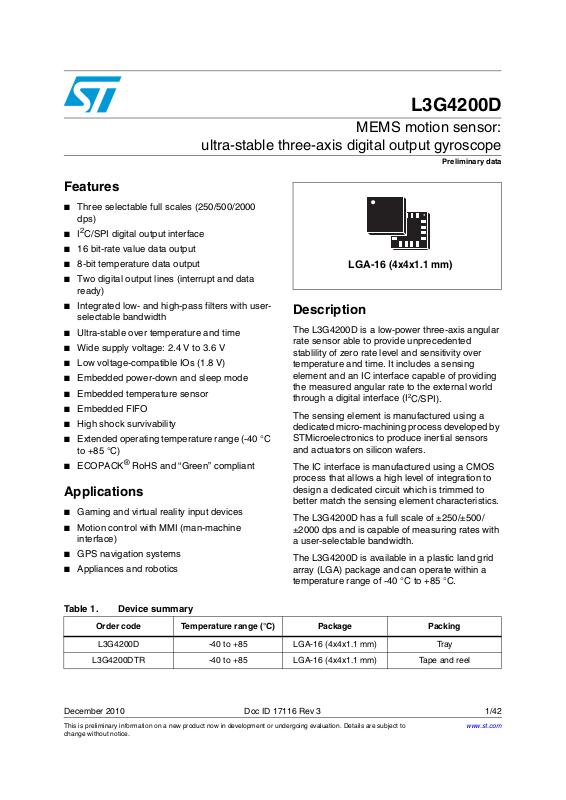

Page 1

ultra-stable three-axis digital output gyroscope

Features

■ Three selectable full scales (250/500/2000

dps)

■ I

C/SPI digital output interface

■ 16 bit-rate value data output

■ 8-bit temperature data output

■ Two digital output lines (interrupt and data

ready)

■ Integrated low- and high-pass filters with user-

selectable bandwidth

■ Ultra-stable over temperature and time

■ Wide supply voltage: 2.4 V to 3.6 V

■ Low voltage-compatible IOs (1.8 V)

■ Embedded power-down and sleep mode

■ Embedded temperature sensor

■ Embedded FIFO

■ High shock survivability

■ Extended operating temperature range (-40 °C

to +85 °C)

■ ECOPACK

Applications

■ Gaming and virtual reality input devices

■ Motion control with MMI (man-machine

interface)

■ GPS navigation systems

■ Appliances and robotics

RoHS and “Green” compliant

L3G4200D

MEMS motion sensor:

Preliminary data

LGA-16

Description

The L3G4200D is a low-power three-axis angular rate sensor able to provide unprecedented stablility of zero rate level and sensitivity over temperature and time. It includes a sensing element and an IC interface capable of providing the measured angular rate to the external world through a digital interface (I

The sensing element is manufactured using a dedicated micro-machining process developed by STMicroelectronics to produce inertial sensors and actuators on silicon wafers.

The IC interface is manufactured using a CMOS process that allows a high level of integration to design a dedicated circuit which is trimmed to better match the sensing element characteristics.

The L3G4200D has a full scale of ±250/±500/ ±2000 dps and is capable of measuring rates with a user-selectable bandwidth.

The L3G4200D is available in a plastic land grid array (LGA) package and can operate within a temperature range of -40 °C to +85 °C.

(4x4x1.1 mm)

C/SPI).

Table 1. Device summary

Order code Temperature range (°C) Package Packing

L3G4200D -40 to +85 LGA-16 (4x4x1.1 mm) Tray

L3G4200DTR -40 to +85 LGA-16 (4x4x1.1 mm) Tape and reel

December 2010 Doc ID 17116 Rev 3 1/42

This is preliminary information on a new product now in development or undergoing evaluation. Details are subject to change without notice.

www.st.com

Page 2

L3G4200D

Contents

1 Block diagram and pin description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

1.1 Pin description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

2 Mechanical and electrical characteristics . . . . . . . . . . . . . . . . . . . . . . . 10

2.1 Mechanical characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

2.2 Electrical characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

2.3 Temperature sensor characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

2.4 Communication interface characteristics . . . . . . . . . . . . . . . . . . . . . . . . . 12

2.4.1 SPI - serial peripheral interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

2.4.2 I2C - inter IC control interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

2.5 Absolute maximum ratings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

2.6 Terminology . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

2.6.1 Sensitivity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

2.6.2 Zero-rate level . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

2.6.3 Self-test . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

2.7 Soldering information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

3 Main digital blocks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

3.1 Block diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

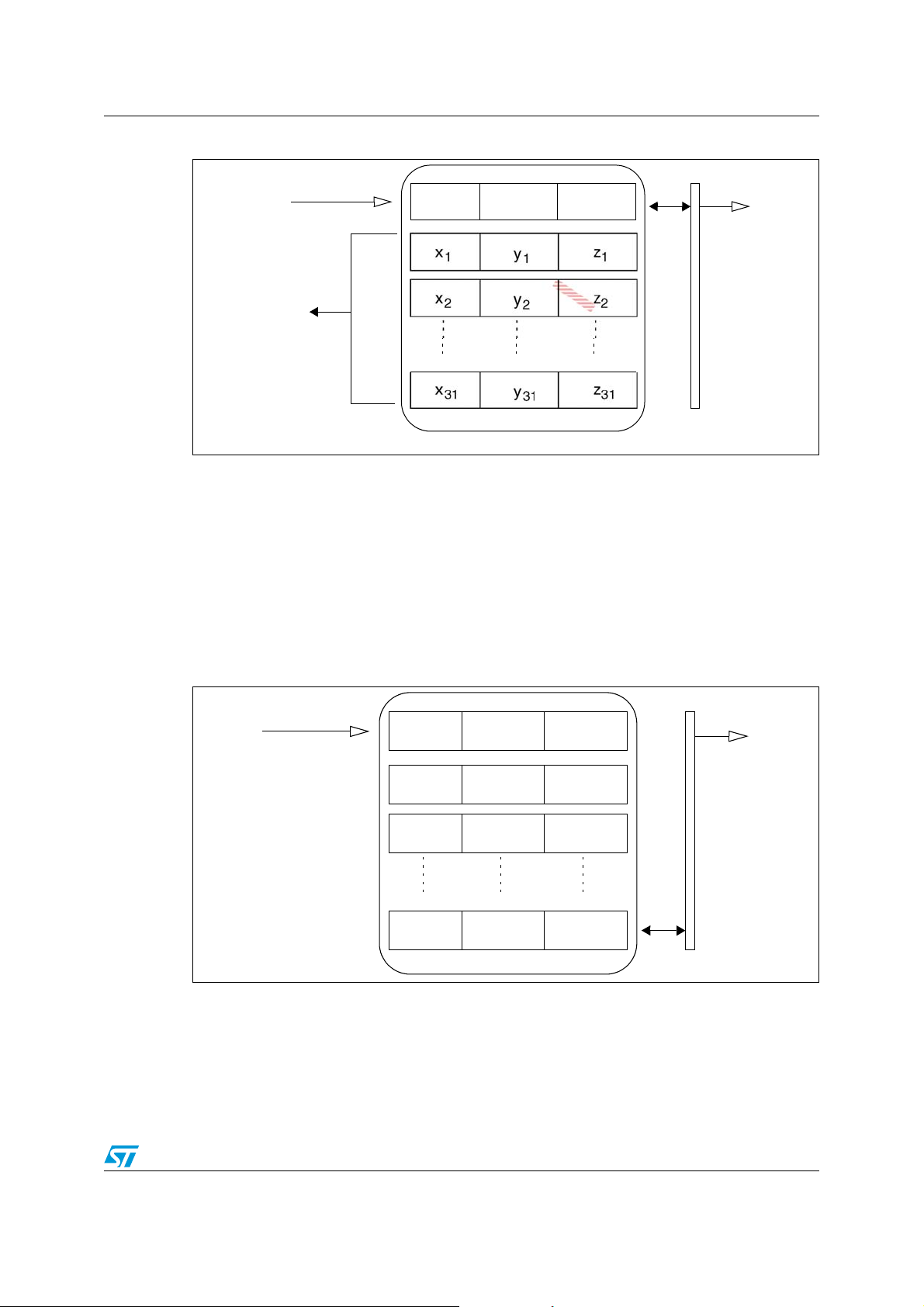

3.2 FIFO . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

3.2.1 Bypass mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

3.2.2 FIFO mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

3.2.3 Stream mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

3.2.4 Bypass-to-stream mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

3.2.5 Stream-to-FIFO mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

3.2.6 Retrieve data from FIFO . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

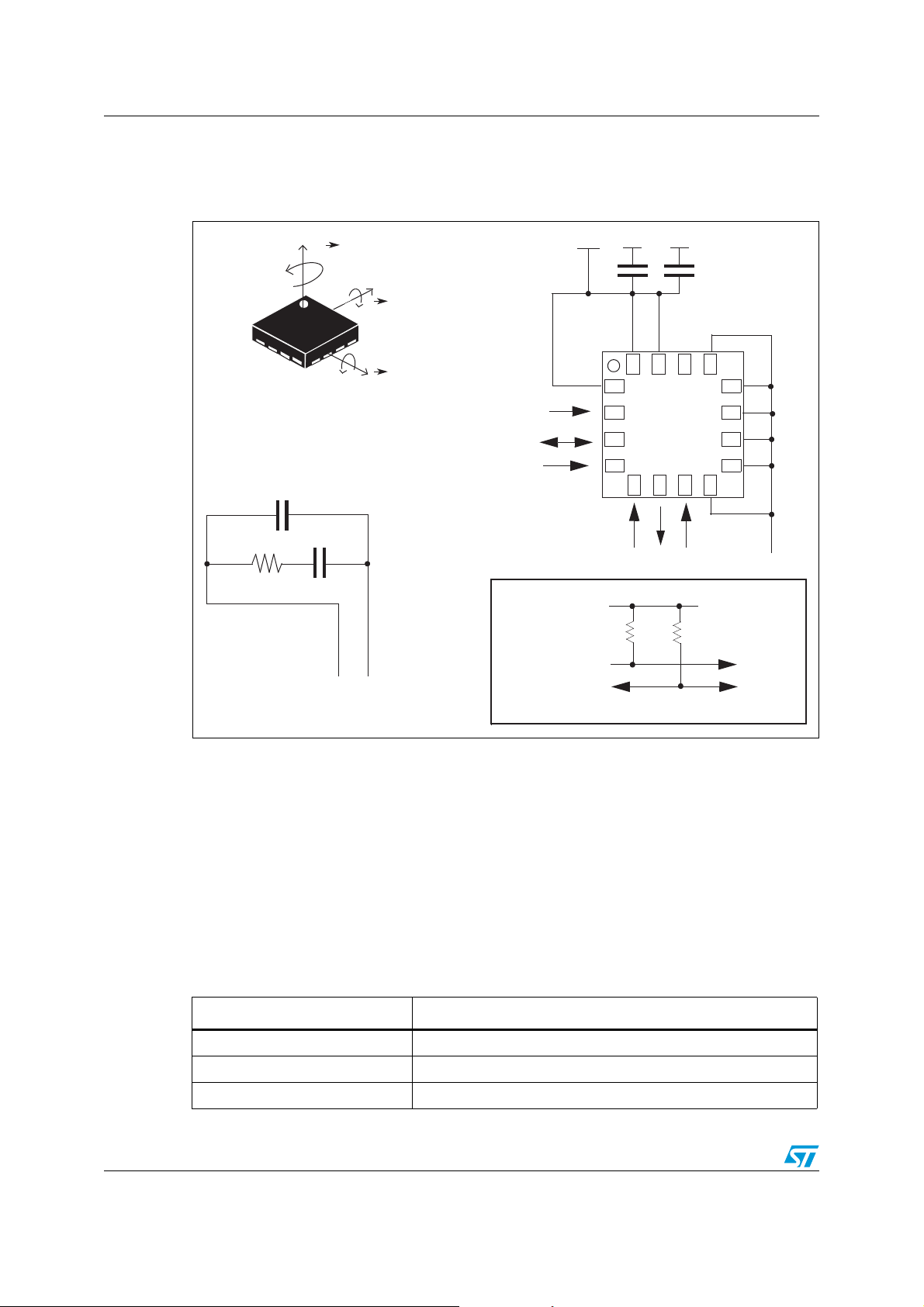

4 Application hints . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

5 Digital interfaces . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

5.1 I2C serial interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

5.1.1 I2C operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

5.2 SPI bus interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

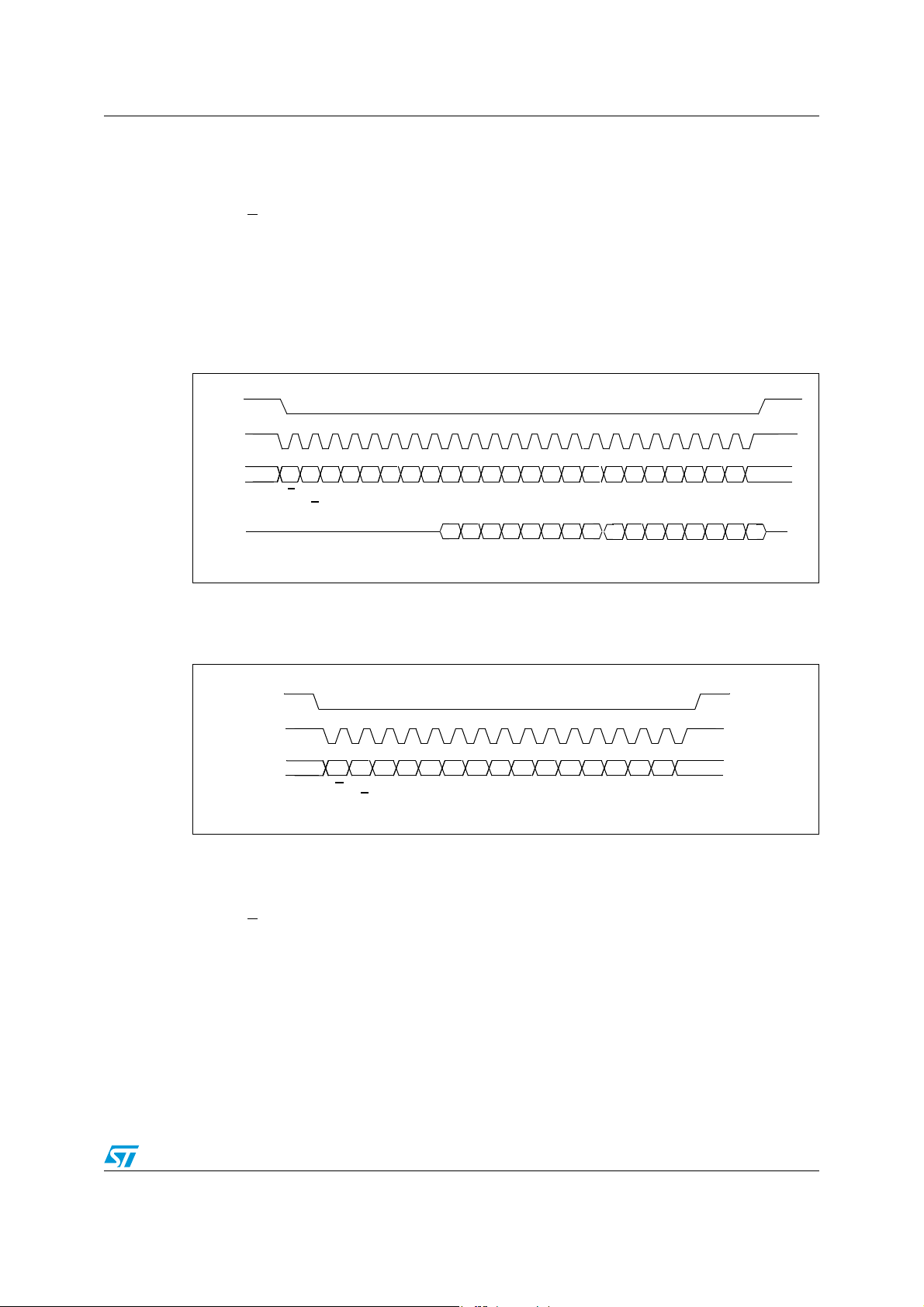

5.2.1 SPI read . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

2/42 Doc ID 17116 Rev 3

Page 3

L3G4200D

5.2.2 SPI write . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

5.2.3 SPI read in 3-wire mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

6 Output register mapping . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

7 Register description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

7.1 WHO_AM_I (0Fh) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

7.2 CTRL_REG1 (20h) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

7.3 CTRL_REG2 (21h) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

7.4 CTRL_REG3 (22h) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

7.5 CTRL_REG4 (23h) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

7.6 CTRL_REG5 (24h) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

7.7 REFERENCE/DATACAPTURE (25h) . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

7.8 OUT_TEMP (26h) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

7.9 STATUS_REG (27h) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

7.10 OUT_X_L (28h), OUT_X_H (29h) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

7.11 OUT_Y_L (2Ah), OUT_Y_H (2Bh) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

7.12 OUT_Z_L (2Ch), OUT_Z_H (2Dh) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

7.13 FIFO_CTRL_REG (2Eh) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

7.14 FIFO_SRC_REG (2Fh) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

7.15 INT1_CFG (30h) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

7.16 INT1_SRC (31h) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

7.17 INT1_THS_XH (32h) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

7.18 INT1_THS_XL (33h) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

7.19 INT1_THS_YH (34h) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

7.20 INT1_THS_YL (35h) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

7.21 INT1_THS_ZH (36h) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

7.22 INT1_THS_ZL (37h) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

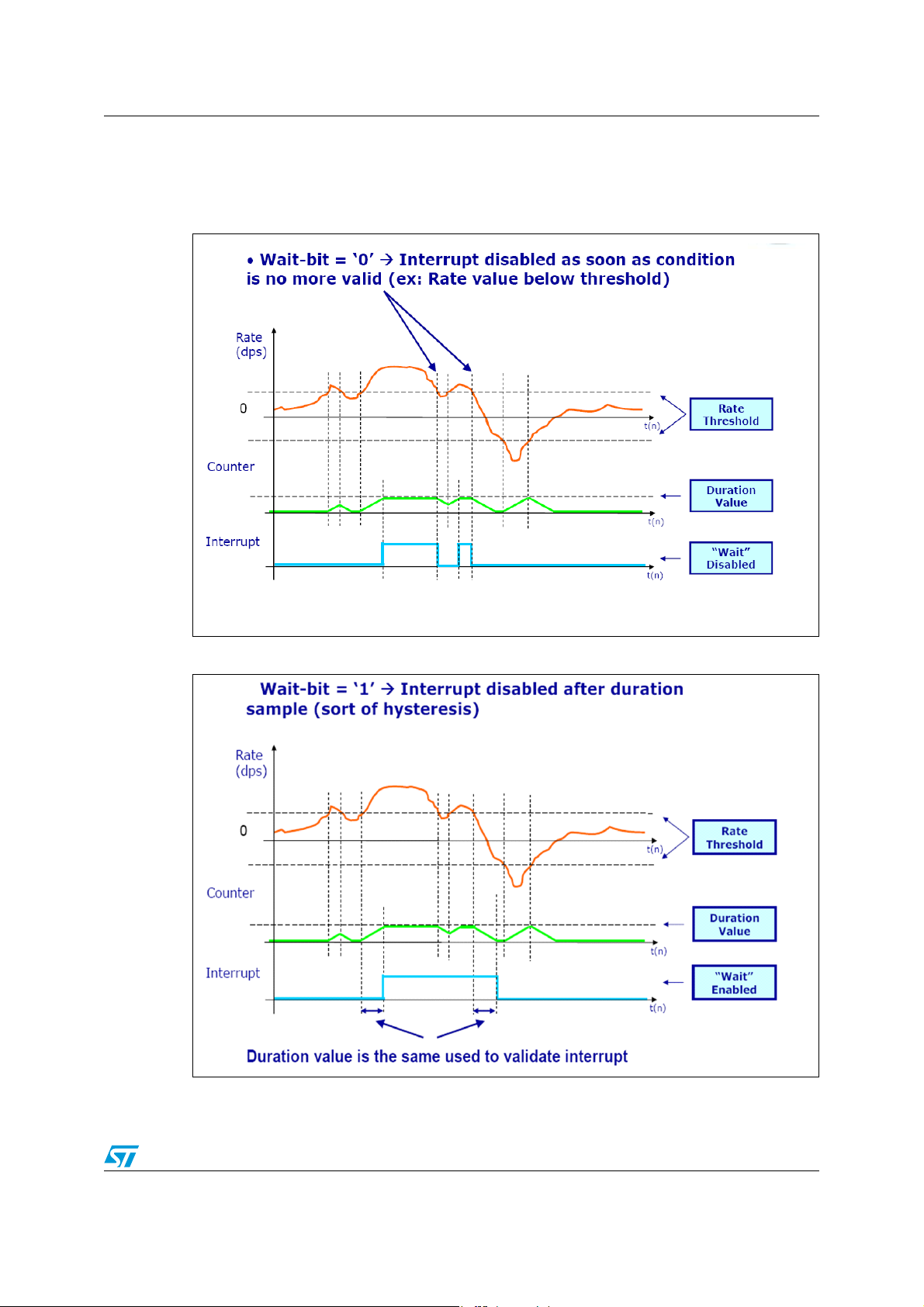

7.23 INT1_DURATION (38h) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

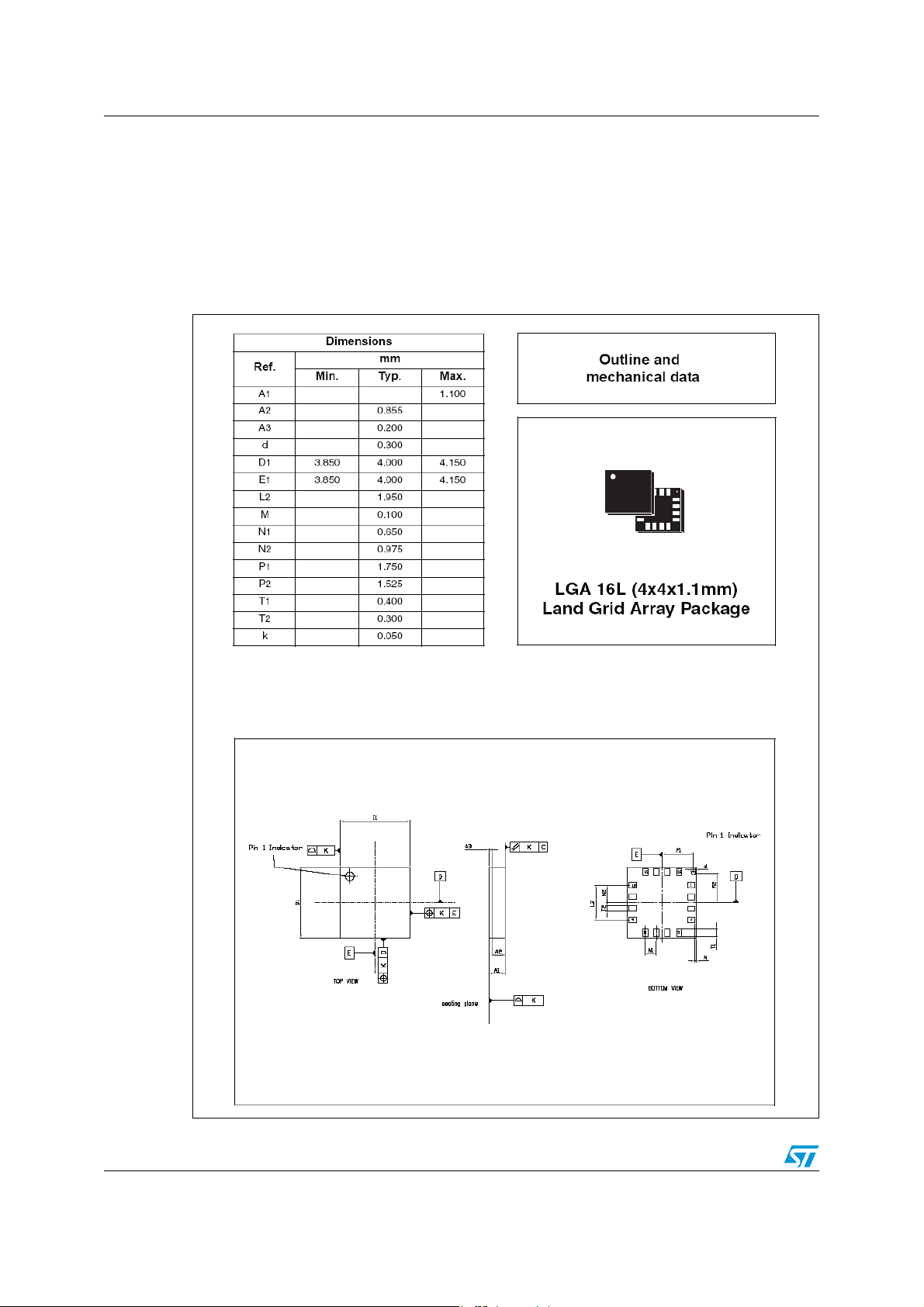

8 Package information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40

9 Revision history . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41

Doc ID 17116 Rev 3 3/42

Page 4

List of tables L3G4200D

List of tables

Table 1. Device summary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

Table 2. Pin description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Table 3. Filter values . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Table 4. Mechanical characteristics @ Vdd = 3.0 V, T = 25 °C, unless otherwise noted Table 5. Electrical characteristics @ Vdd =3.0 V, T=25 °C, unless otherwise noted Table 6. Temp. sensor characteristics @ Vdd =3.0 V, T=25 °C, unless otherwise noted

Table 7. SPI slave timing values. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Table 8. I2C slave timing values . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Table 9. Absolute maximum ratings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Table 10. PLL low-pass filter component values . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Table 11. Serial interface pin description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Table 12. I2C terminology. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Table 13. SAD+read/write patterns. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Table 14. Transfer when master is writing one byte to slave . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Table 15. Transfer when master is writing multiple bytes to slave . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Table 16. Transfer when master is receiving (reading) one byte of data from slave . . . . . . . . . . . . . 23

Table 17. Transfer when master is receiving (reading) multiple bytes of data from slave . . . . . . . . . 23

Table 18. Register address map. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

Table 19. WHO_AM_I register . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

Table 20. CTRL_REG1 register . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

Table 21. CTRL_REG1 description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

Table 22. DR and BW configuration setting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

Table 23. Power mode selection configuration. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

Table 24. CTRL_REG2 register . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

Table 25. CTRL_REG2 description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

Table 26. High pass filter mode configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

Table 27. High pass filter cut off frecuency configuration [Hz] . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

Table 28. CTRL_REG1 register . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

Table 29. CTRL_REG3 description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

Table 30. CTRL_REG4 register . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

Table 31. CTRL_REG4 description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

Table 32. Self test mode configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

Table 33. CTRL_REG5 register . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

Table 34. CTRL_REG5 description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

Table 35. Out_Sel configuration setting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

Table 36. INT_SEL configuration setting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

Table 37. REFERENCE register. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

Table 38. REFERENCE register description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

Table 39. OUT_TEMP register . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

Table 40. OUT_TEMP register description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

Table 41. STATUS_REG register . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

Table 42. STATUS_REG description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

Table 43. REFERENCE register. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

Table 44. REFERENCE register description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

Table 45. FIFO mode configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

Table 46. FIFO_SRC register . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

Table 47. FIFO_SRC register description. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

Table 48. INT1_CFG register . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

. . . . . . . . . . . . 10

. . . . . . . . . . . . . . . . 11

. . . . . . . . . . . 11

4/42 Doc ID 17116 Rev 3

Page 5

L3G4200D List of tables

Table 49. INT1_CFG description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

Table 50. INT1_SRC register . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

Table 51. INT1_SRC description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

Table 52. INT1_THS_XH register . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

Table 53. INT1_THS_XH description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

Table 54. INT1_THS_XL register . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

Table 55. INT1_THS_XL description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

Table 56. INT1_THS_YH register . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

Table 57. INT1_THS_YH description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

Table 58. INT1_THS_YL register . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

Table 59. INT1_THS_YL description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

Table 60. INT1_THS_ZH register . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

Table 61. INT1_THS_ZH description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

Table 62. INT1_THS_ZL register . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

Table 63. INT1_THS_ZL description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

Table 64. INT1_DURATION register . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

Table 65. INT1_DURATION description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

Table 66. Document revision history . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41

Doc ID 17116 Rev 3 5/42

Page 6

List of figures L3G4200D

List of figures

Figure 1. Block diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Figure 2. Pin connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Figure 3. L3G4200D external low-pass filter values

Figure 4. SPI slave timing diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Figure 5. I2C slave timing diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

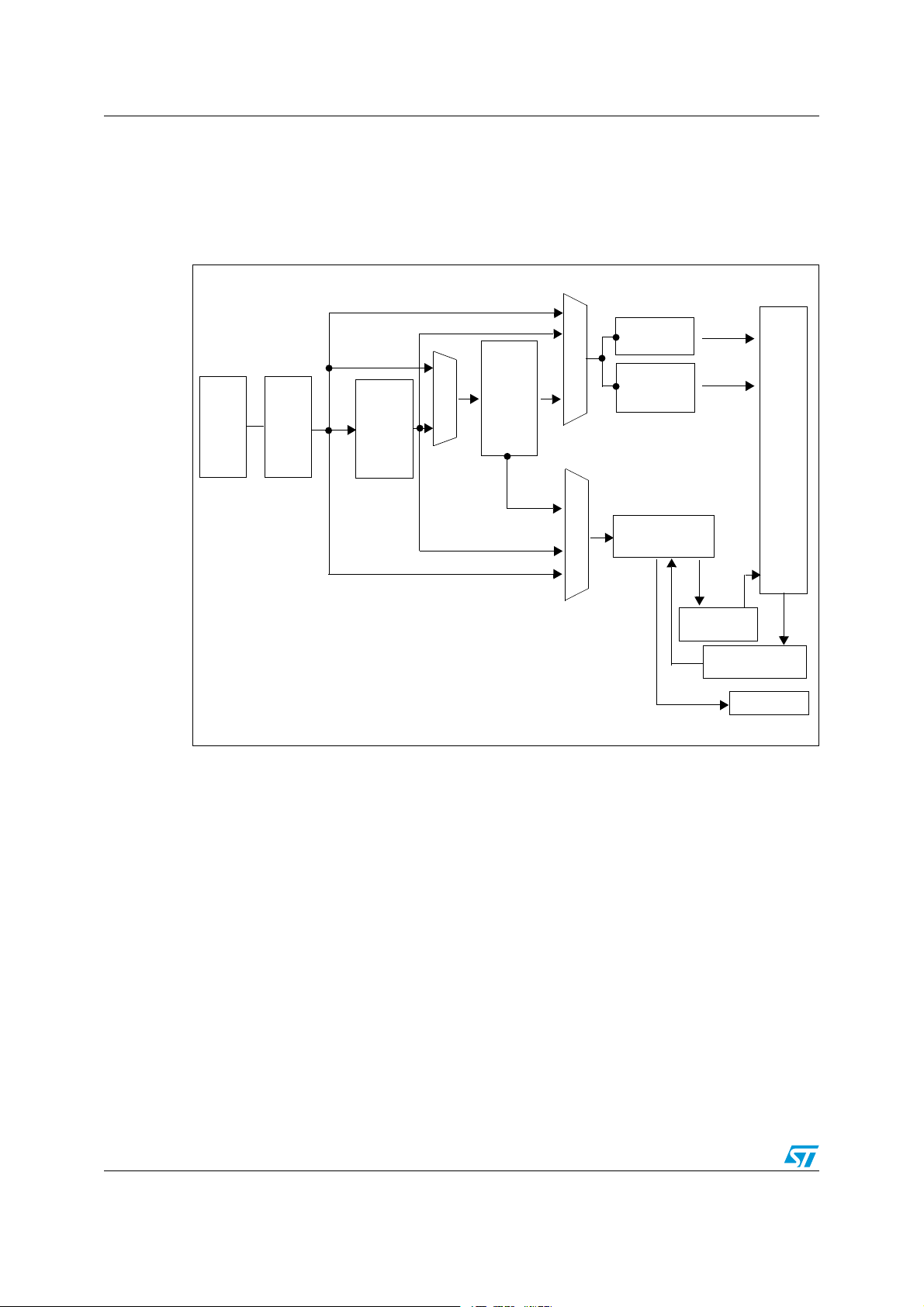

Figure 6. Block diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Figure 7. Bypass mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

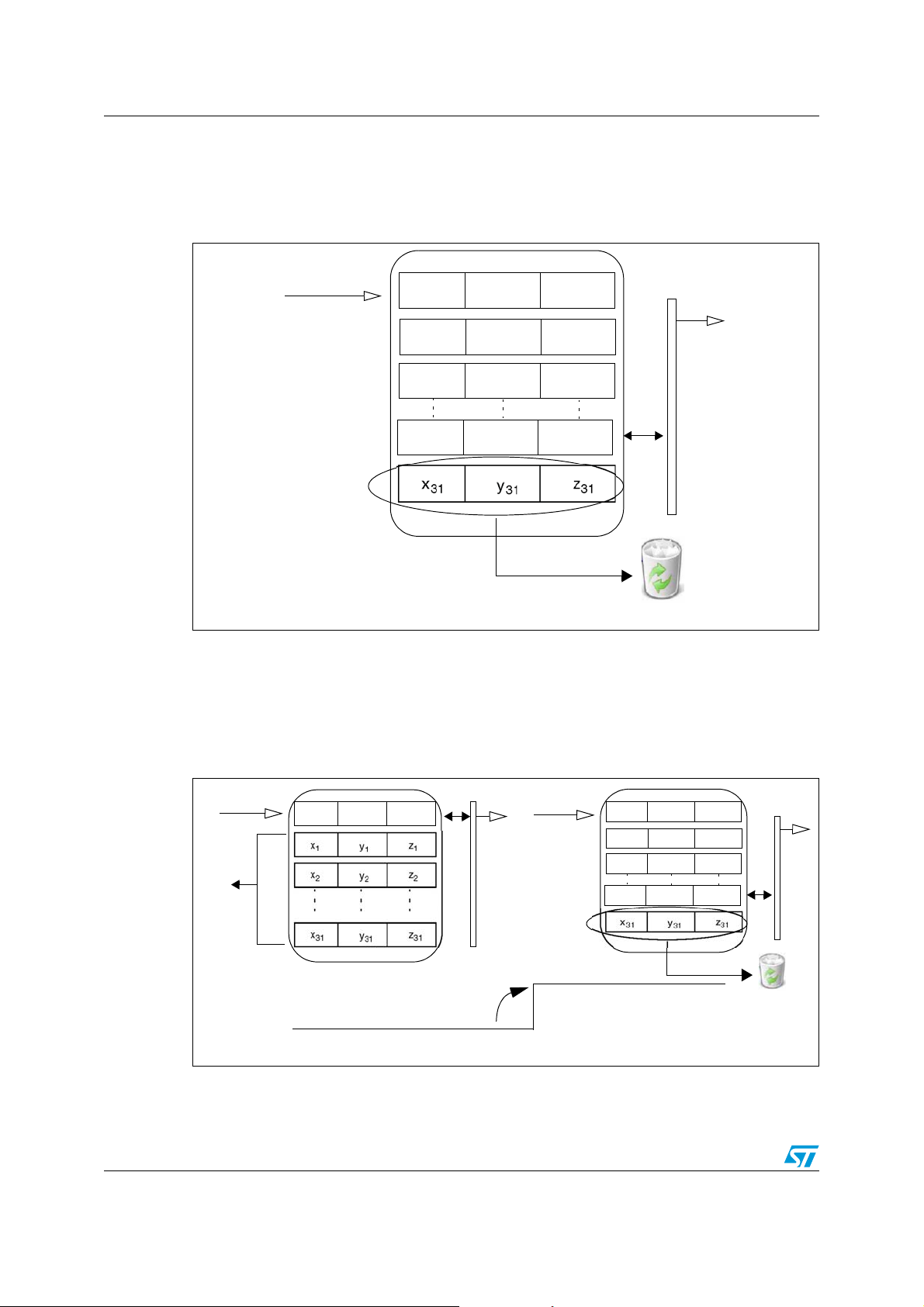

Figure 8. FIFO mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Figure 9. Stream mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Figure 10. Bypass-to-stream mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Figure 11. Trigger stream mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Figure 12. L3G4200D electrical connections and external component values . . . . . . . . . . . . . . . . . . 20

Figure 13. Read and write protocol . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

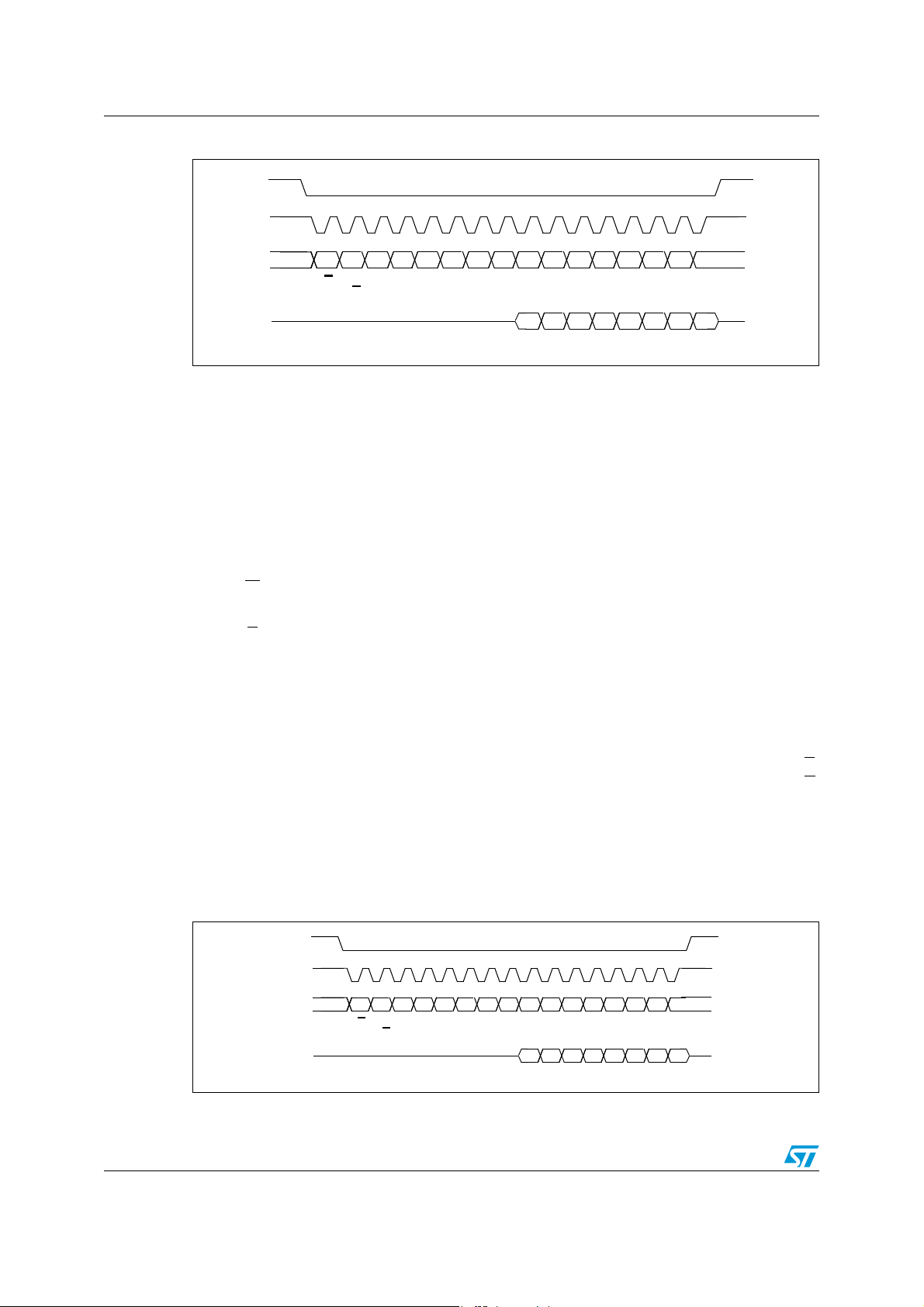

Figure 14. SPI read protocol . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

Figure 15. Multiple byte SPI read protocol (2-byte example) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

Figure 16. SPI write protocol . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

Figure 17. Multiple byte SPI write protocol (2-byte example). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

Figure 18. SPI read protocol in 3-wire mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

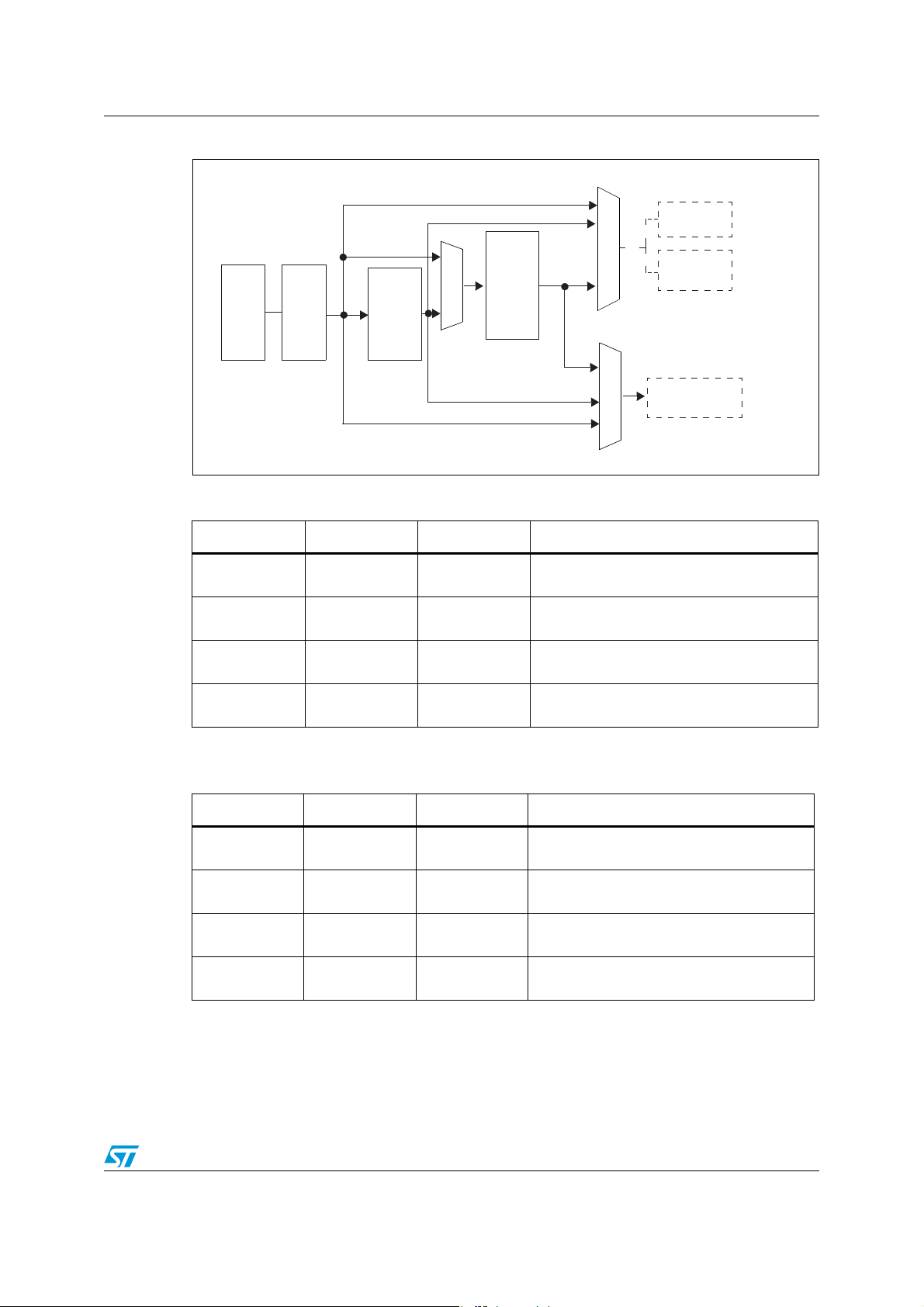

Figure 19. INT1_Sel and Out_Sel configuration block diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

Figure 20. Wait disabled . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

Figure 21. Wait enabled . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

Figure 22. LGA-16: mechanical data and package dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

6/42 Doc ID 17116 Rev 3

Page 7

L3G4200D Block diagram and pin description

1 Block diagram and pin description

Figure 1. Block diagram

Ω

x,y,z

REFERENCE

TRIMMING

CIRCUITS

X+

Y+

Z+

Z-

Y-

X-

CHARGE AMP

M U X

DRIVING MASS

MIXER

Feedback loop

FIFO

LOW-PASS FILTER

T E M

U R E

CLOCK

PHASE GENERATOR

A D C 1

A D C 2

N G

CONTROL LOGIC

INTERRUPT GEN.

I2C

SPI

SCL/SPC SDA/SDO/SDI SDO

INT1

DRDY/INT2

The vibration of the structure is maintained by drive circuitry in a feedback loop. The sensing signal is filtered and appears as a digital signal at the output.

1.1 Pin description

Figure 2. Pin connection

+Ω

(TOP VIEW) DIRECTIONS OF THE

DETECTABLE ANGULAR RATES

AM07225v1

PLLFILT

+Ω

RES

GND

13 16

BOTTOM

RES

Vdd

Vdd_IO

SCL/SPC

VIEW

+Ω

RES

INT

RES

DRDY/INT2

SDA/SDI/SDO

SDO/SA0

AM07226v1

Doc ID 17116 Rev 3 7/42

Page 8

Block diagram and pin description L3G4200D

Table 2. Pin description

Pin# Name Function

1 Vdd_IO Power supply for I/O pins

SCL SPC

SDA

SDI

SDO

SA0

5CS

6 DRDY/INT2 Data ready/FIFO interrupt

7 INT1 Programmable interrupt

8 Reserved Connect to GND

9 Reserved Connect to GND

10 Reserved Connect to GND

11 Reserved Connect to GND

C serial clock (SCL)

SPI serial port clock (SPC)

C serial data (SDA)

I SPI serial data input (SDI) 3-wire interface serial data output (SDO)

SPI serial data output (SDO)

C least significant bit of the device address (SA0)

SPI enable

C/SPI mode selection (1:SPI idle mode / I2C communication

I enabled; 0: SPI communication mode / I2C disabled)

12 Reserved Connect to GND

13 GND 0 V supply

14 PLLFILT Phase-locked loop filter (see Figure 3)

15 Reserved Connect to Vdd

16 Vdd Power supply

Figure 3. L3G4200D external low-pass filter values

%CRCEKVQTHQT .QYRCUUHKNVGT

VQRKP

%

4%

(a)

)0&

#/X

a. Pin 14 PLLFILT maximum voltage level is equal to Vdd.

8/42 Doc ID 17116 Rev 3

Page 9

L3G4200D Block diagram and pin description

Table 3. Filter values

Parameter Typical value

C1 10 nF

C2 470 nF

R2 10 kΩ

Doc ID 17116 Rev 3 9/42

Page 10

Mechanical and electrical characteristics L3G4200D

2 Mechanical and electrical characteristics

2.1 Mechanical characteristics

Table 4. Mechanical characteristics @ Vdd = 3.0 V, T = 25 °C, unless otherwise noted

Symbol Parameter Test condition Min. Typ.

(2)

Max. Unit

±250

FS Measurement range User-selectable

±2000

FS = 250 dps 8.75

So Sensitivity

FS = 2000 dps 70

SoDr

Sensitivity change vs. temperature

From -40 °C to +85 °C ±2 %

FS = 250 dps ±10

DVoff Digital zero-rate level

FS = 2000 dps ±75

OffDr

Zero-rate level change vs. temperature

NL Non linearity

(3)

(4)

FS = 250 dps ±0.03 dps/°C

FS = 2000 dps ±0.04 dps/°C

Best fit straight line 0.2 % FS

FS = 250 dps 130

DST Self-test output change

FS = 2000 dps 530

Rn Rate noise density BW = 50 Hz 0.03

ODR Digital output data rate

Top

1. The product is factory calibrated at 3.0 V. The operational power supply range is specified in Table 5.

2. Typical specifications are not guaranteed.

3. Min/max values have been estimated based on the measurements of the current gyros in production.

4. Guaranteed by design.

Operating temperature range

-40 +85 °C

100/200/

400/800

(1)

dps±500

mdps/digitFS = 500 dps 17.50

dpsFS = 500 dps ±15

dpsFS = 500 dps 200

dps/

sqrt(Hz)

10/42 Doc ID 17116 Rev 3

Page 11

L3G4200D Mechanical and electrical characteristics

2.2 Electrical characteristics

Table 5. Electrical characteristics @ Vdd =3.0 V, T=25 °C, unless otherwise noted

Symbol Parameter Test condition Min. Typ.

(2)

(1)

Max. Unit

Vdd Supply voltage 2.4 3.0 3.6 V

Vdd_IO I/O pins supply voltage

(3)

1.71 Vdd+0.1 V

Idd Supply current 6.1 mA

IddSL

IddPdn

To p

1. The product is factory calibrated at 3.0 V.

2. Typical specifications are not guaranteed.

3. It is possible to remove Vdd maintaining Vdd_IO without blocking the communication busses, in this condition the measurement chain is powered off.

4. Sleep mode introduces a faster turn-on time compared to power-down mode.

Supply current in sleep mode

(4)

Supply current in power-down mode

Operating temperature range

Selectable by digital interface

1.5 mA

5µA

-40 +85 °C

2.3 Temperature sensor characteristics

Table 6. Temp. sensor characteristics @ Vdd =3.0 V, T=25 °C, unless otherwise noted

Symbol Parameter Test condition Min. Typ.

Temperature sensor

TSDr

output change vs. temperature

TODR Temperature refresh rate 1 Hz

To p

1. The product is factory calibrated at 3.0 V.

2. Typical specifications are not guaranteed.

Operating temperature range

-40 +85 °C

(2)

Max. Unit

-1 °C/digit

(1)

Doc ID 17116 Rev 3 11/42

Page 12

Mechanical and electrical characteristics L3G4200D

2.4 Communication interface characteristics

2.4.1 SPI - serial peripheral interface

Subject to general operating conditions for Vdd and Top.

Table 7. SPI slave timing values

(1)

Val ue

Symbol Parameter

Min. Max.

tc(SPC) SPI clock cycle 100 ns

fc(SPC) SPI clock frequency 10 MHz

tsu(CS) CS setup time 5

th(CS) CS hold time 8

tsu(SI) SDI input setup time 5

th(SI) SDI input hold time 15

tv(SO) SDO valid output time 50

th(SO) SDO output hold time 6

tdis(SO) SDO output disable time 50

Unit

1. Values are guaranteed at 10 MHz clock frequency for SPI with both 4 and 3 wires, based on characterization results; not tested in production.

K6,

(b)

Y62

F63&

K62

K&6

/6%,1

GLV62

/6%287

!-V

Figure 4. SPI slave timing diagram

&6



VX&6

63&



VX6,

6',

6'2



06%,1

06%287



b. Measurement points are done at 0.2·Vdd_IO and 0.8·Vdd_IO, for both input and output ports.

12/42 Doc ID 17116 Rev 3

Page 13

L3G4200D Mechanical and electrical characteristics

2.4.2 I2C - inter IC control interface

Subject to general operating conditions for Vdd and Top.

Table 8. I2C slave timing values

Symbol Parameter

I2C standard mode

(1)

I2C fast mode

Min Max Min Max

(1)

Unit

(SCL)

w(SCLL)

w(SCLH)

su(SDA)

h(SDA)

r(SDA) tr(SCL)

f(SDA) tf(SCL)

h(ST)

su(SR)

su(SP)

w(SP:SR)

1. Data based on standard I2C protocol requirement; not tested in production.

2. Cb = total capacitance of one bus line, in pF.

Figure 5. I

SCL clock frequency 0 100 0 400 kHz

SCL clock low time 4.7 1.3

SCL clock high time 4.0 0.6

SDA setup time 250 100 ns

SDA data hold time 0 3.45 0 0.9 µs

SDA and SCL rise time 1000

SDA and SCL fall time 300

START condition hold time 4 0.6

Repeated START condition setup time

4.7 0.6

STOP condition setup time 4 0.6

Bus free time between STOP and START condition

C slave timing diagram

67$57

(c)

4.7 1.3

20 + 0.1C

µs

(2)

300

µs

5(3($7('

67$57

6'$

I6'$

U6'$

VX6'$

K6'$

6&/

Z6&//

K67

c. Measurement points are done at 0.2·Vdd_IO and 0.8·Vdd_IO, for both ports.

Z6&/+

U6&/

I6&/

Doc ID 17116 Rev 3 13/42

VX65

VX63

Z6365

67$57

6723

!-V

Page 14

Mechanical and electrical characteristics L3G4200D

2.5 Absolute maximum ratings

Any stress above that listed as “Absolute maximum ratings” may cause permanent damage to the device. This is a stress rating only and functional operation of the device under these conditions is not implied. Exposure to maximum rating conditions for extended periods may affect device reliability.

Table 9. Absolute maximum ratings

Symbol Ratings Maximum value Unit

Vdd Supply voltage -0.3 to 4.8 V

ESD Electrostatic discharge protection 2 (HBM) kV

Storage temperature range -40 to +125 °C

STG

Sg Acceleration g for 0.1 ms 10,000 g

This is a mechanical shock sensitive device, improper handling can cause permanent damage to the part

This is an ESD sensitive device, improper handling can cause permanent damage to the part

14/42 Doc ID 17116 Rev 3

Page 15

L3G4200D Mechanical and electrical characteristics

2.6 Terminology

2.6.1 Sensitivity

An angular rate gyroscope is a device that produces a positive-going digital output for counterclockwise rotation around the sensitive axis considered. Sensitivity describes the gain of the sensor and can be determined by applying a defined angular velocity to it. This value changes very little over temperature and time.

2.6.2 Zero-rate level

Zero-rate level describes the actual output signal if there is no angular rate present. The zero-rate level of precise MEMS sensors is, to some extent, a result of stress to the sensor and, therefore, the zero-rate level can slightly change after mounting the sensor onto a printed circuit board or after exposing it to extensive mechanical stress. This value changes very little over temperature and time.

2.6.3 Stability over temperature and time

Thanks to the unique single driving mass approach and optimized design, ST gyroscopes are able to guarantee a perfect match of the MEMS mechanical mass and the ASIC interface, and deliver unprecedented levels of stability over temperature and time.

With Zero rate level and sensitivity performances, up to ten times better than equivalent products now available on the market, L3G4200D allows the user to avoid any further compensation and calibration during production for faster time to market, easy application implementation, higher performances and cost saving.

2.7 Soldering information

The LGA package is compliant with the ECOPACK®, RoHS and “Green” standard. It is qualified for soldering heat resistance according to JEDEC J-STD-020.

Leave “pin 1 Indicator” unconnected during soldering.

Land pattern and soldering recommendations are available at www.st.com/

Doc ID 17116 Rev 3 15/42

Page 16

Main digital blocks L3G4200D

3 Main digital blocks

3.1 Block diagram

Figure 6. Block diagram

/UT?3E

 

$ATA2EG

!$#

3.2 FIFO

,0&

(0&





(0EN

,0&

 

).4?3EL

 





&)&/

X

X

)NTERRUPT

GENERATOR

)#

30)



3#22%'

#/.&2%'

).4

!-V

The L3G4200D embeds a 32-slot, 16-bit data FIFO for each of the three output channels: yaw, pitch, and roll. This allows consistent power saving for the system, as the host processor does not need to continuously poll data from the sensor. Instead, it can wake up only when needed and burst the significant data out from the FIFO. This buffer can work in five different modes. Each mode is selected by the FIFO_MODE bits in the FIFO_CTRL_REG. Programmable watermark level, FIFO_empty or FIFO_Full events can be enabled to generate dedicated interrupts on the DRDY/INT2 pin (configured through CTRL_REG3), and event detection information is available in FIFO_SRC_REG. The watermark level can be configured to WTM4:0 in FIFO_CTRL_REG.

3.2.1 Bypass mode

In bypass mode, the FIFO is not operational and for this reason it remains empty. As illustrated in Figure 7, only the first address is used for each channel. The remaining FIFO slots are empty. When new data is available, the old data is overwritten.

16/42 Doc ID 17116 Rev 3

Page 17

L3G4200D Main digital blocks

Figure 7. Bypass mode

XIYIZ



EMPTY

3.2.2 FIFO mode

In FIFO mode, data from the yaw, pitch, and roll channels are stored in the FIFO. A watermark interrupt can be enabled (I2_WMK bit in CTRL_REG3), which is triggered when the FIFO is filled to the level specified in the WTM 4:0 bits of FIFO_CTRL_REG. The FIFO continues filling until it is full (32 slots of 16-bit data for yaw, pitch, and roll). When full, the FIFO stops collecting data from the input channels. To restart data collection, it is necessary to write FIFO_CTRL_REG back to bypass mode.

FIFO mode is represented in Figure 8.

Figure 8. FIFO mode



















!-V

XIYIZ

3.2.3 Stream mode

In stream mode, data from yaw, pitch, and roll measurements are stored in the FIFO. A watermark interrupt can be enabled and set as in FIFO mode. The FIFO continues filling until full (32 slots of 16-bit data for yaw, pitch, and roll). When full, the FIFO discards the









Doc ID 17116 Rev 3 17/42

















!-V

Page 18

Main digital blocks L3G4200D

older data as the new data arrives. Programmable watermark level events can be enabled to generate dedicated interrupts on the DRDY/INT2 pin (configured through CTRL_REG3).

Stream mode is represented in Figure 9.

Figure 9. Stream mode

XIYIZ











3.2.4 Bypass-to-stream mode

In bypass-to-stream mode, the FIFO starts operating in bypass mode, and once a trigger event occurs (related to INT1_CFG register events), the FIFO starts operating in stream mode (see Figure 10).

Figure 10. Bypass-to-stream mode

















!-V

XIYIZ

%MPTY

























"YPASSMODE

4RIGGER  EV E NT

18/42 Doc ID 17116 Rev 3

XIYIZ











REAMMODE











!-V

Page 19

L3G4200D Main digital blocks

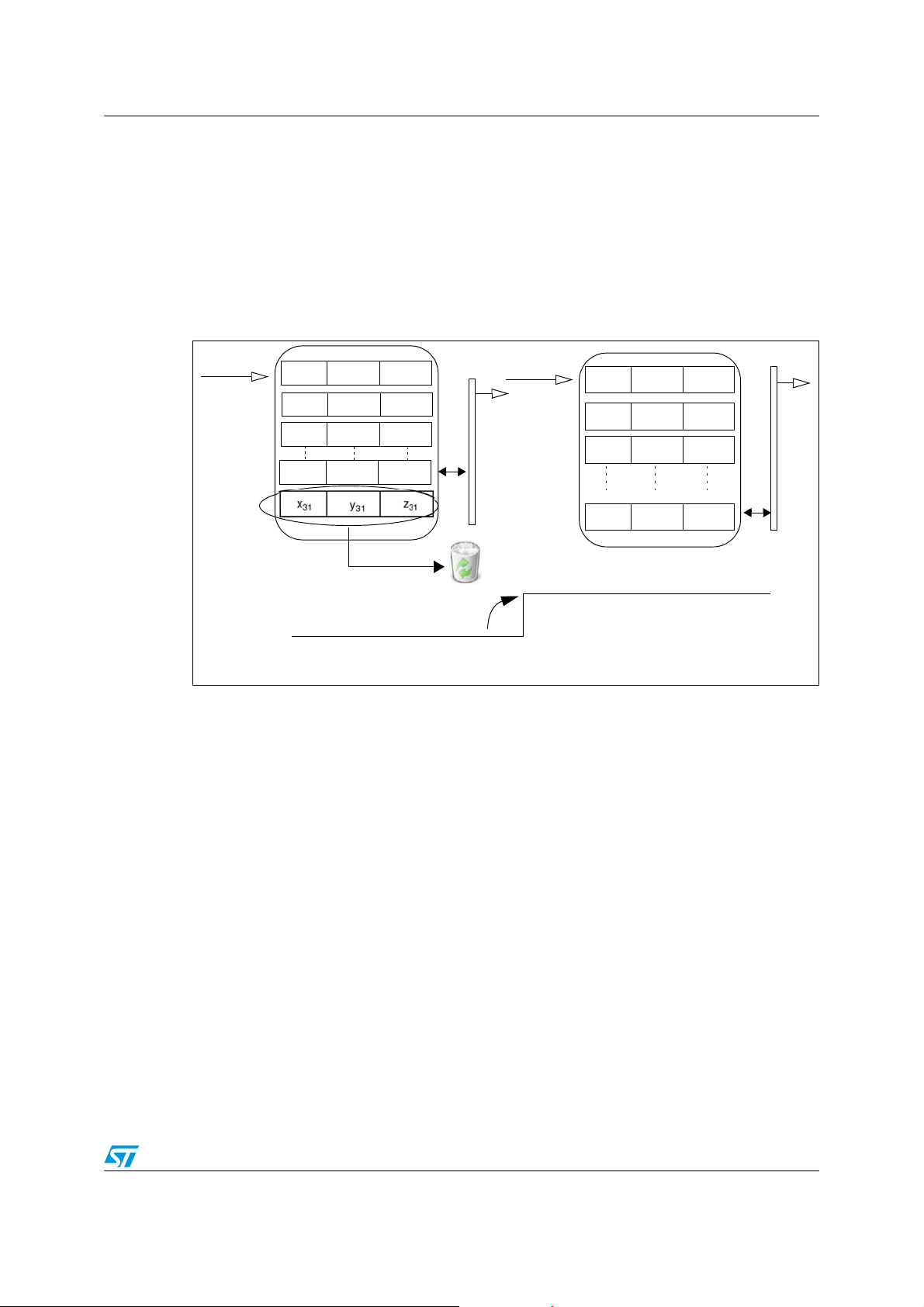

3.2.5 Stream-to-FIFO mode

In stream-to-FIFO mode, data from yaw, pitch, and roll measurements are stored in the FIFO. A watermark interrupt can be enabled on pin DRDY/INT2, setting the I2_WTM bit in CTRL_REG3, which is triggered when the FIFO is filled to the level specified in the WTM4:0 bits of FIFO_CTRL_REG. The FIFO continues filling until full (32 slots of 16-bit data for yaw, pitch, and roll). When full, the FIFO discards the older data as the new data arrives. Once a trigger event occurs (related to INT1_CFG register events), the FIFO starts operating in FIFO mode (see Figure 11).

Figure 11. Trigger stream mode

XIYIZ





















3TREAM-ODE

3.2.6 Retrieve data from FIFO

FIFO data is read through the OUT_X, OUT_Y and OUT_Z registers. When the FIFO is in stream, trigger or FIFO mode, a read operation to the OUT_X, OUT_Y or OUT_Z registers provides the data stored in the FIFO. Each time data is read from the FIFO, the oldest pitch, roll, and yaw data are placed in the OUT_X, OUT_Y and OUT_Z registers and both single read and read_burst (X,Y & Z with auto-incremental address) operations can be used. In read_burst mode, when data included in OUT_Z_H is read, the system again starts to read information from addr OUT_X_L.

XIYIZ



















&)&/









-ODE









4RIGGEREVENT

!-V

Doc ID 17116 Rev 3 19/42

Page 20

Application hints L3G4200D

4 Application hints

Figure 12. L3G4200D electrical connections and external component values

(TOP VIEW) DIRECTIONS OF THE

DETECTABLE ANGULAR RATES

10nF

10kOhm 470nF

AM07949V1

+Ω

GND

+Ω

PLLFILT

Vdd GND

100 nF

SDA_SDI_SDO

Vdd_IO

SCL/SPC

SDO/SA0

SCL/SPC

SDA_SDI_SDO

Pull-up to be added when I2C interface is used

GND

Vdd

TOP

VIEW

Vdd I2C bus

10 µF

PLLFILT

INT

Rpu = 10kOhmRpu

1316

GND

Power supply decoupling capacitors (100 nF ceramic or polyester +10 µF) should be placed as near as possible to the device (common design practice).

If Vdd and Vdd_IO are not connected together, power supply decoupling capacitors (100 nF and 10 µF between Vdd and common ground, 100 nF between Vdd_IO and common ground) should be placed as near as possible to the device (common design practice).

The L3G4200D IC includes a PLL (phase locked loop) circuit to synchronize driving and sensing interfaces. Capacitors and resistors must be added at the PLLFILT pin (as shown in

Figure 12) to implement a second-order low-pass filter. Table 10 summarizes the PLL low-

pass filter component values.

Table 10. PLL low-pass filter component values

Component Value

C1 10 nF ± 10 %

C2 470 nF ± 10 %

R2 10 kΩ ± 10 %

20/42 Doc ID 17116 Rev 3

Page 21

L3G4200D Digital interfaces

5 Digital interfaces

The registers embedded in the L3G4200D may be accessed through both the I2C and SPI serial interfaces. The latter may be software-configured to operate either in 3-wire or 4-wire interface mode.

The serial interfaces are mapped onto the same pins. To select/exploit the I CS line must be tied high (i.e., connected to Vdd_IO).

Table 11. Serial interface pin description

Pin name Pin description

SPI enable

SCL/SPC

SDA/SDI/SDO

SDO

C/SPI mode selection (1:SPI idle mode / I2C communication enabled; 0: SPI

I communication mode / I

C serial clock (SCL)

I SPI serial port clock (SPC)

C serial data (SDA) SPI serial data input (SDI) 3-wire interface serial data output (SDO)

SPI serial data output (SDO)

C least significant bit of the device address

C disabled)

C interface, the

5.1 I2C serial interface

The L3G4200D I2C is a bus slave. The I2C is employed to write data to registers whose content can also be read back.

The relevant I

Table 12. I2C terminology

Transmitter The device which sends data to the bus

Receiver The device which receives data from the bus

Master

There are two signals associated with the I2C bus: the serial clock line (SCL) and the serial data line (SDA). The latter is a bidirectional line used for sending and receiving the data to/from the interface. Both lines must be connected to Vdd_IO through an external pull-up resistor. When the bus is free both the lines are high.

The I

C interface is compliant with fast mode (400 kHz) I2C standards as well as with normal

mode.

C terminology is given in the table below.

Term Description

The device which initiates a transfer, generates clock signals and terminates a transfer

Slave The device addressed by the master

Doc ID 17116 Rev 3 21/42

Page 22

Digital interfaces L3G4200D

5.1.1 I2C operation

The transaction on the bus is started through a START (ST) signal. A START condition is defined as a HIGH to LOW transition on the data line while the SCL line is held HIGH. After this has been transmitted by the master, the bus is considered busy. The next byte of data transmitted after the start condition contains the address of the slave in the first 7 bits and the eighth bit tells whether the master is receiving data from the slave or transmitting data to the slave. When an address is sent, each device in the system compares the first 7 bits after a start condition with its address. If they match, the device considers itself addressed by the master.

The slave address (SAD) associated with the L3G4200D is 110100xb. The SDO pin can be used to modify the least significant bit (LSb) of the device address. If the SDO pin is connected to the voltage supply, LSb is ‘1’ (address 1101001b). Otherwise, if the SDO pin is connected to ground, the LSb value is ‘0’ (address 1101000b). This solution permits the connection and addressing of two different gyroscopes to the same I

Data transfer with acknowledge is mandatory. The transmitter must release the SDA line during the acknowledge pulse. The receiver must then pull the data line LOW so that it remains stable low during the HIGH period of the acknowledge clock pulse. A receiver which has been addressed is obliged to generate an acknowledge after each byte of data received.

The I

C embedded in the L3G4200D behaves like a slave device, and the following protocol must be adhered to. After the START (ST) condition, a slave address is sent. Once a slave acknowledge (SAK) has been returned, an 8-bit sub-address is transmitted. The 7 LSb represent the actual register address while the MSB enables address auto-increment. If the MSb of the SUB field is 1, the SUB (register address) is automatically incremented to allow multiple data read/write.

C bus.

The slave address is completed with a read/write bit. If the bit is ‘1’ (read), a REPEATED START (SR) condition must be issued after the two sub-address bytes; if the bit is ‘0’ (write) the master transmits to the slave with the direction unchanged. Table 13 describes how the SAD+read/write bit pattern is composed, listing all the possible configurations.

Table 13. SAD+read/write patterns

Command SAD[6:1] SAD[0] = SDO R/W SAD+R/W

Read 110100 0 1 11010001 (D1h)

Write 110100 0 0 11010000 (D0h)

Read 110100 1 1 11010011 (D3h)

Write 110100 1 0 11010010 (D2h)

Table 14. Transfer when master is writing one byte to slave

Master ST SAD + W SUB DATA SP

Slave SAK SAK SAK

22/42 Doc ID 17116 Rev 3

Page 23

L3G4200D Digital interfaces

Table 15. Transfer when master is writing multiple bytes to slave

Master ST SAD + W SUB DATA DATA SP

Slave SAK SAK SAK SAK

Table 16. Transfer when master is receiving (reading) one byte of data from slave

Master ST SAD + W SUB SR SAD + R NMAK SP

Slave SAK SAK SAK DATA

Table 17. Transfer when master is receiving (reading) multiple bytes of data from slave

Master ST SAD+W SUB SR SAD+R MAK MAK NMAK SP

Slave SAK SAK SAK DATA DATA DATA

Data are transmitted in byte format (DATA). Each data transfer contains 8 bits. The number of bytes transferred per transfer is unlimited. Data is transferred with the most significant bit (MSb) first. If a receiver cannot receive another complete byte of data until it has performed some other function, it can hold the clock line SCL LOW to force the transmitter into a wait state. Data transfer only continues when the receiver is ready for another byte and releases the data line. If a slave receiver does not acknowledge the slave address (i.e., it is not able to receive because it is performing some real-time function) the data line must be left HIGH by the slave. The master can then abort the transfer. A LOW to HIGH transition on the SDA line while the SCL line is HIGH is defined as a STOP condition. Each data transfer must be terminated by the generation of a STOP (SP) condition.

In order to read multiple bytes, it is necessary to assert the most significant bit of the subaddress field. In other words, SUB(7) must be equal to 1, while SUB(6-0) represents the address of the first register to be read.

In the presented communication format, MAK is “master acknowledge” and NMAK is “no master acknowledge”.

5.2 SPI bus interface

The SPI is a bus slave. The SPI allows writing and reading of the device registers. The serial interface interacts with the external world through 4 wires: CS, SPC, SDI, and SDO.

Doc ID 17116 Rev 3 23/42

Page 24

Digital interfaces L3G4200D

Figure 13. Read and write protocol

SPC

SDI

DI7 DI6 DI5 DI4 DI3 DI2 DI1 DI0

DO7DO6DO5DO4DO3DO2DO1DO0

SDO

AD5 AD4 AD3 AD2 AD1 AD0

CS is the serial port enable and is controlled by the SPI master. It goes low at the start of the transmission and returns to high at the end. SPC is the serial port clock and is controlled by the SPI master. It is stopped high when CS is high (no transmission). SDI and SDO are, respectively, the serial port data input and output. These lines are driven at the falling edge of SPC and should be captured at the rising edge of SPC.

Both the read register and write register commands are completed in 16 clock pulses, or in multiples of 8 in case of multiple read/write bytes. Bit duration is the time between two falling edges of SPC. The first bit (bit 0) starts at the first falling edge of SPC after the falling edge of CS while the last bit (bit 15, bit 23, etc.) starts at the last falling edge of SPC just before the rising edge of CS.

Bit 0: RW from the device is read. In the latter case, the chip drives SDO at the start of bit 8.

Bit 1: MS When 1, the address is auto-incremented in multiple read/write commands.

Bit 2-7: address AD(5:0). This is the address field of the indexed register.

Bit 8-15: data DI(7:0) (write mode). This is the data that is written to the device (MSb first).

Bit 8-15: data DO(7:0) (read mode). This is the data that is read from the device (MSb first).

In multiple read/write commands, further blocks of 8 clock periods are added. When the MS bit is 0, the address used to read/write data remains the same for every block. When the MS bit is 1, the address used to read/write data is incremented at every block.

The function and the behavior of SDI and SDO remain unchanged.

5.2.1 SPI read

Figure 14. SPI read protocol

bit. When 0, the data DI(7:0) is written to the device. When 1, the data DO(7:0)

bit. When 0, the address remains unchanged in multiple read/write commands.

SPC

SDI

AD5 AD4 AD3 AD2 AD1 AD0

SDO

DO7 DO6 DO5DO4 DO3 DO2 DO1DO0

24/42 Doc ID 17116 Rev 3

Page 25

L3G4200D Digital interfaces

The SPI read command is performed with 16 clock pulses. A multiple byte read command is performed by adding blocks of 8 clock pulses to the previous one.

Bit 0: READ bit. The value is 1.

Bit 1: MS

bit. When 0, do not increment address; when 1, increment address in multiple

reading.

Bit 2-7: address AD(5:0). This is the address field of the indexed register.

Bit 8-15: data DO(7:0) (read mode). This is the data that is read from the device (MSb first).

Bit 16-... : data DO(...-8). Further data in multiple byte reading.

Figure 15. Multiple byte SPI read protocol (2-byte example)

SPC

SDI

SDO

5.2.2 SPI write

Figure 16. SPI write protocol

AD5 AD4 AD3 AD2 AD1 AD0

DO7DO6DO5DO4DO3DO2DO1DO0

DO15 DO14 DO13 DO12 DO11 DO10 DO9 DO8

SPC

SDI

AD5 AD4 AD3 AD2 AD1 AD0MS

DI7 DI6 DI5 DI4 DI3 DI2 DI1 DI0

The SPI write command is performed with 16 clock pulses. A multiple byte write command is performed by adding blocks of 8 clock pulses to the previous one.

Bit 0: WRITE bit. The value is 0.

Bit 1: MS

bit. When 0, do not increment address; when 1, increment address in multiple

writing.

Bit 2 -7: address AD(5:0). This is the address field of the indexed register.

Bit 8-15: data DI(7:0) (write mode). This is the data that is written to the device (MSb first).

Bit 16-... : data DI(...-8). Further data in multiple byte writing.

Doc ID 17116 Rev 3 25/42

Page 26

Digital interfaces L3G4200D

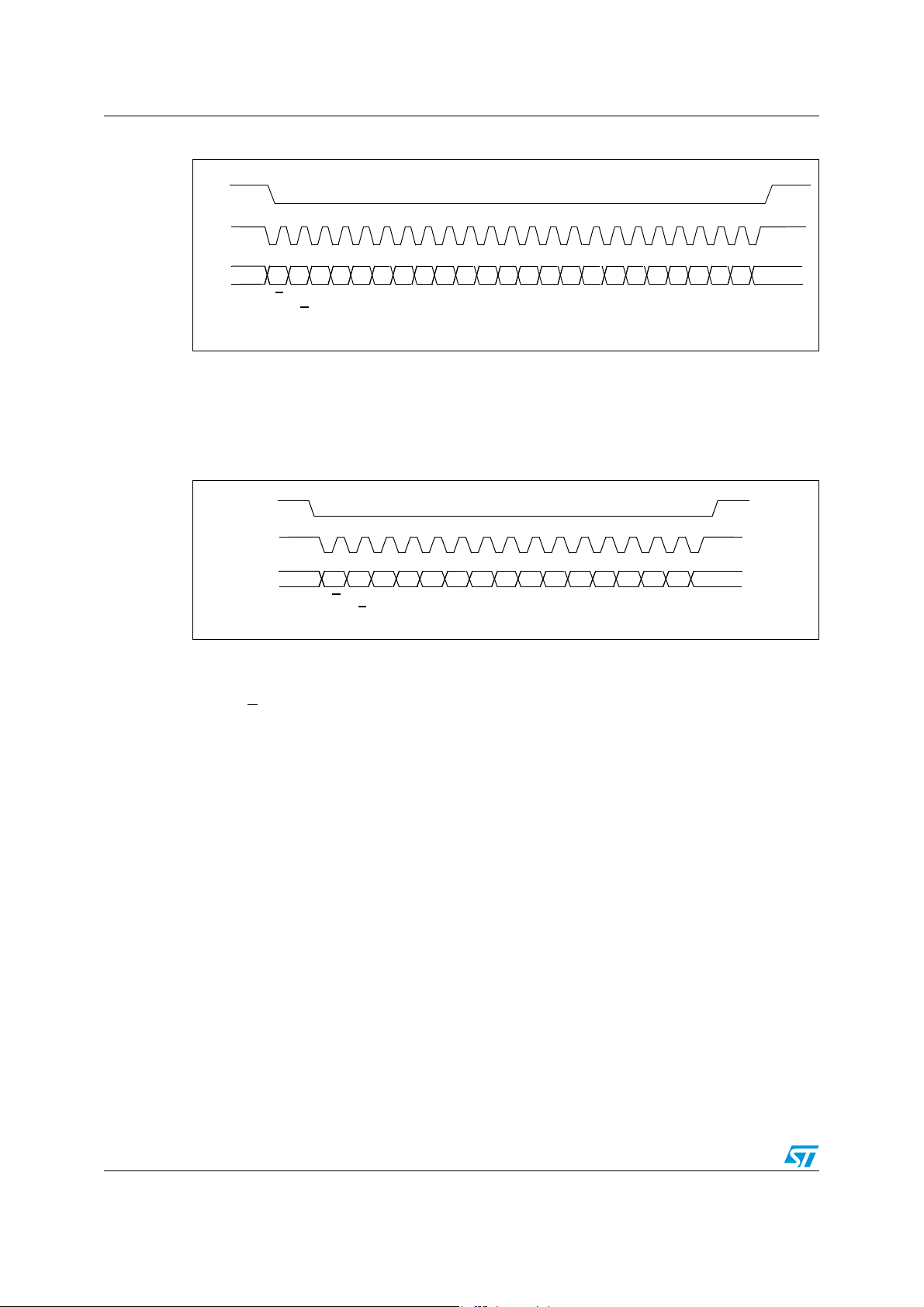

Figure 17. Multiple byte SPI write protocol (2-byte example)

SPC

SDI

AD5 AD4 AD3 AD2 AD1 AD0

DI7 DI6 DI5 DI4 DI3 DI2 DI1 DI0 DI15 DI14 DI13 DI12 DI11 DI10 DI9 DI8

5.2.3 SPI read in 3-wire mode

3-wire mode is entered by setting the SIM (SPI serial interface mode selection) bit to 1 in CTRL_REG2.

Figure 18. SPI read protocol in 3-wire mode

SPC

SDI/O

AD5 AD4 AD3 AD2 AD1 AD0

DO7 DO6 DO5 DO4 DO3 DO2 DO1 DO0

The SPI read command is performed with 16 clock pulses:

Bit 0: READ bit. The value is 1.

Bit 1: MS

bit. When 0, do not increment address; when 1, increment address in multiple

reading.

Bit 2-7: address AD(5:0). This is the address field of the indexed register.

Bit 8-15: data DO(7:0) (read mode). This is the data that is read from the device (MSb first).

The multiple read command is also available in 3-wire mode.

26/42 Doc ID 17116 Rev 3

Page 27

L3G4200D Output register mapping

6 Output register mapping

The table given below provides a listing of the 8 bit registers embedded in the device and the related addresses:

Table 18. Register address map

Name Type

Hex Binary

Reserved - 00-0E - -

WHO_AM_I r 0F 000 1111 11010011

Reserved - 10-1F - -

CTRL_REG1 rw 20 010 0000 00000111

CTRL_REG2 rw 21 010 0001 00000000

CTRL_REG3 rw 22 010 0010 00000000

CTRL_REG4 rw 23 010 0011 00000000

CTRL_REG5 rw 24 010 0100 00000000

REFERENCE rw 25 010 0101 00000000

OUT_TEMP r 26 010 0110 output

Default Comment

STATUS_REG r 27 010 0111 output

OUT_X_L r 28 010 1000 output

OUT_X_H r 29 010 1001 output

OUT_Y_L r 2A 010 1010 output

OUT_Y_H r 2B 010 1011 output

OUT_Z_L r 2C 010 1100 output

OUT_Z_H r 2D 010 1101 output

FIFO_CTRL_REG rw 2E 010 1110 00000000

FIFO_SRC_REG r 2F 010 1111 output

INT1_CFG rw 30 011 0000 00000000

INT1_SRC r 31 011 0001 output

INT1_TSH_XH rw 32 011 0010 00000000

INT1_TSH_XL rw 33 011 0011 00000000

INT1_TSH_YH rw 34 011 0100 00000000

INT1_TSH_YL rw 35 011 0101 00000000

INT1_TSH_ZH rw 36 011 0110 00000000

INT1_TSH_ZL rw 37 011 0111 00000000

INT1_DURATION rw 38 011 1000 00000000

Doc ID 17116 Rev 3 27/42

Page 28

Output register mapping L3G4200D

Registers marked as Reserved must not be changed. The writing to those registers may cause permanent damages to the device.

The content of the registers that are loaded at boot should not be changed. They contain the factory calibration values. Their content is automatically restored when the device is powered-up.

28/42 Doc ID 17116 Rev 3

Page 29

L3G4200D Register description

7 Register description

The device contains a set of registers which are used to control its behavior and to retrieve acceleration data. The registers address, made of 7 bits, is used to identify them and to write the data through serial interface.

7.1 WHO_AM_I (0Fh)

Table 19. WHO_AM_I register

11010011

Device identification register.

7.2 CTRL_REG1 (20h)

Table 20. CTRL_REG1 register

DR1 DR0 BW1 BW0 PD Zen Yen Xen

Table 21. CTRL_REG1 description

DR1-DR0 Output Data Rate selection. Refer to Table 22

BW1-BW0 Bandwidth selection. Refer to Table 22

Zen Z axis enable. Default value: 1

Yen Y axis enable. Default value: 1

Xen X axis enable. Default value: 1

Power down mode enable. Default value: 0 (0: power down mode, 1: normal mode or sleep mode)

(0: Z axis disabled; 1: Z axis enabled)

(0: Y axis disabled; 1: Y axis enabled)

(0: X axis disabled; 1: X axis enabled)

DR<1:0> is used to set ODR selection. BW <1:0> is used to set Bandwidth selection.

In the following table are reported all frequency resulting in combination of DR / BW bits.

Table 22. DR and BW configuration setting

DR <1:0> BW <1:0> ODR [Hz] Cut-Off

00 00 100 12.5

00 01 100 25

00 10 100 25

00 11 100 25

Doc ID 17116 Rev 3 29/42

Page 30

Table 22. DR and BW configuration setting (continued)

DR <1:0> BW <1:0> ODR [Hz] Cut-Off

01 00 200 12.5

01 01 200 25

01 10 200 50

01 11 200 70

10 00 400 20

10 01 400 25

10 10 400 50

10 11 400 110

11 00 800 30

11 01 800 35

11 10 800 50

11 11 800 110

Combination of PD, Zen, Yen, Xen are used to set device in different modes (power down / normal / sleep mode) according with the following table.

Table 23. Power mode selection configuration

Mode PD Zen Yen Xen

Power down 0 - - -

Sleep 1 0 0 0

Normal 1 - - -

7.3 CTRL_REG2 (21h)

Table 24. CTRL_REG2 register

(1)

1. Value loaded at boot. This value must not be changed

Table 25. CTRL_REG2 description

HPM1HPM0

HPCF3HPCF0

(1)

High Pass filter Mode Selection. Default value: 00 Refer to Table 26

High Pass filter Cut Off frequency selection Refer to Table 28

HPM1 HPM1 HPCF3 HPCF2 HPCF1 HPCF0

30/42 Doc ID 17116 Rev 3

Page 31

L3G4200D Register description

Table 26. High pass filter mode configuration

HPM1 HPM0 High Pass filter Mode

0 0 Normal mode (reset reading HP_RESET_FILTER)

0 1 Reference signal for filtering

10Normal mode

1 1 Autoreset on interrupt event

Table 27. High pass filter cut off frecuency configuration [Hz]

HPCF3 ODR= 100 Hz ODR= 200 Hz ODR= 400 Hz ODR= 800 Hz

00008 153056

0001 4 8 15 30

0010 2 4 8 15

00111248

0100 0.5 1 2 4

0101 0.2 0.5 1 2

0110 0.1 0.2 0.5 1

0111 0.05 0.1 0.2 0.5

1000 0.02 0.05 0.1 0.2

1001 0.01 0.02 0.05 0.1

7.4 CTRL_REG3 (22h)

Table 28. CTRL_REG1 register

I1_Int1 I1_Boot H_Lactive PP_OD I2_DRDY I2_WTM I2_ORun I2_Empty

Table 29. CTRL_REG3 description

I1_Int1 Interrupt enable on INT1 pin. Default value 0. (0: Disable; 1: Enable)

I1_Boot Boot status available on INT1. Default value 0. (0: Disable; 1: Enable)

H_Lactive Interrupt active configuration on INT1. Default value 0. (0: High; 1:Low)

PP_OD Push- Pull / Open drain. Default value: 0. (0: Push- Pull; 1: Open drain)

I2_DRDY Date Ready on DRDY/INT2. Default value 0. (0: Disable; 1: Enable)

I2_WTM FIFO Watermark interrupt on DRDY/INT2. Default value: 0. (0: Disable; 1: Enable)

I2_ORun FIFO Overrun interrupt on DRDY/INT2 Default value: 0. (0: Disable; 1: Enable)

I2_Empty FIFO Empty interrupt on DRDY/INT2. Default value: 0. (0: Disable; 1: Enable)

Doc ID 17116 Rev 3 31/42

Page 32

7.5 CTRL_REG4 (23h)

Table 30. CTRL_REG4 register

BDU BLE FS1 FS0 - ST1 ST0 SIM

Table 31. CTRL_REG4 description

BDU Block Data Update. Default value: 0

(0: continous update; 1: output registers not updated until MSB and LSB reading)

BLE Big/Little Endian Data Selection. Default value 0.

(0: Data LSB @ lower address; 1: Data MSB @ lower address)

FS1-FS0 Full Scale selection. Default value: 00

(00: 250 dps; 01: 500 dps; 10: 2000 dps; 11: 2000 dps)

ST1-ST0 Self Test Enable. Default value: 00

(00: Self Test Disabled; Other: See Table )

SIM SPI Serial Interface Mode selection. Default value: 0

(0: 4-wire interface; 1: 3-wire interface).

Table 32. Self test mode configuration

ST1 ST0 Self test mode

0 0 Normal mode

01Self test 0 (+)

10--

11Self test 1 (-)

1. DST sign (absolute value in Table 4)

7.6 CTRL_REG5 (24h)

Table 33. CTRL_REG5 register

BOOT FIFO_EN -- HPen INT1_Sel1 INT1_Sel0 Out_Sel1 Out_Sel0

Table 34. CTRL_REG5 description

BOOT Reboot memory content. Default value: 0

(0: normal mode; 1: reboot memory content)

FIFO_EN FIFO enable. Default value: 0

(0: FIFO disable; 1: FIFO Enable)

(1)

HPen High Pass filter Enable. Default value: 0

(0: HPF disabled; 1: HPF enabled. See Figure 20)

INT1_Sel1INT1_Sel0

Out_Sel1Out_Sel1

32/42 Doc ID 17116 Rev 3

INT1 selection configuration. Default value: 0 (See Figure 20)

Out selection configuration. Default value: 0 (See Figure 20

Page 33

L3G4200D Register description

Figure 19. INT1_Sel and Out_Sel configuration block diagram

Out_Sel <1:0>

00 01

10 11

ADC

LPF1

HPF

LPF2

HPen

10 11

Table 35. Out_Sel configuration setting

Hpen OUT_SEL1 OUT_SEL0 Description

x00

x01

01x

11x

Data in DataReg and FIFO are non-highpass-filtered

Data in DataReg and FIFO are high-passfiltered

Data in DataReg and FIFO are low-passfiltered by LPF2

Data in DataReg and FIFO are high-pass and low-pass-filtered by LPF2

DataReg

FIFO

32x16x3

INT1_Sel <1:0>

Interrupt

generator

AM07949V2

Table 36. INT_SEL configuration setting

Hpen INT_SEL1 INT_SEL2 Description

x00

x01

01x

11x

Doc ID 17116 Rev 3 33/42

Non-high-pass-filtered data are used for interrupt generation

High-pass-filtered data are used for interrupt generation

Low-pass-filtered data are used for interrupt generation

High-pass and low-pass-filtered data are used for interrupt generation

Page 34

7.7 REFERENCE/DATACAPTURE (25h)

Table 37. REFERENCE register

Ref7 Ref6 Ref5 Ref4 Ref3 Ref2 Ref1 Ref0

Table 38. REFERENCE register description

Ref 7-Ref0 Reference value for Interrupt generation. Default value: 0

7.8 OUT_TEMP (26h)

Table 39. OUT_TEMP register

Temp7 Temp6 Temp5 Temp4 Temp3 Temp2 Temp1 Temp0

Table 40. OUT_TEMP register description

Temp7-Temp0 Temperature data.

7.9 STATUS_REG (27h)

Table 41. STATUS_REG register

ZYXOR ZOR YOR XOR ZYXDA ZDA YDA XDA

Table 42. STATUS_REG description

X, Y, Z -axis data overrun. Default value: 0

ZYXOR

ZOR

YOR

XOR

ZYXDA X, Y, Z -axis new data available. Default value: 0

ZDA Z axis new data available. Default value: 0

YDA Y axis new data available. Default value: 0

XDA X axis new data available. Default value: 0

(0: no overrun has occurred; 1: new data has overwritten the previous one before it was read)

Z axis data overrun. Default value: 0 (0: no overrun has occurred; 1: a new data for the Z-axis has overwritten the previous one)

Y axis data overrun. Default value: 0 (0: no overrun has occurred; 1: a new data for the Y-axis has overwritten the previous one)

X axis data overrun. Default value: 0 (0: no overrun has occurred; 1: a new data for the X-axis has overwritten the previous one)

(0: a new set of data is not yet available; 1: a new set of data is available)

(0: a new data for the Z-axis is not yet available; 1: a new data for the Z-axis is available)

(0: a new data for the Y-axis is not yet available;1: a new data for the Y-axis is available)

(0: a new data for the X-axis is not yet available; 1: a new data for the X-axis is available)

34/42 Doc ID 17116 Rev 3

Page 35

L3G4200D Register description

7.10 OUT_X_L (28h), OUT_X_H (29h)

X-axis angular rate data. The value is expressed as two’s complement.

7.11 OUT_Y_L (2Ah), OUT_Y_H (2Bh)

Y-axis angular rate data. The value is expressed as two’s complement.

7.12 OUT_Z_L (2Ch), OUT_Z_H (2Dh)

Z-axis angular rate data. The value is expressed as two’s complement.

7.13 FIFO_CTRL_REG (2Eh)

Table 43. REFERENCE register

FM2 FM1 FM0 WTM4 WTM3 WTM2 WTM1 WTM0

Table 44. REFERENCE register description

FM2-FM0 FIFO mode selection. Default value: 00 (see Table )

WTM4-WTM0 FIFO threshold. Watermark level setting

Table 45. FIFO mode configuration

FM2 FM1 FM0 FIFO mode

000Bypass mode

001FIFO mode

010Stream mode

011Stream-to-FIFO mode

100Bypass-to-Stream mode

7.14 FIFO_SRC_REG (2Fh)

Table 46. FIFO_SRC register

WTM OVRN EMPTY FSS4 FSS3 FSS2 FSS1 FSS0

Table 47. FIFO_SRC register description

WTM Watermark status. (0: FIFO filling is lower than WTM level; 1: FIFO filling is equal

or higher than WTM level)

OVRN Overrun bit status.

(0: FIFO is not completely filled; 1:FIFO is completely filled)

Doc ID 17116 Rev 3 35/42

Page 36

Table 47. FIFO_SRC register description (continued)

EMPTY FIFO empty bit.

( 0: FIFO not empty; 1: FIFO empty)

FSS4-FSS1 FIFO stored data level

7.15 INT1_CFG (30h)

Table 48. INT1_CFG register

AND/OR LIR ZHIE ZLIE YHIE YLIE XHIE XLIE

Table 49. INT1_CFG description

AND/OR

AND/OR combination of Interrupt events. Default value: 0 (0: OR combination of interrupt events 1: AND combination of interrupt events

LIR

ZHIE

ZLIE

YHIE

YLIE

XHIE

XLIE

Latch Interrupt Request. Default value: 0 (0: interrupt request not latched; 1: interrupt request latched) Cleared by reading INT1_SRC reg.

Enable interrupt generation on Z high event. Default value: 0 (0: disable interrupt request; 1: enable interrupt request on measured accel. value

higher than preset threshold)

Enable interrupt generation on Z low event. Default value: 0 (0: disable interrupt request; 1: enable interrupt request on measured accel. value

lower than preset threshold)

Enable interrupt generation on Y high event. Default value: 0 (0: disable interrupt request; 1: enable interrupt request on measured accel. value

higher than preset threshold)

Enable interrupt generation on Y low event. Default value: 0 (0: disable interrupt request; 1: enable interrupt request on measured accel. value

lower than preset threshold)

Enable interrupt generation on X high event. Default value: 0 (0: disable interrupt request; 1: enable interrupt request on measured accel. value

higher than preset threshold)

Enable interrupt generation on X low event. Default value: 0 (0: disable interrupt request; 1: enable interrupt request on measured accel. value

lower than preset threshold)

Configuration register for Interrupt source.

7.16 INT1_SRC (31h)

Table 50. INT1_SRC register

0 IA ZHZLYHYLXHXL

36/42 Doc ID 17116 Rev 3

Page 37

L3G4200D Register description

Table 51. INT1_SRC description

ZH Z high. Default value: 0 (0: no interrupt, 1: Z High event has occurred)

ZL Z low. Default value: 0 (0: no interrupt; 1: Z Low event has occurred)

YH Y high. Default value: 0 (0: no interrupt, 1: Y High event has occurred)

YL Y low. Default value: 0 (0: no interrupt, 1: Y Low event has occurred)

XH X high. Default value: 0 (0: no interrupt, 1: X High event has occurred)

XL X low. Default value: 0 (0: no interrupt, 1: X Low event has occurred)

Interrupt active. Default value: 0 (0: no interrupt has been generated; 1: one or more interrupts have been generated)

Interrupt source register. Read only register.

Reading at this address clears INT1_SRC IA bit (and eventually the interrupt signal on INT1 pin) and allows the refreshment of data in the INT1_SRC register if the latched option was chosen.

7.17 INT1_THS_XH (32h)

Table 52. INT1_THS_XH register

- THSX14 THSX13 THSX12 THSX11 THSX10 THSX9 THSX8

Table 53. INT1_THS_XH description

THSX14 - THSX9 Interrupt threshold. Default value: 0000 0000

7.18 INT1_THS_XL (33h)

Table 54. INT1_THS_XL register

THSX7 THSX6 THSX5 THSX4 THSX3 THSX2 THSX1 THSX0

Table 55. INT1_THS_XL description

THSX7 - THSX0 Interrupt threshold. Default value: 0000 0000

7.19 INT1_THS_YH (34h)

Table 56. INT1_THS_YH register

- THSY14 THSY13 THSY12 THSY11 THSY10 THSY9 THSY8

Table 57. INT1_THS_YH description

THSY14 - THSY9 Interrupt threshold. Default value: 0000 0000

Doc ID 17116 Rev 3 37/42

Page 38

7.20 INT1_THS_YL (35h)

Table 58. INT1_THS_YL register

THSR7 THSY6 THSY5 THSY4 THSY3 THSY2 THSY1 THSY0

Table 59. INT1_THS_YL description

THSY7 - THSY0 Interrupt threshold. Default value: 0000 0000

7.21 INT1_THS_ZH (36h)

Table 60. INT1_THS_ZH register

- THSZ14 THSZ13 THSZ12 THSZ11 THSZ10 THSZ9 THSZ8

Table 61. INT1_THS_ZH description

THSZ14 - THSZ9 Interrupt threshold. Default value: 0000 0000

7.22 INT1_THS_ZL (37h)

Table 62. INT1_THS_ZL register

THSZ7 THSZ6 THSZ5 THSZ4 THSZ3 THSZ2 THSZ1 THSZ0

Table 63. INT1_THS_ZL description

THSZ7 - THSZ0 Interrupt threshold. Default value: 0000 0000

7.23 INT1_DURATION (38h)

Table 64. INT1_DURATION register

WAIT D6 D5 D4 D3 D2 D1 D0

Table 65. INT1_DURATION description

WAIT WAIT enable. Default value: 0 (0: disable; 1: enable)

D6 - D0 Duration value. Default value: 000 0000

D6 - D0 bits set the minimum duration of the Interrupt event to be recognized. Duration steps and maximum values depend on the ODR chosen.

WAI T bit has the following meaning:

Wait =’0’: the interrupt falls immediately if signal crosses the selected threshold

38/42 Doc ID 17116 Rev 3

Page 39

L3G4200D Register description

Wait =’1’: if signal crosses the selected threshold, the interrupt falls only after the duration has counted number of samples at the selected data rate, written into the duration counter register.

Figure 20. Wait disabled

Figure 21. Wait enabled

Doc ID 17116 Rev 3 39/42

Page 40

Package information L3G4200D

8 Package information

In order to meet environmental requirements, ST offers these devices in different grades of ECOPACK specifications, grade definitions and product status are available at www.st.com. ECOPACK is an ST trademark.

Figure 22. LGA-16: mechanical data and package dimensions

packages, depending on their level of environmental compliance. ECOPACK®

40/42 Doc ID 17116 Rev 3

Page 41

L3G4200D Revision history

9 Revision history

Table 66. Document revision history

Date Revision Changes

01-Apr-2010 1 Initial release.

03-Sep-2010 2 Complete datasheet review.

22-Dec-2010 3

Inserted Section 6: Output register mapping and Section 7: Register

description.

Doc ID 17116 Rev 3 41/42

Page 42

L3G4200D

Please Read Carefully:

Information in this document is provided solely in connection with ST products. STMicroelectronics NV and its subsidiaries (“ST”) reserve the right to make changes, corrections, modifications or improvements, to this document, and the products and services described herein at any time, without notice.

All ST products are sold pursuant to ST’s terms and conditions of sale.

Purchasers are solely responsible for the choice, selection and use of the ST products and services described herein, and ST assumes no liability whatsoever relating to the choice, selection or use of the ST products and services described herein.

No license, express or implied, by estoppel or otherwise, to any intellectual property rights is granted under this document. If any part of this document refers to any third party products or services it shall not be deemed a license grant by ST for the use of such third party products or services, or any intellectual property contained therein or considered as a warranty covering the use in any manner whatsoever of such third party products or services or any intellectual property contained therein.

UNLESS OTHERWISE SET FORTH IN ST’S TERMS AND CONDITIONS OF SALE ST DISCLAIMS ANY EXPRESS OR IMPLIED WARRANTY WITH RESPECT TO THE USE AND/OR SALE OF ST PRODUCTS INCLUDING WITHOUT LIMITATION IMPLIED WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE (AND THEIR EQUIVALENTS UNDER THE LAWS OF ANY JURISDICTION), OR INFRINGEMENT OF ANY PATENT, COPYRIGHT OR OTHER INTELLECTUAL PROPERTY RIGHT.

UNLESS EXPRESSLY APPROVED IN WRITING BY AN AUTHORIZED ST REPRESENTATIVE, ST PRODUCTS ARE NOT RECOMMENDED, AUTHORIZED OR WARRANTED FOR USE IN MILITARY, AIR CRAFT, SPACE, LIFE SAVING, OR LIFE SUSTAINING APPLICATIONS, NOR IN PRODUCTS OR SYSTEMS WHERE FAILURE OR MALFUNCTION MAY RESULT IN PERSONAL INJURY, DEATH, OR SEVERE PROPERTY OR ENVIRONMENTAL DAMAGE. ST PRODUCTS WHICH ARE NOT SPECIFIED AS "AUTOMOTIVE GRADE" MAY ONLY BE USED IN AUTOMOTIVE APPLICATIONS AT USER’S OWN RISK.

Resale of ST products with provisions different from the statements and/or technical features set forth in this document shall immediately void any warranty granted by ST for the ST product or service described herein and shall not create or extend in any manner whatsoever, any liability of ST.

ST and the ST logo are trademarks or registered trademarks of ST in various countries.

Information in this document supersedes and replaces all information previously supplied.

The ST logo is a registered trademark of STMicroelectronics. All other names are the property of their respective owners.

STMicroelectronics group of companies

Australia - Belgium - Brazil - Canada - China - Czech Republic - Finland - France - Germany - Hong Kong - India - Israel - Italy - Japan -

Malaysia - Malta - Morocco - Philippines - Singapore - Spain - Sweden - Switzerland - United Kingdom - United States of America

www.st.com

42/42 Doc ID 17116 Rev 3
