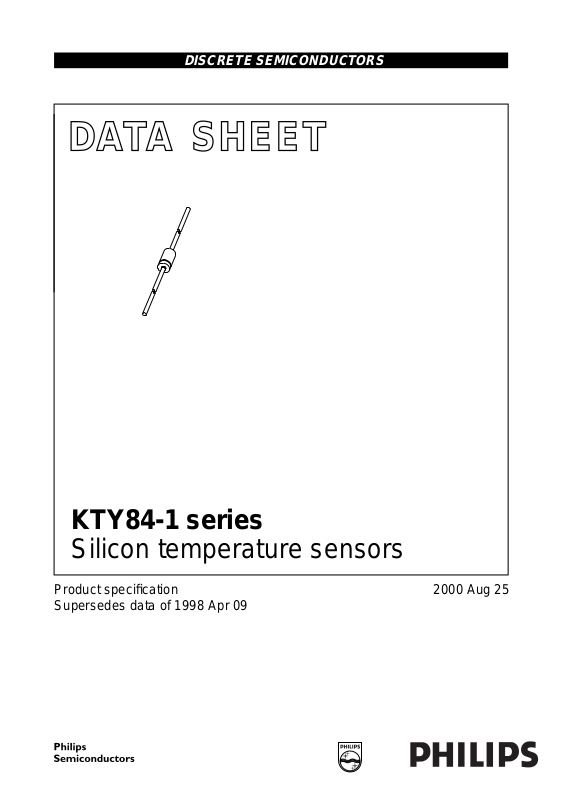

Page 1
DISCRETE SEMICONDUCTORS
DATA SH EET
book, halfpage
M3D050
KTY84-1 series
Silicon temperature sensors
Product specification
Supersedes data of 1998 Apr 09
2000 Aug 25
Page 2
Philips Semiconductors Product specification
Silicon temperature sensors KTY84-1 series
DESCRIPTION
The temperature sensors in the KTY84-1 series have a
positive temperature coefficient of resistance and are
suitable foruse in measurement and control systems over
a temperature range of −40 to +300 °C. The sensors are
encapsulated in the SOD68 (DO-34) package. The leads
are nickel plated.
Tolerances of 0.5% or other special selections are
available on request.
The black band indicates the negative connection.
The marking provides type identity.
The sensor must be operated with the lower potential at the
marked connection.
ka
XXX
MGU220
MARKING
Fig.1 Simplified outline (SOD68; DO-34).
TYPE NUMBER MARKING CODE
KTY84-130 KTY84L
KTY84-150 KTY84M
KTY84-151 KTY84O
KTY84-152 KTY84P
QUICK REFERENCE DATA
SYMBOL PARAMETER CONDITIONS MIN. MAX. UNIT
R
100
sensor resistance T
= 100 °C; I
amb
cont
=2mA
KTY84-130 970 1030 Ω
KTY84-150 950 1050 Ω
KTY84-151 950 1000 Ω
KTY84-152 1000 1050 Ω
T
amb
ambient operating temperature −40 +300 °C
LIMITING VALUES
In accordance with the Absolute Maximum Rating System (IEC 60134).
SYMBOL PARAMETER CONDITIONS MIN. MAX. UNIT
I
cont
T
amb
T
stg
continuous sensor current in free air; T
in free air; T
=25°C; note 1 − 10 mA
amb
= 300 °C − 2mA
amb
ambient operating temperature −40 +300 °C
storage temperature −55 +300 °C
Note
1. For temperatures greater than 200 °C, a sensor current of I
2000 Aug 25 2
= 2 mA must be used.
cont
Page 3
Philips Semiconductors Product specification
Silicon temperature sensors KTY84-1 series
CHARACTERISTICS
T
= 100 °C, in liquid, unless otherwise specified.
amb
SYMBOL PARAMETER CONDITIONS MIN. TYP. MAX. UNIT
R
100
sensor resistance I
KTY84-130 970 − 1030 Ω
KTY84-150 950 − 1050 Ω
KTY84-151 950 − 1000 Ω
KTY84-152 1000 − 1050 Ω
TC temperature coefficient − 0.61 − %/K
R
250/R100
R
25/R100
resistance ratio T
resistance ratio T
τ thermal time constant; note 1 in still air − 20 − s
rated temperature range −40 − +300 °C
=2mA
cont
= 250 °C and 100 °C 2.111 2.166 2.221
amb
=25°C and 100 °C 0.595 0.603 0.611
amb
in still liquid; note 2 − 1 − s
in flowing liquid; note 2 − 0.5 − s
Notes
1. The thermal time constant is the time taken for the sensor to reach 63.2% of the total temperature difference.
For example, if a sensor with a temperature of 25 °C is moved to an environment with an ambient temperature of
100 °C, the time for the sensor to reach a temperature of 72.4 °C is the thermal time constant.
2. Inert liquid, e.g. FC43 manufactured by the 3M company.
200
T
amb
MCD398
(°C)
30
handbook, halfpage
∆ T
(K)
20
10
0
−10
−20
−30
−100
MCD399
KTY84 - 150
KTY84 - 130
- 151
- 152
KTY84 - 150
0 100 300
200
T
amb
(°C)
R
(kΩ)
3
2
1
0
−100
handbook, halfpage
0 100 300
Fig.2 Maximum expected temperature error (∆T).
2000 Aug 25 3
I
= 2 mA.
cont
Fig.3 Sensor resistance as a function of ambient
temperature; average values.
Page 4
Philips Semiconductors Product specification
Silicon temperature sensors KTY84-1 series
Table 1 Ambient temperature, corresponding resistance, temperature coefficient and maximum expected temperature
error for KTY84-130 and KTY84-150
I
= 2 mA.
cont
AMBIENT
TEMPERATURE
(°C) (°F) (%/K)
−40 −40 0.84 340 359 379 ±6.48 332 359 386 ±8.85
−30 −22 0.83 370 391 411 ±6.36 362 391 419 ±8.76
−20 −4 0.82 403 424 446 ±6.26 394 424 455 ±8.7
−10 14 0.80 437 460 483 ±6.16 428 460 492 ±8.65
0 32 0.79 474 498 522 ±6.07 464 498 532 ±8.61
10 50 0.77 514 538 563 ±5.98 503 538 574 ±8.58
20 68 0.75 555 581 607 ±5.89 544 581 618 ±8.55
25 77 0.74 577 603 629 ±5.84 565 603 641 ±8.54
30 86 0.73 599 626 652 ±5.79 587 626 665 ±8.53
40 104 0.71 645 672 700 ±5.69 632 672 713 ±8.5
50 122 0.70 694 722 750 ±5.59 679 722 764 ±8.46
60 140 0.68 744 773 801 ±5.47 729 773 817 ±8.42
70 158 0.66 797 826 855 ±5.34 781 826 872 ±8.37
80 176 0.64 852 882 912 ±5.21 835 882 929 ±8.31
90 194 0.63 910 940 970 ±5.06 891 940 989 ±8.25
100 212 0.61 970 1000 1030 ±4.9 950 1000 1050 ±8.17
110 230 0.60 1029 1062 1096 ±5.31 1007 1062 1117 ±8.66
120 248 0.58 1089 1127 1164 ±5.73 1067 1127 1187 ±9.17
130 266 0.57 1152 1194 1235 ±6.17 1128 1194 1259 ±9.69
140 284 0.55 1216 1262 1309 ±6.63 1191 1262 1334 ±10.24
150 302 0.54 1282 1334 1385 ±7.1 1256 1334 1412 ±10.8
160 320 0.53 1350 1407 1463 ±7.59 1322 1407 1492 ±11.37
170 338 0.52 1420 1482 1544 ±8.1 1391 1482 1574 ±11.96
180 356 0.51 1492 1560 1628 ±8.62 1461 1560 1659 ±12.58
190 374 0.49 1566 1640 1714 ±9.15 1533 1640 1747 ±13.2
200 392 0.48 1641 1722 1803 ±9.71 1607 1722 1837 ±13.85
210 410 0.47 1719 1807 1894 ±10.28 1683 1807 1931 ±14.51
220 428 0.46 1798 1893 1988 ±10.87 1760 1893 2026 ±15.19
230 446 0.45 1879 1982 2085 ±11.47 1839 1982 2125 ±15.88
240 464 0.44 1962 2073 2184 ±12.09 1920 2073 2226 ±16.59
250 482 0.44 2046 2166 2286 ±12.73 2003 2166 2329 ±17.32
260 500 0.42 2132 2261 2390 ±13.44 2087 2261 2436 ±18.15
270 518 0.41 2219 2357 2496 ±14.44 2172 2357 2543 ±19.36
280 536 0.38 2304 2452 2600 ±15.94 2255 2452 2650 ±21.21
290 554 0.34 2384 2542 2700 ±18.26 2333 2542 2751 ±24.14
300 572 0.29 2456 2624 2791 ±22.12 2404 2624 2844 ±29.05
TEMP.
COEFF.
KTY84-130 KTY84-150
RESISTANCE
(Ω)
MIN. TYP. MAX. MIN. TYP. MAX.
TEMP.
ERROR
(K)
RESISTANCE
(Ω)
TEMP.
ERROR
(K)
2000 Aug 25 4
Page 5
Philips Semiconductors Product specification
Silicon temperature sensors KTY84-1 series
Table 2 Ambient temperature, corresponding resistance, temperature coefficient and maximum expected temperature
error for KTY84-151 and KTY84-152
I
= 2 mA.
cont
AMBIENT
TEMPERATURE
(°C) (°F) (%/K)
−40 −40 0.84 332 350 368 ±5.97 350 368 386 ±5.82
−30 −22 0.83 362 381 399 ±5.84 381 400 419 ±5.69
−20 −4 0.82 394 414 433 ±5.72 415 435 455 ±5.57
−10 14 0.80 428 449 469 ±5.62 451 472 492 ±5.46
0 32 0.79 464 486 507 ±5.51 489 511 532 ±5.35
10 50 0.77 503 525 547 ±5.41 530 552 574 ±5.25
20 68 0.75 544 566 589 ±5.31 573 595 618 ±5.14
25 77 0.74 565 588 611 ±5.25 595 618 641 ±5.08
30 86 0.73 587 610 633 ±5.2 618 641 665 ±5.03
40 104 0.71 632 656 679 ±5.08 665 689 713 ±4.91
50 122 0.70 679 704 728 ±4.96 715 740 764 ±4.78
60 140 0.68 729 754 778 ±4.83 767 792 817 ±4.64
70 158 0.66 781 806 831 ±4.68 822 847 872 ±4.5
80 176 0.64 835 860 885 ±4.53 879 904 929 ±4.34
90 194 0.63 891 916 942 ±4.37 938 963 989 ±4.17
100 212 0.61 950 975 1000 ±4.19 1000 1025 1050 ±3.99
110 230 0.60 1007 1036 1064 ±4.58 1060 1089 1117 ±4.37
120 248 0.58 1067 1099 1131 ±4.99 1123 1155 1187 ±4.77
130 266 0.57 1128 1164 1199 ±5.41 1187 1223 1259 ±5.19
140 284 0.55 1191 1231 1271 ±5.84 1254 1294 1334 ±5.62
150 302 0.54 1256 1300 1345 ±6.3 1322 1367 1412 ±6.07
160 320 0.53 1322 1372 1421 ±6.77 1392 1442 1492 ±6.53
170 338 0.52 1391 1445 1500 ±7.25 1464 1519 1574 ±7.01
180 356 0.51 1461 1521 1581 ±7.75 1538 1599 1659 ±7.51
190 374 0.49 1533 1599 1664 ±8.27 1614 1681 1747 ±8.02
200 392 0.48 1607 1679 1751 ±8.81 1692 1765 1837 ±8.55
210 410 0.47 1683 1761 1839 ±9.36 1772 1852 1931 ±9.09
220 428 0.46 1760 1846 1931 ±9.93 1854 1940 2026 ±9.66
230 446 0.45 1839 1932 2024 ±10.51 1937 2031 2125 ±10.23
240 464 0.44 1920 2021 2121 ±11.11 2022 2125 2226 ±10.83
250 482 0.44 2003 2112 2220 ±11.73 2110 2220 2329 ±11.44
260 500 0.42 2087 2205 2321 ±12.42 2198 2318 2436 ±12.12
270 518 0.41 2172 2298 2424 ±13.37 2288 2416 2543 ±13.06
280 536 0.38 2257 2391 2525 ±14.79 2376 2513 2650 ±14.46
290 554 0.34 2335 2479 2622 ±16.98 2459 2606 2751 ±16.61
300 572 0.29 2406 2558 2710 ±20.61 2533 2689 2844 ±20.18
TEMP.
COEFF.
KTY84-151 KTY84-152
RESISTANCE
(Ω)
MIN. TYP. MAX. MIN. TYP. MAX.
TEMP.
ERROR
(K)
RESISTANCE
(Ω)
TEMP.
ERROR
(K)
2000 Aug 25 5
Page 6
Philips Semiconductors Product specification
Silicon temperature sensors KTY84-1 series
12
handbook, halfpage
I
cont
(mA)
8
4
0
−100
0 100 300200
T
amb

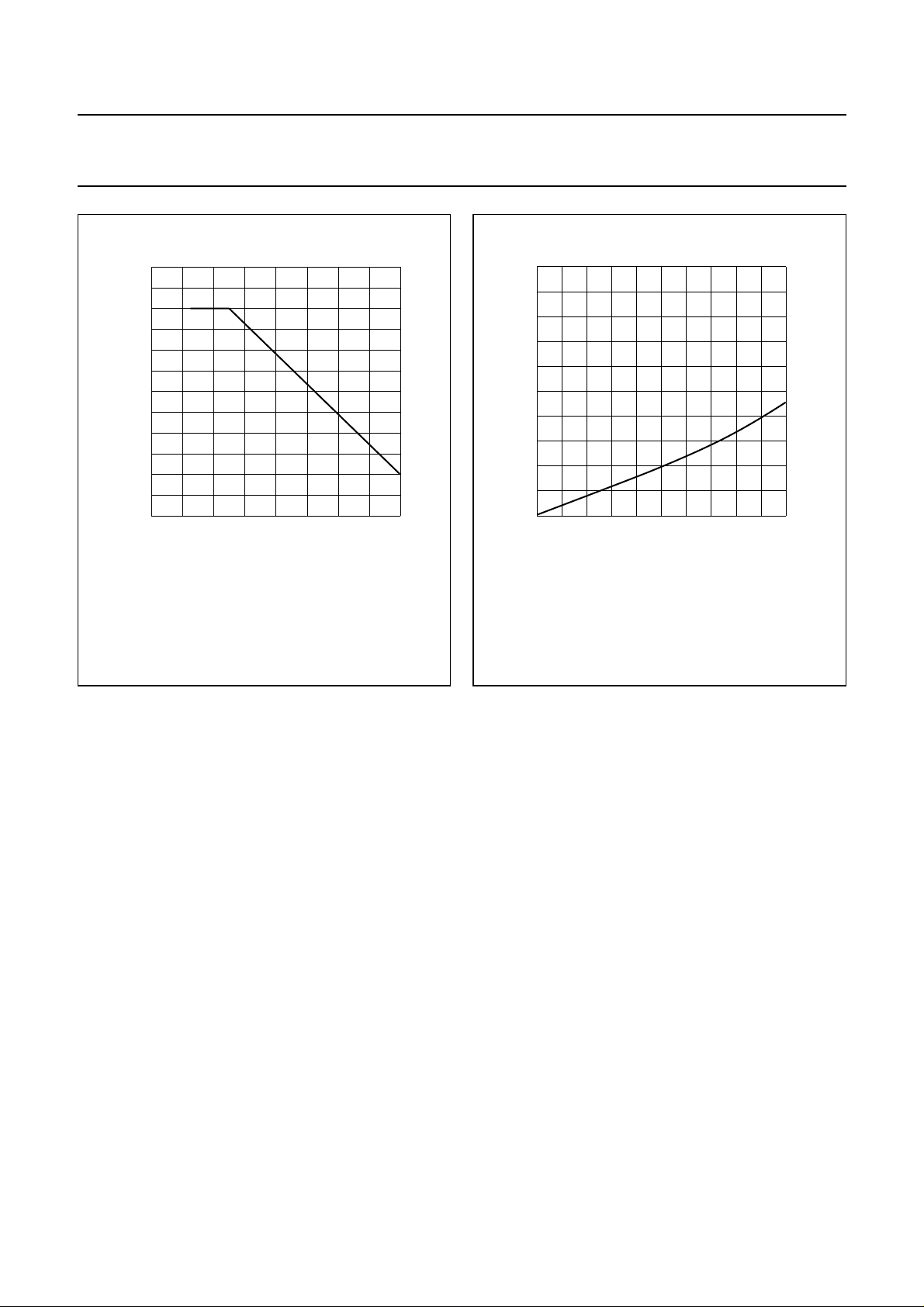

Fig.4 Maximum operating current for safe
operation.
MCD401
(°C)
40
handbook, halfpage
∆R
(Ω)
30
20
10
0
−10
123
T
= 100 °C.
amb
I
cont
MCD400
(mA)
Fig.5 Deviationofsensorresistance as a function
of operating current in still liquid.
2000 Aug 25 6
Page 7
Philips Semiconductors Product specification
Silicon temperature sensors KTY84-1 series

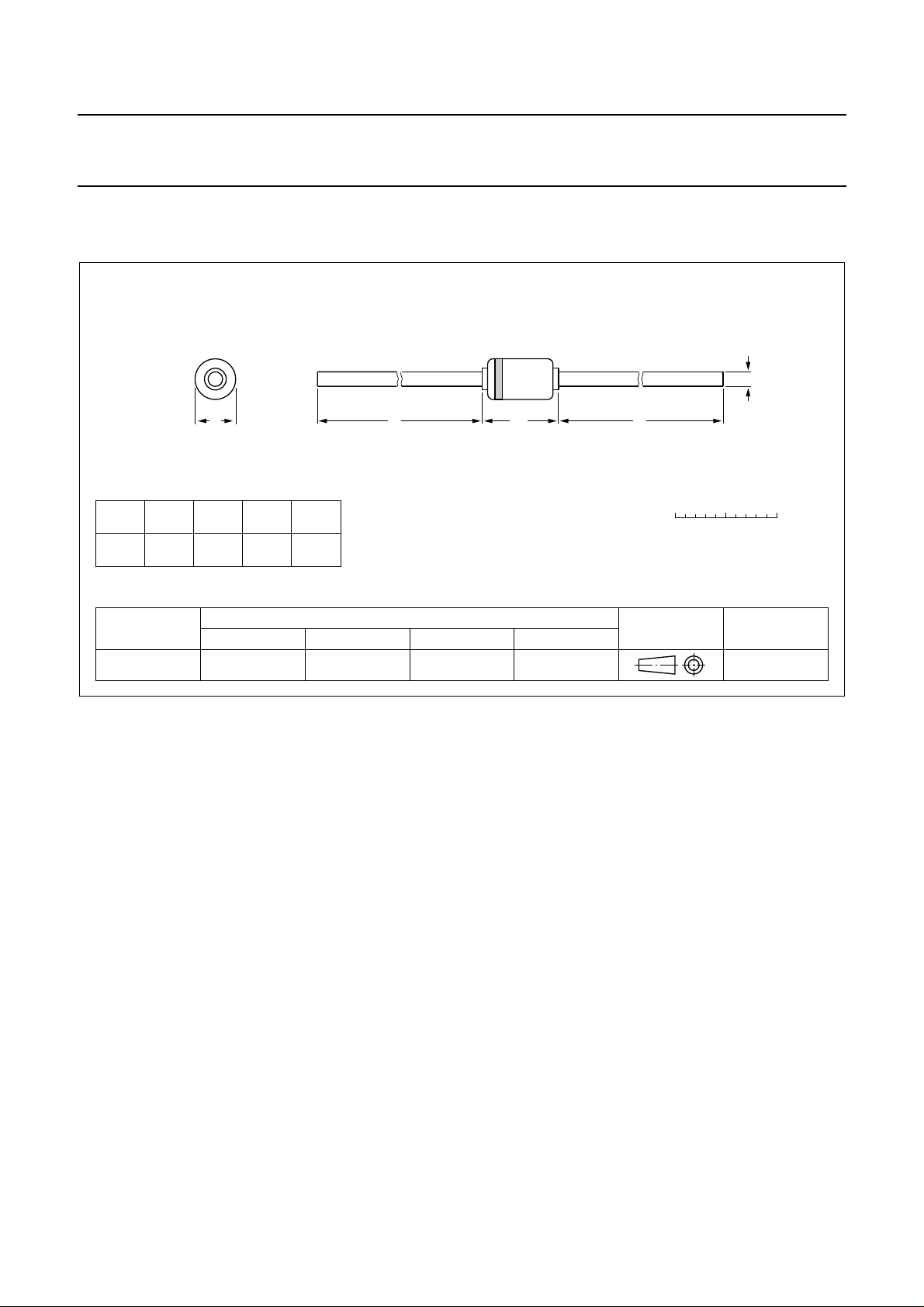

PACKAGE OUTLINE
Hermetically sealed glass package; axial leaded; 2 leads
LD L
DIMENSIONS (mm are the original dimensions)
G
UNIT
mm
Note
1. The marking band indicates the cathode.
b
max.
0.55
OUTLINE
VERSION
SOD68 DO-34
D
max.
max.
IEC JEDEC EIAJ
L
1
min.
25.43.041.6
REFERENCES
SOD68
(1)
b
G
1
0 2 4 mm
scale
EUROPEAN
PROJECTION
ISSUE DATE
97-06-09
2000 Aug 25 7
Page 8
Philips Semiconductors Product specification
Silicon temperature sensors KTY84-1 series
DATA SHEET STATUS
DATA SHEET STATUS
Objective specification Development This data sheet contains the design target or goal specifications for
Preliminary specification Qualification This data sheet contains preliminary data, and supplementary data will be
Product specification Production This data sheet contains final specifications. Philips Semiconductors
Note
1. Please consult the most recently issued data sheet before initiating or completing a design.
DEFINITIONS
Short-form specification The data in a short-form
specification is extracted from a full data sheet with the
same type number and title. For detailed information see
the relevant data sheet or data handbook.
Limiting values definition Limiting values given are in
accordance with the Absolute Maximum Rating System
(IEC 60134). Stress above one or more of the limiting
values may cause permanent damage to the device.
These are stress ratings only and operation of the device
attheseor at any other conditions above those giveninthe
Characteristics sections of the specification is not implied.
Exposure to limiting values for extended periods may
affect device reliability.
Application information Applications that are
described herein for any of these products are for
illustrative purposes only. Philips Semiconductors make
norepresentationorwarrantythatsuchapplicationswillbe
suitable for the specified use without further testing or
modification.
PRODUCT
STATUS
DEFINITIONS
product development. Specification may change in any manner without
notice.
published at a later date. Philips Semiconductors reserves the right to
make changes at any time without notice in order to improve design and
supply the best possible product.
reserves the right to make changes at any time without notice in order to
improve design and supply the best possible product.
DISCLAIMERS
Life support applications These products are not
designed for use in life support appliances, devices, or
systems where malfunction of these products can
reasonably be expected toresult in personal injury. Philips
Semiconductorscustomersusingorsellingtheseproducts
for use in such applications do so at their own risk and
agree to fully indemnify Philips Semiconductors for any
damages resulting from such application.
Right to make changes Philips Semiconductors
reserves the right to make changes, without notice, in the
products, including circuits, standard cells, and/or
software, described or contained herein in order to
improve design and/or performance. Philips
Semiconductors assumes no responsibility or liability for
theuseofanyofthese products, conveys no licence or title
under any patent, copyright, or mask work right to these
products,andmakes no representations or warranties that
these products are free from patent, copyright, or mask
work right infringement, unless otherwise specified.
(1)
2000 Aug 25 8
Page 9
Philips Semiconductors Product specification
Silicon temperature sensors KTY84-1 series
NOTES
2000 Aug 25 9
Page 10
Philips Semiconductors Product specification
Silicon temperature sensors KTY84-1 series
NOTES
2000 Aug 25 10
Page 11
Philips Semiconductors Product specification
Silicon temperature sensors KTY84-1 series
NOTES
2000 Aug 25 11
Page 12
Philips Semiconductors – a w orldwide compan y
Argentina: see South America
Australia: 3 Figtree Drive, HOMEBUSH, NSW 2140,
Tel. +61 2 9704 8141, Fax. +61 2 9704 8139
Austria: Computerstr. 6, A-1101 WIEN, P.O. Box 213,
Tel. +43 1 60 101 1248, Fax. +43 1 60 101 1210
Belarus: Hotel Minsk Business Center, Bld. 3, r. 1211, Volodarski Str. 6,
220050 MINSK, Tel. +375 172 20 0733, Fax. +375 172 20 0773
Belgium: see The Netherlands
Brazil: see South America
Bulgaria: Philips Bulgaria Ltd., Energoproject, 15th floor,
51 James Bourchier Blvd., 1407 SOFIA,
Tel. +359 2 68 9211, Fax. +359 2 68 9102
Canada: PHILIPS SEMICONDUCTORS/COMPONENTS,
Tel. +1 800 234 7381, Fax. +1 800 943 0087
China/Hong Kong: 501 Hong Kong Industrial Technology Centre,
72 Tat Chee Avenue, Kowloon Tong, HONG KONG,
Tel. +852 2319 7888, Fax. +852 2319 7700
Colombia: see South America
Czech Republic: see Austria
Denmark: Sydhavnsgade 23, 1780 COPENHAGEN V,
Tel. +45 33 29 3333, Fax. +45 33 29 3905
Finland: Sinikalliontie 3, FIN-02630 ESPOO,
Tel. +358 9 615 800, Fax. +358 9 6158 0920
France: 51 Rue Carnot, BP317, 92156 SURESNES Cedex,
Tel. +33 1 4099 6161, Fax. +33 1 4099 6427
Germany: Hammerbrookstraße 69, D-20097 HAMBURG,
Tel. +49 40 2353 60, Fax. +49 40 2353 6300
Hungary: see Austria
India: Philips INDIA Ltd, Band Box Building, 2nd floor,
254-D, Dr. Annie Besant Road, Worli, MUMBAI 400 025,
Tel. +91 22 493 8541, Fax. +91 22 493 0966
Indonesia: PT Philips DevelopmentCorporation, Semiconductors Division,
Gedung Philips, Jl. Buncit Raya Kav.99-100, JAKARTA 12510,
Tel. +62 21 794 0040 ext. 2501, Fax. +62 21 794 0080
Ireland: Newstead, Clonskeagh, DUBLIN 14,
Tel. +353 1 7640 000, Fax. +353 1 7640 200
Israel: RAPAC Electronics, 7 Kehilat Saloniki St, PO Box 18053,
TEL AVIV 61180, Tel. +972 3 645 0444, Fax. +972 3 649 1007
Italy: PHILIPS SEMICONDUCTORS, ViaCasati,23 - 20052 MONZA (MI),
Tel. +39 039 203 6838, Fax +39 039 203 6800
Japan: Philips Bldg 13-37, Kohnan 2-chome, Minato-ku,
TOKYO 108-8507, Tel. +81 3 3740 5130, Fax. +81 3 3740 5057
Korea: Philips House, 260-199 Itaewon-dong, Yongsan-ku, SEOUL,
Tel. +82 2 709 1412, Fax. +82 2 709 1415
Malaysia: No. 76 Jalan Universiti, 46200 PETALING JAYA, SELANGOR,
Tel. +60 3 750 5214, Fax. +60 3 757 4880
Mexico: 5900 Gateway East, Suite 200, EL PASO, TEXAS 79905,
Tel. +9-5 800 234 7381, Fax +9-5 800 943 0087
Middle East: see Italy
Netherlands: Postbus 90050, 5600 PB EINDHOVEN, Bldg. VB,
Tel. +31 40 27 82785, Fax. +31 40 27 88399
New Zealand: 2 Wagener Place, C.P.O. Box 1041, AUCKLAND,
Tel. +64 9 849 4160, Fax. +64 9 849 7811
Norway: Box 1, Manglerud 0612, OSLO,
Tel. +47 22 74 8000, Fax. +47 22 74 8341
Pakistan: see Singapore
Philippines: Philips Semiconductors Philippines Inc.,
106 Valero St. Salcedo Village, P.O. Box 2108 MCC, MAKATI,
Metro MANILA, Tel. +63 2 816 6380, Fax. +63 2 817 3474
Poland: Al.Jerozolimskie 195 B, 02-222 WARSAW,
Tel. +48 22 5710 000, Fax. +48 22 5710 001
Portugal: see Spain
Romania: see Italy
Russia: Philips Russia, Ul. Usatcheva 35A, 119048 MOSCOW,
Tel. +7 095 755 6918, Fax. +7 095 755 6919
Singapore: Lorong 1, Toa Payoh, SINGAPORE 319762,
Tel. +65 350 2538, Fax. +65 251 6500
Slovakia: see Austria
Slovenia: see Italy
South Africa: S.A. PHILIPS Pty Ltd., 195-215 Main Road Martindale,
2092 JOHANNESBURG, P.O. Box 58088 Newville 2114,
Tel. +27 11 471 5401, Fax. +27 11 471 5398
South America: Al. Vicente Pinzon, 173, 6th floor,
04547-130 SÃO PAULO, SP, Brazil,
Tel. +55 11 821 2333, Fax. +55 11 821 2382
Spain: Balmes 22, 08007 BARCELONA,
Tel. +34 93 301 6312, Fax. +34 93 301 4107
Sweden: Kottbygatan 7, Akalla, S-16485 STOCKHOLM,
Tel. +46 8 5985 2000, Fax. +46 8 5985 2745
Switzerland: Allmendstrasse 140, CH-8027 ZÜRICH,
Tel. +41 1 488 2741 Fax. +41 1 488 3263
Taiwan: Philips Semiconductors, 5F, No. 96, Chien Kuo N. Rd., Sec. 1,
TAIPEI, Taiwan Tel. +886 2 2134 2451, Fax. +886 2 2134 2874
Thailand: PHILIPS ELECTRONICS (THAILAND) Ltd.,
60/14 MOO 11, Bangna Trad Road KM. 3, Bagna, BANGKOK 10260,
Tel. +66 2 361 7910, Fax. +66 2 398 3447
Turkey: Yukari Dudullu, Org. San. Blg., 2.Cad. Nr. 28 81260 Umraniye,
ISTANBUL, Tel. +90 216 522 1500, Fax. +90 216 522 1813
Ukraine: PHILIPS UKRAINE, 4 Patrice Lumumba str., Building B, Floor 7,
252042 KIEV, Tel. +380 44 264 2776, Fax. +380 44 268 0461
United Kingdom: Philips Semiconductors Ltd., 276 Bath Road, Hayes,
MIDDLESEX UB3 5BX, Tel. +44 208 730 5000, Fax. +44 208 754 8421
United States: 811 East Arques Avenue, SUNNYVALE, CA 94088-3409,
Tel. +1 800 234 7381, Fax. +1 800 943 0087
Uruguay: see South America
Vietnam: see Singapore
Yugoslavia: PHILIPS, Trg N. Pasica 5/v, 11000 BEOGRAD,
Tel. +381 11 3341 299, Fax.+381 11 3342 553
For all other countries apply to: Philips Semiconductors,
Marketing Communications, Building BE-p, P.O. Box 218, 5600 MD EINDHOVEN,
The Netherlands, Fax. +31 40 27 24825
© Philips Electronics N.V. SCA
All rights are reserved. Reproduction in whole or in part is prohibited without the prior written consent of the copyright owner.
The information presented in this document does not form part of any quotation or contract, is believed to be accurate and reliable and may be changed
without notice. No liability will be accepted by the publisher for any consequence of its use. Publication thereof does not convey nor imply any license
under patent- or other industrial or intellectual property rights.
2000
Internet: http://www.semiconductors.philips.com
70
Printed in The Netherlands 613520/04/pp12 Date of release: 2000 Aug 25 Document order number: 9397 750 07229
Loading...
