Datasheet KMQ series Specification

Gas escape end seal

●

Terminal Code : E

Supplement code

Size code

Capacitance tolerance code

F:101)

Lead forming·taping code

Terminal code

Voltage code (ex. 6.3V:6R3,35V:350,100V:101)

Series code

Category

1 3 42 6 7 8 9 10 13125 18171611 1514

Please refer to "Product code guide (radial lead type)"

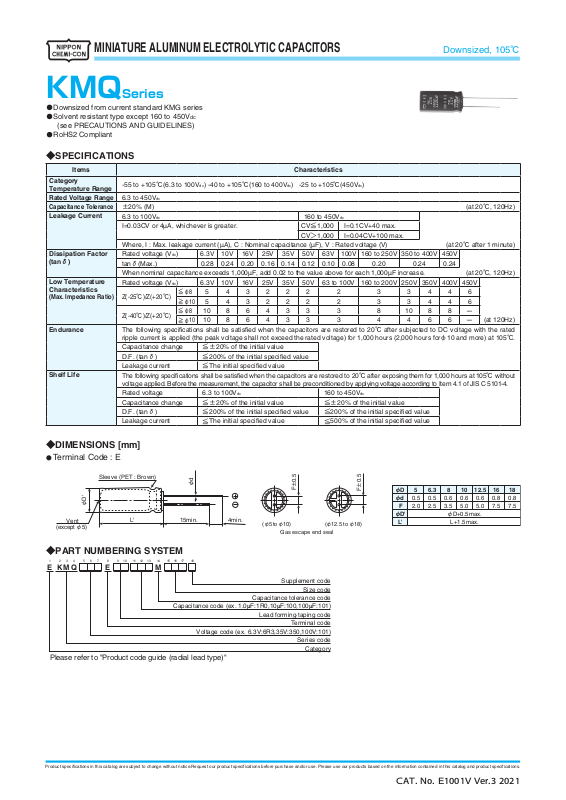

MINIATURE ALUMINUM ELECTROLYTIC CAPACITORS

KMQSeries

Downsized from current standard KMG series

・

Solvent resistant type except 160 to 450V

・

(see PRECAUTIONS AND GUIDELINES)
RoHS2 Compliant

・

SPECIFICATIONS

◆

Items Characteristics

Category
Temperature Range

Rated Voltage Range
Capacitance Tolerance
Leakage Current

Dissipation Factor
(tanδ)

Low Temperature
Characteristics
(Max. Impedance Ratio)

Endurance

Shelf Life

-55 to +105℃(6.3 to 100V

6.3 to 450V

±

6.3 to 100V

dc

20% (M) (at 20℃, 120Hz)

dc

I=0.03CV or 4µA, whichever is greater.

Where, I : Max. leakage current (µA), C : Nominal capacitance (µF), V : Rated voltage (V) (at 20℃ after 1 minute)
Rated voltage (V
tanδ(Max.) 0.28 0.24 0.20 0.16 0.14 0.12 0.10 0.08 0.20 0.24 0.24
When nominal capacitance exceeds 1,000µF, add 0.02 to the value above for each 1,000µF increase. (at 20℃, 120Hz)
Rated voltage (Vdc) 6.3V 10V 16V 25V 35V 50V 63 to 100V 160 to 200V 250V 350V 400V 450V

Z(-25℃)/Z(+20℃)

Z(-40℃)/Z(+20℃)

The following specifications shall be satisfied when the capacitors are restored to 20℃ after subjected to DC voltage with the rated
ripple current is applied (the peak voltage shall not exceed the rated voltage) for 1,000 hours (2,000 hours forφ10 and more) at 105℃.

Capacitance change
D.F. (tanδ)
Leakage current
The following specifications shall be satisfied when the capacitors are restored to 20℃ after exposing them for 1,000 hours at 105℃ without

voltage applied. Before the measurement, the capacitor shall be preconditioned by applying voltage according to Item 4.1 of JIS C 5101-4.
Rated voltage 6.3 to 100V
Capacitance change
D.F. (tanδ)
Leakage current

dc

) -40 to +105℃(160 to 400Vdc) -25 to +105℃(450Vdc)

dc

) 6.3V 10V 16V 25V 35V 50V 63V 100V 160 to 250V 350 to 400V 450V

dc

5 4 3 2 2 2 2 3 3 4 4 6

8

≦φ

5 4 3 2 2 2 2 3 3 4 4 6

10

≧φ

10 8 6 4 3 3 3 8 10 8 8

8

≦φ

10 8 6 4 3 3 3 4 4 6 6

10

≧φ

20% of the initial value

≦±

200% of the initial specified value

≦

The initial specified value

≦

dc

20% of the initial value

≦±

200% of the initial specified value

≦

The initial specified value

≦

160 to 450V

dc

CV≦1,000 I=0.1CV+40 max.
CV＞1,000 I=0.04CV+100 max.

160 to 450V

≦±

200% of the initial specified value

≦

500% of the initial specified value

≦

dc

20% of the initial value

Downsized, 105℃

­ (at 120Hz)

-

DIMENSIONS [mm]

◆

Sleeve (PET : Brown)

φD'

Vent

(exce pt φ5)

PART NUMBERING SYSTEM

◆

L'

E K M Q A A A E A A A A A A A A NM

Product specifications in this catalog are subject to change without notice.Request our product specifications before purchase and/or use. Please use our products based on the information contained in this catalog and product specifications.

φd

15min.

Capacitance code (ex. 1.0µF:1R0,10µF:100,100µ

4min.

(φ5 to φ10)

F±0.5

(φ12.5 to φ18)

±0.5

F

φD
φd

F

φD'

L'

0.5

2.0

6.3

5

0.5

2.5

10

8

0.6

0.6

5.0

3.5

φD+0.5max.

L+1.5max.

12.5

0.6

5.0

0.8

7.5

18

16

0.8

7.5

CAT. No. E1001V Ver.3 2021

MINIATURE ALUMINUM ELECTROLYTIC CAPACITORS

KMQSeries

Downsized, 105℃

STANDARD RATINGS

◆

WV

(V

6.3

10

16

25

35

50

dc

)

Cap

Case size

(µF)

1,000
2,200
3,300
4,700

6,800
10,000
15,000
22,000

220
330

470
1,000
2,200
3,300
4,700
6,800

10,000
15,000
22,000

220

330

470
1,000
2,200
3,300
4,700
6,800

10,000
15,000

100

220

330

470
1,000
2,200
3,300
4,700
6,800

10,000

47

68
100
220
330
470

1,000
2,200
3,300
4,700
6,800

1.0

2.2

3.3

4.7
10
22
33
47
68

100

L(mm)

φD×

8×11.5 0.28 390 EKMQ6R3E□□102MHB5D
10×16 0.30 635 EKMQ6R3E□□222MJ16S
10×20 0.32 840 EKMQ6R3E□□332MJ20S

12.5×20 0.34 1,090 EKMQ6R3E□□472MK20S

12.5×25 0.38 1,350 EKMQ6R3E□□682MK25S
16×25 0.46 1,650 EKMQ6R3E□□103ML25S
16×31.5 0.56 1,820 EKMQ6R3E□□153MLN3S
18×35.5 0.70 2,280 EKMQ6R3E□□223MMP1S

5×11 0.24 155 EKMQ100E□□221ME11D

6.3×11 0.24 210 EKMQ100E□□331MF11D

6.3×11 0.24 250 EKMQ100E□□471MF11D
10×12.5 0.24 460 EKMQ100E□□102MJC5S
10×16 0.26 705 EKMQ100E□□222MJ16S

12.5×20 0.28 1,000 EKMQ100E□□332MK20S

12.5×25 0.30 1,260 EKMQ100E□□472MK25S
16×25 0.34 1,570 EKMQ100E□□682ML25S
16×31.5 0.42 1,820 EKMQ100E□□103MLN3S
16×35.5 0.52 2,050 EKMQ100E□□153MLP1S
18×40 0.66 2,420 EKMQ100E□□223MM40S

6.3×11 0.20 190 EKMQ160E□□221MF11D

6.3×11 0.20 225 EKMQ160E□□331MF11D
8×11.5 0.20 315 EKMQ160E□□471MHB5D

10×12.5 0.20 500 EKMQ160E□□102MJC5S
10×20 0.22 710 EKMQ160E□□222MJ20S

12.5×25 0.24 1,170 EKMQ160E□□332MK25S
16×25 0.26 1,500 EKMQ160E□□472ML25S
16×25 0.30 1,600 EKMQ160E□□682ML25S
16×35.5 0.38 1,930 EKMQ160E□□103MLP1S
18×40 0.48 2,210 EKMQ160E□□153MM40S

5×11 0.16 125 EKMQ250E□□101ME11D

6.3×11 0.16 200 EKMQ250E□□221MF11D
8×11.5 0.16 310 EKMQ250E□□331MHB5D

10×12.5 0.16 380 EKMQ250E□□471MJC5S
10×16 0.16 610 EKMQ250E□□102MJ16S

12.5×25 0.18 1,090 EKMQ250E□□222MK25S
16×25 0.20 1,400 EKMQ250E□□332ML25S
16×25 0.22 1,570 EKMQ250E□□472ML25S
16×35.5 0.26 1,850 EKMQ250E□□682MLP1S
18×40 0.34 2,000 EKMQ250E□□103MM40S

5×11 0.14 93 EKMQ350E□□470ME11D

6.3×11 0.14 110 EKMQ350E□□680MF11D

6.3×11 0.14 150 EKMQ350E□□101MF11D
8×11.5 0.14 270 EKMQ350E□□221MHB5D

10×12.5 0.14 350 EKMQ350E□□331MJC5S
10×16 0.14 460 EKMQ350E□□471MJ16S

12.5×20 0.14 810 EKMQ350E□□102MK20S 33 12.5×25 0.24 170 EKMQ351E□□330MK25S
16×25 0.16 1,260 EKMQ350E□□222ML25S 47 16×25 0.24 230 EKMQ351E□□470ML25S
16×31.5 0.18 1,500 EKMQ350E□□332MLN3S 68 16×25 0.24 285 EKMQ351E□□680ML25S
16×35.5 0.20 1,780 EKMQ350E□□472MLP1S 100 18×31.5 0.24 375 EKMQ351E□□101MMN3S
18×40 0.24 2,000 EKMQ350E□□682MM40S

5×11 0.12 13 EKMQ500E□□1R0ME11D 33 16×25 0.24 195 EKMQ401E□□330ML25S
5×11 0.12 20 EKMQ500E□□2R2ME11D 47 16×25 0.24 200 EKMQ401E□□470ML25S
5×11 0.12 25 EKMQ500E□□3R3ME11D 68 16×31.5 0.24 240 EKMQ401E□□680MLN3S
5×11 0.12 30 EKMQ500E□□4R7ME11D 100 18×35.5 0.24 310 EKMQ401E□□101MMP1S
5×11 0.12 46 EKMQ500E□□100ME11D
5×11 0.12 68 EKMQ500E□□220ME11D 33 16×25 0.24 125 EKMQ451E□□330ML25S
5×11 0.12 90 EKMQ500E□□330ME11D 47 16×31.5 0.24 155 EKMQ451E□□470MLN3S

6.3×11 0.12 115 EKMQ500E□□470MF11D 68 18×35.5 0.24 185 EKMQ451E□□680MMP1S

6.3×11 0.12 150 EKMQ500E□□680MF11D 100 18×40 0.24 200 EKMQ451E□□101MM40S
8×11.5 0.12 190 EKMQ500E□□101MHB5D

tan

Rated ripple

δ

(mArms/

105℃, 120Hz)

current

□□ : Enter the appropriate lead forming or taping code.

Part No.

WV

(V

100

160

200

250

350

400

450

is not solvent resistant.

Rated ripple

Cap

)

dc

50

63

Case size

(µF)

220
330

470
1,000
2,200
3,300

22
33
47

68
100
220
330
470

1,000
2,200

1.0

2.2

3.3

4.7
10
22
33
47
68

100
220
330
470

1,000

68

100
220
330
470

47
68

100
220
330

47
68

100
220

22 12.5×20 0.24 130 EKMQ351E□□220MK20S

22 12.5×25 0.24 145 EKMQ401E□□220MK25S

22 12.5×25 0.24 100 EKMQ451E□□220MK25S

L(mm)

φD×

10×12.5 0.12 300 EKMQ500E□□221MJC5S
10×16 0.12 410 EKMQ500E□□331MJ16S
10×20 0.12 540 EKMQ500E□□471MJ20S

12.5×25 0.12 950 EKMQ500E□□102MK25S
16×31.5 0.14 1,410 EKMQ500E□□222MLN3S
18×35.5 0.16 1,770 EKMQ500E□□332MMP1S

5×11 0.10 71 EKMQ630E□□220ME11D

6.3×11 0.10 100 EKMQ630E□□330MF11D

6.3×11 0.10 120 EKMQ630E□□470MF11D
8×11.5 0.10 155 EKMQ630E□□680MHB5D
8×11.5 0.10 200 EKMQ630E□□101MHB5D

10×16 0.10 335 EKMQ630E□□221MJ16S
10×20 0.10 510 EKMQ630E□□331MJ20S

12.5×20 0.10 640 EKMQ630E□□471MK20S
16×25 0.10 930 EKMQ630E□□102ML25S
18×35.5 0.12 1,650 EKMQ630E□□222MMP1S

5×11 0.08 15 EKMQ101E□□1R0ME11D
5×11 0.08 21 EKMQ101E□□2R2ME11D
5×11 0.08 29 EKMQ101E□□3R3ME11D
5×11 0.08 32 EKMQ101E□□4R7ME11D
5×11 0.08 50 EKMQ101E□□100ME11D

6.3×11 0.08 93 EKMQ101E□□220MF11D
8×11.5 0.08 130 EKMQ101E□□330MHB5D
8×11.5 0.08 140 EKMQ101E□□470MHB5D

10×12.5 0.08 190 EKMQ101E□□680MJC5S
10×16 0.08 240 EKMQ101E□□101MJ16S

12.5×20 0.08 390 EKMQ101E□□221MK20S

12.5×25 0.08 540 EKMQ101E□□331MK25S
16×25 0.08 715 EKMQ101E□□471ML25S
18×35.5 0.08 960 EKMQ101E□□102MMP1S

12.5×20 0.20 250 EKMQ161E□□680MK20S

12.5×25 0.20 310 EKMQ161E□□101MK25S
16×31.5 0.20 540 EKMQ161E□□221MLN3S
18×35.5 0.20 705 EKMQ161E□□331MMP1S
18×40 0.20 855 EKMQ161E□□471MM40S

12.5×20 0.20 195 EKMQ201E□□470MK20S

12.5×25 0.20 250 EKMQ201E□□680MK25S
16×25 0.20 335 EKMQ201E□□101ML25S
16×35.5 0.20 500 EKMQ201E□□221MLP1S
18×40 0.20 675 EKMQ201E□□331MM40S

12.5×20 0.20 190 EKMQ251E□□470MK20S
16

25 0.20 270 EKMQ251E□□680ML25S

×

16×25 0.20 310 EKMQ251E□□101ML25S
18×35.5 0.20 485 EKMQ251E□□221MMP1S

tan

δ

(mArms/

105℃, 120Hz)

current

Part No.

Product specifications in this catalog are subject to change without notice.Request our product specifications before purchase and/or use. Please use our products based on the information contained in this catalog and product specifications.

CAT. No. E1001V Ver.3 2021

MINIATURE ALUMINUM ELECTROLYTIC CAPACITORS

Downsized, 105℃

KMQSeries

RATED RIPPLE CURRENT MULTIPLIERS

◆

Frequency Multipliers

・

Capacitance(µF)

2,200 to 0.85 1.00 1.03 1.05 1.08 1.08

The endurance of capacitors is reduced with internal heating produced by ripple current at the rate of halving the lifetime with every 5℃ rise.
When long life performance is required in actual use, the rms ripple current has to be reduced.

Frequency(Hz)

1.0 to 4.7 0.65 1.00 1.35 1.75 2.30 2.50
10 to 68 0.75 1.00 1.25 1.50 1.75 1.80

100 to 1,000 0.80 1.00 1.15 1.30 1.40 1.50

50 120 300 1k 10k 100k
