DISCRETE SEMICONDUCTORS
DATA SH EET
KM110BH/2130; KM110BH/2190
Angle sensor hybrid
Product specification
Supersedes data of 1994 Nov 12
File under Discrete Semiconductors, SC17
1998 Mar 26
Page 2
Philips Semiconductors Product specification
Angle sensor hybrid KM110BH/2130; KM110BH/2190
DESCRIPTION
Sensor module for contactless
measurement of angular
displacements of strong magnetic
fields. The module is a ready-trimmed
(sensitivity and zero point)
combination of the magnetoresistive
sensor KMZ10B and a signal
conditioning circuit in hybrid
technology. The KM110BH/2130
delivers a linear output signal that is
proportional to the direction of the
magnetic field. The KM110BH/2190
delivers a sinusoidal signal.
For new design-ins the KM110BH/23
and KM110BH/24 modules are
recommended.
PINNING
PIN DESCRIPTION
1 ground
2V
3V
CC
O
QUICK REFERENCE DATA
SYMBOL PARAMETER MIN. TYP. MAX. UNIT
V
CC
V
O
DC supply voltage − 5 − V
output voltage range 0.5 − 4.5 V
α angle range
KM110BH/2130 −15 − +15 deg
KM110BH/2190 −45 − +45 deg
T
op
operating temperature −40 − +125 °C
LIMITING VALUES
In accordance with the Absolute Maximum Rating System (IEC 134).
SYMBOL PARAMETER MIN. MAX. UNIT
V
CC
I
CC
T
stg
T
op
supply voltage 4.5 5.5 V
supply current − 20 mA
storage temperature −40 +125 °C
operating temperature −40 +125 °C
output short-circuit duration permanent (see note 1)
Note
1. If pin 3 is shorted to either pin 1 or pin 2, current may flow permanently,
without damage to the device.
PIN CONFIGURATION
page
123
Fig.1 Simplified outline.
MBB575 - 1
1998 Mar 26 2
Page 3
Philips Semiconductors Product specification
Angle sensor hybrid KM110BH/2130; KM110BH/2190
CHARACTERISTICS
T
=25°C; VCC= 5 V and a homogeneous magnetic field H
amb
unless otherwise specified.
SYMBOL PARAMETER CONDITIONS MIN. TYP. MAX. UNIT
α angle range (note 1)
KM110BH/2130 −15 − +15 deg
KM110BH/2190 note 2 −45 − +45 deg
V
O
output voltage range
KM110BH/2130 linear; see Fig.4 0.5 − 4.5 V
KM110BH/2190 sinusoidal; see Fig.5 0.5 − 4.5 V
V
zero
V
off
zero point voltage α = 0 deg − 2.5 − V
zero point offset voltage
KM110BH/2130 −45 − +45 mV
KM110BH/2190 −±35 − mV
S sensitivity (note 3) α = 0 deg
KM110BH/2130 − 139 − mV/deg
KM110BH/2190 − 70 − mV/deg
FL deviation of linearity (note 4)
KM110BH/2130 −−±1 %/FS
KM110BH/2190 −−−%/FS
SP
max
maximum angular speed
KM110BH/2130 − 10 − deg/ms
KM110BH/2190 − 30 − deg/ms
R
L
load resistance 10 −−kΩ
Temperature coefficients (−40 to +85 °C)
TCV
zero
temperature coefficient of zero
point voltage
KM110BH/2130 − 0.6 − mV/K
KM110BH/2190 − 0.3 − mV/K
TCS temperature coefficient of
sensitivity
= 100 kA/m in the sensitive layer of the KMZ sensor;
ext
−±200 − ppm/K
Notes
1. Refer to Fig.3. The magnetic field can be produced by using the first magnet listed in Table 1. Other magnets, along
with their required distances from the front of the KMZ sensor, are also given.
2. Valid for H
3. The sensitivity will change slightly with +0.33% per 10% magnetic field increase if H
= ∞. The real field strength of 100 kA/m gives a slightly higher operating angle range of ±46.5 deg.
ext
deviates from 100 kA/m.
ext
4. Deviation from best straight line in angle range.
1998 Mar 26 3
Page 4
Philips Semiconductors Product specification
Angle sensor hybrid KM110BH/2130; KM110BH/2190
handbook, full pagewidth
sensor
angle
range
temperature
compensation
Fig.2 Circuit diagram.
current
limiter
MBB577
V
CC
V
O
GND
handbook, full pagewidth
α
GND
V
CC
V
O
reference side for α definition
N
Fig.3 Optimum magnet position relative to the sensor module.
1998 Mar 26 4
d
S
MBB576 - 1
Page 5
Philips Semiconductors Product specification
Angle sensor hybrid KM110BH/2130; KM110BH/2190
handbook, full pagewidth
V
out
4.5 V
2.5 V
0.5 V
−0°−15° 15°−30° 30°−45° 45°

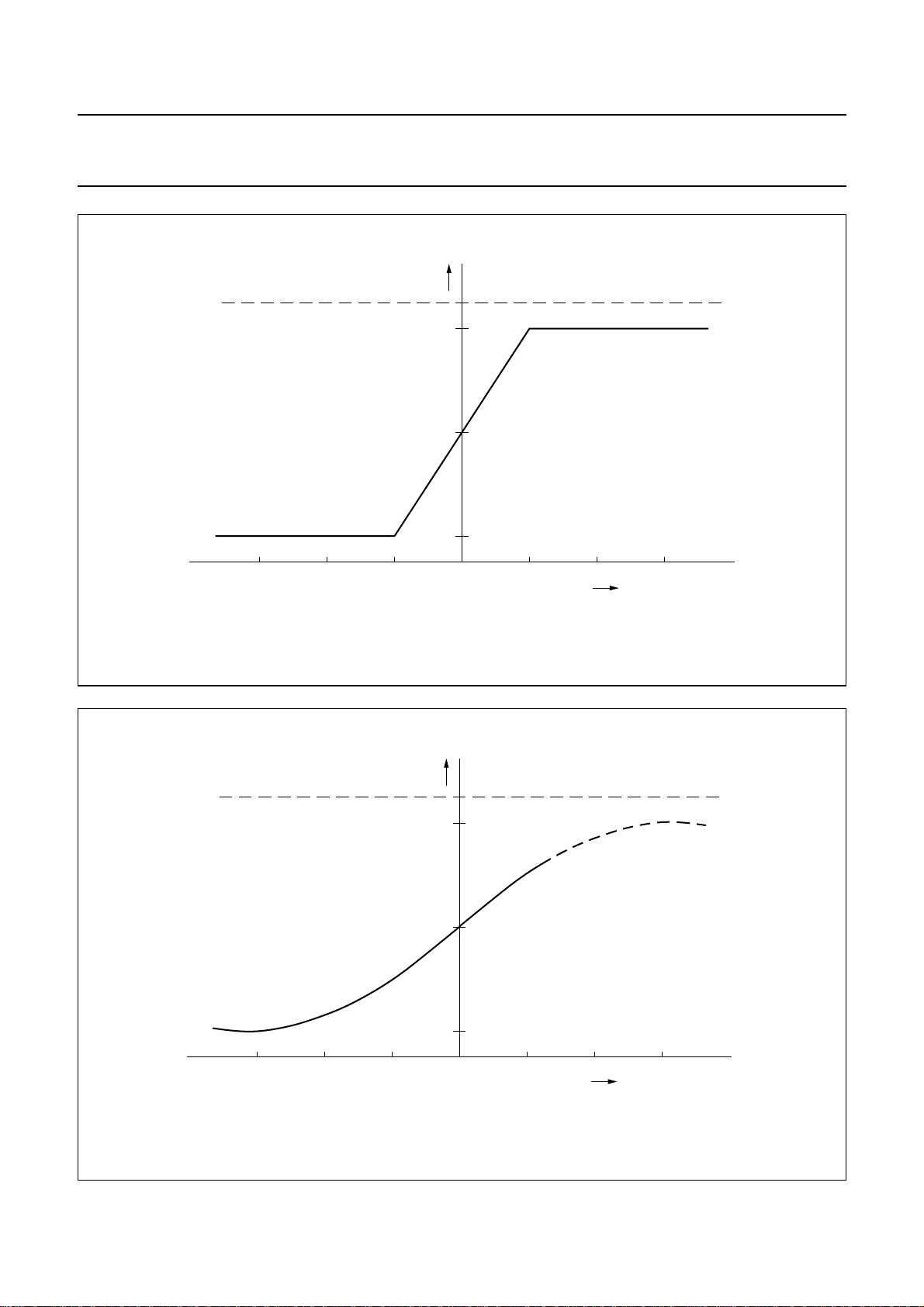

Fig.4 Output signal of KM110BH/2130.
V
CC
= 5 V
angle α
MBB578
handbook, full pagewidth
V
out
4.5 V
2.5 V
0.5 V
−0°−15° 15°−30° 30°−45° 45°
Fig.5 Output signal of KM110BH/2190.
1998 Mar 26 5
V
CC
= 5 V
angle α
MBB579
Page 6
Philips Semiconductors Product specification
Angle sensor hybrid KM110BH/2130; KM110BH/2190
Table 1 Magnets for angle sensor hybrids
MAGNETS HYBRID ANGLE SENSORS
MATERIAL
NdFeB (note 3) 11.2 × 5.5 × 8
NdFeB (note 3) 6 × 3 × 5 0.8
SmCo 11.2 × 5.5 × 8
SmCo 6 × 3 × 5 0.6
FXD 330 10 × 7 × 8
FXD 330 7 × 5 × 4 0.2 30 93
Notes
1. The magnetization is always parallel to the last dimension given for each magnet type.
2. Between magnet and KMZ sensor front as shown in Fig.3.
3. Special care must be taken to avoid exposure of NdFeB magnets to moisture or vapour.
APPLICATION
In life-support systems, the behaviour of electronic components throughout their working life can be unpredictable.
The use of these devices in support systems can only be permitted when there is no danger to life caused by devices
failing unexpectedly.
DIMENSIONS
(mm)
(1)
TEMP.
RANGE
(°C)
−55 to +110
−55 to +125
−55 to +125
DISTANCE d
(mm)
2.5 30 93
2.0 30 93
0.5 30.5 94.5
(2)
ANGLE RANGE
CORRESPONDING TO
VO= 0.5 to 4.5 V
/2130 /2190
TEMP.
RANGE
(°C)
−40 to +125
1998 Mar 26 6
Page 7
Philips Semiconductors Product specification
Angle sensor hybrid KM110BH/2130; KM110BH/2190

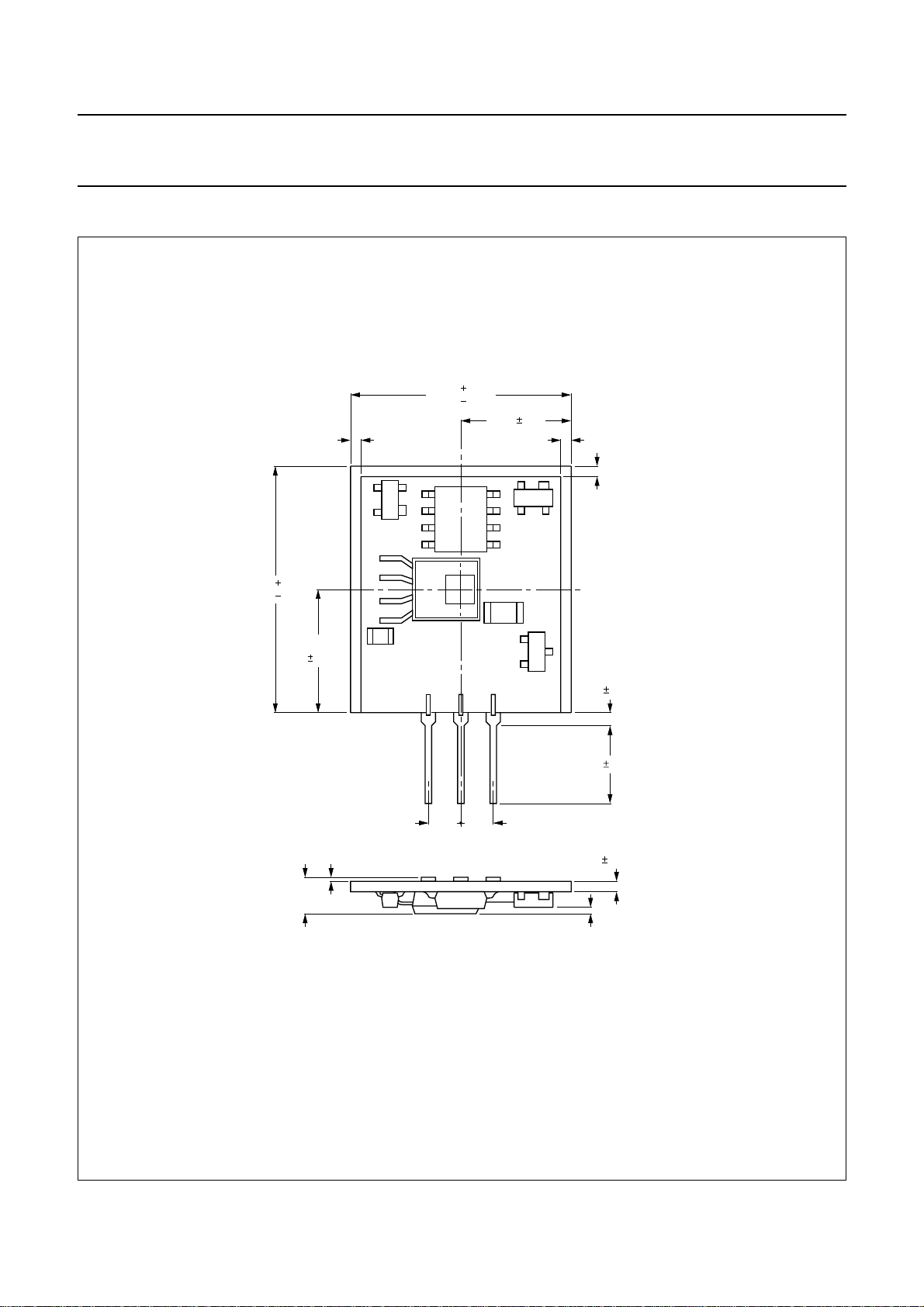

PACKAGE OUTLINE
handbook, full pagewidth
19.05
0.25
0.05
9.5
0.2
0.35
max
0.25
16.93
0.03
8.45 0.2
A A
123
2.542.54
0.8 min0.8 min
0.8
min
A
standoff =
1 0.5
6 0.5
0.76
0.08
3.2
max
Dimensions in mm.
Area ‘A’ free of SMD devices.
(1) Sensitive layer below KMZ front.
Fig.6 KM110BH/2130; KM110BH/2190.
1998 Mar 26 7
MBB574 - 1
0.35
(1)
Page 8
Philips Semiconductors Product specification
Angle sensor hybrid KM110BH/2130; KM110BH/2190
DEFINITIONS
Data sheet status
Objective specification This data sheet contains target or goal specifications for product development.
Preliminary specification This data sheet contains preliminary data; supplementary data may be published later.
Product specification This data sheet contains final product specifications.
Limiting values
Limiting values given are in accordance with the Absolute Maximum Rating System (IEC 134). Stress above one or
more of the limiting values may cause permanent damage to the device. These are stress ratings only and operation
of the device at these or at any other conditions above those given in the Characteristics sections of the specification
is not implied. Exposure to limiting values for extended periods may affect device reliability.
Application information
Where application information is given, it is advisory and does not form part of the specification.
LIFE SUPPORT APPLICATIONS
These products are not designed for use in life support appliances, devices, or systems where malfunction of these
products can reasonably be expected to result in personal injury. Philips customers using or selling these products for
use in such applications do so at their own risk and agree to fully indemnify Philips for any damages resulting from such
improper use or sale.
