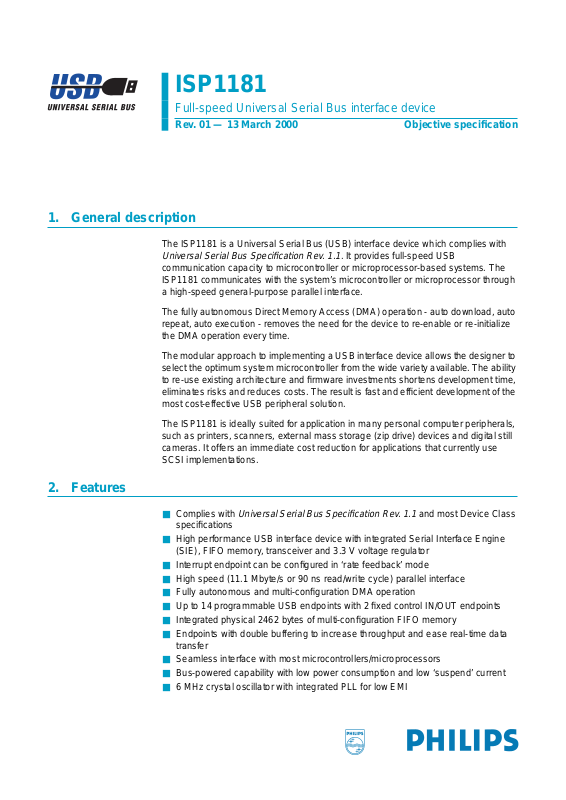

ISP1181

Full-speed Universal Serial Bus interface device

Rev. 01 — 13 March 2000 Objective speciﬁcation

1. General description

The ISP1181 is a Universal Serial Bus (USB) interface device which complies with

Universal Serial Bus Speciﬁcation Rev. 1.1

communication capacity to microcontroller or microprocessor-based systems. The ISP1181 communicates with the system’s microcontroller or microprocessor through a high-speed general-purpose parallel interface.

The fully autonomous Direct Memory Access (DMA) operation - auto download, auto repeat, auto execution - removes the need for the device to re-enable or re-initialize the DMA operation every time.

The modular approachto implementing a USB interface deviceallows the designer to select the optimum system microcontroller from the wide variety available.The ability to re-use existing architecture and ﬁrmware investments shortens development time, eliminates risks and reduces costs. The result is fast and efﬁcient development of the most cost-effective USB peripheral solution.

. It provides full-speed USB

2. Features

The ISP1181 is ideally suited for application in many personal computer peripherals, such as printers, scanners, external mass storage (zip drive) devices and digital still cameras. It offers an immediate cost reduction for applications that currently use

SCSI implementations.

■ Complies with

speciﬁcations

■ High performance USB interface device with integrated Serial Interface Engine

(SIE), FIFO memory, transceiver and 3.3 V voltage regulator

■ Interrupt endpoint can be conﬁgured in ‘rate feedback’ mode

■ High speed (11.1 Mbyte/s or 90 ns read/write cycle) parallel interface

■ Fully autonomous and multi-conﬁguration DMA operation

■ Up to 14 programmable USB endpoints with 2 ﬁxed control IN/OUT endpoints

■ Integrated physical 2462 bytes of multi-conﬁguration FIFO memory

■ Endpoints with double buffering to increase throughput and ease real-time data

transfer

■ Seamless interface with most microcontrollers/microprocessors

■ Bus-powered capability with low power consumption and low ‘suspend’ current

■ 6 MHz crystal oscillator with integrated PLL for low EMI

Universal Serial Bus Speciﬁcation Rev. 1.1

and most Device Class

Page 2

Philips Semiconductors

■ Controllable LazyClock (24 kHz) output during ‘suspend’

■ Software controlled connection to the USB bus (SoftConnect™)

■ Good USB connection indicator that blinks with trafﬁc (GoodLink™)

■ Clock output with programmable frequency (up to 48 MHz)

■ Complies with the ACPI™, OnNow™ and USB power management requirements

■ Internal power-on and low-voltage reset circuit, with possibility of a software reset

■ Operation over the extended USB bus voltage range (4.0 to 5.5 V) with 5 V

■ Operating temperature range −40 to +85 °C

■ 8 kV in-circuit ESD protection for lower cost of external components

■ Full-scan design with high fault coverage

■ Available in a TSSOP48 package.

3. Applications

■ Personal digital assistant (PDA)

■ Digital camera

■ Communication device, e.g.

■ Printer

■ Scanner.

ISP1181

Full-speed USB interface

tolerant I/O pads

◆ router

◆ modem

4. Ordering information

Table 1: Ordering information

Type number Package

Name Description Version

ISP1181DGG TSSOP48 Plastic thin shrink small outline package; 48 leads; body width 6.1 mm SOT362-1

9397 750 06896

Objective speciﬁcation Rev. 01 — 13 March 2000 2 of 69

Page 3

Philips Semiconductors

5. Block diagram

ISP1181

Full-speed USB interface

SDWR, SDRD,

EOT, DACK

DREQ

XTAL2to LED

6 MHz

GL CLKOUT

sense

input XTAL1

BUS

D−

to/from USB

D+

BUS_CONF0

to/from

microcontroller

13, 14,

10, 12

DMA

74847

6 4

PROGR.

MHz

PLL

HUB

HANDLER

DIVIDER

OSCILLATOR

GoodLink

READY

BUS_CONF1

38, 35 to 27,

BIT CLOCK

RECOVERY

SoftConnect

CS, ALE, WR,

AD,

DATA1 to DATA9,

24 to 19

PHILIPS

RD, A0

DATA10 to DATA15

43 to 39

BUS

INTERFACE

MICRO

HANDLER

CONTROLLER

UNIT

MEMORY

MANAGEMENT

SIE

Tx/Rx

ANALOG

INT

HANDLER

ENDPOINT

RAM

INTEGRATED

internal

reset

RESET

POWER-ON

ISP1181

I/O PIN

SUPPLY

INTERNAL

3.3 V

VOLTAGE

REGULATOR

MGS767

25, 36, 46

ref(5.0)

CC(3.3)

GND

WAKEUP

SUSPEND

reg(3.3)

REGGND

kΩ

1.5

3.3 V 44

RESET

dbook, full pagewidth

9397 750 06896

CC(5.0)

Objective speciﬁcation Rev. 01 — 13 March 2000 3 of 69

Fig 1. Block diagram.

Page 4

Philips Semiconductors

6. Pinning information

6.1 Pinning

ISP1181

Full-speed USB interface

handbook, halfpage

REGGND

WAKEUP

SUSPEND

BUS_CONF0 BUS_CONF1

CC(5.0)

reg(3.3)

D− D+

BUS

EOT

DREQ

DACK

SDWR

SDRD

INT

READY

DATA15 DATA14 DATA13 DATA12 DATA11 DATA10

1 2 3 4 5 6 7 8

9 10 11 12

ISP1181DGG

13 14 15 16 17 18 19 20 21 22 23 24

MGL892

48 47 46 45 44 43 42 41 40 39 38 37 36 35 34 33 32 31 30 29 28 27 26 25

XTAL1 XTAL2 GND CLKOUT RESET CS ALE WR RD A0 AD V

CC(3.3)

GND DATA1 DATA2 DATA3 DATA4 DATA5 DATA6 DATA7 DATA8 DATA9

ref(5.0)

GND

Fig 2. Pin conﬁguration TSSOP48.

9397 750 06896

Objective speciﬁcation Rev. 01 — 13 March 2000 4 of 69

Page 5

Philips Semiconductors

6.2 Pin description

Table 2: Pin description for TSSOP48

Symbol

CC(5.0)

REGGND 2 - voltage regulator ground supply V

reg(3.3)

D− 4 AI/O USB D− connection (analog) D+ 5 AI/O USB D+ connection (analog) V

BUS

GL 7 O GoodLink LED indicator output (open-drain, 8 mA); the LED

WAKEUP 8 I wake-up input (edge triggered, LOW to HIGH); generates a

SUSPEND 9 O ‘suspend’ state indicator output (4 mA); used as power switch

EOT 10 I End-Of-Transfer input (programmable polarity, see Table 23);

DREQ 11 O DMA request output (4 mA; programmable polarity, see

DACK 12 I DMA acknowledge input (programmable polarity, see

SDWR 13 I DMA write strobe input; used only in bus conﬁguration

SDRD 14 I DMA read strobe input; used only in bus conﬁguration

INT 15 O interrupt output; programmable polarity (active HIGH or LOW)

READY 16 O I/O ready output; a LOW level indicates that ISP1181 is

BUS_CONF1 17 I bus conﬁguration selector; see Table 3 BUS_CONF0 18 I bus conﬁguration selector; see Table 3 DATA15 19 I/O bit 15 of D[15:0]; bi-directional data line (slew-rate controlled

DATA14 20 I/O bit 14 of D[15:0]; bi-directional data line (slew-rate controlled

[1]

ISP1181

Full-speed USB interface

Pin Type Description

1 - supply voltage (3.0 to 5.5 V)

3 - regulated supply voltage (3.3 V ± 10%) from internal

regulator; used to connect decoupling capacitor and pull-up resistor on D+ line;

Remark: Cannot be used to supply external devices.

6I V

sensing input

BUS

is default ON, blinks OFF upon USB trafﬁc; to connect an LED use a 330 Ω series resistor;

remote wake-up from ‘suspend’ state

control output (active LOW) for powered-off application or as resume signal to the CPU (active HIGH) for powered-on application

used by the DMA controller to force the end of a DMA transfer by the ISP1181

Table 23); signals to the DMA controller that the ISP1181

wants to start a DMA transfer

Table 23); used by the DMA controller to signal the start of a

DMA transfer requested by the ISP1181

mode 1 (separate PIO and DMA ports)

and signalling (level or pulse); see Table 23

processing a previous command or data and is not ready for the next PIO command or data transfer; a HIGH level signals that ISP1181 will complete a PIO data transfer; applies only to a PIO port or a PIO port shared with a DMA port

output, 4 mA)

9397 750 06896

Objective speciﬁcation Rev. 01 — 13 March 2000 5 of 69

Page 6

Philips Semiconductors

Table 2: Pin description for TSSOP48

Symbol

DATA13 21 I/O bit 13 of D[15:0]; bi-directional data line (slew-rate controlled

DATA12 22 I/O bit 12 of D[15:0]; bi-directional data line (slew-rate controlled

DATA11 23 I/O bit 11 of D[15:0]; bi-directional data line (slew-rate controlled

DATA10 24 I/O bit 10 of D[15:0]; bi-directional data line (slew-rate controlled

GND 25 - ground supply V

ref(5.0)

DATA9 27 I/O bit 9 of D[15:0]; bi-directional data line (slew-rate controlled

DATA8 28 I/O bit 8 of D[15:0]; bi-directional data line (slew-rate controlled

DATA7 29 I/O bit 7 of D[15:0]; bi-directional data line (slew-rate controlled

DATA6 30 I/O bit 6 of D[15:0]; bi-directional data line (slew-rate controlled

DATA5 31 I/O bit 5 of D[15:0]; bi-directional data line (slew-rate controlled

DATA4 32 I/O bit 4 of D[15:0]; bi-directional data line (slew-rate controlled

DATA3 33 I/O bit 3 of D[15:0]; bi-directional data line (slew-rate controlled

DATA2 34 I/O bit 2 of D[15:0]; bi-directional data line (slew-rate controlled

DATA1 35 I/O bit 1 of D[15:0]; bi-directional data line (slew-rate controlled

GND 36 - ground supply V

CC(3.3)

AD 38 I/O multiplexed bi-directional address and data line; represents

A0 39 I address input; selects command (A0 = 1) or data (A0 = 0); in

RD 40 I read strobe input WR 41 I write strobe input

[1]

ISP1181

Full-speed USB interface

Pin Type Description

output, 4 mA)

26 - I/O pin reference voltage (3.0 to 5.5 V)

output, 4 mA)

37 - supply voltage (3.0 to 3.6 V); leave this pin unconnected

when using the internal regulator

address A0 or bit 0 of D[15:0] in conjunction with input ALE; level-sensitive input or slew-rate controlled output (4 mA)

Address phase: a HIGH-to-LOW transition on input ALE latches the level on this pin as address A0 (1 = command, 0 = data)

Data phase: during reading this pin outputs bit D[0]; during writing the level on this pin is latched as bit D[0]

a multiplexed address/data bus conﬁguration this pin is not used and must be tied HIGH (connect to V

or V

reg(3.3)

)

9397 750 06896

Objective speciﬁcation Rev. 01 — 13 March 2000 6 of 69

Page 7

Philips Semiconductors

Table 2: Pin description for TSSOP48

Symbol

ALE 42 I address latch enable input; a HIGH-to-LOW transition latches

CS 43 I chip select input RESET 44 I reset input (Schmitt trigger); a LOW level produces an

CLKOUT 45 O programmable clock output (2 mA) GND 46 - ground supply XTAL2 47 O crystal oscillator output (6 MHz); connect a fundamental

XTAL1 48 I crystal oscillator input (6 MHz); connect a fundamental

[1]

Pin Type Description

the level on pin AD0 as address information in a multiplexed address/data bus conﬁguration; must be tied LOW (connect to DGND) for a separate address/data bus conﬁguration

asynchronous reset; connect to V (internal POR circuit)

parallel-resonant crystal; leave this pin open when using an external clock source on pin XTAL1

parallel-resonant crystal or an external clock source (leaving pin XTAL2 is unconnected)

ISP1181

Full-speed USB interface

for power-on reset

[1] Symbol names with an overscore (e.g. NAME) represent active LOW signals.

7. Functional description

The ISP1181 is a full-speed USB interface device with up to 14 conﬁgurable endpoints. It has a fast general-purpose parallel interface for communication with many types of microcontrollers or microprocessors. It supports different bus conﬁgurations (see Table 3) and local DMA transfers of up to 16 bytes per cycle. The block diagram is given in Figure 1.

The ISP1181 has 2462 bytes of internal FIFO memory, which is shared among the enabled USB endpoints. The type and FIFO size of each endpoint can be individually conﬁgured, depending on the required packet size. Isochronous and bulk endpoints are double-buffered for increased data throughput. Interrupt IN endpoints can be conﬁgured in rate-feedback mode.

The ISP1181 requires a single supply voltage of 3.0 to 5.5 V and has an internal

3.3 V voltage regulator for powering the analog USB transceiver. It supports bus-powered operation.

The ISP1181 operates on a 6 MHz oscillator frequency.A programmable clock output is available up to 48 MHz. During ‘suspend’ state the 24 kHz LazyClock frequency can be output.

7.1 Analog transceiver

The transceiver is compliant with interfaces directly with the USB cable through external termination resistors.

9397 750 06896

Objective speciﬁcation Rev. 01 — 13 March 2000 7 of 69

Universal Serial Bus Speciﬁcation Rev. 1.1

. It

Page 8

Philips Semiconductors

7.2 Philips Serial Interface Engine (SIE)

The Philips SIE implements the full USB protocol layer. It is completely hardwired for speed and needs no ﬁrmware intervention. The functions of this block include: synchronization pattern recognition, parallel/serial conversion, bit (de-)stufﬁng, CRC checking/generation, Packet IDentiﬁer (PID) veriﬁcation/generation, address recognition, handshake evaluation/generation.

7.3 Memory Management Unit (MMU) and integrated RAM

The MMU and the integrated RAM provide the conversion between the USB speed (12 Mbit/s bursts) and the parallel interface to the microcontroller (max. 12 Mbyte/s). This allows the microcontroller to read and write USB packets at its own speed.

7.4 SoftConnect

The connection to the USB is accomplished by bringing D+ (for high-speed USB devices) HIGH through a 1.5 kΩ pull-up resistor. In the ISP1181 the 1.5 kΩ pull-up resistor is integrated on-chip and is not connected to VCC by default. The connection is established through a command sent by the external/system microcontroller. This allows the system microcontroller to complete its initialization sequence before deciding to establish connection with the USB. Re-initialization of the USB connection can also be performed without disconnecting the cable.

ISP1181

Full-speed USB interface

The ISP1181 will check for USB V established. V

Remark: Note that the tolerance of the internal resistors is 25%. This is higher than the 5% tolerance speciﬁed by the USB speciﬁcation. However,the overall VSEvoltage speciﬁcation for the connection can still be met with a good margin. The decision to make use of this feature lies with the USB equipment designer.

sensing is provided through pin V

BUS

availability before the connection can be

BUS

7.5 GoodLink

Indication of a good USB connection is provided at pin GL through GoodLink technology. During enumeration the LED indicator will blink on momentarily. When the ISP1181 has been successfully enumerated (the device address is set), the LED indicator will remain permanently on. Upon each successful packet transfer (with ACK) to and from the ISP1181 the LED will blink off for 100 ms. During ‘suspend’ state the LED will remain off.

This feature provides a user-friendly indicator of the status of the USB device, the connected hub and the USB trafﬁc. It is a useful ﬁeld diagnostics tool for isolating faulty equipment. It can therefor help to reduce ﬁeld support and hotline overhead.

A register bit can be set to stop the GoodLink LED blinking in trafﬁc (see Table 20). The LED indicator will then be permanently on.

7.6 Bit clock recovery

The bit clock recovery circuit recovers the clock from the incoming USB data stream using a 4× over-sampling principle. It is able to track jitter and frequency drift as speciﬁed by the

9397 750 06896

Objective speciﬁcation Rev. 01 — 13 March 2000 8 of 69

USB Speciﬁcation Rev. 1.1

Page 9

Philips Semiconductors

7.7 Voltage regulator

A 5 V to 3.3 V voltage regulator is integrated on-chip to supply the analog transceiver and internal logic. This voltage is available at pin V pull-up resistor on the D+ line. Alternatively, the ISP1181 provides SoftConnect technology via an integrated 1.5 kΩ pull-up resistor (see Section 7.4).

7.8 PLL clock multiplier

A 6 MHz to 48 MHz clock multiplier Phase-Locked Loop (PLL) is integrated on-chip. This allows for the use of a low-cost 6 MHz crystal, which also minimizes EMI. No external components are required for the operation of the PLL.

7.9 Parallel I/O (PIO) and Direct Memory Access (DMA) interface

A generic PIO interface is deﬁned for speed and ease-of-use. It also allows direct interfacing to most microcontrollers. To a microcontroller, the ISP1181 appears as a memory device with an 8/16-bit data bus and an 1-bit address bus. The ISP1181 supports both multiplexed and non-multiplexed address and data buses.

The ISP1181 can also be conﬁgured as a DMA slave device to allow more efﬁcient data transfer. One of the 14 endpoint FIFOs may directly transfer data to/from the local shared memory. The DMA interface can be conﬁgured independently from the PIO interface.

ISP1181

Full-speed USB interface

to supply an external 1.5 kΩ

reg(3.3)

8. Modes of operation

The ISP1181 has four bus conﬁguration modes, selected via pins BUS_CONF1 and BUSCONF0:

Mode 0 16-bit I/O port shared with 8-bit or 16-bit DMA port Mode 1 separate 8-bit I/O port and 8-bit DMA port Mode 2 8-bit I/O port shared with 8-bit or 16-bit DMA port Mode 3 reserved.

The bus conﬁgurations for each of these modes are given in Table 3. Typical interface circuits for each mode are given in Section 20.1.

Table 3: Bus conﬁguration modes

Mode BUS_CONF[1:0] PIO width DMA width Description

DMAWD = 0 DMAWD = 1

0 0 0 D[15:0] D[7:0]; D[15:0] multiplexed address/data on pin AD0;

busis shared by 16-bit I/O port and 8-bit or 16-bit DMA port

1 0 1 D[7:0] D[15:8] illegal multiplexed address/data on pin AD0;

bus has separate I/O port (8-bit) and DMA port (8-bit)

2 1 0 D[7:0] D[7:0] D[15:0] multiplexed address/data on pin AD0;

bus is shared by 8-bit I/O port and 8-bit or 16-bit DMA port

3 1 1 reserved reserved reserved reserved

9397 750 06896

Objective speciﬁcation Rev. 01 — 13 March 2000 9 of 69

Page 10

Philips Semiconductors

9. Endpoint descriptions

Each USB device is logically composed of several independent endpoints. An endpoint acts as a terminus of a communication ﬂow between the host and the device. At design time each endpoint is assigned a unique number (endpoint identiﬁer, see Table 4). The combination of the device address (given by the host during enumeration), the endpoint number and the transfer direction allows each endpoint to be uniquely referenced.

The ISP1181 has 16 endpoints: endpoint 0 (control IN and OUT) plus 14 conﬁgurable endpoints, which can be individually deﬁned as interrupt/bulk/isochronous,IN or OUT. Each enabled endpoint has an associated FIFO, which can be accessed either via the parallel I/O interface or via DMA.

9.1 Endpoint access

Table 4 lists the endpoint access modes and programmability. All endpoints support

I/O mode access. Endpoints 1 to 14 also support DMA access. FIFO DMA access is selected and enabled via bits EPIDX[3:0] and DMAEN of the DMA Conﬁguration Register. A detailed description of the DMA operation is given in Section 10.

ISP1181

Full-speed USB interface

Table 4: Endpoint access and programmability

Endpoint identiﬁer

0 64 (ﬁxed) no yes no control OUT 0 64 (ﬁxed) no yes no control IN 1 programmable supported supported supported programmable 2 programmable supported supported supported programmable 3 programmable supported supported supported programmable 4 programmable supported supported supported programmable 5 programmable supported supported supported programmable 6 programmable supported supported supported programmable 7 programmable supported supported supported programmable 8 programmable supported supported supported programmable 9 programmable supported supported supported programmable 10 programmable supported supported supported programmable 11 programmable supported supported supported programmable 12 programmable supported supported supported programmable 13 programmable supported supported supported programmable 14 programmable supported supported supported programmable

[1] IN: input for the USB host (ISP1181 transmits); OUT: output from the USB host (ISP1181 receives). [2] The data ﬂow direction is determined by bit EPDIR in the Endpoint Conﬁguration Register. [3] The total amount of FIFO storage allocated to enabled endpoints must not exceed 2462 bytes.

FIFO size (bytes) Double

buffering

I/O mode access

DMA mode access

Endpoint type

[1]

9397 750 06896

Objective speciﬁcation Rev. 01 — 13 March 2000 10 of 69

Page 11

Philips Semiconductors

9.2 Endpoint FIFO size

The size of the FIFO determines the maximum packet size that the hardware can support for a given endpoint. Only enabled endpoints are allocated space in the shared FIFO storage, disabled endpoints have zero bytes. Table 5 lists the programmable FIFO sizes.

The following bits in the Endpoint Conﬁguration Register (ECR) affect FIFO allocation:

•

Remark: Register changes that affect the allocation of the shared FIFO storage

among endpoints must not be made while valid data is present in any FIFO of the enabled endpoints. Such changes will render all FIFO contents undeﬁned.

Table 5: Programmable FIFO size

FFOSZ[3:0] Non-isochronous Isochronous

0000 8 bytes 16 bytes 0001 16 bytes 32 bytes 0010 32 bytes 48 bytes 0011 64 bytes 64 bytes 0100 reserved 96 bytes 0101 reserved 128 bytes 0110 reserved 160 bytes 0111 reserved 192 bytes 1000 interrupt IN 8 bytes,

1001 interrupt IN 16 bytes,

1010 interrupt IN 32 bytes,

1011 interrupt IN 64 bytes,

1100 reserved 640 bytes 1101 reserved 768 bytes 1110 reserved 896 bytes 1111 reserved 1023 bytes

ISP1181

Full-speed USB interface

endpoint enable bit (FIFOEN) size bits of an enabled endpoint (FFOSZ[3:0]) isochronous bit of an enabled endpoint (FFOISO).

256 bytes

rate feedback mode

320 bytes

rate feedback mode

384 bytes

rate feedback mode

512 bytes

rate feedback mode

Each programmable FIFO can be conﬁgured independently via its ECR, but the total physical size of all enabled endpoints (IN plus OUT) must not exceed 2462 bytes (512 bytes for non-isochronous FIFOs).

Table 6 shows an example of a conﬁguration ﬁtting in the maximum available space of

2462 bytes. The total number of logical bytes in the example is 1311. The physical storage capacity used for double buffering is managed by the device hardware and is transparent to the user.

9397 750 06896

Objective speciﬁcation Rev. 01 — 13 March 2000 11 of 69

Page 12

Philips Semiconductors

Table 6: Memory conﬁguration example

Physical size (bytes)

64 64 control IN (64 byte ﬁxed) 64 64 control OUT (64 byte ﬁxed) 2046 1023 double-buffered 1023-byte isochronous endpoint 16 16 16-byte interrupt OUT 16 16 16-byte interrupt IN 128 64 double-buffered 64-byte bulk OUT 128 64 double-buffered 64-byte bulk IN

9.3 Endpoint initialization

In response to the standard USB request Set Interface,the ﬁrmware must program all 16 ECRs of the ISP1181 in sequence (see Table 4), whether the endpoints are enabled or not. The hardware will then automatically allocate FIFO storage space.

If all endpoints havebeen conﬁgured successfully,the ﬁrmware must return an empty packet to the control IN endpoint to acknowledge success to the host. If there are errors in the endpoint conﬁguration, the ﬁrmware must stall the control IN endpoint.

Logical size (bytes)

ISP1181

Full-speed USB interface

Endpoint description

When reset by hardware or via the USB bus, the ISP1181 disables all endpoints and clears all ECRs, except for the control endpoint which is ﬁxed and always enabled.

Endpoint initialization can be done at any time; however, it is valid only after enumeration.

9.4 Endpoint I/O mode access

When an endpoint event occurs (a packet is transmitted or received), the associated endpoint interrupt bits (EPn) of the Interrupt Register (IR) will be set by the SIE. The ﬁrmware then responds to the interrupt and selects the endpoint for processing.

The endpoint interrupt bit will be cleared by reading the Endpoint Status Register (ESR). The ESR also contains information on the status of the endpoint buffer.

For an OUT (= receive) endpoint, the packetlength and packet data can be read from ISP1181 using the Read Buffer command. When the whole packet has been read, the ﬁrmware sends a Clear Buffer command to enable the reception of new packets.

For an IN (= transmit) endpoint, the packet length and data to be sent can be written to ISP1181 using the Write Buffer command. When the whole packet has been written to the buffer, the ﬁrmware sends a Validate Buffer command to enable data transmission to the host.

9.5 Special actions on control endpoints

Control endpoints require special ﬁrmware actions. The arrival of a SETUP packet ﬂushes the IN buffer and disables the Validate Buffer and Clear Buffer commands for the control IN and OUT endpoints. The microcontroller needs to re-enable these commands by sending an Acknowledge Setup command to both control endpoints.

9397 750 06896

Objective speciﬁcation Rev. 01 — 13 March 2000 12 of 69

Page 13

Philips Semiconductors

This ensures that the last SETUP packet stays in the buffer and that no packets can be sent back to the host until the microcontroller has explicitly acknowledged that it has seen the SETUP packet.

10. DMA transfer

Direct Memory Access (DMA) is a method to transfer data from one location to another in a computer system, without intervention of the central processor (CPU). Many different implementations of DMA exist. The ISP1181 supports two methods:

•

The ISP1181 supports DMA transfer for all 14 conﬁgurable endpoints (see Table 4). Only one endpoint at a time can be selected for DMA transfer. The DMA operation of the ISP1181 can be interleaved with normal I/O mode access to other endpoints.

ISP1181

Full-speed USB interface

8237 compatible mode: based on the DMA subsystem of the IBM personal

computers (PC, AT and all its successors and clones); this architecture uses the Intel 8237 DMA controller and has separate address spaces for memory and I/O

DACK-only mode: based on the DMA implementation in some embedded RISC processors, which has a single address space for both memory and I/O.

The following features are supported:

Single-cycle or burst transfers (up tot 16 bytes per cycle)

•

Programmable transfer direction (read or write)

•

Multiple End-Of-Transfer (EOT) sources: external pin, internal conditions,

•

short/empty packet Programmable signal levels on pins DREQ, DACK and EOT

•

Automatic DMA counter reload and transfer restart following EOT.

•

10.1 Selecting an endpoint for DMA transfer

The target endpoint for DMA access is selected via bits EPDIX[3:0] in the DMA Conﬁguration Register, as shown in Table 7. The transfer direction (read or write) is automatically set by bit EPDIR in the associated ECR, to match the selected endpoint type (OUT endpoint: read; IN endpoint: write).

Asserting input DACK automatically selects the endpoint speciﬁed in the DMA Conﬁguration Register, regardless of the current endpoint used for I/O mode access.

Table 7: Endpoint selection for DMA transfer

Endpoint

identiﬁer

1 0010 OUT: read IN: write 2 0011 OUT: read IN: write 3 0100 OUT: read IN: write 4 0101 OUT: read IN: write 5 0110 OUT: read IN: write 6 0111 OUT: read IN: write 7 1000 OUT: read IN: write

EPIDX[3:0] Transfer direction

EPDIR = 0 EPDIR = 1

9397 750 06896

Objective speciﬁcation Rev. 01 — 13 March 2000 13 of 69

Page 14

Philips Semiconductors

Table 7: Endpoint selection for DMA transfer

10.2 8237 compatible mode

The 8237 compatible DMA mode is selected by clearing bit DAKOLY in the Hardware Conﬁguration Register (see Table 22). The pin functions for this mode are shown in

Table 8.

Table 8: 8237 compatible mode: pin functions

Symbol Description I/O Function

DREQ DMA request O ISP1181 requests a DMA transfer DACK DMA acknowledge I DMA controller conﬁrms the transfer EOT end of transfer I DMA controller terminates the transfer RD read strobe I instructs ISP1181 to put data on the bus WR write strobe I instructs ISP1181 to get data from the bus

Full-speed USB interface

Endpoint

identiﬁer

8 1001 OUT: read IN: write

9 1010 OUT: read IN: write 10 1011 OUT: read IN: write 11 1100 OUT: read IN: write 12 1101 OUT: read IN: write 13 1110 OUT: read IN: write 14 1111 OUT: read IN: write

EPIDX[3:0] Transfer direction

EPDIR = 0 EPDIR = 1

ISP1181

The DMA subsystem of an IBM compatible PC is based on the Intel 8237 DMA controller. It operates as a ‘ﬂy-by’ DMA controller: the data is not stored in the DMA controller, but it is transferred between an I/O port and a memory address. A typical example of ISP1181 in 8237 compatible DMA mode is given in Figure 3.

The 8237 has two control signals for each DMA channel: DRQ (DMA Request) and DACK (DMA Acknowledge). General control signals are HRQ (Hold Request), HLDA (Hold Acknowledge) and EOP (End-Of-Process). The bus operation is controlled via MEMR (Memory Read), MEMW (Memory Write), IOR (I/O read) and IOW (I/O write).

dth

DATA1 to DATA15

AD,

ISP1181

DREQ

DACK

RAM

Fig 3. ISP1181 in 8237 compatible DMA mode.

MEMR MEMW

DMA

CONTROLLER

8237

DREQ HRQ DACK

IOR IOW

HLDA

CPU

HRQ HLDA

MGS778

9397 750 06896

Objective speciﬁcation Rev. 01 — 13 March 2000 14 of 69

Page 15

Philips Semiconductors

The following example shows the steps which occur in a typical DMA transfer:

1. ISP1181 receives a data packet in one of its endpoint FIFOs; the packet must be

2. ISP1181 asserts the DREQ signal requesting the 8237 for a DMA transfer.

3. The 8237 asks the CPU to release the bus by asserting the HRQ signal.

4. After completing the current instruction cycle, the CPU places the bus control

5. The 8237 now sets its address lines to 1234H and activates the MEMW and IOR

6. The 8237 asserts DACK to inform the ISP1181 that it will start a DMA transfer.

7. TheISP1181 now places the byte or word to be transferredon the data bus lines,

8. The8237 waits one DMA clock period and then de-asserts MEMW and IOR. This

9. The ISP1181 de-asserts the DREQ signal to indicate to the 8237 that DMA is no

10. The 8237 de-asserts the DACK output indicating that the ISP1181 must stop

11. The 8237 places the bus control signals (MEMR, MEMW, IOR and IOW) and the

12. The CPU acknowledges control of the bus by de-asserting HLDA. After activating

ISP1181

Full-speed USB interface

transferred to memory address 1234H.

signals (MEMR, MEMW, IOR and IOW) and the address lines in three-state and asserts HLDA to inform the 8237 that it has control of the bus.

control signals.

because its RD signal was asserted by the 8237.

latches and stores the byte or word at the desired memory location. It also informs the ISP1181 that the data on the bus lines has been transferred.

longer needed. In Single cycle mode this is done after each byte or word, in Burst mode following the last transferred byte or word of the DMA cycle.

placing data on the bus.

address lines in three-state and de-asserts the HRQ signal, informing the CPU that it has released the bus.

the bus control lines (MEMR, MEMW, IOR and IOW) and the address lines, the CPU resumes the execution of instructions.

Fora typical bulk transfer the aboveprocess is repeated 64 times, once for each byte. After each byte the address register in the DMA controller is incremented and the byte counter is decremented. When using 16-bit DMA the number of transfers is 32 and address incrementing and byte counter decrementing is done by 2 for each word.

10.3 DACK-only mode

The DACK-only DMA mode is selected by setting bit DAKOLY in the Hardware Conﬁguration Register (see Table 22). The pin functions for this mode are shown in

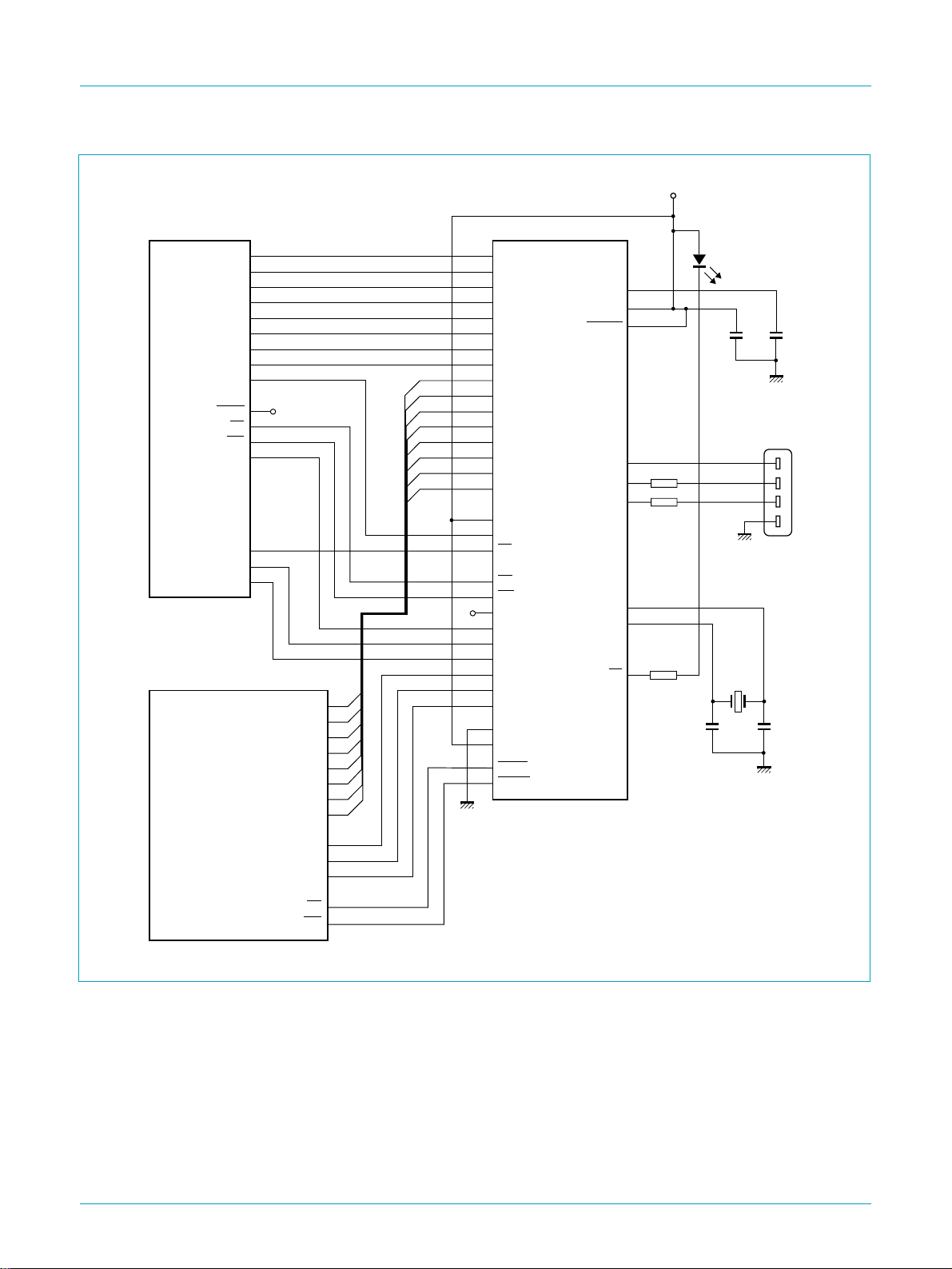

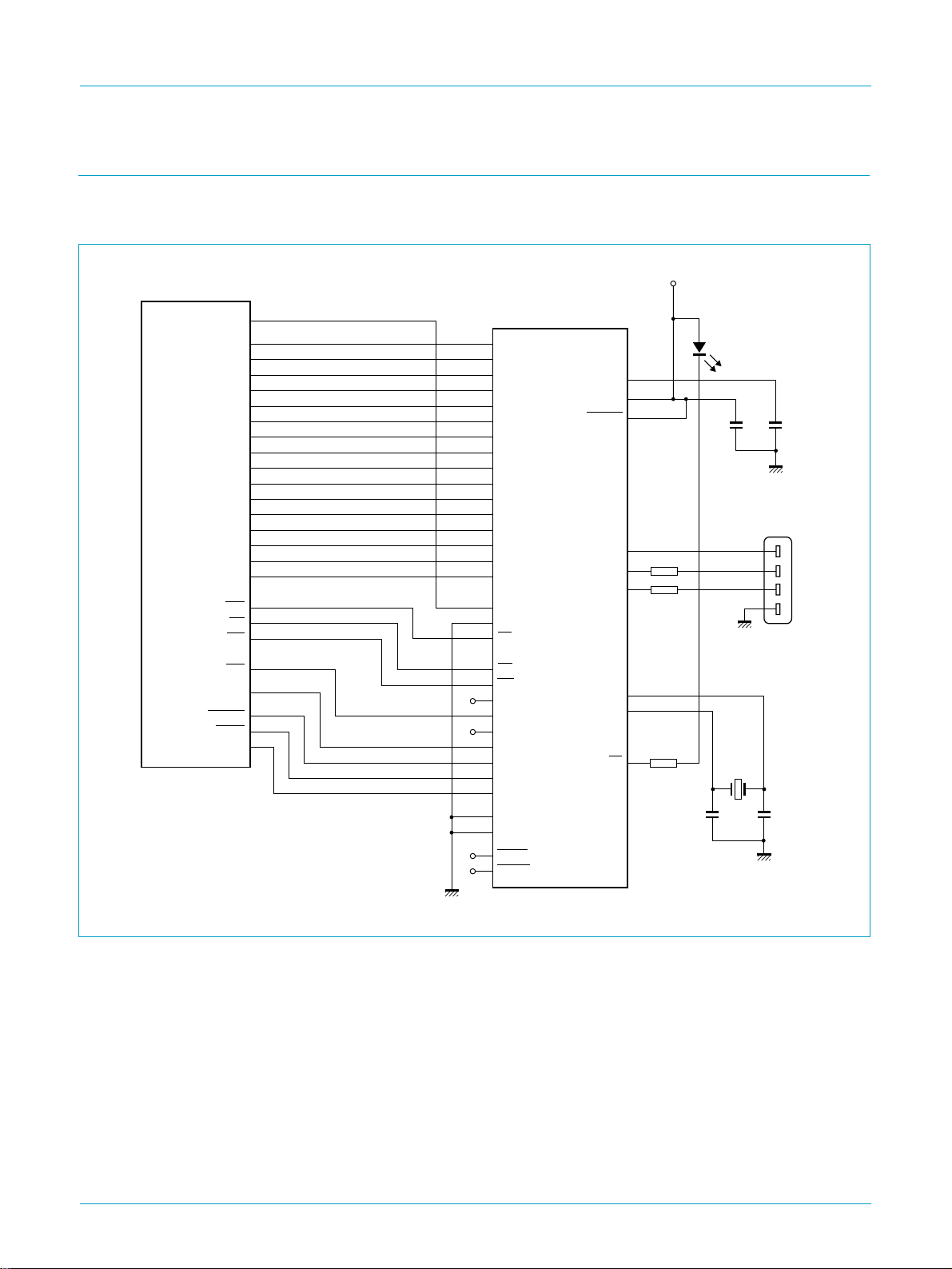

Table 9. A typical example of ISP1181 in DACK-only DMA mode is given in Figure 4.

Table 9: DACK-only mode: pin functions

Symbol Description I/O Function

DREQ DMA request O ISP1181 requests a DMA transfer DACK DMA acknowledge I DMA controller conﬁrms the transfer;

also functions as data strobe EOT End-Of-Transfer I DMA controller terminates the transfer RD read strobe I not used WR write strobe I not used

9397 750 06896

Objective speciﬁcation Rev. 01 — 13 March 2000 15 of 69

Page 16

Philips Semiconductors

In DACK-only mode the ISP1181 uses the DACK signal as data strobe. Input signals RD and WR are ignored. This mode is used in CPU systems that have a single address space for memory and I/O access. Such systems have no separate MEMW and MEMR signals: the RD and WR signals are also used as memory data strobes.

ISP1181

Full-speed USB interface

dth

Fig 4. ISP1181 in DACK-only DMA mode.

ISP1181 DMA

DREQ DACK

AD,

DATA1 to DATA15

10.4 End-Of-Transfer conditions

10.4.1 Bulk endpoints

A DMA transfer to/from a bulk endpoint can be terminated by any of the following conditions (bit names refer to the DMA Conﬁguration Register, see Table 26):

An external End-Of-Transfer signal occurs on input EOT

•

The internal DMA Counter Register reaches zero (CNTREN = 1)

•

A short/empty packet is received on an enabled OUT endpoint (SHORTP = 1)

•

DMA operation is disabled by clearing bit DMAEN.

•

RAM

CONTROLLER

DREQ DACK

RD WR

HRQ

HLDA

CPU

HRQ HLDA

MGS779

External EOT: When reading from an OUT endpoint, an external EOT will stop the

DMA operation and clear any remaining data in the current FIFO. For a doublebuffered endpoint the other (inactive) buffer is not affected.

When writing to an IN endpoint, an EOT will stop the DMA operation and the data packet in the FIFO (even if it is smaller than the maximum packet size) will be sent to the USB host at the next IN token.

DMA Counter Register zero: An EOT from the DMA Counter Register is enabled by

setting bit CNTREN in the DMA Conﬁguration Register. The ISP1181 has a 16-bit DMA Counter Register, which speciﬁes the number of bytes to be transferred. When DMA is enabled (DMAEN = 1), the internal DMA counter is loaded with the value from the DMA Counter Register.When the internal counter reaches zero an EOTcondition is generated and the DMA operation stops.

Short/empty packet: Normally, the transfer byte count must be set via a control

endpoint before any DMA transfer takes place. When a short/empty packet has been enabled as EOT indicator (SHORTP = 1), the transfer size is determined by the presence of a short/empty packet in the data. This mechanism permits the use of a fully autonomous data transfer protocol.

9397 750 06896

Objective speciﬁcation Rev. 01 — 13 March 2000 16 of 69

Page 17

Philips Semiconductors

When reading from an OUT endpoint, reception of a short/empty packet at an OUT token will stop the DMA operation after transferring the data bytes of this packet.

When writing to an IN endpoint, a short packet transferred at an IN token will stop the DMA operation after all bytes have been transferred. If the number of bytes in the buffer is zero, ISP1181 will automatically send an empty packet.

Table 10: Summary of EOT conditions for a bulk endpoint

EOT condition OUT endpoint IN endpoint

EOT input EOT is active EOT is active DMA Counter Register counter reaches zero counter reaches zero Short packet short packet is received and

Empty packet empty packet is received and

DMAEN bit in DMA Conﬁguration Register

[1] If short/empty packet EOT is enabled (SHORTP = 1 in DMA Conﬁguration Register) and DMA

Counter Register is zero.

Full-speed USB interface

counter reaches zero in the

transferred

transferred DMAEN = 0 DMAEN = 0

middle of the buffer empty packet is automatically

appended when needed

ISP1181

[1]

10.4.2 Isochronous endpoints

A DMA transfer to/from an isochronous endpoint can be terminated by any of the following conditions (bit names refer to the DMA Conﬁguration Register, see

Table 26):

An external End-Of-Transfer signal occurs on input EOT

•

The internal DMA Counter Register reaches zero (CNTREN = 1)

•

An End-Of-Packet (EOP) signal is detected

•

DMA operation is disabled by clearing bit DMAEN.

•

Table 11: Recommended EOT usage for isochronous endpoints

EOT condition OUT endpoint IN endpoint

EOT input active do not use preferred DMA Counter Register zero do not use preferred End-Of-Packet preferred do not use

10.4.3 DMA auto-restart

If the AUTOLD bit in the DMA Conﬁguration Register is set, the DMA operation will automatically restart when the last transfer has been completed. First the internal DMA counter is reloaded from of the DMA Counter Register. Output DREQ is then asserted to request a new DMA transfer for an IN endpoint, or when the buffer of an OUT endpoint buffer has been ﬁlled.

9397 750 06896

Objective speciﬁcation Rev. 01 — 13 March 2000 17 of 69

Page 18

Philips Semiconductors

11. Suspend and resume

11.1 Suspend conditions

The ISP1181 detects a USB ‘suspend’ status in the following cases:

A J-state is present on the USB bus for 3 ms

•

ISP1181 will remain in ‘suspend’ state for at least 5 ms, before responding to external wake-up events such as global resume, bus trafﬁc, wake-up on CS or WAKEUP. The typical timing is shown in Figure 5.

is lost (weak pull-up/down on D+ and D−)

BUS

SoftConnect is disabled by clearing bit SOFTCT in the Mode Register, with external pull-ups disabled by EXTPUL = 0 in the Hardware Conﬁguration Register. In this situation ISP1181 is effectively disconnected from the USB bus.

ISP1181

Full-speed USB interface

handbook, full pagewidth

Fig 5. Typical suspend timing.

GOSUSP

WAKEUP

Bus-powered devices that are suspended must not consume more than 500 µA of current. This is achieved by shutting down the power to system components or supplying them with a reduced voltage.

ISP1181 can either be in powered-on or powered-off mode during ‘suspend’ state. This is controlled by bit PWROFF in the Hardware Conﬁguration Register. A full explanation of these modes is given in Section 11.1.1 and Section 11.1.2.

The steps leading up to ‘suspend’ status are as follows:

1. Upon detection of a ‘wake-up’ to ‘suspend’ transition ISP1181 sets bit SUSPND

2. When the ﬁrmware detects a ‘suspend’ condition it must prepare all system

3. In the interrupt service routine the ﬁrmware must check the current status of the

suspend

>5 ms

start detection of wake-up conditions

MGS949

in the Interrupt Register. This will generate an interrupt if bit IESUSP in the Interrupt Enable Register is set.

components for ‘suspend’ state:

a. All signals connected to ISP1181 must enter appropriate states to meet the

power consumption requirements of ‘suspend’ state.

b. All input pins of ISP1181 must have a CMOS logic 0 or logic 1 level. Pin

settings differ for powered-on and powered-off application.

USB bus. When bit BUSTATUS in the Interrupt Register is logic 0, the USB bus has left ‘suspend’ mode and the process must be aborted. Otherwise, the next step can be executed.

9397 750 06896

Objective speciﬁcation Rev. 01 — 13 March 2000 18 of 69

Page 19

Philips Semiconductors

4. To meet the ‘suspend’ current requirements for a bus-powered device, the

5. When the ﬁrmware has set and cleared the GOSUSP bit in the Mode Register,

11.1.1 Powered-on application

In powered-on application (PWROFF = 0 in the Hardware Conﬁguration Register) the power supply of the CPU and other parts of the circuit is not switched off. The CPU is normally placed in low-power mode. The SUSPEND output of ISP1181 is normally HIGH and pulses LOW for 10 ms upon a ‘resume’ condition. This signal can be used to wake up the CPU. The signal timing is shown in Figure 6.

ISP1181

Full-speed USB interface

internal clocks must be switched off by clearing bit CLKRUN in the Hardware Conﬁguration Register.

the ISP1181 enters ‘suspend’ state. In powered-off application, the ISP1181 asserts output SUSPEND and switches off the internal clocks after 2 ms.

handbook, full pagewidth

Fig 6. Suspend and resume timing for powered-on application.

GOSUSP

WAKEUP

0.5 ms 10 ms

SUSPEND

In powered-on application ISP1181 drives its output pins, while the inputs are driven by the application. Bi-directional pins are placed in three-state and driven HIGH or LOW by the application. A summary of appropriate pin states is given in Table 12.

Table 12: Pin states in powered-on application

Pin Type Appropriate state

A0 I/O (three-state) externally driven DATA[15:0] I/O (three-state) depends on state of inputs SUSPEND O ISP1181 drives logic 1 WAKEUP I externally driven to logic 1 INT O (three-state) ISP1181 drives logic 0 or logic 1 RESET I externally driven to logic 1 CS I externally driven to logic 0 or logic 1 (default: logic 1) RD I externally driven to logic 0 or logic 1 (default: logic 1) WR I externally driven to logic 1 XTAL1 I externally driven to logic 1, if external oscillator is used CLKOUT O (three-state) ISP1181 drives logic 0

[1]

to logic 0 or logic 1

RD and CS

MGS780

[1] ‘Externally driven’ refers to logic outside the ISP1181.

9397 750 06896

Objective speciﬁcation Rev. 01 — 13 March 2000 19 of 69

Page 20

Philips Semiconductors

The USB connections D+ and D− remain powered and logically connected to the USB bus. If a crystal oscillator is used, powering down during ‘suspend’ is managed by the internal logic of ISP1181. When using an external oscillator on pin XTAL1, a stable logic 1 level must be applied during ‘suspend’ state.

Figure 7 shows a typical bus-powered modem application using ISP1181 in

powered-onmode. The SUSPEND output is connected to the reset input (RST) of the 8031 microcontroller via an external inverter.This allowsa ‘resume’ condition to wake up the 8031 from power-down mode. The ISP1181 is woken up via the USB bus (global resume) or by the ring detection circuit on the telephone line.

ISP1181

Full-speed USB interface

dth

USB

BUS

D+ D−

Fig 7. SUSPEND and WAKEUP signals in a powered-on modem application.

11.1.2 Powered-off application

In powered-off application (PWROFF = 1 in the Hardware Conﬁguration Register) the supply of the CPU and other parts of the circuit is removed during ‘suspend’ state. The SUSPEND output is active HIGH during ‘suspend’ state, making it suitable as a power switch control signal, e.g. for an external oscillator.

Input pins of ISP1181 are pulled to ground via the pin buffers. Outputs are made three-state to prevent current ﬂowing in the application. Bi-directional pins are made three-state and must be pulled to ground externally by the application. The power supply of external pull-ups must also be removed to reduce power consumption.

CC(5.0)

ISP1181

SUSPEND

WAKEUP

8031

RST

RING DETECTION

LINE

MGS781

handbook, full pagewidth

GOSUSP

WAKEUP

2 ms 0.5 ms

SUSPEND

MGS782

Fig 8. Suspend and resume timing for powered-off application.

9397 750 06896

Objective speciﬁcation Rev. 01 — 13 March 2000 20 of 69

Page 21

Philips Semiconductors

Table 13: Pin states in powered-off application

Pin Type Appropriate state

A0 I/O (three-state) powered off; internally connected to ground (logic 0) DATA[15:0] I/O (three-state) powered off; internally connected to ground (logic 0) SUSPEND O ISP1181 drives logic 1 WAKEUP I powered off; internally connected to ground (logic 0) INT O (three-state) powered off; internally connected to ground (logic 0) RESET I externally driven CS I powered off; internally connected to ground (logic 0) RD I powered off; internally connected to ground (logic 0) WR I powered off; internally connected to ground (logic 0) XTAL1 I powered off; internally connected to ground (logic 0) CLKOUT O (three-state) ISP1181 drives logic 0

[1] ‘Externally driven’ refers to logic outside the ISP1181.

When external components are powered-off, it is possible that interface signals RD, WR and CS have unknown values immediately after leaving ‘suspend’ state. To prevent corruption of its internal registers, ISP1181 enables a locking mechanism once suspend is enabled.

[1]

to logic 1

ISP1181

Full-speed USB interface

After wake-up from suspend’ state, all internal registers except the Unlock Register are write-protected. A special unlock operation is needed to re-enable write access. This prevents data corruption during power-up of external components.

Figure 9 shows a typical bus-powered modem application using ISP1181 in

powered-off mode. The SUSPEND output is used to switch off power to the microcontroller and other external circuits during ‘suspend’ state. The ISP1181 is woken up via the USB bus (global resume) or by the ring detection circuit on the telephone line.

dth

Fig 9. SUSPEND and WAKEUP signals in a powered-off modem application.

USB

BUS

D+ D−

CC(5.0)

ISP1181

SUSPEND

WAKEUP

power switch

CONTROLLER

RING DETECTION

MICRO-

LINE

MGS783

9397 750 06896

Objective speciﬁcation Rev. 01 — 13 March 2000 21 of 69

Page 22

Philips Semiconductors

11.2 Resume conditions

For both application modes (powered-on and powered-off) wake-up from ‘suspend’ state is initiated either by the USB host or by the application:

•

The steps of a wake-up sequence are as follows:

1. Theinternal oscillator and the PLL multiplier are re-enabled. When stabilized, the

2. The SUSPEND output is de-asserted and the RESUME bit in the Interrupt

3. Maximum 15 ms after starting the wake-up sequence the ISP1181 resumes its

4. Incase of a remote wake-up ISP1181 drives a K-state on the USB bus for10 ms.

5. Following the de-assertion of output SUSPEND, the application restores itself

6. After wake-up the internal registers of ISP1181 are write-protected to prevent

ISP1181

Full-speed USB interface

USB host: drives a K-state on the USB bus (global resume) Application: remote wake-up via a HIGH level on input WAKEUP or a LOW level

on input CS (if enabled via bit WKUPCS in the Hardware Conﬁguration Register).

clock signals are routed to all internal circuits of the ISP1181.

normal functionality.

and other system components to normal operating mode.

corruption by inadvertent writing during power-up of external components. The ﬁrmware must send an Unlock Device command to the ISP1181 to restore its full functionality. See Section 12.3.2 for more details.

11.3 Control bits in suspend and resume

Table 14: Summary of control bits

Interrupt SUSPND a transition from ‘awake’ to ‘suspend’ state was

detected

BUSTATUS monitors USB bus status (logic 1 = suspend);

used when interrupt is serviced Interrupt Enable IESUSP enables output INT to signal ‘suspend’ state Mode SOFTCT enables SoftConnect pull-up resistor to USB bus

GOSUSP a HIGH-to-LOW transition enables ‘suspend’

state

SNDRSU a HIGH-to-LOW transition enables sending a

10 ms resume signal (K-state) Hardware

Conﬁguration

Unlock all sending data AA37H unlocks the internal

EXTPUL selects internal (SoftConnect) or external pull-up

resistor

WKUPCS enables wake-up on LOW level of input PWROFF selects powered-off mode during ‘suspend’ state

registers for writing after a ‘resume’

9397 750 06896

Objective speciﬁcation Rev. 01 — 13 March 2000 22 of 69

Page 23

Philips Semiconductors

12. Commands and registers

The functions and registers of ISP1181 are accessed via commands, which consist of a command code followed by optional data bytes (read or write action). An overview of the available commands and registers is given in Table 15.

A complete access consists of two phases:

1. Command phase: when address bit A0 = 1, the ISP1181 interprets the data on the lower byte of the bus (bits D7 to D0) as a command code. Commands without a data phase are executed immediately.

2. Data phase (optional): when address bit A0 = 0, the ISP1181 transfers the data on the bus to or from a register or endpoint FIFO. Multi-byte registers are accessed least signiﬁcant byte/word ﬁrst.

The following applies for register or FIFO access in 16-bit bus mode:

The upper byte (bits D15 to D8) in command phase or the undeﬁned byte in data

•

phase are ignored. The access of registers is word-aligned: byte access is not allowed.

•

If the packet length is odd, the upper byte of the last word in an IN endpoint buffer

•

is not transmitted to the host. When reading from an OUT endpoint buffer, the upper byte of the last word must be ignored by the ﬁrmware. The packet length is stored in the ﬁrst 2 bytes of the endpoint buffer.

ISP1181

Full-speed USB interface

Table 15: Command and register summary

Name Destination Code (Hex) Transaction

Initialization commands

Write Control OUT Conﬁguration Endpoint Conﬁguration Register

endpoint 0 OUT

Write Control IN Conﬁguration Endpoint Conﬁguration Register

endpoint 0 IN

Write Endpoint n Conﬁguration (n = 1 to 14)

Read Control OUT Conﬁguration Endpoint Conﬁguration Register

Read Control IN Conﬁguration Endpoint Conﬁguration Register

Read Endpoint n Conﬁguration (n = 1 to 14)

Write/Read Device Address Address Register B6/B7 write/read 1 byte/word Write/Read Mode Register Mode Register B8/B9 write/read 1 byte/word Write/Read Hardware Conﬁguration Hardware Conﬁguration Register BA/BB write/read 1 byte/word Write/Read Interrupt Enable

Register Write/Read DMA Conﬁguration DMA Conﬁguration Register F0/F1 write/read 1 byte/word Write/Read DMA Counter DMA Counter Register F2/F3 write/read 2 bytes Reset Device resets all registers F6 none

Endpoint Conﬁguration Register endpoint 1 to 14

endpoint 0 OUT

endpoint 0 IN Endpoint Conﬁguration Register

endpoint 1 to 14

Interrupt Enable Register C2/C3 write/read 4 bytes

20 write 1 byte/word

21 write 1 byte/word

22 to 2F write 1 byte/word

30 read 1 byte/word

31 read 1 byte/word

32 to 3F read 1 byte/word

[1]

[6]

[6] [3]

[6]

[6] [6] [6]

[6]

9397 750 06896

Objective speciﬁcation Rev. 01 — 13 March 2000 23 of 69

Page 24

Philips Semiconductors

Full-speed USB interface

Table 15: Command and register summary

Name Destination Code (Hex) Transaction

Data ﬂow commands

Write Control OUT Buffer illegal: endpoint is read-only (00) Write Control IN Buffer FIFO endpoint 0 IN 01 N ≤ 64 bytes Write Endpoint n Buffer

(n = 1 to 14) Read Control OUT Buffer FIFO endpoint 0 OUT 10 N ≤ 64 bytes

Read Control IN Buffer illegal: endpoint is write-only (11) Read Endpoint n Buffer

(n = 1 to 14)

Write Control OUT Status Endpoint Status Register

Write Control IN Status Endpoint Status Register

Write Endpoint n Status (n = 1 to 14)

Read Control OUT Status Endpoint Status Register

Read Control IN Status Endpoint Status Register

Read Endpoint n Status (n = 1 to 14)

Validate Control OUT Buffer illegal: IN endpoints only Validate Control IN Buffer FIFO endpoint 0 IN Validate Endpoint n Buffer

(n = 1 to 14) Clear Control OUT Buffer FIFO endpoint 0 OUT 70 none Clear Control IN Buffer illegal Clear Endpoint n Buffer

(n = 1 to 14) Check Control OUT Status

Check Control IN Status

[5]

Check Endpoint n Status (n = 1 to 14)

[5]

Acknowledge Setup Endpoint 0 IN and OUT F4 none

FIFO endpoint 1 to 14 (IN endpoints only)

FIFO endpoint 1 to 14 (OUT endpoints only)

endpoint 0 OUT

endpoint 0 IN Endpoint Status Register n

endpoint 1 to 14

endpoint 0 OUT

endpoint 0 IN Endpoint Status Register n

endpoint 1 to 14

[2]

FIFO endpoint 1 to 14 (IN endpoints only)

[4]

[2]

FIFO endpoint 1 to 14 (OUT endpoints only)

[4]

Endpoint Status Image Register endpoint 0 OUT

Endpoint Status Image Register endpoint 0 IN

Endpoint Status Image Register n endpoint 1 to 14

02 to 0F isochronous: N ≤ 1023 bytes

interrupt/bulk: N ≤ 64 bytes

12 to 1F isochronous:

N ≤ 1023 bytes interrupt/bulk: N ≤ 64 bytes

40 write 1 byte/word

41 write 1 byte/word

42 to 4F write 1 byte/word

50 read 1 byte/word

51 read 1 byte/word

52 to 5F read 1 byte/word

(60) 61 none 62 to 6F none

[3] [3]

[3]

(71) 72 to 7F none

[3]

D0 read 1 byte/word

D1 read 1 byte/word

D2 to DF read 1 byte/word

[3]

ISP1181

[1]

[7]

[6]

9397 750 06896

Objective speciﬁcation Rev. 01 — 13 March 2000 24 of 69

Page 25

Philips Semiconductors

ISP1181

Full-speed USB interface

Table 15: Command and register summary

Name Destination Code (Hex) Transaction

General commands

Read Control OUT Error Code Error Code Register

endpoint 0 OUT

Read Control IN Error Code Error Code Register

endpoint 0 IN

Read Endpoint n Error Code (n = 1 to 14)

Unlock Device all registers with write access B0 write 2 bytes Write/Read Scratch Register Scratch Register B2/B3 write/read 2 bytes Read Frame Number Frame Number Register B4 read 2 bytes Read Chip ID Chip ID Register B5 read 2 bytes Read Interrupt Register Interrupt Register C0 read 4 bytes

[1] With N representing the number of bytes, the number of words for 16-bit bus width is: (N + 1) DIV 2. [2] Validating an OUT endpoint buffer causes unpredictable behaviour of ISP1181. [3] In 8-bit bus mode this command requires more time to complete than other commands. See Table 60. [4] Clearing an IN endpoint buffer causes unpredictable behaviour of ISP1181. [5] Reads a copy of the Status Register: executing this command does not clear any status bits or interrupt bits. [6] In 8-bit mode, the upper byte is invalid. [7] During isochronous transfer in 16-bit mode, because N ≤ 1023, the ﬁrmware must take care of the upper byte.

Error Code Register endpoint 1 to 14

A0 read 1 byte/word

A1 read 1 byte/word

A2 to AF read 1 byte/word

[1]

[6]

12.1 Initialization commands

Initialization commands are used during the enumeration process of the USB network. These commands are used to conﬁgure and enable the embedded endpoints. They also serve to set the USB assigned address of ISP1181 and to perform a device reset.

12.1.1 Write/Read Endpoint Conﬁguration

This command is used to access the Endpoint Conﬁguration Register (ECR) of the target endpoint. It deﬁnes the endpoint type (isochronous or bulk/interrupt), direction (OUT/IN), FIFO size and buffering scheme. It also enables the endpoint FIFO. The register bit allocation is shown in Table 16. A bus reset will disable all endpoints.

The allocation of FIFO memory only takes place after all 16 endpoints have been conﬁgured in sequence (from endpoint 0 OUT to endpoint 14). Although the control endpoints have ﬁxed conﬁgurations, they must be included in the initialization sequence and be conﬁgured with their default values (see Table 4). Automatic FIFO allocation starts when endpoint 14 has been conﬁgured.

Remark: If any change is made to an endpoint conﬁguration which affects the allocated memory (size, enable/disable), the FIFO memory contents of all endpoints becomes invalid. Therefore, all valid data must be removed from enabled endpoints before changing the conﬁguration.

Code (Hex): 20 to 2F — write (control OUT, control IN, endpoint 1 to 14) Code (Hex): 30 to 3F — read (control OUT, control IN, endpoint 1 to 14) Transaction — write/read 1 byte

9397 750 06896

Objective speciﬁcation Rev. 01 — 13 March 2000 25 of 69

Page 26

Philips Semiconductors

ISP1181

Full-speed USB interface

Table 16: Endpoint Conﬁguration Register: bit allocation

Bit 7 6 5 4 3 2 1 0 Symbol FIFOEN EPDIR DBLBUF FFOISO FFOSZ[3:0] Reset 00000000 Access R/W R/W R/W R/W R/W R/W R/W R/W

Table 17: Endpoint Conﬁguration Register: bit description

Bit Symbol Description

7 FIFOEN A logic 1 indicates an enabled FIFO with allocated memory.

A logic 0 indicates a disabled FIFO (no bytes allocated).

6 EPDIR This bit deﬁnes the endpoint direction (0 = OUT, 1= IN); it also

determines the DMA transfer direction (0 = read, 1 = write) 5 DBLBUF A logic 1 indicates that this endpoint has double buffering. 4 FFOISO A logic 1 indicates an isochronous endpoint. A logic 0 indicates

a bulk or interrupt endpoint. 3 to 0 FFOSZ[3:0] Selects the FIFO size according to Table 5

12.1.2 Write/Read Device Address

This command is used to set the USB assigned address in the Address Register and enable the USB device. The Address Register bit allocation is shown in Table 18.

A USB bus reset sets the device address to 00H and enables the device.In response to the standard USB request Set Address the ﬁrmware must issue a Write Device Address command, followed by sending an empty packetto the host. The new device address is activated when the host acknowledges the empty packet.

Code (Hex): B6/B7 — write/read Address Register Transaction — write/read 1 byte

Table 18: Address Register: bit allocation

Bit 7 6 5 4 3 2 1 0 Symbol DEVEN DEVADR[6:0] Reset 00000000 Access R/W R/W R/W R/W R/W R/W R/W R/W

Table 19: Address Register: bit description

Bit Symbol Description

7 DEVEN A logic 1 enables the device. 6 to 0 DEVADR[6:0] This ﬁeld speciﬁes the USB device address.

12.1.3 Write/Read Mode Register

This command is used to access the ISP1181 Mode Register, which consists of 1 byte (bit allocation: see Table 19). In 16-bit bus mode the upper byte is ignored.

The Mode Register controls the DMA bus width, resume and suspend modes, interrupt activity, GoodLink signalling and SoftConnect operation. It can be used to enable debug mode, where all errors and Not Acknowledge (NAK) conditions will generate an interrupt.

9397 750 06896

Objective speciﬁcation Rev. 01 — 13 March 2000 26 of 69

Page 27

Philips Semiconductors

ISP1181

Full-speed USB interface

Code (Hex): B8/B9 — write/read Mode Register Transaction — write/read 1 byte

Table 20: Mode Register: bit allocation

Bit 7 6 5 4 3 2 1 0 Symbol DMAWD SNDRSU GOSUSP reserved INTENA DBGMOD DISGLBL SOFTCT Reset 0 Access R/W R/W R/W R/W R/W R/W R/W R/W

[1] Unchanged by a bus reset.

[1]

0000

Table 21: Mode Register: bit description

Bit Symbol Description

7 DMAWD A logic 1 selects 16-bit DMA bus width (bus conﬁguration modes

0 and 2). A logic 0 selects 8-bit DMA bus width. Bus reset value:

unchanged. 6 SNDRSU Writing a logic 1 followed by a logic 0 will generate an upstream

‘resume’ signal of 10 ms duration, after a 5 ms delay. 5 GOSUSP Writing a logic 1 followed by a logic 0 will activate ‘suspend’

mode. 4 - reserved 3 INTENA A logic 1 enables all interrupts. Bus reset value: unchanged. 2 DBGMOD A logic 1 enables debug mode. where all NAKs and errors will

generate an interrupt. A logic 0 selects normal operation, where

interrupts are generated on every ACK (bulk endpoints) or after

every data transfer (isochronous endpoints). Bus reset value:

unchanged. 1 DISGLBL A logic 1 disables GoodLInk LED blinking on USB trafﬁc. The

LED will be continuously on (

enumeration. Bus reset value: unchanged. 0 SOFTCT A logic 1 enables SoftConnect (see Section 7.4). This bit is

ignored if EXTPUL = 1 in the Hardware Conﬁguration Register

(see Table 22). Bus reset value: unchanged.

[1]

GL = LOW) after successful

[1]

12.1.4 Write/Read Hardware Conﬁguration

This command is used to access the Hardware Conﬁguration Register, which consists of 2 bytes. The ﬁrst (lower) byte contains the device conﬁguration and control values, the second (upper) byte holds the clock control bits and the clock division factor. The bit allocation is given in Table 22. A bus reset will not change any of the programmed bit values.

The Hardware Conﬁguration Register controls the connection to the USB bus, clock activity and power supply during ‘suspend’ state, output clock frequency, DMA operating mode and pin conﬁgurations (polarity, signalling mode).

Code (Hex): BA/BB — write/read Hardware Conﬁguration Register Transaction — write/read 2 bytes

9397 750 06896

Objective speciﬁcation Rev. 01 — 13 March 2000 27 of 69

Page 28

Philips Semiconductors

ISP1181

Full-speed USB interface

Table 22: Hardware Conﬁguration Register: bit allocation

Bit 15 14 13 12 11 10 9 8 Symbol reserved EXTPUL NOLAZY CLKRUN CKDIV[3:0] Reset 00100011 Access R/W R/W R/W R/W R/W R/W R/W R/W Bit 7 6 5 4 3 2 1 0 Symbol DAKOLY DRQPOL DAKPOL EOTPOL WKUPCS PWROFF INTLVL INTPOL Reset 01000100 Access R/W R/W R/W R/W R/W R/W R/W R/W

Table 23: Hardware Conﬁguration Register: bit description

Bit Symbol Description

15 - reserved 14 EXTPUL A logic 1 indicates that an external 1.5 kΩ pull-up resistor is

used on pin D+ and that SoftConnect is not used. Bus reset

value: unchanged. 13 NOLAZY A logic 1 disables output on pin CLKOUT of the LazyClock

frequency (24 kHz) during ‘suspend’ state. A logic 0 causes pin

CLKOUTtoswitchto LazyClock output after approximately 2 ms

delay, followingthe setting of bit GOSUSP in the Mode Register.

Bus reset value: unchanged. 12 CLKRUN A logic 1 indicates that the internal clocks are always running,

even during ‘suspend’ state. A logic 0 switches off the internal

oscillator and PLL, when they are not needed. During ‘suspend’

state this bit must be made logic 0 to meet the suspend current

requirements. The clock is stopped after a delay of

approximately 2 ms, following the setting of bit GOSUSP in the

Mode Register. Bus reset value: unchanged. 11 to 8 CKDIV[3:0] This ﬁeld speciﬁes the clock division factor N, which controls the

clock frequency on output CLKOUT. The output frequency in

MHz is given by . The clock frequency range is

3 to 48 MHz (N = 0 to 15). with a reset value of 12 MHz (N = 3).

The hardware design guarantees no glitches during frequency

change. Bus reset value: unchanged. 7 DAKOLY A logic 1 selects DACK-only DMA mode. A logic 0 selects 8237

compatible DMA mode. Bus reset value: unchanged. 6 DRQPOL Selects DREQ signal polarity (0 = active LOW, 1= active

HIGH). Bus reset value: unchanged. 5 DAKPOL Selects DACKsignalpolarity (0 = active LOW, 1 = active HIGH).

Bus reset value: unchanged. 4 EOTPOL Selects EOT signal polarity (0 = active LOW, 1 = active HIGH).

Bus reset value: unchanged. 3 WKUPCS A logic 1 enables remote wake-up via a LOW level on input

Bus reset value: unchanged.

48 N 1+()⁄

CS.

9397 750 06896

Objective speciﬁcation Rev. 01 — 13 March 2000 28 of 69

Page 29

Philips Semiconductors

Table 23: Hardware Conﬁguration Register: bit description

Bit Symbol Description

2 PWROFF A logic 1 enables powering-off during ‘suspend’ state. Output

1 INTLVL Selects the interrupt signalling mode on output INT (0 = level,

0 INTPOL Selects INT signal polarity (0 = active LOW, 1= active HIGH).

12.1.5 Write/Read Interrupt Enable Register

This command is used to individually enable/disable interrupts from all endpoints, as well as interrupts caused by events on the USB bus (SOF, SOF lost, EOT, suspend, resume, reset). A bus reset will not change any of the programmed bit values.

The command accesses the Interrupt Enable Register, which consists of 4 bytes.The bit allocation is given in Table 24.

ISP1181

Full-speed USB interface

SUSPEND is conﬁgured as a power switch control signal for

external devices (HIGH during ‘suspend’). Bus reset value:

unchanged.

1 = pulsed). In pulsed mode an interrupt produces an 83 ms

pulse. See Section 13 for details. Bus reset value: unchanged.

Bus reset value: unchanged.

Code (Hex): C2/C3 — write/read Interrupt Enable Register Transaction — write/read 4 bytes

Table 24: Interrupt Enable Register: bit allocation

Bit 31 30 29 28 27 26 25 24 Symbol reserved Reset 00000000 Access R/W R/W R/W R/W R/W R/W R/W R/W Bit 23 22 21 20 19 18 17 16 Symbol IEP14 IEP13 IEP12 IEP11 IEP10 IEP9 IEP8 IEP7 Reset 00000000 Access R/W R/W R/W R/W R/W R/W R/W R/W Bit 15 14 13 12 11 10 9 8 Symbol IEP6 IEP5 IEP4 IEP3 IEP2 IEP1 IEP0IN IEP0OUT Reset 00000000 Access R/W R/W R/W R/W R/W R/W R/W R/W Bit 7 6 5 4 3 2 1 0 Symbol reserved reserved IENOSOF IESOF IEEOT IESUSP IERESM IERST Reset 00000000 Access R/W R/W R/W R/W R/W R/W R/W R/W

9397 750 06896

Objective speciﬁcation Rev. 01 — 13 March 2000 29 of 69

Page 30

Philips Semiconductors

Table 25: Interrupt Enable Register: bit description

Bit Symbol Description

31 to 24 - reserved; must write logic 0 23 to 10 IEP14 to IEP1 A logic 1 enables interrupts from the indicated endpoint. 9 IEP0IN A logic 1 enables interrupts from the control IN endpoint. 8 IEP0OUT A logic 1 enables interrupts from the control OUT endpoint. 7, 6 - reserved 5 IENOSOF A logic 1 enables 1 ms interrupts upon loss of SOF. 4 IESOF A logic 1 enables interrupt upon SOF detection. 3 IEEOT A logic 1 enables interrupt upon EOT detection. 2 IESUSP A logic 1 enables interrupt upon detection of ‘suspend’ state. 1 IERESM A logic 1 enables interrupt upon detection of a ‘resume’ state. 0 IERST A logic 1 enables interrupt upon detection of a bus reset.

12.1.6 Write/Read DMA Conﬁguration

This command deﬁnes the DMA conﬁguration of ISP1181 and enables/disables DMA transfers.The command accesses the DMA Conﬁguration Register, which consists of 2 bytes. The bit allocation is given in Table 26. A bus reset will clear bits DMAEN and AUTOLD (DMA and auto-restart disabled), all other bits remain unchanged.

ISP1181

Full-speed USB interface

Code (Hex): F0/F1 — write/read DMA Conﬁguration Transaction — write/read 2 bytes

Table 26: DMA Conﬁguration Register: bit allocation

Bit 15 14 13 12 11 10 9 8 Symbol CNTREN SHORTP reserved reserved reserved reserved reserved reserved Reset 0

[1]

Access R/W R/W R/W R/W R/W R/W R/W R/W Bit 7 6 5 4 3 2 1 0 Symbol EPDIX[3:0] DMAEN AUTOLD BURSTL[1:0] Reset 0

[1]

Access R/W R/W R/W R/W R/W R/W R/W R/W

[1] Unchanged by a bus reset.

[1]

000

[1]

Table 27: DMA Conﬁguration Register: bit description

Bit Symbol Description

15 CNTREN A logic 1 enables the generation of an EOT condition, when the

DMA Counter Register reaches zero. Bus reset value:

unchanged. 14 SHORTP A logic 1 enables short/empty packet mode. When receiving

(OUT endpoint) a short/empty packet an EOT condition is

generated. When transmitting (IN endpoint) an empty packet is

appended when needed. Bus reset value: unchanged. 13 to 8 - reserved 7 to 4 EPDIX[3:0] Indicates the destination endpoint for DMA, see Table 7.

9397 750 06896

Objective speciﬁcation Rev. 01 — 13 March 2000 30 of 69

Page 31

Philips Semiconductors

Table 27: DMA Conﬁguration Register: bit description

Bit Symbol Description

3 DMAEN Writing a logic 1 enables DMA transfer, a logic 0 forces the end

2 AUTOLD A logic 1 enables automatic restarting of DMA transfers. This bit

1 to 0 BURSTL[1:0] Selects the DMA burst length:

12.1.7 Write/Read DMA Counter

This command accesses the DMA Counter Register, which consists of 2 bytes. The bit allocation is given in Table 28.Writing to the register sets the number of bytes for a DMA transfer. Reading the register returns the number of remaining bytes in the current transfer. A bus reset will not change the programmed bit values.

ISP1181

Full-speed USB interface

of an ongoing DMA transfer and generates an EOT interrupt.

Reading this bit indicates whether DMA is enabled (0 = DMA

stopped, 1 = DMA enabled). This bit is cleared by a bus reset.

is cleared by a bus reset.

00 — single-cycle mode (1 byte)

01 — burst mode (4 bytes)

10 — burst mode (8 bytes)

11 — burst mode (16 bytes).

Bus reset value: unchanged.

The internal DMA counter is automatically reloaded from the DMA Counter Register, when DMA is re-enabled (DMAEN = 1) or upon completion of a DMA transfer, when auto-restart is enabled (AUTOLD = 1). See Section 12.1.6 for more details.

Code (Hex): F2/F3 — write/read DMA Counter Register Transaction — write/read 2 bytes

Table 28: DMA Counter Register: bit allocation

Bit 15 14 13 12 11 10 9 8 Symbol DMACRH[7:0] Reset 00000000 Access R/W R/W R/W R/W R/W R/W R/W R/W Bit 7 6 5 4 3 2 1 0 Symbol DMACRL[7:0] Reset 00000000 Access R/W R/W R/W R/W R/W R/W R/W R/W

Table 29: DMA Counter Register: bit description

Bit Symbol Description

15 to 8 DMACRH[7:0] DMA Counter Register (high byte) 7 to 0 DMACRL[7:0] DMA Counter Register (low byte)

9397 750 06896

Objective speciﬁcation Rev. 01 — 13 March 2000 31 of 69

Page 32

Philips Semiconductors

12.1.8 Reset Device

This command resets the ISP1181 in the same wayas an external hardware reset via input RESET. All registers are initialized to their ‘reset’ values.

Code (Hex): F6 — reset the device Transaction — none

12.2 Data ﬂow commands

Data ﬂow commands are used to manage the data transmission between the USB endpoints and the system microcontroller. Much of the data ﬂow is initiated via an interrupt to the microcontroller. The data ﬂow commands are used to access the endpoints and determine whether the endpoint FIFOs contain valid data.

Remark: The IN bufferof an endpoint contains input data for the host, the OUT buffer receives output data from the host.

12.2.1 Write/Read Endpoint Buffer

This command is used to access endpoint FIFO buffers for reading or writing. First, the buffer pointer is reset to the beginning of the buffer. Following the command, a maximum of (N + 2) bytes can be written or read, N representing the size of the endpoint buffer. For 16-bit access the maximum number of words is (M + 1), with M given by (N + 1) DIV 2. After each read/write action the buffer pointer is automatically incremented by 1 (8-bit bus width) or by 2 (16-bit bus width).

ISP1181

Full-speed USB interface

In DMA access the ﬁrst 2 bytes or the ﬁrst word (the packet length) are skipped: transfers start at the third byte or the second word of the endpoint buffer. When reading, the ISP1181 can detect the last byte/word via the EOP condition. When writing to a bulk/interrupt endpoint, the endpoint buffer must be completely ﬁlled beforesending the data to the host. Exception: when a DMA transferis stopped by an external EOT condition, the current buffer content (full or not) is sent to the host.

Remark: Reading data after a Write Endpoint Buffer command or writing data after a Read Endpoint Buffer command data will cause unpredictable behaviour of ISP1181.

Code (Hex): 01 to 0F — write (control IN, endpoint 1 to 14) Code (Hex): 10, 12 to 1F — read (control OUT, endpoint 1 to 14) Transaction — write/read maximum N + 2 bytes (isochronous endpoint: N ≤ 1023,

bulk/interrupt endpoint: N ≤ 32) The data in the endpoint FIFO must be organized as shown in Table 30. Examples of

endpoint FIFO access are given in Table 31 (8-bit bus) and Table 32 (16-bit bus).

9397 750 06896

Objective speciﬁcation Rev. 01 — 13 March 2000 32 of 69

Page 33

Philips Semiconductors

Table 30: Endpoint FIFO organization

Byte # (8-bit bus)

0 0 (lower byte) packet length (lower byte) 1 0 (upper byte) packet length (upper byte) 2 1 (lower byte) data byte 1 3 1 (upper byte) data byte 2

.. .. ..

(N + 1) M = (N + 1) DIV 2 data byte N

Table 31: Example of endpoint FIFO access (8-bit bus width)

A0 Phase Bus lines Byte # Description

1 command D[7:0] - command code (00H to 1FH) 0 data D[7:0] 0 packet length (lower byte) 0 data D[7:0] 1 packet length (upper byte) 0 data D[7:0] 2 data byte 1 0 data D[7:0] 3 data byte 2 0 data D[7:0] 4 data byte 3 0 data D[7:0] 5 data byte 4

.. .. .. .. ..

Word # (16-bit bus)

ISP1181

Full-speed USB interface

Description

Table 32: Example of endpoint FIFO access (16-bit bus width)

A0 Phase Bus lines Word # Description

1 command D[7:0] - command code (00H to 1FH)

D[15:8] - ignored 0 data D[15:0] 0 packet length 0 data D[15:0] 1 data word 1 (data byte 2, data byte 1) 0 data D[15:0] 2 data word 2 (data byte 4, data byte 3)

.. .. .. .. ..

Remark: There is no protection against writing or reading past a buffer’s boundary, against writing into an OUT buffer or reading from an IN buffer. Any of these actions could cause an incorrect operation. Data residing in an OUT buffer are only meaningful after a successful transaction. Exception: during DMA access of a double-buffered endpoint, the buffer pointer automatically points to the secondary buffer after reaching the end of the primary buffer.

12.2.2 Write/Read Endpoint Status

This command is used to read the status of the endpoint FIFO or stall the endpoint by writing. The command accesses the Endpoint Status Register, the bit allocation of which is shown in Table 33.

A stalled control endpoint is automatically unstalled when it receives a SETUP token, regardless of the packet content. If the endpoint should stay in its stalled state, the microcontroller can re-stall it with the Write Endpoint Status command.

9397 750 06896

Objective speciﬁcation Rev. 01 — 13 March 2000 33 of 69

Page 34

Philips Semiconductors

ISP1181

Full-speed USB interface

When a stalled endpoint is unstalled (either by the Set Endpoint Status command or by receiving a SETUP token), it is also re-initialized. This ﬂushes the buffer: in and if it is an OUT buffer it waits for a DATA 0 PID, if it is an IN buffer it writes a DATA 0 PID.

Code (Hex): 40 to 4F — write (control OUT, control IN, endpoint 1 to 14) Code (Hex): 50 to 5F — read (control OUT, control IN, endpoint 1 to 14) Transaction — write/read 1 byte

Table 33: Endpoint Status Register: bit allocation

Bit 7 6 5 4 3 2 1 0 Symbol EPSTAL EPFULL1 EPFULL0 reserved OVER

WRITE

Reset 00000000 Access R/W R R R/W R R R R/W

Table 34: Endpoint Status Register: bit description

Bit Symbol Description

7 EPSTAL Writing a logic 1 will stall the endpoint. The endpoint is

automatically unstalled upon reception of a SETUP token. Reading this bit indicates whether the endpoint is stalled or not

(1 = stalled, 0 = not stalled). 6 EPFULL1 A logic 1 indicates that the secondary endpoint buffer is full. 5 EPFULL0 A logic 1 indicates that the primary endpoint buffer is full. 4 - reserved 3 OVERWRITE This bit is set by hardware, a logic 1 indicating that a new Setup

packet has overwritten the previous setup information, before it

was acknowledged or before the endpoint was stalled. This bit is

cleared by reading, if writing the setup data has ﬁnished.

Firmware must check this bit before sending an Acknowledge

Setup command or stalling the endpoint. Upon reading a logic 1

the ﬁrmware must stop ongoing setup actions and wait fora new

Setup packet. 2 SETUPT A logic 1 indicates that the buffer contains a Setup packet. 1 CPUBUF This bit indicates which buffer is currently selected for CPU

access (0 = primary buffer, 1 = secondary buffer). 0 - reserved

SETUPT CPUBUF reserved

12.2.3 Validate Endpoint Buffer

This command signals the presence of validdata fortransmission to the USB host, by setting the Buffer Full ﬂag of the selected IN endpoint. This indicates that the data in the bufferis valid and can be sent to the host, when the next IN token is received. For a double-buffered endpoint this command switches the current FIFO for CPU access.

Remark: For special aspects of the control IN endpoint see Section 9.5. Code (Hex): 61 to 6F — validate endpoint buffer (control IN, endpoint 1 to 14) Transaction — none

9397 750 06896

Objective speciﬁcation Rev. 01 — 13 March 2000 34 of 69

Page 35

Philips Semiconductors

12.2.4 Clear Endpoint Buffer

This command unlocks and clears the buffer of the selected OUT endpoint, allowing the reception of new packets. Reception of a complete packet causes the Buffer Full ﬂag of an OUT endpoint to be set. Any subsequent packets are refused by returning a NAK condition, until the bufferis unlocked using this command. For a double-buffered endpoint this command switches the current FIFO for CPU access.

Remark: For special aspects of the control OUT endpoint see Section 9.5. Code (Hex): 70, 72 to 7F — clear endpoint buffer (control OUT, endpoint 1 to 14) Transaction — none

12.2.5 Check Endpoint Status

This command is used to check the status of the selected endpoint FIFO without clearing any status or interrupt bits. The command accesses the Endpoint Status Image Register, which contains a copy of the Endpoint Status Register. The bit allocation of the Endpoint Status Image Register is shown in Table 35.

Code (Hex): D0 to DF — check status (control OUT, control IN, endpoint 1 to 14)

ISP1181

Full-speed USB interface

Transaction — write/read 1 byte

Table 35: Endpoint Status Image Register: bit allocation

Bit 7 6 5 4 3 2 1 0 Symbol EPSTAL EPFULL1 EPFULL0 reserved OVER

WRITE

Reset 00000000 Access RRRRRRRR

Table 36: Endpoint Status Image Register: bit description

Bit Symbol Description

7 EPSTAL This bit indicates whether the endpoint is stalled or not

packet has overwritten the previous setup information, before it

was acknowledged or before the endpoint was stalled. This bit is

cleared by reading, if writing the setup data has ﬁnished.

Firmware must check this bit before sending an Acknowledge

Setup command or stalling the endpoint. Upon reading a logic 1

the ﬁrmware must stop ongoing setup actions and wait fora new

Setup packet. 2 SETUPT A logic 1 indicates that the buffer contains a Setup packet. 1 CPUBUF This bit indicates which buffer is currently selected for CPU

access (0 = primary buffer, 1 = secondary buffer). 0 - reserved

SETUPT CPUBUF reserved

9397 750 06896

Objective speciﬁcation Rev. 01 — 13 March 2000 35 of 69

Page 36

Philips Semiconductors

12.2.6 Acknowledge Setup

This command is acknowledges to the host that a Setup packet was received. It re-enables the Validate Buffer and Clear Buffer commands for the control IN and control OUT endpoints. These commands are disabled automatically when a Setup packet is received, see Section 9.5.

Remark: The Acknowledge Setup command must be sent to both control endpoints (IN and OUT).

Code (Hex): F4 — acknowledge setup Transaction — none

12.3 General commands

12.3.1 Read Endpoint Error Code

This command returns the status of the last transaction of the selected endpoint, as stored in the Error Code Register. Each new transaction overwrites the previous status information. The bit allocation of the Error Code Register is shown in Table 37.

ISP1181

Full-speed USB interface

Code (Hex): A0 to AF — read error code (control OUT, control IN, endpoint 1 to 14) Transaction — read 1 byte

Table 37: Error Code Register: bit allocation

Bit 7 6 5 4 3 2 1 0 Symbol UNREAD DATA01 reserved ERROR[3:0] RTOK Reset 00000000 Access RRRRRRRR

Table 38: Error Code Register: bit description

Bit Symbol Description

7 UNREAD A logic 1 indicates that a new event occurred before the

previous status was read. 6 DATA01 Indicates the PID type of the last successfully received packet

(0 = DATA0 PID, 1 = DATA1 PID). 5 - reserved 4 to 1 ERROR[3:0] Error code. For error description, see Table 39. 0 RTOK A logic 1 indicates that data was received or transmitted

successfully.

Table 39: Transaction error codes

Error code (Binary)

0000 no error 0001 PID encoding error; bits 7 to 4 are not the inverse of bits 3 to 0 0010 PID unknown; encoding is valid, but PID does not exist 0011 unexpected packet; packet is not of the expected type (token, data, or

Description

acknowledge), or is a SETUP token to a non-control endpoint

9397 750 06896

Objective speciﬁcation Rev. 01 — 13 March 2000 36 of 69

Page 37

Philips Semiconductors

Table 39: Transaction error codes

Error code (Binary)

0100 token CRC error 0101 data CRC error 0110 time-out error 0111 babble error 1000 unexpected end-of-packet 1001 sent or received NAK (Not AcKnowledge) 1010 sent Stall; a token was received, but the endpoint was stalled 1011 overﬂow; the received packet was larger than the available buffer space 1100 sent empty packet (ISO only) 1101 bit stufﬁng error 1110 sync error 1111 wrong (unexpected) toggle bit in DATA PID; data was ignored

12.3.2 Unlock Device

This command unlocks the ISP1181 from write-protection mode after a ‘resume’. In ‘suspend’ state all registers and FIFOs are write-protected to prevent data corruption by external devices during a ‘resume’. Register access for reading is not blocked.

ISP1181

Full-speed USB interface

Description

After waking up from ‘suspend’ state, the ﬁrmware must unlock the registers and FIFOs via this command, by writing the unlock code (AA37H) into the Lock Register (8-bit bus: lower byte ﬁrst). The bit allocation of the Lock Register is given in Table 40.

Code (Hex): B0 — unlock the device Transaction — write 2 bytes (unlock code)

Table 40: Lock Register: bit allocation

Bit 15 14 13 12 11 10 9 8 Symbol UNLOCKH[7:0] = AAH Reset 10101010 Access WWWWWWWW Bit 7 6 5 4 3 2 1 0 Symbol UNLOCKL[7:0] = 37H Reset 00110111 Access WWWWWWWW

Table 41: Error Code Register: bit description

Bit Symbol Description

15 to 0 UNLOCK[15:0] Sending data AA37H unlocks the internal registers and FIFOs

for writing, following a ‘resume’.

9397 750 06896

Objective speciﬁcation Rev. 01 — 13 March 2000 37 of 69

Page 38

Philips Semiconductors

ISP1181

Full-speed USB interface

12.3.3 Write/Read Scratch Register

This command accesses the 16-bit Scratch Register, which can be used by the ﬁrmware to save and restore information, e.g. the device status before powering down in ‘suspend’ state. The register bit allocation is given in Table 42.

Code (Hex): B2/B3 — write/read Scratch Register Transaction — write/read 2 bytes

Table 42: Scratch Information Register: bit allocation

Bit 15 14 13 12 11 10 9 8 Symbol SFIRH[7:0] Reset 00000000 Access R/W R/W R/W R/W R/W R/W R/W R/W Bit 7 6 5 4 3 2 1 0 Symbol SFIRL[7:0] Reset 00000000 Access R/W R/W R/W R/W R/W R/W R/W R/W

Table 43: Scratch Information Register: bit description

Bit Symbol Description

15 to 8 SFIRH[7:0] Scratch Information Register (high byte) 7 to 0 SFIRL[7:0] Scratch Information Register (low byte)

12.3.4 Read Frame Number

This command returns the frame number of the last successfully received SOF. It is followedby reading one or two bytes from the Frame Number Register, containing the frame number (lower byte ﬁrst). The Frame Number Register is shown in Table 44.

Remark: After a bus reset, the value of the Frame Number Register is undeﬁned. Code (Hex): B4 — read frame number Transaction — read 1 or 2 bytes

Table 44: Frame Number Register: bit allocation

Bit 15 14 13 12 11 10 9 8 Symbol reserved reserved reserved reserved reserved SOFRH[2:0]

[1]

Reset Access RRRRRRRR Bit 7 6 5 4 3 2 1 0 Symbol SOFRL[7:0]

[1]

Reset Access RRRRRRRR

00000000

[1] Reset value undeﬁned after a bus reset.

9397 750 06896

Objective speciﬁcation Rev. 01 — 13 March 2000 38 of 69

Page 39

Philips Semiconductors

Table 45: Example of Frame Number Register access (8-bit bus width)

A0 Phase Bus lines Byte # Description

1 command D[7:0] - command code (B4H) 0 data D[7:0] 0 frame number (lower byte) 0 data D[7:0] 1 frame number (upper byte)

Table 46: Example of Frame Number Register access (16-bit bus width)

A0 Phase Bus lines Word # Description

1 command D[7:0] - command code (B4H)

0 data D[15:0] 0 frame number

12.3.5 Read Chip ID

This command reads the chip identiﬁcation code and hardware version number. The ﬁrmware must check this information to determine the supported functions and features. This command accesses the Chip ID Register, which is shown in Table 47.

Code (Hex): B5 — read chip ID

ISP1181

Full-speed USB interface

D[15:8] - ignored

Transaction — read 2 bytes

Table 47: Chip ID Register: bit allocation

Bit 15 14 13 12 11 10 9 8 Symbol CHIPIDH[7:0] Reset <tbd> Access RRRRRRRR Bit 7 6 5 4 3 2 1 0 Symbol CHIPIDL[7:0] Reset <tbd> Access RRRRRRRR

Table 48: Scratch Information Register: bit description

Bit Symbol Description

15 to 8 CHIPIDH[7:0] Chip ID Register (high byte) 7 to 0 CHIPIDL[7:0] Chip ID Register (low byte)

12.3.6 Read Interrupt Register

This command indicates the sources of interrupts as stored in the 4-byte Interrupt Register. Each individual endpoint has its own interrupt bit. The bit allocation of the Interrupt Register is shown in Table 49. Bit BUSTATUS is used to verify the current bus status in the interrupt service routine. Interrupts are enabled via the Interrupt Enable Register, see Section 12.1.5.

Code (Hex): C0 — read interrupt register Transaction — read 4 bytes

9397 750 06896

Objective speciﬁcation Rev. 01 — 13 March 2000 39 of 69

Page 40

Philips Semiconductors

ISP1181

Full-speed USB interface

Table 49: Interrupt Register: bit allocation

Bit 31 30 29 28 27 26 25 24 Symbol reserved reserved reserved reserved reserved reserved reserved reserved Reset 00000000 Access RRRRRRRR Bit 23 22 21 20 19 18 17 16 Symbol EP14 EP13 EP12 EP11 EP10 EP9 EP8 EP7 Reset 00000000 Access RRRRRRRR Bit 15 14 13 12 11 10 9 8 Symbol EP6 EP5 EP4 EP3 EP2 EP1 EP0IN EP0OUT Reset 00000000 Access RRRRRRRR Bit 7 6 5 4 3 2 1 0 Symbol BUSTATUS reserved NOSOF SOF EOT SUSPND RESUME RESET Reset 00000000 Access RRRRRRRR

Table 50: Interrupt Register: bit description

Bit Symbol Description

31 to 24 - reserved 23 to 10 EP14 to EP1 A logic 1 indicates the interrupt source(s): endpoint 14 to 1 9 EP0IN A logic 1 indicates the interrupt source: control IN endpoint 8 EP0OUT A logic 1 indicates the interrupt source: control OUT endpoint 7 BUSTATUS Monitors the current USB bus status (0 = awake, 1 = suspend). 6 - reserved 5 NOSOF A logic 1 indicates that an SOF was lost; interrupt is issued

every 1 ms; after 3 missed SOFs ‘suspend’ state is entered. 4 SOF A logic 1 indicates that a SOF condition was detected. 3 EOT A logic 1 indicates that an internal EOTcondition was generated

by the DMA Counter reaching zero. 2 SUSPND A logic 1 indicates that an ‘awake’ to ‘suspend’ change of state

was detected on the USB bus. 1 RESUME A logic 1 indicates that a ‘resume’ state was detected. 0 RESET A logic 1 indicates that a bus reset condition was detected,

9397 750 06896

Objective speciﬁcation Rev. 01 — 13 March 2000 40 of 69

Page 41

Philips Semiconductors

13. Interrupts

Figure 10 shows the interrupt logic of the ISP1181. Each of the indicated USB events

is logged in a status bit of the Interrupt Register. Corresponding bits in the Interrupt Enable Register determine whether or not an event will generate an interrupt.

Interrupts can be masked globally by means of the INTENA bit of the Mode Register (see Table 21).

The active level and signalling mode of the INT output is controlled by the INTPOL and INTLVL bits of the Hardware Conﬁguration Register (see Table 23). Default settings after reset are active LOW and level mode. When pulse mode is selected, a pulse of 83 ns is generated when the OR-ed combination of all interrupt bits changes from logic 0 to logic 1.

ISP1181

Full-speed USB interface

handbook, full pagewidth

interrupt register

interrupt enable

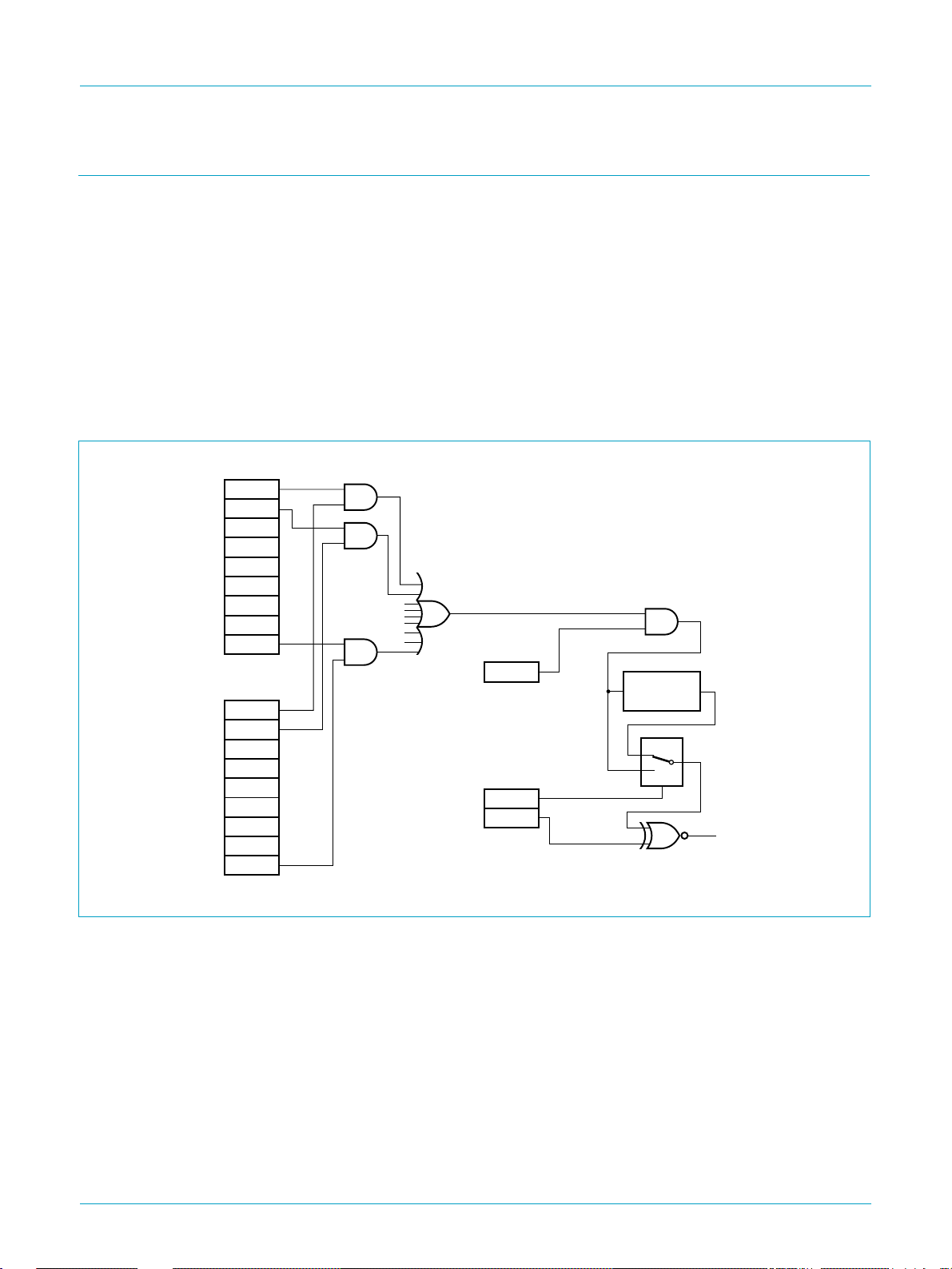

Fig 10. Interrupt logic.

RESET SUSPND RESUME

SOF

EP14

...

EP0IN

EP0OUT

EOT

IERST

IESUSP

IERESM

IESOF IEP14

...

IEP0IN IEP0OUT

IEEOT

. . .

device mode

INTENA

hardware configuration

INTPOL

PULSE

GENERATOR

INT

MGS772

Bits RESET, RESUME, EOT and SOF are cleared upon reading the Interrupt Register.The endpoint bits (EP0OUT to EP14) are cleared by reading the associated Endpoint Status Register.

Bit BUSTATUS follows the USB bus status exactly, allowing the ﬁrmware to get the current bus status when reading the Interrupt Register.

SETUP and OUT token interrupts are generated after ISP1181 has acknowledged the associated data packet. In bulk transfer mode, the ISP1181 will issue interrupts for every ACK received for an OUT token or transmitted for an IN token.

9397 750 06896

Objective speciﬁcation Rev. 01 — 13 March 2000 41 of 69

Page 42

Philips Semiconductors

In isochronous mode, an interrupt is issued upon each packet transaction. The ﬁrmware must take care of timing synchronization with the host. This can be done via the loss of Start-Of-Frame (NOSOF) interrupt, enabled via bit IENOSOF in the Interrupt Enable Register. If a Start-Of-Frame is lost, NOSOF interrupts are generated every 1 ms. This allows the ﬁrmware to keep data transfer synchronized with the host. After 3 missed SOF events the ISP1181 will enter ‘suspend’ state.

An alternative way of handling isochronous data transfer is to enable both the SOF and the NOSOF interrupts and disable the interrupt for each isochronous endpoint.

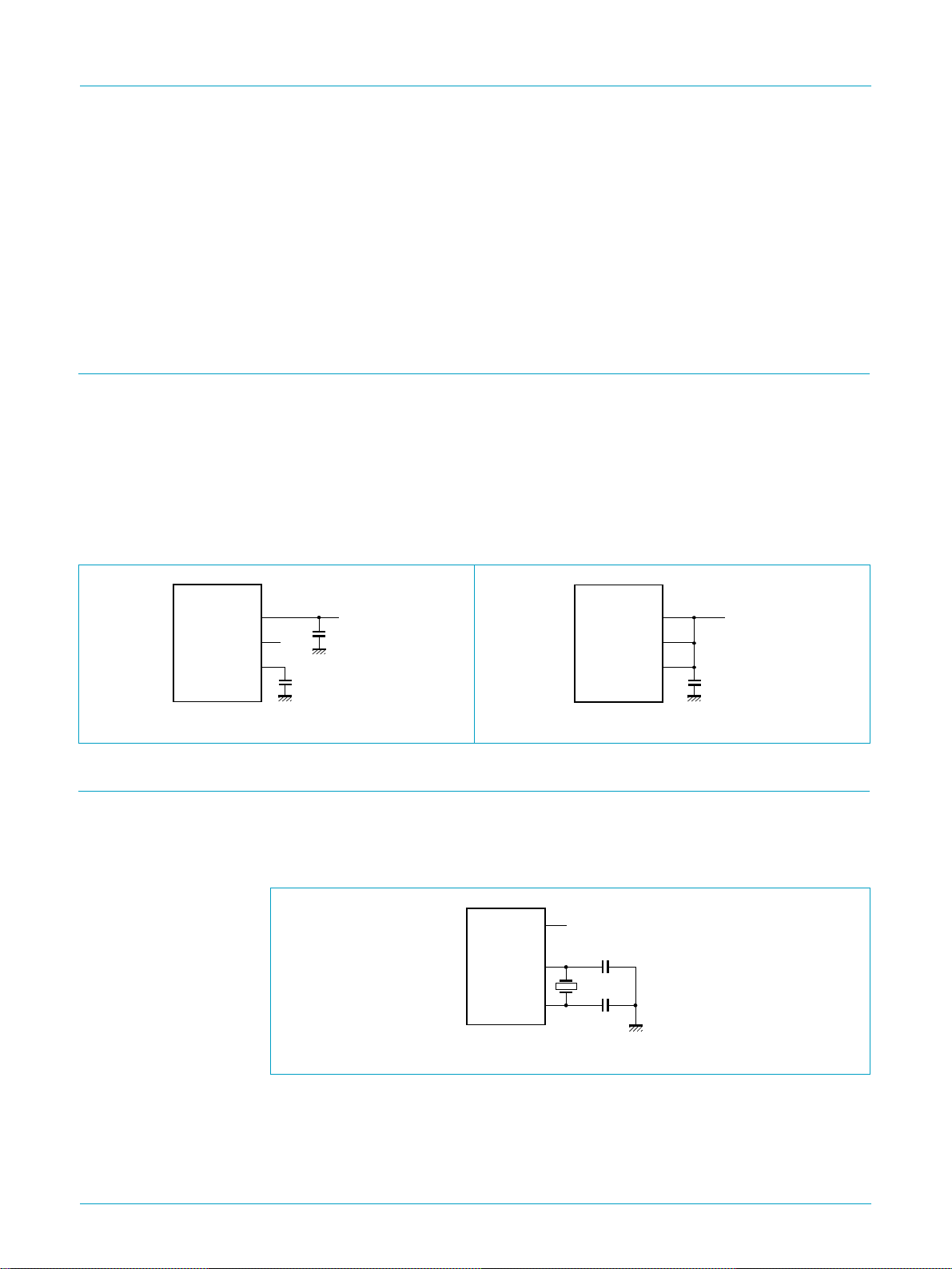

14. Power supply

The ISP1181 is powered from a single supply voltage, ranging from 4.0 to 5.5 V. An integrated voltage regulator provides a 3.3 V supply voltage for the internal logic and the USB transceiver. This voltage is available at pin V external pull-up resistor on USB connection D+. See Figure 11.

The ISP1181 can also be operated from a 3.0 to 3.6 V supply, as shown in Figure 12. In that case the internal voltage regulator is disabled and pin V connected to VCC.

ISP1181

Full-speed USB interface

for connecting an

reg(3.3)

must be

reg(3.3)

handbook, halfpage

ISP1181

CC(5.0)

CC(3.3)

reg(3.3)

4.0 to 5.5 V

n.c.

MGS773

handbook, halfpage

ISP1181

CC(5.0)

CC(3.3)

reg(3.3)

3.0 to 3.6 V

MGS774

Fig 11. ISP1181 with a 4.0 to 5.5 V supply. Fig 12. ISP1181 with a 3.0 to 3.6 V supply.

15. Crystal oscillator and LazyClock

The ISP1181 has a crystal oscillator designed for a 6 MHz parallel-resonant crystal (fundamental). A typical circuit is shown in Figure 13. Alternatively, an external clock signal of 6 MHz can be applied to input XTAL1, while leaving output XTAL2 open.

handbook, halfpage

CLKOUT

ISP1181

XTAL2

XTAL1

18 pF

6 MHz

18 pF

MGS777

Fig 13. Typical oscillator circuit.

The 6 MHz oscillator frequency is multiplied to 48 MHz by an internal PLL. This frequency is used to generate a programmable clock output signal at pin CLKOUT, ranging from 3 to 48 MHz.

9397 750 06896

Objective speciﬁcation Rev. 01 — 13 March 2000 42 of 69

Page 43

Philips Semiconductors

In ‘suspend’ state the normal CLKOUT signal is not available, because the crystal oscillator and the PLL are switched off to save power. Instead, the CLKOUT signal can be switched to the LazyClock frequency of 24 kHz.

The oscillator operation and the CLKOUT frequency are controlled via the Hardware Conﬁguration Register, as shown in Figure 14. The following bits are involved:

•

ISP1181

Full-speed USB interface

CLKRUN switches the oscillator on and off CLKDIV[3:0] is the division factor determining the normal CLKOUT frequency NOLAZY controls the LazyClock signal output during ‘suspend’ state.

handbook, full pagewidth

hardware

configuration

CLKRUN

. . .

CKDIV[3:0

. . .

NOLAZY

SUSPEND

]

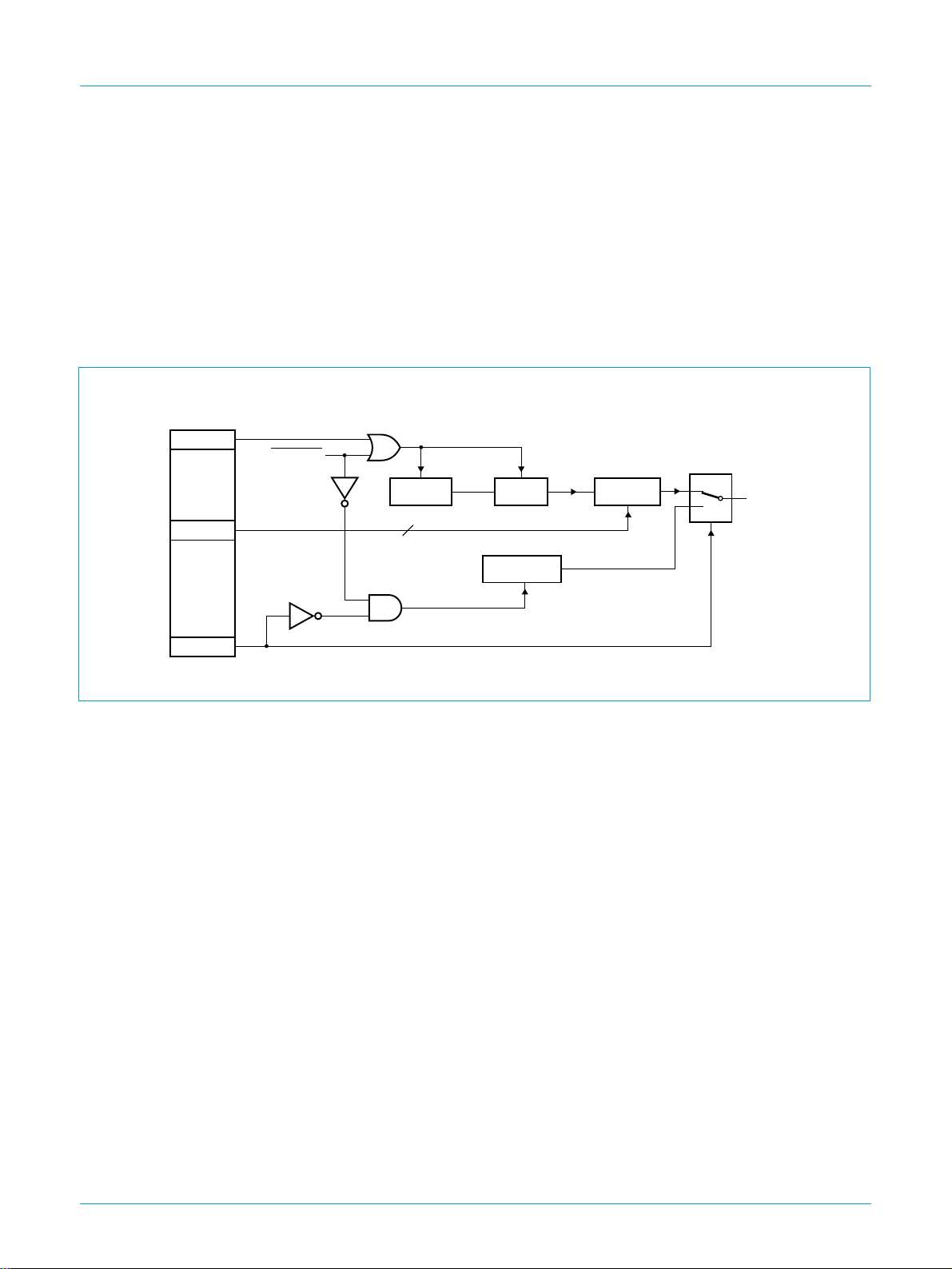

Fig 14. Oscillator and LazyClock logic.

When ISP1181 enters ‘suspend’ state (by setting and clearing bit GOSUSP in the Mode Register), outputs SUSPEND and CLKOUT change state after approximately 2 ms delay. When NOLAZY = 0 the clocksignal on output CLKOUTdoes not stop,but changes to the 24 kHz LazyClock frequency.

When resuming from ‘suspend’ state by a positive pulse on input WAKEUP, output SUSPEND is cleared and the clock signal on CLKOUT restarted after a 0.5 ms delay. The timing of the CLKOUT signal at ‘suspend’ and ‘resume’ is given in Figure 15.

enable

6 MHz

enable

PLL 8×XTAL OSC

LAZYCLOCK

enable

48 MHz

24 kHz

÷ (N + 1)

CLKOUT

NOLAZY

MGS775

9397 750 06896

Objective speciﬁcation Rev. 01 — 13 March 2000 43 of 69

Page 44

Philips Semiconductors

ISP1181

Full-speed USB interface

handbook, full pagewidth

GOSUSP

WAKEUP

1.8 to 2.2 ms

SUSPEND

CLKOUT

If enabled, the 24 kHz LazyClock frequency will be output on pin CLKOUT during ‘suspend’ state.

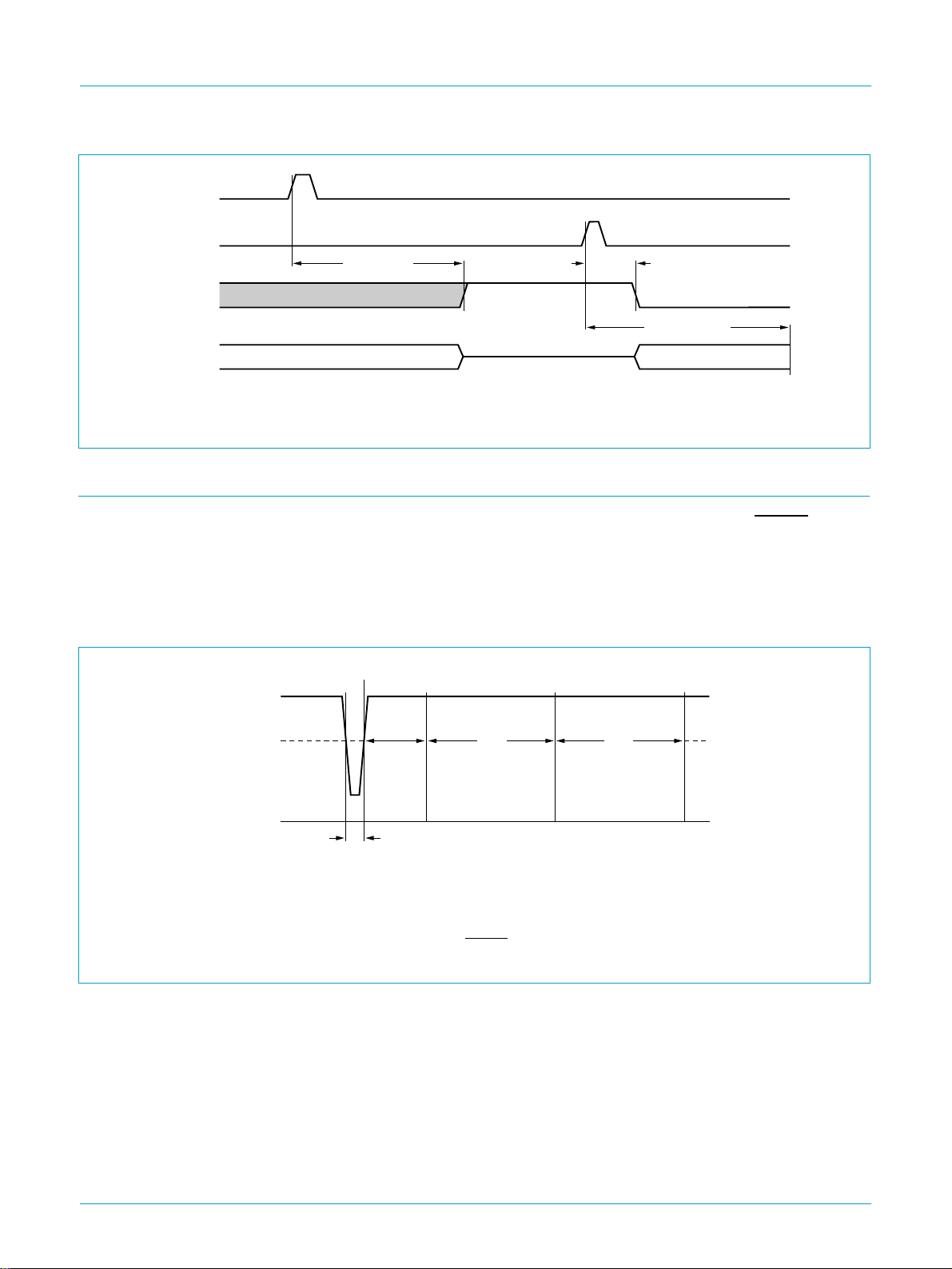

Fig 15. CLKOUT signal timing at ‘suspend’ and ‘resume’.

16. Power-on reset

The ISP1181 has an internal power-on reset (POR) circuit. Input pin RESET can be directly connected to VCC. The clock signal on output CLKOUT starts 0.5 ms after power-on and normally requires 3 to 4 ms to stabilize.

The triggering voltage of the POR circuit is 2.0 V nominal. A POR is automatically generated when VCC goes below the trigger voltage for a duration longer than 50 µs.

0.5 ms

PLL circuit stable

3 to 4 ms

MGS776

handbook, full pagewidth

2.0 V

0 V

(1)

POR

> 50 µs

≤ 350 µs

t1: clock is running t2: BUS_CONF pins are sampled t3: registers are accessible (1) Supply voltage (5 V or 3.3 V), connected externally to pin RESET.

Fig 16. Power-on reset timing.

A hardware reset disables all USB endpoints and clears all ECRs, except for the control endpoint which is ﬁxed and always enabled. Section 9.3 explains how to (re)initialize the endpoints.

1 ms

MGT026

9397 750 06896

Objective speciﬁcation Rev. 01 — 13 March 2000 44 of 69

Page 45

Philips Semiconductors

ISP1181

Full-speed USB interface

17. Limiting values

Table 51: Absolute maximum ratings

In accordance with the Absolute Maximum Rating System (IEC 60134).

Symbol Parameter Conditions Min Max Unit

latchup

esd

stg

tot

[1] Equivalent to discharging a 100 pF capacitor via a 1.5 kΩ resistor. [2] Values are given for device only; in-circuit V [3] For open-drain pins V

Table 52: Recommended operating conditions

Symbol Parameter Conditions Min Max Unit

I(AI/O)

O(od)

amb

supply voltage −0.5 +6.0 V input voltage −0.5 VCC+ 0.5 V latchup current VI< 0 or VI>V electrostatic discharge voltage ILI<15µA

- 200 mA

[1] [2]

- ±4000

[3]

V storage temperature −60 +150 °C total power dissipation - <tbf> mW

= ±8000 V.

esd(max)

= ±2000 V.

esd(max)

supply voltage 4.0 5.5 V input voltage 0 5.5 V input voltage on analog I/O pins

0 3.6 V

(D+/D−) open-drain output pull-up voltage 0 V

operating ambient temperature −40 +85 °C

18. Static characteristics

Table 53: Static characteristics; supply pins

VCC= 4.0 to 5.5 V; V

Symbol Parameter Conditions Min Typ Max Unit

reg(3.3)

) suspend supply current 1.5 kΩ pull-up on upstream

CC(susp

[1] In ‘suspend’ mode the minimum voltage is 2.7 V.

regulated supply voltage 3.0 operating supply current - <tbf> - mA

Table 54: Static characteristics: digital pins

VCC= 4.0 to 5.5 V; V

Symbol Parameter Conditions Min Typ Max Unit

Input levels

LOW-level input voltage - - 0.8 V HIGH-level input voltage 2.0 - - V

GND

=0V; T

=−40 to+85°C; unless otherwise speciﬁed.

amb

port D+ (pin DP0) no pull-up on upstream port

D+ (pin DP0)

=−40 to+85°C; unless otherwise speciﬁed.

amb

[1]

3.3 3.6 V

- - <tbf> µA

9397 750 06896

Objective speciﬁcation Rev. 01 — 13 March 2000 45 of 69

Page 46

Philips Semiconductors

ISP1181

Full-speed USB interface

Table 54: Static characteristics: digital pins

VCC= 4.0 to 5.5 V; V

Symbol Parameter Conditions Min Typ Max Unit

Schmitt trigger inputs

th(LH)

positive-going threshold voltage

th(HL)

negative-going threshold voltage

hys

hysteresis voltage 0.4 - 0.7 V

Output levels

LOW-level output voltage (open drain outputs)

Leakage current

input leakage current - - ±5 µA

Open-drain outputs

OFF-state output current - - ±5 µA

GND

=0V; T

=−40 to+85°C; unless otherwise speciﬁed.

amb

IOL= rated drive - - 0.4 V

=20µA - - 0.1 V

1.4 - 1.9 V

0.9 - 1.5 V

Table 55: Static characteristics: analog I/O pins (D+, D−)

VCC= 4.0 to 5.5 V; V

GND

=0V; T

=−40 to+85°C; unless otherwise speciﬁed.

amb

[1]

Symbol Parameter Conditions Min Typ Max Unit

Input levels

differential input sensitivity |V

differential common mode

− V

I(D+)

| 0.2 - - V

I(D−)

includes VDI range 0.8 - 2.5 V

voltage V

LOW-level input voltage - - 0.8 V

HIGH-level input voltage 2.0 - - V

Output levels

LOW-level output voltage RL= 1.5 kΩ to +3.6V - - 0.3 V

HIGH-level output voltage RL=15kΩ to GND 2.8 - 3.6 V

Leakage current

OFF-state leakage current - - ±10 µA

Capacitance

transceiver capacitance pin to GND - - 20 pF

Resistance

[2]

DRV

INP

pull-up resistance on D+ SoftConnect = ON 1.1 - 1.9 kΩ

driver output impedance steady-state drive 29 - 44 Ω

input impedance 10 - - MΩ

Termination

TERM

[3]

termination voltage for

upstream port pull-up (R

)

3.0

[4]

- 3.6 V

[1] D+ is the USB positive data pin; D− is the USB negative data pin. [2] Includes external resistors of 22 Ω±1% on both D+ and D−. [3] This voltage is available at pin V [4] In ‘suspend’ mode the minimum voltage is 2.7 V.

9397 750 06896

Objective speciﬁcation Rev. 01 — 13 March 2000 46 of 69

reg(3.3)

Page 47

Philips Semiconductors

ISP1181

Full-speed USB interface

19. Dynamic characteristics

Table 56: Dynamic characteristics

VCC= 4.0 to 5.5 V; V

Symbol Parameter Conditions Min Typ Max Unit

Reset

W(RESET)

pulse width on input RESET crystal oscillator running <tbf> - - µs

Crystal oscillator

XTAL

[1] Dependent on the crystal oscillator start-up time.

crystal frequency - 6 - MHz

Table 57: Dynamic characteristics: analog I/O pins (D+, D−)

VCC= 4.0 to 5.5 V; V

Symbol Parameter Conditions Min Typ Max Unit

Driver characteristics

rise time CL=50pF;

fall time CL=50pF;

FRFM differential rise/fall time

matching (t V

CRS

output signal crossover voltage

Data source timing

FEOPT

FDEOP

source EOP width see Figure 17

sourcedifferentialdata-to-EOP

transition skew

Receiver timing

JR1

receiverdata jitter tolerance for

consecutive transitions t

JR2

receiverdata jitter tolerance for

paired transitions t

FEOPR

FST

receiver SE0 width accepted as EOP;

width of SE0 during differential

transition

GND

=0V; T

=0V;T

FR/tFF

=−40 to+85°C; unless otherwise speciﬁed.

amb

crystal oscillator stopped - <tbf>

=−40 to+85°C; CL= 50 pF; RPU= 1.5 kΩon D+to V

amb

4 - 20 ns

10 to 90% of |V

− VOL| 4 - 20 ns

90 to 10% of |V

− VOL|

[2]

90 - 111.11 %

)

[2] [3]

1.3 - 2.0 V

[3]

160 - 175 ns

see Figure 17

see Figure 18

[3]

−2- +5ns

[3]

−18.5 - +18.5 ns

[3]

−9- +9ns

[3]

82--ns

see Figure 17 rejected as EOP;

[3]

--14ns

see Figure 19

[1]

-ms

.; unless otherwise speciﬁed.

TERM

[1] Test circuit: see Figure 38. [2] Excluding the ﬁrst transition from Idle state. [3] Characterized only, not tested. Limits guaranteed by design.

9397 750 06896

Objective speciﬁcation Rev. 01 — 13 March 2000 47 of 69

Page 48

Philips Semiconductors

ISP1181

Full-speed USB interface

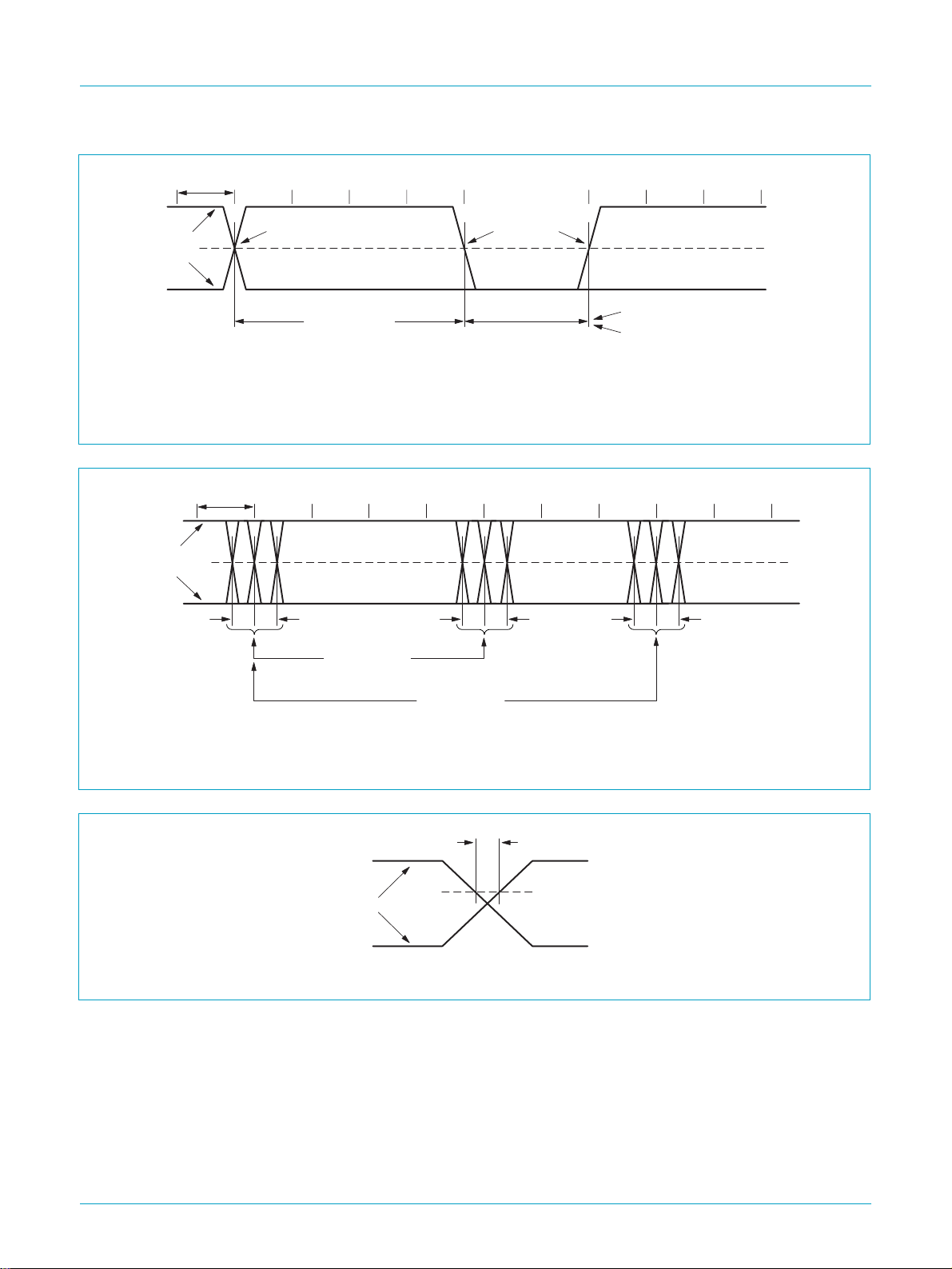

andbook, full pagewidth

+3.3 V

PERIOD

differential data lines

0 V

crossover point

differential data to

SE0/EOP skew

N × T

PERIOD

+ t

DEOP

is the bit duration corresponding with the USB data rate.

crossover point

extended

Full-speed timing symbols have a subscript preﬁx ‘F’, low-speed timings a preﬁx ‘L’.

Fig 17. Source differential data-to-EOP transition skew and EOP width.

0 V

PERIOD

N × T

consecutive

transitions PERIOD

+ t

JR1

N × T

paired

transitions PERIOD

+ t

JR2

JR1

handbook, full pagewidth

+3.3 V

differential data lines

source EOP width: t receiver EOP width: t

JR2

EOPT

EOPR

MGR776

MGR871

is the bit duration corresponding with the USB data rate.

PERIOD

Fig 18. Receiver differential data jitter.

handbook, halfpage

+3.3 V

differential data lines

0 V

FST

IH(min)

MGR872

Fig 19. Receiver SE0 width tolerance.

9397 750 06896

Objective speciﬁcation Rev. 01 — 13 March 2000 48 of 69

Page 49

Philips Semiconductors

19.1 Timing symbols

Table 58: Legend for timing characteristics

Symbol Description

Time symbols

t time T cycle time (periodic signal)

Signal names

A address;

C clock;

D data input;

E chip enable G output enable I instruction (program memory content);

L address latch enable (ALE) P program store enable (

Q data output R read signal (

S chip select W write signal (

U undeﬁned Y output (general)

Logic levels

H logic HIGH L logic LOW P stop, not active (OFF) S start, active (ON) V valid logic level X invalid logic level Z high-impedance (ﬂoating, three-state)

ISP1181

Full-speed USB interface

DMA acknowledge (DACK)

command

data

input (general)

PSEN, active LOW);

propagation delay

RD, active LOW); read (action); DMA request (DREQ)

WR, active LOW); write (action); pulse width

9397 750 06896

Objective speciﬁcation Rev. 01 — 13 March 2000 49 of 69

Page 50

Philips Semiconductors

ISP1181

Full-speed USB interface

19.2 Parallel I/O timing

Table 59: Dynamic characteristics: parallel interface timing

Symbol Parameter Conditions 8-bit bus 16-bit bus Unit

Min Max Min Max

Read timing (see Figure 20 and Figure 21)

RHAX

AVRL

SHDZ

RLRH

RLDV

SHRL1

SHRL2

YHRH

Write timing (see Figure 22 and Figure 23)

WHAX

AVWL

SHWL1

SHWL2

WLWH

WHSH

DVWH

WHDZ

ALE timing (see Figure 24)

AVLL

LLAX

address hold after RD HIGH 3 - 3 - ns address setup before RD LOW 0 - 0 - ns data outputs high-impedance

CS HIGH

after

-3-3ns

RD pulse width 25 - 25 - ns data valid after RD LOW - 22 - 22 ns read interval after CS HIGH read interval after CS HIGH output READY HIGH before

[1]

READY pulsing 22 - 22 - ns

[1]

READY = HIGH 90 - 180 - ns

0- 0- ns

RD HIGH read cycle duration - 90 - 180 ns

address hold after WR HIGH 3 - 3 - ns address setup before WR LOW 0 - 0 - ns write interval after CS HIGH write interval after CS HIGH

[2]

READY pulsing 22 - 22 - ns

[2]

READY = HIGH 90/180

[3]

- 180 - ns WR pulse width 22 - 22 - ns chip deselect after WR HIGH 0 - 0 - ns data setup before WR HIGH 5 - 5 - ns data hold after WR HIGH 3 - 3 - ns write cycle duration - 90/180

[3]

- 180 ns

ALE pulse width 20 - 20 - ns address setup before ALE

10 - 10 - ns

LOW address hold after ALE LOW reading 0 10 0 10 ns

writing 0 - 0 - ns

[1] Measured from CS going HIGH to CS and RD both going LOW. [2] Measured from CS going HIGH to CS and WR both going LOW. [3] Commands Acknowledge Setup, Clear Buffer, Validate Buffer and Write Endpoint Conﬁguration require 180 ns to complete.

9397 750 06896

Objective speciﬁcation Rev. 01 — 13 March 2000 50 of 69

Page 51

Philips Semiconductors

ISP1181

Full-speed USB interface

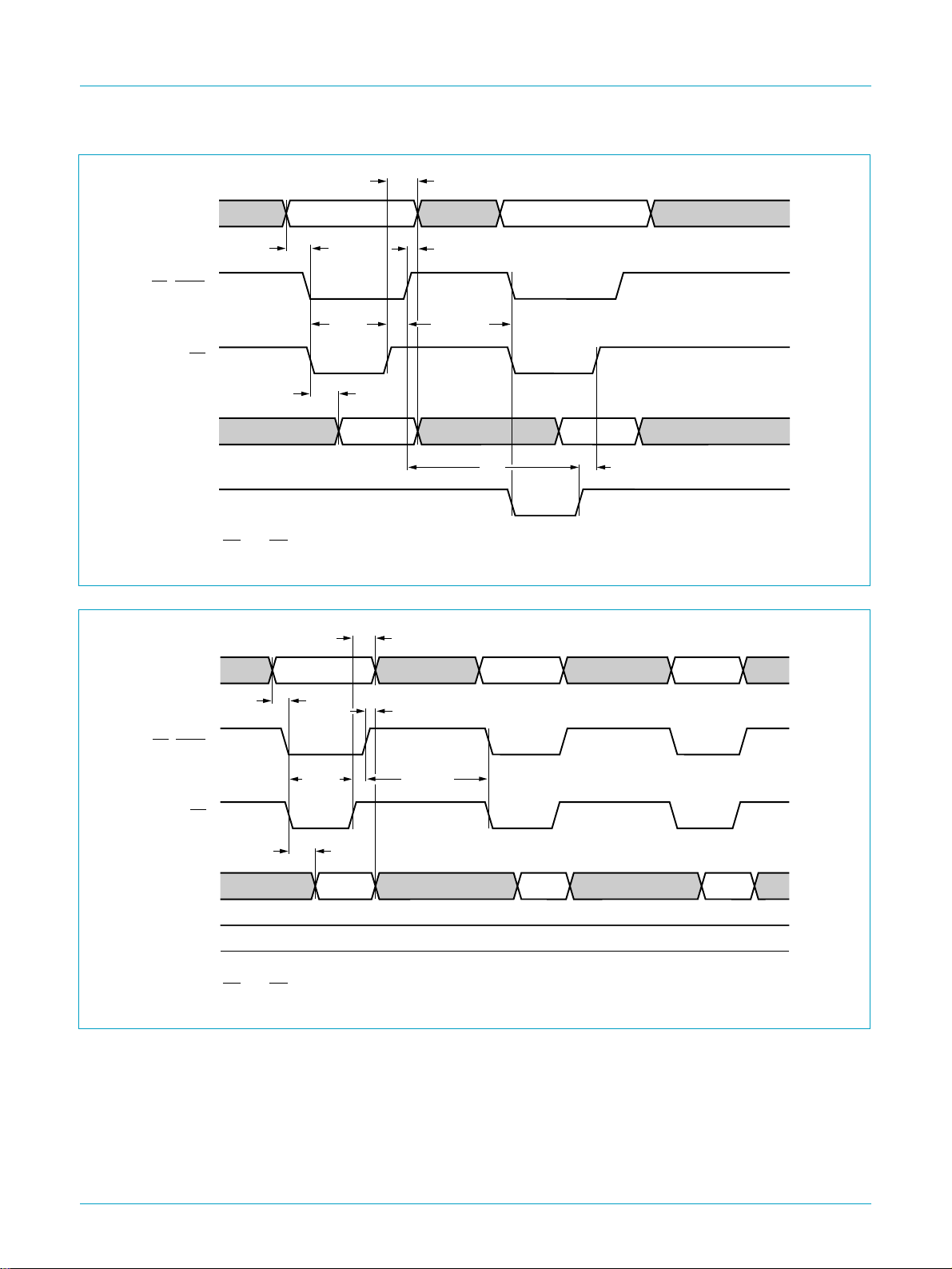

handbook, full pagewidth

CS/DACK

DATA

READY

(1) For t

SHRL

AVRL

RLRH

RLDV

both CS and RD must be LOW.

RHAX

SHDZ

SHRL1

(1)

YHRH

Fig 20. Parallel interface read timing (I/O and 8237 compatible DMA) with READY.

handbook, full pagewidth

RHAX

MGS786

(1) For t

CS/DACK

RLDV

DATA

READY

both CS and RD must be LOW.

SHRL

AVRL

RLRH

SHDZ

SHRL2

(1)

Fig 21. Parallel interface read timing (I/O and 8237 compatible DMA) without READY.

MGS787

9397 750 06896

Objective speciﬁcation Rev. 01 — 13 March 2000 51 of 69

Page 52

Philips Semiconductors

ISP1181

Full-speed USB interface

handbook, full pagewidth

CS/DACK

DATA

READY

(1) For t

SHRL

AVWL

WLWH

DVWH

both CS and WR must be LOW.

WHAX

SHWL1

WHSH

WHDZ

(1)

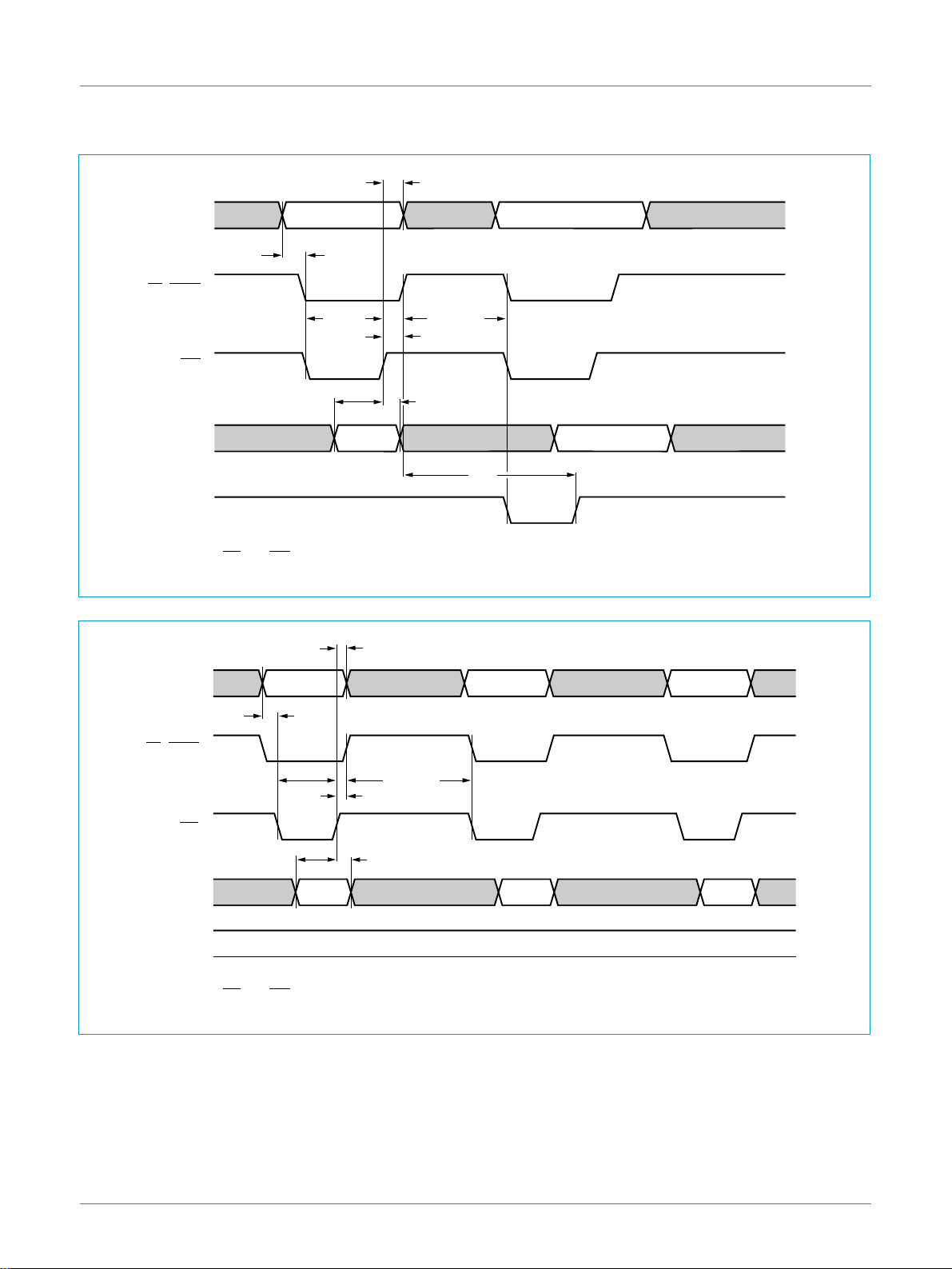

Fig 22. Parallel interface write timing (I/O and 8237 compatible DMA) with READY.

MGS788

handbook, full pagewidth

CS/DACK

DATA

READY

(1) For t

SHRL

AVWL

WLWH

DVWH

both CS and WR must be LOW.

WHAX

WHSH

WHDZ

SHWL2

(1)

Fig 23. Parallel interface write timing (I/O and 8237 compatible DMA) without READY.

MGS789

9397 750 06896

Objective speciﬁcation Rev. 01 — 13 March 2000 52 of 69

Page 53

Philips Semiconductors

handbook, full pagewidth

ALE

ISP1181

Full-speed USB interface

LLAX

AVLL

DATA

A0 D0

MGS790

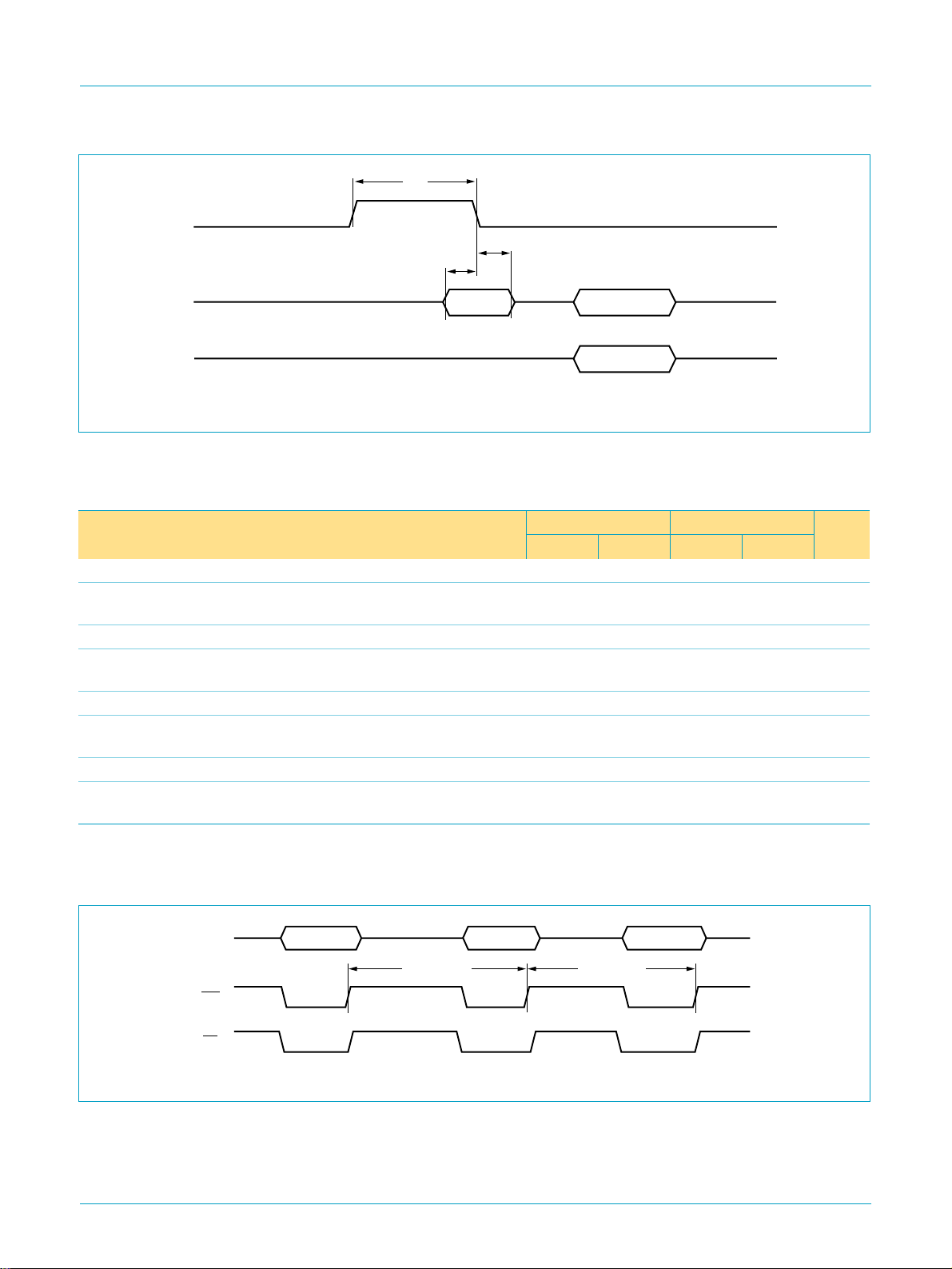

Fig 24. ALE timing.

19.3 Access cycle timing

Table 60: Dynamic characteristics: access cycle timing

Symbol Parameter Conditions 8-bit bus 16-bit bus Unit

Write command + write data (see Figure 25 and Figure 26)

cy(WC-WD)

cycle time for write command, then write data

cy(WD-WD)

cy(WD-WC)

cycle time for write data 90 - 180 - ns cycle time for write data, then

write command

Write command + read data (see Figure 27 and Figure 28)

cy(WC-RD)

cycle time for write command, then read data

cy(RD-RD)

cy(RD-WC)

cycle time for read data 90 - 180 - ns cycle time for read data, then

write command

[1]

Min

100

Max Min

[2]

- 200 - ns

90 - 180 - ns

[2]

100

- 200 - ns

90 - 180 - ns

[1]

Max

[1] If the access cycle time is less than speciﬁed, the READY signal will be LOW until the internal processing has ﬁnished. [2] Commands Acknowledge Setup, Clear Buffer, Validate Buffer and Write Endpoint Conﬁguration require 180 ns to complete.

handbook, full pagewidth

DATA

command

cy(WC-WD)

cy(WD-WD)

datadata

MGT022

Fig 25. Write command + write data cycle timing.

9397 750 06896

Objective speciﬁcation Rev. 01 — 13 March 2000 53 of 69

Page 54

Philips Semiconductors

ISP1181

Full-speed USB interface

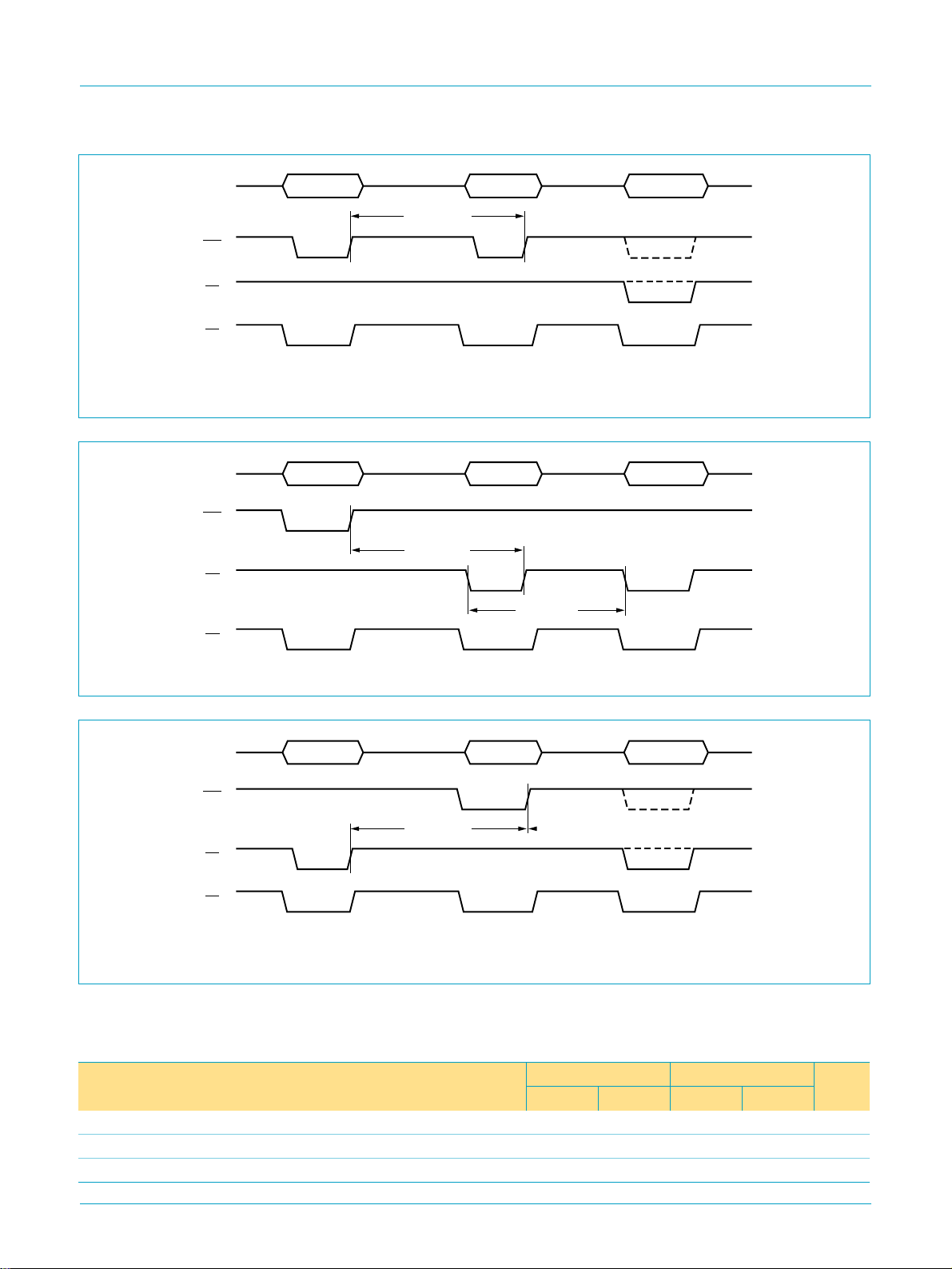

handbook, full pagewidth

DATA

data

(1) Example: read data.

Fig 26. Write data + write command cycle timing.

handbook, full pagewidth

DATA

command

cy(WD-WC)

cy(WC-RD)

cy(RD-RD)

datacommand

(1)

MGT025

datadata

MGT023

Fig 27. Write command + read data cycle timing.

handbook, full pagewidth

DATA

(1) Example: read data.

data

cy(RD-WC)

command

data

(1)

MGT024

Fig 28. Read data + write command cycle timing.

19.4 DMA timing: single-cycle mode

Table 61: Dynamic characteristics: single-cycle DMA timing

Symbol Parameter Conditions 8-bit bus 16-bit bus Unit

Min Max Min Max

8237 compatible mode (see Figure 29)

ASRP

APRS

9397 750 06896

Objective speciﬁcation Rev. 01 — 13 March 2000 54 of 69

DREQ off after DACK on - 40 - 40 ns DREQ on after DACK off - 22 - 22 ns

Page 55

Philips Semiconductors

ISP1181

Full-speed USB interface

Table 61: Dynamic characteristics: single-cycle DMA timing

Symbol Parameter Conditions 8-bit bus 16-bit bus Unit

Min Max Min Max

Read in DACK-only mode (see Figure 30)

ASRP

APRS

ASDV

APDZ

Write in DACK-only mode (see Figure 31)

ASRP

APRS

DVAP

APDZ

Single-cycle EOT (see Figure 32)

RSIH

IHAP

EOT

DREQ off after DACK on - 22 - 22 ns DREQ on after DACK off - 22 - 22 ns data valid after DACK on - 22 - 22 ns data hold after DACK off - 3 - 3 ns

DREQ off after DACK on - 22 - 22 ns DREQ on after DACK off - 22 - 22 ns data setup before DACK off 5 - 5 - ns data hold after DACK off 3 - 3 - ns

input RD/WR HIGH after

22 - 22 - ns

DREQ on DACK off after inputRD/WR

0- 0- ns

HIGH EOT pulse width EOT on;

22 - 22 - ns DACK on; RD/WR LOW

handbook, full pagewidth

DREQ

DACK

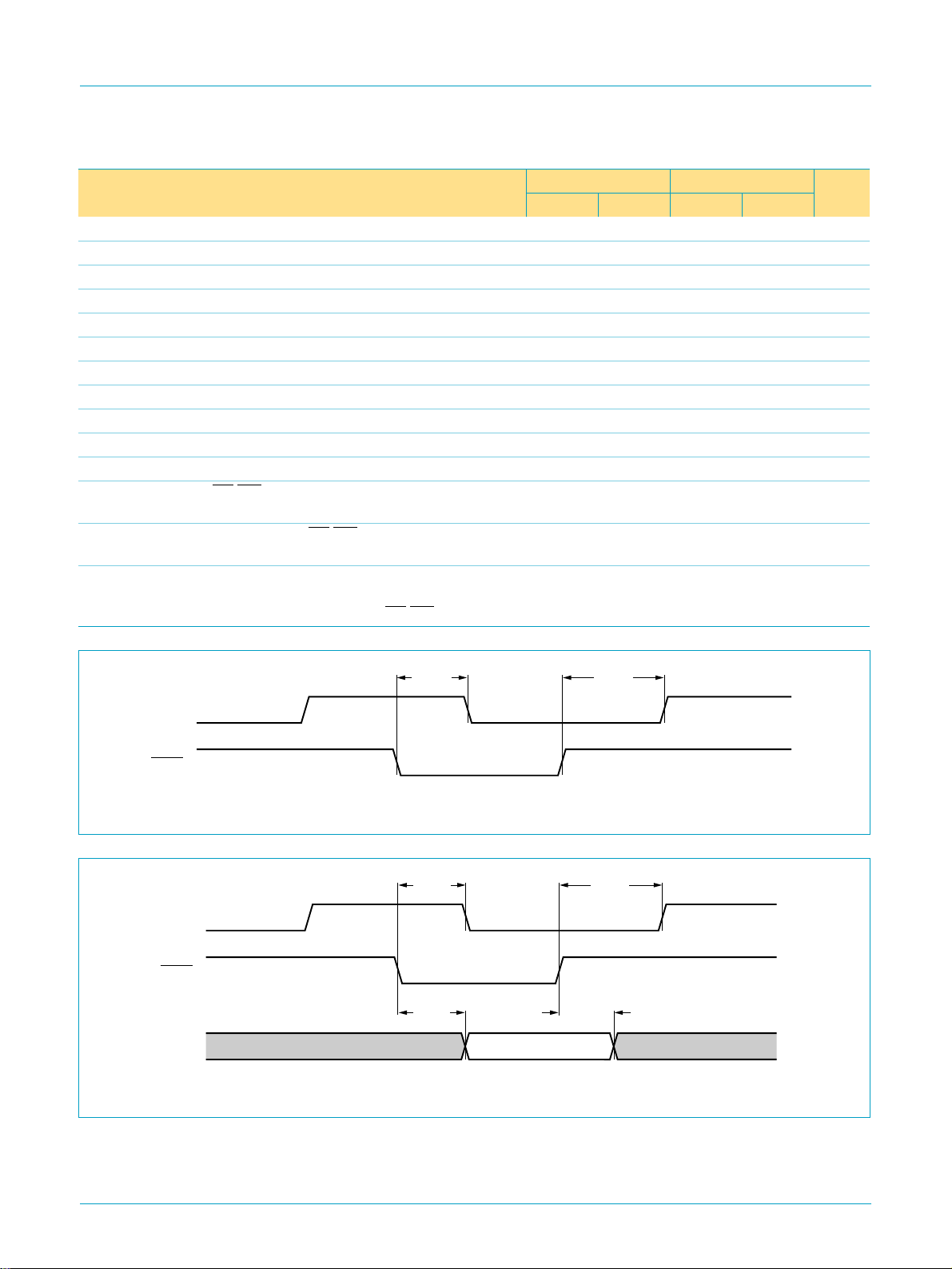

Fig 29. DMA timing in 8237 compatible mode.

handbook, full pagewidth

DREQ

DACK

DATA

Fig 30. DMA read timing in DACK-only mode.

ASRP

ASDV

APDZ

APRS

MGS792

MGS793

9397 750 06896

Objective speciﬁcation Rev. 01 — 13 March 2000 55 of 69

Page 56

Philips Semiconductors

ISP1181

Full-speed USB interface

handbook, full pagewidth

DREQ

DACK

DATA

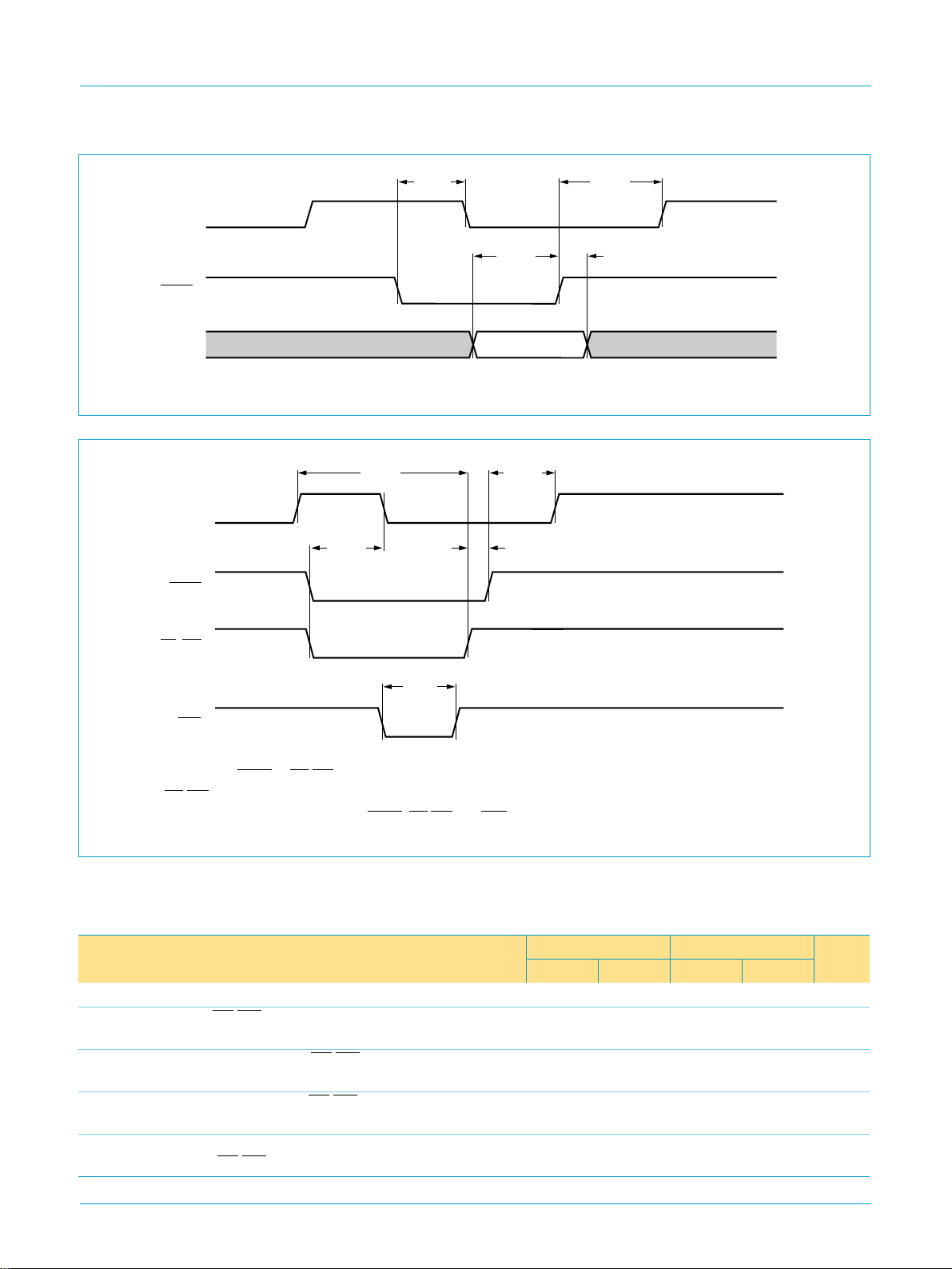

Fig 31. DMA write timing in DACK-only mode.

handbook, full pagewidth

DREQ

DACK

ASRP

(1)

RSIH

ASRP

DVAP

APRS

IHAP

APRS

APDZ

MGS794

RD/WR

(2)

EOT

(3)

EOT

MGS795

(1) t

starts from DACK or RD/WR going LOW, whichever occurs later.

ASRP

(2) The RD/WR signals are not used in 8237 compatible DMA mode. (3) The EOT condition is considered valid if DACK, RD/WR and EOT are all active (= LOW).

Fig 32. EOT timing in single-cycle DMA mode.

19.5 DMA timing: burst mode

Table 62: Dynamic characteristics: burst mode DMA timing

Symbol Parameter Conditions 8-bit bus 16-bit bus Unit

Min Max Min Max

Burst (see Figure 33)

RSIH

ILRP

IHAP

IHIL

input RD/WR HIGH after DREQ on

DREQ off after input RD/WR LOW

DACK off after inputRD/WR HIGH

DMA burst repeat interval

RD/WR HIGH to LOW)

(input

22 - 22 - ns

- 60 - 60 ns

0- 0- ns

90 - 180 - ns

9397 750 06896

Objective speciﬁcation Rev. 01 — 13 March 2000 56 of 69

Page 57

Philips Semiconductors

ISP1181

Full-speed USB interface

Table 62: Dynamic characteristics: burst mode DMA timing

Symbol Parameter Conditions 8-bit bus 16-bit bus Unit

Min Max Min Max

Burst EOT (see Figure 34)

EOT

ISRP

EOT pulse width EOT on;

DACK on; RD/WR LOW

DREQ off after input EOT on - 40 - 40 ns

22 - 22 - ns

handbook, full pagewidth

DREQ

DACK

RD/WR

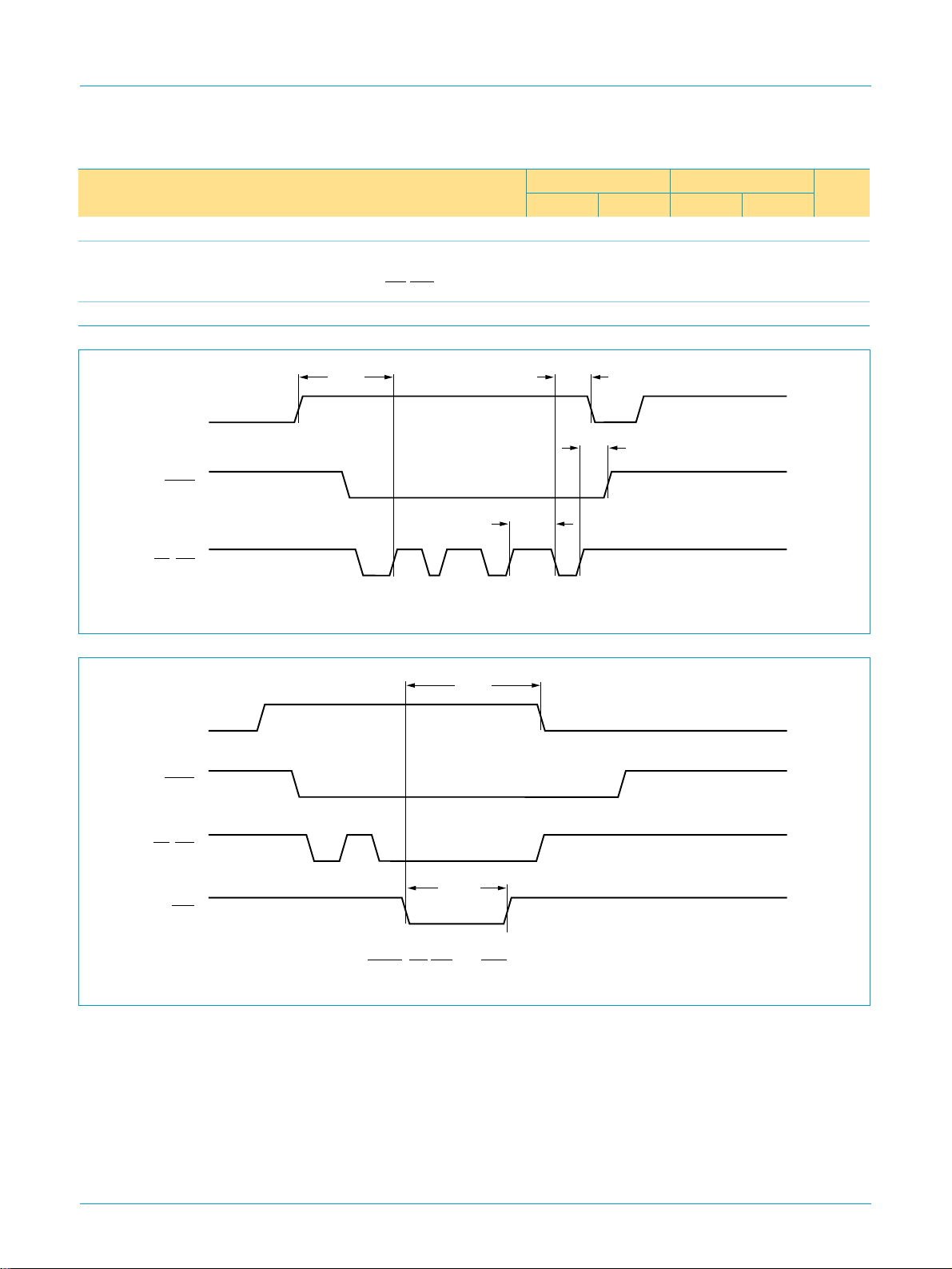

Fig 33. Burst mode DMA timing.

handbook, full pagewidth

DREQ

DACK

RSIH

ISRP

IHIL

ILRP

IHAP

MGS796

RD/WR

(1)

EOT

MGS797

(1) The EOT condition is considered valid if DACK, RD/WR and EOT are all active (= LOW).

Fig 34. EOT timing in burst mode DMA.

9397 750 06896

Objective speciﬁcation Rev. 01 — 13 March 2000 57 of 69

Page 58

Philips Semiconductors

20. Application information

20.1 Typical interface circuits

ISP1181

Full-speed USB interface

handbook, full pagewidth

H8S/2357

D10 D11 D12 D13 D14 D15

CSn

IRQ

P1.1

DREQ0

DACK

TEND

A0 D0

D1 D2 D3 D4 D5 D6 D7 D8 D9

AD DATA1 DATA2 DATA3 DATA4 DATA5 DATA6 DATA7 DATA8 DATA9 DATA10 DATA11 DATA12 DATA13 DATA14 DATA15

ISP1181

A0 ALE CS

RD WR READY INT SUSPEND WAKEUP DREQ DACK EOT

BUS_CONF1 BUS_CONF0

SDRD SDWR

reg(3.3)

CC(5.0)

RESET

XTAL1 XTAL2

BUS

D+ D−

22 Ω

330 Ω

LINK LED

0.1µF0.1 µF

USB

upstream

connector

1 2 3 4

6 MHz

18 pF

MGS769

Fig 35. Typical interface circuit for bus conﬁguration mode 0 (shared ports: 16-bit PIO, 8-bit or 16-bit DMA).

9397 750 06896

Objective speciﬁcation Rev. 01 — 13 March 2000 58 of 69

Page 59

Philips Semiconductors

ISP1181

Full-speed USB interface

handbook, full pagewidth

8051

DMA CONTROLLER

MASTER DMA DEVICE

AD0 AD1 AD2 AD3 AD4 AD5 AD6 AD7 ALE

PSEN

IRQ

P2.3 P2.0 P2.1

D0 D1 D2 D3 D4 D5 D6 D7

DREQ DACK

END of DMA

AD DATA1 DATA2 DATA3 DATA4 DATA5 DATA6 DATA7 DATA8 DATA9 DATA10 DATA11 DATA12 DATA13 DATA14 DATA15

ISP1181

A0 ALE CS

RD WR READY INT SUSPEND WAKEUP DREQ DACK EOT

BUS_CONF1 BUS_CONF0

SDRD SDWR

reg(3.3)

CC(5.0)

RESET

XTAL1 XTAL2

BUS

D+ D−

22 Ω

330 Ω

LINK LED

0.1µF0.1 µF

USB

upstream

connector

1 2 3 4

6 MHz

18 pF

MGS770

Fig 36. Typical interface circuit for bus conﬁguration mode 1 (separate ports: 8-bit PIO and 8-bit DMA)

9397 750 06896

Objective speciﬁcation Rev. 01 — 13 March 2000 59 of 69

Page 60

Philips Semiconductors

ISP1181

Full-speed USB interface

handbook, full pagewidth

8051

AD0 AD1 AD2 AD3 AD4 AD5 AD6 AD7 ALE

PSEN

IRQ

P2.3 P2.0 P2.1

AD D1 D2 D3 D4 D5 D6 D7 D8 D9 D10 D11 D12 D13 D14 D15

ISP1181

A0 ALE CS

RD WR READY INT SUSPEND WAKEUP DREQ DACK EOT

BUS_CONF1 BUS_CONF0

SDRD SDWR

ref(3.3)

RESET

XTAL1 XTAL2

BUS

D+ D−

22 Ω

330 Ω

18 pF

LINK LED

0.1µF0.1 µF

upstream

connector

6 MHz

18 pF

USB

1 2 3 4

BUS_REQ BUS_GNT

MCU_WR

MCU_RD

DREQ

DMA

CONTROLLER

CS1 CS2

DACK

EOT

D7 D6 D5 D4 D3 D2 D1 D0

CS RD WR

D15 D14 D13 D12 D11 D10 D9 D8 D7 D6 D5 D4 D3 D2 D1 D0

16 BIT

DMA PORT

MGS771

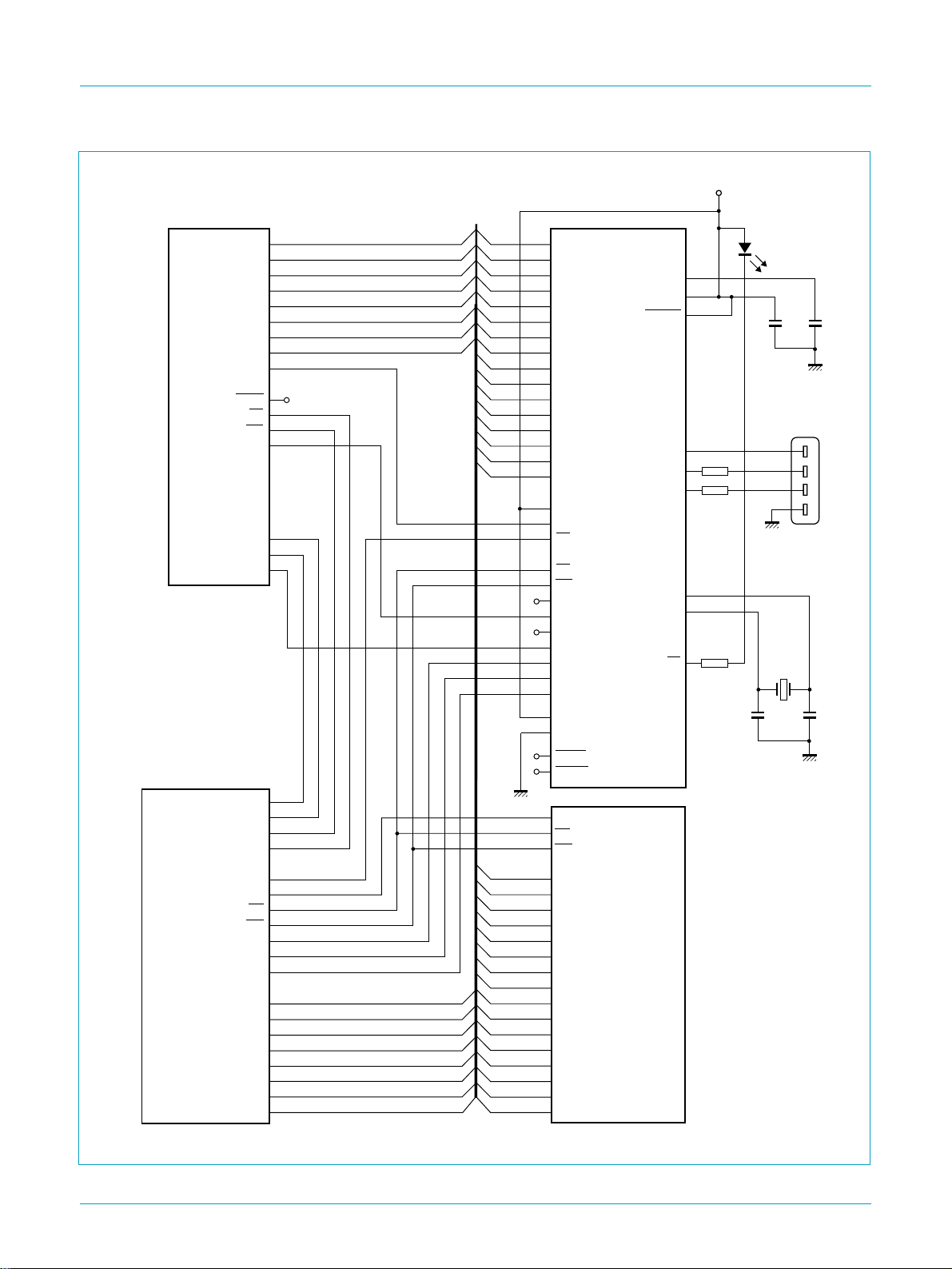

Fig 37. Typical interface circuit for bus conﬁguration mode 2 (shared ports: 8-bit PIO, 8-bit or 16-bit DMA).

9397 750 06896

Objective speciﬁcation Rev. 01 — 13 March 2000 60 of 69

Page 61

Philips Semiconductors

20.2 Interfacing ISP1181 with an H8S/2357 microcontroller

This section gives a summary of the ISP1181 interface with a H8S/2357 (or compatible) microcontroller. Aspects discussed are: interrupt handling, address mapping, DMA and I/O port usage for suspend and remote wake-up control. A typical interface circuit is shown in Figure 35.

20.2.1 Interrupt Handling

•

20.2.2 Address Mapping in H8S/2357

The H8S/2357 bus controller partitions its 16 Mbyte address space into eight areas (0 to 7) of 2 Mbyte each. The bus controller will activate one of the outputs CS0 to CS7 when external address space for the associated area is accessed.

The ISP1181 can be mapped to any address area, allowing easy interfacingwhen the ISP1181 is the only device in that area. If in the example circuit for bus conﬁguration mode 0 (see Figure 35) the ISP1181 is mapped to address FFFF08H (in area 7), output CS7 of the H8S/2357 can be directly connected to input CS of the ISP1181.

ISP1181

Full-speed USB interface

ISP1181: program the Hardware Conﬁguration register to select an active LOW

level for output INT (INTPOL = 0, see Table 22) H8S/2357: program the IRQ Sense Control Register (ISCRH and ISCRL) to

specify low-level sensing for the IRQ input.

The external bus speciﬁcations, bus width, number of access states and number of program wait states can be programmed for each address area. The recommended settings of H8S/2357 for interfacing the ISP1181 are:

8-bit bus in Bus Width Control Register (ABWCR)

•

enable wait states in Access State Control Register (ASTCR)

•

1 program wait state in the Wait Control Register (WCRH and WCRL).

•

20.2.3 Using DMA

The ISP1181 can be conﬁgured for several methods of DMA with the H8S/2357 and other devices. The interface circuit in Figure 35 shows an example of the ISP1181 working with the H8S/2357 in single-address DACK-only DMA mode. External devices are not shown.

For single-address DACK-only mode, ﬁrmware must program the following settings:

ISP1181:

•

– program the DMA Counter register with the total transfer byte count – program the Hardware Conﬁguration Register to select active level LOW for

DREQ and DACK

– select the target endpoint and transfer direction – select DACK-only mode and enable DMA transfer.

9397 750 06896

Objective speciﬁcation Rev. 01 — 13 March 2000 61 of 69

Page 62

Philips Semiconductors

20.2.4 Using H8S2357 I/O Ports

In the interface circuit of Figure 35 pin P1.1 of the H8S/2357 is conﬁgured as a general purpose output port. This pin drives the ISP1181’s WAKEUP input to generate a remote wake-up.

The H8S/2357 has 3 registers to conﬁgure port 1: Port 1 Data Direction Register (P1DDR), Port 1 Data Register (P1DR) and Port 1 Register (PORT1). Only registers P1DDR and P1DR must be conﬁgured, register PORT1 is only used to read the actual levels on the port pins.

For single

•

21. Test information

The dynamic characteristics of the analog I/O ports (D+ and D−) as listed in Table 57, were determined using the circuit shown in Figure 38.

ISP1181

Full-speed USB interface

H8S/2357:

– select pin P1.1 to be an output in register P1DDR – program the desired bit value for P1.1 in register P1DR.

handbook, halfpage

D.U.T

Load capacitance:

CL= 50 pF (full-speed mode)

Speed:

full-speed mode only: internal 1.5 kΩ pull-up resistor on D+

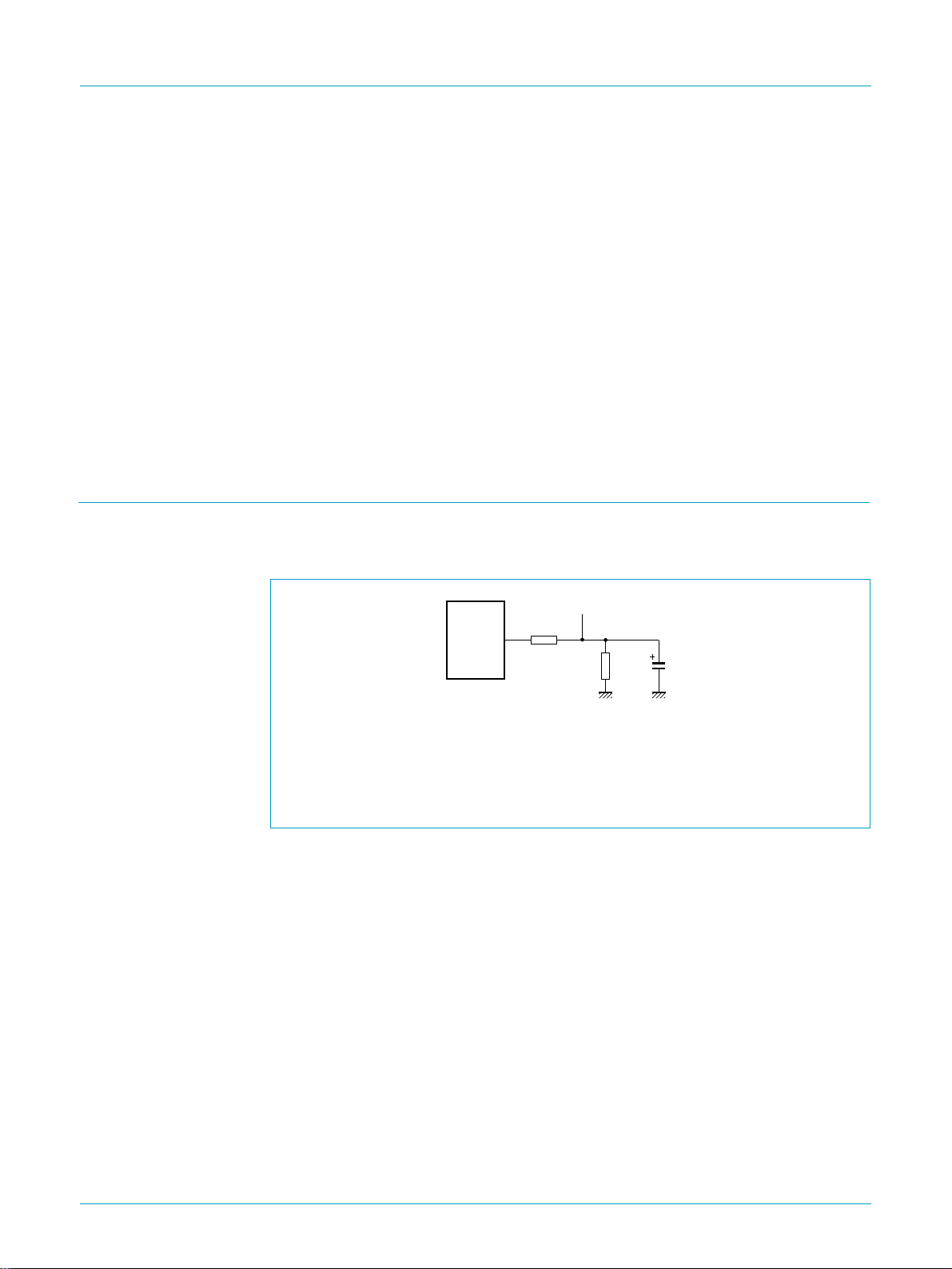

Fig 38. Load impedance for D+ and D− pins.

test point

22 Ω

15 kΩ

CL = 50 pF

MGS784

9397 750 06896

Objective speciﬁcation Rev. 01 — 13 March 2000 62 of 69

Page 63

Philips Semiconductors

22. Package outline

ISP1181

Full-speed USB interface

TSSOP48: plastic thin shrink small outline package; 48 leads; body width 6.1 mm

48 25

pin 1 index

SOT362-1

v M

(A )

124

DIMENSIONS (mm are the original dimensions).

OUTLINE

VERSION

SOT362-1

max.

1.2

0.15

0.05

1.05

0.25

0.85

IEC JEDEC EIAJ

0.28

0.17

0.2

0.1

MO-153

UNIT A1A2A3b

Notes

1. Plastic or metal protrusions of 0.15 mm maximum per side are not included.

2. Plastic interlead protrusions of 0.25 mm maximum per side are not included.

(1)E(2)

12.6

12.4

REFERENCES

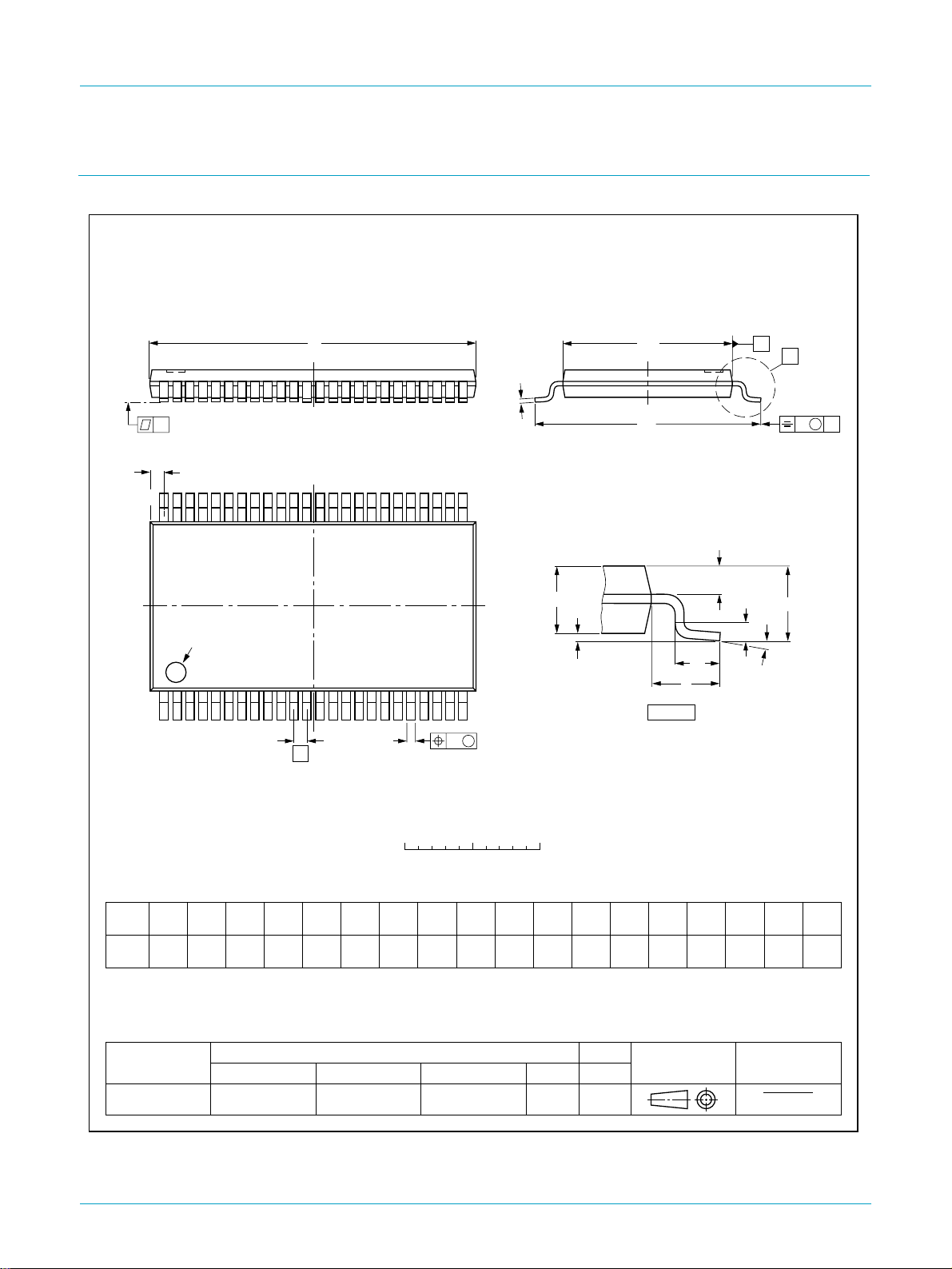

Fig 39. TSSOP48 package outline.

detail X

w M

2.5

scale

eHELLpQZywvθ

6.2

0.5 1 0.25

6.0

8.3

7.9

5 mm

0.8

0.4

0.50

0.35

PROJECTION

0.08

EUROPEAN

0.1

ISSUE DATE

95-02-10 99-12-27

0.8

0.4

9397 750 06896

Objective speciﬁcation Rev. 01 — 13 March 2000 63 of 69

Page 64

Philips Semiconductors

23. Soldering

23.1 Introduction to soldering surface mount packages

This text gives a very brief insight to a complex technology. A more in-depth account of soldering ICs can be found in our

Packages

There is no soldering method that is ideal for all surface mount IC packages. Wave soldering is not always suitable for surface mount ICs, or for printed-circuit boards with high population densities. In these situations reﬂow soldering is often used.

23.2 Reﬂow soldering

Reﬂow soldering requires solder paste (a suspension of ﬁne solder particles, ﬂux and binding agent) to be applied to the printed-circuit board by screen printing, stencilling or pressure-syringe dispensing before package placement.

Several methods exist for reﬂowing; for example, infrared/convection heating in a conveyor type oven. Throughput times (preheating, soldering and cooling) vary between 100 and 200 seconds depending on heating method.

ISP1181

Full-speed USB interface

Data Handbook IC26; Integrated Circuit

(document order number 9398 652 90011).

Typical reﬂow peak temperatures range from 215 to 250 °C. The top-surface temperature of the packages should preferable be kept below 230 °C.

23.3 Wave soldering

Conventional single wave soldering is not recommended for surface mount devices (SMDs) or printed-circuit boards with a high component density, as solder bridging and non-wetting can present major problems.

To overcome these problems the double-wave soldering method was speciﬁcally developed.

If wave soldering is used the following conditions must be observed for optimal results:

Use a double-wave soldering method comprising a turbulent wave with high

•

upward pressure followed by a smooth laminar wave. For packages with leads on two sides and a pitch (e):

•

– larger than or equal to 1.27 mm, the footprint longitudinal axis is preferred to be

parallel to the transport direction of the printed-circuit board;

– smaller than 1.27 mm, the footprint longitudinal axis must be parallel to the

transport direction of the printed-circuit board. The footprint must incorporate solder thieves at the downstream end. For packages with leads on four sides, the footprint must be placed at a 45° angle

•

to the transport direction of the printed-circuit board. The footprint must incorporate solder thieves downstream and at the side corners.

During placement and before soldering, the package must be ﬁxed with a droplet of adhesive. The adhesive can be applied by screen printing, pin transfer or syringe dispensing. The package can be soldered after the adhesive is cured.

9397 750 06896

Objective speciﬁcation Rev. 01 — 13 March 2000 64 of 69

Page 65

Philips Semiconductors

Typical dwell time is 4 seconds at 250 °C. A mildly-activated ﬂux will eliminate the need for removal of corrosive residues in most applications.

23.4 Manual soldering

Fix the component by ﬁrst soldering two diagonally-opposite end leads. Use a low voltage (24 V or less) soldering iron applied to the ﬂat part of the lead. Contact time must be limited to 10 seconds at up to 300 °C.

When using a dedicated tool, all other leads can be soldered in one operation within 2 to 5 seconds between 270 and 320 °C.

23.5 Package related soldering information

Table 63: Suitability of surface mount IC packages for wave and reﬂow soldering

Package Soldering method

BGA, LFBGA, SQFP, TFBGA not suitable suitable HBCC, HLQFP, HSQFP, HSOP, HTQFP,

HTSSOP, SMS PLCC LQFP, QFP, TQFP not recommended SSOP, TSSOP, VSO not recommended

ISP1181

Full-speed USB interface

methods

Wave Reﬂow

not suitable

[3]

, SO, SOJ suitable suitable

[2]

[3] [4] [5]

suitable

suitable suitable

[1]

[1] All surface mount (SMD) packages are moisture sensitive. Depending upon the moisture content, the

maximum temperature (with respect to time) and body size of the package,there is a risk that internal or external package cracks may occur due to vaporization of the moisture in them (the so called popcorn effect). For details, refer to the Drypack information in the

Circuit Packages; Section: Packing Methods

[2] These packages are not suitable for wavesoldering as a solder joint between the printed-circuit board

and heatsink (at bottom version) can not be achieved, and as solder may stick to the heatsink (on top version).

[3] If wave soldering is considered, then the package must be placed at a 45° angle to the solder wave

direction. The package footprint must incorporate solder thieves downstream and at the side corners.

[4] Wave soldering is only suitable for LQFP, QFP and TQFP packages with a pitch (e) equal to or larger

than 0.8 mm; it is deﬁnitely not suitable for packages with a pitch (e) equal to or smaller than 0.65 mm.

[5] Wave soldering is only suitable for SSOP and TSSOP packages with a pitch (e) equal to or larger than

0.65 mm; it is deﬁnitely not suitable for packages with a pitch (e) equal to or smaller than 0.5mm.

Data Handbook IC26; Integrated

9397 750 06896

Objective speciﬁcation Rev. 01 — 13 March 2000 65 of 69

Page 66

Philips Semiconductors

24. Revision history

Table 64: Revision history

Rev Date CPCN Description

01 20000313 Objective speciﬁcation; initial version.

ISP1181

Full-speed USB interface

9397 750 06896

Objective speciﬁcation Rev. 01 — 13 March 2000 66 of 69

Page 67

Philips Semiconductors

25. Data sheet status

ISP1181

Full-speed USB interface

Datasheet status Product status Deﬁnition

Objective speciﬁcation Development This data sheet contains the design target or goal speciﬁcations for product development. Speciﬁcation may

change in any manner without notice.

Preliminary speciﬁcation Qualiﬁcation This data sheet contains preliminary data, and supplementary data will be published at a later date. Philips

Semiconductors reserves the right to make changes at any time without notice in order to improve design and supply the best possible product.

Product speciﬁcation Production This data sheet contains ﬁnal speciﬁcations. Philips Semiconductors reserves the right to make changes at any

time without notice in order to improve design and supply the best possible product.

[1] Please consult the most recently issued data sheet before initiating or completing a design.

26. Deﬁnitions

Short-form speciﬁcation — The data in a short-form speciﬁcation is

extracted from a full data sheet with the same type number and title. For detailed information see the relevant data sheet or data handbook.

Limiting values deﬁnition — Limiting values given are in accordance with the Absolute Maximum Rating System (IEC 60134). Stress above one or more of the limiting values may cause permanent damage to the device. These are stress ratings only and operation of the device at these or at any other conditions above those given in the Characteristics sections of the speciﬁcation is not implied. Exposure to limiting values for extended periods may affect device reliability.

Application information — Applications that are described herein for any of these products are for illustrative purposes only. Philips Semiconductors make no representation or warranty that such applications will be suitable for the speciﬁed use without further testing or modiﬁcation.

[1]

27. Disclaimers

Life support — These products are not designed for use in life support

appliances, devices, or systems where malfunction of these products can reasonably be expected to result in personal injury. Philips Semiconductors customers using or selling these products for use in such applications do so at their own risk and agree to fully indemnify Philips Semiconductors for any damages resulting from such application.

Right to make changes — Philips Semiconductors reserves the right to make changes, without notice, in the products, including circuits, standard cells, and/or software, described or contained herein in order to improve design and/or performance. Philips Semiconductors assumes no responsibility or liability for the use of any of these products, conveys no licence or title under any patent, copyright, or mask work right to these products, and makes no representations or warranties that these products are free from patent, copyright, or mask work right infringement, unless otherwise speciﬁed.

28. Trademarks

ACPI — is an open industry speciﬁcation for PC power management,

co-developed by Intel Corp., Microsoft Corp. and Toshiba

GoodLink — is a trademark of Royal Philips Electronics OnNow — is a trademark of Microsoft Corp.

SMBus — is a bus speciﬁcation for PC power management, developed by

Intel Corp. based on the I SoftConnect — is a trademark of Royal Philips Electronics

C-bus from Royal Philips Electronics

9397 750 06896

Objective speciﬁcation Rev. 01 — 13 March 2000 67 of 69

Page 68

Philips Semiconductors

Full-speed USB interface

Philips Semiconductors - a worldwide company

ISP1181

Argentina: see South America Australia: Tel. +61 2 9704 8141, Fax. +61 2 9704 8139 Austria: Tel. +43 160 101, Fax. +43 160 101 1210 Belarus: Tel. +375 17 220 0733, Fax. +375 17 220 0773 Belgium: see The Netherlands Brazil: see South America Bulgaria: Tel. +359 268 9211, Fax. +359 268 9102 Canada: Tel. +1 800 234 7381 China/Hong Kong: Tel. +852 2 319 7888, Fax. +852 2 319 7700 Colombia: see South America Czech Republic: see Austria Denmark: Tel. +45 3 288 2636, Fax. +45 3 157 0044 Finland: Tel. +358 961 5800, Fax. +358 96 158 0920 France: Tel. +33 14 099 6161, Fax. +33 14 099 6427 Germany: Tel. +49 40 23 5360, Fax. +49 402 353 6300 Hungary: see Austria India: Tel. +91 22 493 8541, Fax. +91 22 493 8722 Indonesia: see Singapore Ireland: Tel. +353 17 64 0000, Fax. +353 17 64 0200 Israel: Tel. +972 36 45 0444, Fax. +972 36 49 1007 Italy: Tel. +39 039 203 6838, Fax +39 039 203 6800 Japan: Tel. +81 33 740 5130, Fax. +81 3 3740 5057 Korea: Tel. +82 27 09 1412, Fax. +82 27 09 1415 Malaysia: Tel. +60 37 50 5214, Fax. +60 37 57 4880 Mexico: Tel. +9-5 800 234 7381 Middle East: see Italy

Netherlands: Tel. +31 40 278 2785, Fax. +31 40 278 8399 New Zealand: Tel. +64 98 49 4160, Fax. +64 98 49 7811 Norway: Tel. +47 22 74 8000, Fax. +47 22 74 8341 Philippines: Tel. +63 28 16 6380, Fax. +63 28 17 3474 Poland: Tel. +48 22 5710 000, Fax. +48 22 5710 001 Portugal: see Spain Romania: see Italy Russia: Tel. +7 095 755 6918, Fax. +7 095 755 6919 Singapore: Tel. +65 350 2538, Fax. +65 251 6500 Slovakia: see Austria Slovenia: see Italy South Africa: Tel. +27 11 471 5401, Fax. +27 11 471 5398 South America: Tel. +55 11 821 2333, Fax. +55 11 829 1849 Spain: Tel. +34 33 01 6312, Fax. +34 33 01 4107 Sweden: Tel. +46 86 32 2000, Fax. +46 86 32 2745 Switzerland: Tel. +41 14 88 2686, Fax. +41 14 81 7730 Taiwan: Tel. +886 22 134 2865, Fax. +886 22 134 2874 Thailand: Tel. +66 27 45 4090, Fax. +66 23 98 0793 Turkey: Tel. +90 216 522 1500, Fax. +90 216 522 1813 Ukraine: Tel. +380 44 264 2776, Fax. +380 44 268 0461 United Kingdom: Tel. +44 208 730 5000, Fax. +44 208 754 8421 United States: Tel. +1 800 234 7381 Uruguay: see South America Vietnam: see Singapore Yugoslavia: Tel. +381 11 3341 299, Fax. +381 11 3342 553

For all other countries apply to: Philips Semiconductors,

International Marketing & Sales Communications, Building BE, P.O. Box 218, 5600 MD EINDHOVEN, The Netherlands, Fax. +31 40 272 4825

Internet: http://www.semiconductors.philips.com

(SCA69)

9397 750 06896

Objective speciﬁcation Rev. 01 — 13 March 2000 68 of 69

Page 69

Philips Semiconductors

Contents

ISP1181

Full-speed USB interface

1 General description. . . . . . . . . . . . . . . . . . . . . . . . . . . 1

2 Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

3 Applications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

4 Ordering information. . . . . . . . . . . . . . . . . . . . . . . . . . 2

5 Block diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

6 Pinning information. . . . . . . . . . . . . . . . . . . . . . . . . . . 4

6.1 Pinning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

6.2 Pin description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

7 Functional description . . . . . . . . . . . . . . . . . . . . . . . . 7

7.1 Analog transceiver . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

7.2 Philips Serial Interface Engine (SIE) . . . . . . . . . . . . . 8

7.3 Memory Management Unit (MMU) and integrated

RAM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

7.4 SoftConnect . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

7.5 GoodLink . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

7.6 Bit clock recovery. . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

7.7 Voltage regulator . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

7.8 PLL clock multiplier . . . . . . . . . . . . . . . . . . . . . . . . . . 9

7.9 Parallel I/O (PIO) and Direct Memory Access (DMA)

interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

8 Modes of operation . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

9 Endpoint descriptions. . . . . . . . . . . . . . . . . . . . . . . . 10

9.1 Endpoint access. . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

9.2 Endpoint FIFO size . . . . . . . . . . . . . . . . . . . . . . . . . 11

9.3 Endpoint initialization . . . . . . . . . . . . . . . . . . . . . . . . 12

9.4 Endpoint I/O mode access. . . . . . . . . . . . . . . . . . . . 12

9.5 Special actions on control endpoints . . . . . . . . . . . . 12

10 DMA transfer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

10.1 Selecting an endpoint for DMA transfer . . . . . . . . . . 13

10.2 8237 compatible mode. . . . . . . . . . . . . . . . . . . . . . . 14

10.3 DACK-only mode . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

10.4 End-Of-Transfer conditions . . . . . . . . . . . . . . . . . . . 16

10.4.1 Bulk endpoints . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

10.4.2 Isochronous endpoints. . . . . . . . . . . . . . . . . . . . . . . 17

10.4.3 DMA auto-restart . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

11 Suspend and resume . . . . . . . . . . . . . . . . . . . . . . . . 18

11.1 Suspend conditions . . . . . . . . . . . . . . . . . . . . . . . . . 18

11.1.1 Powered-on application . . . . . . . . . . . . . . . . . . . . . . 19

11.1.2 Powered-off application . . . . . . . . . . . . . . . . . . . . . . 20

11.2 Resume conditions. . . . . . . . . . . . . . . . . . . . . . . . . . 22

11.3 Control bits in suspend and resume. . . . . . . . . . . . . 22

12 Commands and registers . . . . . . . . . . . . . . . . . . . . . 23

12.1 Initialization commands . . . . . . . . . . . . . . . . . . . . . . 25

12.1.1 Write/Read Endpoint Configuration . . . . . . . . . . . . . 25

12.1.2 Write/Read Device Address. . . . . . . . . . . . . . . . . . . 26

12.1.3 Write/Read Mode Register. . . . . . . . . . . . . . . . . . . . 26

12.1.4 Write/Read Hardware Configuration . . . . . . . . . . . . 27

12.1.5 Write/Read Interrupt Enable Register . . . . . . . . . . . 29

12.1.6 Write/Read DMA Configuration . . . . . . . . . . . . . . . . 30

12.1.7 Write/Read DMA Counter . . . . . . . . . . . . . . . . . . . . 31

12.1.8 Reset Device . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

12.2 Data flow commands . . . . . . . . . . . . . . . . . . . . . . . . 32

12.2.1 Write/Read Endpoint Buffer. . . . . . . . . . . . . . . . . . . 32

12.2.2 Write/Read Endpoint Status . . . . . . . . . . . . . . . . . . 33

12.2.3 Validate Endpoint Buffer . . . . . . . . . . . . . . . . . . . . . 34

12.2.4 Clear Endpoint Buffer . . . . . . . . . . . . . . . . . . . . . . . 35

12.2.5 Check Endpoint Status . . . . . . . . . . . . . . . . . . . . . . 35

12.2.6 Acknowledge Setup. . . . . . . . . . . . . . . . . . . . . . . . . 36

12.3 General commands . . . . . . . . . . . . . . . . . . . . . . . . . 36

12.3.1 Read Endpoint Error Code . . . . . . . . . . . . . . . . . . . 36

12.3.2 Unlock Device . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

12.3.3 Write/Read Scratch Register. . . . . . . . . . . . . . . . . . 38

12.3.4 Read Frame Number. . . . . . . . . . . . . . . . . . . . . . . . 38

12.3.5 Read Chip ID. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

12.3.6 Read Interrupt Register. . . . . . . . . . . . . . . . . . . . . . 39

13 Interrupts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41

14 Power supply. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42

15 Crystal oscillator and LazyClock. . . . . . . . . . . . . . . 42

16 Power-on reset . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44

17 Limiting values . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45

18 Static characteristics . . . . . . . . . . . . . . . . . . . . . . . . 45

19 Dynamic characteristics. . . . . . . . . . . . . . . . . . . . . . 47

19.1 Timing symbols . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49

19.2 Parallel I/O timing . . . . . . . . . . . . . . . . . . . . . . . . . . 50

19.3 Access cycle timing . . . . . . . . . . . . . . . . . . . . . . . . . 53

19.4 DMA timing: single-cycle mode . . . . . . . . . . . . . . . . 54

19.5 DMA timing: burst mode . . . . . . . . . . . . . . . . . . . . . 56

20 Application information . . . . . . . . . . . . . . . . . . . . . . 58

20.1 Typical interface circuits . . . . . . . . . . . . . . . . . . . . . 58

20.2 Interfacing ISP1181 with an H8S/2357

microcontroller . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61

20.2.1 Interrupt Handling . . . . . . . . . . . . . . . . . . . . . . . . . . 61

20.2.2 Address Mapping in H8S/2357 . . . . . . . . . . . . . . . . 61

20.2.3 Using DMA. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61

20.2.4 Using H8S2357 I/O Ports . . . . . . . . . . . . . . . . . . . . 62

21 Test information . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62

22 Package outline. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63

23 Soldering . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64

23.1 Introduction to soldering surface mount packages . 64

23.2 Reflow soldering . . . . . . . . . . . . . . . . . . . . . . . . . . . 64

23.3 Wave soldering . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64

23.4 Manual soldering . . . . . . . . . . . . . . . . . . . . . . . . . . . 65

23.5 Package related soldering information . . . . . . . . . . 65

24 Revision history . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66

25 Data sheet status. . . . . . . . . . . . . . . . . . . . . . . . . . . . 67

26 Definitions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67

27 Disclaimers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67

28 Trademarks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67

All rights are reserved. Reproduction in whole or in part is prohibited without the prior written consent of the copyright owner.

The information presented in this document does not form part of any quotation or contract, is believed to be accurate and reliable and may be changed without notice. No liability will be accepted by the publisher for any consequence of its use. Publication thereof does not convey nor imply any license under patent- or other industrial or intellectual property rights.

Date of release: 13 March 2000 Document order number: 9397 750 06896
