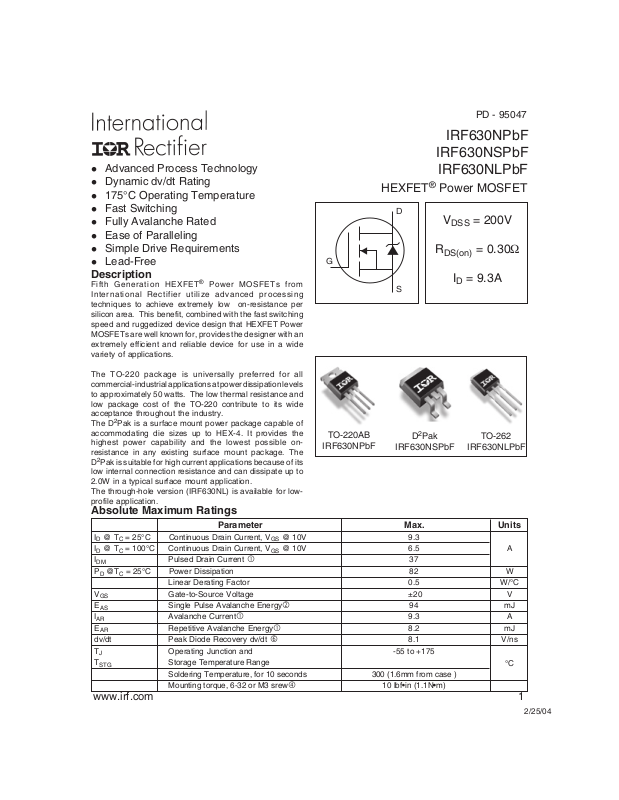

Page 1
PD - 95047
IRF630NPbF
IRF630NSPbF
l Advanced Process Technology
l Dynamic dv/dt Rating
l 175°C Operating Temperature
l Fast Switching
l Fully Avalanche Rated
l Ease of Paralleling
l Simple Drive Requirements
l Lead-Free
G
HEXFET® Power MOSFET
D
Description
Fifth Generation HEXFET® Power MOSFETs from
International Rectifier utilize advanced processing
techniques to achieve extremely low on-resistance per
silicon area. This benefit, combined with the fast switching
speed and ruggedized device design that HEXFET Power
MOSFETs are well known for, provides the designer with an
extremely efficient and reliable device for use in a wide
variety of applications.
The TO-220 package is universally preferred for all
commercial-industrial applications at power dissipation levels
to approximately 50 watts. The low thermal resistance and
low package cost of the TO-220 contribute to its wide
acceptance throughout the industry.
The D2Pak is a surface mount power package capable of
accommodating die sizes up to HEX-4. It provides the
highest power capability and the lowest possible onresistance in any existing surface mount package. The
D2Pak is suitable for high current applications because of its
low internal connection resistance and can dissipate up to
2.0W in a typical surface mount application.
The through-hole version (IRF630NL) is available for lowprofile application.
TO-220AB
IRF630NPbF
S
IRF630NSPbF
Absolute Maximum Ratings
Parameter Max. Units
ID @ TC = 25°C Continuous Drain Current, VGS @ 10V 9.3
ID @ TC = 100°C Continuous Drain Current, VGS @ 10V 6.5 A
I
DM
PD @TC = 25°C Power Dissipation 82 W
V
GS
E
AS
I
AR
E
AR
dv/dt Peak Diode Recovery dv/dt 8.1 V/ns
T
J
T
STG
Pulsed Drain Current 37
Linear Derating Factor 0.5 W/°C
Gate-to-Source Voltage ±20 V
Single Pulse Avalanche Energy 94 mJ
Avalanche Current 9.3 A
Repetitive Avalanche Energy 8.2 mJ
Operating Junction and -55 to +175
Storage Temperature Range
Soldering Temperature, for 10 seconds 300 (1.6mm from case )
Mounting torque, 6-32 or M3 srew 10 lbf•in (1.1N•m)
www.irf.com 1
IRF630NLPbF
V
DSS
R
DS(on)
ID = 9.3A
D2Pak
IRF630NLPbF
= 200V
= 0.30Ω
TO-262
°C
2/25/04
Page 2
IRF630NPbF/SPbF/LPbF
Electrical Characteristics @ TJ = 25°C (unless otherwise specified)
Parameter Min. Typ. Max. Units Conditions
V
(BR)DSS
∆V
(BR)DSS
R
DS(on)
V
GS(th)
g
fs
I
DSS
I
GSS
Q
g
Q
gs
Q
gd
t
d(on)
t
r
t
d(off)
t
f
L
D
L
S
C
iss
C
oss
C
rss
Drain-to-Source Breakdown Voltage 200 ––– ––– V VGS = 0V, ID = 250µA
/∆T
Breakdown Voltage Temp. Coefficient ––– 0.26 ––– V/°C Reference to 25°C, ID = 1mA
J
Static Drain-to-Source On-Resistance ––– ––– 0.30 Ω VGS = 10V, ID = 5.4A
Gate Threshold Voltage 2.0 ––– 4.0 V VDS = VGS, ID = 250µA
Forward Transconductance 4.9 ––– ––– S VDS = 50V, ID = 5.4A
Drain-to-Source Leakage Current
––– ––– 25
––– ––– 250 VDS = 160V, VGS = 0V, TJ = 150°C
Gate-to-Source Forward Leakage ––– ––– 100 VGS = 20V
Gate-to-Source Reverse Leakage ––– ––– -100
VDS = 200V, VGS = 0V
µA
nA
VGS = -20V
Total Gate Charge ––– ––– 35 ID = 5.4A
Gate-to-Source Charge ––– ––– 6.5 nC VDS = 160V
Gate-to-Drain ("Miller") Charge ––– ––– 17 VGS = 10V
Turn-On Delay Time ––– 7.9 ––– VDD = 100V
Rise Time ––– 14 ––– ID = 5.4A
Turn-Off Delay Time ––– 27 ––– RG = 13Ω
ns
Fall Time ––– 15 ––– RD = 18Ω
Internal Drain Inductance
Internal Source Inductance ––– –––
––– –––
4.5
7.5
Between lead,
6mm (0.25in.)
nH
from package
and center of die contact
Input Capacitance ––– 575 ––– VGS = 0V
Output Capacitance ––– 89 ––– VDS = 25V
Reverse Transfer Capacitance ––– 25 ––– pF ƒ = 1.0MHz
D
G
S
Source-Drain Ratings and Characteristics
Parameter Min. Typ. Max. Units Conditions
I
S
I
SM
V
SD
t
rr
Q
rr
t
on
Continuous Source Current MOSFET symbol
(Body Diode)
Pulsed Source Current integral reverse
(Body Diode)
––– –––
––– –––
9.3
37
showing the
A
p-n junction diode.
G
Diode Forward Voltage ––– ––– 1.3 V TJ = 25°C, IS = 5.4A, VGS = 0V
Reverse Recovery Time ––– 117 176 ns TJ = 25°C, IF = 5.4A
Reverse Recovery Charge ––– 542 813 nC di/dt = 100A/µs
Forward Turn-On Time Intrinsic turn-on time is negligible (turn-on is dominated by LS+LD)
Thermal Resistance
Parameter Typ. Max. Units
R
θJC
R
θCS
R
θJA
R
θJA
Junction-to-Case ––– 1.83
Case-to-Sink, Flat, Greased Surface 0.50 ––– °C/W
Junction-to-Ambient ––– 62
Junction-to-Ambient (PCB mount) ––– 40
www.irf.com 2
D
S
Page 3
IRF630NPbF/SPbF/LPbF
100
10
1
TOP
BOTTOM
VGS
15V
10V
8.0V
7.0V
6.0V
5.5V
5.0V
4.5V
4.5V
0.1
D
I , Drain-to-Source Current (A)
20µs PULSE WIDTH
°
T = 25 C
0.01
0.1 1 10 100
V , Drain-to-Source Voltage (V)
DS
100
J
100
10
TOP
BOTTOM
VGS
15V
10V
8.0V
7.0V
6.0V
5.5V
5.0V
4.5V
4.5V
1
D
I , Drain-to-Source Current (A)
20µs PULSE WIDTH
°
T = 175 C
0.1
0.1 1 10 100
V , Drain-to-Source Voltage (V)
DS
J
Fig 2. Typical Output CharacteristicsFig 1. Typical Output Characteristics
3.5
3.0
I =
D
9.3A
°
T = 175 C
10
J
°
T = 25 C
1
D
I , Drain-to-Source Current (A)
0.1
4.0 5.0 6.0 7.0 8.0 9.0 10.0
J
V = 50V
DS
20µs PULSE WIDTH
V , Gate-to-Source Voltage (V)
GS
Fig 3. Typical Transfer Characteristics
2.5
2.0
1.5
(Normalized)
1.0
0.5
DS(on)
R , Drain-to-Source On Resistance
0.0
-60 -40 -20 0 20 40 60 80 100 120 140 160 180
T , Junction Temperature ( C)
J
Fig 4. Normalized On-Resistance
V =
GS
°
10V
Vs. Temperature
www.irf.com 3
Page 4
IRF630NPbF/SPbF/LPbF
1200
1000
)
F
800
p
(
e
c
n
a
t
i
600
c
a
p
a
C
,
400
C
200
0
1 10 100 1000
Ciss
Coss
Crss
V
= 0V, f = 1 MHZ
GS
C
= C
+ Cgd, C
iss
gs
C
= C
rss
gd
C
= C
oss
ds
+ C
gd
SHORTED
ds
VDS, Drain-to-Source Voltage (V)
Fig 5. Typical Capacitance Vs.
Drain-to-Source Voltage
100
1000
16
I =
5.4A
D
12
8
4
GS
V , Gate-to-Source Voltage (V)
0
0 5 10 15 20 25 30
Q , Total Gate Charge (nC)
G
Fig 6. Typical Gate Charge Vs.
Fig 6. Typical Gate Charge Vs.
Gate-to-Source Voltage
Gate-to-Source Voltage
OPERATION IN THIS AREA LIMITED
BY R
V = 160V
DS
V = 100V
DS
V = 40V
DS
DS(on)
100
10
T = 175 C
1
SD
I , Reverse Drain Current (A)
0.1
0.2 0.4 0.6 0.8 1.0 1.2
Fig 7. Typical Source-Drain Diode
Fig 7. Typical Source-Drain Diode
°
J
T = 25 C
J
V = 0 V
GS
V ,Source-to-Drain Voltage (V)
SD
Forward Voltage
Forward Voltage
10
°
D
I , Drain Current (A)I , Drain Current (A)
1
°
= 25 C
C
T T= 175 C
J
Single Pulse
0.1
1 10 100 1000
°
V , Drain-to-Source Voltage (V)
DS
Fig 8. Maximum Safe Operating Area
10us
100us
1ms
10ms
www.irf.com 4
Page 5
12
12
9
9
6
6
D
I , Drain Current (A)
D
3
I , Drain Current (A)
3
0
25 50 75 100 125 150 175
0
25 50 75 100 125 150 175
T , Case Temperature ( C)
C
T , Case Temperature ( C)
C
°
IRF630NPbF/SPbF/LPbF
R
D.U.T.
D
t
t
d(off)tf
d(off)tf
+
V
DD
-
V
V
DS
DS
V
V
GS
GS
R
R
G
G
10V
10V
Pulse Width ≤ 1 µs
Pulse Width ≤ 1 µs
Duty Factor ≤ 0.1 %
Duty Factor ≤ 0.1 %
Fig 10a. Switching Time Test Circuit
Fig 10a. Switching Time Test Circuit
V
V
DS
DS
90%
90%
°
10%
10%
V
V
GS
GS
t
t
d(on)tr
d(on)tr
Fig 9. Maximum Drain Current Vs.
Fig 9. Maximum Drain Current Vs.
Case Temperature
Case Temperature
10
Fig 10b. Switching Time Waveforms
Fig 10b. Switching Time Waveforms
thJC
D = 0.50
1
0.20
0.10
P
1 2
DM
t
1
t
2
0.05
0.1
0.02
0.01
SINGLE PULSE
(THERMAL RESPONSE)
Thermal Response (Z )
Notes:
1. Duty factor D = t / t
2. Peak T = P x Z + T
0.01
0.00001 0.0001 0.001 0.01 0.1 1
t , Rectangular Pulse Duration (sec)
1
Fig 11. Maximum Effective Transient Thermal Impedance, Junction-to-Case
Fig 11. Maximum Effective Transient Thermal Impedance, Junction-to-Case
J DM thJC C
www.irf.com 5
Page 6
IRF630NPbF/SPbF/LPbF
A
15V
V
DS
R
G
20V
t
L
D.U.T
I
AS
Ω
0.01
p
DRIVER
Fig 12a. Unclamped Inductive Test Circuit
V
(BR)DSS
t
p
I
AS
Fig 12b. Unclamped Inductive Waveforms
200
TOP
I
D
2.2A
3.8A
150
+
V
DD
-
100
50
AS
E , Single Pulse Avalanche Energy (mJ)
0
25 50 75 100 125 150 175
Starting T , Junction Temperature ( C)
J
BOTTOM
5.4A
°
Fig 12c. Maximum Avalanche Energy
Vs. Drain Current
Current Regulator
Same Type as D.U.T.
50KΩ
Q
G
10 V
Q
GS
V
G
Q
GD
Charge
Fig 13a. Basic Gate Charge Waveform
12V
Fig 13b. Gate Charge Test Circuit
.2µF
V
GS
.3µF
D.U.T.
3mA
I
G
Current Sampling Resistors
I
+
V
-
D
www.irf.com 6
DS
Page 7
IRF630NPbF/SPbF/LPbF
Peak Diode Recovery dv/dt Test Circuit
D.U.T
+
-
R
G
Driver Gate Drive
P.W.
+
Circuit Layout Considerations
• Low Stray Inductance
• Ground Plane
• Low Leakage Inductance
Current Transformer
-
-
• dv/dt controlled by R
G
• Driver same type as D.U.T.
• ISD controlled by Duty Factor "D"
• D.U.T. - Device Under Test
Period
D =
P. W .
Period
+
+
V
DD
-
VGS=10V
*
D.U.T. ISDWaveform
Reverse
Recovery
Current
Re-Applied
Voltage
D.U.T. VDSWaveform
Inductor Curent
* V
= 5V for Logic Level Devices
GS
Body Diode Forward
Current
di/dt
Diode Recovery
dv/dt
Body Diode Forward Drop
Ripple ≤ 5%
V
DD
I
SD
Fig 14. For N-Channel HEXFET® Power MOSFETs
www.irf.com 7
Page 8
IRF630NPbF/SPbF/LPbF
TO-220AB Package Outline
Dimensions are shown in millimeters (inches)
10.54 (.415)
2.87 (.1 13)
2.62 (.1 03)
15.24 (.600)
14.84 (.584)
14.09 (.555)
13.47 (.530)
1.40 (.055)
3X
1.15 (.045)
2.54 (.100)
NOTES:
1 DIMENSIONING & TOLERANCING PER ANSI Y14.5M, 1982. 3 OUTLINE CONFORMS TO JEDEC OUTLINE TO-220AB.
2 CONTROL LING DIMEN SION : INCH 4 HEA TSINK & LEAD MEA SUREME NTS DO NOT INCLUDE BURRS.
2X
10.29 (.405)
4
1 2 3
3.78 (.149)
3.54 (.139)
- A -
6.47 (.2 55)
6.10 (.2 40)
1.15 (. 045)
MIN
4.06 (.160)
3.55 (.140)
0.93 (.037)
3X
0.69 (.027)
0.36 (.014) M B A M
4.69 (.1 85)
4.20 (.1 65)
- B -
1.32 (.052)
1.22 (.048)
2.92 (.115)
2.64 (.104)
3X
LEAD ASSIGN MENTS
LEAD ASSIGNMENTS
HEXFET
1 - GATE
2 - DRAIN
1- GATE
3 - SOURCE
2- DRAIN
3- SOURCE
4 - DRAIN
4- DRAIN
0.55 (. 022)
0.46 (. 018)
TO-220AB Part Marking Information
IGBTs, CoPACK
1- GAT E
2- COLLECTOR
3- EMITTER
4- COLLECTOR
EXAMPLE:
T HIS IS AN IRF1010
LOT CODE 1789
ASS EMB LE D ON WW 19, 19 97
IN THE ASSEMBLY LINE "C"
Note: "P" in assembly line
position indicates "Lead-Free"
INT E R NATIONAL
RE CTIF IER
LOGO
ASSEMBLY
LOT CODE
PART NUMBER
DAT E CODE
YEAR 7 = 1997
WEEK 19
LINE C
www.irf.com 8
Page 9
2
D
Pak Package Outline
Dimensions are shown in millimeters (inches)
IRF630NPbF/SPbF/LPbF
D2Pak Part Marking Information (Lead-Free)
T H IS IS AN IR F 5 30 S W IT H
LOT CODE 8024
AS S E M B L E D ON WW 0 2, 2000
IN THE ASSEMBLY LINE "L"
N ote: "P" in as sem bly line
po s i tio n i nd icate s "L ead -F ree"
INT ER NAT ION AL
R E CT IFIE R
LOGO
ASSEMBLY
LOT CODE
F530S
PART NUMBER
DATE CODE
YE AR 0 = 2000
WEE K 02
LINE L
OR
IN T E R N AT ION AL
RECTIFIER
LOGO
AS S EM B L Y
LOT CODE
F 530S
www.irf.com 9
PART NUMB ER
DATE CODE
P = DESIGNAT ES LE AD-FREE
PRODUCT (OPTIONAL)
YEAR 0 = 2000
WEEK 02
A = ASSEMBLY SITE CODE
Page 10
IRF630NPbF/SPbF/LPbF
TO-262 Package Outline
IGBT
1- GATE
2- COLLECTOR
3- EMITTER
TO-262 Part Marking Information
TH IS IS AN IRL3103L
E X AMPL E :
LOT CODE 1789
ASS EMBLE D ON WW 19, 1997
IN TH E ASS EMBLY L INE "C"
Note: "P" in ass embly line
pos iti on indicates "L ead-F ree"
INTERNAT IONAL
RECT IFIE R
LOGO
ASSEMBLY
LOT CODE
PART NUMBER
DATE CODE
YEAR 7 = 1997
WE EK 19
LINE C
OR
INTE RNATIONAL
RECTIFIER
LOGO
AS S E MB L Y
LOT CODE
www.irf.com 10
PART NUMBE R
DAT E CODE
P = DESIGNATE S LEAD-FREE
PRODUCT (OPT IONAL)
YEAR 7 = 1997
WE EK 19
A = AS S E MBL Y S I TE CODE
Page 11
D2Pak Tape & Reel Infomation
Dimensions are shown in millimeters (inches)
TRR
4.10 (.161)
3.90 (.153)
FEED DI RECTION
TRL
FEED DIRE CTION
1.85 (.073)
1.65 (.065)
10.90 (.429)
10.70 (.421)
1.60 (.063)
1.50 (.059)
11.60 (.457)
11.40 (.449)
16.10 ( .634)
15.90 ( .626)
1.60 (.063)
1.50 (.059)
1.75 (.069)
1.25 (.049)
IRF630NPbF/SPbF/LPbF
0.368 (.0145)
0.342 (.0135)
15.42 (.609)
15.22 (.601)
24.30 (.957)
23.90 (.941)
4.72 (.136)
4.52 (.178)
13.50 (.532)
12.80 (.504)
330.00
(14.173)
MAX.
NOTES :
1. COMFORMS TO EIA-418.
2. CONTROLLING DIMENSION: MILLIMETER.
3. DIMENSION MEASURED @ HUB.
4. INCLUDES FLANGE DISTORTION @ OUTER EDGE.
27.40 (1.079)
23.90 (.941)
4
26.40 (1.039)
24.40 (.961)
3
60.00 (2.362)
MIN.
30.40 (1.197)
MAX.
4
Notes:
Repetitive rating; pulse width limited by
max. junction temperature.
Starting T
RG = 25Ω, I
This is applied to D
= 25°C, L = 6.5mH
J
= 5.4A.
AS
2
Pak, when mounted on 1" square PCB ( FR-4 or G-10 Material ).
Pulse width ≤ 400µs; duty cycle ≤ 2%.
This is only applied to TO-220AB package.
For recommended footprint and soldering techniques refer to application note #AN-994.
I
≤ 5.4A, di/dt ≤ 280A/µs, V
SD
DD
≤ V
(BR)DSS
, TJ ≤ 175°C.
Data and specifications subject to change without notice.
IR WORLD HEADQUARTERS: 233 Kansas St., El Segundo, California 90245, USA Tel: (310) 252-7105
TAC Fax: (310) 252-7903
Visit us at www.irf.com for sales contact information.02/04
www.irf.com 11
Loading...
