CIPOS™ Control Integrated POwer System

Single In-Line Intelligent Power Module
3Φ-bridge 600V / 22A @ 25°C

Features

• DCB isolated Single In-Line molded module

• FAULT signal

• TrenchStop

• Optimal adapted anti parallel diode for low EMI

• Integrated bootstrap diode and capacitor

• Rugged SOI gate driver technology with

stability against transient and negative voltage

• Fully compliant to 3.3V and 5V microcontrollers

• Temperature sense

• Under voltage lockout at all channels

• Matched propagation delay for all channels

• Low side emitter pins ac cessible for all phase

current monitoring (open emitter)

• Cross-conduction prevention

• Lead-free terminal plating; RoHS compliant

• Qualified according to JEDEC

temperature stress tests for 1000h) for target
applications

®

IGBTs with lowest V

CE(sat)

1

(high

Target Applications

• Washing machines

• Consumer Fans and Consumer Compressors

Description

The CIPOS™ module fam ily offers the c hance for
integrating various power and contr ol com ponents
to increase reliability, optimize PCB size and
system costs.

This SIL-IPM is designed t o control AC motors in
variable speed drives for applications like air
conditioning, compressors and washing m achines.
The package concept is specially adapted to
power applications, which need extremely good
thermal conduction and electrical isolation, but
also EMI-save control and overload protection.
The features of TrenchStop
parallel diodes are combined with a new
optimized Infineon SOI gate driver for excellent
electrical performance. The product provides a
FAULT sign al, wh ic h is signific an t l y s implifying t he
system.

®

IGBTs and anti

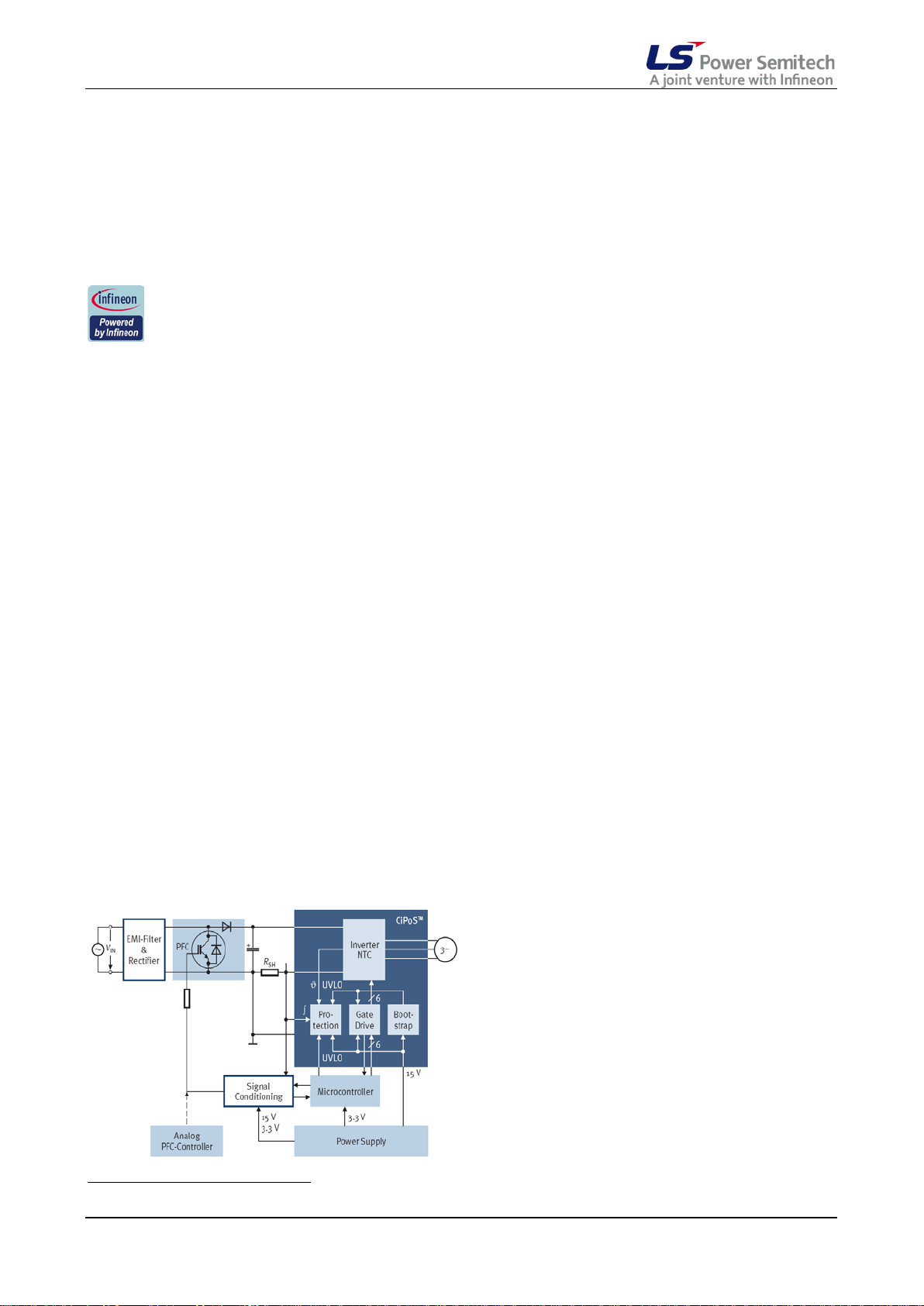

System Configuration

• 3 half-bridges with TrenchStop® IGBT & FW-
diodes

• 3Φ SOI gate driver

• Bootstrap diodes for high side supply

• Integrated 100nF bootstrap capacitance

• Temperature sensor, passive components for

adaptions

• Isolated heatsink

• Creepage distance typ 3.2mm

Certification

UL 1577 (UL file E314539)

1

J-STD-020 and JESD-022

Data Sheet 4/18 Jun. 2010

Internal Electrical Sc h emat ic

/HIN1
/HIN2
/HIN3

/LIN1
/LIN2
/LIN3

VCC

RCIN

EN

/FAULT

VSS

Com

RTS

VB1

VB2

VB3

HO1

HO2

HO3

LO1

LO2

LO3

VS1

VS2

VS3

VSS (23)

/LIN3 (20)

/LIN2 (19)

/LIN1 (18)

/HIN3 (17)

/HIN2 (16)

/HIN1 (15)

VDD (22)

VB1 (7)

VB2 (4)

VB3 (1)

VRW (14)

VRV (13)

VRU (12)

W, VS3 (2)

V, VS2 (5)

U, VS1 (8)

V+ (10)

/FLT­TEMP (24)

Driver-IC

ITRIP (21)

ITRIP

Rbs

R1

C2

C1

CbsH1 CbsH2 CbsH3

RH1 RL1 RL2RH2 RL3RH3

Dbs1-

Dbs3

Tr1, U-HS
D1

Tr2, U-LS
D2

Tr3, V-HS
D3

Tr4, V-LS
D4

Tr5, W-HS
D5

Tr6, W-LS
D6

Cge1

Cge2

Cge3

Cge4

Cge5

Cge6

Cge = 390 pF

Dz

R2-R8

CIPOS™ IKCS22F60F2A

IKCS22F60F2C

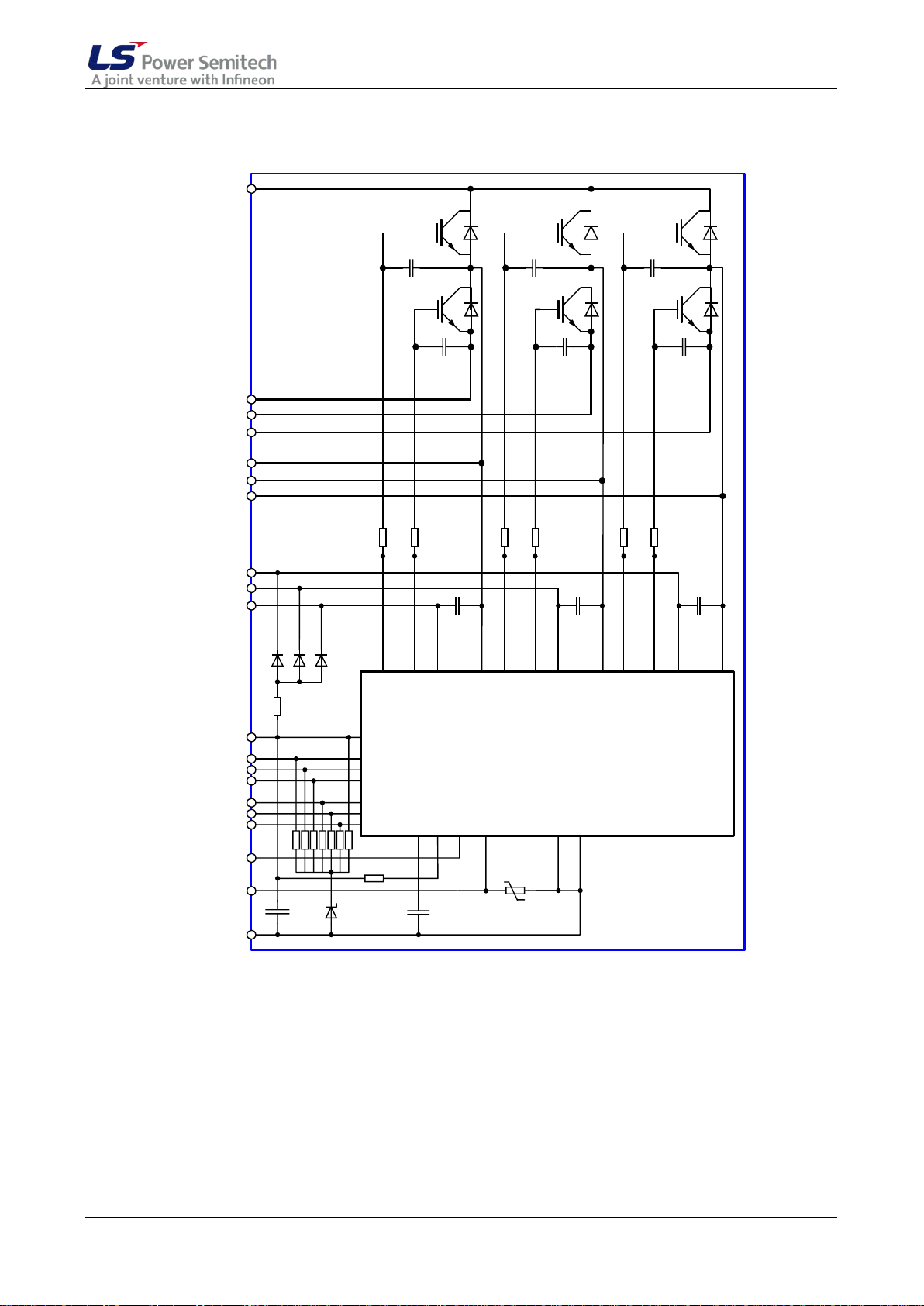

Figure 1: Internal Schematic

Data Sheet 5/18 Jun. 2010

CIPOS™ IKCS22F60F2A

Pin Number

Pin Name

Pin Description

1

VB3

high side floating IC supply voltage

2

W,VS3

motor output W, high side floating IC supply offset voltage

3

n.a.

None

4

VB2

high side floating IC supply voltage

5

V,VS2

motor output V, high side floating IC supply offset voltage

6

n.a.

None

7

VB1

high side floating IC supply voltage

8

U,VS1

motor output U, high side floating IC supply offset voltage

9

n.a.

None

10

V+

positive bus input voltage

11

n.a.

None

12

VRU

low side emitter

13

VRV

low side emitter

14

VRW

low side emitter

15

/HIN1

input gate driver high side 1/U

16

/HIN2

input gate driver high side 2/V

17

/HIN3

input gate driver high side 3/W

18

/LIN1

input gate driver low side 1/U

19

/LIN2

input gate driver low side 2/V

20

/LIN3

input gate driver low side 3/W

21

ITRIP

input overcurrent shutdown

22

VDD

module control supply

23

VSS

module negative supply

24

/FLT-TEMP

Fault indication and temperature monitoring

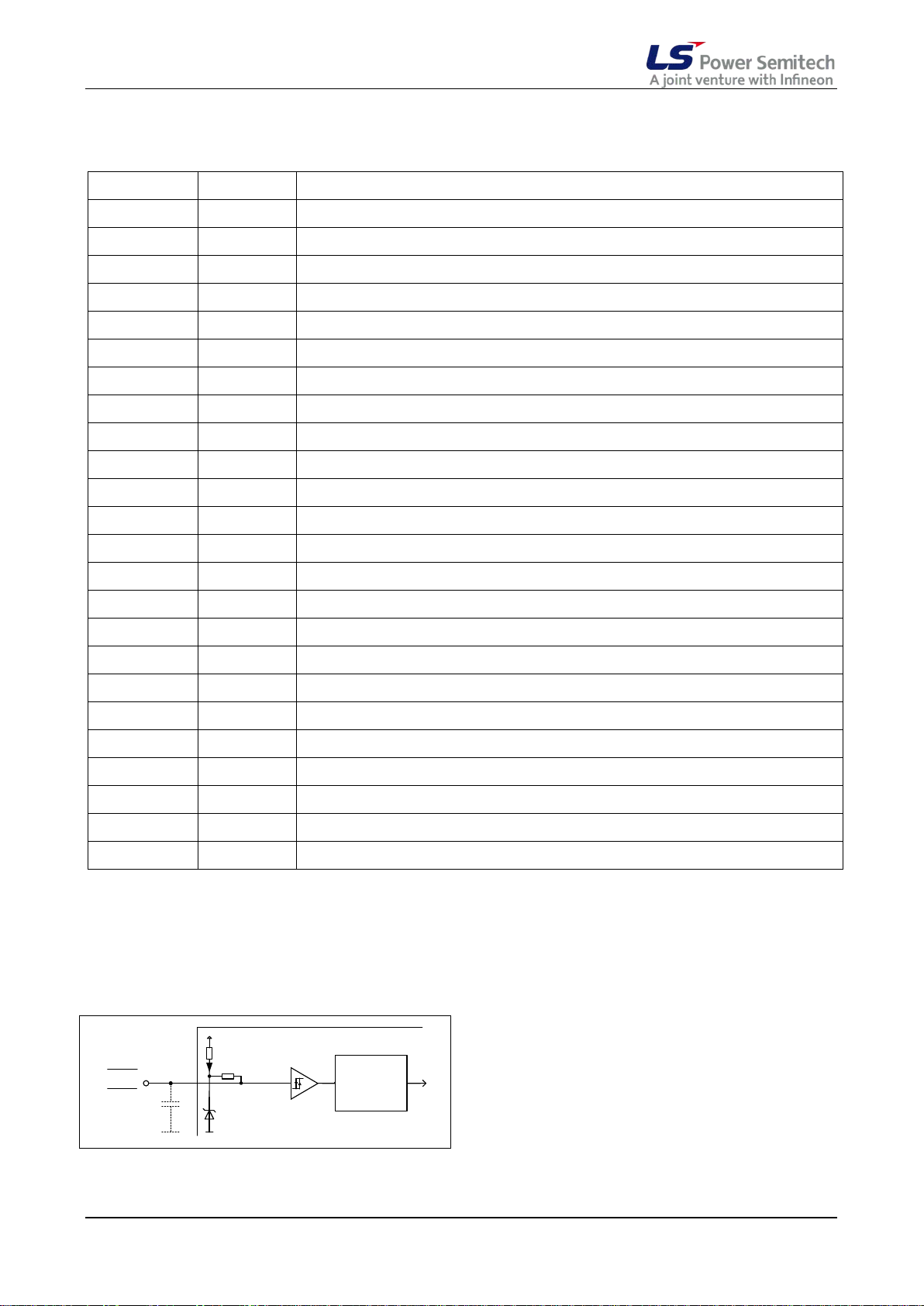

Figure 2: Input pin structure

INPUT
NOISE

FILTER

VIH; V

IL

LINx

HINx

V

DD

VZ=3.3V

IKCS22F60F2C

Pin Assignment

Pin Description

/HIN1,2,3 and /LIN1,2,3 (Low side and high side control pins, Pin 15 - 20)

These pins are active low and they are
responsible for the control of the integrat ed IGBT

The Schmitt-trigger input threshold of them are

Data Sheet 6/18 Jun. 2010

such to guarantee LSTTL and CMOS compatibilit y
down to 3.3V controller outputs. The maximum
voltage at these pins is 5.5V and therefore fully
compliant to 3.3V-microcontrollers. Pull-up
resistor of about 75kΩ is internally provided to
pre-bias inputs during supp ly start-up an d a zener
clamp is provided for pin protection purposes.
Input schmitt-trigger and noise filter provide
beneficial noise rejection to short input pulses.

It is recommended for proper work of CIPOS™
not to provide an input pulse-width and PWM
deadtimes lower than 1us.

The integrated gate drive provides additionally a
shoot through prevention capability which avoids
the simultaneous on-state of two gate drivers of

CIPOS™ IKCS22F60F2A

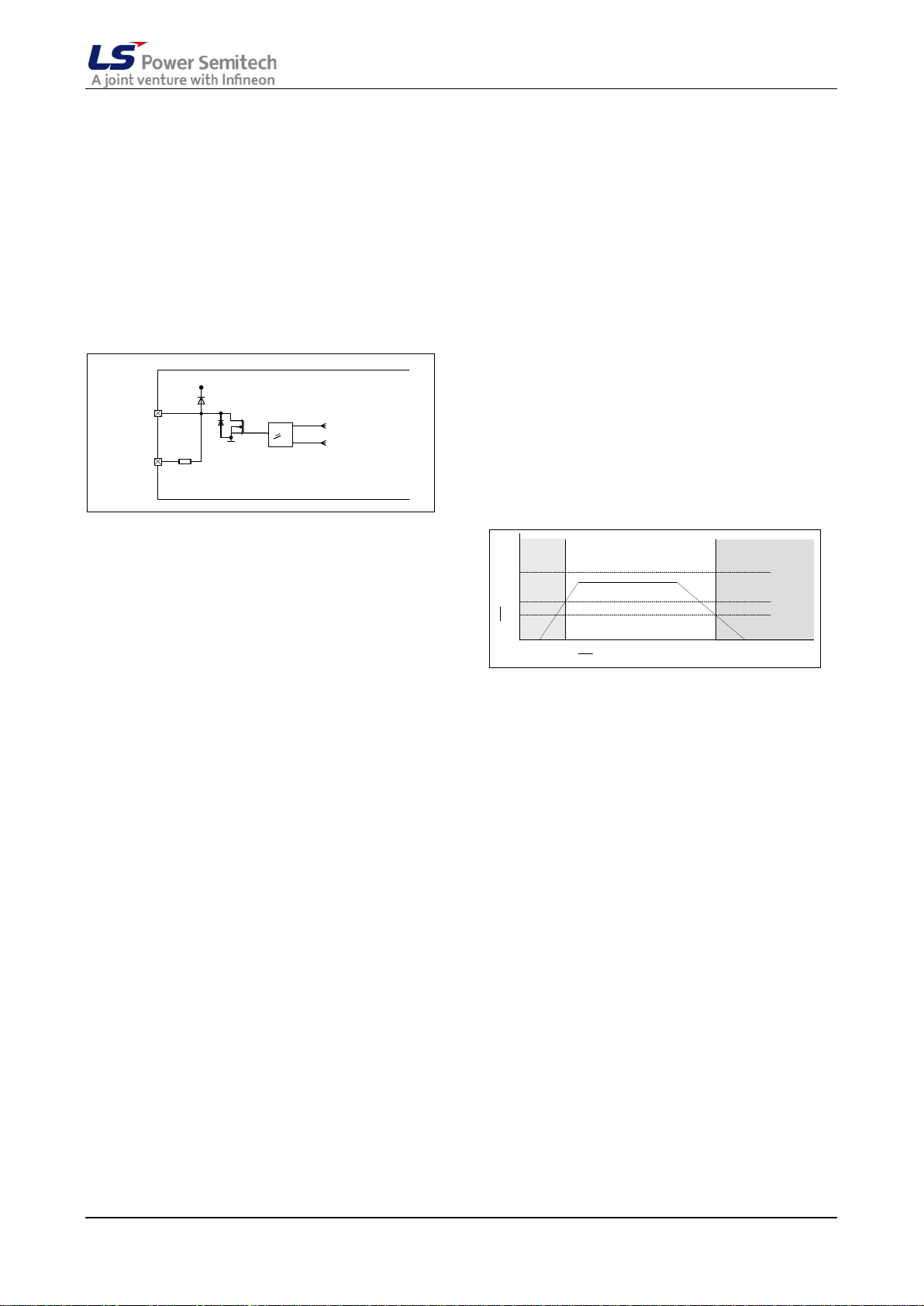

Figure 3: Internal circuit at pin TEMP

UVLO

Stand

by

v

DD

V

DDUV+

, V

BSUV+

Normal

Operation

V

DDUV-

, V

BSUV-

t

V

DDmax

, V

BSmax

/FLT-

TEMP

CIPOS™

VSS

>1

from uv-detection

V

CC

R

ON,FLT

from ITRIP-Latch

R

NTC

IKCS22F60F2C

the same leg (i.e. HO 1 and LO1, HO2 and LO2,
HO3 and LO3).

A minimum deadtime insertion of typ 380ns is also
provided, in order to reduce cross-conduction of
the external power switches.

/FLT-TEMP (t emperatu re NT C, Pin 24)
The TEMP terminal pr ovides direct access to the
NTC, which is referenced to VSS. An external
pull-up resistor connected to +5V ensures, that
the resulting voltage can be directly connected to
the microcontroller.

The same pin indicates a m odu le f ailur e i n cas e of
under voltage at pin V DD or in case of triggered
over current detection at I TRIP. A pull-up resistor
is externally required to bias the NTC. No
temperature information is available during fault.

VB1, 2,3 and VS1,2,3 (H igh s ide s uppl ies, Pin 1, 2, 4, 5, 7, 8)

VB to VS is the high side s uppl y voltage. T he high
side circuit can float wit h respect to V SS following
the external high side power device emitter/source
voltage.

Due to the low power consumption, the floating
driver stage is supplied b y an int egrated bootstrap
circuit connected to VDD. This includes also
integrated bootstra p capacitors of 100 nF at each
floating supply, which are located very close to the
gate drive circuit.

The under-voltage det ectio n operates with a risi ng

V

supply threshold of typical
falling threshold of

V

DDUV-

= 10.4V according to

= 12.1V and a

BSUV+

Figure 4.
VS1,2,3 provide a high robustness against

negative voltage i n respect of VSS of -50V. This
ensures very stable designs even under rough
conditions.

ITRIP (Over-current de tection function, Pin 21)
CIPOS™ provides an over-current detection
function by connecting the ITRIP input with the
motor current feedback. The ITRIP comparator
threshold (typ 0.46 V) is ref erenced to V SS gr oun d.
A input noise filter (typ:

t

the driver to detect false over-current events.
Over-current detection generates a hard shut

down of all outputs of the gate driver after the
shutdown propagation delay of typically 900ns.

The fault-clear time is set to typically to 4.7ms.
VDD, VSS (control side supply an d ref eren ce,

Pin 22, 23)
VDD is the low side suppl y and it provides power
both to input logic and to low side output power
stage. Input logic is r eferenced to VS S ground as
well as the under-voltage detection circuit.

The under-voltage circuit enables the device to
operate at power on when a supply voltage of at
least a typical voltag e of
present.

The IC shuts down all the gate drivers power
outputs, when the VDD supply voltage is below

= 10.4 V. This prevents the exter nal power

V

DDUV-

switches from critically low gate voltage levels
during on-state and therefore from excessive
power dissipation.

Data Sheet 7/18 Jun. 2010

= 225ns ) prevents

ITRIPMIN

V

= 12.1V is at lea st

DDUV+

Figure 4: Operation modes

VRU, VRV, V RW (lo w s id e emi tt er, Pin 12, 13,

14)

The low side emitters are available for current
measurements of each phase leg. It is
recommended to k eep the connection to pin VSS
as short as possible in or de r to av oi d un nec es sary
inductive voltage drops.

V+ (positive bus input voltage, Pin 10)
The high side IGBT are connected to the bus
voltage. It is recommended, that the bus voltage
does not exceed 500V.

CIPOS™ IKCS22F60F2A

Value

1

Wave soldering,

RMS, f=50Hz, t

tp = 100µs

Description

Condition

Symbol

Value

Unit

Max. Blocking Voltage

V

600

-

V

Tc = 25°C,T

<150°C

-22

22

Repetitive peak collector current

t

limited by T

Iu, Iv, Iw

-45

45

A

Power dissipation per IGBT

Tc = 25°C

P

- 59

W

IGBT

T

-40

150

IKCS22F60F2C

Absolute Maximum Ratings

(

T

= 25°C, V

J

Module Section

= 15V Unless Otherwise Specified):

DD

Description Condition Symbol

Storage temperature range
Operating temperature control PCB

Solder temperature

Insulation test voltage

Mounting torque

Mounting pressure on surface

Creepage distance
Max. peak power of bootstrap

resistor

IGBT and Diode Section

1.6mm (0.063in.)
from case for 10s

=1min
M3 screw and washer
Package flat on

mounting surface

Tc= 100°C

T

T

T

V

MS

N

P

BRpeak

stg

PCB

sol

ISOL

MC

dS

Unit

Min max

-40 125 °C

- 125 °C

- 260 °C

2500 - V

- 0.6 Nm

- 150 N/mm²

3.1 - mm

90 W

CES

DC output current

Short circuit withstand time

2

t

Operating junction temperature range

Tc = 80°C,T

p

VDD = 15V,VDC = 400V,

vJ = 150°C

T

Diode

vJ

<150°C

vJ

vJmax

Iu, Iv, Iw

- 5 µs

sc

tot

vjI

T

vjD

1

Monitored by pin 24

2

Allowed number of short circuits: <1000; time between short circuits: >1s.

min max

-14

-40

14

150

A

°C

Data Sheet 8/18 Jun. 2010

CIPOS™ IKCS22F60F2A

Description

Condition

Symbol

Value

Unit

Single IGBT thermal resistance,

Single diode thermal resistance,

Description

Condition

Symbol

Value

Unit

min

max

Module supply voltage

VDD

-1

20

High side floating IC supply offset

VDD-VBS-6

ITRIP input voltage

V

-1

10

/FLT-TEMP Input voltage

V

-1

20

/HIN, /LIN Input voltage

V

= float

VIN - 5.5

Operating junction temperature

1

T

-

125

°C

Max. switching frequency

f

-

20

kHz

Description

min

max

IKCS22F60F2C

min max

junction-case

junction-case

R

R

Control Section

High side floating supply voltage
(VB vs. VS)

voltage

V

t

< 500ns

p

IN

/FLT-TEMP Input current I

- 2.1

thJC

- 2.7

thJCD

-1 20

BS

V

S1,2,3

IN,ITRIP

IN,FLT

IN,FLT

VDD-VBS-50

- 5 mA

600

K/W

V

J,IC

PWM

Recommended Operation Conditions

All voltages are absolute voltages referenced to VSS -Potential unless otherwise specified.

Symbol Value Unit

High side floating supply offset voltage VS -3 500
High side floating supply voltage (VB vs. VS) VBS 12.5 17.5
Low side power supply VDD 12.5 17.5
Logic input voltages LIN, HIN, ITRIP VIN 0 5

V

1

Monitored by pin 24

Data Sheet 9/18 Jun. 2010

CIPOS™ IKCS22F60F2A

Description

Condition

Symbol

Value

Unit

Collector-Emitter breakdown voltage

V

= 5V, IC = 0.25mA

V

600

V

V

= 15V, I

= +/-15A

V

= 15V, t

≤ 5µs

Logic "0" input voltage (LIN,HIN)

VIH

1.7

2.1

2.4

V

Logic "1" input voltage (LIN,HIN)

VIL

0.7

0.9

1.1

V

ITRIP positive going threshold

V

360

460

540

mV

V

and V

supply under voltage

V

V

and V

supply under voltage

V

V

and V

supply under voltage

V

Input clamp voltage (ITRIP)

IIN = 4mA

V

9.0

10.6

13.0

V

Quiescent VB

supply current (VBx

Quiescent VDD supply current
Input bias current

V

= 5V

I

-

55

100

µA

ITRIP Input bias current

V

= 5V

I

-

75

120

µA

Leakage current of high side

I

2

-

30 - µA

FAULT low on resistance

R

-

56

-

IKCS22F60F2C

Static Characteristics

(Tc = 25°C, VDD = 15V, if not stated otherwise)

min typ max

IN

Collector-Emitter saturation voltage

Diode forward voltage

Zero gate voltage collector c urr ent
of IGBT

Short circuit collector current

1

I

DD

T

= 25°C

vJ

= 150°C

T

vJ

V

= 5V,

IN

= 25°C

T

vJ

= 150°C

T

vJ

= 600V, VDD = 5V

V

CE

= 25°C

T

vJ

= 150°C

T

vJ
DD

V

= 300V, Tj = 150°C

CC

out

I

= +/-15A

out

SC

ITRIP input hysteresis V

DD

positive going threshold

DD

negative going threshold

BS

BS

V

(BR)CES

V

-

CE(sat)

V

F

I

CES

2

C(SC)

IT,TH+

45 75 - mV

IT,HYS

DDUV+

BSUV+

DDUV-

V

BSUV-

11.0 12.1 12.8 V

2

9.5 10.4 11.0 V

2

1.65

-

1.9

-

-

-

-

1.7

1.6

-

-

- 95 - A

2.1

2.05

40

1000

V

V

µA

CC

lockout hysteresis
Input clamp voltage (/HIN, /LIN) IIN = 4mA V

only)

(VDD only)

Input bias current V

BS

x

V

= low IQB - 300 550 µA

HIN

V

= float I

IN

IN

= 0V

IN

ITRIP

T

= 125°C

j,IC

V

= 0.5V, V

FLT

ITRIP

= 1V

DDUVH

V

BSUVH

INCLAMP

INCLAMP2

QDD

IN+

I

IN-

ITRIP+

LVS

on,FLT

1

Allowed number of short circuits: <1000; time between short circuits: >1s.

2

Test is not subject of product test, verified by characterisation

1.2 1.7 - V

2

9.0 10.4 13.0 V

- 2.4 3.4 mA

- 220 400 µA

Ω

Data Sheet 10/18 Jun. 2010

Dynamic Characteristics

Description

Condition

Symbol

Value

Unit

Turn-on propagation delay

V

= 0V; I

= 15A,

Turn-on rise time

V

= 5V, I

= 15A,

Turn-off propagation delay

V

= 5V; I

= 15A,

Turn-off fall time

V

= 0V, I

= 15A,

V

= 1V, Iu, Iv, Iw

Input filter time ITRIP

V

= 1V

t

155

210

380

Propagation delay ITRIP to FAULT

V

= 1V

t

370

Input filter time at LIN for turn on
Input filter time at HIN for turn off

V

= 5V

t

-

220

-

Input filter time at HIN for turn off

V

= 5 V

t

-

400

-

V

= 0 V & 5V

Min. deadtime between low side
Deadtime of gate drive circuit

DTIC

-

380 - ns

I

= 15A, V

= 300V

I

= 15A, V

= 300V

I

= 15A, V

= 300V

(Tc = 25°C, VDD = 15V, if not stated otherwise)

CIPOS™ IKCS22F60F2A

IKCS22F60F2C

min typ max

High side or low side

High side or low side

High side or low side

High side or low side
Shutdown propagation del a y IT RIP

and off and input filter time at HIN
for turn on only

Fault clear time after ITRIP-fault

LIN,HIN

V

= 300V

DC

LIN,HIN

V

= 300V

DC

LIN,HIN

V

= 300V

DC

LIN,HIN

V

= 300V

DC

ITRIP

=15A

ITRIP

ITRIP

V

LIN,HIN

HIN

HIN

LIN,HIN

V

ITRIP

out

out

out

out

= 0 V & 5V t

= 0 V

t

- 718 -

d(on)

tr - 61 -

t

- 937 -

d(off)

tf - 74 -

t

- 1100 -

ITRIP

ITRIPmin

FLT

120 270 -

FILIN

FILIN1

FILIN2

t

- 4.7 - ms

FLTCLR

ns

and high side

IGBT Turn-on Energy (includes
reverse recovery of diode)

Diode recovery Energy

DT

out

DC

TvJ = 25°C

= 150°C

T

vJ

out

T

= 25°C

vJ

= 150°C

T

vJ

out

DC

DC

TvJ = 25°C

= 150°C

T

vJ

- 1.5 - µs

PWM

Eon

E

off

E

rec

-

0.69

-

0.93

-

0.27

-

0.37

-

0.07

-

0.17

-

-

-

mJ IGBT Turn-off Energy

-

-

-

Data Sheet 11/18 Jun. 2010

CIPOS™ IKCS22F60F2A

Description

Condition

Symbol

1

Value

Unit

B-Constant of NTC (Negative
Bootstrap diode forward voltage

V

-

1.9

2.05

V

/HIN1
/HIN2
/HIN3

/LIN1
/LIN2
/LIN3

VCC

RCIN

EN

VSS

Com

RTS

VB1

VB2

VB3

HO1

HO2

HO3

LO1

LO2

LO3

VS1

VS2

VS3

V+

Driver-IC

ITRIP

Rbs

R

C2C1

CbsH1 CbsH2 CbsH3

PFC

Control

PFC Stage

3-ph AC

Motor

VB1

VB2

VB3

W, VS3

V, VS2

U, VS1

VRW

VRV

VRU

VSS

/LIN3

/LIN2

/LIN1

/HIN3

/HIN2

/HIN1

VDD

TEMP

ITRIP

DC/DC

Converter

Micro

Controller

RH1

RL1 RL2 RL3

RH2 RH3

Dbs

5V /

3.3V

/FAULT

Clamping

IKCS22F60F2C

Integrated Components

min typ max

Resistor
Resistor

Temperature Coefficient)

Capacitor
Capacitor
Bootstrap Capacitor

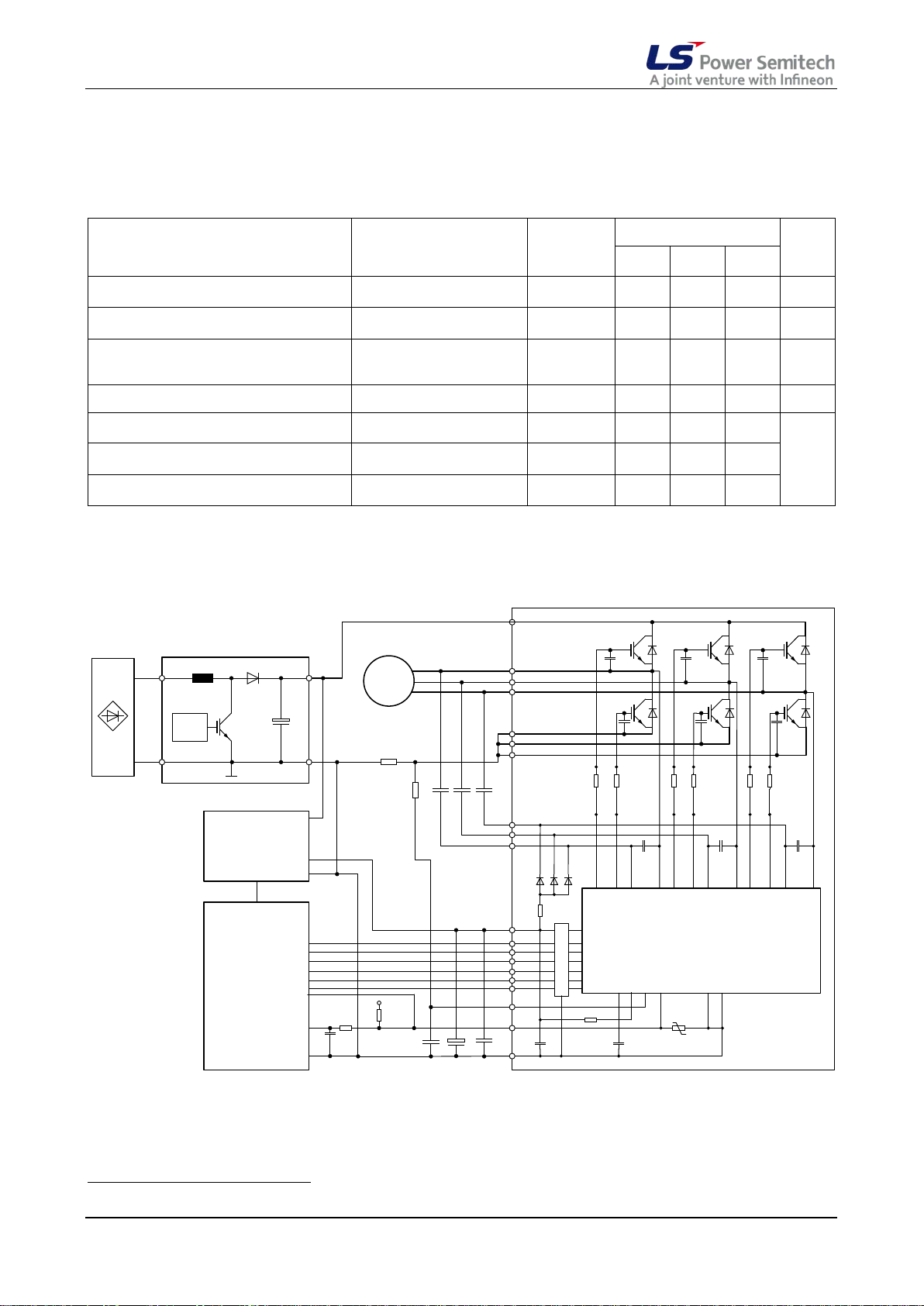

Typical Application

= 25°C

T

NTC

T

= 25°C B25 - 4250 - K

NTC

I

= 100mA

FDbs

Rbs

RTS

FDbs

C1

Cgex

CbsHx

- 10 -

- 100 -

- 100 -

0.39

- 100 -

Ω

kΩ

nF

1

Symbols according to Figure 1

Data Sheet 12/18 Jun. 2010

Characteristics

I

,

0V 1V 2V 3V

0A

5A

125℃
150℃

25℃

0V 1V 2V

0A

5A

10A

15A

20A

25A

30A

35A

40A

125℃
150℃

25℃

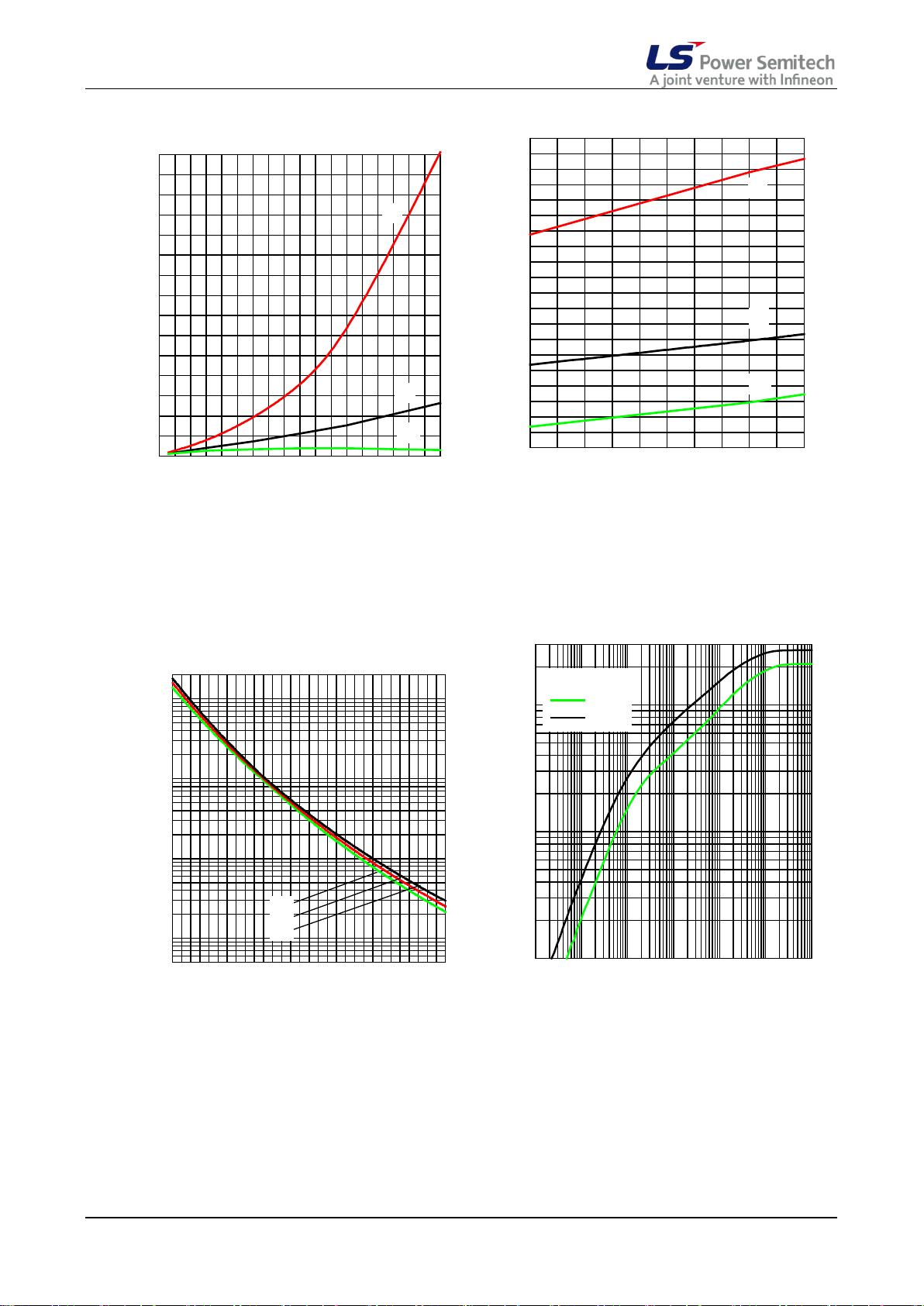

Figure 4. Typical IGBT output characteristic

Figure 5. Typical diode forward current as a

t,

0A 10A 20A 30A 40A

10ns

100ns

t

f

t

d(on)

t

r

t

d(off)

25℃ 50℃ 75℃ 100℃ 125 ℃

100ns

1000ns

t

f

t

d(on)

t

r

t

d(off)

Figure 6. Typical switching times as a

Figure 7. Typical switching times as a

CIPOS™ IKCS22F60F2A

IKCS22F60F2C

(Tc = 25°C, V

COLLECTOR CURRENT

C

V

= 15V, if not stated otherwise)

DD

, COLLECTOR EMITTER VOLTAGE

CE

, forward CURRENT

F

I

V

FORWARD VOLT AGE

F

function of forward voltage

SWITCHING TIMES

=150°C,

J

I

, COLLECTOR CURRENT

C

function of collector current

(inductive load, T

= 300V

V

CE

Dynamic test circuit in Figure A)

Data Sheet 13/18 Jun. 2010

SWITCHING TIMES

t,

T

, JUNCTION TEMPERATURE

vJ

function of junction temperature

(inductive load, V
Dynamic test circuit in Figure A)

= 300V, IC = 15A

CE

CIPOS™ IKCS22F60F2A

E

,

0A 5A 10A 15A 20A 25A 30A 35A 40A

0.00mJ

1.00mJ

2.00mJ

3.00mJ

4.00mJ

5.00mJ

6.00mJ

7.00mJ

E

on

E

rec

E

off

25℃ 50℃ 75℃ 100 ℃ 125 ℃

0.00mJ

0.10mJ

0.20mJ

0.30mJ

0.40mJ

0.50mJ

0.60mJ

0.70mJ

0.80mJ

0.90mJ

E

rec

E

on

E

off

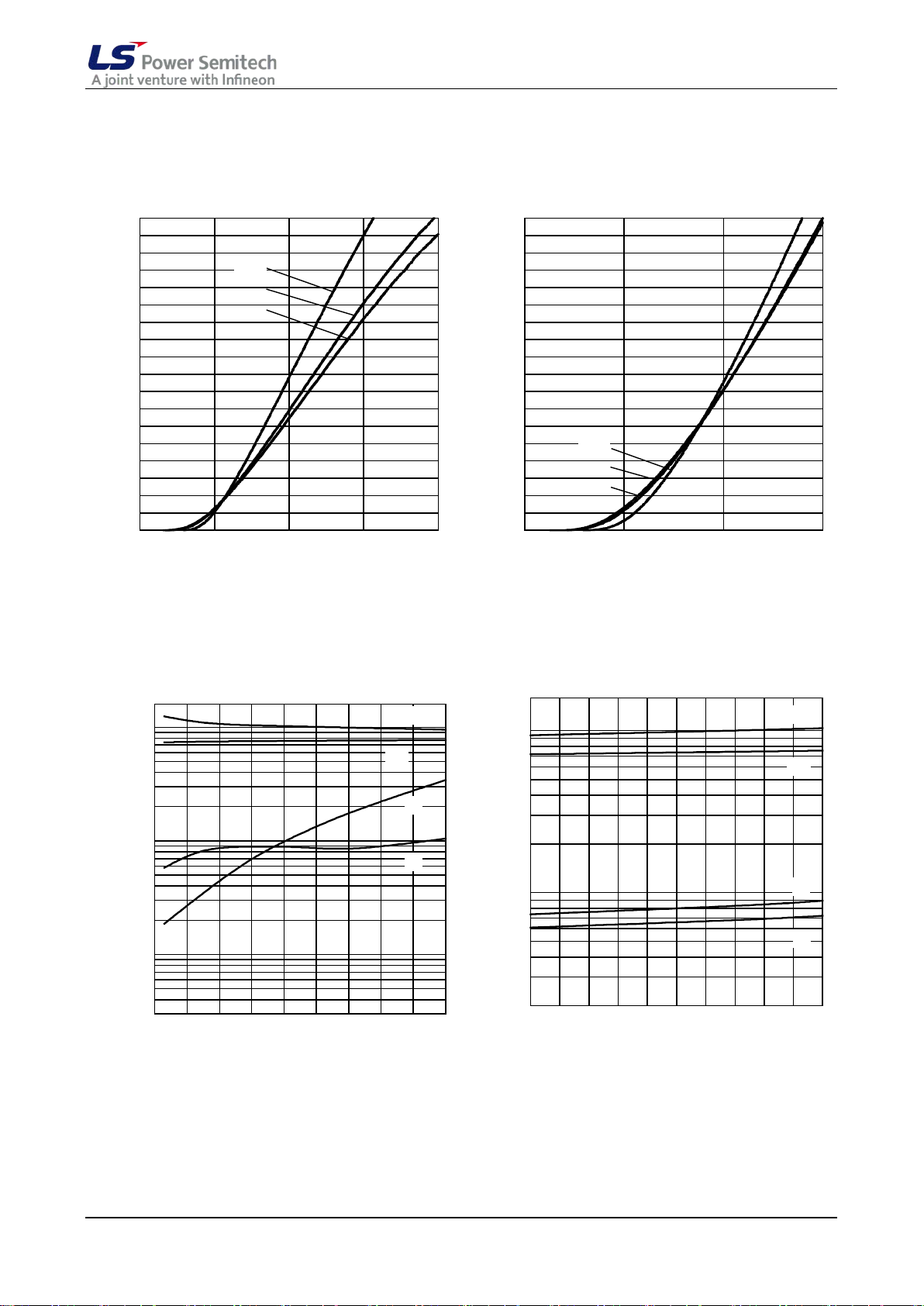

Figure 8. Typical switching energy losses

Figure 9. Typical switching energy losses as

R

TS

, NTC resistance

-25 ℃ 0℃ 25℃ 50℃ 75 ℃ 100 ℃

1kOhm

10kOhm

100kOhm

1000kOhm

min
typ
max

10-6s 10-5s 10-4s 10-3s 10-2s 10-1s

10

-2

K/W

10

-1

K/W

10

0

K/W

Single Pulse

IGBT
Diode

Figure 10. Characteristic of NTC as a

Figure 11. Transient thermal impedance as a

IKCS22F60F2C

SWITCHING ENERGY

I

, COLLECTOR CURRENT

C

, SWITCHING ENERGY

E

as a function of collector current

(inductive load, T

= 300V

V

CE

= 150°C,

J

Dynamic test circuit in Figure A)

T

, JUNCTION TEMPERATURE

vJ

a function of junction temperature

(inductive load, V

= 300V, IC = 15A

CE

Dynamic test circuit in Figure A)

Data Sheet 14/18 Jun. 2010

T

, NTC TEMPERATURE

NTC

function of NTC temperature

, TRANSIENT THERMAL RESISTANCE

thJC

Z

t

, PULSE WIDTH

P

function of pulse width

/T)

(D=t

P

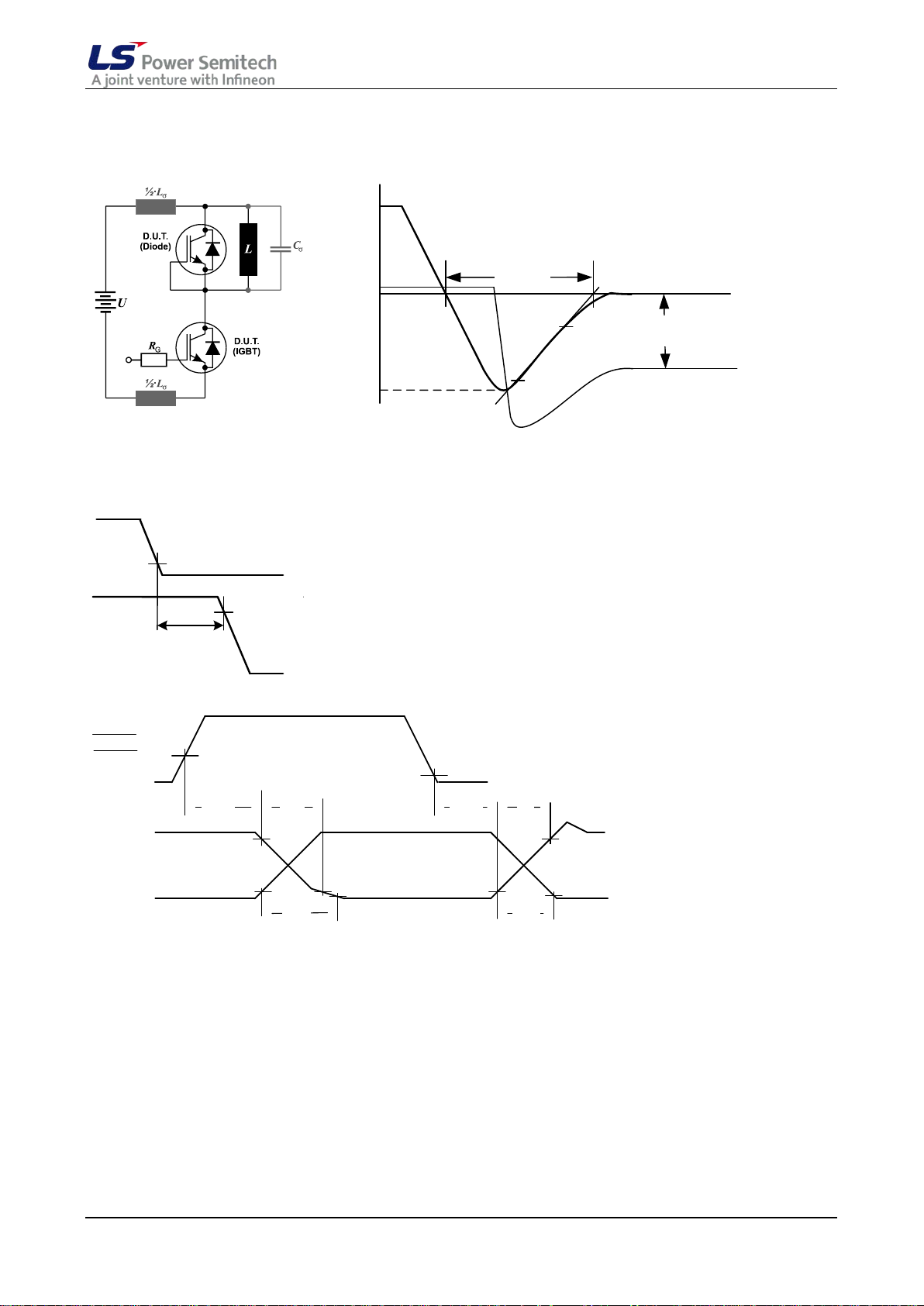

Test Circuits and Parameter Definition

Figure A: Dynamic test circuit

Figure B: Definition of diodes switching characteristics

Figure C: Definition of Enable propagation delay

Figure D: Switching times definition and switching energy definition

25%

I

RRM

t

Erec

∫

⋅=

Erec

t

FD

dtivErec

0

V

R

I

F

90%

I

IGBT

t

EN

90%

1V

V

EN

V

LIN1

,2,3

HIN1,2,3

0.9V

2.1V

iCU, i

CV

, i

CW

90%

10%

v

CEU

, v

CEV

, v

CEW

2%

90%

t

d(off)

t

f

t

d(on)

t

r

t

Eon

10%

t

Eoff

2%

∫

⋅=

Eoff

t

CxCEx

dtivEoff

0

∫

⋅=

Eon

t

CxCEx

dtivEon

0

10%

CIPOS™ IKCS22F60F2A

IKCS22F60F2C

Leakage inductance
Stray capacitance

L

=180nH

σ

C

=39pF

σ

Data Sheet 15/18 Jun. 2010

CIPOS™ IKCS22F60F2A

HIN

HIN

HIN

HO

HO

HO

high

t

FILIN1

t

FILIN2

t

off,HINx

< t

FILIN1

t

off,HINx

t

off,HINx

t

FILIN1

< t

off,HINx

< t

FILIN2

t

off,HINx

> t

FILIN2

t

off,HINx

LIN

HIN
LIN

HO
LO

high

low

on

t

FILIN

t

FILIN

off on off

LO

IKCS22F60F2C

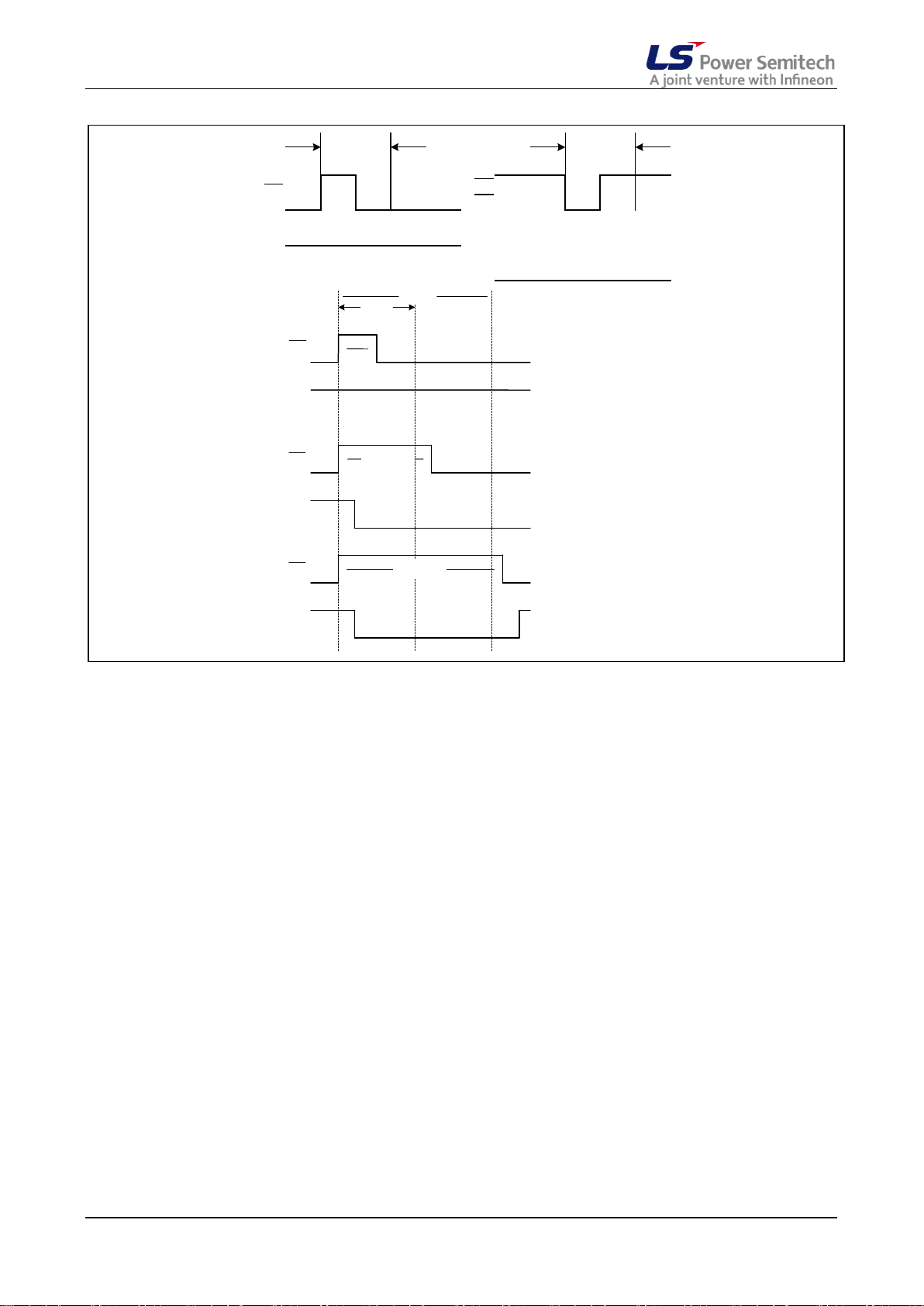

Figure E: Short Puls e suppression

Data Sheet 16/18 Jun. 2010

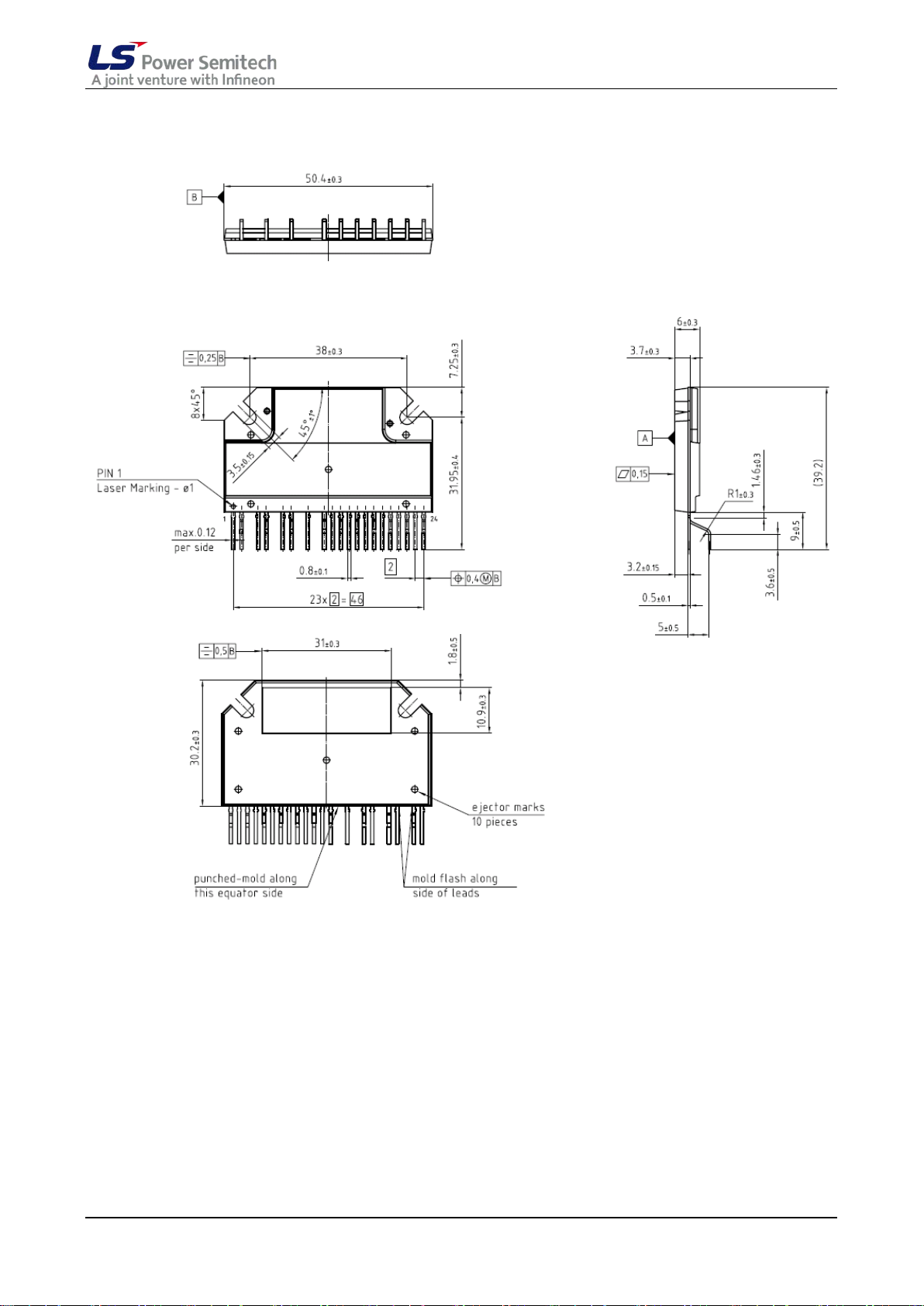

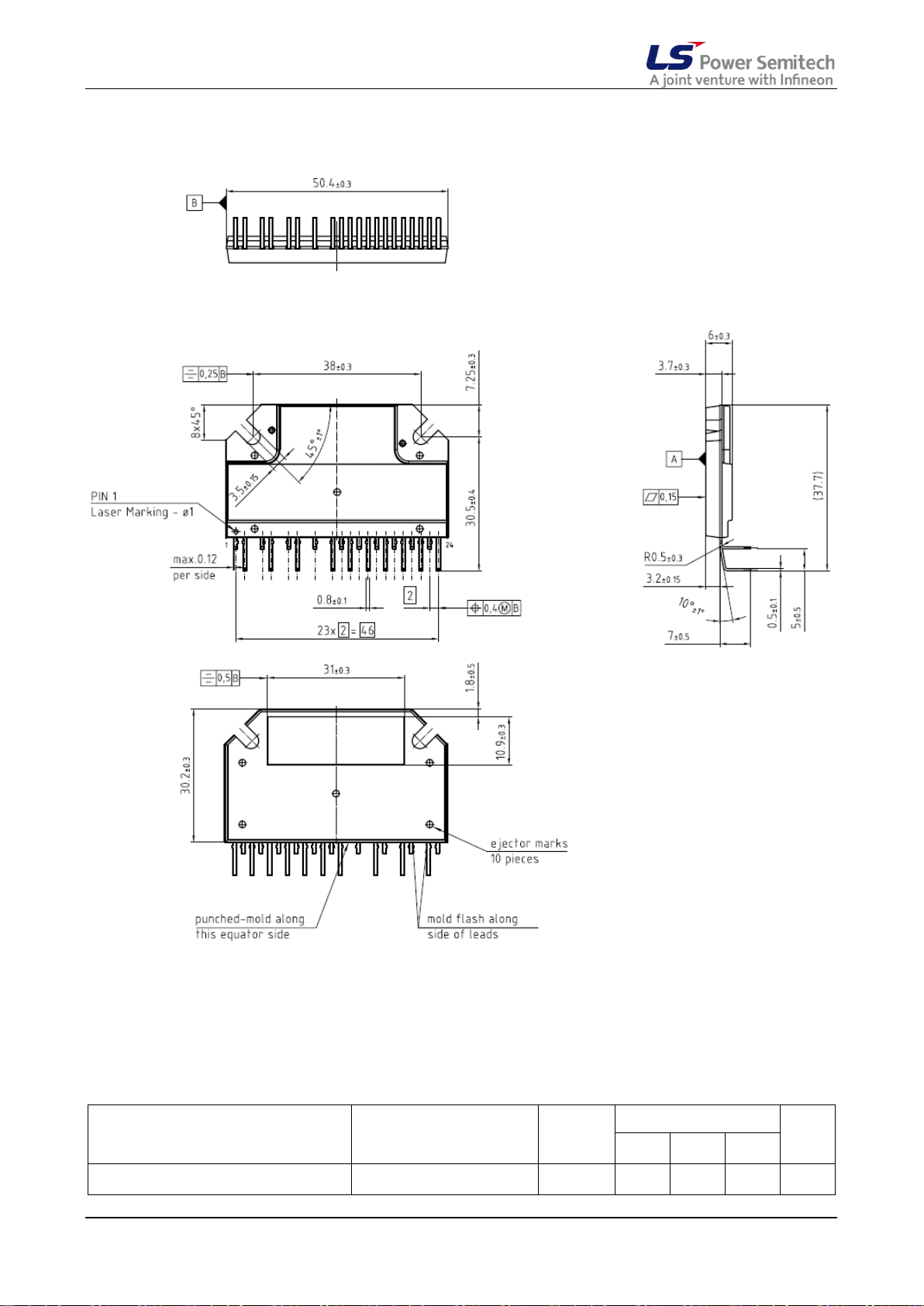

Package Outline IKCS22F60F2A

CIPOS™ IKCS22F60F2A

IKCS22F60F2C

Note: There may occur discolorations on the copper surface without any effect of the thermal properties.

Data Sheet 17/18 Jun. 2010

CIPOS™ IKCS22F60F2A

Description

Condition

Symbol

Value

Unit

Weight

-

17 - g

IKCS22F60F2C

Package Outline IKCS22F60F2C

Package Data

min typ max

mP

Note: There may occur discolorations on the copper surface without any effect of the thermal properties.
Data Sheet 18/18 Jun. 2010
