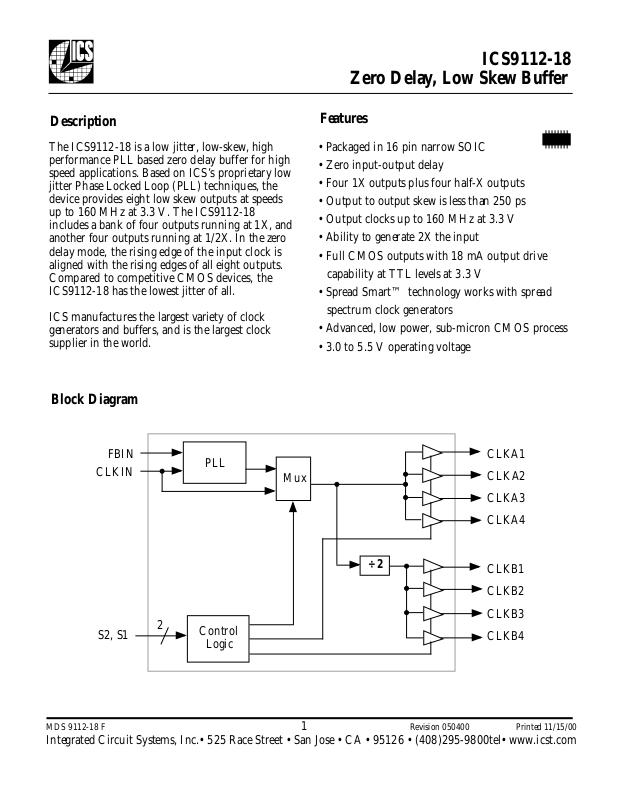

ICS9112-18

Zero Delay, Low Skew Buffer

Description

The ICS9112-18 is a low jitter, low-skew, high
performance PLL based zero delay buffer for high
speed applications. Based on ICS’s proprietary low
jitter Phase Locked Loop (PLL) techniques, the
device provides eight low skew outputs at speeds
up to 160 MHz at 3.3 V. The ICS9112-18
includes a bank of four outputs running at 1X, and
another four outputs running at 1/2X. In the zero
delay mode, the rising edge of the input clock is
aligned with the rising edges of all eight outputs.
Compared to competitive CMOS devices, the
ICS9112-18 has the lowest jitter of all.

ICS manufactures the largest variety of clock
generators and buffers, and is the largest clock
supplier in the world.

Block Diagram

Features

• Packaged in 16 pin narrow SOIC

• Zero input-output delay

• Four 1X outputs plus four half-X outputs

• Output to output skew is less than 250 ps

• Output clocks up to 160 MHz at 3.3 V

• Ability to generate 2X the input

• Full CMOS outputs with 18 mA output drive
capability at TTL levels at 3.3 V

• Spread Smart™ technology works with spread
spectrum clock generators

• Advanced, low power, sub-micron CMOS process

• 3.0 to 5.5 V operating voltage

CLKIN

2

S2, S1

MDS 9112-18 F 1 Revision 050400 Printed 11/15/00

Integrated Circuit Systems, Inc.• 525 Race Street • San Jose • CA • 95126 • [phone]tel• www.icst.com

PLL

Mux

÷ 2

Control

Logic

CLKA1 FBIN
CLKA2
CLKA3
CLKA4

CLKB1
CLKB2

CLKB3
CLKB4

Pin Assignment

ICS9112-18

16
15
14

13
12

11
10

9

FBIN
CLKA4
CLKA3
VDD
GND

CLKB4
CLKB3

S1

CLKIN
CLKA1
CLKA2

VDD
GND

CLKB1
CLKB2

S2

1
2
3
4

5
6
7
8

16 pin narrow (150 mil) SOIC

Output Clock Mode Select Table

ICS9112-18

Zero Delay, Low Skew Buffer

Feedback Configuration Table

Feedback From CLKA1:A4 CLKB1:B4

Bank A CLKIN CLKIN/2
Bank B 2XCLKIN CLKIN

S2 S1 Clocks A1-A4 Clocks B1-B4 Internal Generation PLL Status

0 0 Tri-state (high impedance) Tri-state (high impedance) None On
0 1 Running Tri-state (high impedance) PLL On
1 0 Running Running Buffer Only (no zero delay) Off
1 1 Running Running PLL On

Pin Descriptions

Number Name Type Description

1 CLKIN I CLocK INput. Connect to input clock source.

2, 3, 14, 15 CLKA1:4 O CLocK A bank of four outputs.

4, 13 VDD P Power supply. Connect both pins to same voltage (either 3.3V or 5V).
5, 12 GND P Connect to ground.

6, 7, 10, 11 CLKB1:4 O CLocK B bank of four outputs. These are low skew divide by two of bank A.

8 S2 I Select input #2. Selects mode for outputs per table above.
9 S1 I Select input #1. Selects mode for outputs per table above.

16 FBIN I FeedBack INput. Determines outputs per Feedback Configuration Table above.

Key: I = Input; O = output; P = power supply connection.

External Components

The ICS9112-18 requires a minimum number of external components for proper operation. Decoupling
capacitors of 0.1µF should be connected between VDD and GND on pins 4 and 5, and VDD and GND
on pins 13 and 12, as close to the device as possible. A series termination resistor of 33 Ω may be used close
to the pin for each clock output to reduce reflections.

MDS 9112-18 F 2 Revision 050400 Printed 11/15/00

Integrated Circuit Systems, Inc.• 525 Race Street • San Jose • CA • 95126 • [phone]tel• www.icst.com

ICS9112-18

ABSOLUTE MAXIMUM RATINGS (note 1)

DC CHARACTERISTICS (VDD = 3.3 V unless specified otherwise)

AC CHARACTERISTICS (VDD = 3.3 V unless specified otherwise)

exposure to levels above the operating limits but below the Absolute Maximums may affect device reliability.

2. With CLKIN = 160 MHz, FBIN to CLKA1

Zero Delay, Low Skew Buffer

Electrical Specifications

Parameter Conditions Minimum Typical Maximum Units

Supply voltage, VDD Referenced to GND -0.5 7 V
Inputs and Clock Outputs Referenced to GND -0.5 VDD+0.5 V
Electrostatic Discharge MIL-STD-883 2000 V
Ambient Operating Temperature 0 70 °C
Soldering Temperature Max of 10 seconds 260 °C
Junction temperature 150 °C
Storage temperature -65 150 °C

Operating Voltage, VDD 3.00 5.50 V
Input High Voltage, VIH, CLKIN pin only VDD/2+1 VDD/2 V
Input Low Voltage, VIL, CLKIN pin only VDD/2 VDD/2-1 V
Input High Voltage, VIH 2 V
Input Low Voltage, VIL 0.8 V
Output High Voltage, VOH IOH=-18 mA 2.4 V
Output Low Voltage, VOL IOL=18 mA 0.4 V
Output High Voltage, VOH, CMOS level IOH=-5 mA VDD-0.4 V

Operating Supply Current, IDD (Note 2)
Short Circuit Current Each output ±65 mA

Input Capacitance S2, S1, FBIN 7 pF

No Load, S1 = S2 = 1 44 mA

Input Clock Frequency
Output Clock Frequency
Output Clock Rise Time, CL=30pF 0.8 to 2.0V 1.5 ns
Output Clock Fall Time, CL=30pF 2.0 to 0.8V 1.5 ns
Output Clock Duty Cycle, VDD=3.3V At 1.4V 40 50 60 %
Device to Device Skew, equally loaded rising edges at VDD/2 700 ps
Output to Output Skew, equally loaded rising edges at VDD/2 250 ps
Maximum Absolute Jitter 300 ps
Cycle to Cycle Jitter, 30pF loads 66.67 MHz outputs 500 ps

Notes: 1. Stresses beyond those listed under Absolute Maximum Ratings could cause permanent damage to the device. Prolonged

FBIN to CLKA1, S1=S2=1
FBIN to CLKA1, S1=S2=1

20 160 MHz
20 160 MHz

Using Spread Spectrum Input Clocks

The ICS9112-18 uses ICS’ Spread Smart technology, allowing it to accurately track (pass through) any
clocks that use spread spectrum techniques.

MDS 9112-18 F 3 Revision 050400 Printed 11/15/00

Integrated Circuit Systems, Inc.• 525 Race Street • San Jose • CA • 95126 • [phone]tel• www.icst.com

Zero Delay, Low Skew Buffer

Inches

Millimeters

Package Outline and Package Dimensions
(For current dimensional specifications, see JEDEC Publication No. 95.)

16 pin SOIC narrow

Symbol Min Max Min Max

A 0.0532 0.0688 1.35 1.75

INDEX

AREA

1 2

A1

E H

D 0.3859 0.3937 9.80 10.00

H 0.2284 0.2440 5.80 6.20

h x 45°

D

0.0040 0.0098 0.10 0.24

B 0.0130 0.0200 0.33 0.51

C

0.0075 0.0098 0.19 0.24

E 0.1497 0.1574 3.80 4.00

e

h 0.0099 0.0195 0.25 0.50
L 0.0160 0.0500 0.41 1.27

ICS9112-18

A1 C

A

e

B

L

Ordering Information

Part/Order Number Marking* Shipping packaging Package Temperature

ICS9112BM-18 9112BM-18 tubes 16 pin SOIC 0-70 °C

ICS9112BM-18T 9112BM-18 tape and reel 16 pin SOIC 0-70 °C

*Also indicated on the top of the package are the initials ICS in a box.
