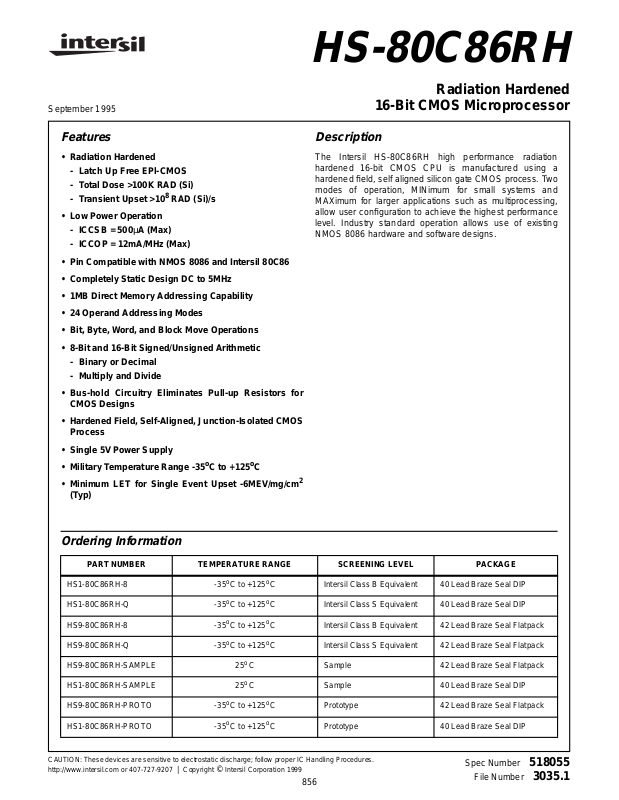

September 1995

HS-80C86RH

Radiation Hardened

16-Bit CMOS Microprocessor

Features

• Radiation Hardened

- Latch Up Free EPl-CMOS

- Total Dose >100K RAD (Si)

- Transient Upset >10

• Low Power Operation

- ICCSB = 500µA (Max)

- ICCOP = 12mA/MHz (Max)

• Pin Compatible with NMOS 8086 and Intersil 80C86

• Completely Static Design DC to 5MHz

• 1MB Direct Memory Addressing Capability

• 24 Operand Addressing Modes

• Bit, Byte, Word, and Block Move Operations

• 8-Bit and 16-Bit Signed/Unsigned Arithmetic

- Binary or Decimal

- Multiply and Divide

• Bus-hold Circuitry Eliminates Pull-up Resistors for
CMOS Designs

• Hardened Field, Self-Aligned, Junction-Isolated CMOS
Process

8

RAD (Si)/s

Description

The Intersil HS-80C86RH high performance radiation
hardened 16-bit CMOS CPU is manufactured using a
hardened field, self aligned silicon gate CMOS process. Two
modes of operation, MINimum for small systems and
MAXimum for larger applications such as multiprocessing,
allow user configuration to achieve the highest performance
level. Industry standard operation allows use of existing
NMOS 8086 hardware and software designs.

• Single 5V Power Supply

o

• Military Temperature Range -35

• Minimum LET for Single Event Upset -6MEV/mg/cm
(Typ)

C to +125oC

2

Ordering Information

PART NUMBER TEMPERATURE RANGE SCREENING LEVEL PACKAGE

HS1-80C86RH-8 -35oC to +125oC Intersil Class B Equivalent 40 Lead Braze Seal DIP

HS1-80C86RH-Q -35oC to +125oC Intersil Class S Equivalent 40 Lead Braze Seal DIP

HS9-80C86RH-8 -35oC to +125oC Intersil Class B Equivalent 42 Lead Braze Seal Flatpack

HS9-80C86RH-Q -35oC to +125oC Intersil Class S Equivalent 42 Lead Braze Seal Flatpack

HS9-80C86RH-SAMPLE 25oC Sample 42 Lead Braze Seal Flatpack

HS1-80C86RH-SAMPLE 25oC Sample 40 Lead Braze Seal DIP

HS9-80C86RH-PROTO -35oC to +125oC Prototype 42 Lead Braze Seal Flatpack

HS1-80C86RH-PROTO -35oC to +125oC Prototype 40 Lead Braze Seal DIP

CAUTION: These devices are sensitive to electrostatic discharge; follow proper IC Handling Procedures.
http://www.intersil.com or 407-727-9207

| Copyright © Intersil Corporation 1999

856

Spec Number 518055

File Number 3035.1

Pinouts

HS-80C86RH

HS-80C86RH 40 LEAD CERAMIC DUAL-IN-LINE METAL SEAL PACKAGE (SBDIP)

MIL-STD-1835, CDIP2-T40

TOP VIEW

MAX MIN

GND
AD14
AD13
AD12
AD11
AD10

AD9
AD8
AD7
AD6
AD5
AD4
AD3
AD2
AD1
AD0

NMI

INTR

CLK

GND

1
2
3
4
5
6
7
8

9
10
11
12
13
14
15
16
17
18
19
20

40
39
38
37
36
35
34
33
32
31
30
29
28
27
26
25
24
23
22
21

VDD
AD15
AD16/S3
A17/S4
A18/S5
A19/S6
BHE/S7
MN/MX
RD
RQ/GT0
RQ/GT1
LOCK
S2
S1
S0
QS0
QS1
TEST
READY
RESET

(HOLD)
(HLDA)
(

WR)
(M/IO)
(DT/R)
(DEN)
(ALE)
(

INTA)

HS-80C86RH 42 LEAD CERAMIC METAL SEAL FLATPACK PACKAGE (FLATPACK)

INTERSIL OUTLINE K42.A

TOP VIEW

MAX MIN

GND
AD14
AD13
AD12
AD11
AD10

AD9
AD8
AD7
AD6
AD5
AD4
AD3
AD2
AD1
AD0

NC

NMI

INTR

CLK

GND

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21

42
41
40
39
38
37
36
35
34
33
32
31
30
29
28
27
26
25
24
23
22

VDD
AD15
NC
A16/S3
A17/S4
A18/S5
A19/S6
BHE/S7
MN/MX
RD
RQ/GT0
RQ/GT1
LOCK
S2
S1
S0
QS0
QS1
TEST
READY
RESET

(HOLD)
(HLDA)
(

WR)

IO)

(M/

R)

(DT/

DEN)

(
(ALE)

INTA)

(

857

Spec Number

518055

Functional Diagram

EXECUTION UNIT

REGISTER FILE

DATA POINTER

AND

INDEX REGS

(8 WORDS)

HS-80C86RH

BUS INTERFACE UNIT

RELOCATION

REGISTER FILE

SEGMENT REGISTERS

INSTRUCTION POINTER

AND

(5 WORDS)

TEST

INTR

NMI

RQ/GT0, 1

HOLD

HLDA

16-BIT ALU

FLAGS

2

CLK RESET READY

MEMORY INTERFACE

BUS INTERFACE UNIT

CONTROL AND TIMING

MN/

MX

C-BUS

6-BYTE

INSTRUCTION

QUEUE

2

3

3

GND
VDD

4

16

3

4

LOCK

QS0, QS1

S2, S1, S0

BHE/S7
A19/S6

A16/S3
AD15-AD0

INTA,RD, WR
DT/

R, DEN, ALE, M/IO

BUS

INTERFACE

UNIT

EXECUTION

UNIT

AH
BH
CH
DH

B+BUS

ES
CS
SS
DS

IP

SP
BP

SI
DI

AL
BL

CL

DL

INSTRUCTION

STREAM BYTE

QUEUE

A-BUS

ARITHMETIC/

LOGIC UNIT

858

EXECUTION UNIT

CONTROL SYSTEM

FLAGS

Spec Number

518055

HS-80C86RH

Pin Description

PIN

SYMBOL

The following pin function descriptions are for HS-80C86RH systems in either minimum or maximum mode. The “Local Bus” in these de­scriptions is the direct multiplexed bus interface connection to the HS-80C86RH (without regard to additional bus buffers).

AD15-AD0 2-16, 39 I/O ADDRESS DATA BUS: These lines constitute the time multiplexed memory/IO address (T1)

A19/S6
A18/S5
A17/S4
A16/S3

BHE/S7 34 O BUS HIGH ENABLE/STATUS: During T1 the bus high enable signal (BHE) should be used to

RD 32 O READ: Read strobe indicates that the processor is performing a memory or I/O read cycle, de-

READY 22 I READY: is the acknowledgment from the addressed memory or I/O device that will complete the

INTR 18 I INTERRUPT REQUEST: is a level triggered input which is sampled during the last clock cycle

TEST 23 I TEST: input is examined by the “Wait” instruction. If theTEST input is LOW execution continues,

NMI 17 I NON-MASKABLE INTERRUPT: is an edge triggered input which causes a type 2 interrupt. An

NUMBER TYPE DESCRIPTION

and data (T2, T3, TW, T4) bus. AO is analogous to BHE for the lower byte of the data bus, pins
D7-D0. It is LOW during T1 when a byte is to be transferred on the lower portion of the bus in
memory or I/O operations. Eight-bit oriented devices tied to the lower half would normally use
AD0 to condition chip select functions (See BHE). These lines are active HIGH and are held at
high impedance to the last valid logic level during interrupt acknowledge and local bus “hold ac­knowledge” or “grant sequence”.

35-38 O ADDRESS/STATUS: During T1, these are the four most significant address lines for memory

operations. During I/O operations these lines are low. During memory and I/O operations, status
information is available on these lines during T2, T3, TW, T4. S6 is always zero. The status of
the interrupt enable FLAG bit (S5) is updated at the beginning of each CLK cycle. S4 and S3 are
encoded.

This information indicates which segment register is presently being used for data accessing.
These lines are held at high impedance to the last valid logic level during local bus “hold acknowl­edge” or “grant sequence”.

S4 S3

0 0 Extra Data
0 1 Stack
1 0 Code or None
1 1 Data

enable data onto the most significant half of the data bus, pins D15-D8. Eight bit oriented devices
tied to the upper half of the bus would normally use BHE to condition chip select functions. BHE
is LOW during T1 for read, write, and interrupt acknowledge cycles when a byte is to be trans­ferred on the high portion of the bus. The S7 status information is available during T2, T3 and
T4. The signal is active LOW, and is held at high impedance to the last valid logic level during
interrupt acknowledge and local bus “hold acknowledge” or “grant sequence”; it is LOW during
T1 for the first interrupt acknowledge cycle.

BHE A0

0 0 Whole Word
0 1 Upper Byte from/to Odd Address
1 0 Lower Byte from/to Even Address
1 1 None

pending on the state of the M/IO or S2 pin. This signal is used to read devices which reside on
the HS-80C86RH local bus. RD is active LOW during T2, T3 and TW of any read cycle, and is
guaranteed to remain HIGH in T2 until the 80C86 local bus has floated.

This line is held at a high impedance logic one state during “hold acknowledge” or “grant se­quence”.

data transfer. The RDY signal from memory or I/O is synchronized by the HS-82C85RH Clock
Generator to form READY. This signal is active HIGH. The HS-80C86RH READY input is not
synchronized. Correct operation is not guaranteed if the Setup and Hold Times are not met.

of each instruction to determine if the processor should enter into an interrupt acknowledge op­eration. If so, an interrupt service routine is called via an interrupt vector lookup table located in
system memory. INTR is internally synchronized and can be internally masked by software re­setting the interrupt enable bit. This signal is active HIGH.

otherwise the processor waits in an “Idle” state. This input is synchronized internally during each
clock cycle on the leading edge of CLK.

interrupt service routine is called via an interrupt vector lookup table located in system memory.
NMI is not maskable internally by software. A transition from LOW to HIGH initiates the interrupt
at the end of the current instruction. This input is internally synchronized.

859

Spec Number

518055

HS-80C86RH

Pin Description

SYMBOL

RESET 21 I RESET: causes the processor to immediately terminate its present activity. The signal must

CLK 19 I CLOCK: provides the basic timing for the processor and bus controller. It is asymmetric with a

VDD 40 VDD: +5V power supply pin. A 0.1µF capacitor between pins 20 and 40 is recommended for

GND 1, 20 GND: Ground. Note: both must be connected. A 0.1µF capacitor between pins 1 and 20 is

MN/MX 33 I MINIMUM/MAXIMUM: Indicates what mode the processor is to operate in. The two modes are

The following pin function descriptions are for the HS-80C86RH system in maximum mode (i.e., MN/MX = GND). Only the pin functions
which are unique to maximum mode are described below.

S0, S1, S2 26-28 O STATUS: is active during T4, T1 and T2 and is returned to the passive state (1,1,1) during T3

RQ/GT0
RQ/GT1

(Continued)

PIN

NUMBER TYPE DESCRIPTION

change from LOW to HIGH and remain active HIGH for at least 4 CLK cycles. It restarts
execution, as described in the Instruction Set description, when RESET returns LOW. RESET is
internally synchronized.

33% duty cycle to provide optimized internal timing.

decoupling.

recommended for decoupling.

discussed in the following sections.

or during TW when READY is HIGH. This status is used by the 82C88 Bus Controller to generate
all memory and I/O access control signals. Any change by S2, S1, or S0 during T4 is used to
indicate the beginning of a bus cycle, and the return to the passive state in T3 or TW is used to
indicate the end of a bus cycle. These status lines are encoded. These signals are held at a high
impedance logic one state during “grant sequence”.

S2 S1 S0

0 0 0 Interrupt Acknowledge
0 0 1 Read I/O Port
0 1 0 Write I/O Port
0 1 1 Halt
1 0 0 Code Access
1 0 1 Read Memory
1 1 0 Write Memory
1 1 1 Passive

31, 30 I/O REQUEST/GRANT: pins are used by other local bus masters to f orce the processor to release the

local bus at the end of the processor’s current b us cycle. Each pin is bidirectional with RQ/GT0 hav­ing higher priority than RQ/GT1. RQ/GT has an internal pull-up bus hold device so it may be left
unconnected. The request/grant sequence is as follows (see RQ/GT Sequence Timing.)

1. A pulse of 1 CLK wide from another local bus master indicates a local bus request (“hold”) to
the HS-80C86RH (pulse 1).

2. During a T4 or T1 clock cycle, a pulse 1 CLK wide from the HS-80C86RH to the requesting
master (pulse 2) indicates that the HS-80C86RH has allowed the local bus to float and that
it will enter the “grant sequence” state at the next CLK. The CPU’s bus interface unit is dis­connected logically from the local bus during “grant sequence”.

3. A pulse 1 CLK wide from the requesting master indicates to the HS-80C86RH (pulse 3) that
the “hold” request is about to end and that the HS-80C86RH can reclaim the local bus at the
next CLK. The CPU then enters T4 (or T1 if no bus cycles pending).

Each Master-Master exchange of the local bus is a sequence of 3 pulses. There must be
one idle CLK cycle after each bus exchange. Pulses are active low.

If the request is made while the CPU is performing a memory cycle, it will release the local
bus during T4 of the cycle when all the following conditions are met:

1. Request occurs on or before T2.

2. Current cycle is not the low byte of a word (on an odd address).

3. Current cycle is not the first acknowledge of an interrupt acknowledge sequence.

4. A locked instruction is not currently executing.
If the local bus is idle when the request is made the two possible events will follow:

1. Local bus will be released during the next cycle.

2. A memory cycle will start within 3 CLKs. Now the four rules for a currently active memory

cycle apply with condition number 1 already satisfied.

860

Spec Number

518055

HS-80C86RH

Pin Description

SYMBOL

LOCK 29 O LOCK: output indicates that other system bus masters are not to gain control of the system bus

QS1, QS0 24, 25 O QUEUE STATUS: The queue status is valid during the CLK cycle after which the queue

The following pin function descriptions are for the HS-80C86RH in minimum mode (i.e. MN/MX = VDD). Only the pin functions which are
unique to minimum mode are described; all other pin functions are as described below.

M/IO 28 O STATUS LINE: logically equivalent to S2 in the maximum mode. It is used to distinguish a mem-

WR 29 O WRITE: indicates that the processor is performing a write memory or write I/O cycle, depending

INTA 24 O INTERRUPT ACKNOWLEDGE: is used as a read strobe for interrupt acknowledge cycles. It is

ALE 25 O ADDRESS LATCH ENABLE: is provided by the processor to latch the address into the 82C82

DT/R 27 O DATA TRANSMIT/RECEIVE: is needed in a minimum system that desires to use a data bus

DEN 26 O DATA ENABLE: provided as an output enable fora bus transceiver in a minimum system which

HOLD
HLDA

(Continued)

PIN

NUMBER TYPE DESCRIPTION

while LOCK is active LOW. The LOCK signal is activated by the “LOCK” prefix instruction and re­mains active until the completion of the next instruction. This signal is active LO W, and is held at a
HIGH impedance logic one state during “grant sequence”. In MAX mode, LOCK is automatically
generated during T2 of the first INT A cycle and remo ved during T2 of the second INTA cycle.

operation is performed.
QS1 and QS2 provide status to allow external tracking of the internal HS-80C86RH instruction

queue. Note that QS1, QS0 never become high impedance.

QS1 QS0

0 0 No Operation
0 1 First Byte of Opcode from Queue
1 0 Empty the Queue
1 1 Subsequent Byte from Queue

ory access from an I/O access. M/IO becomes valid in the T4 preceding a bus cycle and remains
valid until the final T4 of the cycle (M = HIGH, IO = LOW). M/IO is held to a high impedance logic
zero during local bus “hold acknowledge”.

on the state of the M/IO signal. WR is active for T2, T3 and TW of any write cycle. It is active
LOW, and is held to high impedance logic one during local bus “hold acknowledge”.

active LOW during T2, T3 and TW of each interrupt acknowledge cycle. Note that INTA is never
floated.

latch. It is a HIGH pulse active during clock LOW of Tl of any bus cycle. Note that ALE is never
floated.

transceiver. It is used to control the direction of data flow through the transceiver. Logically, DT/R
is equivalent to S1 in maximum mode, and its timing is the same as for M/IO (T = HlGH, R =
LOW). DT/R is held to a high impedance logic one during local bus “hold acknowledge”.

uses the transceiver. DEN is active LOW during each memory and I/O access and for INTA
cycles. For a read or INTA cycle it is active from the middle of T2 until the middle of T4, while for
a write cycle it is active from the beginning of T2 until the middle of T4. DEN is held to a high
impedance logic one during local bus “hold acknowledge”.

31
30

I

HOLD: indicates that another master is requesting a local bus “hold”. To be a acknowledged,

O

HOLD must be active HIGH. The processor receiving the “hold” will issue a “hold acknowledge”
(HLDA) in the middle of a T4 or T1 clock cycle. Simultaneously with the issuance of HLDA, the
processor will float the local bus and control lines. After HOLD is detected as being LOW, the
processor will lower HLDA, and when the processor needs to run another cycle, it will again drive
the local bus and control lines.

HOLD is not an asynchronous input. External synchronization should be provided if the system
cannot otherwise guarantee the setup time.

861

Spec Number

518055

Specifications HS-80C86RH

Absolute Maximum Ratings Reliability Information

Supply Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .+7.0V

Input or Output Voltage

Applied for all Grades. . . . . . . . . . . . . . . . . .VSS-0.3V to VDD+0.3V

Storage Temperature Range . . . . . . . . . . . . . . . . . -65oC to +150oC

Junction Temperature. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . +175oC

Lead Temperature (Soldering 10s). . . . . . . . . . . . . . . . . . . . +300oC

Typical Derating Factor. . . . . . . . . . . 12mA/MHz Increase in IDDOP

ESD Classification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Class 1

CAUTION: Stresses above those listed in “Absolute Maximum Ratings” may cause permanent damage to the device. This is a stress only rating and operation
of the device at these or any other conditions above those indicated in the operational sections of this specification is not implied.

Operating Conditions

Operating Supply Voltage Range (VDD) . . . . . . . +4.75V to +5.25V

Operating Temperature Range (TA) . . . . . . . . . . . . -35oC to +125oC

Input Low Voltage (VIL) . . . . . . . . . . . . . . . . . . . . . . . . . 0V to +0.8V

TABLE 1. DC ELECTRICAL PERFORMANCE CHARACTERISTICS

Thermal Resistance θ

SBDIP Package. . . . . . . . . . . . . . . . . . . . 40.0oC/W 8.6oC/W

Ceramic Flatpack Package . . . . . . . . . . . 72.1oC/W 9.7oC/W

Maximum Package Power Dissipation at +125oC Ambient

SBDIP Package. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1.25W

Ceramic Flatpack Package . . . . . . . . . . . . . . . . . . . . . . . . . 0.69W

If Device Power Exceeds Package Dissipation Capability, Provide
Heat Sinking or Derate Linearly at the Following Rate

SBDIP Package. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25.0mW/oC

Ceramic Flatpack Package . . . . . . . . . . . . . . . . . . . . .13.9mW/oC

Gate Count . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9750 Gates

Input High Voltage (VIH) . . . . . . . . . . . . . . . . . . . . . . . . 3.5V to VDD

Clock Input Low Voltage (VILC) . . . . . . . . . . . . . . . . . . 0.0V to 0.8V

CLK and MN/MX Input High (VIHC) . . . . . . . . . .VDD - 0.8V to VDD

JA

θ

JC

GROUP A

PARAMETERS SYMBOL CONDITIONS

TTL High Level
Output Voltage

CMOS High Level
Output Voltage

Low Level Output
Voltage

Input Leakage
Current

Output Leakage
Current

Input Current Bus
Hold High

Input Current Bus
Hold Low

Standby Power
Supply Current

Operating Power
Supply Current

Functional Tests FT VDD = 4.75V and 5.25V,

Noise Immunity
Functional Tests

NOTES:

1. IBHH should be measured after raising VIN to VDD and then lowering to 3.0V.

2. IBHL should be measured after lowering VIN to VSS and then raising to 0.8V.

3. IDDSB tested during Clock high time after halt instruction executed.

4. CLK and MN/MX Input High (VIHC) = VDD -0.8

VOH1 VDD = 4.75V, IO = -2.5mA

VIN = 0V or VDD

VOH2 VDD = 4.75V, IO = -100µA

VIN = 0V or VDD

VOL VDD = 4.75V, IO = +2.5mA

VIN = 0V or VDD

IIH or

IIL

IOZL or

IOZH

IBHH VDD = 4.75V and 5.25V

IBHL VDD = 4.75V and 5.25V

IDDSB VDD = 5.25V, VIN = GND or

IDDOP VDD = 5.25V, VIN = GND or

FN VDD = 4.75V and 5.25V,

VDD = 5.25V
VIN = 0V or VDD
Pins: 17-19, 21-23, 33

VDD = 5.25V
VIN = 0V or VDD
Pins: 2-16, 26-29, 32, 34-39

VIN = 3.0V (Note 1)
Pins: 2-16, 26-32, 34-39

VIN = 0.8V (Note 2)
Pins: 2-16, 34-39

VDD, IO = 0mA (Note 3)

VDD, IO = 0mA, f = 1MHz

VIN = GND or VDD,
f = 1MHz

VIN = GND or 3.5V and
VDD = 4.5V,
VIN = 0.8V or VDD (Note 4)

SUBGROUPS TEMPERATURE

1, 2, 3 -35oC, +25oC,

1, 2, 3 -35oC, +25oC,

1, 2, 3 -35oC, +25oC,

1, 2, 3 -35oC, +25oC,

1, 2, 3 -35oC, +25oC,

1, 2, 3 -35oC, +25oC,

1, 2, 3 -35oC, +25oC,

1, 2, 3 -35oC, +25oC,

1, 2, 3 -35oC, +25oC,

7, 8A, 8B -35oC, +25oC,

7, 8A, 8B -35oC, +25oC,

+125oC

+125oC

+125oC

+125oC

+125oC

+125oC

+125oC

+125oC

+125oC

+125oC

+125oC

LIMITS

UNITSMIN MAX

3.0 - V

VDD -

0.4V

- 0.4 V

-1.0 1.0 µA

-10 10 µA

-600 -40 µA

40 600 µA

- 500 µA

- 12 mA/MHz

-- -

-- -

-V

862

Spec Number

518055

Specifications HS-80C86RH

TABLE 2A. AC ELECTRICAL PERFORMANCE CHARACTERISTICS (MIN MODE)

ACs tested at worst case VDD, ACs guaranteed over full operating specifications.

GROUP A

PARAMETERS SYMBOL CONDITIONS

CLK Cycle Period TCLCL VDD = 4.75V

VDD = 5.25V

CLK Low Time TCLCH VDD = 4.75V 9, 10, 11 -35oC, +25oC,

CLK High Time TCHCL VDD = 4.75V

VDD = 5.25V

Data in Setup Time TDVCL VDD = 4.75V 9, 10, 11 -35oC, +25oC,

Data in Hold Time TCLDX1 VDD = 4.75V 9, 10, 11 -35oC, +25oC,

Ready Setup Time into
80C86RH

Ready Hold Time into
80C86RH

Ready Inactive to CLK
(Note 2)

Hold Setup Time THVCH VDD = 4.75V 9, 10, 11 -35oC, +25oC,

INTR, NMI, Test/Setup Time TINVCH VDD = 4.75V 9, 10, 11 -35oC, +25oC,

MIN MODE TIMING RESPONSES (CL = 100pF)
Address Valid Delay TCLAV VDD = 4.75V 9, 10, 11 -35oC, +25oC,

ALE Width TLHLL VDD = 4.75V 9, 10, 11 -35oC, +25oC,

ALE Active Delay TCLLH VDD = 4.75V 9, 10, 11 -35oC, +25oC,

ALE Inactive Delay TCHLL VDD = 4.75V 9, 10, 11 -35oC, +25oC,

Address Hold Time to ALE
Inactive

Control Active Delay 1 TCVCTV VDD = 4.75V 9, 10, 11 -35oC, +25oC,

Control Active Delay 2 TCHCTV VDD = 4.75V 9, 10, 11 -35oC, +25oC,

Control Inactive Delay TCVCTX VDD = 4.75V 9, 10, 11 -35oC, +25oC,

RD Active Delay TCLRL VDD = 4.75V 9, 10, 11 -35oC, +25oC,

RD Inactive Delay TCLRH VDD = 4.75V 9, 10, 11 -35oC, +25oC,

RD Inactive to Next
Address Active

HLDA Valid Delay TCLHAV VDD = 4.75V 9, 10, 11 -35oC, +25oC,

TRYHCH VDD = 4.75V 9, 10, 11 -35oC, +25oC,

TCHRYX VDD = 4.75V 9, 10, 11 -35oC, +25oC,

TRYLCL VDD = 4.75V 9, 10, 11 -35oC, +25oC,

TLLAX VDD = 4.75V 9, 10, 11 -35oC, +25oC,

TRHAV VDD = 4.75V 9, 10, 11 -35oC, +25oC,

SUBGROUPS TEMPERATURE

9, 10, 11 -35oC, +25oC,

+125oC

+125oC

9, 10, 11 -35oC, +25oC,

+125oC

+125oC

+125oC

+125oC

+125oC

+125oC

+125oC

+125oC

+125oC

+125oC

+125oC

+125oC

+125oC

+125oC

+125oC

+125oC

+125oC

+125oC

+125oC

+125oC

LIMITS

UNITSMIN MAX

200 - ns

118 - ns

69 - ns

30 - ns

10 - ns

113 - ns

30 - ns

-8 - ns

35 - ns

30 - ns

10 110 ns

TCLCH -

20

-80ns

-85ns

TCHCL -

10
10 110 ns

10 110 ns

10 110 ns

10 165 ns

10 150 ns

TCLCL -

45
10 160 ns

-ns

-ns

-ns

863

Spec Number

518055

Specifications HS-80C86RH

TABLE 2A. AC ELECTRICAL PERFORMANCE CHARACTERISTICS (MIN MODE) (Continued)

ACs tested at worst case VDD, ACs guaranteed over full operating specifications.

GROUP A

PARAMETERS SYMBOL CONDITIONS

RD Width TRLRH VDD = 4.75V 9, 10, 11 -35oC, +25oC,

WR Width TWLWH VDD = 4.75V 9, 10, 11 -35oC, +25oC,

Address Valid to ALE Low TAVLL VDD = 4.75V 9, 10, 11 -35oC, +25oC,

Output Rise Time TOLOH VDD = 4.75V

From 0.8V to 2.0V

Output Fall Time TOHOL VDD = 4.75V

From 2.0V to 0.8V

NOTES:

1. Setup requirement for asynchronous signal only to guarantee recognition at next CLK.

2. Applies only to T2 State (8ns into T3).

TABLE 2B. AC ELECTRICAL PERFORMANCE CHARACTERISTICS (MAX MODE)

ACs tested at worst case VDD, ACs guaranteed over full operating specifications.

PARAMETERS SYMBOL CONDITIONS

TIMING REQUIREMENTS
CLK Cycle Period TCLCL VDD = 4.75V

VDD = 5.25V

CLK Low Time TCLCH VDD = 4.75V 9, 10, 11 -35oC, +25oC,

CLK High Time TCHCL VDD = 4.75V

VDD = 5.25V

Data in Setup Time TDVCL VDD = 4.75V 9, 10, 11 -35oC, +25oC,

Data in Hold Time TCLDX1 VDD = 4.75V 9, 10, 11 -35oC, +25oC,

Ready Setup Time into
80C86RH

Ready Hold Time into
80C86RH

Ready Inactive to CLK
(Note 2)

INTR, NMI, Test/Setup Time TINVCH VDD = 4.75V 9, 10, 11 -35oC, +25oC,

RQ/GT Setup Time TGVCH VDD = 4.75V 9, 10, 11 -35oC, +25oC,

RQ Hold Time into
HS-80C86RH (Note 3)

MAX MODE TIMING RESPONSES (CL = 100pF)
Ready Active to Status

Passive (Notes 2 and 4)
Status Active Delay TCHSV VDD = 4.75V 9, 10, 11 -35oC, +25oC,

TRYHCH VDD = 4.75V 9, 10, 11 -35oC, +25oC,

TCHRYX VDD = 4.75V 9, 10, 11 -35oC, +25oC,

TRYLCL VDD = 4.75V 9, 10, 11 -35oC, +25oC,

TCHGX VDD = 4.75V 9, 10, 11 -35oC, +25oC,

TRYHSH VDD = 4.75V 9, 10, 11 -35oC, +25oC,

SUBGROUPS TEMPERATURE

+125oC

+125oC

+125oC

9, 10, 11 -35oC, +25oC,

+125oC

9, 10, 11 -35oC, +25oC,

+125oC

GROUP A

SUBGROUPS TEMPERATURE

9, 10, 11 -35oC, +25oC,

+125oC

+125oC

9, 10, 11 -35oC, +25oC,

+125oC

+125oC

+125oC

+125oC

+125oC

+125oC

+125oC

+125oC

+125oC

+125oC

+125oC

LIMITS

UNITSMIN MAX

2TCLCL -

75

2TCLCL -

60

TCLCH -

60

-20ns

-20ns

LIMITS

200 - ns

118 - ns

69 - ns

30 - ns

10 - ns

113 - ns

30 - ns

-8 - ns

30 - ns

30 - ns

40 TCHCL +10ns

- 110 ns

10 110 ns

-ns

-ns

-ns

UNITSMIN MAX

864

Spec Number

518055

Specifications HS-80C86RH

TABLE 2B. AC ELECTRICAL PERFORMANCE CHARACTERISTICS (MAX MODE) (Continued)

ACs tested at worst case VDD, ACs guaranteed over full operating specifications.

GROUP A

PARAMETERS SYMBOL CONDITIONS

Status Inactive Delay
(Note 4)

Address Valid Delay TCLAV VDD = 4.75V 9, 10, 11 -35oC, +25oC,

RD Active Delay TCLRL VDD = 4.75V 9, 10, 11 -35oC, +25oC,

RD Inactive Delay TCLRH VDD = 4.75V 9, 10, 11 -35oC, +25oC,

RD Inactive to Next
Address Active

GT Active Delay TCLGL VDD = 4.75V 9, 10, 11 -35oC, +25oC,

GT Inactive Delay TCLGH VDD = 4.75V 9, 10, 11 -35oC, +25oC,

RD Width TRLRH VDD = 4.75V 9, 10, 11 -35oC, +25oC,

Output Rise Time TOLOH VDD = 4.75V

Output Fall Time TOHOL VDD = 4.75V

NOTES:

1. Setup requirement for asynchronous signal only to guarantee recognition at next CLK.

2. Applies only to T2 State (8ns into T3).

3. The HS-80C86RH actively pulls the RQ/GT pin to a logic one on the following clock low time.

4. Status lines return to their inactive (logic one) state after CLK goes low and READY goes high.

TCLSH VDD = 4.75V 9, 10, 11 -35oC, +25oC,

TRHAV VDD = 4.75V 9, 10, 11 -35oC, +25oC,

From 0.8V to 2.0V

From 2.0V to 0.8V

SUBGROUPS TEMPERATURE

+125oC

+125oC

+125oC

+125oC

+125oC

+125oC

+125oC

+125oC

9, 10, 11 -35oC, +25oC,

+125oC

9, 10, 11 -35oC, +25oC,

+125oC

LIMITS

UNITSMIN MAX

10 130 ns

10 110 ns

10 165 ns

10 150 ns

TCLCL -

45

085ns

085ns

2TCLCL -

75

-20ns

-20ns

-ns

-ns

TABLE 3A. ELECTRICAL PERFORMANCE CHARACTERISTICS

PARAMETERS SYMBOL CONDITIONS TEMPERATURE

Input Capacitance CIN VDD = Open, f = 1MHz

(Note 1)

Output Capacitance COUT VDD = Open, f = 1MHz

(Note 1)

I/O Capacitance CI/O VDD = Open, f = 1MHz

(Note 1)
TIMING REQUIREMENTS
CLK Rise Time TCH1CH2 VDD = 4.75V and 5.25V

Min and Max Mode

from 1.0V to 3.5V
CLK Fall Time TCL2CL1 VDD = 4.75V and 5.25V

Min and Max Mode

from 3.5V to 1.0V
Input Rise Time TILIH VDD = 4.75V and 5.25V

Min and Max Mode

from 0.8V to 2.0V
Input Fall Time TIHIL VDD = 4.75V and 5.25V

Min and Max Mode

from 2.0V to 0.8V

LIMITS

UNITSMIN MAX

TA = +25oC - 15 pF

TA = +25oC - 15 pF

TA = +25oC - 20 pF

-35oC < TA < +125oC - 15 ns

-35oC < TA < +125oC - 15 ns

-35oC < TA < +125oC - 25 ns

-35oC < TA < +125oC - 25 ns

865

Spec Number

518055

Specifications HS-80C86RH

TABLE 3A. ELECTRICAL PERFORMANCE CHARACTERISTICS (Continued)

LIMITS

PARAMETERS SYMBOL CONDITIONS TEMPERATURE

TIMING RESPONSES
Address Hold Time TCLAX VDD = 4.75V and 5.25V

Min and Max Mode
Address Float Delay (Note 2) TCLAZ VDD = 4.75V and 5.25V

Min and Max Mode
Data Valid Delay TCLDV VDD = 4.75V and 5.25V

Min and Max Mode
Data Hold Time TCLDX2 VDD = 4.75V and 5.25V

Min and Max Mode
Data Hold Time After WR TWHDX VDD = 4.75V and 5.25V

Min Mode
Status Float Delay (Note 2) TCHSZ VDD = 4.75V and 5.25V

Max Mode
Address Float to Read Active

(Note 2)

NOTES:

1. All measurements referenced to device ground.

2. Output drivers disabled. Bus hold circuitry still active.

3. The parameters are controlled via design or process parameters and are not directly tested. These parameters are characterized upon
initial design release and upon design changes which would affect these characteristics.

TAZRL VDD = 4.75V and 5.25V

Min and Max Mode

-35oC < TA < +125oC10 - ns

-35oC < TA < +125oC TCLAX 80 ns

-35oC < TA < +125oC 10 110 ns

-35oC < TA < +125oC10 - ns

-35oC < TA < +125oC TCLCL - 30 - ns

-35oC < TA < +125oC - 80 ns

-35oC < TA < +125oC0 - ns

UNITSMIN MAX

TABLE 3B. ELECTRICAL PERFORMANCE CHARACTERISTICS

Timing Signals at HS-82C85RH or 82C88 for Reference Only.

LIMITS

PARAMETERS SYMBOL CONDITIONS TEMPERATURE

RDY Setup Time into HS-82C85RH (Note 1) TR1VCL Min and Max Mode -35oC < TA < +125oC35 - ns
RDY Hold Time into HS-82C85RH (Note 1) TCLR1X Min and Max Mode -35oC < TA < +125oC0 - ns
Command Active Delay TCLML Max Mode Only -35oC < TA < +125oC 5 35 ns
Command Inactive TCLMH Max Mode Only -35oC < TA < +125oC 5 35 ns
Status Valid to ALE High TSVLH Max Mode Only -35oC < TA < +125oC - 20 ns
Status Valid to MCE High TSVMCH Max Mode Only -35oC < TA < +125oC - 30 ns
CLK Low to ALE Valid TCLLH Max Mode Only -35oC < TA < +125oC - 20 ns
CLK Low to MCE High TCLMCH Max Mode Only -35oC < TA < +125oC - 25 ns
ALE Inactive Delay TCHLL Max Mode Only -35oC < TA < +125oC 4 18 ns
MCE Inactive Delay TCLMCL Max Mode Only -35oC < TA < +125oC - 15 ns
Control Active Delay TCVNV Max Mode Only -35oC < TA < +125oC 5 45 ns
Control Inactive Delay TCVNX Max Mode Only -35oC < TA < +125oC1045 ns

NOTE:

1. Setup requirement for asynchronous signal only to guarantee recognition at next CLK.

UNITSMIN MAX

TABLE 4. POST 100K RAD ELECTRICAL PERFORMANCE CHARACTERISTICS

NOTE: See 25oC limits in Table 1 and Table 2 for Post RAD limits (Subgroups 1, 7 and 9).

866

Spec Number

518055

Specifications HS-80C86RH

TABLE 5. BURN-IN DELTA PARAMETERS (+25oC)

PARAMETER SYMBOL DELTA LIMITS

Standby Power Supply Current IDDSB ±100µA
Output Leakage Current IOZL, IOZH ±2µA
Input Leakage Current IIH, IIL ±200nA
Low Level Output Voltage VOL ±80mV
TTL High Level Output Voltage VOH1 ±600mV
CMOS High Level Output Voltage VOH2 ±150mV

TABLE 6. APPLICABLE SUBGROUPS

GROUP A SUBGROUPS

CONFORMANCE

GROUP

Initial Test 100%/5004 1, 7, 9 1 (Note 2) 1, 7, 9
Interim Test 1 100%/5004 1, 7, 9, ∆ 1, ∆ (Note 2) 1, 7, 9
PDA 1 100%/5004 1, 7, ∆ 1, 7
Interim Test 2 100%/5004 1, 7, 9, ∆ 1, ∆ (Note 2) N/A
PDA 2 100%/5004 1, 7, ∆ N/A
Final Test 100%/5004 2, 3, 8A, 8B, 10, 11 2, 3, 8A, 8B, 10, 11
Group A (Note 1) Sample 5005 1, 2, 3, 7, 8A, 8B, 9, 10, 11 1, 2, 3, 7, 8A, 8B, 9, 10, 11
Subgroup B5 Sample 5005 1, 2, 3, 7, 8A, 8B, 9, 10, 11 1, 2, 3 (Note 2) N/A
Subgroup B6 Sample 5005 1, 7, 9 N/A
Group C Sample 5005 N/A N/A 1, 2, 3, 7, 8A, 8B, 9, 10, 11
Group D Sample 5005 1, 7, 9 1, 7, 9
Group E, Subgroup 2 Sample 5005 1, 7, 9 1, 7, 9

NOTES:

1. Alternate Group A testing in accordance with MIL-STD-883 method 5005 may be exercised.

2. Table 5 parameters only.

MIL-STD-883

METHOD

TESTED FOR -Q

RECORDED

FOR -Q TESTED FOR -8

RECORDED

FOR -8

Functional Description

Static Operation

All HS-80C86RH circuitry is of static design. Internal
registers, counters and latches are static and require no
refresh as with dynamic circuit design. This eliminates the
minimum operating frequency restriction placed on other
microprocessors. The CMOS HS-80C86RH can operate
from DC to 5MHz. The processor clock may be stopped in
either state (HIGH/LOW) and held there indefinitely. This
type of operation is especially useful for system debug or
power critical applications.

The HS-80C86RH can be single stepped using only the CPU
clock. This state can be maintained as long as is necessary.
Single step clock operation allows simple interface circuitry to
provide critical information for bringing up your system.

Static design also allows very low frequency operation
(down to DC). In a power critical situation, this can provide
extremely low power operation since HS-80C86RH power
dissipation is directly related to operating frequency. As the

system frequency is reduced, so is the operating power until,
ultimately, at a DC input frequency, the HS-80C86RH power
requirement is the standby current, (500µA maximum).

Internal Architecture

The internal functions of the HS-80C86RH processor are
partitioned logically into two processing units. The first is the
Bus Interface Unit (BIU) and the second is the Execution
Unit (EU) as shown in the CPU functional diagram.

These units can interact directly but for the most part
perform as separate asynchronous operational processors.
The bus interface unit provides the functions related to
instruction fetching and queuing, operand fetch and store,
and address relocation. This unit also provides the basic bus
control. The overlap of instruction pre-fetching provided by
this unit serves to increase processor performance through
improved bus bandwidth utilization. Up to 6 bytes of the
instruction stream can be queued while waiting for decoding
and execution.

Spec Number

867

518055

HS-80C86RH

The instruction stream queuing mechanism allows the BlU to
keep the memory utilized very efficiently. Whenever there is
space for at least 2 bytes in the queue, the BlU will attempt a
word fetch memory cycle. This greatly reduces “dead-time”
on the memory bus. The queue acts as a First-In-First-Out
(FlFO) buffer, from which the EU extracts instruction bytes
as required. If the queue is empty (following a branch
instruction, for example), the first byte into the queue
immediately becomes available to the EU.

The execution unit receives pre-fetched instructions from the
BlU queue and provides un-relocated operand addresses to
the BlU. Memory operands are passed through the BlU for
processing by the EU, which passes results to the BlU for
storage.

Memory Organization

The processor provides a 20-bit address to memory, which
locates the byte being referenced. The memory is organized
as a linear array of up to 1 million bytes, addressed as
00000(H) to FFFFF(H). The memory is logically divided into
code, data, extra and stack segments of up to 64K bytes
each, with each segment falling on 16 byte boundaries. (See
Figure 1).

FFFFFH

All memory references are made relative to base addresses
contained in high speed segment registers. The segment
types were chosen based on the addressing needs of
programs. The segment register to be selected is
automatically chosen according to the specific rules of
Table 7. All information in one segment type share the same
logical attributes (e.g. code or data). By structuring memory
into relocatable areas of similar characteristics and by
automatically selecting segment registers, programs are
shorter, faster and more structured. (See Table 7).

Word (16-bit) operands can be located on even or odd
address boundaries and are thus not constrained to even
boundaries as is the case in many 16-bit computers. For
address and data operands, the least significant byte of the
word is stored in the lower valued address location and the
most significant byte in the next higher address location. The
BlU automatically performs the proper number of memory
accesses, one if the word operand is on an even byte
boundary and two if it is on an odd byte boundary. Except for
the performance penalty, this double access is transparent to
the software. The performance penalty does not occur for
instruction fetches; only word operands.

Physically, the memory is organized as a high bank (D15­D6) and a low bank (D7-D0) of 512K bytes addressed in par­allel by the processor’s address lines.

64K BIT

+ OFFSET

SEGMENT

REGISTER FILE

CS

SS

DS

ES

FIGURE 1. HS-80C86RH MEMORY ORGANIZATION

TABLE 7.

DEFAULT

TYPE OF MEMORY

REFERENCE

Instruction Fetch CS None IP
Stack Operation SS None SP
Variable

(Except Following)
String Source DS CS, ES, SS SI
String Destination ES None DI
BP Used as Base

Register

SEGMENT

BASE

DS CS, ES, SS Effective

SS CS, DS, ES Effective

ALTERNATE

SEGMENT

CODE SEGMENT

XXXXOH

STACK SEGMENT

DATA SEGMENT

EXTRA SEGMENT

00000H

BASE OFFSET

Address

Address

Byte data with even addresses is transferred on the D7-D0
bus lines while odd addressed byte data (A0 HIGH) is
transferred on the D15-D6 bus lines. The processor provides
two enable signals,

BHE and A0, to selectively allow reading
from or writing into either an odd byte location, even byte
location, or both. The instruction stream is fetched from
memory as words and is addressed internally by the
processor at the byte level as necessary.

In referencing word data, the BlU requires one or two
memory cycles depending on whether the starting byte of
the word is on an even or odd address, respectively. Con­sequently, in referencing word operands performance can be
optimized by locating data on ev en address boundaries. This
is an especially useful technique for using the stack, since
odd address references to the stack ma y adv ersely aff ect the
context switching time for interr upt processing or task multi­plexing.

Certain locations in memory are reser ved for specific CPU
operations (See Figure 2). Locations from address FFFF0H
through FFFFFH are reserved for operations including a
jump to the initial program loading routine. Follo wing RESET,
the CPU will always begin execution at location FFFF0H
where the jump must be located. Locations 00000H through
003FFH are reserved for interrupt operations. Each of the
256 possible interrupt service routines is accessed through
its own pair of 16-bit pointers - segment address pointer and
offset address pointer. The first pointer, used as the offset
address, is loaded into the 1P and the second pointer, which
designates the base address is loaded into the CS. At this
point program control is transferred to the interrupt routine.
The pointer elements are assumed to have been stored at
the respective places in reserved memory prior to occur­rence of interrupts.

868

Spec Number

518055

HS-80C86RH

RESET BOOTSTRAP

PROGRAM JUMP

INTERRUPT POINTER

FOR TYPE 255

INTERRUPT POINTER

FOR TYPE 1

INTERRUPT POINTER

FOR TYPE 0

FIGURE 2. RESERVED MEMORY LOCATIONS

FFFFFH
FFFFOH

3FFH

3FCH

7H

4H
3H

0H

Minimum and Maximum Operation Modes

The requirements for supporting minimum and maximum
HS-80C86RH systems are sufficiently different that they
cannot be met efficiently using 40 uniquely defined pins.
Consequently, the HS-80C86RH is equipped with a strap pin
(MN/

MX) which defines the system configuration. The defini­tion of a certain subset of the pins changes, dependent on
the condition of the strap pin. When the MN/

MX pin is
strapped to GND, the HS-80C86RH defines pins 24 through
31 and 34 in maximum mode. When the MN/

MX pin is
strapped to VDD, the HS-80C86RH generates bus control
signals itself on pins 24 through 31 and 34.

Bus Operation

The HS-80C86RH has a combined address and data bus
commonly referred to as a time multiplexed bus. This tech­nique provides the most efficient use of pins on the proces­sor while permitting the use of a standard 40-lead package.
This “local bus” can be buffered directly and used throughout
the system with address latching provided on memory and
I/O modules. In addition, the bus can also be demultiplexed
at the processor with a single set of 82C82 latches if a stan­dard non-multiplexed bus is desired for the system.

Each processor bus cycle consists of at least four CLK cy­cles. These are referred to as T1, T2, T3 and T4 (see Figure

3). The address is emitted from the processor during T1 and
data transfer occurs on the bus during T3 and T4. T2 is used
primarily for changing the direction of the bus during read
operations. In the event that a “NOT READY” indication is
given by the addressed device, “Wait” states (TW) are
inserted between T3 and T4. Each inserted wait state is the
same duration as a CLK cycle. Idle periods occur between
HS-80C86RH driven bus cycles whenever the processor
performs internal processing.

During T1 of any bus cycle, the ALE (Address Latch Ena­ble) signal is emitted (by either the processor or the 82C88
bus controller, depending on the MN/

MX strap). At the trail­ing edge of this pulse, a valid address and certain status
information for the cycle may be latched.

Status bits S0, S1 and S2 are used by the bus controller, in
maximum mode, to identify the type of bus transaction
according to Table 8.

TABLE 8.

S2 S1 S0 CHARACTERISTICS

0 0 0 Interrupt Acknowledge
0 0 1 Read I/O Port
0 1 0 Write I/O Port
0 1 1 Halt
1 0 0 Instruction Fetch
1 0 1 Read Data from Memory
1 1 0 Write Data to Memory
1 1 1 Passive (no bus cycle)

Status bits S3 through S7 are time multiplexed with high
order address bits and the

BHE signal, and are therefore
valid during T2 through T4. S3 and S4 indicate which seg­ment register (see Instruction Set Description) was used for
this bus cycle in forming the address, according to Table 9.

TABLE 9.

S4 S3 CHARACTERISTICS

0 (Low) 0 Alternate Data (extra segment)

0 1 Stack

1 (High) 0 Code or None

1 1 Data

S5 is a reflection of the PSW interrupt enable bit. S6 is
always zero and S7 is a spare status bit.

I/O Addressing

In the HS-80C86RH, I/O operations can address up to a
maximum of 64K I/O byte registers or 32K I/O word regis­ters. The I/O address appears in the same format as the
memory address on bus lines A15-A0. The address lines
A19-A16 are zero in I/O operations. The variable I/O instruc­tions which use register DX as a pointer have full address
capability while the direct I/O instructions directly address
one or two of the 256 I/O byte locations in page 0 of the I/O
address space.

I/O ports are addressed in the same manner as memory
locations. Even addressed bytes are transferred on the D7­D0 bus lines and odd addressed bytes on D15-D8. Care
must be taken to ensure that each register within an 8-bit
peripheral located on the lower portion of the bus be
addressed as even.

869

Spec Number

518055

HS-80C86RH

CLK

ALE

S2-S0

ADDR/

STATUS

ADDR/DATA

(4 + NWAIT) = TCY

T1 T2 T3 T4TWAIT T1 T2 T3 T4TWAIT

BHE,

A19-A16

A15-A0

D15-D0

VALID

S7-S3

A15-A0 DATA OUT (D15-D0)

(4 + NWAIT) = TCY

GOES INACTIVE IN THE STATE

JUST PRIOR TO T4

RD, INTA

READY

DT/

DEN

WP

READYREADY

WAIT WAIT

R

MEMORY ACCESS TIME

FIGURE 3. BASIC SYSTEM TIMING

870

Spec Number

518055

HS-80C86RH

External Interface

Processor RESET and lnitialization

Processor initialization or start up is accomplished with acti­vation (HIGH) of the RESET pin. The HS-80C86RH RESET
is required to be HIGH for greater than 4 CLK cycles. The
HS-80C86RH will terminate operations on the high-going
edge of RESET and will remain dormant as long as RESET
is HIGH. The low-going transition of RESET triggers an
internal reset sequence for approximately 7 CLK cycles.
After this interval, the HS-80C86RH operates normally
beginning with the instruction in absolute location FFFFOH.
(See Figure 2). The RESET input is internally synchronized
to the processor clock. At initialization, the HIGH-to-LOW
transition of RESET must occur no sooner than 50µs (or
4 CLK cycles, whichever is greater) after power-up, to allow
complete initialization of the HS-80C86RH.

NMl will not be recognized prior to the second clock cycle fol­lowing the end of RESET. If NMI is asserted sooner than
9 CLK cycles after the end of RESET, the processor may
execute one instruction before responding to the interrupt.

Bus Hold Circuitry

To avoid high current conditions caused by floating inputs to
CMOS devices and to eliminate need for pull- up/down resis­tors, “bus-hold” circuitry has been used on the HS-80C86RH
pins 2-16, 26-32 and 34-39. (See Figure 4A and 4B). These
circuits will maintain the last valid logic state if no driving
source is present (i.e. an unconnected pin or a driving
source which goes to a high impedance state). To overdrive
the “bus hold” circuits, an external driver must be capable of
supplying approximately 400µA minimum sink or source cur­rent at valid input voltage levels. Since this “bus hold” cir­cuitry is active and not a “resistive” type element, the
associated power supply current is negligible and power dis­sipation is significantly reduced when compared to the use
of passive pull-up resistors.

BOND

OUTPUT

DRIVER

INPUT

BUFFER

FIGURE 4A. BUS HOLD CIRCUITRY PIN 2-16, 34-39

OUTPUT

DRIVER

INPUT

BUFFER

FIGURE 4B. BUS HOLD CIRCUITRY PIN 26-32

PVCC

INPUT

PROTECTION

CIRCUITRY

INPUT

PROTECTION

CIRCUITRY

BOND

PAD

PAD

EXTERNAL
PIN

EXTERNAL
PIN

Interrupt Operations

Interrupt operations fall into two classes: software or hard­ware initiated. The software initiated interrupts and software
aspects of hardware interrupts are specified in the Instruc­tion Set Description. Hardware interrupts can be classified
as non-maskable or maskable.

Interrupts result in a transfer of control to a new program
location. A 256-element table containing address pointers to
the interrupt service routine locations resides in absolute
locations 0 through 3FFH, which are reserved for this pur­pose. Each element in the table is 4 bytes in size and corre­sponds to an interrupt “type”. An interrupting device supplies
an 8-bit type number during the interrupt acknowledge
sequence, which is used to “vector” through the appropriate
element to the interrupt service routine location. All flags and
both the Code Segment and Instruction Pointer register are
saved as part of the

INTA sequence. These are restored

upon execution of an Interrupt Return (lRET) instruction.

Non-Maskable Interrupt (NMI)

The processor provides a single non-maskable interrupt pin
(NMl) which has higher priority than the maskable interrupt
request pin (INTR). A typical use would be to activate a
power failure routine. The NMl is edge-triggered on a LOW­to-HIGH transition. The activation of this pin causes a type 2
interrupt.

NMl is required to have a duration in the HIGH state of
greater than 2 CLK cycles, but is not required to be synchro­nized to the clock. Any positive transition of NMl is latched
on-chip and will be serviced at the end of the current instruc­tion or between whole moves of a block-type instruction.
Worst case response to NMl would be for multiply, divide,
and variable shift instructions. There is no specification on
the occurrence of the low-going edge; it may occur before,
during or after the servicing of NMl. Another positive edge
triggers another response if it occurs after the start of the
NMl procedure. The signal must be free of logical spikes in
general and be free of bounces on the low-going edge to
avoid triggering extraneous responses.

Maskable Interrupt (INTR)

The HS-80C86RH provides a single interrupt request input
(INTR) which can be masked internally by software with the
resetting of the interrupt enable flag (IF) status bit. The inter­rupt request signal is level triggered. It is internally synchro­nized during each clock cycle on the high-going edge of
CLK. To be responded to, INTR must be present (HIGH) dur­ing the clock period preceding the end of the current instruc­tion or the end of a whole move for a block- type instruction.
INTR may be removed anytime after the falling edge of the
first

INTA signal. During the interrupt response sequence fur­ther interrupts are disabled. The enable bit is reset as part of
the response to any interrupt (INTR, NMl, software interrupt
or single-step), although the FLAGS register which is auto­matically pushed onto the stack reflects the state of the pro­cessor prior to the interrupt. Until the old FLAGS register is
restored the enable bit will be zero unless specifically set by
an instruction.

871

Spec Number

518055

HS-80C86RH

During the response sequence (Figure 5) the processor exe­cutes two successive (back-to-back) interrupt acknowledge
cycles. The HS-80C86RH emits the

LOCK signal (Max
mode only) from T2 of the first bus cycle until T2 of the sec­ond. A local bus “hold” request will not be honored until the
end of the second bus cycle. In the second bus cycle, a byte
is supplied to the HS-80C86RH by the HS-82C89ARH Inter­rupt Controller, which identifies the source (type) of the inter­rupt. This byte is multiplied by four and used as a pointer into
the interrupt vector lookup table. An INTR signal left HIGH
will be continually responded to within the limitations of the
enable bit and sample period. The INTERRUPT RETURN
instruction includes a FLAGS pop which returns the status of
the original interrupt enable bit when it restores the FLAGS.

ALE

LOCK

INTA

AD0-

AD15

T1 T2 T3 T4 TI

FLOAT

T1

T2

T3

TYPE

VECTOR

T4

External Synchronization Via TEST

As an alternative to interrupts, the HS-80C86RH provides a
single software-testable input pin (

TEST). This input is uti­lized by executing a WAIT instruction. The single WAIT
instruction is repeatedly executed until the

TEST input goes
active (LOW). The execution of WAIT does not consume bus
cycles once the queue is full.

If a local bus request occurs during WAIT execution, the HS­80C86RH three-states all output drivers while inputs and I/O
pins are held at valid logic levels by internal bus-hold circuits.
If interrupts are enabled, the HS-80C86RH will recognize
interrupts and process them when it regains control of the
bus. The WAIT instruction is then refetched, and ree xecuted.

Basic System Timing

Typical system configurations for the processor operating in
minimum mode and in maximum mode are shown in Figures
6A and 6B, respectively. In minimum mode, the MN/

MX pin
is strapped to VDD and the processor emits bus control sig­nals (e.g.
MN/

RD, WR, etc.) directly. In maximum mode, the

MX pin is strapped to GND and the processor emits
coded status information which the 82C88 bus controller
used to generate MULTIBUS™ compatible bus control sig­nals. Figure 3 shows the signal timing relationships.

TABLE 10. HS-80C86RH REGISTER MODEL

FIGURE 5. INTERRUPT ACKNOWLEDGE SEQUENCE

Halt

When a software “HALT” instruction is executed the pro- ces­sor indicates that it is entering the “HALT” state in one of two
ways depending upon which mode is strapped. In minimum
mode, the processor issues one ALE with no qualifying bus
control signals. In maximum mode the processor issues
appropriate HALT status on

S2, S1, S0 and the 82C88 bus
controller issues one ALE. The HS-80C86RH will not leave
the “HALT” state when a local bus “hold” is entered while in
“HALT”. In this case, the processor reissues the HALT indi­cator at the end of the local bus hold. An NMl or interrupt
request (when interrupts enabled) or RESET will force the
HS-80C86RH out of the “HALT” state.

Read/Modify/Write (Semaphore)

Operations Via Lock

LOCK status information is provided by the processor

The
when consecutive bus cycles are required during the execu­tion of an instruction. This gives the processor the capability
of performing read/modify/write operations on memory (via
the Exchange Register With Memory instruction, for exam­ple) without another system bus master receiving interven­ing memory cycles. This is useful in multiprocessor system
configurations to accomplish “test and set lock” operations.
The

LOCK signal is activated (forced LO W) in the cloc k cycle
following decoding of the software “LOCK” prefix instruction.
It is deactivated at the end of the last bus cycle of the
instruction following the “LOCK” prefix instruction. While
LOCK is active a request on a RQ/GT pin will be recorded
and then honored at the end of the

LOCK.

AX
BX
CX
DX

MULTIBUS™ is an Intel Trademark

AH
BH
CH
DH

FLAGSH

SP
BP

SI
DI

IP

CS
DS
SS
ES

AL
BL
CL
DL

FLAGSL

ACCUMULATOR
BASE
COUNT
DAT A

STACK POINTER
BASE POINTER
SOURCE INDEX
DESTINATION INDEX

INSTRUCTION POINTER
STATUS FLAGS

CODE SEGMENT
DATA SEGMENT
STACK SEGMENT
EXTRA SEGMENT

System Timing - Minimum System

The read cycle begins in T1 with the assertion of the
Address Latch Enable (ALE) signal. The trailing (low-going)
edge of this signal is used to latch the address information,
which is valid on the address/data bus (AD0-AD15) at this
time, into the 82C82 latches. The
address the low, high or both bytes. From T1 to T4 the M/

BHE and A0 signals

IO
signal indicates a memory or I/O operation. At T2, the
address is removed from the address/data bus and the bus
is held at the last valid logic state by internal bus hold
devices. The read control signal is also asserted at T2. The
read (

RD) signal causes the addressed device to enable its

data bus drivers to the local bus. Some time later, valid data

872

Spec Number

518055

HS-80C86RH

will be available on the bus and the addressed device will
drive the READY line HIGH. When the processor returns the
read signal to a HIGH level, the addressed device will three­state its bus drivers. If a transceiver is required to buffer the
HS-80C86RH local bus, signals DT/R and DEN are provided
by the HS-80C86RH.

A write cycle also begins with the assertion of ALE and the
emission of the address. The M/

IO signal is again asserted
to indicate a memory or I/O write operation. In T2, immed­iately following the address emission, the processor emits
the data to be written into the addressed location. This data
remains valid until at least the middle of T4. During T2, T3
and TW, the processor asserts the write control signal. The
write (

WR) signal becomes active at the beginning of T2 as
opposed to the read which is delayed somewhat into T2 to
provide time for output drivers to become inactive.

The BHE and A0 signals are used to select the proper
byte(s) of the memory/IO word to be read or written accord­ing to Table 11.

TABLE 11.

BHE A0 CHARACTERISTICS

0 0 Whole word

0 1 Upper byte from/to odd address

1 0 Lower byte from/to even address

1 1 None

Bus Timing - Medium and Large Size Systems

For medium complexity systems the MN/

MX pin is
connected to GND and the 82C88 Bus Controller is added to
the system as well as three 82C82 latches for latching the
system address, and a transceiver to allow for bus loading
greater than the HS-80C86RH is capable of handling. Bus
control signals are generated by the 82C88 instead of the
processor in this configuration, although their timing remains
relatively the same. The HS-80C86RH status outputs (

S2,
S1, and S0) provide type-of-cycle infor mation and become
82C88 inputs. This bus cycle information specifies read
(code, data or I/O), write (data or I/O), interrupt acknowl­edge, or software halt. The 82C88 issues control signals
specifying memory read or write, I/O read or write, or inter­rupt acknowledge. The 82C88 provides two types of write
strobes, normal and advanced, to be applied as required.
The normal write strobes have data valid at the leading edge
of write. The advanced write strobes have the same timing
as read strobes, and hence, data is not valid at the leading
edge of write. The transceiver receives the usual T and 0E
inputs from the 82C88 DT/

R and DEN signals.

For large multiple processor systems, the 82C89 bus arbiter
must be added to the system to provide system bus man­agement. In this case, the pointer into the interrupt vector
table, which is passed during the second

INTA cycle, can be
derived from an HS-82C59ARH located on either the local
bus or the system bus. The processor’s
drive the SYSB/

RESB input of the 82C89 to the proper state

INTA output should

when reading the interrupt vector number from the HS­82C59ARH during the interrupt acknowledge sequence and
software “poll”.

A Note on Radiation Hardened Product Availability

I/O ports are addressed in the same manner as memory
location. Even addressed bytes are transf erred on the D7-D0
bus lines and odd address bytes on D15-D6.

The basic difference between the interrupt acknowledge
cycle and a read cycle is that the interrupt acknowledge sig­nal (

INTA) is asser ted in place of the read (RD) signal and
the address bus is held at the last valid logic state by internal
bus hold devices. (See Figure 4). In the second of two suc­cessive

INTA cycles a byte of information is read from the
data bus (D7-D0) as supplied by the interrupt system logic
(i.e. HS-82CS9ARH Priority Interrupt Controller). This byte
identifies the source (type) of the interrupt. It is multiplied by
four and used as a pointer into an interrupt vector Iookup
table, as described earlier.

There are no immediate plans to develop the 82C88 Bus
Controller or the 82C89 Arbiter as radiation hardened
integrated circuits.

A Note on SEU Capability of the HS-80C86RH

Previous heavy ion testing of the HS-80C86RH has indi­cated that the SEU threshold of this part is about 6
MEV/mg/cm

2

. Based upon these results and other analysis,
a deep space galactic cosmic-ray environment will result in
an SEU rate of about 0.08 upsets/day.

873

Spec Number

518055

VDD

HS-80C86RH

GND

VDD

RES

HS-82C85RH

CLOCK

CONTROLLER/

GENERATOR

RDY

WAIT

STATE

GENERATOR

C1

C2

C1 = C2 = 0.1µF

CLK

S0

82C88

S1

BUS

CTRLR

S2
DEN
DT/

R

82C82

(2 OR 3)

R

(2)

AIOWC

ALE

STB
OE

T/
OE

HS-82C08RH

TRANSCEIVER

MRDC

MWTC

AMWC

IORC

IOWC

INTA

NC

NC

ADDR

DATA

BHE

HS-65262RH

CMOS RAM (16)

A0

W E

16K x 1

GND

20

40

CLK
READY
RESET

HS-80C86RH

AD0-AD15

1

GND

VDD

MX

MN/

CPU

LOCK

A16-A19

BHE

GND

S0
S1
S2

NC

GND

ADDR/DATA

FIGURE 6A. MAXIMUM MODE HS-80C86RH TYPICAL CONFIGURATION

E G

HS-6617RH

CMOS PROM (2)

2K x 8 2K x 8

CS RDWR

CMOS

HS-82CXXRH

PERIPHERALS

VDD

GND

VDD

RES

HS-82C85RH

CLOCK

CONTROLLER/

GENERATOR

RDY

WAIT

STATE

GENERATOR

C1

C2

C1 = C2 = 0.1µF

GND

20

40

CLK
READY
RESET

HS-80C86RH

AD0-AD15

1

GND

VDD

MN/

MX

M/

IO

INTA

RD

WR

DT/R

DEN

CPU

ALE

A16-A19

BHE

VDD

GND

ADDR/DATA

STB
OE

82C82

(2 OR 3)

T/R
OE

HS-82C08RH

TRANSCEIVER

(2)

OPTIONAL
FOR INCREASED
DATA BUS DRIVE

BHE

CMOS RAM (16)

DATA

A0

W E

HS-65262RH

16K x 1

ADDR

E G

HS-6617RH

CMOS PROM (2)

2K x 8 2K x 8

CS RDWR

CMOS

HS-82CXXRH

PERIPHERALS

FIGURE 6B. MINIMUM MODE HS-80C86RH TYPICAL CONFIGURATION

874

Spec Number

518055

Waveforms

CLK (HS-82C85RH OUTPUT)

HS-80C86RH

TCH1CH2

T4T3T2T1

TCL2CL1

TW

WRITE CYCLE

(NOTE 1)

RD, INTA,

(

R = VOH)

DT/

INTA CYCLE

(NOTES 1, 3)

RD, WR = VOH

(

BHE = VOL)

SOFTWARE

HALT -

DEN, RD,

WR, INTA = VOH

R = INDETERMINATE

DT/

AD15-AD0

DEN

WR

AD15-AD0

DT/

INTA

DEN

AD15-AD0

TCLAV

AD15-AD0

TCVCTV

TCVCTV

TCLAZ

TCHCTV

R

TCVCTV

TCVCTV

INVALID ADDRESS

TCLAV

TCLDV
TCLAX

DATA OUT

TCVCTX

TWLWH

TDVCL

POINTER

TCVCTX

SOFTWARE HALT

TCLDX2

TWHDX

TCVCTX
TCLDX1

TCHCTV

FIGURE 7. BUS TIMING - MINIMUM MODE SYSTEM

NOTES:

1. All signals switch between VOH and VOL unless otherwise specified.

2. RDY is sampled near the end of T2, T3, TW to determine if TW machines states are to be inserted.

3. Two INTA cycles run back-to-back. The HS-80C86RH local ADDR/DATA bus is inactive during both INTA cycles. Control signals are
shown for the second INTA cycle.

4. Signals at HS-82C85RH are shown for reference only.

5. All timing measurements are made at 1.5V unless otherwise noted.

Spec Number

875

518055

HS-80C86RH

Waveforms

CLK (HS-82C85RH OUTPUT)

BHE/S7, A19/S6-A16/S3

RDY (HS-82C85RH INPUT)

(Continued)

TCHCTV

SEE NOTE 4

M/

ALE

T1 T2 T3 T4

TCLCL

TCHCL

IO

TCLAV

BHE, A19-A16

TCLLH

TLHLL

TCHLL

TAVLL

TCH1CH2

TCLDV
TCLAX

TLLAX

VIH

VIL

TCL2CL1

TR1VCL

TRYLCL

TW

S7-S3

TCLRIX

TCLCH

TCHCTV

TCLAV

READY (HS-80C86RH INPUT)

READ CYCLE

(NOTE 1)

(

WR, INTA = VOH)

AD15-AD0

RD

DT/

DEN

TRYHCH

TCLAZ

AD15-AD0

TAZRL

TCHCTV

TCLRL

R

TCVCTV

TDVCL

DATA IN

TCLRH

TRLRH

TCVCTX

TCHRYX

TCLDX1

TRHAV

TCHCTV

FIGURE 8. BUS TIMING - MINIMUM MODE SYSTEM

NOTES:

1. All signals switch between VOH and VOL unless otherwise specified.

2. RDY is sampled near the end of T2, T3, TW to determine if TW machines states are to be inserted.

3. Two INTA cycles run back-to-back. The HS-80C86RH local ADDR/DATA bus is inactive during both INTA cycles. Control signals are

shown for the second INTA cycle.

4. Signals at HS-82C85RH are shown for reference only.

5. All timing measurements are made at 1.5V unless otherwise noted.

876

Spec Number

518055

HS-80C86RH

Waveforms

S2, S1, S0 (EXCEPT HALT)

BHE/S7, A19/S6-A16/S3

NOTE 5

READY (HS-80C86RH INPUT)

(Continued)

CLK

QS0, QS1

ALE (82C88 OUTPUT)

(HS-82C85RH INPUT)

RDY

TCLAV

TCLAV

TSVLH

TCLLH

T1 T2 T3 T4

TCLCL

TCHCL

TCHSV

TCLDV

TCLAX

BHE, A19-A16

TCLAX

TCHLL

TR1VCL

TRYLCL

TCH1CH2

TCL2CL1 TW

TCLSH

S7-S3

TCLR1X

TRYHSH

TRYHCH

TCLCH

(SEE NOTE 8)

TCLAV

TCHRYX

READ CYCLE

82C88

OUTPUTS

SEE NOTES

5, 6

AD15-AD0

RD

DT/

MRDC OR IORC

DEN

R

TCLAV

TCHDTL

AD15-AD0

TCLML

TAZRL

TCLRL

TCVNV

TCLAZ

TDVCL

TCLRH

TRLRH

TCLMH

TCVNX

TCLDX1

DATA IN

TRHAV

TCHDTH

FIGURE 9. BUS TIMING - MAXIMUM MODE SYSTEM

NOTES:

1. All signals switch between VOH and VOL unless otherwise specified.

2. RDY is sampled near the end of T2, T3, TW to determine if TW machines states are to be inserted.

3. Cascade address is valid between first and second INTA cycle.

4. Two INTA cycles run back-to-back. The HS-80C86RH local ADDR/DATA bus is inactive during both INTA cycles. Control for pointer ad-

dress is shown for the second INTA cycle.

5. Signals at HS-82C85RH or 82C88 are shown for reference only.

6. The issuance of the 82C88 command and control signals (MRDC,MWTC, AMWC, IORC, IOWC,AIOWC, INT A and DEN) lags the active

high 82C88 CEN.

7. All timing measurements are made at 1.5V unless otherwise noted.

8. Status inactive in state just prior to T4.

877

Spec Number

518055

HS-80C86RH

Waveforms

S2, S1, S0 (EXCEPT HALT)

82C88

OUTPUTS

SEE NOTES

5, 6

(Continued)

WRITE CYCLE

AD15-AD0

AMWC OR AIOWC

MWTC OR IOWC

INTA CYCLE

AD15-AD0

(SEE NOTES 3, 4)

AD15-AD0

CLK

DEN

TCLAV

TCLAZ

T1 T2 T3 T4

TCHSV

TCLDV
TCLAX

TCVNV

TCLML

RESERVED FOR
CASCADE ADDR

TCLML

TCLSH

TCLMH

TDVCL

POINTER

TW

(SEE NOTE 8)

TCLDX2

TCVNX

TCLMH

TCLDX1

82C88 OUTPUTS

SEE NOTES 5, 6

SOFTWARE
HALT -

RD, MRDC, IORC, MWTC, AMWC, IOWC, AIOWC, INTA, S0, S1 = VOH

TSVMCH

MCE/PDEN

DT/

INTA

DEN

AD15-AD0

S2

TCLMCH

R

TCHSV

TCHDTL

TCLML

TCVNV

INVALID ADDRESS

TCLAV

TCLSH

TCLMCL

TCHDTH

TCLMH

TCVNX

FIGURE 10. BUS TIMING - MAXIMUM MODE SYSTEM (USING 82C88)

NOTES:

1. All signals switch between VOH and VOL unless otherwise specified.

2. RDY is sampled near the end of T2, T3, TW to determine if TW machines states are to be inserted.

3. Cascade address is valid between first and second INTA cycle.

4. Two INTA cycles run back-to-back. The HS-80C86RH local ADDR/DATA bus is inactive during both INTA cycles. Control for pointer ad-

dress is shown for the second INTA cycle.

5. Signals at HS-82C85RH or 82C88 are shown for reference only.

6. The issuance of the 82C88 command and control signals (MRDC,MWTC, AMWC, IORC, IOWC,AIOWC, INT A and DEN) lags the active

high 82C88 CEN.

7. All timing measurements are made at 1.5V unless otherwise noted.

8. Status inactive in state just prior to T4.

878

Spec Number

518055

HS-80C86RH

Waveforms

(Continued)

NMI

INTR

TEST

CLK

SIGNAL

FIGURE 11. ASYNCHRONOUS SIGNAL RECOGNITION

ANY CLK CYCLE

CLK

TCLAV

LOCK

ANY CLK CYCLE

TCLAV

FIGURE 12. BUS LOCK SIGNAL TIMING (MAXIMUM MODE

ONLY)

ANY
CLK

CYCLE

≥ 0-CLK

CYCLES

TINVCH (SEE NOTE)

NOTE: Setup Requirements for
asynchronous signals only to
guarantee recognition at next CLK.

≥ 50µs

VCC

CLK

TCLDX

TDVCL

RESET

≥ 4 CLK CYCLES

FIGURE 13. RESET TIMING

TCLGL

TCLGH

CLK

TCLGH

RQ/GT

PREVIOUS GRANT

AD15-AD0

RD, LOCK

BHE/S7, A19/S6-A16/S3

S2, S1, S0

NOTE: The coprocessor may not drive the buses outside the region shown without risking contention.

TGVCH

TCLCL

HS-80C86RH

TCHGX

PULSE 1
COPROCESSOR

RQ

PULSE 2

HS-80C86RH

GT

TCLAZ

TCHSZ

(SEE NOTE) TCHSV

FIGURE 14. REQUEST/GRANT SEQUENCE TIMING (MAXIMUM MODE ONLY)

CLK

HOLD

HLDA

AD15-AD0

80C86

≥ 1CLK
CYCLE

THVCH

TCLHAV

TCLAZ

1 OR 2

CYCLES

THVCH

COPROCESSOR

TCLHAV

PULSE 3
COPROCESSOR
RELEASE

80C86

BHE/S7, A19/S6-A16/S3

RD, WR, M/IO, DT/R, DEN

FIGURE 15. HOLD/HOLD ACKNOWLEDGE TIMING (MINIMUM MODE ONLY)

879

TCHSZ

Spec Number

518055

HS-80C86RH

AC Test Circuit

OUTPUT FROM

DEVICE UNDER TEST

NOTE: Includes stray and jig capacitance.

Burn-In Circuits

HS-80C86RH 40 PIN DIP

1
2
3
4
5
6
7
8

9
10
11
12
13
14
15
16
17

CLK

18
19
20

CL (Note)

40
39
38
37
36
35
34
33
32
31
30
29
28
27
26
25
24
23
22
21

TEST POINT

VDD

AC Testing Input, Output Waveform

INPUT

VIH

VIL - 0.4V

1.5V 1.5V

NOTE: All inputs signals (other than CLK) must s witch betw een VIL

Max -0.4V and VIH Min +0.4. CLK must switch between 0.4V
and VDD -0.4V. TR and TF must be less than or equal to
15ns. CLK TR and TF must be less than or equal to 10ns.

HS-80C86RH 40 PIN DIP

F15
F14
F13
F12
F11
F10

F9
F8
F7
F6
F5
F4
F3
F2
F1

NMI

F0

1
2
3
4
5
6
7
8

9
10
11
12
13
14
15
16
17
18
19
20

40
39
38
37
36
35
34
33
32
31
30
29
28
27
26
25
24
23
22
21

OUTPUT

F16
LOAD
LOAD
LOAD
LOAD
LOAD

MX

MN/
LOAD

LOAD
LOAD
LOAD
LOAD
LOAD
LOAD

READY
RESET

VOH
VOH

VDD

T

VDD = +6.5V ±10%
TA = +125oC Minimum
Part is Static Sensitive
Voltages Must Be Ramped
Package: 40 Lead DIP

≥ 5.0µs

T

STATIC

Resistors:
10kΩ±10%
(Pins 17, 18, 21-23, 31, 33)

2.7kΩ±5% (Pins 2-16, 39)

1.0kΩ±5% 1/10W Min (Pin 19)
Minimum of 5 CLK Pulses
After Initial Pulses, CLK is Left High
Pulses are 50% Duty Cycle Square

Wave

VDD = 6.5V ±5% (Burn-In)
VDD = 6.0V ±5% (Life Test)
TA = +125oC
Package: 40 Lead DIP
Part is Static Sensitive
Voltage Must Be Ramped

880

VDD

2.7KΩ

LOAD

2.7KΩ

DYNAMIC

Resistors:
10kΩ (Pins 17, 18, 21, 22, 23, 33)

3.3kΩ (Pins 2-16, 19, 30, 31, 39)

2.7kΩ Loads As Indicated
All Resistors Are At Least 1/8W,

±10%
F0 = 100kHz, F1 = F0/2, F2 = F1/2 . . .
RESET, NMI low after initialization.
READY pulsed low every 320ms
MN/MX changes state every 5.24s

Spec Number

518055

HS-80C86RH

Burn-In Circuits

HS-80C86RH 42 LEAD FLATPACK

CLK

(Continued)

1
2
3
4
5
6
7
8

9
10
11
12
13
14
15
16
17
18
19
20
21

HS-80C86RH 42 LEAD FLATPACK

VDD VDD

42
41
40
39
38
37
36
35
34
33
32
31
30
29
28
27
26
25
24
23
22

F15
F14
F13
F12
F11
F10

F9
F8
F7
F6

F5
F4
F3

F2
F1

OPEN

NMI

F0

1
2
3
4
5
6
7
8

9
10
11
12
13
14
15
16
17
18
19
20
21

42
41
40
39
38
37
36
35
34
33
32
31
30
29
28
27
26
25
24
23
22

OPEN
LOAD
LOAD
LOAD
LOAD
LOAD

LOAD

LOAD
LOAD
LOAD
LOAD
LOAD
LOAD

F16

MN/

READY

RESET

MX

VDD = +6.5V ±10%
TA = +125oC Minimum
Part is Static Sensitive
Voltages Must Be Ramped
Package: 42 Lead Flatpack

STATIC

Resistors:
10kΩ±10%
(Pins 18, 19, 22-24, 32, 34)

2.7kΩ±5% (Pins 2-16, 41)

1.0kΩ±5% 1/10W Min (Pin 20)
Minimum of 5 CLK Pulses
After Initial Pulses, CLK is Left High
Pulses are 50% Duty Cycle Square

Wave

VDD = 6.5V ±5% (Burn-In)
VDD = 6.0V ±5% (Life Test)
TA = +125oC
Package: 42 Lead Flatpack
Part is Static Sensitive
Voltage Must Be Ramped

VDD

2.7kΩ

LOAD

2.7kΩ

DYNAMIC

Resistors:
10kΩ (Pins 17, 18, 19, 22, 23, 24, 34)

3.3kΩ (Pins 2-16, 20, 31, 32, 41)

2.7kΩ Loads As Indicated
All Resistors Are At Least 1/8W,±10%
F0 = 100kHz, F1 = F0/2, F2 = F1/2 . . .
RESET, NMI low after initialization.
READY pulsed low every 320µs
MN/MX changes state every 5.24s

881

Spec Number

518055

Timing Diagrams

F5

READY

READY TIMING AS COMPARED TO F5

F14
F16

RESET

NMI

RESET, NMI, AND MN/MX TIMING AS COMPARED TO F14 AND F16

F0 = 100kHz, 50% duty cycle square wave.
F1 = F0/2, F2 = F1/2 . . . F16 = F15/2.

READY, RESET, and NMI timing are as shown below:

T = 10µs.

All signals have rise/fall time limits:

100ns < t-rise, t-fall < 500ns

Irradiation Circuit

HS-80C86RH

4T

PULSE

RESET has a pulse width = 8T and occurs every two cycles of F16.
NMI has a pulse width = 4T and occurs every two cycles of F16.
MN/MX is a 50% duty cycle square wave and changes every eight

cycles of F16.

CLOCK

R3

R2
R2

R2
R2
R2
R2
R2
R2
R2
R2
R2
R2
R2
R2
R2
R3
R3

1

VSS VCC
2
3
4
5
6
7
8
9

10
11
12
13
14
15
16
17

NMI

18

INTR

CLK

19

GND

20

MN/MX

HOLD

HLDA

TEST

READY

RESET

VDD
40
39
38
37
36
35
34
33
32
31
30
29
28
27
26
25
24
23
22
21

R2

R3

R3

R2

LOAD
LOAD

LOAD
LOAD

LOAD

R2

LOAD

R2

LOAD
LOAD
LOAD
LOAD
LOAD
LOAD
LOAD

R3
R3
R3

LOAD

2.7KΩ

2.7KΩ

RESET

NOTES:

1. VDD = 5.0V ± 0.5V

2. R2 = 3.3kΩ, R3 = 47kΩ

3. Pins Tied to GND: 1-18, 20, 23, 39
Pins Tied to VCC: 22, 31, 33, 40
Pins With Loads: 24-29, 30, 32, 34-38
Pins Brought Out: 19 (Clock), 21 (Reset)

4. Clock and reset should be brought out separately so they can be
toggled before irradiation.

5. Group E Sample Size is 2 Die/Wafer.

Spec Number

882

518055

HS-80C86RH

Intersil Space Level Product Flow - Q

All Lots - Wafer Lot Acceptance (Including SEM)

Method 5007

Each Wafer - GAMMA Radiation Verification,

Two samples/wafer, 0 rejects, Method 1019
100% Nondestructive Bond Pull, Method 2023
Sample - Wire Bond Pull Monitor, Method 2011
Sample - Die Shear Monitor, Method 2019 or 2027
100% Internal Visual Inspection, Method 2010, Condition A
100% Temperature Cycle - Method 1010, Condition C,

10 cycles
100% Constant Acceleration, Method 2001, Condition

Per Method 5004
100% PIND - Method 2020, Condition A
100% External Visual
100% Serialization
100% Initial Electrical Test (T0)
100% Static Burn-In 1, Method 1015, Condition A or B,

72 Hours Minimum, 125

NOTES:

1. Modified SEM Inspection, not compliant to MIL-STD-883, Method 2018. This device does not meet the Class S minimum metal step cov­erage of 50%. The metal does meet the current density requirement of <2 E5 A/cm2. Data provided upon request.

2. Failures from subgroups 1, 7 and deltas are used for calculating PDA. The maximum allowable PDA = 5% with no more than 3% of the
failures from subgroup 7.

3. Radiographic (X-Ray) inspection may be performed at any point after serialization as allowed by Method 5004.

4. Alternate Group A testing may be performed as allowed by MIL-STD-883, Method 5005.

5. Group B and D inspections are optional and will not be performed unless required by the P.O. When required, the P.O. should include
separate line items for Group B test, Group B samples, Group D tests and Group D samples.

6. Group D Generic Data, as defined by MIL-I-38535, is optional and will not be supplied unless required by the P.O. When required, the
P.O. should include separate line items for Group D generic data. Generic Data is not guaranteed to be available and is therefore not
available in all cases.

7. Data Package Contents:

• Cover Sheet (Intersil Name and/or Logo, P.O. Number, Customer Part Number, Lot Date Code, Intersil Part Number, Lot Number, Quan-

tity). Wafer Lot Acceptance Report (Method 5007) to include reproductions of SEM photos with percent of step coverage.

• GAMMA Radiation Repor t. Contains Cover page, disposition, Rad Dose, Lot Number, test package used, specification numbers, test

equipment, etc. Radiation Read and Record data on file at Intersil.

• X-Ray Report and Film, including penetrameter measurements.

• Lot Serial Number Sheet (Good Unit(s) Serial Number and Lot Number).

• Variables Data (All Delta operations). Data is identified by serial number . Data header includes lot n umber and date of test.

• Group B and D attributes and/or Generic data is included when required by P.O.

• The Certificate of Conformance is a part of the shipping invoice and is not part of Data Book. The Certificate of Conformance

is signed by an authorized Quality Representative.

o

C minimum

100% Interim Electrical Test 1 (T1)
100% Delta Calculation (T0-T1)
100% PDA 1, Method 5004 (Note 1)
100% Dynamic Burn-In, Condition D, 240 hours, +125

Equivalent Per Method 1015
100% Interim Electrical Test 2 (T2)
100% Delta Calculation (T0-T2)
100% PDA 2, Method 5004 (Note 2)
100% Final Electric Test (T3)
100% Fine/Gross Leak, Method 1014
100% Radiographic, Method 2012 (Note 3)
100% External Visual, Method 2009
Sample - Group A, Method 5005 (Note 4)
Sample - Group B, Method 5005 (Note 5)
Sample - Group D, Method 5005 (Notes 5, 6)
100% Data Package Generation (Note 6)

o

C or

883

Spec Number

518055

HS-80C86RH

Intersil Space Level Product Flow - 8

Each Wafer - GAMMA Radiation Verification,

2 samples/wafer, 0 rejects, Method 1019
100% Die Attach
Periodic - Wire Bond Pull Monitor, Method 2011
Periodic - Die Shear Monitor, Method 2019 or 2027
100% Internal Visual Inspection, Method 2010, Condition B
CSI and/or GSI PreCap (Note 5)
100% Temperature Cycle, Method 1010, Condition C,

10 cycles
100% Constant Acceleration, Method 2001, Condition Per

Method 5004
100% External Visual
100% Initial Electrical Test

o

100% Dynamic Burn-In, Condition D, 160 hours, +125

C, or

Equivalent, Per Method 1015

NOTES:

1. Failures from subgroups 1, 7 are used for calculating PDA. The maximum allowable PDA = 5%.

2. Alternate Group A testing may be performed as allowed by MIL-STD-883, Method 5005 may be performed.

3. Group B, C, and D inspections are optional and will not be performed unless required by the P.O. When required, the P.O. should include
separate line items for Group B Test, Group C Test, Group C Samples, Group D Test and Group D Samples.

4. Group C and/or Group D Generic Data, as defined by MIL-I-38535, is optional and will not be supplied unless required by the P.O. When
required, the P.O. should include separate line items for Group D generic data. Generic Data is not guaranteed to be available and is
therefore not available in all cases.

5. CSI and /or GSI inspections are optional and will not be performed unless required by the P.O. When required, the P.O. should include
separate line items for CSI PreCap inspection, CSI final inspection, GSI PreCap inspection, and/or GSI final inspection.

6. Data Package Contents:

• Cover Sheet (Intersil Name and/or Logo, P.O. Number, Customer Part Number, Lot Date Code, Intersil Part Number, Lot Number, Quan-

tity).

• GAMMA Radiation Repor t. Contains Cover page, disposition, RAD Dose, Lot Number, test package used, specification numbers, test

equipment, etc. Radiation Read and Record data on file at Intersil.

• Screening, Electrical, and Group A attributes (Screening attributes begins at Initial Electrical Test).

• Group B, C and D attributes and/or Generic data is included when required by P.O.

• Variables Data (All Delta operations) Data is identified by serial number . Data header includes lot n umber and date of test.

• Group B and D attributes and/or Generic data is included when required by P.O.

• The Certificate of Conformance is a part of the shipping invoice and is not part of Data Book. The Certificate of Conformance is signed by

an authorized Quality Representative.

100% Interim Electrical Test
100% PDA, Method 5004 (Note 1)
100% Final Electric Test
100% Fine/Gross Leak, Method 1014
100% External Visual, Method 2009
Sample - Group A, Method 5005 (Note 2)
Sample - Group B, Method 5005 (Note 3)
Sample - Group C, Method 5005 (Notes 3, 4)
Sample - Group D, Method 5005 (Notes 3, 4)
100% Data Package Generation (Note 6)
CSI and/or GSI Final (Note 5)

884

Spec Number

518055

Metallization Topology

HS-80C86RH

DIE DIMENSIONS:

6370µm x 7420µm x 485µm

METALLIZATION:

Type: Al/S
Thickness: 11k

Å ±2kÅ

Metallization Mask Layout

(5) AD11

AD10 (6)

AD9 (7)

(4) AD12

(3) AD13

(2) AD14

GLASSIVATION:

WORST CASE CURRENT DENSITY:

<2 x 10

HS-80C86RH

(1) GND

Thickness: 8k

5

A/cm

(40) VCC

(39) AD15

Å ±1kÅ

2

(38) AD16

(37) A17/S4

(36) A18/S5

(35) A19/S6

(34) BHE/S7

MX

(33) MN/

AD8 (8)

AD7 (9)

AD6 (10)

AD5 (11)

AD4 (12)
AD3 (13)

AD2 (14)

AD1 (15)

AD0 (16)

(32

) RD

(31)

RQ/GT0

(30) RQ/GT1

LOCK

(29)

(28)

S2

S1

(27)

(26

) S0

NMI (17)

INTR (18)

CLK (19)

GND (20)

885

RESET (21)

READY (22)

QSI (21)

TEST (23)

QS0 (25)

Spec Number

518055

HS-80C86RH

Instruction Set Summary

INSTRUCTION CODE

MNEMONIC AND DESCRIPTION

DATA TRANSFER
MOV = MOVE:

Register/Memory to/from Register 1 0 0 0 1 0 d w mod reg r/m
Immediate to Register/Memory 1 1 0 0 0 1 1 w mod 0 0 0 r/m data data if w 1
Immediate to Register 1 0 1 1 w reg data data if w 1
Memory to Accumulator 1 0 1 0 0 0 0 w addr-low addr-high
Accumulator to Memory 1 0 1 0 0 0 1 w addr-low addr-high
Register/Memory to Segment Register †† 1 0 0 0 1 1 1 0 mod 0 reg r/m
Segment Register to Register/Memory 1 0 0 0 1 1 0 0 mod 0 reg r/m

PUSH = Push:

Register/Memory 1 1 1 1 1 1 1 1 mod 1 1 0 r/m
Register 0 1 0 1 0 reg
Segment Register 0 0 0 reg 1 1 0

POP = Pop:

Register/Memory 1 0 0 0 1 1 1 1 mod 0 0 0 r/m
Register 0 1 0 1 1 reg
Segment Register 0 0 0 reg 1 1 1

XCHG = Exchange:

Register/Memory with Register 1 0 0 0 0 1 1 w mod reg r/m
Register with Accumulator 1 0 0 1 0 reg

IN = Input from:

Fixed Port 1 1 1 0 0 1 0 w port
Variable Port 1 1 1 0 1 1 0 w

OUT = Output to:

Fixed Port 1 1 1 0 0 1 1 w port
Variable Port 1 1 1 0 1 1 1 w

XLAT = Translate Byte to AL 1 1 0 1 0 1 1 1
LEA = Load EA to Register2 1 0 0 0 1 1 0 1 mod reg r/m
LDS = Load Pointer to DS 1 1 0 0 0 1 0 1 mod reg r/m
LES = Load Pointer to ES 1 1 0 0 0 1 0 0 mod reg r/m
LAHF = Load AH with Flags 1 0 0 1 1 1 1 1
SAHF = Store AH into Flags 1 0 0 1 1 1 1 0
PUSHF = Push Flags 1 0 0 1 1 1 0 0
POPF = Pop Flags 1 0 0 1 1 1 0 1

7 6 5 4 3 2 1 0 7 6 5 4 3 2 1 0 7 6 5 4 3 2 1 0 7 6 5 4 3 2 1 0

886

Spec Number

518055

HS-80C86RH

Instruction Set Summary

MNEMONIC AND DESCRIPTION

ARITHMETIC
ADD = Add:

Register/Memory with Register to Either 0 0 0 0 0 0 d w mod reg r/m
Immediate to Register/Memory 1 0 0 0 0 0 s w mod 0 0 0 r/m data data if s:w = 01
Immediate to Accumulator 0 0 0 0 0 1 0 w data data if w = 1

ADC = Add with Carry:

Register/Memory with Register to Either 0 0 0 1 0 0 d w mod reg r/m
Immediate to Register/Memory 1 0 0 0 0 0 s w mod 0 1 0 r/m data data if s:w = 01
Immediate to Accumulator 0 0 0 1 0 1 0 w data data if w = 1

INC = Increment:

Register/Memory 1 1 1 1 1 1 1 w mod 0 0 0 r/m
Register 0 1 0 0 0 reg

AAA = ASCll Adjust for Add 0 0 1 1 0 1 1 1
DAA = Decimal Adjust for Add 0 0 1 0 0 1 1 1
SUB = Subtract:

Register/Memory and Register to Either 0 0 1 0 1 0 d w mod reg r/m
Immediate from Register/Memory 1 0 0 0 0 0 s w mod 1 0 1 r/m data data if s:w = 01
Immediate from Accumulator 0 0 1 0 1 1 0 w data data if w = 1

SBB = Subtract with Borrow

Register/Memory and Register to Either 0 0 0 1 1 0 d w mod reg r/m
Immediate from Register/Memory 1 0 0 0 0 0 s w mod 0 1 1 r/m data data if s:w = 01
Immediate from Accumulator 0 0 0 1 1 1 0 w data data if w = 1

DEC = Decrement:

Register/Memory 1 1 1 1 1 1 1 w mod 0 0 1 r/m
Register 0 1 0 0 1 reg

NEG = Change Sign 1 1 1 1 0 1 1 w mod 0 1 1 r/m
CMP = Compare:

Register/Memory and Register 0 0 1 1 1 0 d w mod reg r/m
Immediate with Register/Memory 1 0 0 0 0 0 s w mod 1 1 1 r/m data data if s:w = 01
Immediate with Accumulator 0 0 1 1 1 1 0 w data data if w = 1

AAS = ASCll Adjust for Subtract 0 0 1 1 1 1 1 1
DAS = Decimal Adjust for Subtract 0 0 1 0 1 1 1 1
MUL = Multiply (Unsigned) 1 1 1 1 0 1 1 w mod 1 0 0 r/m
IMUL = Integer Multiply (Signed) 1 1 1 1 0 1 1 w mod 1 0 1 r/m
AAM = ASCll Adjust for Multiply 1 1 0 1 0 1 0 0 0 0 0 0 1 0 1 0
DlV = Divide (Unsigned) 1 1 1 1 0 1 1 w mod 1 1 0 r/m
IDlV = Integer Divide (Signed) 1 1 1 1 0 1 1 w mod 1 1 1 r/m
AAD = ASClI Adjust for Divide 1 1 0 1 0 1 0 1 0 0 0 0 1 0 1 0
CBW = Convert Byte to Word 1 0 0 1 1 0 0 0
CWD = Convert Word to Double Word 1 0 0 1 1 0 0 1

(Continued)

INSTRUCTION CODE

7 6 5 4 3 2 1 0 7 6 5 4 3 2 1 0 7 6 5 4 3 2 1 0 7 6 5 4 3 2 1 0

887

Spec Number

518055

HS-80C86RH

Instruction Set Summary

MNEMONIC AND DESCRIPTION

LOGIC
NOT = Invert 1 1 1 1 0 1 1 w mod 0 1 0 r/m
SHL/SAL = Shift Logical/Arithmetic Left 1 1 0 1 0 0 v w mod 1 0 0 r/m
SHR = Shift Logical Right 1 1 0 1 0 0 v w mod 1 0 1 r/m
SAR = Shift Arithmetic Right 1 1 0 1 0 0 v w mod 1 1 1 r/m
ROL = Rotate Left 1 1 0 1 0 0 v w mod 0 0 0 r/m
ROR = Rotate Right 1 1 0 1 0 0 v w mod 0 0 1 r/m
RCL = Rotate Through Carry Flag Left 1 1 0 1 0 0 v w mod 0 1 0 r/m
RCR = Rotate Through Carry Right 1 1 0 1 0 0 v w mod 0 1 1 r/m
AND = And:

Reg./Memory and Register to Either 0 0 1 0 0 0 0 d w mod reg r/m
Immediate to Register/Memory 1 0 0 0 0 0 0 w mod 1 0 0 r/m data data if w = 1
Immediate to Accumulator 0 0 1 0 0 1 0 w data data if w = 1

TEST = And Function to Flags, No Result:

Register/Memory and Register 1 0 0 0 0 1 0 w mod reg r/m
Immediate Data and Register/Memory 1 1 1 1 0 1 1 w mod 0 0 0 r/m data data if w = 1
Immediate Data and Accumulator 1 0 1 0 1 0 0 w data data if w = 1

OR = Or:

Register/Memory and Register to Either 0 0 0 0 1 0 d w mod reg r/m
Immediate to Register/Memory 1 0 0 0 0 0 0 w mod 1 0 1 r/m data data if w = 1
Immediate to Accumulator 0 0 0 0 1 1 0 w data data if w = 1

XOR = Exclusive or:

Register/Memory and Register to Either 0 0 1 1 0 0 d w mod reg r/m
Immediate to Register/Memory 1 0 0 0 0 0 0 w mod 1 1 0 r/m data data if w = 1
Immediate to Accumulator 0 0 1 1 0 1 0 w data data if w = 1

STRING MANIPULATION
REP = Repeat 1 1 1 1 0 0 1 z
MOVS = Move Byte/Word 1 0 1 0 0 1 0 w
CMPS = Compare Byte/Word 1 0 1 0 0 1 1 w
SCAS = Scan Byte/Word 1 0 1 0 1 1 1 w
LODS = Load Byte/Word to AL/AX 1 0 1 0 1 1 0 w
STOS = Stor Byte/Word from AL/A 1 0 1 0 1 0 1 w
CONTROL TRANSFER
CALL = Call:

Direct Within Segment 1 1 1 0 1 0 0 0 disp-low disp-high
Indirect Within Segment 1 1 1 1 1 1 1 1 mod 0 1 0 r/m
Direct Intersegment 1 0 0 1 1 0 1 0 offset-low offset-high

Indirect Intersegment 1 1 1 1 1 1 1 1 mod 0 1 1 r/m

(Continued)

INSTRUCTION CODE

7 6 5 4 3 2 1 0 7 6 5 4 3 2 1 0 7 6 5 4 3 2 1 0 7 6 5 4 3 2 1 0

seg-low seg-high

888

Spec Number

518055

HS-80C86RH

Instruction Set Summary

MNEMONIC AND DESCRIPTION

JMP = Unconditional Jump:

Direct Within Segment 1 1 1 0 1 0 0 1 disp-low disp-high
Direct Within Segment-Short 1 1 1 0 1 0 1 1 disp
Indirect Within Segment 1 1 1 1 1 1 1 1 mod 1 0 0 r/m
Direct Intersegment 1 1 1 0 1 0 1 0 offset-low offset-high
Direct Intersegment 1 1 1 0 1 0 1 0 offset-low offset-high

Indirect Intersegment 1 1 1 1 1 1 1 1 mod 1 0 1 r/m

RET = Return from CALL:

Within Segment 1 1 0 0 0 0 1 1
Within Seg Adding lmmed to SP 1 1 0 0 0 0 1 0 data-low data-high
Intersegment 1 1 0 0 1 0 1 1
Intersegment Adding Immediate to SP 1 1 0 0 1 0 1 0 data-low data-high

JE/JZ = Jump on Equal/Zero 0 1 1 1 0 1 0 0 disp
JL/JNGE = Jump on Less/Not Greater or Equal 0 1 1 1 1 1 0 0 disp
JLE/JNG = Jump on Less or Equal/ Not Greater 0 1 1 1 1 1 1 0 disp
JB/JNAE = Jump on Below/Not Above or Equal 0 1 1 1 0 0 1 0 disp
JBE/JNA = Jump on Below or Equal/Not Above 0 1 1 1 0 1 1 0 disp
JP/JPE = Jump on Parity/Parity Even 0 1 1 1 1 0 1 0 disp
JO = Jump on Overtlow 0 1 1 1 0 0 0 0 disp
JS = Jump on Sign 0 1 1 1 1 0 0 0 disp
JNE/JNZ = Jump on Not Equal/Not Zero 0 1 1 1 0 1 0 1 disp
JNL/JGE = Jump on Not Less/Greater or Equal 0 1 1 1 1 1 0 1 disp
JNLE/JG = Jump on Not Less or Equal/Greater 0 1 1 1 1 1 1 1 disp
JNB/JAE = Jump on Not Below/Above or Equal 0 1 1 1 0 0 1 1 disp
JNBE/JA = Jump on Not Below or Equal/Above 0 1 1 1 0 1 1 1 disp
JNP/JPO = Jump on Not Par/Par Odd 0 1 1 1 1 0 1 1 disp
JNO = Jump on Not Overflow 0 1 1 1 0 0 0 1 disp
JNS = Jump on Not Sign 0 1 1 1 1 0 0 1 disp
LOOP = Loop CX Times 1 1 1 0 0 0 1 0 disp
LOOPZ/LOOPE = Loop While Zero/Equal 1 1 1 0 0 0 0 1 disp
LOOPNZ/LOOPNE = Loop While Not Zero/Equal 1 1 1 0 0 0 0 0 disp
JCXZ = Jump on CX Zero 1 1 1 0 0 0 1 1 disp
INT = Interrupt

Type Specified 1 1 0 0 1 1 0 1 type
Type 3 1 1 0 0 1 1 0 0

INTO = Interrupt on Overflow 1 1 0 0 1 1 1 0
IRET = Interrupt Return 1 1 0 0 1 1 1 1

(Continued)

INSTRUCTION CODE

7 6 5 4 3 2 1 0 7 6 5 4 3 2 1 0 7 6 5 4 3 2 1 0 7 6 5 4 3 2 1 0

seg-low seg-high

889

Spec Number

518055

HS-80C86RH

Instruction Set Summary

MNEMONIC AND DESCRIPTION

PROCESSOR CONTROL
CLC = Clear Carry 1 1 1 1 1 0 0 0
CMC = Complement Carry 1 1 1 1 0 1 0 1
STC = Set Carry 1 1 1 1 1 0 0 1
CLD = Clear Direction 1 1 1 1 1 1 0 0
STD = Set Direction 1 1 1 1 1 1 0 1
CLl = Clear Interrupt 1 1 1 1 1 0 1 0
ST = Set Interrupt 1 1 1 1 1 0 1 1
HLT = Halt 1 1 1 1 0 1 0 0
WAIT = Wait 1 0 0 1 1 0 1 1
ESC = Escape (to External Device) 1 1 0 1 1 x x x mod x x x r/m
LOCK = Bus Lock Prefix 1 1 1 1 0 0 0 0

NOTES:
AL = 8-bit accumulator
AX = 16-bit accumulator
CX = Count register
DS= Data segment
ES = Extra segment
Above/below refers to unsigned value.
Greater = more positive;
Less = less positive (more negative) signed values
if d = 1 then “to” reg; if d = 0 then “from” reg
if w = 1 then word instruction; if w = 0 then byte

instruction
if mod = 11 then r/m is treated as a REG field
if mod = 00 then DISP = O†, disp-low and disp-high

are absent
if mod = 01 then DISP = disp-low sign-extended

16-bits, disp-high is absent
if mod = 10 then DISP = disp-high:disp-low
if r/m = 000 then EA = (BX) + (SI) + DISP
if r/m = 001 then EA = (BX) + (DI) + DISP
if r/m = 010 then EA = (BP) + (SI) + DISP
if r/m = 011 then EA = (BP) + (DI) + DISP
if r/m = 100 then EA = (SI) + DISP
if r/m = 101 then EA = (DI) + DISP
if r/m = 110 then EA = (BP) + DISP †
if r/m = 111 then EA = (BX) + DISP
DISP follows 2nd byte of instruction (before data

if required)
† except if mod = 00 and r/m = 110 then

EA = disp-high: disp-low.

†† MOV CS, REG/MEMORY not allowed.

(Continued)

INSTRUCTION CODE

7 6 5 4 3 2 1 0 7 6 5 4 3 2 1 0 7 6 5 4 3 2 1 0 7 6 5 4 3 2 1 0

if s:w = 01 then 16 bits of immediate data form the operand.
if s:w. = 11 then an immediate data byte is sign extended

to form the 16-bit operand.
if v = 0 then “count” = 1; if v = 1 then “count” in (CL)
x = don't care
z is used for string primitives for comparison with ZF FLAG.

SEGMENT OVERRIDE PREFIX
001 reg 11 0
REG is assigned according to the following table:

16-BIT (w = 1) 8-BIT (w = 0) SEGMENT

000 AX 000 AL 00 ES
001 CX 001 CL 01 CS
010 DX 010 DL 10 SS

011 BX 011 BL 11 DS

100 SP 100 AH 00 ES

101 BP 101 CH 00 ES

110 SI 110 DH 00 ES
111 DI 111 BH 00 ES

Instructions which reference the flag register file as a 16-bit
object use the symbol FLAGS to represent the file:

FLAGS =
X:X:X:X:(OF):(DF):(IF):(TF):(SF):(ZF):X:(AF):X:(PF):X:(CF)
Mnemonics  Intel, 1978

890

Spec Number

518055

HS-80C86RH

Ceramic Dual-In-Line Metal Seal Packages (SBDIP)

LEAD FINISH

c1

bbb C A - B

BASE

PLANE

SEATING

PLANE

S1

b2

b

ccc C A - BMD

-A-

-B-

S

D

A

A

e

S

S

S S

D

-D-

E

S2

-C-

BASE

METAL

M

SECTION A-A

Q

A

L

eA/2

aaa C A - B

M

(b)

b1

M

eA

c

D

S

NOTES:

1. Index area: A notch or a pin one identification mark shall be locat­ed adjacent to pin one and shall be located within the shaded
area shown. The manufacturer’s identification shall not be used
as a pin one identification mark.

2. The maximum limits of lead dimensions b and c or M shall be
measured at the centroid of the finished lead surfaces, when
solder dip or tin plate lead finish is applied.

3. Dimensions b1 and c1 apply to lead base metal only. Dimension
M applies to lead plating and finish thickness.

4. Corner leads (1, N, N/2, an dN/2+1) may be configured with a
partial lead paddle. For this configuration dimension b3 replaces
dimension b2.

5. Dimension Q shall be measured from the seating plane to the
base plane.

6. Measure dimension S1 at all four corners.

7. Measure dimension S2 from the top of the ceramic body to the
nearest metallization or lead.

8. N is the maximum number of terminal positions.

9. Braze fillets shall be concave.

10. Dimensioning and tolerancing per ANSI Y14.5M - 1982.

11. Controlling dimension: INCH.

D40.6 MIL-STD-1835 CDIP2-T40 (D-5, CONFIGURATION C)

40 LEAD CERAMIC DUAL-IN-LINE METAL SEAL PACKAGE

(c)

SYMBOL

A - 0.225 - 5.72 -

b 0.014 0.026 0.36 0.66 2
b1 0.014 0.023 0.36 0.58 3
b2 0.045 0.065 1.14 1.65 ­b3 0.023 0.045 0.58 1.14 4

c 0.008 0.018 0.20 0.46 2

c1 0.008 0.015 0.20 0.38 3

D - 2.096 - 53.24 4

E 0.510 0.620 12.95 15.75 4

e 0.100 BSC 2.54 BSC -

S

eA 0.600 BSC 15.24 BSC -

eA/2 0.300 BSC 7.62 BSC -

L 0.125 0.200 3.18 5.08 -

Q 0.015 0.070 0.38 1.78 5
S1 0.005 - 0.13 - 6
S2 0.005 - 0.13 - 7

α

aaa - 0.015 - 0.38 ­bbb - 0.030 - 0.76 -

ccc - 0.010 - 0.25 -

M - 0.0015 - 0.038 2

N40 408

INCHES MILLIMETERS

90

o

105

o

90

o

105

NOTESMIN MAX MIN MAX

o

Rev. 0 4/94

-

891

Spec Number

518055

HS-80C86RH

Ceramic Metal Seal Flatpack Packages (Flatpack)

1

E

N

e

b

E1

L

Q

M

c1

SECTION A-A

E2

LEAD FINISH

BASE

METAL

b1

M

(b)

A

(c)

S1

NOTES:

1. Index area: A notch or a pin one identification mark shall be locat­ed adjacent to pin one and shall be located within the shaded
area shown. The manufacturer’s identification shall not be used
as a pin one identification mark. Alternately, a tab (dimension k)
may be used to identify pin one.

2. If a pin one identification mark is used in addition to a tab, the lim­its of dimension k do not apply.

3. This dimension allows for off-center lid, meniscus, and glass
overrun.

4. Dimensions b1 and c1 apply to lead base metal only . Dimension
M applies to lead plating and finish thickness. The maximum lim­its of lead dimensions b and c or M shall be measured at the cen­troid of the finished lead surfaces, when solder dip or tin plate
lead finish is applied.

5. N is the maximum number of terminal positions.

K42.A TOP BRAZED

42 LEAD CERAMIC MET AL SEAL FLATPACK PACKAGE

A
A

SYMBOL

D

A - 0.100 - 2.54 ­b 0.017 0.025 0.43 0.64 -

b1 0.017 0.023 0.43 0.58 -

c 0.007 0.013 0.18 0.33 -

c1 0.007 0.010 0.18 0.25 -

C

D 1.045 1.075 26.54 27.31 3

E 0.630 0.650 16.00 16.51 ­E1 - 0.680 - 17.27 3
E2 0.530 0.550 13.46 13.97 -

e 0.050 BSC 1.27 BSC 11

k-----

L 0.320 0.350 8.13 8.89 -

Q 0.045 0.065 1.14 1.65 8

S1 0.000 - 0.00 - 6

M - 0.0015 - 0.04 -

N42 42-

6. Measure dimension S1 at all four corners.

7. For bottom-brazed lead pac kages, no organic or polymeric mate­rials shall be molded to the bottom of the package to cover the
leads.

8. Dimension Q shall be measured at the point of exit (bey ond the
meniscus) of the lead from the body. Dimension Q minimum
shall be reduced by 0.0015 inch (0.038mm) maximum when sol­der dip lead finish is applied.

9. Dimensioning and tolerancing per ANSI Y14.5M - 1982.

10. Controlling dimension: INCH.

11. The basic lead spacing is 0.050 inch (1.27mm) between center
lines. Each lead centerline shall be located within ±0.005 inch
(0.13mm) of its exact longitudinal position relative to lead 1 and
the highest numbered (N) lead.

INCHES MILLIMETERS

NOTESMIN MAX MIN MAX

Rev. 0 6/17/94

All Intersil semiconductor products are manufactured, assembled and tested under ISO9000 quality systems certification.

Intersil products are sold by description only. Intersil Cor poration reserves the right to make changes in circuit design and/or specifications at any time without
notice. Accordingly, the reader is cautioned to verify that data sheets are current before placing orders. Information furnished by Intersil is believed to be accurate
and reliable. However, no responsibility is assumed by Intersil or its subsidiaries for its use; nor for any infringements of patents or other rights of third parties which
may result from its use. No license is granted by implication or otherwise under an y patent or patent rights of Intersil or its subsidiaries.

For information regarding Intersil Corporation and its products, see web site http://www.intersil.com

Sales Office Headquarters

NORTH AMERICA

Intersil Corporation
P. O. Box 883, Mail Stop 53-204
Melbourne, FL 32902
TEL: [phone]
FAX: [phone]

EUROPE

Intersil SA
Mercure Center
100, Rue de la Fusee
1130 Brussels, Belgium
TEL: [phone]
FAX: [phone]

892

ASIA

Intersil (Taiwan) Ltd.
Taiwan Limited
7F-6, No. 101 Fu Hsing North Road
Taipei, Taiwan
Republic of China
TEL: [phone]
FAX: [phone]

Spec Number

518055
