HI-SINCERITY
MICROELECTRONICS CORP.

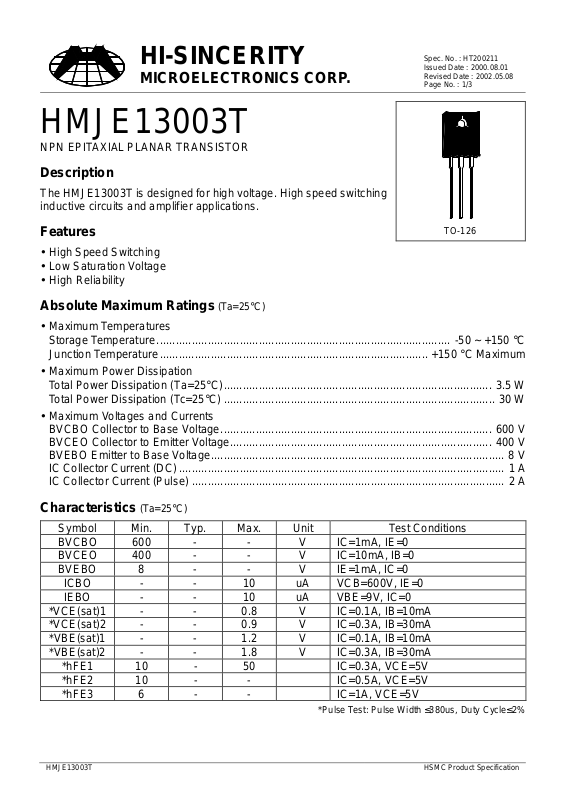

HMJE13003T
NPN EPITAXIAL PLANAR TRANSISTOR
Description
The HMJE13003T is desi g ne d for high voltage. High speed swi tchi ng
inductive circuits and amplifier applications.
Spec. No. : HT200211
Issued Date : 2000.08.01
Revised Date : 2002.05.08
Page No. : 1/3
Features
• High Speed Switching
• Low Saturation Voltage
• High Reliability
TO-126
Absolute Maximum Ratings (Ta=25°C)
• Maximum Temperatures
Stor age Temperature............................................................................................ -50 ~ +150 °C
Junction Temperature.................................................................................... +150 °C Maximum
• Maximum Power Dissipation
Total Power Dissipation (Ta=25°C).................................................................................... 3.5 W
Total Power Dissipation (Tc=25°C)..................................................................................... 30 W
• Maximum Voltages and Currents
BVCBO Collector to Base Voltage..................................................................................... 600 V
BVCEO Collector to Emitter Voltage.................................................................................. 400 V
BVEBO Emitter to Base Voltage............................................................................................ 8 V
IC Collector Current (DC)...................................................................................................... 1 A
IC Collector Current (Pulse) .................................................................................................. 2 A
Characteristics (Ta=25°C)
Symbol Min. Typ. Max. Unit Test Conditions
BVCBO 600 - - V IC=1mA, IE=0
BVCEO 400 - - V IC=10mA, IB=0
BVEBO 8 - - V IE=1mA, IC=0
ICBO - - 10 uA VCB=600V, IE=0
IEBO - - 10 uA VBE=9V, IC=0
*VCE(sat)1 - - 0.8 V IC=0.1A, IB=10mA
*VCE(sat)2 - - 0.9 V IC=0.3A, IB=30mA
*VBE(sat)1 - - 1.2 V IC=0.1A, IB=10mA
*VBE(sat)2 - - 1.8 V IC=0.3A, IB=30mA
*hFE1 10 - 50 IC=0.3A, VCE=5V
*hFE2 10 - - IC=0.5A, VCE=5V
*hFE3 6 - - IC=1A, VCE=5V
*Pulse T est: Pulse Width ≤380us, Duty Cycle≤2%
HMJE13003T HSMC Product Specification
Page 2
HI-SINCERITY
MICROELECTRONICS CORP.
Characteristics Curve
Spec. No. : HT200211
Issued Date : 2000.08.01
Revised Date : 2002.05.08
Page No. : 2/3
100
Cur rent Gain & Collector Current
75oC125oC
25oC
10
hFE
hFE @ VCE=2V
1
0.1 1 10 100 1000 10000
10000
1000
Collector Current-IC (mA)
Sat urati on Volt age & Coll ector Cu rrent
CE(sat)
V
@ IC=4I
B
1000
CE(sat)
V
100
Saturation Voltage (mV)
10
1 10 100 1000 10000
B
@ IC=3I
125oC
25oC
Collector Current- IC (mA)
Sat uration Voltage & Collector C urr ent
10000
Sat urati on Volt age & Coll ector Current
1000
CE(sat)
V
@ IC=5I
B
75oC
75oC
100
125oC
Saturat ion Volta ge ( m V)
10
1 10 100 1000 10000
Collector Current- IC (mA)
25oC
Sat uration Voltage & Collector Current
10000
Saturation Voltage (mV)
1000
BE(sat)
V
@ IC=4I
25oC
125oC
B
75oC
75oC
125oC
100
Saturation Vpltage (mV)
10
1 10 100 1000 10000
Collector Current-IC (mA)
25oC
Sat uration Voltage & Collector Current
10000
Satur ation Voltage ( m V)
1000
BE(sat)
V
@ IC=5I
25oC
125oC
B
75oC
100
1 10 100 1000 10000
Collector Current-IC (mA)
100
1 10 100 1000 10000
Collector Current- IC (mA)
HMJE13003T HSMC Product Specification
Page 3
HI-SINCERITY
g
MICROELECTRONICS CORP.
TO-126 Dimension
Spec. No. : HT200211
Issued Date : 2000.08.01
Revised Date : 2002.05.08
Page No. : 3/3
D
E
A
B
2
1
3
I
KJ
M
α3
α4
G
C
F
H
L
Marking:
HSMC Logo
Part Number
Date Code
Style: Pin 1.Emitter 2.Collector 3.Base
Product Series
Ink Marking
α1
3-Lead TO-126 Plastic Package
e Code: T
*3°
*3°
*3°
*3°
*3°
*3°
*3°
*3°
HSMC Packa
-
-
-
-
DIM
Min. Max. Min. Max.
F 0.0280 0.0319 0.71 0.81
G 0.0480 0.0520 1.22 1.32
H 0.1709 0.1890 4.34 4.80
I 0.0950 0.1050 2.41 2.66
DIM
α1
α2
α3
α4
α2
Inches Millimeters Inches Millimeters
Min. Max. Min. Max.
-
-
-
A 0.1500 0.1539 3.81 3.91 J 0.0450 0.0550 1.14 1.39
B 0.2752 0.2791 6.99 7.09 K 0.0450 0.0550 1.14 1.39
C 0.5315 0.6102 13.50 15.50 L - *0.0217 - *0.55
D 0.2854 0.3039 7.52 7.72 M 0.1378 0.1520 3.50 3.86
E 0.0374 0.0413 0.95 1.05
Notes: 1.Dimension and tolerance based on our Spec. dated Mar. 6,1995.
Material:
• Lead: 42 Alloy; solder plating
• Mold Compound: Epoxy resin family, flammability solid burning class: UL94V-0
2.Controlling dimension: millimeters.
3.Maximum lead thickness includes lead finish thickness, and minimum lead thickness is the minimum thickness of base material.
4.If there is any question with packing specification or packing method, please contact your local HSMC sales office.
*: Typical
Important Notice:
• All rights are reserved. Reproduction in whole or in part is prohibited without the prior written approval of HSMC.
• HSMC reserves the right to make changes to its products without notice.
• HSMC semiconductor products are not warranted to be suitable for use in Life-Support Applications, or systems.
• HSMC assumes no liability for any consequence of customer product design, infringement of patents, or application assistance.
Head Office And Factory:
• Head Office (Hi-Sincerity Microelectronics Corp.): 10F.,No. 61, Sec. 2, Chung-Shan N. Rd. Taipei Taiwan R.O.C.
Tel: 886-2-25212056 Fax: 886-2-25632712, 25368454
• Factory 1: No. 38, Kuang Fu S. Rd., Fu-Kou Hsin-Chu Industrial Park Hsin-Chu Taiwan. R.O.C
Tel: 886-3-5983621~5 Fax: 886-3-5982931
