Page 1
INTEGRATED CIRCUITS
DATA SH EET
For a complete data sheet, please also download:
•The IC04 LOCMOS HE4000B Logic
Family Specifications HEF, HEC
•The IC04 LOCMOS HE4000B Logic
Package Outlines/Information HEF, HEC
HEF40175B
MSI
Quadruple D-type flip-flop
Product specification
File under Integrated Circuits, IC04
January 1995
Page 2
Philips Semiconductors Product specification
Quadruple D-type flip-flop
DESCRIPTION
The HEF40175B is a quadruple edge-triggered D-type
flip-flop with four data inputs (D0to D3), a clock input (CP),
an overriding asynchronous master reset input (MR), four
buffered outputs (O0to O3), and four complementary
HEF40175B
MSI
buffered outputs (
transferred to O0to O3on the LOW to HIGH transition of
CP if MR is HIGH. When LOW, MR resets all flip-flops
(O0to O3= LOW, O0to O3= HIGH), independent of CP
and D0to D3.
O0to O3). Information on D0to D3is
Fig.2 Pinning diagram.
HEF40175BP(N): 16-lead DIL; plastic
(SOT38-1)
HEF40175BD(F): 16-lead DIL; ceramic (cerdip)
(SOT74)
HEF40175BT(D): 16-lead SO; plastic
(SOT109-1)
( ): Package Designator North America
FAMILY DATA, IDDLIMITS category MSI
See Family Specifications
Fig.1 Functional diagram.
PINNING
to D3data inputs
D
0
CP clock input (LOW to HIGH; edge-triggered)
MR master reset input (active LOW)
O
to O3buffered outputs
0
O0to O3complementary buffered outputs
FUNCTION TABLE
CP D
XXL L H
Notes
1. H = HIGH state (the more positive voltage)
L = LOW state (the less positive voltage)
X = state is immaterial
= positive-going transition
INPUTS OUTPUTS
MR O O
HH H L
LH L H
X H no change no change
January 1995 2
= negative-going transition
Page 3
This text is here in white to force landscape pages to be rotated correctly when browsing through the pdf in the Acrobat reader.This text is here in
_white to force landscape pages to be rotated correctly when browsing through the pdf in the Acrobat reader.This text is here inThis text is here in
white to force landscape pages to be rotated correctly when browsing through the pdf in the Acrobat reader. white to force landscape pages to be ...
January 1995 3
Philips Semiconductors Product specification
Quadruple D-type flip-flop

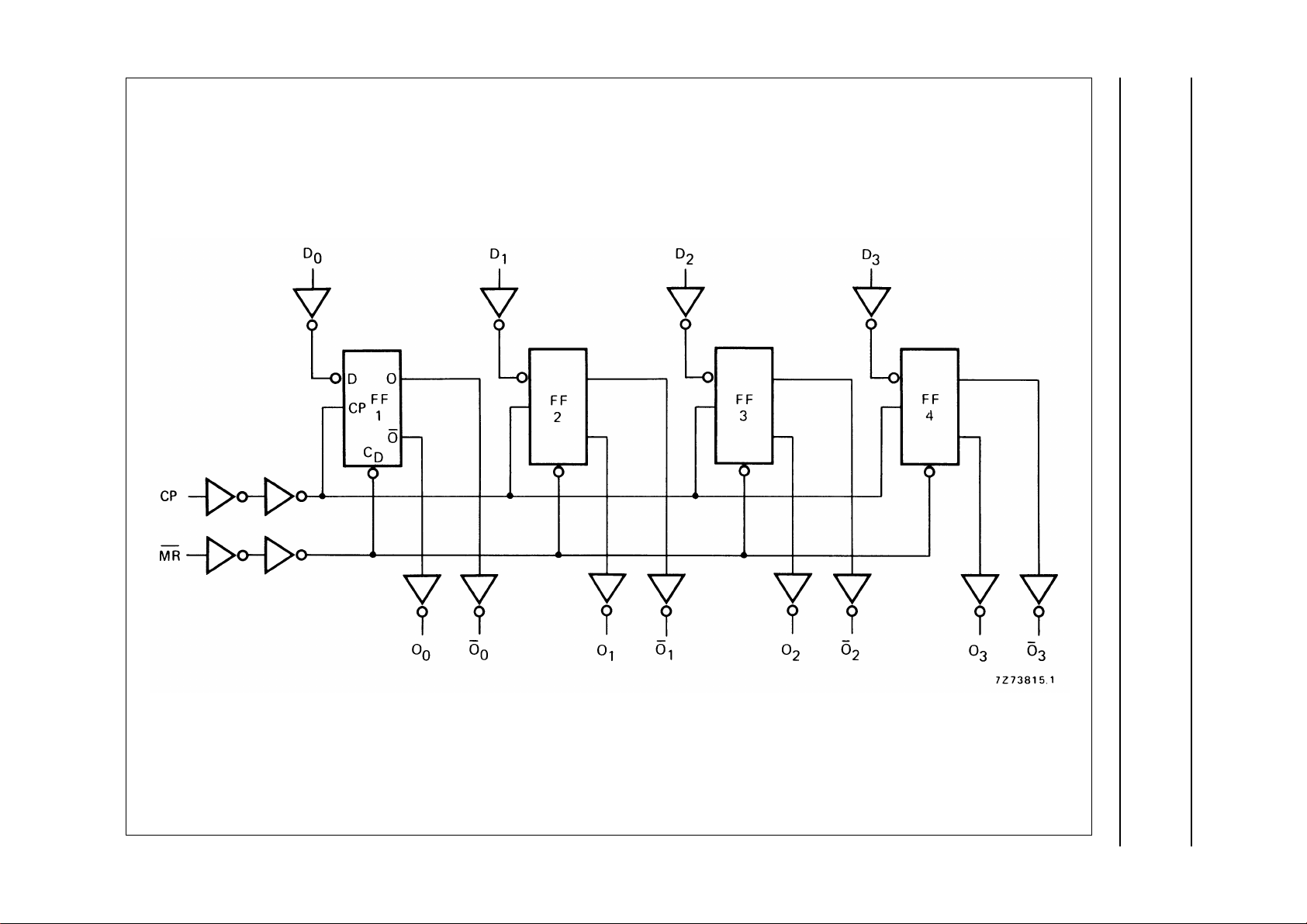

Fig.3 Logic diagram.
HEF40175B
MSI
Page 4
Philips Semiconductors Product specification
Quadruple D-type flip-flop
HEF40175B
AC CHARACTERISTICS
V
= 0 V; T
SS
Propagation delays
CP → On, O
HIGH to LOW 10 t
LOW to HIGH 10 t
MR → O
HIGH to LOW 10 t
MR → O
LOW to HIGH 10 t
Output transition times 5 60 120 ns 10 ns + (1,0 ns/pF) C
HIGH to LOW 10 t
LOW to HIGH 10 t
Set-up time 5 60 30 ns
D
→ CP 10 t
n
Hold time 5 25 −5ns
D
→CP 10 t
n
Minimum clock 5 90 45 ns
pulse width; LOW 10 t
Minimum
width; LOW 10 t
Recovery time 5 0 −30 ns
for
MR 10 t
Maximum clock 5 5 11 MHz
pulse frequency 10 f
=25°C; CL= 50 pF; input transition times ≤ 20 ns
amb
V
DD
V
n
5 80 160 ns 53 ns + (0,55 ns/pF) C
SYMBOL MIN. TYP. MAX.
PHL
35 70 ns 24 ns + (0,23 ns/pF) C
15 25 50 ns 17 ns + (0,16 ns/pF) C
5 70 140 ns 43 ns + (0,55 ns/pF) C
PLH
30 65 ns 19 ns + (0,23 ns/pF) C
15 25 45 ns 17 ns + (0,16 ns/pF) C
n
5 75 155 ns 48 ns + (0,55 ns/pF) C
PHL
30 65 ns 19 ns + (0,23 ns/pF) C
15 25 50 ns 17 ns + (0,16 ns/pF) C
n
5 70 140 ns 43 ns + (0,55 ns/pF) C
PLH
30 65 ns 19 ns + (0,23 ns/pF) C
15 25 50 ns 17 ns + (0,16 ns/pF) C
THL
30 60 ns 9 ns + (0,42 ns/pF) C
15 20 40 ns 6 ns + (0,28 ns/pF) C
5 60 120 ns 10 ns + (1,0 ns/pF) C
TLH
30 60 ns 9 ns + (0,42 ns/pF) C
15 20 40 ns 6 ns + (0,28 ns/pF) C
su
20 10 ns
15 15 5 ns
hold
10 0 ns
15 10 0 ns
WCPL
35 15 ns
15 25 10 ns
MR pulse 5 80 40 ns
WMRL
30 15 ns
15 20 10 ns
RMR
0 −20 ns
15 0 −15 ns
max
15 30 MHz
15 20 45 MHz
TYPICAL EXTRAPOLATION
FORMULA
see also waveforms Fig.4
MSI
L
L
L
L
L
L
L
L
L
L
L
L
L
L
L
L
L
L
January 1995 4
Page 5
Philips Semiconductors Product specification
Quadruple D-type flip-flop
AC CHARACTERISTICS
V
= 0 V; T
SS
Dynamic power 5 2000 f
dissipation per 10 8400 f
package (P) 15 22 500 f
=25°C; input transition times ≤ 20 ns
amb
V
DD
V
TYPICAL FORMULA FOR P (µW)
+∑(foCL) × V
i
+∑(foCL) × V
i
+∑(foCL) × V
i
DD
DD
DD
HEF40175B
MSI
2
2
2
where
fi= input freq. (MHz)
fo= output freq. (MHz)
= load capacitance (pF)
C
L
∑ (f
) = sum of outputs
oCL
V
= supply voltage (V)
DD

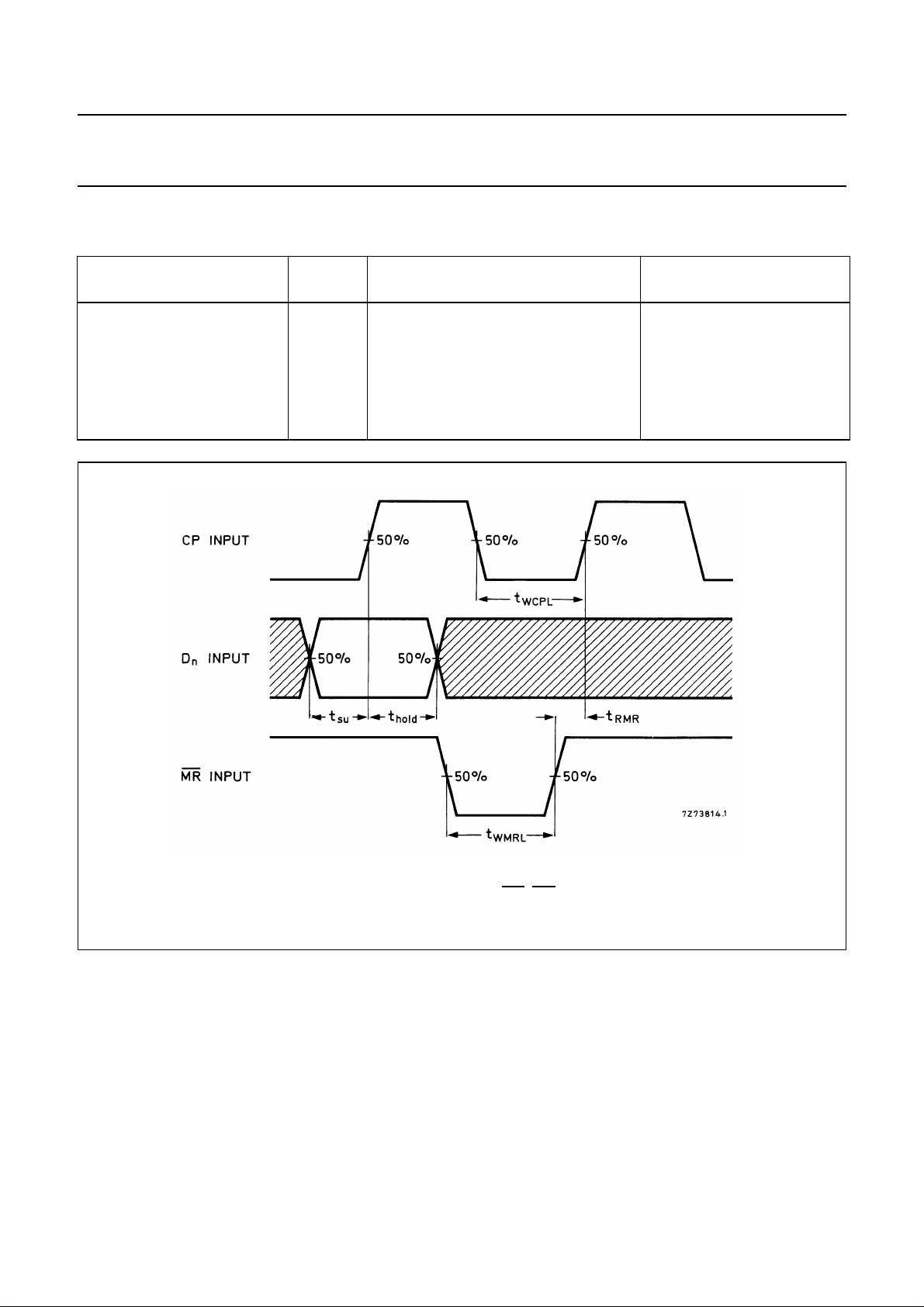

Fig.4 Waveforms showing minimum pulse widths for CP and MR, MR to CP recovery time, and set-up time and
hold time for Dnto CP. Set-up and hold times are shown as positive values but may be specified as
negative values.
APPLICATION INFORMATION
Some examples of applications for the HEF40175B are:
• Shift registers
• Buffer/storage register
• Pattern generator
January 1995 5
