Datasheet HDMP-1526 Datasheet (HP)

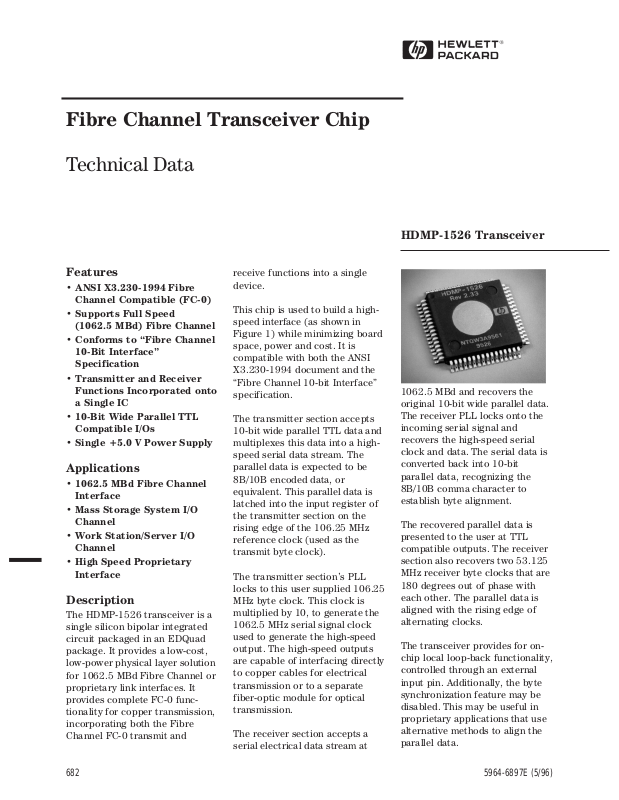

Fibre Channel Transceiver Chip

Technical Data

HDMP-1526 Transceiver

Features

• ANSI X3.230-1994 Fibre
Channel Compatible (FC-0)

• Supports Full Speed
(1062.5 MBd) Fibre Channel

• Conforms to “Fibre Channel
10-Bit Interface”
Specification

• Transmitter and Receiver
Functions Incorporated onto
a Single IC

• 10-Bit Wide Parallel TTL
Compatible I/Os

• Single +5.0 V Power Supply

Applications

• 1062.5 MBd Fibre Channel
Interface

• Mass Storage System I/O
Channel

• Work Station/Server I/O
Channel

• High Speed Proprietary
Interface

Description

The HDMP-1526 transceiver is a
single silicon bipolar integrated
circuit packaged in an EDQuad
package. It provides a low-cost,
low-power physical layer solution
for 1062.5 MBd Fibre Channel or
proprietary link interfaces. It
provides complete FC-0 func­tionality for copper transmission,
incorporating both the Fibre
Channel FC-0 transmit and

receive functions into a single
device.

This chip is used to build a high­speed interface (as shown in
Figure 1) while minimizing board
space, power and cost. It is
compatible with both the ANSI
X3.230-1994 document and the
“Fibre Channel 10-bit Interface”
specification.

The transmitter section accepts
10-bit wide parallel TTL data and
multiplexes this data into a high­speed serial data stream. The
parallel data is expected to be
8B/10B encoded data, or
equivalent. This parallel data is
latched into the input register of
the transmitter section on the
rising edge of the 106.25 MHz
reference clock (used as the
transmit byte clock).

The transmitter section’s PLL
locks to this user supplied 106.25
MHz byte clock. This clock is
multiplied by 10, to generate the

1062.5 MHz serial signal clock
used to generate the high-speed
output. The high-speed outputs
are capable of interfacing directly
to copper cables for electrical
transmission or to a separate
fiber-optic module for optical
transmission.

The receiver section accepts a
serial electrical data stream at

1062.5 MBd and recovers the
original 10-bit wide parallel data.
The receiver PLL locks onto the
incoming serial signal and
recovers the high-speed serial
clock and data. The serial data is
converted back into 10-bit
parallel data, recognizing the
8B/10B comma character to
establish byte alignment.

The recovered parallel data is
presented to the user at TTL
compatible outputs. The receiver
section also recovers two 53.125
MHz receiver byte clocks that are
180 degrees out of phase with
each other. The parallel data is
aligned with the rising edge of
alternating clocks.

The transceiver provides for on­chip local loop-back functionality,
controlled through an external
input pin. Additionally, the byte
synchronization feature may be
disabled. This may be useful in
proprietary applications that use
alternative methods to align the
parallel data.

682

5964-6897E (5/96)

HDMP-1526

TRANSMITTER SECTION

PLL

PROTOCOL DEVICE

BYTSYNC

REFCLK

ENBYTSYNC

-LCKREF

Figure 1. Typical Application Using the HDMP-1526.

TX

FRAME

MUX

DATA BYTE

TX[0-9]

TXCAP0
TXCAP1

REFCLK

-LCKREF
RXCAP0
RXCAP1

RBC0
RBC1

INPUT

LATCH

PLL/CLOCK

GENERATOR

RECEIVER SECTION

INTERNAL
Tx CLOCKS

PLL/CLOCK
RECOVERY

RX

PLL

OUTPUT
SELECT

INTERNAL

LOOPBACK

SELECT

INPUT

SERIAL DATA OUT

SERIAL DATA IN

± DOUT

LOOPEN

± DIN

HDMP-1526 Block Diagram

The HDMP-1526 was designed to
transmit and receive 10-bit wide
parallel data over a single high­speed line, as specified for the FC-0
layer of the Fibre Channel standard.
The parallel data applied to the
transmitter is expected to be
encoded per the Fibre Channel
specification, which uses an 8B/10B
encoding scheme with special
reserve characters for link
management purposes. In order to
accomplish this task, the HDMP­1526 incorporates the following:

• TTL Parallel I/Os

• High-Speed Phase Lock Loops

• Clock Generation/Recovery
Circuitry

• Parallel-to-Serial Converter

• High-Speed Serial Clock-and-Data
Recovery Circuitry

• Comma Character Recognition
Circuitry

• Byte Alignment Circuitry

• Serial-to-Parallel Converter

INPUT LATCH

The transmitter accepts 10-bit wide
TTL parallel data at inputs TX[0..9].
The user-provided reference clock
signal, REFCLK, is also used as the
transmit byte clock. The TX[0..9]
and REFCLK signals must be
properly aligned, as shown in
Figure 3.

DATA BYTE

RX[0-9]

Figure 2. HDMP-1526 Transceiver Block Diagram.

DRIVER

OUTPUT

FRAME
DEMUX

AND

BYTE SYNC

BYTSYNC ENBYTSYNC

INPUT

SAMPLER

INTERNAL

Rx CLOCKS

TX PLL/CLOCK GENERATOR

The transmitter Phase Lock Loop
and Clock Generator (TX PLL/
CLOCK GENERATOR) block is
responsible for generating all
internal clocks needed by the
transmitter section to perform its
functions. These clocks are based on
the supplied reference byte clock
(REFCLK). REFCLK is used as both
the frequency reference clock for
the PLL and the transmit byte clock
for the incoming data latches. It is
expected to be 106.25 MHz and
properly aligned to the incoming

683

parallel data (see Figure 3). This
clock is multiplied by 10 to
generate the 1062.5 MHz clock
necessary for the high-speed
serial outputs.

FRAME MUX

The FRAME MUX accepts the 10­bit wide parallel data from the
INPUT LATCH. Using internally
generated high-speed clocks, this
parallel data is multiplexed into
the 1062.5 MBd serial data
stream. The data bits are
transmitted sequentially, from the
least significant bit (TX[0]) to the
most significant bit (TX[9]).

OUTPUT SELECT

The OUTPUT SELECT block
provides for an optional internal
loopback of the high-speed serial
signal, for testing purposes.

In normal operation, LOOPEN is
set low and the serial data stream
is placed at ± DOUT. When wrap­mode is activated by setting
LOOPEN high, the ± DOUT pins
are held static and the serial
output signal is internally
wrapped to the INPUT SELECT
box of the receiver section.

INPUT SELECT

The INPUT SELECT block
determines whether the signal at
± DIN or the internal loop-back
serial signal is used. In normal
operation, LOOPEN is set low
and the serial data is accepted at
± DIN. When LOOPEN is set
high, the high-speed serial signal
is internally looped-back from the
transmitter section to the receiver
section. This feature allows for
loop-back testing exclusive of the
transmission medium.

RX PLL/CLOCK RECOVERY

The RX PLL/CLOCK RECOVERY
block is responsible for frequency
and phase locking onto incoming
serial data stream and recovering
the bit and byte clocks.

In order to accomplish this, upon
startup, the user should set

-LCKREF low for a period of at
least 500 µsec. This allows the
PLL to first frequency lock onto
the 106.25 MHz reference clock
provided at the REFCLK input.
The RX PLL/CLOCK RECOVERY
circuitry multiplies this reference
clock by 10 to generate an
internal 1062.5 MHz clock. After
500 µsec, the user should set

-LCKREF high. This will allow the
receiver to frequency and phase
lock the internal 1062.5 MHz
clock onto the incoming serial
data stream. Once locked, the
receiver will recover the two

53.125 MHz receiver byte clocks
(RBC1/RBC0). These byte clocks
are approximately 180° out of
phase with each other and are
alternately used to clock the
10-bit parallel output data.

INPUT SAMPLER

The INPUT SAMPLER is
responsible for converting the
serial input signal into a retimed
serial bit stream. In order to
accomplish this, it uses the high
speed serial clock recovered from
the RX PLL/CLOCK RECOVERY
block. This serial bit stream is
sent to the FRAME DEMUX and
BYTE SYNC block.

FRAME DEMUX AND BYTE SYNC

The FRAME DEMUX AND BYTE
SYNC block is responsible for
restoring the 10-bit parallel data
from the high speed serial bit
stream. This block is also
responsible for recognizing the
comma character (or a K28.5
character) of positive disparity
(0011111xxx). When recognized,
the FRAME DEMUX AND BYTE
SYNC block works with the RX
PLL/CLOCK RECOVERY block to
properly align the receive byte
clocks to the parallel data. When
a comma character is detected
and realignment of the receiver
byte clocks (RBC1/RBC0) is
necessary, these clocks are
stretched, not slivered, to the
next possible correct alignment
position. These clocks will be
fully aligned by the start of the
second 4-byte ordered set. The
second comma character received
shall be aligned with the rising
edge of RBC1. Comma characters
should not be transmitted in
consecutive succession to allow
the receiver byte clocks to
maintain their proper recovered
frequencies.

OUTPUT DRIVERS

The OUTPUT DRIVERS present
the 10-bit parallel recovered data
byte properly aligned to the
receive byte clocks (RBC1/
RBC0), as shown in Figure 4.
These output data buffers provide
TTL compatible signals.

684

HDMP-1526 (Transmitter Section)

Timing Characteristics

TC = 0°C to +85°C, VCC = 4.5 V to 5.25 V

Symbol Parameter Units Min. Typ. Max.

t

setup

t

hold

[1]

t_txlat

Note:

1. The transmitter latency, as shown in Figure 4, is defined as the time between the latching in of the parallel data word (as triggered
by the rising edge of the transmit byte clock, REFCLK) and the transmission of the first serial bit of that parallel word (defined by the
rising edge of the first bit transmitted).

Setup Time nsec 2
Hold Time nsec 1.5
Transmitter Latency nsec 6.25 12.2

bits 6.64 13.0

REFCLK

TX[0]-TX[9]

DATA

t-SETUP

Figure 3. Transmitter Section Timing.

± DOUT

TX[0]-TX[9]

T5 T6 T7 T8 T9 T0 T1 T2 T3 T4 T5 T6 T7 T8 T9 T0 T1 T2 T3 T4 T5

DATA DATA

t-HOLD

DATA BYTE A

t_TXLAT

DATA BYTE B DATA BYTE C

DATA DATA

1.4 V

2.0 V

0.8 V

DATA BYTE B

REFCLK

Figure 4. Transmitter Latency.

1.4 V

685

HDMP-1526 (Receiver Section)

,

Timing Characteristics

TC = 0°C to +85°C, VCC = 4.5 V to 5.25 V

Symbol Parameter Units Min. Typ. Max.

b_sync

f_lock_rate

t

Notes:

1. This is the recovery time for input phase jumps, per the FC-PH specification Ref 4.1, Sec 5.3.

2. Tested using C

3. The RBC clock skew is calculated as t

4. The receiver latency, as shown in Figure 5, is defined as the time between receiving the first serial bit of a parallel data word (as
defined as the first edge of the first serial bit) and the clocking out of that parallel word (defined by the rising edge of the receive
byte clock, either RBC1 or RBC0).

[1,2]

[2]

f_lock

valid_before

t

valid_after

t

duty

[3]

t

A-B

[4]

t_rxlat

t-VALID BEFORE

[2]

= 0.01 µF.

PLL

Bit Sync Time bits 2500
Frequency Lock Time µsec 500

(from Time of Setting -LCKREF = 0)
Frequency Lock Rate (when -LCKREF = 0) kHz/µsec 200
Time Data Valid Before Rising Edge of RBC nsec 3 5.8
Time Data Valid After Rising Edge of RBC nsec 1.5 3.3
RBC Duty Cycle % 40 60
Rising Edge Time Difference nsec 8.9 9.4 9.9
Receiver Latency nsec 25.0 33.9

bits 26.6 36

- t

A-B(max)

t-VALID AFTER

A-B(min)

.

RBC1

RX[0]-RX[9]

BYTSYNC

RBC0

Figure 5. Receiver Section.

DATA BYTE C

R5 R6 R7 R8 R9 R0 R1 R2 R3 R4 R5 R6 R7 R8 R9 R2 R3 R4 R5

± DIN

RX[0]-RX[9]

K28.5

DATA DATA

DATA BYTE D

t_RXLAT

DATA BYTE A DATA BYTE D

DATA DATA

1.4 V

2.0 V

0.8 V

2.0 V

0.8 V

1.4 V

Figure 6. Receiver Latency.

686

RBC1/0

1.4 V

HDMP-1526 (TRx)

Absolute Maximum Ratings

TA = 25°C, except as specified. Operation in excess of any one of these conditions may result in permanent
damage to this device.

Symbol Parameter Units Min. Max.

V

CC

V

IN,TTL

V

IN,HS_IN

I

O,TTL

T

stg

T

j

Supply Voltage V -0.5 6.0
TTL Input Voltage V -0.7 VCC + 0.7
HS_IN Input Voltage V 2.0 V

CC

TTL Output Source Current mA 13
Storage Temperature °C -40 +130
Junction Operating Temperature °C 0 +130
Maximum Assembly Temperature (for 10 seconds maximum) °C +260

HDMP-1526 (TRx)

Recommended Operating Conditions

Symbol Parameter Units Min. Max.

V

CC

T

C

Supply Voltage V 4.5 5.25
Case Temperature °C085

HDMP-1526 (TRx)

Transceiver Reference Clock Requirements

TC = 0°C to +85°C, VCC = 4.5 V to 5.25 V

Symbol Parameter Unit Min. Typ. Max.

f Nominal Frequency (for Fibre Channel Compliance) MHz 106.20 106.25 106.30

F

tol

Symm Symmetry (Duty Cycle) % 40 60

Frequency Tolerance ppm -100 +100

HDMP-1526 (Trx)

DC Electrical Specifications

TC = 0°C to +85°C, VCC = 4.5 V to 5.25 V

Symbol Parameter Unit Min. Typ. Max.

V

IH,TTL

V

IL,TTL

V

OH,TTL

V

OL,TTL

I

IH,TTL

I

IL-TTL

CC,TRx

[1,2]

I

Notes:

1. Measurement Conditions: Tested sending 1062.5 MBd PRBS 27-1 sequence with both DOUT outputs biased with 270 Ω resistors
and the receiver TTL outputs driving 10 pF loads.

2. Typical specified with VCC = 5.0 volts, maximum specified with VCC = 5.25 volts.

TTL Input High Voltage Level, Guaranteed High Signal V 2 V

CC

for All TTL Inputs
TTL Input Low Voltage Level, Guaranteed Low Signal for V 0 0.8

All TTL Inputs
TTL Output High Voltage Level, IOH = -400 µA V 2.4 V

CC

TTL Output Low Voltage Level, IOL = 1 mA V 0 0.6
Input High Current (Magnitude), VIN = V

CC

µA 0.004 40

Input Low Current (Magnitude), VIN = 0 Volts µA 295 600
Transceiver VCC Supply Current, TA = 25°C mA 375 475

687

HDMP-1526 (TRx)

AC Electrical Specifications

TC = 0°C to +85°C, VCC = 4.5 V to 5.25 V

Symbol Parameter Units Min. Typ. Max.

t

r,TTLin

t

f,TTLin

t

r,TTLout

t

f,TTLout

t

rs,HS_OUT

t

fs,HS_OUT

t

rd,HS_OUT

t

fd,HS_OUT

V

IP,HS_IN

V

OP,HS_OUT

Notes:

1. Each output is measured with a 270 Ω bias resistor to ground and a 50 Ω AC load.

2. Specified between 20% and 80% points of full voltage swing.

3. Output Peak-to-Peak Differential Voltage specified as DOUT+ minus DOUT-.

4. Measured using a 50 Ω load.

t

f1 250 mU/div

a. Differential HS_OUT Output (Dout+ Minus Dout-).

t

f1 150 mU/div

b. Single-Ended HS_OUT Output (Dout+).

[1,2]

[1,2]
[1,2,3]
[1,2,3]
[3,4]

[1,3]

X1

X2

Input TTL Rise Time, 0.8 to 2.0 Volts nsec 2
Input TTL Fall Time, 2.0 to 0.8 Volts nsec 2
Output TTL Rise Time, 0.8 to 2.0 Volts, 10 pF Load nsec 1.1 2.4
Output TTL Fall Time, 2.0 to 0.8 Volts, 10 pF Load nsec 1.5 2.4
HS_OUT Single-Ended (+DOUT) Rise Time psec 190 400
HS_OUT Single-Ended (+DOUT) Fall Time psec 170 400
HS_OUT Differential Rise Time psec 180
HS_OUT Differential Fall Time psec 230
HS_IN Input Peak-to-Peak Differential Voltage mV 200 1200 2200
HS_OUT Output Peak-to-Peak Differential Voltage mV 1200 1740 2200

TIME BASE UNITS

TIME BIT PERIOD

BIT RATE

1.06250 0BITS/s
FC1063

SCALE

2.000 BIT

POSITION

218.01994 BIT

REFERENCE

LEFT CENTER

205.1952 ns188.2 ps/div

205.0252 ns100.2 ps/div

TIME BASE WINDOWING...

TIME BASE UNITS

TIME BIT PERIOD

BIT RATE

1.06250 0BITS/s
FC1063

SCALE

2.000 BIT

POSITION

218.68931 BIT

REFERENCE

LEFT CENTER

TIME BASE WINDOWING...

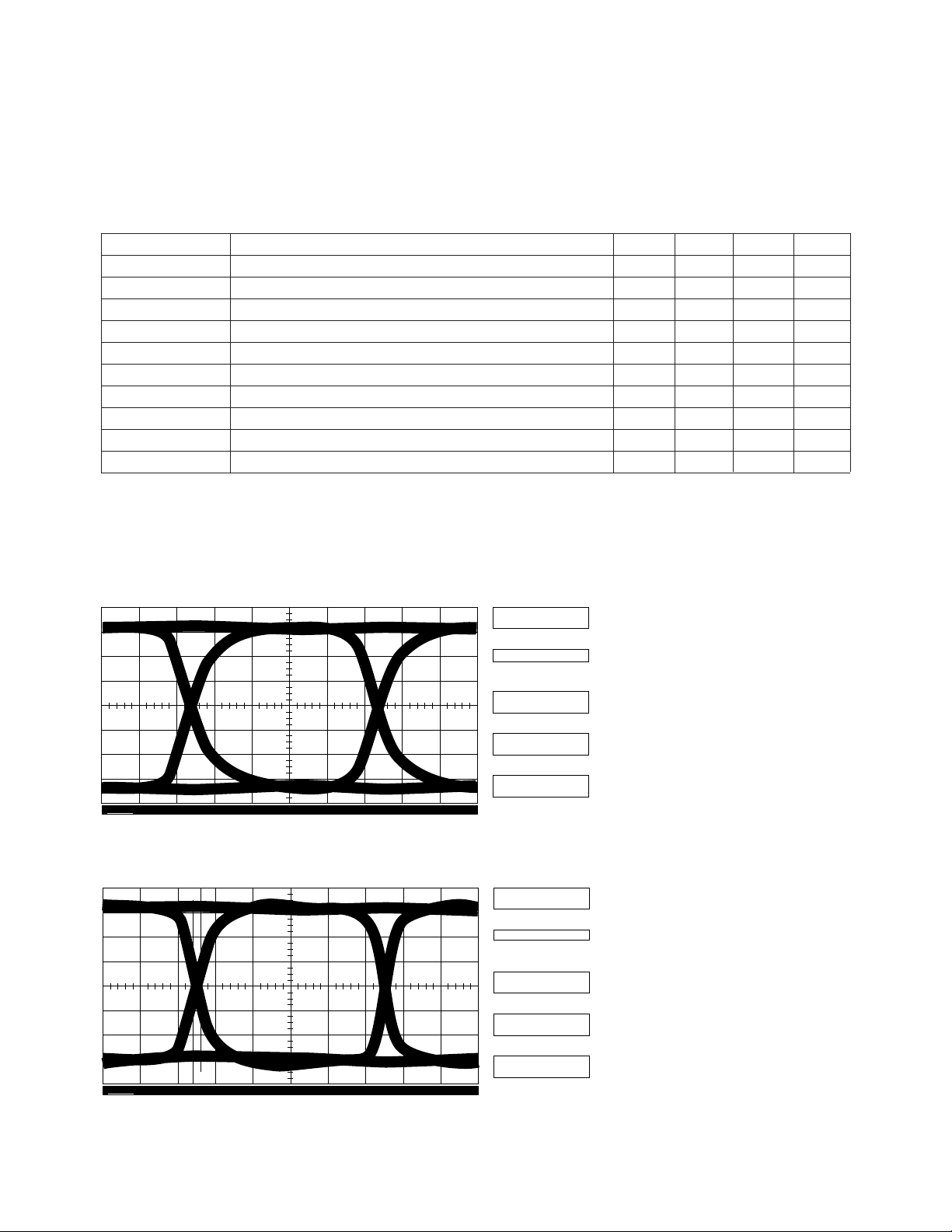

Figure 7. Transmitter DOUT Eye Diagrams.

688

HDMP-1526 (Transmitter Section)

Output Jitter Characteristics

TC = 0°C to +85°C, VCC = 4.5 V to 5.25 V

Symbol Parameter Units Typ.

[1]

RJ

[1]

DJ

Note:

1. Defined by Fibre Channel Specification Rev 4.1, Annex A, Section A.4 and tested using measurement method shown in Figure 8.

Random Jitter at DOUT, the High Speed Electrical Data Port, specified as ps 8
1 sigma deviation of the 50% crossing point

Deterministic Jitter at DOUT, the High Speed Electrical Data Port ps 35

HP70841B
PATTERN

GENERATOR*

0000011111

1.0625 GHz

HP70311A

CLOCK SOURCE

* PATTERN
GENERATOR
PROVIDES A
DIVIDE BY
10 FUNCTION.

+ DATA

- DATA

106.25 MHz

BIAS

TEE

1.4 V

HP83480A

OSCILLOSCOPE

TRIGGER

CH1 CH2

+DOUT -DOUT

HDMP-1526

REFCLK

LOOPEN

Tx[0..9]

0011111000

(STATIC K28.7)

DIVIDE

BY 10

CIRCUIT

(DUAL

OUTPUT)

VARIABLE

DELAY

HP70311A

CLOCK SOURCE

1.0625 GHz

DIVIDE

BY 2

CIRCUIT

106.25 MHz

HP70841B
PATTERN

GENERATOR*
+K28.5, -K28.5

HP83480A

OSCILLOSCOPE

TRIGGER

CH1 CH2

+DOUT -DOUT

HDMP-1526

REFCLK LOOPEN

Tx[0..9]

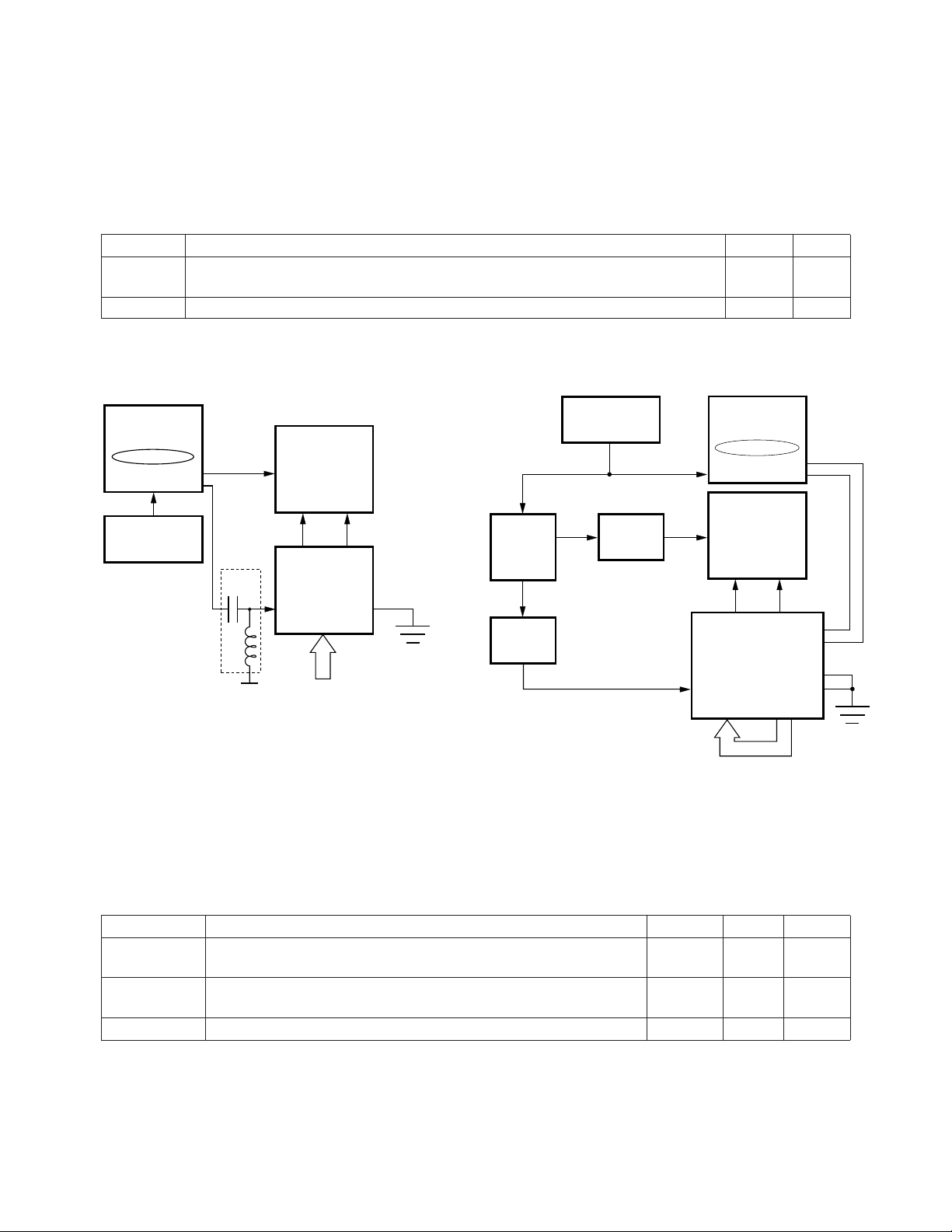

a. Block Diagram of RJ Measurement Method. b. Block Diagram of DJ Measurement Method.

Figure 8. Transmitter Jitter Measurement Method.

+ DATA

- DATA

-DIN

+DIN

ENBYTSYNC

Rx[0..9]

HDMP-1526 (TRx)

Thermal and Power Temperature Characteristics,

TC = 0°C to +85°C, VCC = 4.5 V to 5.25 V

Symbol Parameter Units Typ. Max.

[1,2]

P

D,TRx

[1,2,3]

P

D,TRx

[4]

Θ

jc

Notes:

1. PD is calculated by multiplying the max VCC by the max ICC and subtracting the power dissipated outside the chip at the high speed
bias resistors.

2. Typical specified with VCC = 5 volts, maximum specified with VCC = 5.25 volts.

3. Specified with high speed outputs biased with 270 Ω resistors and receiver TTL outputs driving 10 pF loads. Pattern is PRBS 27-1.

4. Based on independant package testing by HP.

Transceiver Power Dissipation, Outputs Open, Parallel Data Watt 1.6
has 5 Ones and 5 Zeroes

Transceiver Power Dissipation, Outputs Connected per Watt 1.8 2.4
Recommended Bias Terminations

Thermal Resistance, Junction to Case °C/Watt 7

689

I/O Type Definitions

I/O Type Definition

I-TTL Input TTL. Floats High When Left Open.

O-TTL Output TTL

HS_OUT High Speed Output. ECL Compatible

HS_IN High Speed Input, Internally Biased, High Input Resistance

C External Circuit Node

S Power Supply or Ground

HDMP-1526 (TRx)

Pin Input Capacitance

Symbol Parameter Units Typ. Max.

C

INPUT

O_TTL I_TTL

V

_TTL

CC

Pin Input Capacitance pF 1.6 4.0

VCC_TTL

VCC_TX

or

V

_RX

CC

GND

PROTECTION

6 k

72800

GND_TTL

36

ESD

PROTECTION

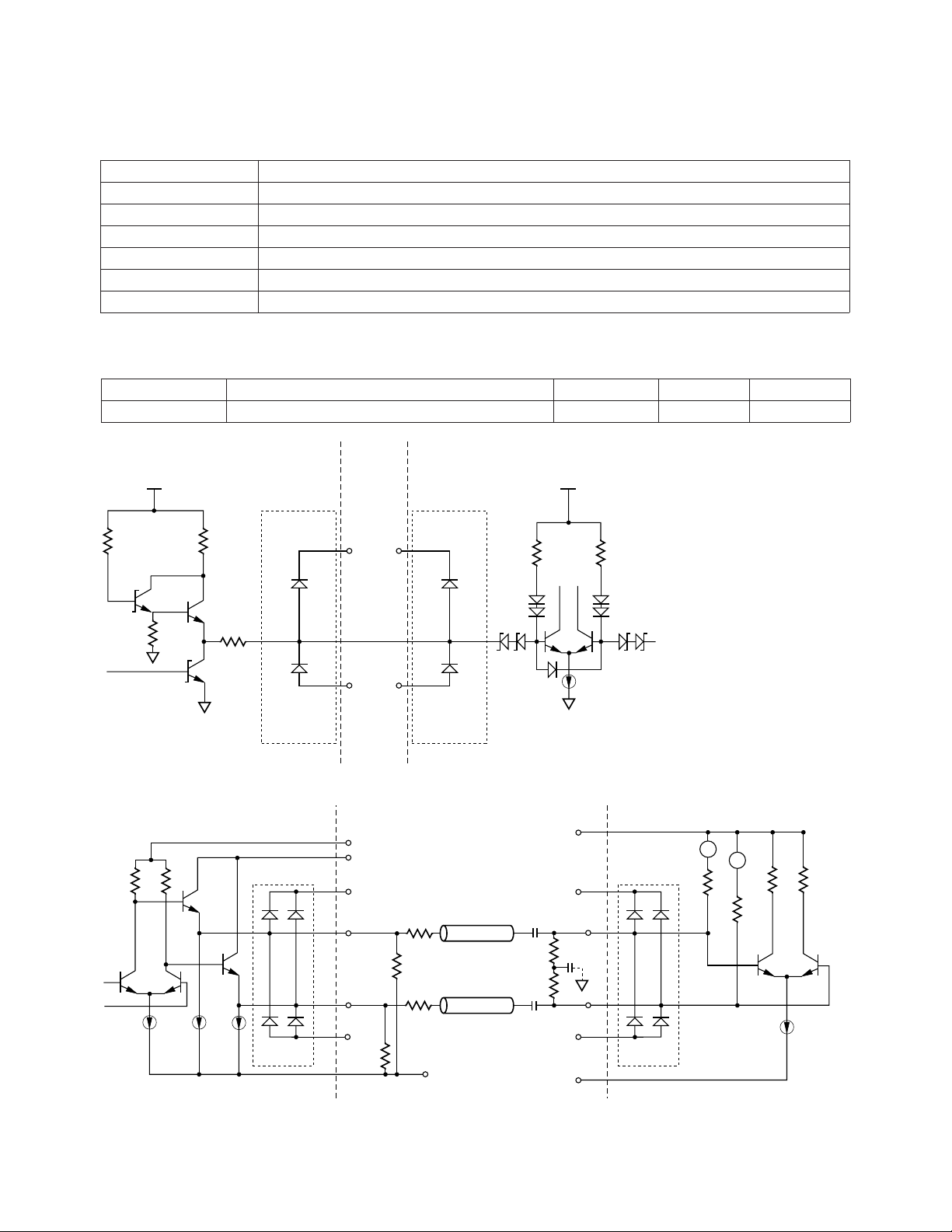

Figure 9. O-TTL and I-TTL Simplified Circuit Schematic.

HS_OUT

VCC_TXHS
VCC_TXECL

VCC_TX

75

270

75

GND_TXHS

60 µA 60 µA

ESD

PROTECTION

+DOUT

-DOUT

GND

270

ESD

Zo = 75 Ω

Zo = 75 Ω

10 k

GND_TTL

VCC_RXHS

VCC_RX

0.01 µF

75

75

0.01 µF
GND

GND_RXHS

+DIN

0.01 µF

-DIN

10 k

ESD

PROTECTION

V

1.4 V

BB

HS_IN

+

2 V

–

+

2 V

3.2 K

–

3.2 K

Figure 10. HS_OUT and HS_IN Simplified Circuit Schematic.
Notes:

1. HS_IN inputs should never be connected to ground as permanent damage to the device may result.

2. 75 Ω serial padding resistors are optional, the serial resistors should be matched to the receiver input bias resistors.

690

_TXHS

CC

GND_TXHS

V

+DOUT

_TXECL

CC

-DOUT

V

_TX

CC

V

GND

_RX

CC

V

GND_RXHS

_RXHS

CC

V

+DIN

_RXHS

CC

V

-DIN

_RXA

CC

GND_RXA

V

RXCAP1

GND_TXTTL

TX[0]
TX[1]
TX[2]

_TXTTL

V

CC

TX[3]
TX[4]
TX[5]
TX[6]

V

_TXTTL

CC

TX[7]
TX[8]
TX[9]

GND_TXTTL

GND_TXA

TXCAP1

64 63 62 61 60 59 58 57 56 55 54 53 52 51 50 49

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16

17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32

xxxx = WAFER LOT NUMBER
YYWW = DATE CODE (YY = YEAR, WW = WORK WEEK)
COUNTRY = COUNTRY OF MANUFACTURE

HDMP-1526

xxxx YYWW

COUNTRY

_TXA

CC

TXCAP0

V

_TX
V

LOOPEN

CC

GND

_RX

CC

V

REFCLK

N/C

GND

-LCKREF

ENBYTSYNC

hp

_RX

CC

V

RBC1

_RXTTL

CC

V

RBC0

48
47
46
45
44
43
42
41
40
39
38
37
36
35
34
33

GND_RXTTL

RXCAP0
BYTSYNC
GND_RXTTL
RX[0]
RX[1]
RX[2]
V

_RXTTL

CC

RX[3]
RX[4]
RX[5]
RX[6]
V

_RXTTL

CC

RX[7]
RX[8]
RX[9]
GND_RXTTL

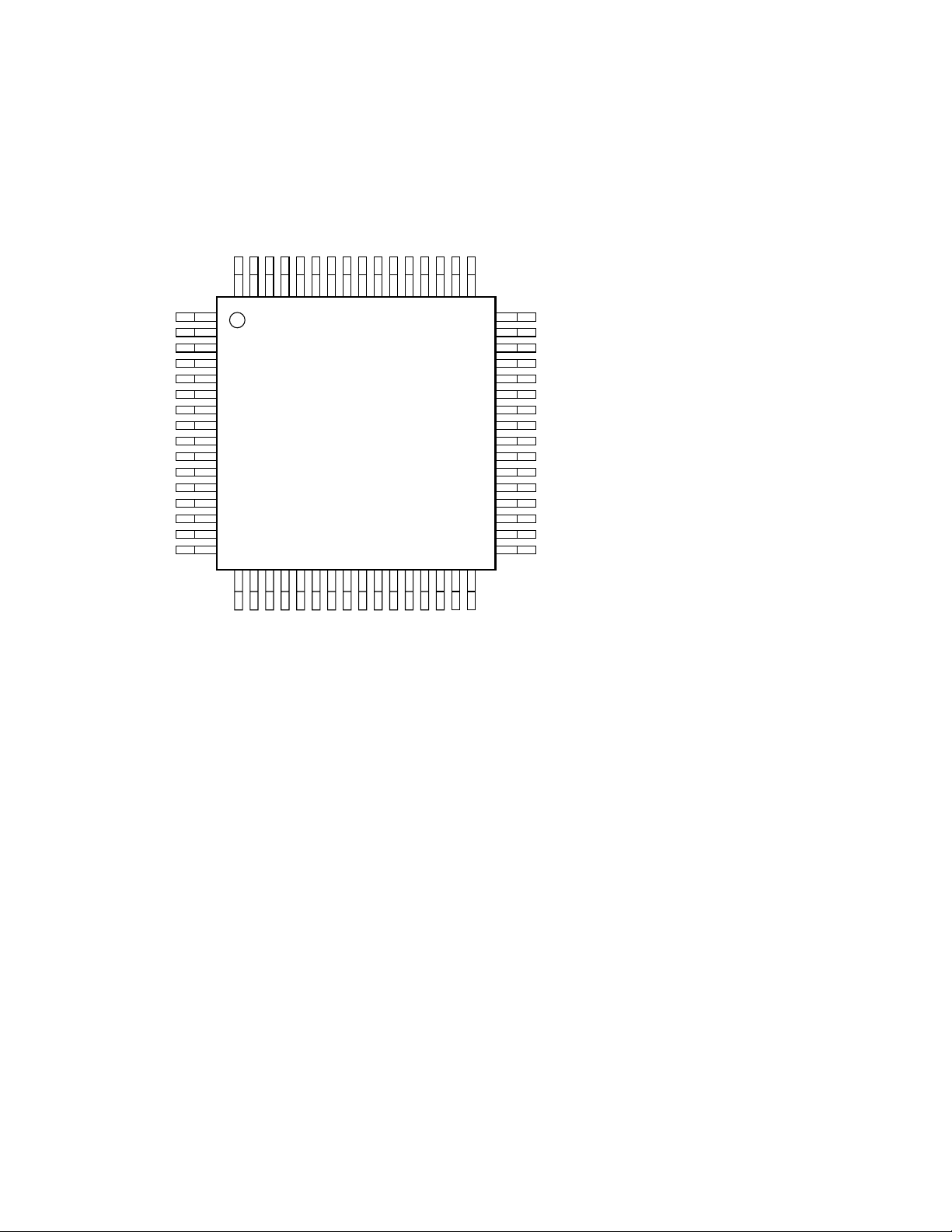

Figure 11. HDMP-1526 (TRx) Package Layout and Marking, Top View.

691

TRx I/O Definition

Name Pin Type Signal

GND_TXTTL 1 S TTL Transmitter Ground: Normally 0 volts. Used for the TTL input cells

14 of the transmitter section.

TX[0] 2 I-TTL Data Inputs: One, 10 bit, pre-encoded data byte. TX[0] is the first bit
TX[1] 3 transmitted. TX[0] is the least significant bit.
TX[2] 4
TX[3] 6
TX[4] 7
TX[5] 8
TX[6] 9
TX[7] 11
TX[8] 12
TX[9] 13

VCC_TXTTL 5 S TTL Power Supply: Normally 5 volts. Used for all TTL transmitter input

10 buffer cells.

GND_TXA 15 S Analog Ground: Normally 0 volts. Used to provide a clean ground plane

for the PLL and high-speed analog cells.

TXCAP1 16 C Loop Filter Capacitor: A loop filter capacitor must be connected across
TXCAP0 17 the TXCAP1 and TXCAP0 pins (typical value = 0.01 µF).

VCC_TXA 18 S Analog Power Supply: Normally 5 volts. Used to provide a clean supply

line for the PLL and high-speed analog cells.

LOOPEN 19 I-TTL Loopback Enable Input: When set high, the high-speed serial signal is

internally wrapped from the transmitter’s serial loopback outputs back
to the receiver’s loopback inputs. Also, when in loopback mode, the

± DOUT outputs are held static. When set low, ± DOUT outputs and
± DIN inputs are active.

VCC_TX 20 S Logic Power Supply: Normally 5 volts. Used for internal transmitter

59 PECL logic. It should be isolated from the noisy TTL supply as well as

possible.

GND 21 S Logic Ground: Normally 0 volts. This ground is used for internal PECL

25 logic. It should be isolated from the noisy TTL ground as well as possible.
58

REFCLK 22 I-TTL Reference Clock and Transmit Byte Clock: A 106.25 MHz clock supplied

by the host system. The transmitter section accepts this signal as the
frequency reference clock. It is multiplied by 10 to generate the serial bit
clock and other internal clocks. The transmit side also uses this clock as
the transmit byte clock for the incoming parallel data TX[0]..TX[9]. It
also serves as the reference clock for the receive portion of the
transceiver. When -LCKREF is activated, the receiver PLL frequency
locks to this reference signal.

VCC_RX 23 S Logic Power Supply: Normally 5 volts. Used for internal receiver PECL

28 logic. It should be isolated from the noisy TTL supply as well as possible.
57

ENBYTSYNC 24 I-TTL Enable Byte Sync Input: When high, enables the internal byte sync

function to allow clock synchronization to a comma character (or a
K28.5 character) of positive disparity (0011111010). When the line is
low, the function is disabled and will not reset registers and clocks, or
strobe the BYTSYNC line.

-LCKREF 27 I-TTL Lock to Reference: When low, causes the PLL to acquire frequency lock
on the external reference, supplied at REFCLK.

692

TRx I/O Definition (cont’d.)

Name Pin Type Signal

VCC_RXTTL 29 S TTL Power Supply: Normally 5 volts. Used for all TTL receiver output

37 buffer cells.
42

RBC1 30 O-TTL Receiver Byte Clocks: The receiver section recovers two 53.125 MHz
RBC0 31 receive byte clocks. These two clocks are approximately 180 degrees out

of phase. The receiver parallel data outputs are alternatively clocked on
the rising edge of these clocks. RBC1 aligns and outputs the comma
character (for byte alignment) when detected.

GND_RXTTL 32 S TTL Receiver Ground: Normally 0 volts. Used for the TTL output cells

33 of the receiver section.
46

RX[0] 45 O-TTL Data Outputs: One 10 bit data byte. RX[0] is the first bit received.
RX[1] 44 RX[0] is the least significant bit.
RX[2] 43
RX[3] 41
RX[4] 40
RX[5] 39
RX[6] 38
RX[7] 36
RX[8] 35
RX[9] 34

BYTSYNC 47 O-TTL Byte Sync Output: An active high output. Used to indicate detection of

either a comma character or a K28.5 special character of positive
disparity. It is only active when ENBYTSYNC is enabled.

RXCAP0 48 C Loop Filter Capacitor: A loop filter capacitor for the internal PLL is
RXCAP1 49 connected across the RXCAP0 and RXCAP1 pins.

(typical value = 0.01 µF).

VCC_RXA 50 S Analog Power Supply: Normally 5 volts. Used to provide a clean supply

line for the PLL and high-speed analog cells.

GND_RXA 51 S Analog Ground: Normally 0 volts. Used to provide a clean ground

plane for the receiver PLL and high-speed analog cells.

-DIN 52 HS_IN Serial Data Inputs: High-speed inputs. Serial data is accepted from the

+DIN 54 ± DIN inputs when LOOPEN is low.

VCC_RXHS 53 S High-Speed Supply: Normally 5 volts. Used only for the high-speed

55 receiver cell (HS_IN). Noise on this line should be minimized for best

operation.

GND_RXHS 56 S Ground: Normally 0 volts.

VCC_TXECL 60 S High-Speed ECL Supply: Normally 5 volts. Used only for the last stage

of the high-speed transmitter output cell (HS_OUT) as shown in
Figure 9. Due to high current transitions, this VCC should be well
bypassed to a ground plane.

VCC_TXHS 63 S High-Speed Supply: Normally 5 volts. Used by the transmitter side

for the high-speed circuitry. Noise on this line should be minimized
for best operation.

-DOUT 61 HS_OUT Serial Data Outputs: High-speed outputs. These lines are active when

+DOUT 62 LOOPEN is set low. When LOOPEN is set high, these outputs are held

static.

GND_TXHS 64 S Ground: Normally 0 volts.

693

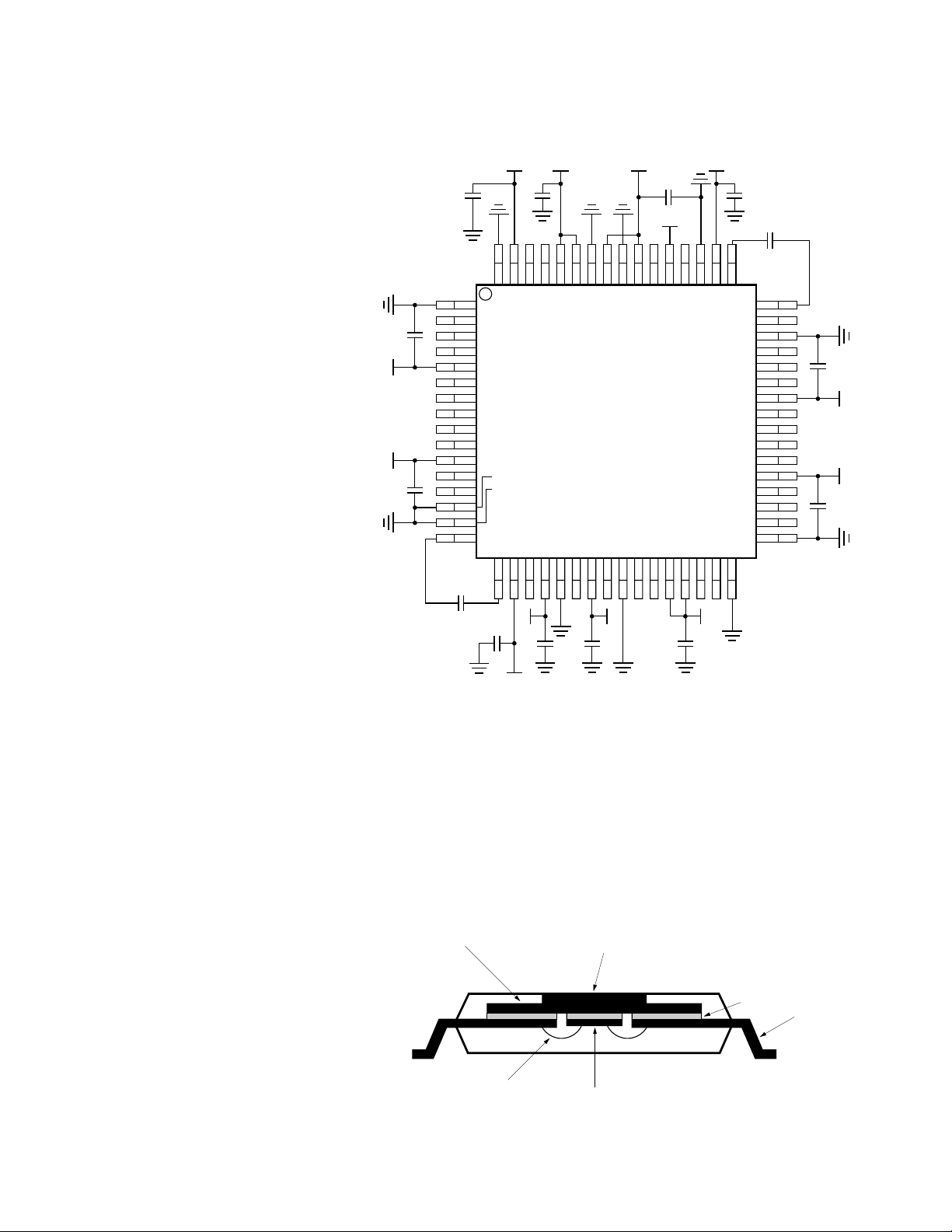

Transceiver Power Supply Bypass and Loop Filter Capacitors

Bypass capacitors should be
liberally used and placed as close
as possible to the appropriate
power supply pins of the HDMP­1526 as shown on the schematic
of Figure 11. All bypass chip
capacitors are 0.1 µF. The
VCC_RXA and VCC_TXA pins are
the analog power supply pins for
the PLL sections. The voltage into
these pins should be clean with
minimum noise. The PLL loop
filter capacitors and their pin
locations are also shown on
Figure 11. Notice that only two
capacitors are required: C
the transmitter and C

PLLR

receiver. Nominal capacitance is

0.01 µF. The voltage across the
capacitors is on the order of 1
volt, so the capacitor can be a
low voltage type and physically
small. The PLL capacitors are
placed physically close to the
appropriate pins on the HDMP-

1526. Keeping the lines short will
prevent them from picking up
stray noise from surrounding
lines or components.

for

PLLT

for the

V

CC

GND_TXTTL

_TXHS

CC

V

GND_TXHS

V

CC

V

CC

TXCAP0

C

PLLT

_TXTTL

V

CC

V

_TXTTL

CC

GND_TXTTL
GND_TXA

_TXA

_TX

CC

V

TXCAP0

V

VCC* V

V

CC

* SUPPLY VOLTAGE INTO VCC_RXA AND VCC_TXA SHOULD
BE FROM A LOW NOISE SOURCE. ALL BYPASS CAPACITORS
ARE 0.1 µF. THE PLL FILTER CAPACITORS ARE 0.01 µF.

Figure 12. Power Supply Bypass.

V

CC

_TX

CC

V

_TXECL

CC

V

TOP VIEW

CC

GND

GND

_RX

CC

V

CC

V

CC

_RX

CC

V

GND_RXHS

GND

V

_RXHS

CC

V

CC

_RXHS

CC

V

_RX

CC

V

VCC*

GND_RXA

V

_RXTTL

CC

_RXTTL

V

CC

_RXTTL

CC

V

V

CC

C

_RXA

CC

RXCAP1

V

GND_RXTTL

PLLR

RXCAP0

GND_RXTTL

GND_RXTTL

V

CC

V

CC

Transceiver Package Information

The HDMP-1526 is constructed
of a single integrated circuit
packaged in a 14x14 mm
EDQuad package. This package
was designed to provide
enhanced power dissipation, thus
allowing for smaller package
dimensions. The package
conforms to the industry standard
JEDEC land pattern for 14x14
mm devices. As shown in Figure
12, the die is attached to a
copper heatsink using thermally
conductive epoxy. This allows for

694

the power dissipated by the IC to
be directly connected to the
ambient environment, thereby
minimizing the Θjc of the device.

COPPER HEATSINK NICKEL PLATING

WIRE BOND

Figure 13. Package Cross Section of HDMP-1526.

DIE

CERAMIC

LEAD

EDQuad Package Information

Item Details

Package Material Plastic (with copper heat slug)
Lead Finish Material 85% Tin, 15% Lead
Lead Finish Thickness 300-800 µm
Lead Coplanarity 0.10 mm max

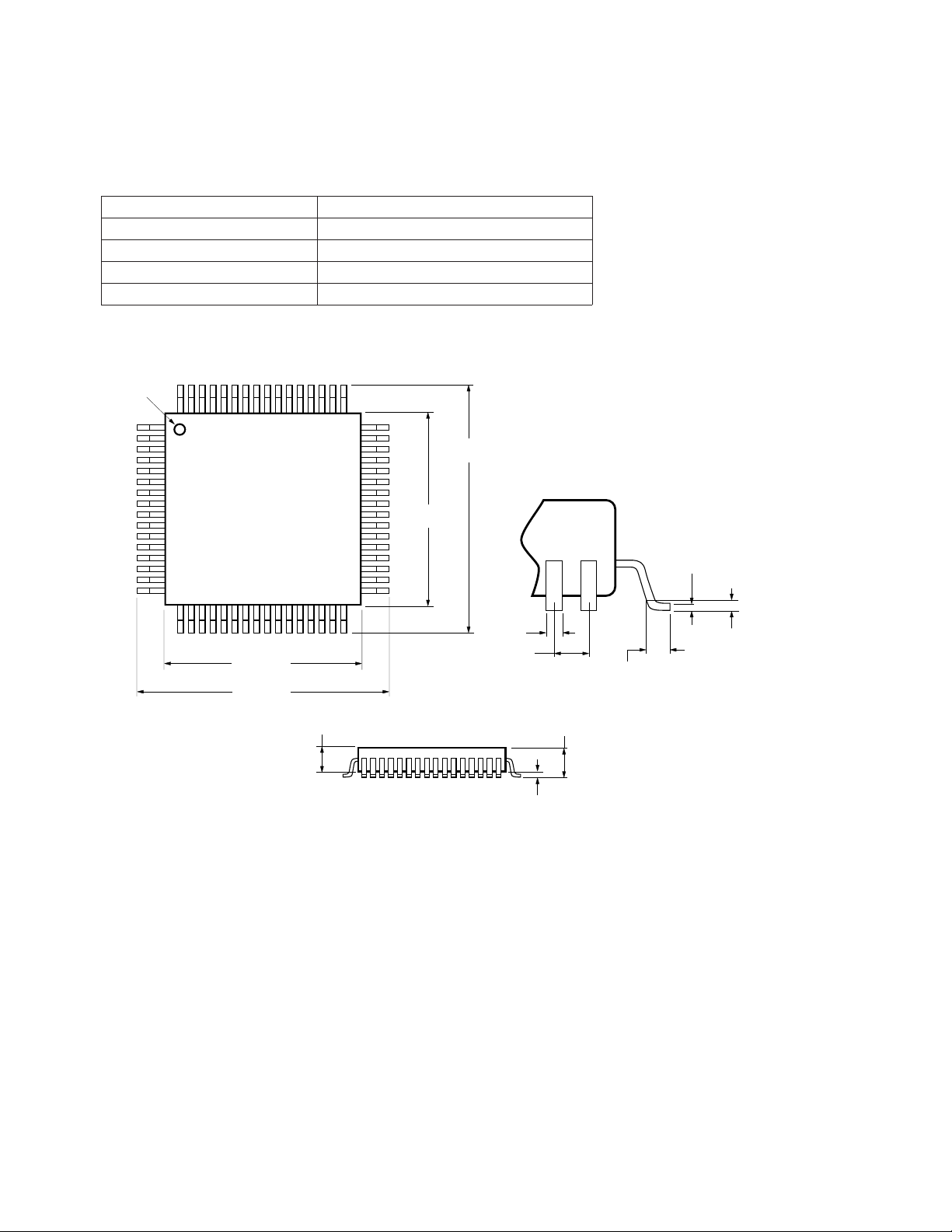

Mechanical Dimensions

PIN #1 ID

64 63 62 61 60 59 58 57 56 55 54 53 52 51 50 49

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16

HDMP-1526

TOP VIEW

17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32

48
47
46
45
44
43
42
41
40
39
38
37
36
35
34
33

14.00

± 0.10

17.20

± 0.25

0.17 MAX.

14.00 ± 0.10

17.20 ± 0.25

2.00 ± 0.10

ALL DIMENSIONS ARE IN MILLIMETERS.

Figure 14. Mechanical Dimensions of HDMP-1526.

Assembly Handling Information

Caution: Parts must be kept in

dry pack, or baked out before IR
reflow. Refer to package moisture
label for more details.

0.35

± 0.05

0.80 BASIC

0.25 MAX.

0.25

0.88 ± 0.15

2.35 MAX.

695
