Datasheet HDMP-1024, HDMP-1022 Datasheet (HP)

Low Cost Gigabit Rate
Transmit/Receive Chip Set with
TTL I/Os

Preliminary Technical Data

Features

• Transparent, Extended

Ribbon Cable Replacement

• Implemented in a Low Cost

Aluminum M-Quad 80
Package

• High-Speed Serial Rate

150-1500 MBaud

• Standard TTL Interface

16, 17, 20, or 21 Bits Wide

• Reliable Monolithic Silicon

Bipolar Implementation

• On-Chip Phase-Locked

Loops

- Transmit Clock Generation

- Receive Clock Extraction

Applications

• Backplane/Bus Extender

• Video, Image Acquisition

• Point to Point Data Links

• Implement SCI-FI Standard

• Implement Serial HIPPI

Specification

Description

The HDMP-1022 transmitter and
the HDMP-1024 receiver are used
to build a high-speed data link for
point-to-point communication.
The monolithic silicon bipolar
transmitter chip and receiver chip
are each provided in a standard
aluminum M-Quad 80 package.

From the user’s viewpoint, these
products can be thought of as
providing a “virtual ribbon cable”
interface for the transmission of

data. Parallel data (a frame)
loaded into the Tx (transmitter)
chip is delivered to the Rx
(receiver) chip over a serial
channel, which can be either a
coaxial copper cable or optical
link.

The chip set hides from the user
all the complexity of encoding,
multiplexing, clock extraction,
demultiplexing and decoding.
Unlike other links, the phase­locked-loop clock extraction
circuit also transparently provides
for frame synchronization–the
user is not troubled with the
periodic insertion of frame syn­chronization words. In addition,
the dc balance of the line code is
automatically maintained by the
chip set. Thus, the user can
transmit arbitrary data without
restriction. The Rx chip also
includes a state-machine con­troller (SMC) that provides a
startup handshake protocol for
the duplex link configuration.

The serial data rate of the T/R link
is selectable in four ranges (see
tables on page 5), and extends
from 120 Mbits/s up to 1.25
Gbits/s. The parallel data interface
is 16 or 20 bit TTL, pin select­able. A flag bit is available and
can be used as an extra 17th or
21st bit under the user’s control.
The flag bit can also be used as an
even or odd frame indicator for
dual-frame transmission. If not

HDMP-1022 Transmitter
HDMP-1024 Receiver

used, the link performs expanded
error detection.

The serial link is synchronous,
and both frame synchronization
and bit synchronization are main­tained. When data is not available
to send, the link maintains
synchronization by transmitting
fill frames. Two (training) fill
frames are reserved for
handshaking during link startup.

User control space is also sup­ported. If Control Available is
asserted at the Tx chip, the least
significant 14 or 18 bits of the
data are sent and the Rx Control
Available line will indicate the
data as a Control Word.

It is the intention of this data
sheet to provide the design
engineer all of the information
regarding the HDMP-1022/1024
chipset necessary to design this
product into their application. To
assist you in using this data sheet,
the following Table of Contents is
provided.

(5/97)

615

CLK

Tx Rx

CLK

CLK

Rx Tx

CLK

D) 16/20 BIT DUPLEX TRANSMISSION

CLK

Tx Rx

CLK

E) SIMPLEX BROADCAST TRANSMISSION

Rx

CLK

Rx

CLK

Typical Applications

The HDMP-1022/1024 chipset
was designed for ease of use and
flexibility. This allows the
customer to tailor the use of this
product, through the configura­tion of the link, based on his
specific system requirements and
application needs. Typical
applications range from backplane
and bus extension to digital video
transmission.

Low latency bus extension of a 16
or 20 bit wide data bus may be
achieved using the standard
duplex configuration (see Figure
1d). In full duplex, the HDMP­1022/1024 chipset handles all of
the issues of link startup, main­tenance, and simple error
detection.

If the bus width is 32 or 40 bits
wide, the HDMP-1022/1024
chipset is capable of sending the
large data frame as two separate
frame segments, as shown in
Figure 1b. In this mode, called
Double Frame Mode, the FLAG
bit is used by the transmitter and
receiver to indicate the first or
second frame segment
(Figure 19). The HDMP-1022/
1024 chipset in Double Frame
Mode may also be configured in
full duplex to achieve a 32/40 bit
wide bus extension.

For digital video transmission,
simplex links are more common.
The HDMP-1022/1024 chipset
can transmit 16 to 21 bits of
parallel data in standard or
broadcast simplex mode.
Additionally, 32 to 40 bit wide
data can be transmitted over a
single line (in Double Frame
Mode) or two parallel lines, as in
Figure 1c.

CLK CLK

MUX DEMUX

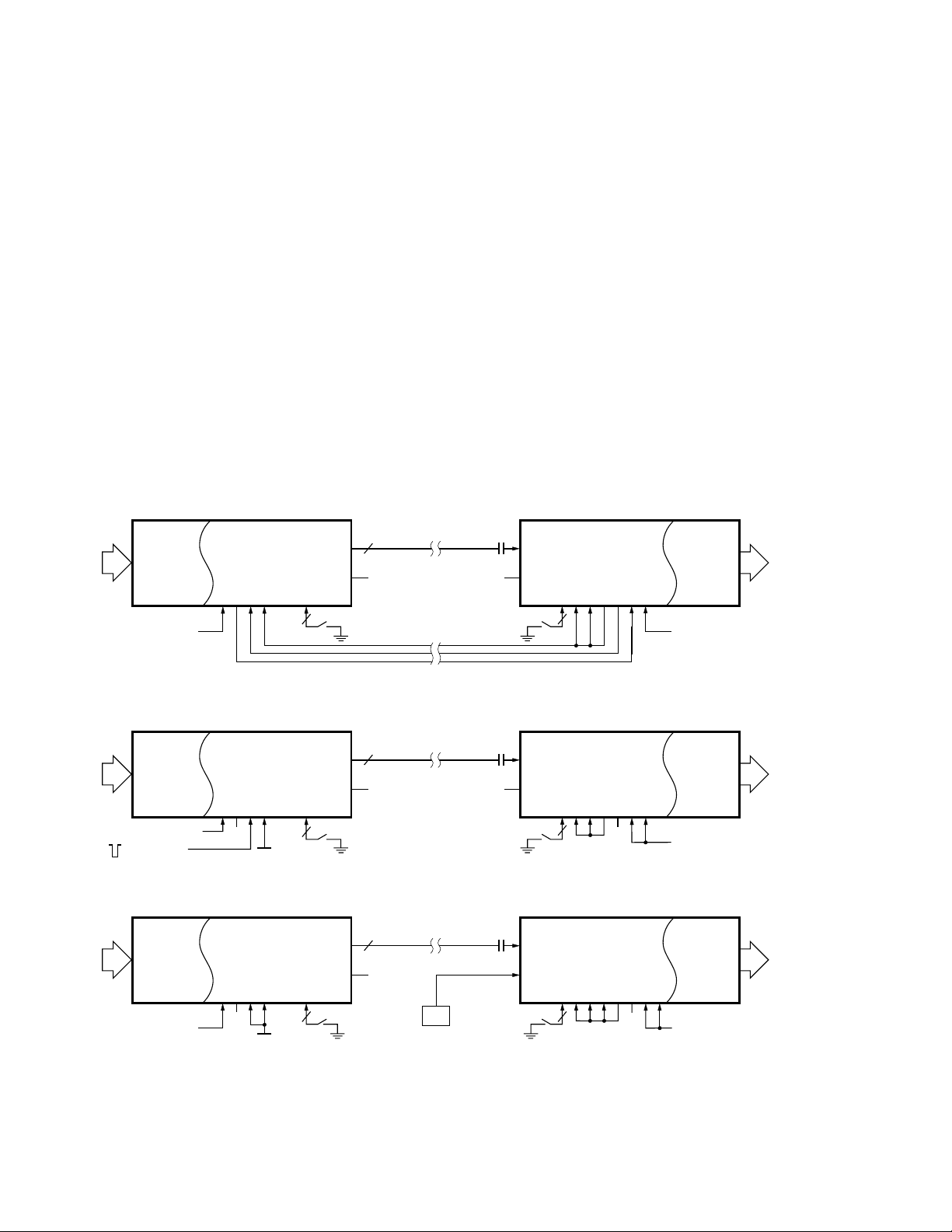

Figure 1. Various Configurations Using the HDMP-1022/1024.

Tx Rx

A) 16/20 BIT SIMPLEX TRANSMISSION

CLK

B) 32/40 BIT SIMPLEX TRANSMISSION

CLK

CLK

C) 32/40 BIT SIMPLEX TRANSMISSION

Tx Rx

Tx Rx

Tx Rx

WITH HIGH CLOCK RATES

CLK

CLK

CLK

617

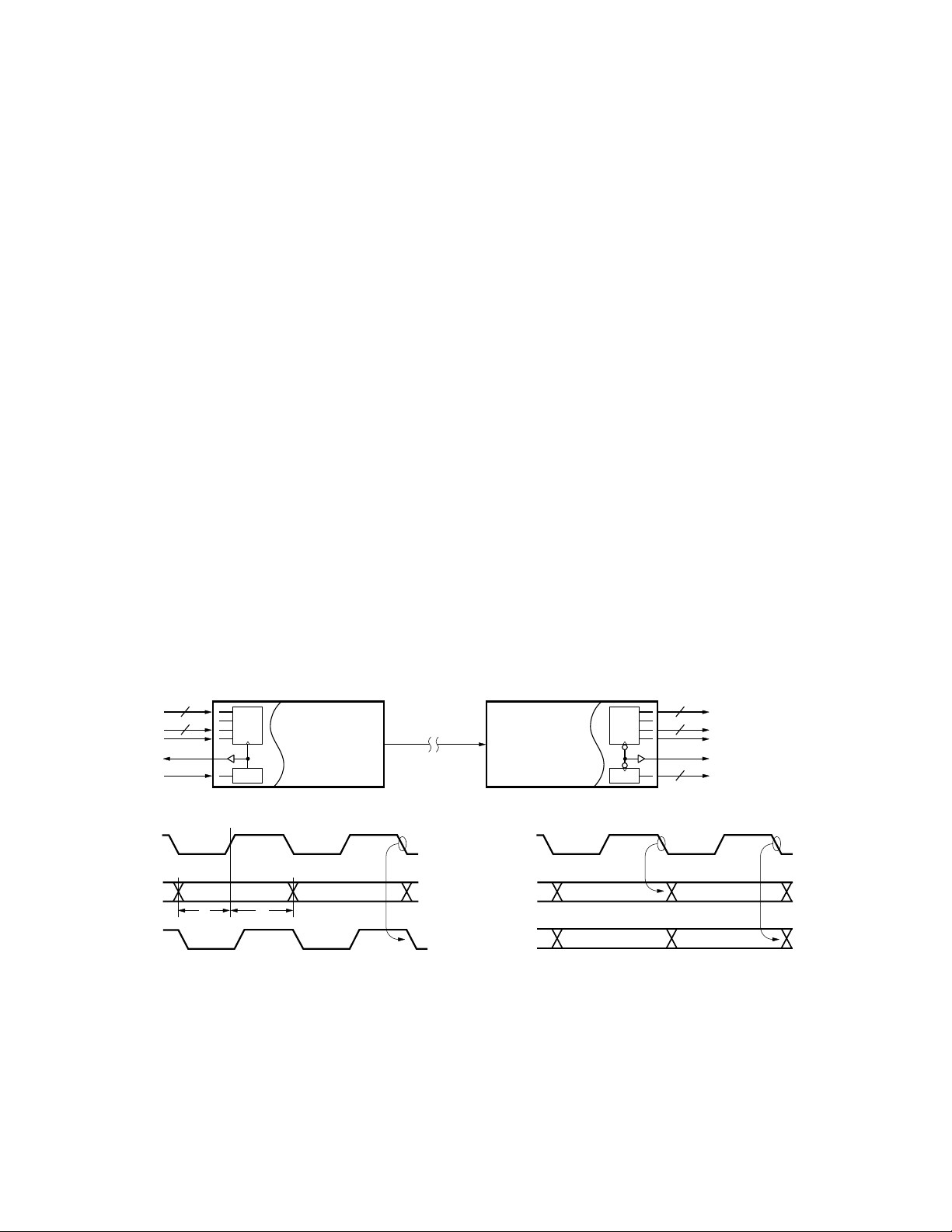

For timing diagrams for the
standard configurations, see the
Appendix section entitled Link

Configuration Examples.

The HDMP-1022/1024 chipset
can support serial transmission
rates from 150 MBd to 1.5 GBd
for each of these configurations.
The chipset requires the user to
input the link data rate by assert­ing DIV1 and DIV0 accordingly.
To determine the DIV1/DIV0
setting necessary for each
application, refer to the section:

Setting the Operating Data Rate
Range below.

Setting the Operating Data Rate Range

The HDMP-1022/1024 chipset
can operate from 150 MBaud to
1500 MBaud. It is divided into
four operating data ranges with
each range selected by setting
DIV1 and DIV0 as shown in the
tables on the following page.

The purpose of following example
is to help in understanding and
using these tables. This specific
example uses the table in Figure 3
entitled “Typical 20-bit Mode Data
Rates.”

It is desired to transmit a 20 bit
parallel word operating at 55 MHz
(55 MWord/sec). Both the Tx and
Rx must be set to a range that
covers this word rate. According

to the table entitled “Typical
Operating Rates for 20 Bit Mode”
on the next page, a setting of
DIV1/DIV0 = logic ‘0/0’ allows a
parallel input word rate of 29.2 to

62.5 MHz . This setting easily
accommodates the required 55
MHz word rate. The user serial
data rate can be calculated as:

Serial
Data Rate = (––––––) (––––––)

20 bit 55 Mw

word sec

= 1100 MBits/sec

The baud rate includes an
additional 4 bits that G-LINK
transmits for link control and
error detection. The serial baud
rate is calculated as:

Serial
Baud Rate = (––––––) (––––––)

24 bits 55 Mw

word sec

= 1320 MBaud

The 55 MHz example is one in
which the parallel word rate
provides only one possible DIV1/
DIV0 setting.

Some applications may have a
parallel word rate that seems to fit
two ranges. As an example, a 35
MHz (35 MWord/s) parallel data
rate falls within two ranges (DIV0/
DIV1 = 0/0 and DIV0/DIV1 = 0/

1) in 20 Bit Mode. Per the table, a
setting of DIV1/DIV0 = 0/1 gives
an upper rate of 37.5 MHz , while
a setting of DIV1/DIV0 = 0/0

gives a lower rate of 29.2 MHz.
These transition data rates are
stated in the tables as typical
values and may vary between
individual parts. Each transmitter/
receiver has continuous band
coverage across its entire 150 to
1500 MBaud range and has
overlap between ranges. Each
transmitter/receiver will permit a
35 MHz parallel data rate, but it is
suggested that DIV0 be a jumper
that can be set either to logic ‘1’
(open) or logic ‘0’ (ground). This
allows the design to accommodate
both ranges for maximum flexibil­ity. This technique is recom­mended whenever operating near
the maximum and minimum of
two word rate ranges. The above
information also applies to the
HDMP-1022/1024 chipset when
operating in 16 bit mode.

PRE-RELEASE

PRODUCT DISCLAIMER

This product is in development at the

Hewlett-Packard CSSD in San Jose,

California. Until Hewlett-Packard

releases this product for general

sales, HP reserves the right to alter

specifications, features, capabilities,

functions, manufacturing release

dates, and even general availability of

the product at any time.

618

HDMP-1022 (Tx), HDMP-1024 (Rx)

790

[1]

-14

.

FRAME RATE (Mwords/sec)

1800

Typical Operating Rates for 16 Bit Mode

Tc = 0°C to +85°C, VCC = 4.5 V to 5.5 V

Parallel Word Rate Serial Data Rate Serial Baud Rate

(Mword/sec) (Mbit/sec) (MBaud)

DIV1 DIV0 Range Range Range

0 0 35 75 (max) 560 1200 (max) 700 1500 (max)
0 1 17.5 45 280 720 350 900
1 0 8.8 22.5 140 360 175 450
1 1 7.5 (min) 11.25 120 (min) 180 150 (min) 225

Notes:

1. All values are typical unless otherwise noted by (min) or (max).

2. All values in this table are expected for a BER less than 10

5 25 50 75 100 125

0/0

0/1

1/0

DIV 1 / DIV 0

1/1

380

190

110 320

640

SERIAL DATA RATE (Mbaud)

1280

BAUD RATE = 20 x FRAME RATE

Figure 2. Typical 16-bit Mode Data Rates.

HDMP-1022 (Tx), HDMP-1024 (Rx)

Typical Operating Rates for 20 Bit Mode

Tc = 0°C to +85°C, VCC = 4.5 V to 5.5 V

Parallel Word Rate Serial Data Rate Serial Baud Rate

(Mword/sec) (Mbit/sec) (MBaud/sec)

DIV1 DIV0 Range Range Range

0 0 29.2 62.5 (max) 583 1250 (max) 700 1500 (max)
0 1 14.6 37.5 292 750 350 900
1 0 7.3 18.8 146 375 175 450
1 1 6.3 (min) 9.4 125 (min) 187.5 150 (min) 225

Notes:

1. All values are typical unless otherwise noted by (min) or (max).

2. All values in this table are expected for a BER less than 10

[1]

-14

.

2500200015001000500100

4 25 50 75 100

0/0

0/1

1/0

DIV 1 / DIV 0

1/1

110 320

380

190

Figure 3. Typical 20 Bit Mode Data Rates.

640

790

FRAME RATE (Mwords/sec)

1800

1280

BAUD RATE = 24 x FRAME RATE

2500200015001000500100

SERIAL DATA RATE (Mbaud)

619

RFD

FLAGSEL

M20SEL

STRBIN

EHCLKSEL

DIV0

DIV1

MDFSEL

INPUT

LATCH

ED

FF
CAV*
DAV*

FLAG

D0-D19

RST*

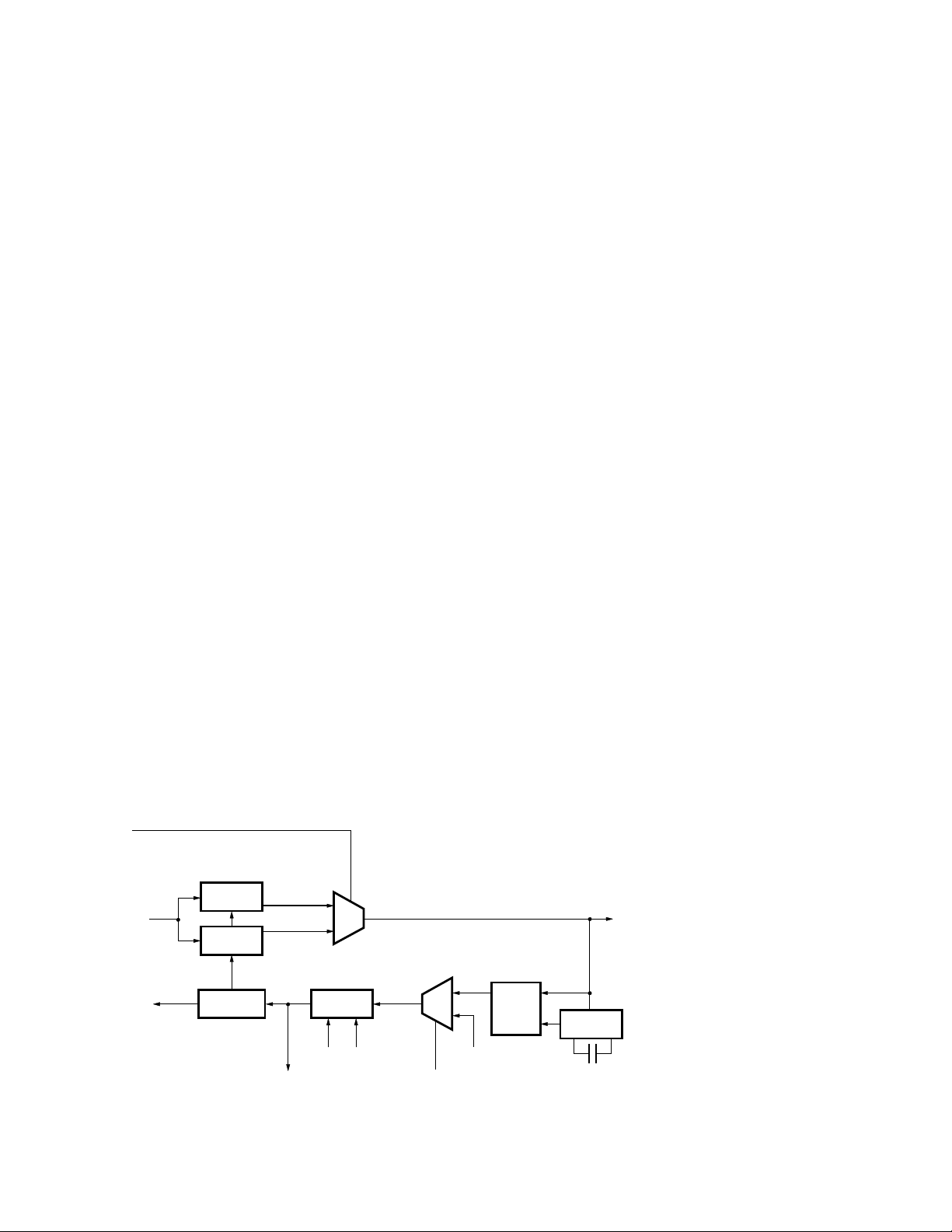

Figure 4. HDMP-1022 Transmitter Block Diagram.

LATCHLATCH

HDMP-1022 Tx Block Diagram

The HDMP-1022 was designed to
accept 16 or 20 bit wide parallel
data (frames) and transmit it over
a high speed serial line, while
minimizing the user’s necessary
interface to the high speed cir­cuitry. In order to accomplish this
task, the HDMP-1022 performs
the following functions:

• Parallel Word Input

• High Speed Clock Multiplication

• Frame Encoding

• Parallel to Serial Multiplexing

CONTROL

LOGIC

+

C-FIELD

ENCODER

D-FIELD

ENCODER

STRBIN is expected to be the
incoming frame clock. The PLL/
Clock Generator locks on to this
incoming rate and multiplies the
clock up to the needed high speed
serial clock. Based on M20SEL,
which determines whether the
incoming data frame is 16 or 20
bits wide, the PLL/Clock Gener­ator multiplies the frame rate
clock by 20 or 24 respectively
(data bits + 4 control bits). DIV1/
DIV0 are set to inform the
transmitter of the frequency range
of the incoming data frames. The
internal frame rate clock is
accessible through STRBOUT and

PLL/Clock Generator

The Phase Lock-loop and Clock

the high speed serial clock is

accessible through HCLK.
Generator are responsible for
generating all internal clocks
needed by the transmitter to
perform its functions. These
clocks are based on a supplied
frame clock (STRBIN) and control
signals (M20SEL, MDFSEL,
EHCLKSEL, DIV1, DIV0). In
normal operation (MDFSEL=0),

When MDFSEL is set high, the

transmitter is in Double Frame

Mode. Using this option, the user

may send a 32 or 40 bit wide data

frame in two segments while

supplying the original 32 or 40 bit

frame clock at STRBIN. Doubling

of the frame rate is performed by

INTERNAL

CLOCKS

SIGN

FRAME

MUX

PLL / CLOCK
GENERATOR

OUTPUT

ACCUMULATE / INVERT

SELECT

LOOPENINV

the transmitter. The clock
generator section performs the
clock multiplication to the
necessary serial clock rate.

By setting EHCLKSEL high, the
user may provide an external high
speed serial clock at STRBIN.
This clock is used directly by the
high speed serial circuitry to
output the serial data.

Control Logic and C-Field Encoder

The Control Logic is responsible
for determining what information
is serially sent to the output. If
CAV* is low, it sends the data at
D0..D8 and D9..D17 as control
word information. If CAV* is high
and DAV* is low, it sends parallel
word data at the data inputs. If
neither CAV* nor DAV* is set low,
then the transmitter assumes the
link is not being used. In this
state, the control logic triggers
the Data Encoder to send Fill
Frames to maintain the link DC

CAP0

0.1 µF

CAP1

STRBOUT
HCLK
LOCKED

DOUT

LOUT

620

balance and allow the receiver to
maintain frequency and phase
lock. The type of fill frames sent
(FF0 or FF1) is determined by the
FF input. In a duplex system, FF
is normally connected to the Rx’s
STAT1 pin.

The C-Field Encoder, based on
the inputs at DAV*, CAV*,
FLAGSEL, and FLAG, supplies
four encoded bits to the frame
mux. This encoded data contains
the master transition (which the
receiver uses for frequency
locking), as well as information
regarding the data type: control,
data, or fill frame. In order for the
FLAG bit to be used as an
additional data bit, FLAGSEL
must be set high for both the Tx
and the Rx.

D-Field Encoder

The D-Field Encoder provides the
remaining parallel word data to
the frame mux. Based on control

signals from the Control Logic,

the D-Field Encoder either

outputs the parallel information at

its data inputs (D0..D19) or the

designated Fill Frame. RST*,

when set low, resets the internal

chip registers.

Frame Mux

The Frame Mux accepts the

output from the C-Field and D-

Field Encoders. The four control

bits are attached to the data bits,

either 16 or 20 data bits based on

the M20SEL input. This parallel

information, now either 20 or 24

bits wide, is multiplexed to a

serial line based on the internal

high speed serial clock.

SIGN

The sign circuitry determines the

cumulative sign of the outgoing

data frame, containing the data

and control bits. This is used by

the accumulator/inverter to

maintain DC balance for the

transmission line.

Accumulator/Invert

The Accumulator/Invert block is
responsible for maintaining the
DC balance of the serial line. It
determines, based on history and
the sign of the current data frame,
whether or not the current frame
should be inverted to bring the
line closer to the desired 50%
duty cycle. INV is set high when
the data frame is inverted.

Output Select

In normal operation, the serial
data stream is placed at DOUT.
By asserting LOOPEN, the user
may also direct the serial data
stream to LOUT, which may be
used for loopback testing. When
LOOPEN is not asserted, LOUT is
disabled to reduce power
consumption.

621

EQEN

LOOPEN

DIN

LIN

FDIS

PH1

CAP0

0.1 µF

CAP1

Figure 5. HDMP-1024 Receiver Block Diagram.

INPUT

SELECT

PHASE /

FREQ

DETECT

FILTER

VCO

INPUT

SAMPLER

INTERNAL

CLOCKS

CLOCK

GENERATOR

CLOCK

SELECT

TCLK

DIV1

DIV0

TCLKSEL

FRAME
DEMUX

M20SEL

D-FIELD

DECODER

C-FIELD

DECODER

STATE

MACHINE

SMRTST1*

SMRTST0*

D0..D19

FLAG
DAV*
CAV*
FF
ERROR

FLAGSEL

LINKRDY
STAT1
STAT0

ACTIVE

HDMP-1024 Rx Block Diagram

The HDMP-1024 receiver was
designed to convert a serial data
signal sent from the HDMP-1022
into either 16,17, 20, or 21 bit
wide parallel data. In doing this, it
performs the functions of

• Clock Recovery

• Data Recovery

• Demultiplexing

• Frame Decoding

• Frame Synchronization

• Frame Error Detection

• Link State Control

Input Select

The input select block determines
which input line is used. In
normal operation (LOOPEN=0),
DIN is accepted as the input
signal. For improved distance and
BER using coax cable, an input
equalizer may be used by
asserting EQEN. By setting

LOOPEN high, the receiver

accepts LIN as the input signal.

This feature allows for loop back

testing exclusive of the

transmission medium.

Phase/Freq Detect

This block compares either the

phase or the frequency of the

incoming signal to the internal

serial clock, generated from the

Clock Select block. The frequency

detect disable pin (FDIS) is set

high to disable the frequency

detector and enable the phase

detector. See HDMP-1024 (Rx)

Phase Locked Loop for more

details. The output of this block,

PH1, is used by the filter to

determine the control signal for

the VCO.

Filter

This is a loop filter that accepts

the PH1 output from the Phase/

Freq Detector and converts it into

a control signal for the VCO. This
control signal tells the VCO
whether to increase or decrease
its frequency. The Filter uses the
PH1 input to determine a propor­tional signal and an integral
signal. The proportional signal
determines whether the VCO
should increase or decrease its
frequency. The integral signal
filters out the high frequency PH1
signal and stores a historical PH1
output level. The two signals
combined determine the magni­tude of frequency change of the
VCO.

VCO

This is the Voltage Controlled
Oscillator that is controlled by the
output of the Filter. It outputs a
high speed digital signal to the
Clock Select.

622

Clock Select

The Clock Select accepts the high
speed digital signal from the VCO
and outputs an internal high
speed serial clock. The VCO
frequency is divided, based on the
DIV1/DIV0 inputs, to the input
signal’s frequency range. The
Clock Select output, accessible
through BCLK, is an internal
serial clock. It is phase and
frequency locked to the incoming
signal. This internal serial clock is
used by the Input Sampler to
sample the data. It is also used by
the Clock Generator to generate
the recovered frame rate clock.

By setting TCLKSEL high, the
user may input an external high
speed serial clock at TCLK. The
Clock Select accepts this signal
and directly outputs it as the
internal serial clock.

Clock Generator

The Clock Generator accepts the
serial clock generated from the
Clock Select and generates the
frame rate clock, based on the
setting of M20SEL. If M20SEL is
asserted, the incoming encoded
data frame is expected to be 24
bits wide (20 data bits and 4
control bits). The master
transition in the control section of
encoded data stream is expected
every 24 bits, and used to ensure
proper frame synchronization of
the output frame clock,
STRBOUT.

Input Sampler

The serial input signal is con-

verted into a serial bit stream,

using the extracted internal serial

clock from the Clock Select. This

output is sent to the frame

demux.

Frame Demux

The Frame Demux demultiplexes

the serial bit stream from the

Input Sampler into a 20 or 24 bit

wide parallel data word, based on

the setting of M20SEL. The most

significant 4 bits are sent to the

C-Field Decoder, while the

remaining 16 or 20 bits are sent

to the D-Field Decoder.

C-Field Decoder

The C-Field Decoder accepts the

control information from the

Frame Demux and determines

what kind of frame is being

received and whether or not it has

to be inverted. The control bits

are sent to the State Machine for

error checking. The decoded

information is sent to the D-Field

Decoder. CAV* is set low if the

incoming frame is control data.

DAV* is set low if the information

is data. If neither DAV* nor CAV*

is set low, then the incoming

frame is expected to be a fill

frame. If FLAGSEL is asserted,

the FLAG bit is restored to its

original form. Otherwise, FLAG is

used to differentiate between the

even and odd frames in Double

Frame Mode. For more
information about this, refer to
Double Frame Mode.

D-Field Decoder

The D-Field Decoder accepts the
data field of the incoming data
frame from the Frame Demux.
Based on information from the C­Field Decoder, which determines
what type of data is being
received, the D-Field Decoder
restores the parallel data back to
its original form.

State Machine

The State Machine is used in full
duplex mode to perform the
functions of link startup, link
maintenance, and error checking.
By setting the SMRST0* and
SMRST1* low, the user, too, can
reset the state machine and
initiate link startup. SMRST1* is
usually connected to the transmit­ters LOCKED output. STAT1 and
STAT0 denote the current state of
link during startup. ACTIVE is an
input normally driven by the
STAT1 and STAT0 outputs. This
ACTIVE input is retimed by
STRBOUT and presented to the
user as LINKRDY*. LINKRDY* is
an active low output that indicates
when the link is ready to transmit
data. Refer to The State Machine
Handshake Protocol section on
page 645 for more details.

623

HDMP-1022 (Tx) Timing

Figure 6 shows the Tx timing
diagram. Under normal
operations, the Tx PLL locks an
internally generated clock to the
incoming STRBIN. The incoming
data, D0-D19, ED, FF, DAV*,
CAV*, and FLAG, are latched by
this internal clock. For
MDFSEL=0, the input rate of
STRBIN is expected to be the
same as the parallel data rate. For
MDFSEL=1, STRBIN should be
1/2 of the incoming parallel data

rate. The data must be valid

before it’s sampled for a set-up

time (ts), and remain valid after

it’s sampled for a hold time (th).

In single frame mode

(MDFSEL=0), ts and th are

referenced to the rising edge of

STRBIN. In double frame mode

(MDFSEL=1), ts and th are

referenced to half the frame

period from the rising or falling

edge of STRBIN plus 4 ns.

STRBOUT appears after this

reference with a delay of ∆T
The rate of STRBOUT is always
the same as the word rate of the
incoming data, independent of
MDFSEL.

The start of a frame, D0, in the
high speed serial output occurs
after a delay of td after the rising
edge of the STRBIN. The typical
value of td may be calculated by
using the following formula.

HDMP-1022 (Tx) Timing Characteristics

Tc = 0°C to +85°C, VCC = 4.5 V to 5.5 V

Symbol Parameter Units Min. Typ. Max.

∆T

t

t

s

h

strb

Setup Time, for D0-D19 Relative to Rising Edge of STRBIN, nsec 2.0*
ED, FF, DAV*, CAV* and FLAG

Hold Time, for D0-D19 Relative to Rising Edge of STRBIN, nsec 2.0*
ED, FF, DAV*, CAV* and FLAG

STRBOUT - STRBIN Delay at 64 MHz in 20-bit Mode nsec 4.0

strb

.

*In double frame mode, due to the internal clock delay, ts and th are referenced to half the frame period plus 4 ns from the rising or
falling edge of STRBIN.

STRBIN
MDFSEL = 0

1/2 FRAME PERIOD

STRBIN
MDFSEL = 1

D00 - D19
ED, FF
DAV*, CAV*
FLAG

STRBOUT

DOUT

HCLK

t

s

t

strb

t

d

t

h

D-FIELD C-FIELD

Figure 6. HDMP-1022 (Tx) Timing Diagram.

624

HDMP-1024 (Rx) Timing

Figure 7 is the Rx timing diagram
when the internal PLL is locked to
the incoming serial data. The size
of the input data frame can be
either 20 bits or 24 bits,
depending on the setting of
M20SEL. Independent of the
frame size, STBROUT’s falling
edge is aligned to the data frame’s

The synchronous outputs,

D0-D19, LINKRDY*, DAV*, CAV*,

FF, ERROR, and FLAG, are

updated for every data frame,

with a delay of td1 after the falling

edge of STRBOUT. There is a

latency delay of two frames from

the input of the serial data frame

to the update of the synchronous

outputs.

The state machine outputs,
STAT0, and STAT1, appear with
the falling edge of STRBOUT after
a delay of td2. Referring to Figure
15, if the RESET or ERROR signal
is present, Rx will go into State 0.
After 128 frames, it will go into
State 1. Transitions after that
depend on the training sequence.

boundary, while the rising edge is
in the center of the data frame.

HDMP-1024 (Rx) Timing Characteristics

Tc = 0°C to +85°C, VCC = 4.5 V to 5.5 V

Symbol Parameter Units Min. Typ. Max.

t-valid before Synchronous Output Setup Time at 75 MHz in 16-bit Mode nsec 3.0

t-valid after Synchronous Output Hold Time at 75 MHz in 16-bit Mode nsec 3.0

t

d1

t

d2

Synchronous Output Delay Referenced to the Falling Edge nsec 2.0
of STRBOUT. Delay is Measured with Reference to 1.5 V
Logic Threshold

State Machine Output Delay Referenced to the Falling nsec 4.0
Edge of STRBOUT

Note: Typical Rx STRBOUT duty cycle range is 45% to 65%.

DIN

D-FIELD

CLK

t-VALID BEFORE t-VALID AFTER

STRBOUT

t

d1

D00 - D19
LINKRDY*
DAV*, CAV*
FF, ERROR
FLAG

STAT1
STAT0

t

d2

C-FIELD

Figure 7. HDMP-1024 (Rx) Timing Diagram.

625

HDMP-1022 (Tx), HDMP-1024 (Rx)

DC Electrical Specifications

Tc = 0°C to +85°C, VCC = 4.5 V to -5.5 V

Symbol Parameter Units Min. Typ. Max.

V

IH,TTL

V

IL,TTL

V

OH,TTL

V

OL,TTL

I

IH,TTL

I

IL,TTL

V

IP,H50

V

OP,BLL

I

CC,Tx

I

CC,Rx

Note:

1. BLL outputs are measured with external 150 Ω pull-up resistors to ground. Refer to Figure 23 for additional information.

TTL Input High Voltage Level, Guaranteed high signal for V 2.0 V
all inputs

TTL Input Low Voltage Level, Guaranteed low signal for all V 0 0.8
inputs

TTL Output High Voltage Level, IOH = -400 µA V 2.4 V
TTL Output Low Voltage Level, IOL = 1 mA V 0 0.6
Input High Current (Magnitude), VIN = V

CC

µA 0.004 40

Input Low Current (Magnitude), VIN = 0 Volts µA 295 600
H50 Input Peak-To-Peak Voltage mV 200
BLL Output Peak-To-Peak Voltage, Terminated with 50 Ω, mV 500

ac coupled
Transmitter V

Supply Current, with HCLKSEL off mA 385 470

CC

Tc = 50°C
Receiver V

Supply Current, Tc = 50°C mA 500 600

CC

CC

CC

HDMP-1022 (Tx), HDMP-1024 (Rx)

AC Electrical Specifications

Tc = 25°C

Symbol Parameter Units Min. Typ. Max.

t

r,TTLin

t

f,TTLin

t

r,TTLout

t

f,TTLout

tr,

BLL

tf,

BLL

VSWR

i,H50

VSWR

o,BLL

Note:

1. BLL outputs are measured with external 150 Ω pull-up resistors to ground. Refer to Figure 23 for additional information.

Input TTL Rise Time, 0.8 to 2.0 Volts nsec 2
Input TTL Fall Time, 2.0 to 0.8 Volts nsec 2
Output TTL Rise Time, 0.8 to 2.0 Volts, 10 pF load nsec 1.1 2.4
Output TTL Fall Time, 2.0 to 0.8 Volts, 10 pF load nsec 1.5 2.4
BLL Rise Time, Terminated with 50 Ω, ac coupled psec 240
BLL Fall Time, Terminated with 50 Ω, ac coupled psec 240
H50 Input VSWR 2:1
BLL Output VSWR 2:1

HDMP-1022 (Tx), HDMP-1024 (Rx)

Typical Lock-Up Time

Tc = 25°C

DIV1 DIV0 HDMP-1022, msec HDMP-1024, msec LINK

0 0 2.0 2.2 2.5
0 1 3.0 3.2 3.5
1 0 4.5 4.7 5.0
1 1 8.0 11.0 12.0

Note:

1. Measured in Local Loop-Back mode with the state machine engaged and 0 cable length.

[1]

, msec

626

Latency

Tc = 25°C, VCC = 4.5 V to 5.5 V

Latency

(Clock

Cycles) Latency Definition

Tx 1 Delay measured from the rising edge of STRBIN to the first bit D0 in the serial

stream

Rx 2 Delay measured from the input of the data frame to the falling edge of STRBOUT

when the data frame is updated

Link 3 Delay measured from the rising edge of the Tx STRBIN when the data frame is read

to the falling edge of the Rx STRBOUT when the data frame is updated

HDMP-1022 (Tx), HDMP-1024 (Rx)

Absolute Maximum Ratings

TA = 25°C, except as specified. Operation in excess of any one of these conditions may result in permanent
damage to this device.

Symbol Parameter Units Min. Max.

V

V

IN,TTL

V

IN,BLL

I

O,TTL

T

T

T

CC

stg

J

max

Supply Voltage V -0.5 7.0
TTL Input Voltage V -0.7 VCC + 0.5
H50 Input Voltage V VCC - 2.0 VCC + 0.5
TTL Output Source Current mA +13
Storage Temperature °C -40 +130
Junction Temperature °C -40 +130
Maximum Assembly Temperature (for 10 seconds maximum) °C +260

627

HDMP-1022 (Tx)

Thermal Characteristics, TA = 25°C, VCC = 5 V

Symbol Parameter Units Typ.

Θ

Thermal Resistance, Junction to Air. Measured in still air with the package °C/Watt 24

ja

mounted on a thermal test PCB per JEDEC standard JC -15.1

Θ

Thermal Resistance, Junction to Case. Top center of the package is used as °C/Watt 4

jc

the reference point

P

Power Dissipation, V

D

= 5 Volts Watt 1.9

CC

HDMP-1024 (Rx)

Thermal Characteristics, TA = 25°C, VCC = 5 V

Symbol Parameter Units Typ.

Θ

Θ

P

Thermal Resistance, Junction to Air. Measured in still air with the package °C/Watt 24

ja

mounted on a thermal test PCB per JEDEC standard JC -15.1
Thermal Resistance, Junction to Case. Top center of the package is used as °C/Watt 4

jc

the reference point
Power Dissipation, V

D

= 5 Volts Watt 2.5

CC

I/O Type Definitions

I/O Type Definition

I-TTL Input TTL. Floats high when left open.

O-TTL Output TTL.
O-BLL 50 Ω matched output driver. Will drive AC coupled 50 Ω loads, with 150 Ω pull-up resistors

for broad band matching. All unused outputs should have 150 Ω pull-up resistors, and AC
coupled to a 50 Ω resistor to ground.

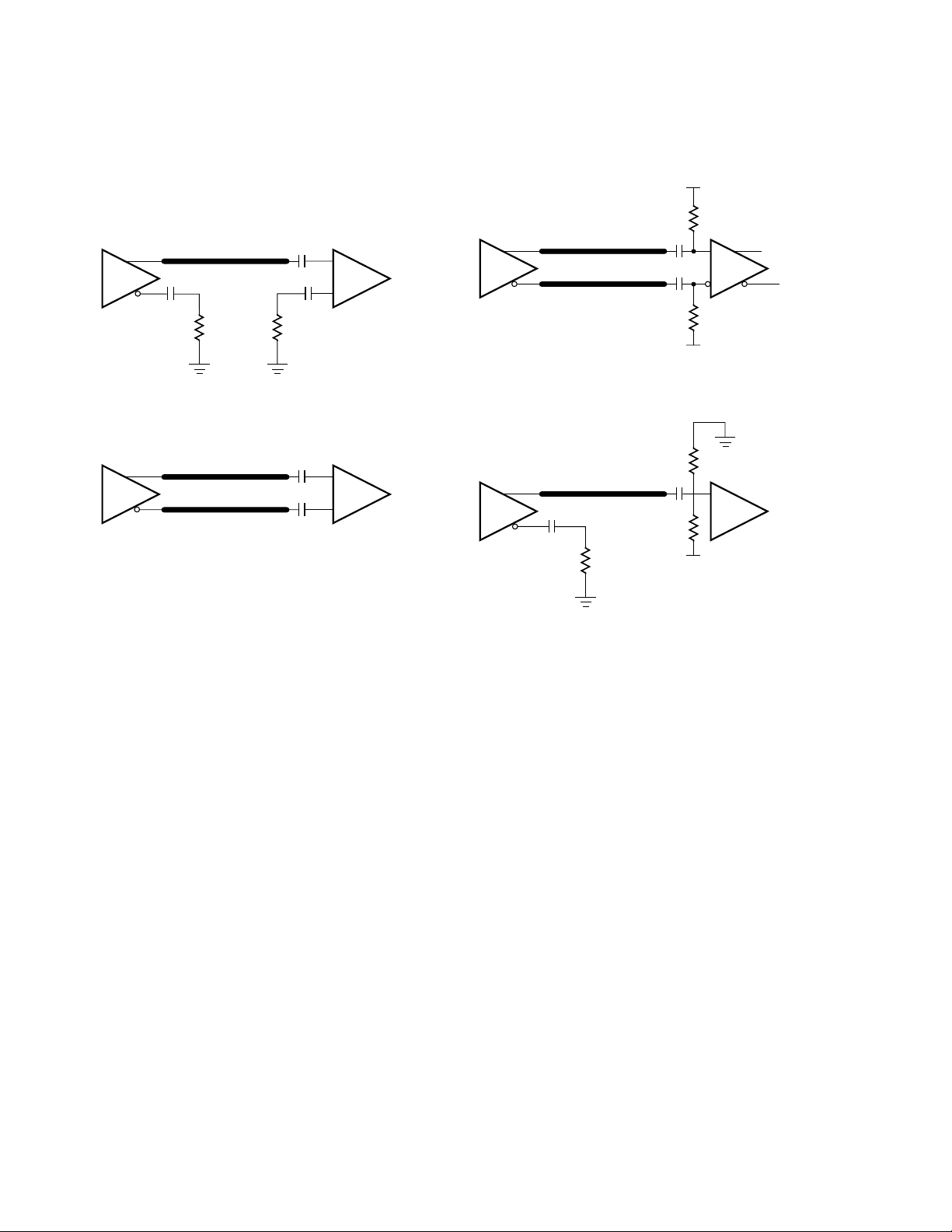

I-H50 Input with internal 50 Ω terminations. Input is diode level shifted so that it can swing around

power. Can be driven with single-end configuration. Commonly used with input single-end AC
coupling from an O-BLL driver or another 50 Ω source, or differential direct coupling from
an O-BLL driver.

C Filter capacitor node.

S Power supply or ground.

628

TTL2

CC

80 GNDTTL2

79 VCC78 EHCLKSE

77 V

76 STRBOUT

75 LOCKED

74 MDFSEL

73 M20SEL

CC

72 V

71 FLAGSEL

70 DAV*

69 CAV*

68 FF

67 ED

CC

66 VCC65 V

CAP0B 1
CAP0A 2
CAP1A 3
CAP1B 4

GND 5

GND 6

V

CC

STRBIN 8

NC 9

HCLKON 10

HCLK 11

HCLK* 12

V

CC

LOUT 14

LOUT* 15

LOOPEN 16

DOUT 17

DOUT* 18

DIV0 19
DIV1 20
GND 21
GND 22

V

CC

V

CC

7

HDMP-1022

13

LLLL TX R.RR
S DDDD C

23
24

NC 28

INV 25

GND 29

TTL1 27

CC

V

GNDTTL1 26

GND 30

TEMP 31

Figure 8. HDMP-1022 (Tx) Package Layout, Top View.

TTL1 33

RST* 34

TEMP* 32

CC

V

D19 35

D18 36

D17 37

D16 38

D15 39

D14 40

64 V

CC

63 V

CC

62 GND
61 GND
60 FLAG
59 D0
58 D1
57 D2
56 D3
55 D4
54 D5
53 D6
52 V

CC

51 D7
50 D8
49 D9
48 D10
47 D11
46 D12
45 D13
44 V

CC

43 V

CC

42 GND
41 GND

CAP0B 1
CAP0A 2
CAP1A 3
CAP1B 4

V

CC

DIV0 6
DIV1 7

NC 8
NC 9

TCLKSEL 10

NC 11

TCLK 12

V

HS 13

CC

_

DIN* 14

DIN 15

LOOPEN 16

LIN* 17

LIN 18

EQEN 19

FDIS 20
GND 21
GND 22

V

CC

V

CC

TTL

CC

80 GND

79 GND

78 VCC77 TEMP*

76 TEMP

75 NC

74 GNDTTL

73 VCC72 V

71 D0

70 D1

69 D2

68 D3

67 D4

66 D5

65 D6

64 V

CC

63 V

CC

62 GND

5

HDMP-1024
LLLL RX R.RR

S DDDD C

23
24

61 GNDTTL
60 D7
59 D8
58 D9
57 D10
56 D11
55 D12
54 D13
53 V

TTL

CC

52 V

TTL

CC

51 D14
50 D15
49 D16
48 D17
47 D18
46 D19
45 FLAG
44 V

CC

43 NC
42 GND
41 GNDTTL

STAT1 26

STAT0 27

ACTIVE 25

M20SEL 30

GNDTTL 31

SMRST0* 28

SMRST1* 29

33

CC

TTL 32

V

CC

V

FLAGSEL 34

STRBOUT 35

FF 39

DAV* 37

CAV* 38

LINKRDY* 36

ERROR 40

Figure 9. HDMP-1024 (Rx) Package Layout, Top View.

629

Tx I/O Definition

Name Pin Type Signal

CAP0A 2 C Loop Filter Capacitor: CAP0A should be shorted to CAP0B. CAP1A
CAP0B 1 should be shorted to CAP1B. A loop filter capacitor of 0.1 µf must be
CAP1A 3 connected across the CAP0 and CAP1 inputs to increase the loop time
CAP1B 4 constant.

CAV* 69 I-TTL Control Word Available Input: This active-low input tells the chip

that the user is requesting a control word be transmitted. This pin
should only be asserted after the user has determined the RFD line is
active for a given frame cycle. When this pin is asserted, the
information on the Data inputs is sent as a control frame. If CAV and
DAV are asserted simultaneously, CAV takes precedence.

D0 59 I-TTL Data Inputs: 20 Bit data is encoded and transmitted when M20SEL
D1 58 is active; otherwise the 16 least significant bits are encoded and
D2 57 transmitted. The encoded bits are transmitted LSB first (e.g.: D0 is
D3 56 sent first, through to either D15 or D19, followed by the 4 coding bits
D4 55 C0-C3).
D5 54
D6 53
D7 51
D8 50
D9 49
D10 48
D11 47
D12 46
D13 45
D14 40
D15 39
D16 38
D17 37
D18 36
D19 35

DAV* 70 I-TTL Data Available Input: This active-low input tells the chip that the

user has valid data to be transmitted. This pin should be asserted only
after the user has determined that the RFD line is active for a given
frame cycle. When this pin is asserted, the information on the Data
and Flag inputs is encoded and sent as a Data frame.

DIV0 19 I-TTL VCO Divider Select: These two pins program the VCO divider chain
DIV1 20 to operate at full speed, half speed, quarter speed, or one-eighth speed.

DOUT 17 O-BLL Normal Serial Data Output: Output used when LOOPEN is not
DOUT* 18 active. This output is a special buffer line logic driver, which is a 50 Ω

back-terminated ECL compatible output.

ED 67 I-TTL Enable Data: This signal comes from the Rx chip state machine and

is used to control the RFD output of the Tx chip. The state machine
only allows data to be enabled when both sides of the link have
established stable lock.

630

Tx I/O Definition (cont’d.)

Name Pin Type Signal

EHCLKSEL 78 I-TTL EHCLK Enable: When active, this input causes the STRBIN inputs

to be used for the transmit serial clock, rather than the internal VCO
clock. This is useful for generating extremely low jitter test signals, or
for operating the link at speeds that are not within the VCO range.
When the STRBIN is active, it is necessary for the data source to take
its clock from the link rather than the usual operation where the Link
phase-locks onto the data source clock.

FF 68 I-TTL Fill Frame Select: When neither CAV or DAV is asserted, or when

ED is false, fill frames are automatically transmitted to allow the Rx
chip to maintain lock. The type of fill frame sent is determined by
the state of this pin. FF0s are sent if low, and either FF1a or FF1b is
sent if FF is high. The choice of FF1a and FF1b is determined by the
state of the cumulative line DC balance.

FLAG 60 I-TTL Extra Flag Bit: When FLAGSEL is active, this input is sent as an

extra data bit in addition to the normal Data inputs. When FLAGSEL
is not asserted, this input is ignored and the transmitted Flag bit is
internally alternated to allow the Rx chip to perform enhanced frame
error detection.

FLAGSEL 71 I-TTL Flag Bit Mode Select: When this input is high, the extra FLAG bit

input is sent as an extra transparent data bit. Otherwise, the FLAG
input is ignored and the transmitted flag bit is internally alternated
by the transmitter. The Rx chip can provide enhanced frame error
detection by checking for strict alternation of the flag bit during data
frames. The FLAGSEL input on the Rx chip should be set to the same
value as the Tx FLAGSEL input.

HCLK 11 O-BLL High Speed Clock Monitor: Used to monitor actual clock signal
HCLK* 12 used to transmit the serial data. This signal will either be the divided

VCO output, or the divided EHCLK external clock input, depending
on the value of the EHCLKSEL input.

HCLKON 10 I-TTL HCLK Power-down Control: When this pin is de-asserted, the HCLK,

HCLK* outputs are powered down to reduce power dissipation.

INV 25 O-TTL Invert Signal: A high value of INV implies that the current frame is

being sent inverted to maintain long-term DC balance. With a buffer,
or pulled down with a 1K resistor to GND and ac coupled, this signal
is useful as an aid to analyzing the serial output stream with an
oscilloscope.

LOCKED 75 O-TTL Loop In-lock Indication: This signal indicates the lock status of the

Tx PLL. A high value indicates lock. This signal is normally connected
to the SMTRST1 reset input of the Rx state machine to force the link
into the start-up state until the Tx PLL has locked. This signal may
give multiple false-lock indications during the acquisition process, so
should be debounced if it is used for any other purpose than to drive
the Rx chip.

LOOPEN 16 I-TTL Loop Back Control: Input which controls whether the DOUT,

DOUT*, or the LOUT, LOUT* outputs are currently enabled. If active,
LOUT, LOUT* are enabled. The unused output is powered down to
reduce dissipation.

631

Tx I/O Definition (cont’d.)

Name Pin Type Signal

LOUT 14 O-BLL Loop Back Serial Data Output: Output used when LOOPEN is
LOUT* 15 active. Typically this output will be used to drive the LIN, LIN* inputs

of the Rx chip.

M20SEL 73 I-TTL 16 or 20 Bit Word Select: When this signal is high, the link operates

in 20 Bit data transmission mode. Otherwise, the link operates in
16 Bit mode.

MDFSEL 74 I-TTL Select Double Frame Mode: When this signal is high, the PLL

expects a 1/2 speed parallel clock at STRBIN. The chip then internally
multiplies this clock and produces a full-rate parallel clock at
STRBOUT. Note that the phase relationship of STRBIN to STRBOUT
and the sampling point change with asserting MDFSEL, as shown in
the Tx timing diagram. This feature is provided so that either a 40 bit
or 32 bit word can be easily transmitted as two 20, or two 16 bit
words. When MDFSEL is low, the PLL expects a full-rate parallel
clock at STRBIN.

RFD 65 O-TTL Ready for Data: Output to tell the user the Link is ready to

transmit data. This pin is a retimed version of the ED input, which is
driven by the Rx chip state machine controller.

RST* 34 I-TTL Chip Reset: This active-low pin initializes the internal chip registers.

It should be asserted during power up for a minimum of 5 parallel­rate clock cycles to ensure a complete reset.

STRBIN 8 I-TTL Data Clock Input: When EHCLKSEL is low, this input is phase

locked and multiplied to generate the high speed serial clock. The chip
expects a clock frequency which is equal to the input frame rate if
MDFSEL (double frame mode) is low, and 1/2 the frame rate if
MDFSEL is high. When EHCLKSEL is high, the PLL is bypassed,
and STRBIN directly becomes the high speed serial clock. Refer to
the Tx Timing diagram for the phase relationship between STRBIN,
data and STRBOUT.

STRBOUT 76 O-TTL Frame-rate Data Clock Output: This output is always a frame rate

clock derived from STRBIN. With a buffer or pulled down with a 1K
resistor to GND and ac- coupled, this output is ideal for triggering an
oscilloscope for examining the serial output eye pattern DOUT or
LOUT.

TEMP 31 T Temperature Sense Diode: Used during wafer and package test only .
TEMP* 32 It should be left open.

V

CC

7SLogic Power Supply: Normally 5.0 volts. This power supply is used for
13 the internal transmitter logic. It should be isolated from the noisy TTL
23 supply as well as possible.
24
43
44
52
63
64
66
72
79

632

Tx I/O Definition (cont’d.)

Name Pin Type Signal

V

CCTTL1

V

CCTTL2

GND

TTL1

GND

TTL2

GND 5 S Power: Normally 0 volts. Tie to ground.

27 S TTL Power Supply: Normally 5.0 volts. Used for all TTL transmitter
33 input buffer cells.

77 S TTL Power Supply: Normally 5.0 volts. Used for all TTL transmitter

input buffer cells.
26 S TTL Power: Normally 0 volts. Tie to ground.
80 S TTL Power: Normally 0 volts. Tie to ground.

6
21
22
29
30
41
42
61
62

633

Rx I/O Definition

Name Pin Type Signal

ACTIVE 25 I-TTL Chip Enable: This input is normally driven by the Rx state machine

output. The ACTIVE signal is internally retimed by STRBOUT and
presented to the user as the LINKRDY signal. This is how the Rx
state machine signals the user that the start-up sequence is complete.

CAP0A 2 C Loop Filter Capacitor: CAP0A should be shorted to CAP0B. CAP1A
CAP0B 1 should be shorted to CAP1B. A loop filter capacitor of 0.1 µF must be
CAP1A 3 connected across the CAP0 and CAP1 inputs to increase the loop time
CAP1B 4 constant.

CAV* 38 O-TTL Control Frame Available Output: This active-low output indicates

that the Rx chip data outputs are receiving Control Frames. False
CAV indications may be generated during link startup.

D0 71 O-TTL Data Outputs: 20 Bit data is received and decoded when M20SEL is
D1 70 active; otherwise 16 bit data is decoded and the D16-D19 bits
D2 69 are undefined.
D3 68
D4 67
D5 66
D6 65
D7 60
D8 59
D9 58
D10 57
D11 56
D12 55
D13 54
D14 51
D15 50
D16 49
D17 48
D18 47
D19 46

DAV* 37 O-TTL Data Available Output: This active-low output indicates that the

Rx chip data outputs, D0..D19, have received Data Frames. Data
should be latched on the rising edge of STRBOUT. Note that during
link startup, false data indications may be given. The DAV* and
LINKRDY outputs can be used together to avoid confusion during
link startup.

DIN 15 I-H50 Normal Serial Data Input: This is the input used when LOOPEN
DIN* 14 is not active. When LOOPEN is high, the loop back data inputs LIN,

LIN* are used instead. An optional cable equalizer may be enabled for
the DIN, DIN* inputs by asserting EQEN.

DIV0 6 I-TTL VCO Divider Select: These two pins program the VCO divider chain
DIV1 7 to operate at full speed, half speed, quarter speed or one-eighth speed.

EQEN 19 I-TTL Enable Input for Cable Equalization: When asserted, this signal

activates the cable equalization amplifier on the DIN, DIN* serial
data inputs.

634

Rx I/O Definition (cont’d.)

Name Pin Type Signal

ERROR 40 O-TTL Received Data Error: Asserted when a frame is received that does

not correspond to either a valid Data, Control, or Fill frame encoding.
When FLAGSEL is not active, the Rx chip also tests for strict
alternation of flag bits during data frames. A flag bit alternation
error will also cause an ERROR indication.

FDIS 20 I-TTL Frequency Detector Disable Input: When active, this input

disables the Rx PLL Frequency detector and enables a phase detector.
The Frequency detector is used during the start-up sequence to
acquire wide-band lock on Fill Frames, but must be disabled prior to
sending data patterns. This input is normally controlled by the Rx
state machine.

FF 39 O-TTL Fill Frame Status: During a given STRBOUT clock cycle, if neither

DAV, CAV, or ERROR are active, then the currently received frame
is a Fill frame. The type of fill frame received is indicated by the FF
pin. If FF is low, then FF0 has been received. If FF is high, then
either FF1a or FF1b has been received.

FLAG 45 O-TTL Flag Bit: If both Tx and Rx have FLAGSEL asserted, this output

indicates the value of the transmitted flag bit, then this received bit
can be treated just like an extra data bit. If both Tx and Rx have
FLAGSEL set to low, FLAG is used to differentiate the even frame
from the odd frame in the line code.

FLAGSEL 34 I-TTL Flag Bit Mode Select: When this input is high, the extra FLAG bit

output is effectively an extra transparent data bit. Otherwise, the
FLAG bit is checked for alternation during data frames. Any break in
strict alternation results in an ERROR indication to the user.

LIN 18 I-H50 Loop Back Serial Data Input: Use this input when LOOPEN is
LIN* 17 active. Unlike the DIN, DIN* inputs, this input does not have a cable

equalizer. In normal usage, this input will be connected to the Tx
chip LOUT, LOUT* outputs. This allows the user to check the
near-end functionality of the Tx and Rx pair independent of the
transmission medium.

LOOPEN 16 I-TTL Loop Back Control: When asserted, this signal causes the loop back

data inputs LIN, LIN* to be used instead of the normal data inputs
DIN, DIN*.

LINKRDY* 36 O-TTL Link Ready Indicator: This active-low output is a retimed version

of the ACTIVE input. ACTIVE is normally driven by the Rx state
machine output. LINKRDY* then indicates that the startup sequence
is complete and that the data and control indications are valid.

M20SEL 30 I-TTL 16 or 20 Bit Word Select: When this signal is high, the link operates

in 20 Bit data reception mode. Otherwise, the link operates in 16 Bit
mode and data outputs D16-D19 are undefined.

TEMP 77 T Temperature Sense Diode: Used during wafer and package test
TEMP* 76 only. It should be left open.

635

Rx I/O Definition (cont’d.)

Name Pin Type Signal

SMRST0* 28 I-TTL State Machine Reset Inputs: Each of these active-low input pins
SMRST1* 29 reset the Rx state machine to the initial start-up state. This initiates

a complete PLL restart and handshake at both ends of the duplex
link. Normally, SMCRST0* is connected to a power-up reset circuit
or a host system reset signal. The SMCRST1* input is normally
connected to the Tx LOCKED output. The LOCKED signal holds the
state-machine in the start-up state until the Tx PLL is locked.

STAT0 27 O-TTL State Machine Status Outputs: These outputs indicate the current
STAT1 26 state-machine state. They are used to directly control the Tx ED,

Tx FF, Rx FDIS, and Rx ACTIVE lines.

STRBOUT 35 O-TTL Recovered Frame-rate Data Clock Output: This output is the PLL

recovered frame rate clock. D0-D19, FLAG, DAV, CAV, FF, LINKRDY,
and ERROR should all be latched on the rising edge of STRBOUT.

TCLK 12 I-TTL External VCO Replacement Test Clock: When TCLKSEL in

enabled, this input is used in place of the normal VCO signal,
effectively disabling the PLL and allowing the user to provide an
external retiming clock for testing.

TCLKSEL 10 I-ECL Enable Test Clock Input: When this input is active, the TCLK,

TCLK* inputs are used in place of the normal VCO signal. This
feature is useful both for synchronous systems and for chip testing.

V

CC

V

CC_HS

V

CCTTL

GND 21 S Power: Normally 0 volts. Tie to ground.

GND

TTL

5SGround: Normally 5.0 volts. This power supply is used for all the
23 core logic other than the output drivers.
24
33
44
63
64
73
78

13 S High Speed Supply: Normally 5.0 volts. This ground is used to provide

clean references for the high speed DIN, DIN*, LIN, LIN* inputs.

32 S TTL Power Supply: Normally 5.0 volts. Used for all TTL receiver
52 output buffer cells.
53
72

22
42
62
79
80

31 S TTL Power: Normally 0 volts. Tie to ground.
41
61
74

636

Mechanical Dimensions and Surface Mount Assembly Recommendations

Both the HDMP-1022 and
HDMP-1024 are implemented in
an industry standard M-Quad 80
package. The package outline

dimensions conform to JEDEC
plastic QFP specifications and are
shown below in Figure 10. The
M-Quad 80 package material is
aluminum and the leads have
been formed into a “Gull-Wing”
configuration for surface
mounting.

M-Quad 80 Package Information

Item Details

Package Material Aluminum
Lead Finish Material 85/15 Sn/Pb
Lead Finish Thickness 300 - 600 µ inches
Lead Coplanarity 0.004 inches maximum

PIN #1 ID

We recommend keeping the
package temperature, Tc, below
75°C. Forced air cooling may be
required.

+0.18

19.786

-0.08

+0.008

(0.779

TOP VIEW

+0.16

13.792

-0.04

+0.008

-0.002

)

(0.104 ± 0.005)

(0.543

17.20 ± 0.10

(0.677 ± 0.004)

ALL DIMENSIONS ARE IN MILLIMETERS (INCHES).

Figure 10. Mechanical Dimensions of HDMP-1022 and HDMP-1024.

)

-0.002

23.20 ± 0.10

(0.913 ± 0.004)

2.64 ± 0.13

0.35 TYP.

(0.014 TYP.)

0.80 TYP.

(0.032 TYP.)

7 DEG

(0.031 ± 0.00)

0.38 ± 0.05

(0.015 ± 0.002)

0.15

(0.006)

0.80 ± 0.13

637

Appendix I: Additional Internal Architecture Information

Line Code Description

The HDMP-1022/1024 line code
is Conditional Invert Master
Transition (CIMT), illustrated in
Figure 11. The CIMT line uses
three types of frames: data
frames, control frames, and fill
frames. Fill frames are internally
generated by the Tx chip for use
during link start up and when
there is no input from the user.
Each frame consists of a Data
Field (D-Field) followed by a
Coding Field (C-Field). The D­Field can be either 16-bits or 20­bits wide, depending on link
configuration. The C-Field has a
master transition which serves as
a fixed timing reference for the
receivers clock recovery circuit.
Users can send arbitrary data
carried by Data or Control
Frames. The dc balance of the
line code is automatically
enforced by the Tx. Fill frames
have a single rising edge at the
master transition which is used
for clock recovery and frame
synchronization at the receiver.

Detailed coding schemes are
described in the following
subsections. All the tables given
in this section show data bits in
the same configuration as a scope
display. In other words, the
leftmost bit in each table is the
first bit to be transmitted in time,
while the rightmost bit is the last
bit to be transmitted.

Data Frame Codes

When not in FLAGSEL mode, the
FLAG bit is not user controllable
and is alternately sent as 0 and 1
by the Tx chip during data frames
to provide enhanced error
detection. Control and Fill frames
do not cause toggling between
even and odd frames to occur (the
FLAG bit is not available during
control frames). The receiver
performs a differential detection
to make sure that every data
frame received is the opposite
pattern from the previous frame.
If a break in the strict alternation
is observed, a frame error is
flagged by asserting the Rx
ERROR output. This pattern
detection makes it impossible for
a static input data pattern to

generate an undetectable false
lock point in the transmitted data
stream. The detection also
reduces the probability that the
loop could lock onto random data
at a point away from the true
master transition for any
significant time before it would be
detected as a false lock. This
mode can detect all single-bit
errors in the C-field (non-data bit
fields) of the frame.

When the chip is in FLAGSEL
mode, the extra FLAG bit is freely
user definable as an extra data
bit. This provides a 17th bit in 16
bit mode, and a 21st bit in 20 bit
mode. The probability of
undetected false lock is higher,
but the users (e.g., SCI-FI) that
need the extra bit can detect false
lock at a higher level of the net­work protocol with clock recovery
circuits, etc. If the higher level
protocols consistently receive
wrong data, they can initiate a
link restart by resetting the Rx
state machine.

DATA FIELD

SERIAL
DATA

FILL
FRAME

Figure 11. HDMP-1022/1024 (Tx/Rx Pair) Line Code.

16/20 BITS

FRAME K

638

CODING FIELD
4 BITS

FRAME K+1

MASTER

TRANSITION

HDMP-1022 (Tx), HDMP-1024 (Rx)

Operating Modes

M20SEL FLAGSEL Description

0 0 16 bit data plus error checking
0 1 16 bit data plus FLAG
1 0 20 bit data plus error checking
1 1 20 bit data plus FLAG

HDMP-1022 (Tx), HDMP-1024 (Rx)

Data Frame Structure

M20SEL Not Asserted (16 bit data mode)

Data Status Flag bit D-Field C-Field

True 0 D0 - D

Inverted 0 D0 - D

True 1 D0 - D

Inverted 1 D0 - D

15

15

15

15

HDMP-1022 (Tx), HDMP-1024 (Rx)

Data Frame Structure

M20SEL Asserted (20 bit data mode)

1101
0010
1011
0100

Data Status Flag bit D-Field C-Field

True 0 D0 - D

Inverted 0 D0 - D

True 1 D0 - D

Inverted 1 D0 - D

Control Frame Codes

There are 218 control words
provided in 20 bit mode. If the
user desires to send a control
word, his lower 9 bits (D0-D8)
are sent as bits D0-D8 of the D­Field. The user’s next 9 bits (D9-
D17) are sent as bits D11-D19 of

the D-Field. The control frame is
either inverted or not inverted as
needed to maintain balance, with
the coding bits 0011 used to
indicate true control, and the bits
1100 used to indicate complement
control. The bits d9 and d10 are
always forced to 0 1 for true

19

19

19

19

control frames and 1 0 for

1101
0010
1011
0100

complement control frames.
These middle bits are used to
distinguish control frames from
fill frames, which always have the
middle bits set to either 00, 11, or

10. Similarly, there are 2

14

control words provided in 16 bit
mode.

639

HDMP-1022 (Tx), HDMP-1024 (Rx)

Control Frame Structure

M20SEL Not Asserted (16 bit mode)

D-Field C-Field

D0 - D6 D7 D8 D9 - D15 C0 C1 C2 C3

D0 - D
D

- D

0

6

6

01D
10D

- D

7

- D

7

13

13

0011
1100

HDMP-1022 (Tx), HDMP-1024 (Rx)

Control Frame Structure

M20SEL Asserted (20 bit mode)

D-Field C-Field

D0 - D8 D9 D10 D11-D19 C0 C1 C2 C3

D0 - D
D

- D

0

8

8

01D
10D

-D170011

9

-D171100

9

Fill Frame Codes

Two logical fill frames are
provided: FF0 and FF1. FF0 is
physically a 50% duty cycle wave
form with its sole rising edge

occurring between C1 and C2.
Logical FF1 toggles between two
different physical codes, the first
of which advances the falling edge
of FF0 by one bit, the second of

HDMP-1022 (Tx), HDMP-1024 (Rx)

Fill Frame Structure

M20SEL Not Asserted (16 bit mode)

Fill Frame D-Field C-Field

0 1111111 10 0000000 0011

1a 1111111 11 0000000 0011

1b 1111111 00 0000000 0011

HDMP-1022 (Tx), HDMP-1024 (Rx)

Fill Frame Structure

M20SEL Asserted (20 bit mode)

Fill Frame D-Field C-Field

0 111111111 10 000000000 0011

1a 111111111 11 000000000 0011

1b 111111111 00 000000000 0011

which retards the falling edge of
FF0 by one bit. Two logical fill
frame types are required for link
start up in duplex mode.

640

HDMP-1024 (Rx)

Detectable Error States

M20SEL Not Asserted (16 bit mode)

D-Field C-Field

xxxxxxx xx xxxxxxx x00x
xxxxxxx xx xxxxxxx x11x
xxxxxxx 0x xxxxxxx 1100
xxxxxxx 11 xxxxxxx 1100
xxxxxxx xx xxxxxxx 1010
xxxxxxx xx xxxxxxx 0101

HDMP-1024 (Rx)

Detectable Error States

M20SEL Asserted (20 bit mode)

D-Field C-Field

xxxxxxxxx xx xxxxxxxxx x00x
xxxxxxxxx xx xxxxxxxxx x11x
xxxxxxxxx 0x xxxxxxxxx 1100
xxxxxxxxx 11 xxxxxxxxx 1100
xxxxxxxxx xx xxxxxxxxx 1010
xxxxxxxxx xx xxxxxxxxx 0101

Tx Operation Principles

The HDMP-1022 (Tx) is imple­mented in a high performance
silicon bipolar process. The Tx
performs the following functions
for link operation:

• Phase lock to frame rate clock

• Clock multiplication

• Frame encoding

• Multiplexing

In normal operation, the Tx phase
locks to a user supplied frame
rate clock and multiplies the
frequency to produce the high
speed serial clock. When locked,
the Tx indicates that it is locked
by asserting the LOCKED output.
When the ED input is asserted,
the Tx asserts the RFD signal

indicating that it is now ready to
transmit data or control frames.

The Tx can accept either 16 or 17
bit wide parallel data and produce
a 20 bit frame. It also can accept
20 or 21 bit data and produce a
24 bit frame. Similarly, either 14
bit or 18 bit control words can be
transmitted in a 20 bit or 24 bit
frame respectively.

Tx Encoding

A simplified block diagram of the
transmitter is shown in Figure 4.
The PLL/Clock Generator locks
onto the incoming frame rate (or
one-half frame rate) clock and
multiplies it up to the serial clock
rate. It also generates all the
internal clock signals required by
the Tx chip.

The data inputs, D0-D19, as well
as the control signals; ED, FF,
DAV*, CAV*, and FLAG are
latched in on the rising edge of an
internally generated frame rate
clock. The data field is then
encoded depending on the state
of the control signals. At the same
time, the coding field is
generated. At this point, the entire
frame has been constructed in
parallel form and its sign is
determined. This frame sign is
compared with the accumulated
sign of previously transmitted bits
to decide whether to invert the
frame. If the sign of the current
frame is the same as the sign of
the previously transmitted bits,
then the frame is inverted. If the
signs are opposite, the frame is
not inverted. No inversion is

641

performed if the frame is a fill
frame.

The Output Select block allows
the user to select between two
sets of differential high speed
serial outputs. This feature is
useful for loop back testing. If
LOOPEN is high, LOUT is enabled
and DOUT is disabled. If LOOPEN
is low, DOUT is enabled and
LOUT is disabled.

The active-low RST* input resets
the internal registers to a
balanced state. This pin should be
held low for at least five frame
rate clock cycles to ensure a
complete reset.

The Data Field and Control Field
are encoded depending on ED,
FF, DAV*, CAV*, FLAG,
FLAGSEL, M20SEL as well as two
internally generated signals, O/E
and ACCMSB.

When FLAGSEL is high, O/E is
equivalent to FLAG. This is
equivalent to adding an additional
bit to the data field. When
FLAGSEL is low, O/E alternates

between high and low for data
frames. This allows the link to
perform more extensive error
detection when the extra bit is
unused.

ACCMSB is the sign of the pre­viously transmitted data. This is
used to determine which type of
FF1 should be sent. When
ACCMSB is low, FF1a is sent and
when ACCMSB is high, FF1b is
sent. This effectively drives the
accumulated offset of transmitted
bits back toward the balanced
state.

Tx Phase-Locked Loop

The block diagram of the
transmitter phase-locked loop is
shown in Figure 12. It consists of
a sequential frequency detector,
loop filter, VCO, clock generation
circuitry, and a lock indicator.
The outputs of the frequency
detector pass through a charge
pump filter that controls the
center frequency of the VCO.
These outputs also go to the VCO
directly to effectively add a zero
in the loop response. An external
high-speed clock can be used
instead of the VCO clock. This is

accomplished by applying a high
signal to EHCLKSEL and a
differential clock to STRBIN.

One of four frequency bands may
be selected by applying appropri­ate inputs to DIV0 and DIV1. The
VCO or STRBIN frequency is
divided by N, where N is 1, 2, 4,
or 8 corresponding to the binary
number represented by DIV1,
DIV0. This divided version of the
VCO clock or STRBIN is used as
the serial rate clock and is
available as a differential signal at
the HCLK output.

A clock generator block creates
all the clock signals required for
the chip. Depending on M20SEL,
STRBOUT is either HCLK/20 or
HCLK/24. If MDFSEL is low, then
STRBOUT is a phase-locked
version of STRBIN. If MDFSEL is
high, STRBOUT is twice the
frequency of STRBIN.

The lock detect circuit samples
STRBIN with phase shifted
versions of STRBOUT. If the
samples are not the proper
values, the LOCKED signal goes
low and stays low for at least two
frames.

STRBIN

M20SEL

MDFSEL

Figure 12. HDMP-1022 (Tx) Phase-Locked Loop.

FREQ

DETECT

INTERNAL CLOCKS

CLOCK

GENERATOR

LOCK

DETECT

LOCKED

STRBOUT

HCLK

642

FILTER

DIV N

DIV0 DIV1

VCO

0

STRBIN1

EHCLKSEL

Rx Operation Principles

The HDMP-1024 (Rx) is
monolithically implemented in a
high performance 25 GHz f

t

bipolar process. When properly
configured, the Rx can accept
20B/24B CIMT line code frames,
and then output parallel 16B/17B/
20B/21B Data Word or 14B/18B
Control Word. The Rx provides
the following functions for link
operation:

• Clock recovery

• Frame synchronization

• Data recovery

• Demultiplexing

• Frame decoding

• Frame error detection

• Link state control

Rx Encoding

Figure 5 shows a simplified block
diagram of the receiver. The data
path consists of an Input Select,

an Input Sampler, a Frame
Demultiplexer, a Control Field (C­Field) Decoder, and a Data Field
(D-Field) Decoder. An on-chip
phase-locked loop (PLL) is used
to extract timing reference from
the serial input (DIN or LIN). The
PLL includes a Phase-Frequency
Detector, a Loop Filter, and a
variable-frequency oscillator
(VCO). All the RX internal clock
signals are generated from a
Clock Generator. The Clock
Generator can be driven either by
internal VCO or external signal,
TCLK, depending on the Clock
Select configuration.

Integrated on the chip is a Link­Control State Machine for link
status monitoring and link
startup. Figure 13 shows the
details of the Input Select. The
Input Select chooses either
nominal serial data (DIN) or

loopback (LIN) signal for the
Input Sampler’s input. If loopback
enable (LOOPEN) is asserted, the
LIN input is selected. Also
included in the Input Selector is
cable equalization circuitry. When
coaxial cable is used as the
transmission media, by setting
EQEN=1 (enable equalization),
the equalization circuitry is in the
DIN signal path and can
compensate for high-frequency
cable loss.

Because the Data Field of the
CIMT line code can be either
16-bit or 20-bit wide, the width
selection for Rx is made by
setting the input pin M20SEL
(Figure 5). If M20SEL=1, then
the Rx is configured to accept
serial input with 20-bit data field,
i.e., 24 bits per frame. If
M20SEL = 0, 16-bit data field is
selected.

LOOPEN

EQEN

DIN

CABLE EQ

LIN

Figure 13. HDMP-1024 (Rx) Input Selector.

0
1

0
1

SIN

643

HDMP-1024 (Rx) Phase­Locked Loop

A more detailed block diagram for
the Rx phase-locked loop (PLL) is
shown in Figure 14. In the PLL,
the phase of the serial input, SIN,
is compared with synchronizing
signals from the internal clock
generator, using either a phase
detector or a frequency detector.
The frequency detector disable
signal, FDIS, selects which
detector to use. If synchronization
in a link is not yet established, the
HDMP-1022 (Tx) should send out
Fill Frame 0 (FF0) or Fill Frame 1
(FF1) to the remote Rx. By
setting FDIS=0, the Rx uses the
frequency detector to align its
internal clock with the rising edge
of FF0/FF1. Once frequency lock
is accomplished, FDIS can be set
to 1, then the PLL uses only the
phase detector for synchronization
adjustment and the Rx is ready to
receive data. Due to the narrow
frequency acquisition range of the
phase detector, the frequency
detector is used for internal
frequency acquisition. The

frequency detector, however, can
only work with FF0 and FF1 and
it is necessary for the PLL
selecting the phase detector (by
setting FDIS=1) before receiving
any random data.

The output of the phase­frequency detector is externally
available through pin PHI. An
external clock source can also be
used (through pin TCLK) by
setting TCLKSEL=1. To broaden
the usable frequency range of the
chip, there is a programmable
divider before the clock
generator. The VCO or TCLK
frequency can be divided by 1, 2,
4, 8 by setting DIV1, DIV0 = 00,
01, 10, 11 (see Operating Rate
Tables).

HDMP-1024 (Rx) Decoding

In Figure 5, the frame
demultiplexer de-serializes the
recovered serial data from the
Input Sampler, and outputs the
resulting parallel data one frame

at a time. Every frame is
composed of a 16-bit or 20-bit
Data Field (D-Field) and a 4-bit
Control Field (C-Field). The C­Field, C0-C3, together with the
two center bits of the D-Field (D9
and D10 for 20 bit mode, D7 and
D8 for 16 bit mode) are then
decoded by the C-Field decoder to
determine the content of the
frame. The D-Field decoder is
controlled by the outputs of the
C-Field decoder. If an inverted
Data Word or Control Word is
detected, the D-Field decoder will
automatically invert the D-Field
data. If a Control Frame is
detected, the D-Field decoder will
shift the bottom half of the D­Field so that the outputs are at
pin D0 - D17 (if M20SEL =1) or at
pin D0 - D13 (if M20SEL =0). A
data Frame is detected by the
receiver when DAV = 1. A control
Frame is detected by the receiver
if CAV = 1. A Fill Frame is
detected by the receiver if
DAV = 0 and CAV = 0.

FDIS

FREQ

SIN

PHASE

STRBOUT

Figure 14. HDMP-1024 (Rx) Phase-Locked Loop.

CLOCK GEN

BCLK

0
1

DIV N

DIV0 DIV1

644

0
1

TCLKSEL

PH1

VCO

FILTER

TCLK

The C-Field decoder will set iERR
= 1 when it detects an error. The
internal error bit (iERR) is
combined with the internal flag
bit (iFLAG) and the flag-bit mode­select signal (FLAGSEL) to
produce the externally available
error bit (ERROR) and flag
(FLAG) bits. If FLAGSEL=1, the
FLAG can be used as an extra
data bit:

• ERROR=iERR.

• FLAG=iFLAG.

• If a Fill Frame is detected, then
FLAG=0.

• If a Control Frame is detected,
FLAG should be ignored.

If FLAGSEL=0, the serial input is
assumed to consist of alternating
even frames (iFLAG=0) and odd
frames (iFLAG=1):

• If iERR=1, then ERROR=1.

• If a Fill Frame is detected, then
FLAG=0.

• If a Data Frame is detected,
then FLAG=iFLAG, and iFLAG
should alternate between 0 and
1, starting with 0 and ending
with 1; otherwise, ERROR=1.

• If a Control Frame is detected,
then FLAG automatically
alternates between 0 and 1,
starting with 0.

The even or odd feature allows a
32/40-bit wide data word to be
transmitted through the link. A
2:1 multiplexer and a 1:2 demulti­plexer are required. FLAG is used
to synchronize the even and odd
frames. Note, both Data and
Control Frames can be
transmitted as even/odd pairs, but
only Data Frames can be detected
for out of order errors.

HDMP-1024 (Rx) Link­Control State Machine
Operation Principle

The link-control state machine
(SMC) on the Rx chip provides a
link handshake protocol enabling
the duplex link to transition from
frequency acquisition and training
mode into data mode.

The HDMP-1022/1024 Tx/Rx link
uses an explicit frequency
acquisition mode at startup that
operates on a square-wave
training sequence. This makes it
possible to use a VCO with a very
wide tuning range yet avoid the
harmonic false lock problems
associated with other circuits of
this type.

Using the SMC, a full duplex data
channel can be implemented
without additional controller or
hardware.

The State Machine Handshake Protocol

Figure 1d shows a simplified
block diagram of the HDMP­1022/1024 data channel con­figured for full duplex operation.
Two HDMP-1022/1024 chipsets
are required to perform the
handshake in parallel. There are
three states that the link must go
through to complete the link
startup process:

• State 0: Frequency Acquisition

• State 1: Waiting for Peer

• State 2: Sending Data

Each side of the link decides
which of the three states that it
should be in. The decision is
based on its own past memory
and the type of frame that it is
currently receiving from the other
side of the link.

Considering only the local port of
the link, there is a transmitter
(Tx), a receiver (Rx) and a state
machine controller (SMC). The
SMC entity, although logically
distinct, is implemented on the
same die as the Rx chip. The SMC
monitors the data frame status
indicators (ERROR, DAV, CAV,
FW) from the Rx, and is able to
force (or control) various
characteristics of the Tx and the
Rx chips. The Tx chip has the
following controllable features:

• It can be forced to send a Fill
Frame using the ED input.

• The type of Fill Frame sent can
be controlled using the FF
input.

The Rx Chip has the following
controllable features:

• It can be in Frequency
acquisition or Phase-lock/Data
reception mode depending on
the state of the FDIS input.

• It can be enabled for data
reception or set in a mode in
which data frames are ignored
depending on the ACTIVE
input.

The Rx chip can also distinguish
between various types of frames.
It can also communicate the
frame type to the SMC. The
various frame types are:

• Fill Frame 0, (FF0)

• Fill Frame 1 a/b (FF1)

• Data/Control frames (Data)

• Error frames (ERROR)

The SMC can also be reset by
either the SMCRST0* or
SMCRST1* inputs. Usually one of
these inputs is used for power-on
reset, and the other is connected
to the Tx LOCKED output.

This holds the SMC in state 0 until
the transmitter PLL has locked.

645

Figure 15 shows the state
diagram of the SMC. The SMC is
debounced by allowing state
transitions to be made only after
at least 2 consecutive frames give
the same indication. This prevents
single bit errors from causing
false state transitions. In addition
to this debouncing mechanism,
when two consecutive ERROR or
Resets occur, a timer is enabled
forcing the SMC into state zero
for 128 frame times. Any
transition out of this initial state
can only occur after the link has
been error-free for 128 frames.
This prevents false transitions
from being made during the bit-

SEND FF0
DISABLE DATA TRANSMISSION
DISABLE DATA RECEPTION
FREQUENCY DETECTOR ON

SEND FF1
DISABLE DATA TRANSMISSION
ENABLE DATA RECEPTION
FREQUENCY DETECTOR OFF

FF0

ERROR

RESET

0

1

FF1
FF0

slipping that occurs in the initial
frequency acquisition of both the
Tx and Rx PLLs.

When the local port is in State 0,
it is in the reset state, where both
local Tx and Rx parallel interfaces
are disabled. The local Tx trans­mits FF0 continuously, and the
local Rx PLL is in the frequency
detection mode. When the local
Rx is phase-locked to the remote
Tx, it transitions to State 1. The
local Tx transmits FF1 to
acknowledge the phase-locked
condition (its parallel input is still
disabled). The local Rx PLL is in
the phase detection mode and its

DATA
ERROR
RESET

ERROR
RESET

FF0

parallel output is enabled. When
in State 2, the two-way synchroni­zation between the local port and
the remote port is established.
Both local Tx and Rx parallel
interfaces are enabled, and the
local Rx PLL is in the phase detec­tion mode. Parallel data can be
sent by the local Tx, and at the
same time, received by the local
Rx.

The Rx chip has the state machine
logic built in. The SMC has two
status outputs, STAT0 and STAT1,
that control the various features
of the two chips depending on the
current state. The TX inputs that
need to be controlled are FF and
ED. The Rx inputs that need to be
controlled are FDIS and ACTIVE.
To control the chips as shown in
the state diagram of Figure 15,
the following interchip
connections must be made
(Figure 16):

• Tx FF is driven by STAT1

• Tx ED is driven by STAT0

• Rx FDIS is driven by STAT1

• Rx ACTIVE is driven by STAT1

• Tx RST and Rx SMCRST0 are

driven by a power-on, or user,
reset circuit.

DATA

FF1

SEND FF0

2

Figure 15. HDMP-1024 (Rx) State Machine State Diagram.

ENABLE DATA TRANSMISSION
ENABLE DATA RECEPTION
FREQUENCY DETECTOR OFF

STATE STAT1 PIN STAT0 PIN

0
1
2

0
1
1

0
0
1

646

DATA
FF1

Appendix II: Link Configuration Examples

This section shows some
application examples using the
HDMP-1022/1024 chipset. Refer
to I/O Definition for detailed
circuit-level interconnection.

This guide is intended to aid the
user in designing G-LINK into a
system. It provides the necessary
details of getting the system up,
without the detailed description of
the inner circuitry of the chip set.

The first section is a description
of the various configurations for
duplex and simplex operation.
The second section describes the
interface to both single frame and
double frame mode. Following
that is a section on the integrating
capacitor and power supply
bypassing recommendations.
Next is a guide to the various
types of electrical I/O connec­tions. The final section is a
discussion on TTL translations

and the use of a single positive
supply. Also included is a list of
the various options and their
definitions.

Duplex/Simplex Configurations

The following describes the
common setups for the link. In all
cases, the DIN and LIN are
differential high speed lines, and
unused leads should be terminated
with 50 Ω AC coupled to ground.
Since the data stream has no DC
component, a coupling cap of

0.1 µF is recommended for the
DIN and LIN inputs.

Full Duplex

Figure 16 shows HDMP-1022/
1024 in a full duplex configura­tion connecting two bidirectional
(parallel) buses. Each end of the
link has a Tx and Rx pair. The
receiver’s state machine outputs
(STAT0 and STAT1) are used to
control the status of the link.
Various options such as 16/20 bit

mode (M20SEL) and speed
selections (DIV0,DIV1) are
grouped together under the label
‘options.’ A power-on reset is
available to the user to reset the
link during startup.

When the Tx has acquired lock to
the incoming STRBIN at the
frame rate, the LOCKED pin is
activated, which enables the Rx.
At this state, both STAT0 and
STAT1 are low, forcing the Tx to
send FF0, which is a square wave
pattern used by the remote Rx to
acquire frame lock. When the
local Rx has acquire frame lock,
STAT1 is set high to first turn off
its own frequency detector
(FDIS), then sets itself to active
mode (ACTIVE), and tells the
local Tx to send FF1 to signal the
remote Rx that the local pair is
ready. Likewise, when the remote
pair is ready, the local Rx will
receive FF1, causing STAT0 to go
high, which asserts the enable
data (ED) pin on the Tx. The ED

Tx DATA

INTERFACE

RST*

LOCKEDEDFF

POWER-ON

RESET

STAT0

SMCRST0*

SMCRST1*

STAT1

Rx DATA

INTERFACE

Figure 16. Full Duplex Configuration.

DOUT

LOUT

FDIS

ACTIVE

OPTIONS

LIN

DIN

DIN

LIN

OPTIONS

LOUT

DOUT

RxTx

ACTIVE

FDIS

TxRx

STAT1

STAT0

FF

ED

SMCRST1*

SMCRST0*

POWER-ON

RST*

LOCKED

Rx DATA

INTERFACE

RESET

Tx DATA

INTERFACE

647

signal is retimed to signify to the
host that the Tx is ready to send
data (RFD). Other configurations
for duplex mode are also possible
with external user-defined state
machines. Simplex operation
using G-LINK is also possible. The
following sections discuss three
different types of simplex
configurations.

Simplex Method I. Simplex
with Low-Speed Return Path

Low-speed lines are used in the
simplex method of Figure 17a.
The remote Rx controls the states
of both the Rx and the local Tx
using these low speed lines. This
is ideal for cases where these non­critical lines are available. Again,
a power on reset is available to
the user. This connection between
the Tx and Rx is identical to one
side of the duplex configuration.

When the Tx is locked, the Rx is
enabled via the LOCKED line. The
Rx’s STAT0 and STAT1 outputs
are low, causing the local Tx to
send FF0. When the Rx is frame
locked, STAT1 is raised, which
disables its frequency detector,
sets itself to active mode, and tells
Tx to send FF1. Upon receiving
FF1 from the Tx, the Rx’s STAT0
line is raised, which enables the
Tx (ED) for data transmission. If
desired, the Rx reset pin
(SMCRST1) can be tied high, and
the LOCKED line can be
eliminated.

Tx DATA

INTERFACE

POWER-ON

RESET

Tx DATA

INTERFACE

POWER-ON RESET

PERIODIC

SYNC PULSES

Tx DATA

INTERFACE

POWER-ON

RESET

DOUT

LOUT

RST*

LOCKEDEDFF

OPTIONS

LOW SPEED LINES

A) SIMPLEX METHOD 1 WITH LOW-SPEED RETURN PATH

DOUT

LOUT

RST*

LOCKEDEDFF = 1

OPTIONS

V

CC

B) SIMPLEX METHOD 2 WITH PERIODIC SYNC PULSE

DOUT

LOUT

RST*

LOCKED

ED = 1

FF = 1

OPTIONS

V

CC

C) SIMPLEX METHOD 3 WITH EXTERNAL REFERENCE OSCILLATOR

OSC

FREQ = FRAME RATE

OPTIONS

OPTIONS

OPTIONS

DIN

LIN

DIN

LIN

LIN

DIN

RxTx

ACTIVE

FDIS

STAT1

RxTx

ACTIVE

FDIS

STAT1

RxTx

ACTIVE

FDIS

LOOPEN

STAT0

SMCRST1*

STAT0

SMCRST1*

STAT1

STAT0

Rx DATA

INTERFACE

SMCRST0*

POWER-ON

RESET

Rx DATA

INTERFACE

SMCRST0*

POWER-ON

RESET

Rx DATA

INTERFACE

SMCRST1*

SMCRST0*

POWER-ON

RESET

Figure 17. Simplex Configurations.

648

Simplex Method II. Simplex
with Periodic Sync Pulse.

Another configuration of simplex
operation is shown in Figure 17b.
For frame lock, the Rx normally
relies on either FF0 or FF1. In
this example, the fill frame FF of
the Tx is forced high with a
connection to ground, and the
enable data pin ED is pulsed
periodically to force the Tx to
send FF1. During this pulse,
however, the link is not available
for data transmission.

The pulse width applied to ED
should be long enough for the Rx
to acquire lock. The typical Rx
lock-up time is around 2.5 mS for
the high frequency band, thus a
5 mS pulse is adequate in this
case. For other bands, longer
pulses are required. Typical lock­up times for all four data rate
ranges can be found in the table
Typical Lock-Up Time at the
front of the data sheet. Note that
these lock-up times assume a 0.1
µF integrating capacitor is being
used on the PLL. Refer to the
section on Supply Bypassing
and Integrator Capacitor for
more details. After G-LINK is
locked, ED needs to go low only
as often as needed to ensure that
the link is locked. Lock can be
lost if the serial line is broken, or
if two consecutive frame errors
are detected by the receiver’s
state machine. The length of time
between ED pulses will determine
how long the user needs to wait
before lock is re-established.

Simplex Method III: Simplex with Reference Oscillator

A third configuration for simplex
operation is shown in Figure 17c.

The high-speed serial line is
brought into the receiver through
the LIN input, and a reference
clock at the frame rate is
connected to the DIN input.

The Rx uses the reference clock
for frequency acquisition. Upon
frequency lock, STAT1 goes high,
and sets the detector from
frequency to phase detection
mode through FDIS. At the same
time, it switches the input from
the reference clock to the data
stream. Since the relative phase of
the reference clock to that of the
data stream is random, the phase
detector will lock onto a random
transition in the data stream.
Errors are detected if the phase
lock is not locked to the master
transition. If two consecutive
errors occur, the STAT1 line is
forced low, and the state machine
switches the receiver back to the
reference oscillator. This process
is repeated until the master
transition is found, and an error­free condition exists. Because of
the nature of this hunting
process, it is possible for a static
code to emulate the master
transition. Therefore, it is
recommended that the flag bit be
reserved for error detection. With
FLAGSEL disabled, the flag bit is
toggled internally by the Tx, and
the Rx uses this strict alternation
to detect errors, thus making the
link much more reliable.

The lock up time in this simplex
configuration is dependent on the
frequency match between the two
local oscillators. This method
relies on a slight difference

between the two frequencies in
order to guarantee a lock within a
reasonable time. In theory, a
perfect match could result in no
lock due by causing the receiver
to consistantly try and lock at the
same non-master transition point
in the incoming frames. For­tunately there is no such thing as
a perfect match in the real world.
It is recommended to select
crystal oscillators between 0.1%
to 0.001% matching.

The above method uses the LIN
line as the high-speed serial data
line. This works well and is simple
to implement, but it doesn’t take
advantage of the coaxial equalizer
on the DIN line. Adding an
external TTL inverter to the Loop
Back Control (LOOPEN) pin
allows the reference oscillator to
be injected into LIN and the serial
data line (DIN) to be used as the
high-speed data line. If the coaxial
equalizer is needed in the DIN
path, DIN and LIN inputs can be
interchanged with an external
TTL inverter before LOOPEN.

Data Interface for Single/
Double Frame Mode.

G-LINK is designed to work with
single frame or double frame
modes, in either 16 or 20 bits
wide per frame. An extra flag bit
is available with FLAGSEL and it
is used to signify the first or
second frames in double- frame
mode. The 16/20 frame width
option is selected with the
M20SEL pin. In this discussion, a
20 bit width is assumed. In both
single and double frame modes,
the data frame (D0-D19), flag bit

649

(FLAG), and the data/control
word available pins (DAV*, CAV*),
must appear before the setup time
ts, and remain valid for the hold
time th. Refer to HDMP-1022 Tx
Timing. Since the PLL of the Tx
is designed with a very high-gain
frequency/phase detector, the
relative alignment of the internal
clock and STRBIN is very tight,
and is insensitive to temperature
and other variations. The
observed external changes are
due mainly to variations in the
buffers, which are relatively small.
For convenience, the setup and
hold times are referenced back to
the user-supplied clock, STRBIN.
The actual sampling clock is
slightly advanced relative to

STRBIN due to internal delays,
and the hold time is typically
negative.

The user has to make sure that
M20SEL, FLAGSEL, DIV0, and
DIV1 have the same setting on
both Tx and Rx. The word width
of the parallel data from the host
can be either 16 bits if M20SEL =
0, or 20 bits if M20SEL = 1. Also,
the FLAG bit can be used as an
additional bit by setting
FLAGSEL=1. In the last case, the
parallel data word width is either
17 bits or 21 bits. The local
loopback test can be enabled by
setting LOOPEN high.

Single Frame Mode
(MDFSEL=0)

A block diagram showing the
single-frame mode data interface
for both the Tx and Rx, and their
associated timing diagrams are
shown in Figure 18.

In the Tx side, the expected
frequency of the input clock
STRBIN is the bit rate of the data
frame. In this case, the setup and
hold times are referenced to the
rising edge of STRBIN. The
internal clock is buffered to form
STRBOUT which appears with a
delay of T

after STRBIN.

strb

In the Rx side, the data frame,
flag bit, CAV*, DAV*, LINKRDY,
and ERROR appear with a delay
of td1 after the falling edge of
STRBOUT. The state machine
outputs STAT0 and STAT1 appear
with a delay of td2.

CAV*, DAV*
D00 - D19

FLAG
STRBOUT

STRBIN

STRBIN

D00 - D19
CAV*, DAV*
FLAG

STRBOUT

t

= SETUP TIME

s

= HOLD TIME

t

h

= STRBIN TO STRBOUT DELAY

t

strb

Figure 18. Tx and Rx Data Interface for Single Frame Mode (MDFSEL=0).

PLL

t

s

t

h

Tx

CONFIGURATIONS

t

strb

CONFIGURATIONS

STRBOUT

D00 - D19
FLAG
CAV*, DAV*, FF
LINKRDY, ERROR

STAT0, STAT1

Rx

t
t

CAV*, DAV*, FF
LINKRDY, ERROR
D00 - D19

FLAG
STRBOUT

STAT0, STAT1

t

d1

= STRBOUT TO SYNCHRONOUS OUTPUTS DELAY

d1

= STRBOUT TO STATE MACHINE OUTPUTS DELAY

d2

t

d2

650

Double Frame Mode
(MDFSEL=1)

A block diagram showing the
double-frame mode data interface
for both the Tx and Rx, and their
associated timing diagrams are
shown in Figure 17. This
configuration works best if the
duty cycle of STRBIN is 50%.

In the Tx side, the expected
frequency is 1/2 of the combined
frame period. This combined
frame, D0-D19, is formed by
interlacing the two frames C0­C19 and C20-C39 with an
external 2:1 multiplexer. The Tx
locks onto STRBIN, which has the
same frequency as the bit rate of
C0-C39, and with an internal
frequency doubler, generates the
sampling clock to latch in

CAV*, DAV*
C00 - C19

C20 - C39
STRBOUT

STRBIN

0

2:1

MUX

1

D00 - D19

FLAG

PLL

D0-D19, DAV*, CAV*, and FLAG.
STRBIN is also used to toggle the
2:1 multiplexer, and is fed into
the flag input to signify the two
frames. The setup and hold times
are referenced to 1/2 frame
period of D0-D19, or 90 deg,
from the edges of STRBIN. The
multiplexer delay, t

, should be

mux

considered for timing margins.
The STRBOUT is derived from the
internal sampling clock, and thus
has a frequency double that of
STRBIN. The falling edge of
STRBOUT appears after the rising
and falling edges of STRBIN after
a delay of T

. Other interlacing

strb

techniques can also be achieved
with edge-triggered latches for
improved timing margins.

Tx

CONFIGURATIONS

Rx

CONFIGURATIONS

In the Rx side, the frame D0-D19
are demultiplexed back to the
original C0-C19, and C20-C39
frames with the use of external
edge-triggered flip-flops. The
toggle clock of the flip-flops,
RCLK, is derived by the state of
the FLAG bit. RCLK toggle with
the rising edge of STRBOUT with
a delay of tda. The two frames
appear with the rising and falling
edges of RCLK with a delay of tdb.
All of the synchronous outputs
and state machine outputs appear
after the falling edge of STRBOUT
with delays of td1 and t

d2

respectively.

The lower frame of C0-C19 can
be delayed further with additional
latches so that both C0-C19 and
C20-C39 frames are synchronous.

CAV*, DAV*, FF
LINKRDY, ERROR

D00 - D19

FLAG

RCLK

C00 - C19
C20 - C39

STRBOUT
STAT0; STAT1

STRBOUT

CAV*, DAV*
FF, LINKRDY
ERROR

D00 - D19

FLAG

RCLK

C00 - C19

C20 - C39

STAT0
STAT1

t

d1

t

d2

t

da

t

db

t

d1

C00 - C19 C20 - C39

t

da

t

db

= STRBOUT TO SYNCHRONOUS OUTPUTS DELAY
= STRBOUT TO STATE MACHINE OUTPUTS DELAY
= STRBOUT TO RCLK DELAY
= RCLK TO C00-C39 OUTPUT DELAY

STRBIN
FLAG

CAV*, DAV*

C00 - C19
C20 - C39

D00 - D19

STRBOUT

1/2 FRAME

PERIOD

t

s

C00 - C19 C20 - C39

t

s

t

= SETUP TIME

s

= HOLD TIME

t

h

= STRBIN TO STRBOUT DELAY

t

strb

= 2:1 MULTIPLEXER DELAY

t

mux

t

strb

t

h

t

h

1/2 FRAME

PERIOD

t

s

t

s

t

t

mux

t

h

h

Figure 19. Transmitter and Receiver Data Interface and Timing for Double Frame Mode (MDFSEL=0).

t

d2

t

da

t

db

651

Supply Bypassing and

HP
HDMP-1022
LOT# Tx
DATECODE

C2

D1

C1

R1

C1

R1

C1

R1

CAP0B
CAP0A
CAP1A
CAP1B

HP

HDMP-1024
LOT# Rx
DATECODE

C2

D1

C1

R1

C1

R1

C1

R1

R2

R2

C1 = BYPASS CAPACITOR
C2 = PLL INTEGRATOR CAPACITOR
D1 = OPTIONAL CLAMPING DIODE

0.1 µF

0.1 µF

Integrator Capacitor

Figure 20 shows the location of
the PLL integrator capacitors,
power supply capacitors and
required grounding for the Tx and
Rx chips.

Integrating Capacitor

The integrating capacitors (C2)
are required by both the Tx and
Rx to function properly. These
caps are used by the PLL for
frequency and phase lock and
directly set the stability and
lockup times. The designed value
of C2 is 0.1 µF, with a tolerance
of ± 10%. The internal charging
currents are scaled with the DIV0
and DIV1 settings such that the
same capacitor value works with
all four frequency bands. Larger
values of C2 improve jitter
performance, but extend the
lockup times.

Figure 20a. HDMP-1022 (Tx) Power Supply Bypass.

Power Supply Bypassing and Grounding

The G-LINK chip set has been
tested to work well with a single
ground plane, assuming that it is
a fairly clean ground plane. Thus,
all of the separate grounds (VCC,
and VCC_TTL) can be connected
onto this plane. The bypassing of
VCC to ground should be
accomplished with a capacitor
(C1) of 0.1 µF.

In some instances, if the VCO of
either the Tx or the Rx are at the
extreme high end, the frequency
of STRBOUT exceeds the maxi­mum frequency allowed by the
hosts. In this case, it is recom­mended that a diode clamp, D1,
be used across the integrating cap
C2, such that the upper frequency

Figure 20b. HDMP-1022 (Rx) Power Supply Bypass.

652

is limited. The typical swing of C2
is ± 0.8 volts, and thus, the
clamping diode should have a
turn-on voltage below 0.8 V, such
as with germanium or schottky
diodes. This will vary with each
application. This diode will also
aid the Tx and Rx in the initial
frequency lock-in process.

Electrical Connections

The electrical I/Os for both the Tx
and Rx are shown in Figures
19-21. The data sheet uses the
prefix, I and O, on the logic type
in order to identify input and
output lines respectively.
Additional information on pin
names and their functions can be
found in the data sheet under
Tx / Rx I/O Definitions.

I-TTL and O-TTL

These I/O pins are TTL­compatible. A simplified
schematic diagram of I/O cell is
shown in Figures 21.

High Speed Interface: I-H50 & O-BLL

The simplified schematic
diagrams of I-H50 and O-BLL is
are shown in Figure 22. The
I-H50 input cell has internal 50 Ω
resistors built into the differential
input lines. The termination is
connected via HGND which
isolates the high speed ground
currents from the internal
grounds. The DC level for the
inputs is at 0 V. Since all of the
high speed inputs into G-LINK do
not have a DC component, it is
recommended that I-H50 inputs
be AC coupled with a 0.1 µF
capacitor. It is also recommended

that the unused differential inputs
be terminated with 50 Ω. The
O-BLL output cell is designed to
deliver TTL swings directly into
50 Ω. The output impedance is
matched to 50 Ω with a VSWR of
less than 2:1 to above 2 GHz. This
output is ideal for driving the
I-H50 input through a 50 Ω cable
and a 0.1 uF coupling capacitor.
The 150 Ω shunt resistor to
ground improves internal DC bias
of the O-BLL differential output
circuit. The O-BLL driver can also
be connected directly into a high
speed 50 Ω oscilloscope. For
optimum performance, both
output should see the same
impedance. It is necessary that all
used O-BLL outputs be terminated
into 50 Ω. Figure 23 shows
various methods of interfacing O­BLL to I-H50 and standard TTL
logic.

O_TTL

_TTL

V

CC

VCC_Tx

800 72

6 k

GND_TTL

Figure 21. I-TTL and O-TTL Simplified Circuit Schematic.

36

ESD

PROTECTION

V

OR

CC

GND

_Rx

PROTECTION

ESD

VCC_TTL

10 k

GND_TTL

10 k

I_TTL

V

BB

1.4 V

653

O-BLL

I-H50

12

80 80

0.1 µF

ZO = 50 Ω

50

28 mA

Figure 22. I-H50 and O-BLL Simplified Circuit Schematic.

Mode Options

The GLlink has several option
pins which set the modes of
operation. Common to both the
Tx and the Rx are M20SEL, DIV0,
and DIV1, FLAGSEL, and
LOOPEN. Local to the Tx are
MDFSEL, EHCLKSEL, and

Range section for frequency band
selection. It is recommended that
applications near the ends of the
bands have jumpers for DIV0 and
DIV1 inputs, so that the board can
accommodate possible lot-to-lot
band variations over the life of the
board design.

HCLKON. While local to the Rx
are EQEN and TCLKSEL. These
pins are all I-TTL, and can be set
as described below.

FLAGSEL = 0/1 selects either the
flag bit is reserved for error
detection by the link, or as an
extra bit available for the user.

M20SEL = 0/1 sets the width of
the frame to 16/20 bits.

LOOPEN = 0/1 selects either the
normal data or the loop channels

DIV1 / DIV0 = set the frequency

the I/O.

bands of operation. Refer to the

Setting the Operating Data Rate

MDFSEL = 0/1 selects the Tx
single or double frame modes.

50

50

V

EE

50

ECHKSEL = 0/1 selects either to
lock onto a frame-rate clock at
STRBIN or to use this clock as the
high speed clock and bypass the
PLL in the Tx. This input is used
mainly for testing, and should be
normally set low.

HCLKON = 0/1 turns on the high
speed serial clock outputs of the
Tx. This option was added to
conserve power.

EQEN = 0/1 disables or enables
the data equalizer in the Rx for
cable applications.

TCLKSEL = 0/1 selects the clock
source from either be derived
from the serial data stream or
from the TCLK inputs for the Rx.
This input is for testing only, and
should normally be set low.

654

Z

= 50 Ω

O

OBLL

50 Ω 50 Ω

A) SINGLE-ENDED DRIVE O-BLL TO I-H50

IH50

-1.3 V

50 Ω

= 50 Ω

Z

O

OBLL ECL

= 50 Ω

Z

O

50 Ω

-1.3 V

C) DIFFERENTIAL DRIVE O-BLL TO ECL

= 50 Ω

Z

O

OBLL IH50

Z

= 50 Ω

O

B) DIFFERENTIAL DRIVE O-BLL TO I-H50

Figure 23. Methods of Interfacing O-BLL and I-H50.

130 Ω

Z

= 50 Ω

O

OBLL ECL

82 Ω

50 Ω

D) SINGLE-ENDED DRIVE O-BLL TO ECL

-2 V

655
