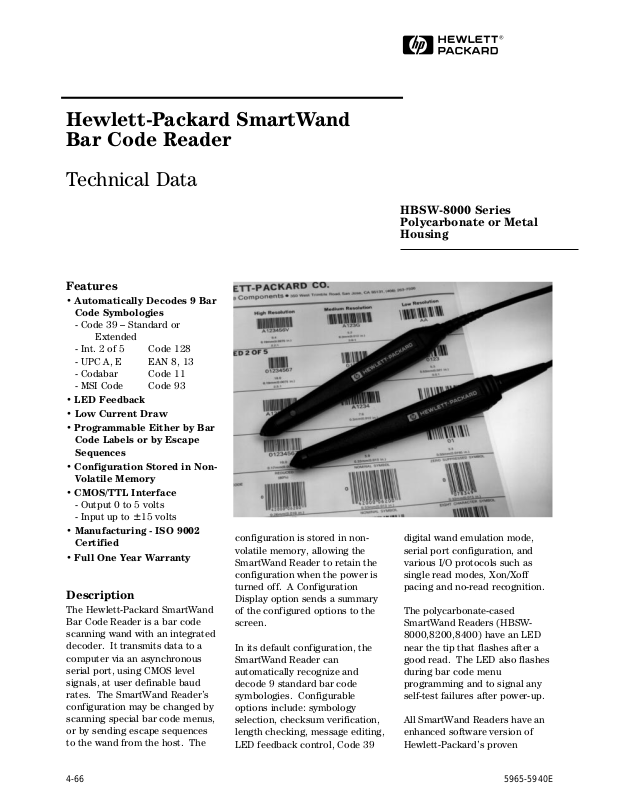

Page 1
Hewlett-Packard SmartWand
Bar Code Reader
Technical Data
Features
• Automatically Decodes 9 Bar
Code Symbologies
- Code 39 – Standard or
Extended
- Int. 2 of 5 Code 128
- UPC A, E EAN 8, 13
- Codabar Code 11
- MSI Code Code 93
• LED Feedback
• Low Current Draw
• Programmable Either by Bar
Code Labels or by Escape
Sequences
• Configuration Stored in NonVolatile Memory
• CMOS/TTL Interface
- Output 0 to 5 volts
- Input up to ± 15 volts
• Manufacturing - ISO 9002
Certified
• Full One Year Warranty
Description
The Hewlett-Packard SmartWand
Bar Code Reader is a bar code
scanning wand with an integrated
decoder. It transmits data to a
computer via an asynchronous
serial port, using CMOS level
signals, at user definable baud
rates. The SmartWand Reader’s
configuration may be changed by
scanning special bar code menus,
or by sending escape sequences
to the wand from the host. The
configuration is stored in nonvolatile memory, allowing the
SmartWand Reader to retain the
configuration when the power is
turned off. A Configuration
Display option sends a summary
of the configured options to the
screen.
In its default configuration, the
SmartWand Reader can
automatically recognize and
decode 9 standard bar code
symbologies. Configurable
options include: symbology
selection, checksum verification,
length checking, message editing,
LED feedback control, Code 39
H
HBSW-8000 Series
Polycarbonate or Metal
Housing
digital wand emulation mode,
serial port configuration, and
various I/O protocols such as
single read modes, Xon/Xoff
pacing and no-read recognition.
The polycarbonate-cased
SmartWand Readers (HBSW8000,8200,8400) have an LED
near the tip that flashes after a
good read. The LED also flashes
during bar code menu
programming and to signal any
self-test failures after power-up.
All SmartWand Readers have an
enhanced software version of
Hewlett-Packard’s proven
4-66
5965-5940E
Page 2
decoding algorithm. The
SmartWands are also very
suitable for portable computer or
terminal applications due to its
low current draw.
Visual Feedback LED
The SmartWand Readers with
polycarbonate-cases have an easyto-see Feedback LED near the
scanner tip that acknowledges a
good read. This is useful in a
noisy environment or where
silence is required. Since the
state of the LED can be controlled
by escape sequences, the host
processor can turn the LED on or
off at any time.
SmartWand Reader Configuration
The SmartWand Reader can be
configured by scanning special
bar code labels or by receiving
escape sequence commands from
the host. This allows decoding
options and interface protocols to
be tailored to a specific application. Configuration labels and a
list of escape sequences are
printed in the SmartWand User’s
Manual (P/N: HBSW-8997). The
SmartWand Reader can display
its current configuration on the
host’s screen. See sample.
Programmable Features
Bar code selection and
decoding options
Check character verification
and transmission
Serial port parameters and I/O
protocols
Message editing
Header and terminators
LED operator feedback
Label length checking
No Read recognition
Digital wand Code 39 emulation
Wand Specifications
Scan Speed ......... 7.6 to 127 cm/s
(3 to 50 in/s)
Tilt Angle .......................5° to 40°
Minimum Contrast ............... 45%
Color...................................Black
Wand Diameter ... 23 mm (0.9 in)
Wand Length .... 160 mm (6.3 in)
Weight:
Aluminum.......... 153 g (5.4 oz)
Polycarbonate ... 140 g (4.9 oz)
Tip ................................ Sapphire
Configuration Display
Environmental
Temperature:
Operating:
-20°C to 70°C (-4°F to 158°F)
Storage:
-40°C to 70°C (-40°F to 158°F)
Humidity (Non-condensing):
95% at 40°C (104°F) max.
Ambient Light:
100,000 lux (maximum)
Rain:
MIL-STD-810, Method 506,
Procedure II (Polycarbonate)
Dust:
MIL-STD-810, Method 510
Shock:
Ten drops to sealed concrete
(random orientation) from
1.2 m (4 ft)
4-67
Page 3
Electrical Interface
VCC Limits (V) Min. Max.
Typical Current Draw - ICC (mA)
V
CC
Operating 4.5 6.0
Absolute Rating -0.3 6.0
Supply Ripple 100 mV peak to peak
FCC Certification
HP’s SmartWand Readers have
received FCC certification for
their standard configuration only.
Any customer purchasing the
product with stripped and tinned
leads or a connector without
adequate shielding has the
responsibility to comply with FCC
regulations. Moreover, if the HP
SmartWand Reader is purchased
without a connector, the product
becomes defined as a subassembly and the FCC Identification number no longer applies.
HP assumes no responsibility or
liability for users of the HP
SmartWand Readers without
connectors that fail to comply
with FCC regulations.
This equipment has been tested
and found to comply with the
limits for a Class B digital device,
pursuant to Part 15 of the FCC
Rules. Operation is subject to the
following two conditions: (1) This
device may not cause harmful
interference, and (2) this device
must accept any interference
received, including interference
that may cause undesired
operation.
Mode 4.5 5.0 6.0
Idle 8 9 12
Scanning 16 18 24
With LED on 25 29 38

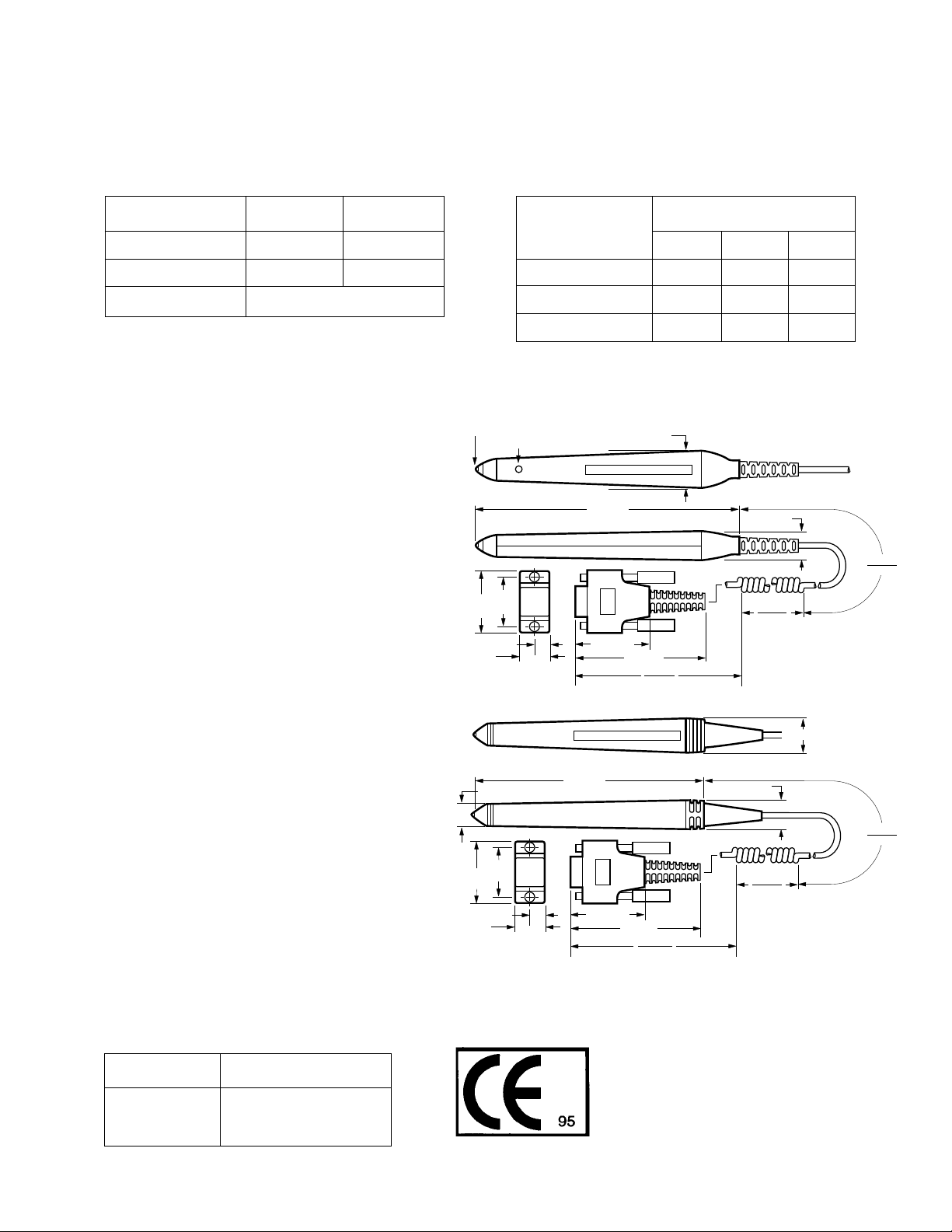

General Mechanical Specifications
SAPHIRE TIP
15.2 (0.6)
15.2 (0.6)
LED
24.9
33
(0.98)
(1.3)
7.6 (0.3)
H
13.3 (0.52) DIA.
24.9
33
(0.98)
(1.3)
7.6 (0.3)
DIMENSIONS IN MILLIMETERS (INCHES)
160 (6.2)
23.0 (0.9)
H
HEWLETT PACKARD
160 (6.3)
38.1 (1.5)
66 (2.6)
HEWLETT PACKARD
38.1 (1.5)
66 (2.6)
300 (12)
200 (8)
300 (12)
200 (8)
17.6 (0.69)
19.0 (0.8)
230 (9)
180 (7)
230 (9)
180 (7)
23.9 (0.94)
790 (31)
590 (27)
790 (31)
590 (27)
Model FCC Identification
HBSW-8XXX FCC ID: B94KDRZ
Series
4-68
The CE Mark demonstrates
compliance with EC directives on
EMC.
Page 4

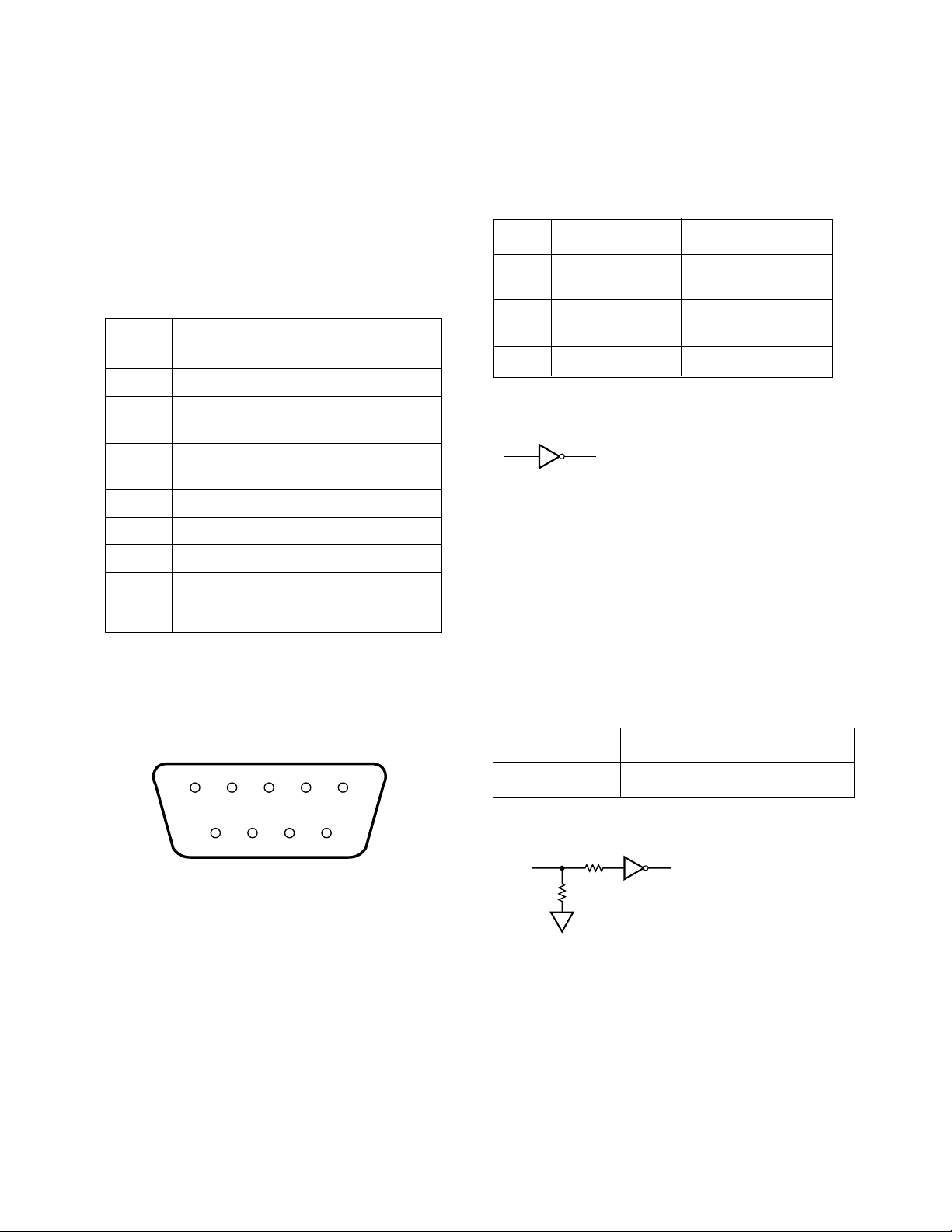

Connector
RxD
74HCT240
100 kΩ
4.7 kΩ
The standard connector is a 9 pin male D
connector. There is also an option for the cable
to have stripped and tinned wires.
TxD Output Specifications
(VCC = 4.5 V, TA = 25°C)
Min. Max.
Pin Diagram
Wire
Pin # Color Function
1 - N/C
2 White TxD Transmitted Data
(from the Reader)
3 Green RxD Received Data
(to the Reader)
4, 5, 6 - N/C
7 Black Ground
8 - N/C
9 Red V
Shell Braid Shield
Shield and ground are tied together in the
connector.
CC
V
4.4 V @ 20 µA
OH
3.8 V @ 6 mA
V
OL
0.10 V @ -20 µA
0.33 V @ -6 mA
I
OL
35 mA
TxD Circuit
TxD
74HCT240
Pin 3 RxD - The received data signal RxD
expects the standard asynchronous serial data
format. It will accept either CMOS level or true
RS-232 level signals. The figure below shows the
equivalent input circuit.
RxD Input Specifications
(VCC = 5.0 V, TA = 25°C)
1 2 3 4 5
6 7 8 9
MALE 9 PIN SUBMINIATURE D CONNECTOR
Pin Description
Pin 2 TxD - The data output signal TxD obeys
standard serial asynchronous data formats, but
uses zero to five volts CMOS logic levels. It can
be described as CMOS level RS-232. The TxD
output circuit is shown in the figure below. It
will drive TTL, LSTTL, CMOS, HC, and HCT
inputs.
VIH 2.0 V 500 µA
VIL 0.8 V @ 1 µA
RxD Circuit
Note: If the part is purchased with stripped and
tinned wires, or if the connector is removed, the
ground and shield wires must be connected
together for proper operation.
4-69
Page 5
Ordering Information
LED
Part Number Housing Resolution Wavelength
HBSW-8000* Polycarbonate Low – 655 nm
HBSW-8100* Metal 0.33 mm (0.013 in)
HBSW-8200 Polycarbonate Medium – 655 nm
HBSW-8300 Metal 0.19 mm (0.0075 in)
HBSW-8400* Polycarbonate High – 820 nm
HBSW-8500* Metal 0.13 mm (0.005 in)
* Low and High Resolution SmartWand Readers are built to order devices.
SmartWand Kits
HBSW-8205 - Polycarbonate SmartWand Kit
Includes: HBSW-8200 General Purpose Reader
HBSW-8997 User’s Manual
HBCS-2998 Black Wand Holder
Warranty and Service
The Hewlett-Packard SmartWand
Bar Code Reader is warranted for
a period of one year from date of
purchase covering defects in
material and workmanship.
Hewlett-Packard will repair or, at
its option, replace products that
prove to be defective in material
or workmanship under proper use
during the warranty period.
HEWLETT-PACKARD MAKES NO
WARRANTY OF ANY KIND WITH
REGARD TO THIS MATERIAL,
INCLUDING, BUT NOT LIMITED
TO, THE IMPLIED WARRANTIES
OF MERCHANTABILITY AND
FITNESS FOR A PARTICULAR
PURPOSE.
HBSW-8305 - Metal SmartWand Kit
Includes: HBSW-8300 General Purpose Reader
HBSW-8997 User’s Manual
HBCS-2998 Black Wand Holder
SmartWand Accessory Part Numbers
HBSW-8997 User’s Manual
HBCS-2998 Wand Holder (black polycarbonate )
HBSW-8991 Replacement Polycarbonate Case with LED Window
and Tip
HBCS-4999 Replacement Tip for Metal Case
HBCS-A990 Plastic Case Replacement Tool
4-70
