DATA SHEET

512MB Registered DDR SDRAM DIMM

HB54A5129F1-A75B/B75B/10B

Description

The HB54A5129F1 is a 64M × 72 × 1 bank Double

Data Rate (DDR) SDRAM Module, mounted 18 pieces of 256Mbits DDR SDRAM (HM5425401BTT) sealed in TSOP package, 1 piece of PLL clock driver, 2 pieces of register driver and 1 piece of serial EEPROM (2k bits EEPROM) for Presence Detect (PD). Read and write operations are performed at the cross points of the CK and the /CK. This high-speed data transfer is realized by the 2-bit prefetch-pipelined architecture. Data strobe (DQS) both for read and write are available for high speed and reliable data bus design. By setting extended mode register, the on-chip Delay Locked Loop (DLL) can be set enable or disable. An outline of the products is 184-pin socket type package (dual lead out). Therefore, it makes high density mounting possible without surface mount technology. It provides common data inputs and outputs. Decoupling capacitors are mounted beside each TSOP on the module board.

(64M words

××××

72 bits, 1 Bank)

Features

• 184-pin socket type package (dual lead out)  Outline: 133.35mm (Length) × 43.18 (Height) ×

4.00mm (Thickness)

 Lead pitch: 1.27mm

• 2.5V power supply (VCC/VCCQ)

• SSTL-2 interface for all inputs and outputs

• Clock frequency: 143MHz/133MHz/125MHz (max.)

• Data inputs and outputs are synchronized with DQS

• 4 banks can operate simultaneously and

independently (Component)

• Burst read/write operation

• Programmable burst length: 2, 4, 8  Burst read stop capability

• Programmable burst sequence  Sequential  Interleave

• Start addressing capability  Even and Odd

• Programmable /CAS latency (CL): 3, 3.5

• 8192 refresh cycles: 7.8µs (8192/64ms)

• 2 variations of refresh  Auto refresh  Self refresh

Document No. E0090H40 (Ver. 4.0) Date Published August 2002 (K) Japan URL: http://www.elpida.com

Elpida Memory,Inc. 2001-2002

Elpida Memory, Inc. is a joint venture DRAM company of NEC Corporation and Hitachi, Ltd.

Hitachi, Ltd. 2000

HB54A5129F1-A75B/B75B/10B

Ordering Information

Part number

HB54A5129F1-A75B* HB54A5129F1-B75B* HB54A5129F1-10B*

Notes: 1. 143MHz operation at /CAS latency = 3.5.

2. 100MHz operation at /CAS latency = 3.0.

3. 125MHz operation at /CAS latency = 3.5.

Pin Configurations

Pin No. Pin name Pin No. Pin name Pin No. Pin name Pin No. Pin name

1 VREF 47 DQS8 93 VSS 139 VSS

2 DQ0 48 A0 94 DQ4 140 DM8/DQS17

3 VSS 49 CB2 95 DQ5 141 A10

4 DQ1 50 VSS 96 VCCQ 142 CB6

5 DQS0 51 CB3 97 DM0/DQS9 143 VCCQ

6 DQ2 52 BA1 98 DQ6 144 CB7

7 VCC 53 DQ32 99 DQ7 145 VSS

8 DQ3 54 VCCQ 100 VSS 146 DQ36

9 NC 55 DQ33 101 NC 147 DQ37

10 /RESET 56 DQS4 102 NC 148 VCC

11 VSS 57 DQ34 103 NC 149 DM4/DQS13

12 DQ8 58 VSS 104 VCCQ 150 DQ38

13 DQ9 59 BA0 105 DQ12 151 DQ39

14 DQS1 60 DQ35 106 DQ13 152 VSS

15 VCCQ 61 DQ40 107 DM1/DQS10 153 DQ44

16 NC 62 VCCQ 108 VCC 154 /RAS

17 NC 63 /WE 109 DQ14 155 DQ45

18 VSS 64 DQ41 110 DQ15 156 VCCQ

19 DQ10 65 /CAS 111 NC 157 /S0

20 DQ11 66 VSS 112 VCCQ 158 NC

21 CKE0 67 DQS5 113 NC 159 DM5/DQS14

22 VCCQ 68 DQ42 114 DQ20 160 VSS

23 DQ16 69 DQ43 115 A12 161 DQ46

24 DQ17 70 VCC 116 VSS 162 DQ47

25 DQS2 71 NC 117 DQ21 163 NC

26 VSS 72 DQ48 118 A11 164 VCCQ

27 A9 73 DQ49 119 DM2/DQS11 165 DQ52

28 DQ18 74 VSS 120 VCC 166 DQ53

1

2

Clock frequency MHz (max.)

133 133 100

1 pin

93 pin 144 pin 145 pin184 pin

/CE latency

3.0

3.5

3.0

Front side

Back side

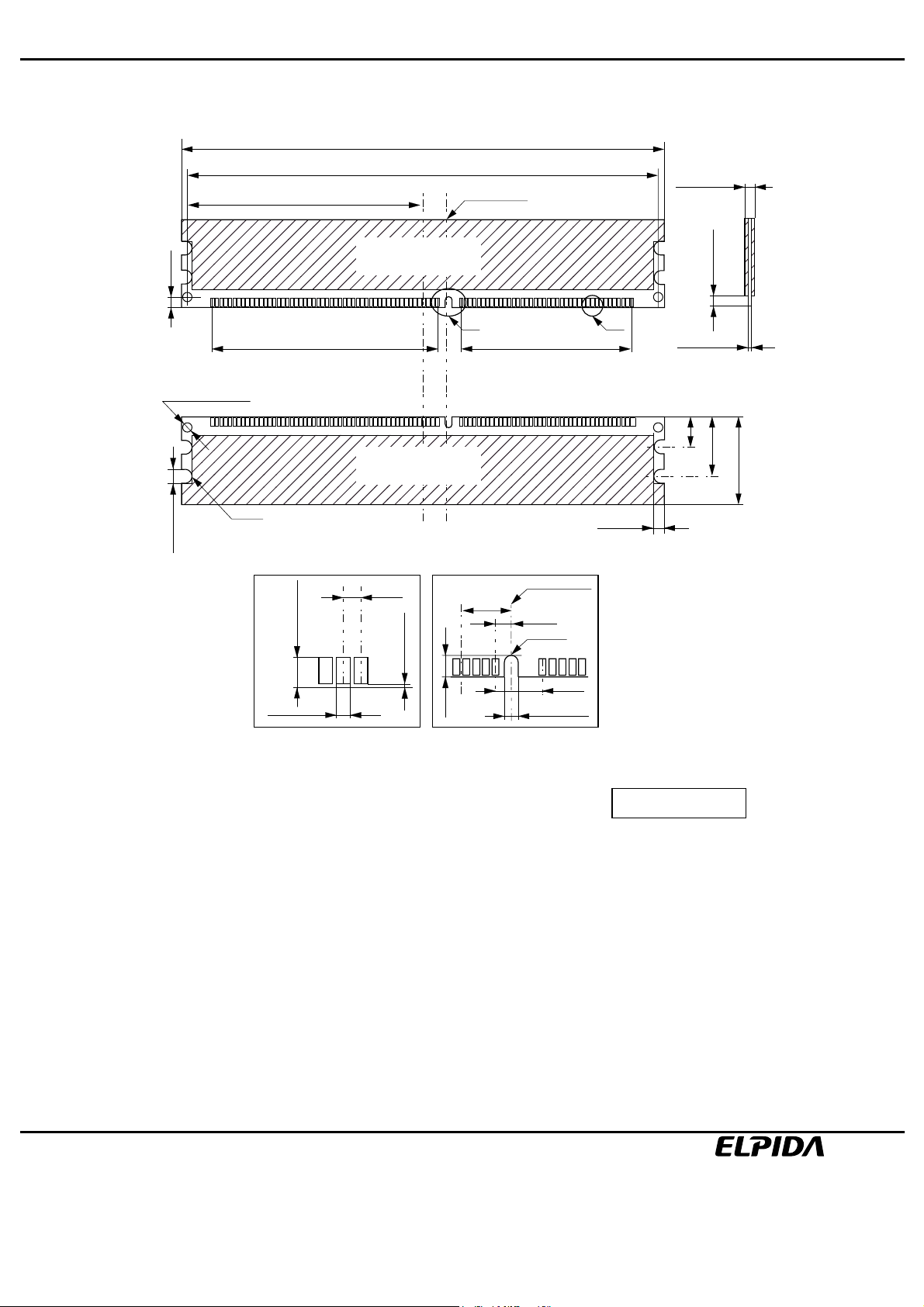

Package

184-pin dual lead out socket type

52 pin53 pin 92 pin

Contact pad

Gold

Data Sheet E0090H40 (Ver. 4.0)

2

HB54A5129F1-A75B/B75B/10B

Pin No. Pin name Pin No. Pin name Pin No. Pin name Pin No. Pin name

29 A7 75 NC 121 DQ22 167 NC

30 VCCQ 76 NC 122 A8 168 VCC

31 DQ19 77 VCCQ 123 DQ23 169 DM6/DQS15

32 A5 78 DQS6 124 VSS 170 DQ54

33 DQ24 79 DQ50 125 A6 171 DQ55

34 VSS 80 DQ51 126 DQ28 172 VCCQ

35 DQ25 81 VSS 127 DQ29 173 NC

36 DQS3 82 VCCID 128 VCCQ 174 DQ60

37 A4 83 DQ56 129 DM3/DQS12 175 DQ61

38 VCC 84 DQ57 130 A3 176 VSS

39 DQ26 85 VCC 131 DQ30 177 DM7/DQS16

40 DQ27 86 DQS7 132 VSS 178 DQ62

41 A2 87 DQ58 133 DQ31 179 DQ63

42 VSS 88 DQ59 134 CB4 180 VCCQ

43 A1 89 VSS 135 CB5 181 SA0

44 CB0 90 NC 136 VCCQ 182 SA1

45 CB1 91 SDA 137 CK0 183 SA2

46 VCC 92 SCL 138 /CK0 184 VCCSPD

Data Sheet E0090H40 (Ver. 4.0)

3

HB54A5129F1-A75B/B75B/10B

Pin Description

Pin name Function

Address input

A0 to A12

BA0, BA1 Bank select address

DQ0 to DQ63 Data input/output

CB0 to CB7 Check bit (Data input/output)

/RAS Row address strobe command

/CAS Column address strobe command

/WE Write enable

/S0 Chip select

CKE0 Clock enable

CK0 Clock input

/CK0 Differential clock input

DQS0 to DQS8 Input and output data strobe

DM0 to DM8/DQS9 to DQS17 Input and output data strobe

SCL Clock input for serial PD

SDA Data input/output for serial PD

SA0 to SA2 Serial address input

VCC Power for internal circuit

VCCQ Power for DQ circuit

VCCSPD Power for serial EEPROM

VREF Input reference voltage

VSS Ground

VCCID VCC identification flag

/RESET Reset pin (forces register inputs low)

NC No connection

Row address A0 to A12 Column address A0 to A9, A11

Data Sheet E0090H40 (Ver. 4.0)

4

HB54A5129F1-A75B/B75B/10B

Serial PD Matrix*

Byte No. Function described Bit7 Bit6 Bit5 Bit4 Bit3 Bit2 Bit1 Bit0 Hex value Comments

0

1

2 Memory type 0 0 0 0 0 1 1 1 07 SDRAM DDR

3 Number of row address 0 0 0 0 1 1 0 1 0D 13

4 Number of column address 0 0 0 0 1 0 1 1 0B 11

5 Number of DIMM banks 0 0 0 0 0 0 0 1 01 1

6 Module data width 0 1 0 0 1 0 0 0 48 72 bits

7 Module data width continuation 0 0 0 0 0 0 0 0 00 0 (+)

8 Voltage interface level of this assembly 0 0 0 0 0 1 0 0 04 SSTL 2.5V

9

-B75B 0 1 1 1 0 1 0 1 75

-10B 1 0 0 0 0 0 0 0 80

10

-10B 1 0 0 0 0 0 0 0 80 0.8ns*5

11 DIMM configuration type 0 0 0 0 0 0 1 0 02 ECC

12 Refresh rate/type 1 0 0 0 0 0 1 0 82

13 Primary SDRAM width 0 0 0 0 0 1 0 0 04 × 4 14 Error checking SDRAM width 0 0 0 0 0 1 0 0 04 × 4

15

16

17

18

19

20

21 SDRAM module attributes 0 0 1 0 0 1 1 0 26 Registered

22 SDRAM device attributes: General 1 1 0 0 0 0 0 0 C0 ± 0.2V

23

-B75B/10B 1 0 1 0 0 0 0 0 A0

24

-10B 1 0 0 0 0 0 0 0 80 0.8ns*5

25

26

27 Minimum row precharge time (tRP) 0 1 0 1 0 0 0 0 50 20ns

Number of bytes utilized by module manufacturer

Total number of bytes in serial PD device

DDR SDRAM cycle time, CL = X

-A75B

SDRAM access from clock (tAC)

-A75B/B75B

SDRAM device attributes: Minimum clock delay back-to-back column access

SDRAM device attributes: Burst length supported

SDRAM device attributes: Number of banks on SDRAM device

SDRAM device attributes: /CAS latency

SDRAM device attributes: /CS latency

SDRAM device attributes: /WE latency

Minimum clock cycle time at CLX - 0.5

-A75B

Maximum data access time (tAC) from clock at CLX - 0.5

-A75B/B75B

Minimum clock cycle time at CLX - 1

Maximum data access time (tAC) from clock at CLX - 1

1

1 0 0 0 0 0 0 0 80 128

0 0 0 0 1 0 0 0 08 256 byte

0 1 1 1 0 0 0 0 70 CL = 2.5*5

0 1 1 1 0 1 0 1 75 0.75ns*5

7.8 µs Self refresh

0 0 0 0 0 0 0 1 01 1 CLK

0 0 0 0 1 1 1 0 0E 2, 4, 8

0 0 0 0 0 1 0 0 04 4

0 0 0 0 1 1 0 0 0C 2/2.5

0 0 0 0 0 0 0 1 01 0

0 0 0 0 0 0 1 0 02 1

0 1 1 1 0 1 0 1 75 CL = 2*5

0 1 1 1 0 1 0 1 75 0.75ns*5

0 0 0 0 0 0 0 0 00

Data Sheet E0090H40 (Ver. 4.0)

5

HB54A5129F1-A75B/B75B/10B

Byte No. Function described Bit7 Bit6 Bit5 Bit4 Bit3 Bit2 Bit1 Bit0 Hex value Comments

28

29 Minimum /RAS to /CAS delay (tRCD) 0 1 0 1 0 0 0 0 50 20ns

30

-10B 0 0 1 1 0 0 1 0 32 50ns

31 Module bank density 1 0 0 0 0 0 0 0 80

32

-10B 1 0 1 1 0 0 0 0 B0 1.1ns*5

33

-10B 1 0 1 1 0 0 0 0 B0 1.1ns*5

34

-10B 0 1 1 0 0 0 0 0 60 0.6ns*5

35

-10B 0 1 1 0 0 0 0 0 60 0.6ns*5

36 to 40 Superset information 0 0 0 0 0 0 0 0 00 Future use

41

-10B 0 1 0 0 0 1 1 0 46 70ns*5

42

-10B 0 1 0 1 0 0 0 0 50 80ns*5

43 SDRAM tCK cycle max. (tCK max.) 0 0 1 1 0 0 0 0 30 12ns*5

44

-10B 0 0 1 1 1 1 0 0 3C 600ps*5

45

-10B 1 0 1 0 0 0 0 0 A0 1000ps*5

46 to 61 Superset information 0 0 0 0 0 0 0 0 00 Future use

62 SPD revision 0 0 0 0 0 0 0 0 00 Initial

63

-B75B 0 0 1 1 0 0 1 1 33 51

-10B 1 1 1 1 1 0 0 0 F8 248

64 Manufacturer’s JEDEC ID code 0 0 0 0 0 1 1 1 07 HITACHI

65 to 71 Manufacturer’s JEDEC ID code 0 0 0 0 0 0 0 0 00

72 Manufacturing location × × × × × × × × ××

73 Module part number 0 1 0 0 1 0 0 0 48 H

74 Module part number 0 1 0 0 0 0 1 0 42 B

75 Module part number 0 0 1 1 0 1 0 1 35 5

Minimum row active to row active delay (tRRD)

Minimum active to precharge time (tRAS)

-A75B/B75B

Address and command setup time before clock (tIS)

-A75B/B75B

Address and command hold time after clock (tIH)

-A75B/B75B

Data input setup time before clock (tDS)

-A75B/B75B

Data input hold time after clock (tDH)

-A75B/B75B

Active command period (tRC)

-A75B/B75B

Auto refresh to active/ Auto refresh command cycle (tRFC)

-A75B/B75B

Dout to DQS skew

-A75B/B75B

Data hold skew (tQHS)

-A75B/B75B

Checksum for bytes 0 to 62

-A75B

0 0 1 1 1 1 0 0 3C 15ns

0 0 1 0 1 1 0 1 2D 45ns

1 bank 512MB

1 0 0 1 0 0 0 0 90 0.9ns*5

0 1 0 1 0 0 0 0 50 0.5ns*5

0 1 0 0 0 0 0 1 41 65ns*5

0 1 0 0 1 0 1 1 4B 75ns*5

0 0 1 1 0 0 1 0 32 500ps*5

0 1 1 1 0 1 0 1 75 750ps*5

0 0 0 0 0 0 1 1 03 3

2

(ASCII-8bit

* code)

Data Sheet E0090H40 (Ver. 4.0)

6

HB54A5129F1-A75B/B75B/10B

Byte No. Function described Bit7 Bit6 Bit5 Bit4 Bit3 Bit2 Bit1 Bit0 Hex value Comments

76 Module part number 0 0 1 1 0 1 0 0 34 4

77 Module part number 0 1 0 0 0 0 0 1 41 A

78 Module part number 0 0 1 1 0 1 0 1 35 5

79 Module part number 0 0 1 1 0 0 0 1 31 1

80 Module part number 0 0 1 1 0 0 1 0 32 2

81 Module part number 0 0 1 1 1 0 0 1 39 9

82 Module part number 0 1 0 0 0 1 1 0 46 F

83 Module part number 0 0 1 1 0 0 0 1 31 1

84 Module part number 0 0 1 0 1 1 0 1 2D —

85

-B75B 0 1 0 0 0 0 1 0 42 B

-10B 0 0 1 1 0 0 0 1 31 1

86

-10B 0 0 1 1 0 0 0 0 30 0

87

-10B 0 1 0 0 0 0 1 0 42 B

88

-10B 0 0 1 0 0 0 0 0 20 (Space)

89 to 90 Module part number 0 0 1 0 0 0 0 0 20 (Space)

91 Revision code 0 0 1 1 0 0 0 0 30 Initial

92 Revision code 0 0 1 0 0 0 0 0 20 (Space)

93 Manufacturing date × × × × × × × × ××

94 Manufacturing date × × × × × × × × ××

95 to 98 Module serial number *3

99 to 127 Manufacturer specific data *4

Notes: 1. All serial PD data are not protected. 0: Serial data, “driven Low”, 1: Serial data, “driven High” These

2. Byte72 is manufacturing location code. (ex: In case of Japan, byte72 is 4AH. 4AH shows “J” on ASCII

3. Bytes 95 through 98 are assembly serial number.

4. All bits of 99 through 127 are not defined (“1” or “0”).

5. These specifications are defined based on component specification, not module.

Module part number

-A75B

Module part number

-A75B/B75B

Module part number

-A75B/B75B

Module part number

-A75B/B75B

0 1 0 0 0 0 0 1 41 A

0 0 1 1 0 1 1 1 37 7

0 0 1 1 0 1 0 1 35 5

0 1 0 0 0 0 1 0 42 B

SPD are based on JEDEC Committee Ballot JC-42.5-99-129.

code.)

Year code (BCD)

Week code (BCD)

Data Sheet E0090H40 (Ver. 4.0)

7

Block Diagram

VSS

DQ0 to DQ3

DQ8 to DQ11

DQ16 to DQ19

DQ24 to DQ27

DQ32 to DQ35

DQ40 to DQ43

DQ48 to DQ51

DQ56 to DQ59

CB0 to CB3

/S0

BA0 to BA1

A0 to A12

/RAS /CAS

CKE0

/WE

PCK

/PCK

/RS0

DQS0

DQS1

DQS2

DQS3

DQS4

DQS5

DQS6

DQS7

DQS8

R

S

R

S

R

S

R

S

R

S

R

S

R

S

R

S

/CS

DQS DM

R

4

S

R

S

R

4

S

R

S

R

4

S

R

S

R

4

S

R

S

R

4

S

R

S

R

4

S

R

S

R

4

S

R

S

R

4

S

R

S

R

4

S

/RS0 -> /CS: SDRAMs D0 to D17

R

RBA0 to RBA1 -> BA0 to BA1: SDRAMs D0 to D17

E G

RA0 to RA12 -> A0 to A12: SDRAMs D0 to D17

I

/RRAS -> /RAS: SDRAMs D0 to D17

S T

/RCAS -> /CAS: SDRAMs D0 to D17

E

RCKE0A -> CKE: SDRAMs D0 to D17

R

/RWE -> /WE: SDRAMs D0 to D17

/RESET

D0

DQ

DQS DM/CS

D1

DQ

DQS DM/CS

D2

DQ

DQS DM/CS

D3

DQ

DQS DM/CS

D4

DQ

DQS DM/CS

D5

DQ

DQS DM/CS

D6

DQ

DQS DM/CS

D7

DQ

DQS DM/CS

D8

DQ

VCCQ D0 to D17

VCC

VREF

VSS

VCCID

open

CK0, /CK0 PLL*

D0 to D17 D0 to D17 D0 to D17

Note: Wire per Clock loading table/Wiring diagrams.

HB54A5129F1-A75B/B75B/10B

DM0/DQS9

DQ4 to DQ7

DM1/DQS10

DQ12 to DQ15

DM2/DQS11

DQ20 to DQ23

DM3/DQS12

DQ28 to DQ31

DM4/DQS13

DQ36 to DQ39

DM5/DQS14

DQ44 to DQ47

DM6/DQS15

DQ52 to DQ55

DM7/DQS16

DQ60 to DQ63

DM8/DQS17

CB4 to CB7

R

S

/CS

DQS DM

R

4

S

R

S

R

4

S

R

S

R

4

S

R

S

R

4

S

R

S

R

4

S

R

S

R

4

S

R

S

R

4

S

R

S

R

4

S

R

S

R

4

S

D9

DQ

DQS DM/CS

D10

DQ

DQS DM/CS

D11

DQ

DQS DM/CS

D12

DQ

DQS DM/CS

D13

DQ

DQS DM/CS

D14

DQ

DQS DM/CS

D15

DQ

DQS DM/CS

D16

DQ

DQS DM/CS

D17

DQ

* D0 to D17: HM5425401

U0: 2k bits EEPROM R

: 22Ω

S

PLL: CDCV857 Register: SSTV16857

Serial PD

SCL

SDA

U0

A0

A1 A2

Notes:

1. The SDA pull-up resistor is required due to

2. The SCL pull-up resistor is recommended

SA0 SA1 SA2

the open-drain/open-collector output.

because of the normal SCL line inacitve "high" state.

Data Sheet E0090H40 (Ver. 4.0)

8

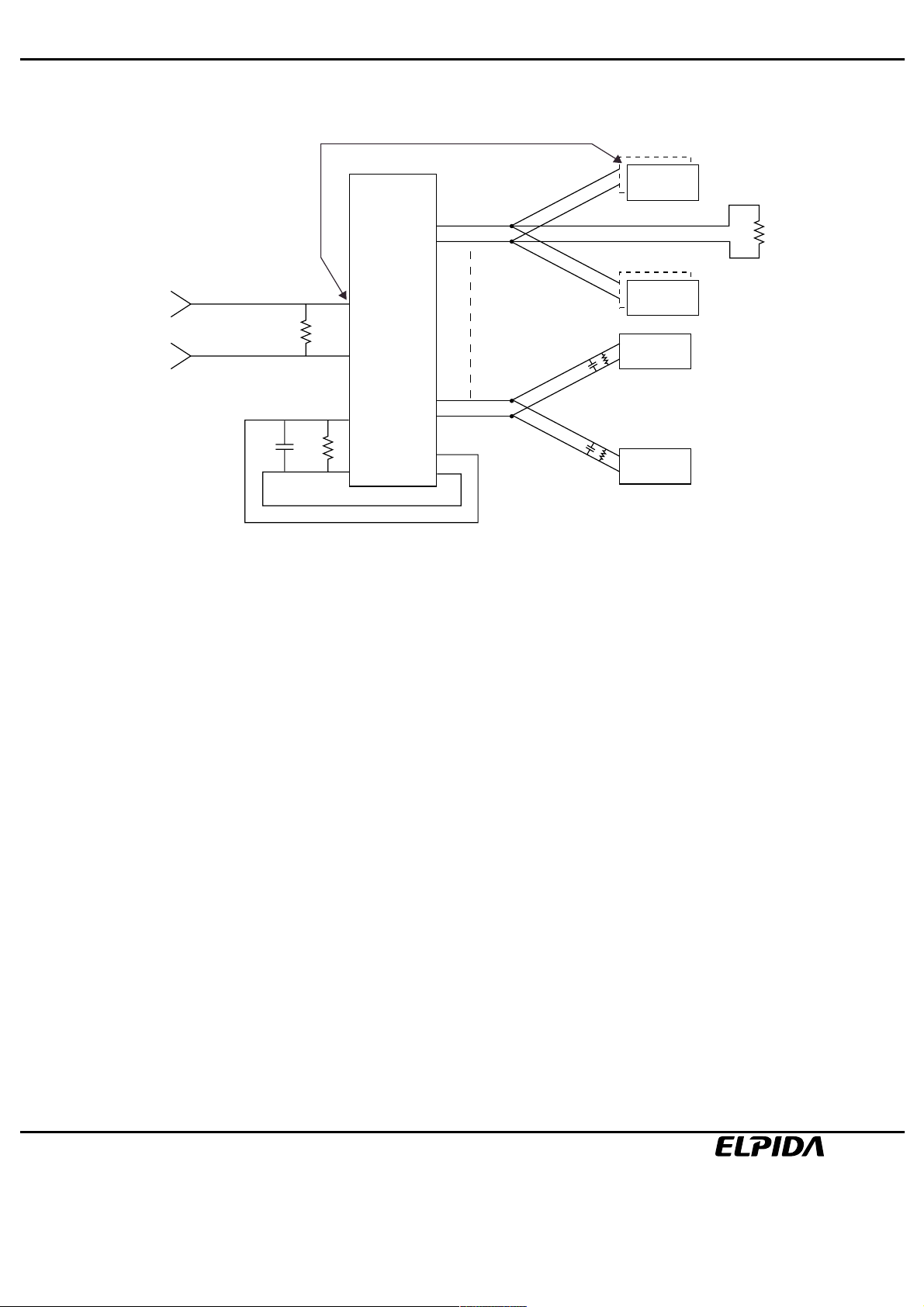

Differential Clock Net Wiring (CK0, /CK0)

0ns (nominal)

HB54A5129F1-A75B/B75B/10B

PLL

OUT1

CK0

/CK0

Notes: 1. The clock delay from the input of the PLL clock to the input of any SDRAM or register willl

be set to 0 ns (nominal).

2. Input, output and feedback clock lines are terminated from line to line as shown, and not from line to ground.

3. Only one PLL output is shown per output type. Any additional PLL outputs will be wired in a similar manner.

4. Termination resistors for feedback path clocks are located after the pins of the PLL.

120Ω

IN

120Ω

C

OUT'N'

Feedback

240Ω

SDRAM

stack

SDRAM

stack

Register1

(Typically two registers per DIMM)

Register2

120Ω

Data Sheet E0090H40 (Ver. 4.0)

9

HB54A5129F1-A75B/B75B/10B

Pin Functions (1)

CK (CLK), /CK (/CLK) (input pin): The CK and the /CK are the master clock inputs. All inputs except DMs, DQSs

and DQs are referred to the cross point of the CK rising edge and the VREF level. When a read operation, DQSs and DQs are referred to the cross point of the CK and the /CK. When a write operation, DMs and DQs are referred to the cross point of the DQS and the VREF level. DQSs for write operation are referred to the cross point of the CK and the /CK.

/S (/CS) (input pin): When /S is Low, commands and data can be input. When /S is High, all inputs are ignored. However, internal operations (bank active, burst operations, etc.) are held.

/RAS, /CAS, and /WE (input pins): These pins define operating commands (read, write, etc.) depending on the combinations of their voltage levels. See "Command operation".

A0 to A12 (input pins): Row address (AX0 to AX12) is determined by the A0 to the A12 level at the cross point of the CK rising edge and the VREF level in a bank active command cycle. Column address (AY0 to AY9, AY11) is loaded via the A0 to the A9, the A11 at the cross point of the CK rising edge and the VREF level in a read or a write command cycle. This column address becomes the starting address of a burst operation.

A10 (AP) (input pin):

command is issued. If A10 = High when a precharge command is issued, all banks are precharged. If A10 = Low when a precharge command is issued, only the bank that is selected by BA1, BA0 is precharged. If A10 = High when read or write command, auto-precharge function is enabled. While A10 = Low, auto-precharge function is disabled.

BA0, BA1 (input pin): BA0/BA1 are bank select signals. The memory array is divided into bank 0, bank 1, bank 2 and bank 3. If BA1 = Low and BA0 = Low, bank 0 is selected. If BA1 = High and BA0 = Low, bank 1 is selected. If BA1 = Low and BA0 = High, bank 2 is selected. If BA1 = High and BA0 = High, bank 3 is selected.

CKE (input pin): CKE controls power down and self-refresh. The power down and the self-refresh commands are entered when the CKE is driven Low and exited when it resumes to High.

The CKE level must be kept for 1 CK cycle (= LCKEPW) at least, that is, if CKE changes at the cross point of the CK rising edge and the VREF level with proper setup time tIS, at the next CK rising edge CKE level must be kept with proper hold time tIH.

A10 defines the precharge mode when a precharge command, a read command or a write

Pin Functions (2)

DQ, CB (input and output pins):

DQS (input and output pin): DQS provide the read data strobes (as output) and the write data strobes (as input).

VCC and VCCQ (power supply pins): 2.5V is applied. (VCC is for the internal circuit and VCCQ is for the output

buffer.)

VCCSPD (power supply pin): 2.5V is applied (For serial EEPROM).

VSS (power supply pin): Ground is connected.

/RESET (input pin): LVCMOS reset input. When /RESET is low, all registers are reset and all outputs are low.

Data are input to and output from these pins.

Detailed Operation Part, AC Characteristics and Timing Waveforms

Refer to the HM5425161B/HM5425801B/HM5425401B Series datasheet (E0086H10). DM pins of component device fixed to VSS level on the module board. DIMM /CAS latency = Device CL + 1 for registered type.

Data Sheet E0090H40 (Ver. 4.0)

10

HB54A5129F1-A75B/B75B/10B

Electrical Specifications

Absolute Maximum Ratings

Parameter Symbol Value Unit Note

Voltage on any pin relative to VSS VT –1.0 to +4.6 V 1

Supply voltage relative to VSS VCC, VCCQ –1.0 to +4.6 V 1

Short circuit output current IOUT 50 mA

Power dissipation PT 18 W

Operating temperature Topr 0 to +55 °C

Storage temperature Tstg –50 to +100 °C

Notes: 1. Respect to VSS.

DC Operating Conditions (TA = 0 to +55°C)

Parameter Symbol min. Typ max. Unit Notes

Supply voltage VCC, VCCQ 2.3 2.5 2.7 V 1, 2

VSS 0 0 0 V

Input reference voltage VREF 1.15 1.25 1.35 V 1

Termination voltage VTT VREF – 0.04 VREF VREF + 0.04 V 1

DC Input high voltage VIH VREF + 0.18 — VCCQ + 0.3 V 1, 3

DC Input low voltage VIL –0.3 — VREF – 0.18 V 1, 4

DC Input signal voltage VIN (dc) –0.3 — VCCQ + 0.3 V 5

DC differential input voltage VSWING (dc) 0.36 — VCCQ + 0.6 V 6

Notes: 1. All parameters are referred to VSS, when measured.

2. VCCQ must be lower than or equal to VCC.

3. VIH is allowed to exceed VCC up to 4.6V for the period shorter than or equal to 5ns.

4. VIL is allowed to outreach below VSS down to –1.0V for the period shorter than or equal to 5ns.

5. VIN (dc) specifies the allowable dc execution of each differential input.

6. VSWING (dc) specifies the input differential voltage required for switching.

Data Sheet E0090H40 (Ver. 4.0)

11

HB54A5129F1-A75B/B75B/10B

DC Characteristics 1 (TA = 0 to 55°C, VCC, VCCQ = 2.5V ± 0.2V, VSS = 0V)

Parameter Symbol Grade max. Unit Test condition Notes

Operating current (ACTV-PRE) ICC0

Operating current (ACTV-READPRE)

Idle power down standby current ICC2P

Idle standby current ICC2N

Active power down standby current

Active standby current ICC3N

Operating current (Burst read operation)

Operating current (Burst write operation)

Auto refresh current ICC5

Self refresh current ICC6

ICC1

ICC3P

ICC4R

ICC4W

-A75B

-B75B

-10B

-A75B

-B75B

-10B

-A75B

-B75B

-10B

-A75B

-B75B

-10B

-A75B

-B75B

-10B

-A75B

-B75B

-10B

-A75B

-B75B

-10B

-A75B

-B75B

-10B

-A75B

-B75B

-10B

-A75B

-B75B

-10B

Notes. 1. These ICC data are measured under condition that DQ pins are not connected.

2. One bank operation.

3. One bank active.

4. All banks idle.

5. Command/Address transition once per one cycle.

6. Data/Data mask transition twice per one cycle.

7. The ICC data on this table are measured with regard to tCK = min. in general.

2194 2096 1819

3184 2996 2719

718 656 595

1114 1016 919

844 746 649

1294 1196 1099

4444 4256 4069

4084 3896 3709

4084 3986 3619

448 440 433

mA CKE ≥ VIH, tRC = min. 1, 2, 5

mA

mA CKE ≤ VIL 4

mA CKE ≥ VIH, /CS ≥ VIH 4

mA CKE ≤ VIL 3

mA

CKE ≥ VIH, BL = 2, CL = 3.5, tRC = min.

CKE ≥ VIH, /CS ≥ VIH tRAS = max.

CKE ≥ VIH, BL = 2, CL = 3.5

tRFC = min., Input ≤ VIL or ≥ VIH

Input ≥ VCC – 0.2V Input ≤ 0.2V.

1, 2, 5

3

1, 2, 5, 6

DC Characteristics 2 (TA = 0 to 55°C, VCC, VCCQ = 2.5V ± 0.2V, VSS = 0V)

Parameter Symbol min. max. Unit Test condition Notes

Input leakage current ILI –10 10 µA VCC ≥ VIN ≥ VSS

Output leakage current ILO –10 10 µA VCC ≥ VOUT ≥ VSS

Output high voltage VOH VTT + 0.76 — V IOH (max.) = –15.2mA

Output low voltage VOL — VTT – 0.76 V IOL (min.) = 15.2mA

Data Sheet E0090H40 (Ver. 4.0)

12

HB54A5129F1-A75B/B75B/10B

Pin Capacitance (TA = 25°C, VCC, VCCQ = 2.5V ± 0.2V)

Parameter Symbol Pins max. Unit Notes

Input capacitance CI1

Input capacitance CI2 CK, /CK 20 pF 1, 3

Data and DQS input/output capacitance

CO DQ, DQS, CB 15 pF 1, 2, 3

Notes: 1. These parameters are measured on conditions: f = 100MHz, VOUT = VCCQ/2, ∆VOUT = 0.2V.

2. Dout circuits are disabled.

3. This parameter is sampled and not 100% tested.

Timing Parameter Measured in Clock Cycle for Registered DIMM

Number of clock cycle

Parameter Symbol min. max.

Write to pre-charge command delay (same bank) tWPD 3 + BL/2

Read to pre-charge command delay (same bank) tRPD BL/2

Write to read command delay (to input all data) tWRD 2 + BL/2

Burst stop command to write command delay (CL = 3)

(CL = 3.5) tBSTW 3

Burst stop command to DQ High-Z (CL = 3)

(CL = 3.5) tBSTZ 3.5

Read command to write command delay (to output all data) (CL = 3)

(CL = 3.5) tRWD 3 + BL/2

Pre-charge command to High-Z (CL = 3)

(CL = 3.5) tHZP 3.5

Write command to data in latency tWCD 2

Write recovery tWR 1

Register set command to active or register set command tMRD 2

Self refresh exit to non-read command tSNR 10

Self refresh exit to read command tSRD 200

Power down entry tPDEN 1

Power down exit to command input tPDEX 1

CKE minimum pulse width tCKEPW 1

Address, /RAS, /CAS, /WE, /S, CKE

tBSTW 2

tBSTZ 3

tRWD 2 + BL/2

tHZP 3

10 pF 1, 3

Data Sheet E0090H40 (Ver. 4.0)

13

Physical Outline

2.30

1 92

2 – φ 2.50 ± 0.10

HB54A5129F1-A75B/B75B/10B

133.35 ± 0.15

128.95

(64.48)

Component area

(Front)

64.77 49.53

(DATUM -A-)

Unit: mm

4.00 max

4.00 min

AB

1.27 ± 0.10

93

Component area

184

10.00

17.80

(Back)

43.18 ± 0.15

4.00 ± 0.10

R 2.00

Detail A

1.27 typ

2.50 ± 0.20

1.00 ± 0.05

Note: Tolerance on all dimensions ± 0.13 unless otherwise specified.

Detail B

0.20 ± 0.15

3.80

(DATUM -A-)

6.62

2.175 R 0.90

1.80 ± 0.10

6.35

3.00 min

ECA-TS2-0059-01

Data Sheet E0090H40 (Ver. 4.0)

14

HB54A5129F1-A75B/B75B/10B

CAUTION FOR HANDLING MEMORY MODULES

When handling or inserting memory modules, be sure not to touch any components on the modules, such as the memory ICs, chip capacitors and chip resistors. It is necessary to avoid undue mechanical stress on these components to prevent damaging them. In particular, do not push module cover or drop the modules in order to protect from mechanical defects, which would be electrical defects.

When re-packing memory modules, be sure the modules are not touching each other. Modules in contact with other modules may cause excessive mechanical stress, which may damage the modules.

NOTES FOR CMOS DEVICES

1 PRECAUTION AGAINST ESD FOR MOS DEVICES

Exposing the MOS devices to a strong electric field can cause destruction of the gate oxide and ultimately degrade the MOS devices operation. Steps must be taken to stop generation of static electricity as much as possible, and quickly dissipate it, when once it has occurred. Environmental control must be adequate. When it is dry, humidifier should be used. It is recommended to avoid using insulators that easily build static electricity. MOS devices must be stored and transported in an anti-static container, static shielding bag or conductive material. All test and measurement tools including work bench and floor should be grounded. The operator should be grounded using wrist strap. MOS devices must not be touched with bare hands. Similar precautions need to be taken for PW boards with semiconductor MOS devices on it.

2 HANDLING OF UNUSED INPUT PINS FOR CMOS DEVICES

No connection for CMOS devices input pins can be a cause of malfunction. If no connection is provided to the input pins, it is possible that an internal input level may be generated due to noise, etc., hence causing malfunction. CMOS devices behave differently than Bipolar or NMOS devices. Input levels of CMOS devices must be fixed high or low by using a pull-up or pull-down circuitry. Each unused pin should be connected to V

DD

or GND with a resistor, if it is considered to have a possibility of being an output

pin. The unused pins must be handled in accordance with the related specifications.

MDE0202

3 STATUS BEFORE INITIALIZATION OF MOS DEVICES

Power-on does not necessarily define initial status of MOS devices. Production process of MOS does not define the initial operation status of the device. Immediately after the power source is turned ON, the MOS devices with reset function have not yet been initialized. Hence, power-on does not guarantee output pin levels, I/O settings or contents of registers. MOS devices are not initialized until the reset signal is received. Reset operation must be executed immediately after power-on for MOS devices having reset function.

CME0107

Data Sheet E0090H40 (Ver. 4.0)

15

HB54A5129F1-A75B/B75B/10B

The information in this document is subject to change without notice. Before using this document, confirm that this is the latest version.

No part of this document may be copied or reproduced in any form or by any means without the prior written consent of Elpida Memory, Inc.

Elpida Memory, Inc. does not assume any liability for infringement of any intellectual property rights (including but not limited to patents, copyrights, and circuit layout licenses) of Elpida Memory, Inc. or third parties by or arising from the use of the products or information listed in this document. No license, express, implied or otherwise, is granted under any patents, copyrights or other intellectual property rights of Elpida Memory, Inc. or others.

Descriptions of circuits, software and other related information in this document are provided for illustrative purposes in semiconductor product operation and application examples. The incorporation of these circuits, software and information in the design of the customer's equipment shall be done under the full responsibility of the customer. Elpida Memory, Inc. assumes no responsibility for any losses incurred by customers or third parties arising from the use of these circuits, software and information.

[Product applications]

Elpida Memory, Inc. makes every attempt to ensure that its products are of high quality and reliability. However, users are instructed to contact Elpida Memory's sales office before using the product in aerospace, aeronautics, nuclear power, combustion control, transportation, traffic, safety equipment, medical equipment for life support, or other such application in which especially high quality and reliability is demanded or where its failure or malfunction may directly threaten human life or cause risk of bodily injury.

[Product usage]

Design your application so that the product is used within the ranges and conditions guaranteed by Elpida Memory, Inc., including the maximum ratings, operating supply voltage range, heat radiation characteristics, installation conditions and other related characteristics. Elpida Memory, Inc. bears no responsibility for failure or damage when the product is used beyond the guaranteed ranges and conditions. Even within the guaranteed ranges and conditions, consider normally foreseeable failure rates or failure modes in semiconductor devices and employ systemic measures such as fail-safes, so that the equipment incorporating Elpida Memory, Inc. products does not cause bodily injury, fire or other consequential damage due to the operation of the Elpida Memory, Inc. product.

[Usage environment]

This product is not designed to be resistant to electromagnetic waves or radiation. This product must be used in a non-condensing environment.

If you export the products or technology described in this document that are controlled by the Foreign Exchange and Foreign Trade Law of Japan, you must follow the necessary procedures in accordance with the relevant laws and regulations of Japan. Also, if you export products/technology controlled by U.S. export control regulations, or another country's export control laws or regulations, you must follow the necessary procedures in accordance with such laws or regulations.

If these products/technology are sold, leased, or transferred to a third party, or a third party is granted license to use these products, that third party must be made aware that they are responsible for compliance with the relevant laws and regulations.

M01E0107

Data Sheet E0090H40 (Ver. 4.0)

16
