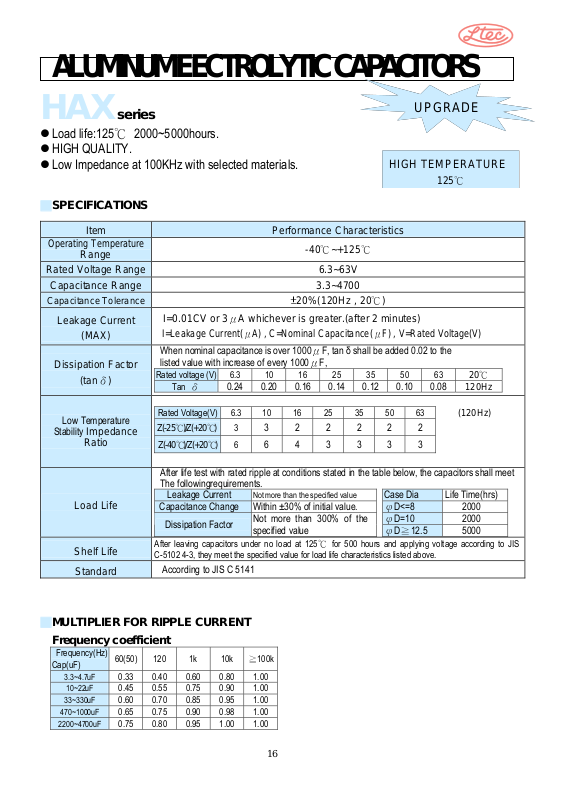

ALUMINUM EECTROLYTIC CAPACITORS
HAX series
z Load life:125℃ 2000~5000hours.
z HIGH QUALITY.
z Low Impedance at 100KHz with selected materials.
■SPECIFICATIONS
Item Performance Characteristics
Operating Temperature
Range
Rated Voltage Range 6.3~63V
Capacitance Range 3.3~4700
Capacitance Tolerance ±20%(120Hz , 20℃)
Leakage Current
(MAX)
Dissipation Factor
(tanδ)
Low Temperature
Stability Impedance
Ratio
I=0.01CV or 3μA whichever is greater.(after 2 minutes)
I=Leakage Current(μA) , C=Nominal Capacitance(μF) , V=Rated Voltage(V)
When nominal capacitance is over 1000μF, tan δ shall be added 0.02 to the
listed value with increase of every 1000μF,
Rated voltage (V)
Tan δ 0.24 0.20 0.16 0.14 0.12 0.10 0.08 120Hz
Rated Voltage(V) 6.3 10 16 25 35 50 63 (120Hz)
Z(-25℃)/Z(+20℃) 3 3 2 2 2 2 2
Z(-40℃)/Z(+20℃) 6 6 4 3 3 3 3
6.3 10 16 25 35 50 63 20℃
-40℃~+125℃
UPGRADE
HIGH TEMPERATURE
125
After life test with rated ripple at conditions stated in the table below, the capacitors shall meet
The followingrequirements.
Leakage Current Not more than the specified value Case Dia Life Time(hrs)
Load Life
Shelf Life
Standard
Capacitance Change Within ±30% of initial value. φD<=8 2000
Dissipation Factor
After leaving capacitors under no load at 125℃ for 500 hours and applying voltage according to JIS
C-5102 4-3, they meet the specified value for load life characteristics listed above.
According to JIS C 5141
Not more than 300% of the
specified value
φD=10 2000
φD≧12.5 5000
■MULTIPLIER FOR RIPPLE CURRENT
Frequency coefficient
Frequency(Hz)
Cap(uF)
3.3~4.7uF 0.33 0.40 0.60 0.80 1.00
10~22uF 0.45 0.55 0.75 0.90 1.00
33~330uF 0.60 0.70 0.85 0.95 1.00
470~1000uF 0.65 0.75 0.90 0.98 1.00
2200~4700uF 0.75 0.80 0.95 1.00 1.00
60(50) 120 1k 10k ≧100k
16
Page 2
ALUMINUM EECTROLYTIC CAPACITORS
HAX series

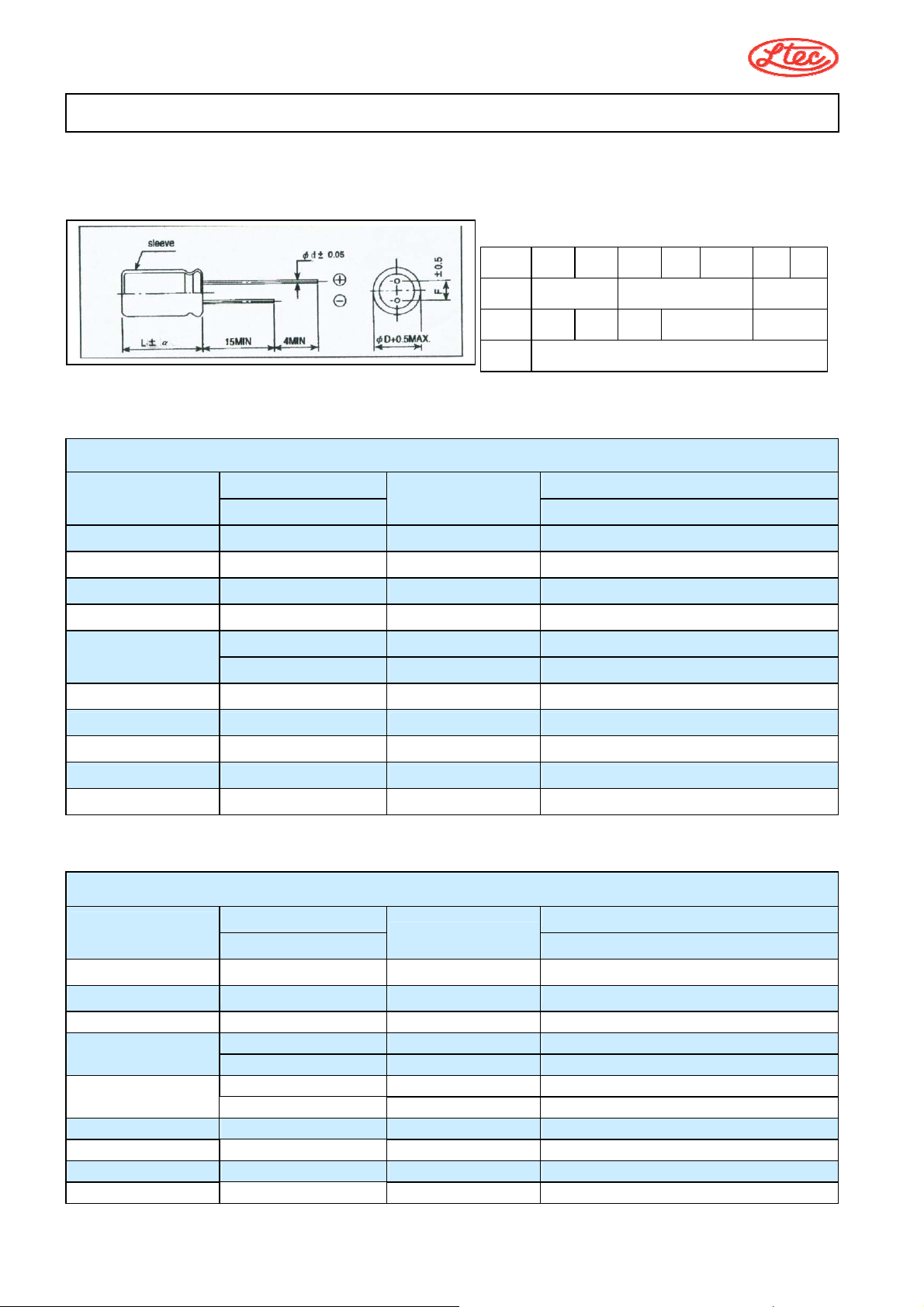

■DIMENSIONS (mm)
STANDARD SIZE PERMISSIBLE RIPPLE CURRENT
Rated voltage 6.3V (0J)
Nominal capacitance
(uF)
100 5x11 150 0.35
220 6.3x11 220 0.30
330 8x11.5 300 0.25
470 8x11.5 380 0.20
680
1000 10x16 820 0.095
1500 10x20 990 0.070
2200 12.5x20 1240 0.054
3300 12.5x25 1500 0.040
4700 12.5x30 1855 0.036
Size
φD×L(mm)
8x16 500 0.18
10x12.5 650 0.14
Ripple Current
Rated voltage 10V (1A)
φD 5 6.3 8 10 12.5 16 18
φd
F
α
0.5 0.6 0.8
2.0 2.5 3.5 5.0 7.5
L≦16:α=1.5, L≧20:α=2.0
Ripple Current ( mA 125℃,100kHz) r.m.s
Impedance (ΩMAX)
20℃,100kHz
Ripple Current (mA 125℃,100kHz) r.m.s
Nominal capacitance
(uF)
100 5x11 220 0.30
220 6.3x11 300 0.25
330 8x11.5 380 0.20
470
680
1000 10x20 990 0.070
2200 12.5x25 1500 0.042
3300 12.5x25 1757 0.038
4700 12.5x35 1855 0.036
17
Size
φD×L(mm)
8x16 500 0.18
10x12.5 650 0.14
8x20 550 0.16
10x12.5 650 0.12
Ripple Current
Impedance (ΩMAX)
20℃,100kHz
Page 3
ALUMINUM EECTROLYTIC CAPACITORS
HAX series Ripple Current (mA 125℃,100kHz) r.m.s
Rated voltage 16V (1C)
Nominal capacitance
(uF)
220
330 8X11.5 380 0.20
470
470 10X12.5 650 0.14
1000 10X20 990 0.070
1500 10X20 1100 0.065
2200 12.5X25 1500 0.038
3300 12.5X30 1855 0.036
Nominal capacitance
(uF)
220 8X11.5 380 0.20
330 10X12.5 650 0.14
470 10X16 900 0.09
1000 12.5X20 1200 0.05
Size
φD×L(mm)
8X11.5
8X16
Size
φD×L(mm)
Ripple Current
350
550 0.17
Rated voltage 25V (1E)
Ripple Current
Impedance (ΩMAX)
20℃,100kHz
0.25
Ripple Current (mA 125℃,100kHz) r.m.s
Impedance (ΩMAX)
20℃,100kHz
1500 12.5X25 1500 0.04
2200 12.5X35 1855 0.035
3300 16X31.5 2155 0.030
Nominal capacitance
(uF)
33 6.3 X11 155 0.88
47 6.3 X11 243 0.59
100 8 X11.5 380 0.20
220 10 X12.5 650 0.14
330 10 X16 900 0.09
470 10 X20 990 0.070
1000 12.5 X25 1500 0.038
1500 16 X31.5 1900 0.032
Size
φD×L(mm)
Ripple Current (mA 125℃,100kHz) r.m.s
Rated voltage 35V (1V)
Impedance (ΩMAX)
Ripple Current
20℃,100kHz
18
Page 4
ALUMINUM EECTROLYTIC CAPACITORS
HAX series Ripple Current (mA 125℃,100kHz) r.m.s
Rated voltage 50V (1H)
Nominal capacitance
(uF)
3.3 5 X11 55 2.97
4.7 5 X11 65 2.52
3.3 8 X11.5 75 1.25
4.7 8 X11.5 110 0.80
10 8 X11.5 220 0.55
22 8 X11.5 280 0.32
33 8 X11.5 330 0.27
47 8 X11.5 350 0.26
68 8 X11.5 400 0.20
100 10 X12.5 530 0.17
220 10 X20 780 0.12
330 10 X28 1280 0.07
470 12.5 X25 1530 0.05
820 12.5 X35 1757 0.038
1000 13 X35 1900 0.038
1500 16 X40 2100 0.030
Size
φD×L(mm)
Ripple Current
Impedance (ΩMAX)
20℃,100kHz
★ 1000/50v 只能做 13φ
Nominal capacitance
(uF)
33 8 x11.5 270 0.38
47 10 X12.5 400 0.26
100 10 X16 480 0.19
220 12.5 X20 930 0.09
330 16 X25 1500 0.06
470 16 X31.5 1757 0.05
820 16 X40 1900 0.038
Size
φD×L(mm)
Rated voltage 63V (1J)
Ripple Current
Ripple Current (mA 125℃,100kHz) r.m.s
Impedance (ΩMAX)
20℃,100kHz
19
