HI-SINCERITY
MICROELECTRONICS CORP.
H7912AE
H7912BE
3-TERMINAL NEGATIVE VOLTAGE REGULATOR
Description
Spec. No. : HE200112
Issued Date : 1998.07.01
Revised Date : 2001.12.17
Page No. : 1/4
The H7912_E series of three-terminal negative regulators are avail-
TO-220
able in the TO-220AB package. They can provide local on-card
regulation, eliminating the distribution problems associated with single point regulation;
furthermore, having the same voltage options as the H7912_E positive standard series, they are
particularly suited for split power supplies. If adequate heat sinking is provided, the H7912_E
series can deliver an output current in excess of 1A although designed primarily as fixed voltage
regulators, these devices can be used with external components to obtain adjustable voltage and
currents.
Absolute Maximum Ratings (Ta=25°C)
• Input V oltage...................................................................................................................... -35 V
• Total Power Dissipation..................................................................................... Internally limited
• Operating Junction Temperature........................................................................ 0 °C to +125 °C
• Maximum Junction Temperature...................................................................................... 125 °C
• Storage Temperature Range........................................................................... -55 °C to +150 °C
• Lead Temperature (Soldering 10S).................................................................................. 230 °C
Schematic DiagramTypical Application
1.4k
VoutVin
H7912_E
7K
GND
5K4K
15K
C1 C2
Note:
20pF
3K
10pF
10K
600 15K 20K
Vout
By pass Capacitors are
recommended for optimum stability
and transient response and should
20K
750
Vin
1K
20K
6K
20K
5K
150
0.2
be locate as close as possible to the
regulator.
H7912AE, H7912BE HSMC Product Specification
6.2V
HI-SINCERITY
MICROELECTRONICS CORP.
Spec. No. : HE200112
Issued Date : 1998.07.01
Revised Date : 2001.12.17
Page No. : 2/4
Electrical Characteristics
Vin=-19V, Io=500mA, Cin=2.2uF, Cout=1uF, 0°C≤Tj≤125°C (unless otherwise noted)
Symbol Parameter Conditions
Tj=25°C
Vo Output Voltage
PD≤15W, 5mA≤Io≤1A
Vi=-14.5V to -27V
∆Vo
∆Vo
Line Regulation
Load Regulation
IQ Quiescent Current
∆IQ
∆Vo / ∆T
Quiescent Current
Change
Output Voltage Drift Io=5mA - -0.4 -
Vn Output Noise Voltage
RR Ripple Rejection
VD Dropout Voltage
Isc Short Circuit Current
Ipk Peak Output Current
Tj=25°C, -14.5V≤Vin≤-30V
Tj=25°C, -16V≤Vin≤22V
5mA≤Io≤1.5A
250mA≤Io≤750mA
Io≤1A, Tj=25°C
5mA≤Io≤1A
-14.5V≤Vin≤-30V
Ta=25°C, 10Hz to 100KHz
∆Vi=10V, f=120Hz
Tj=25°C, Io=1A
Tj=25°C, Vi=-35V
Tj=25°C
Symbol Parameter Conditions
Tj=25°C
Vo Output Voltage
PD≤15W, 5mA≤Io≤1A
Vi=-14.5V to -27V
∆Vo
∆Vo
Line Regulation
Load Regulation
IQ Quiescent Current
∆IQ
∆Vo / ∆T
Quiescent Current
Change
Output Voltage Drift Io=5mA - -0.4 -
Vn Output Noise Voltage
RR Ripple Rejection
VD Dropout Voltage
Isc Short Circuit Current
Ipk Peak Output Current
Tj=25°C, -14.5V≤Vin≤-30V
Tj=25°C, -16V≤Vin≤22V
5mA≤Io≤1.5A
250mA≤Io≤750mA
Io≤1A, Tj=25°C
5mA≤Io≤1A
-14.5V≤Vin≤-30V
Ta=25°C, 10Hz to 100KHz
∆Vi=10V, f=120Hz
Tj=25°C, Io=1A
Tj=25°C, Vi=-35V
Tj=25°C
H7912AE
Min Typ Max
Units
-11.64 -12 - 12.36
-11.58 -12 - 12.42
- - 120
--30
- - 150
--75
V
mV
mV
-38mA
--0.5
--1.3
mA
mV/°C
- 100 - uV
54 68 - dB
-2- V
-2.2- A
1.3 2.2 - A
H7912BE
Min Typ Max
Units
-11.5 -12 -12.5
-11.4 -12 -12.6
- 10 240
- 5 120
- - 240
- - 120
V
mV
mV
-38mA
--0.5
--1.3
mA
mV/°C
- 100 - uV
54 68 - dB
-2- V
-2.2- A
1.3 2.2 - A
H7912AE, H7912BE HSMC Product Specification
HI-SINCERITY
MICROELECTRONICS CORP.
Characteristics Curve
Spec. No. : HE200112
Issued Date : 1998.07.01
Revised Date : 2001.12.17
Page No. : 3/4
Average Case Power Dissipa tion as A Function
100
10
1
Power Dissipation
0.1
25 50 75 100 125 150
of Ambient Temperauture
Ambient Temperatur e ( ºC)
Ripple Rejection as A Function of Frequency
100
80
60
Peak Output Current as A Function of Input-
Output Differentail Voltage
2.5
2
1.5
1
Output Current
0.5
0
0 3 6 9 12 15 18 21 24 27 30
In put-Output Voltage Differential
Ripple Rejection as A Function of Output
Voltage
80
70
40
Ripple Rejection (dB)
20
0
10 100 1000 10000 100000
Frequency
Output Volt age as A Function of Jun ction
Temperature
6.26
6.22
6.18
6.14
Output Voltage (Volts)
6.1
60
Ripple Rejection (dB)
50
40
2 4 6 8 10 12 14 16 18 20 22
Output Voltage
6.06
-25 0 25 50 75 100 125 175
Junction Temperatur e ( ºC)
H7912AE, H7912BE HSMC Product Specification
HI-SINCERITY
MICROELECTRONICS CORP.

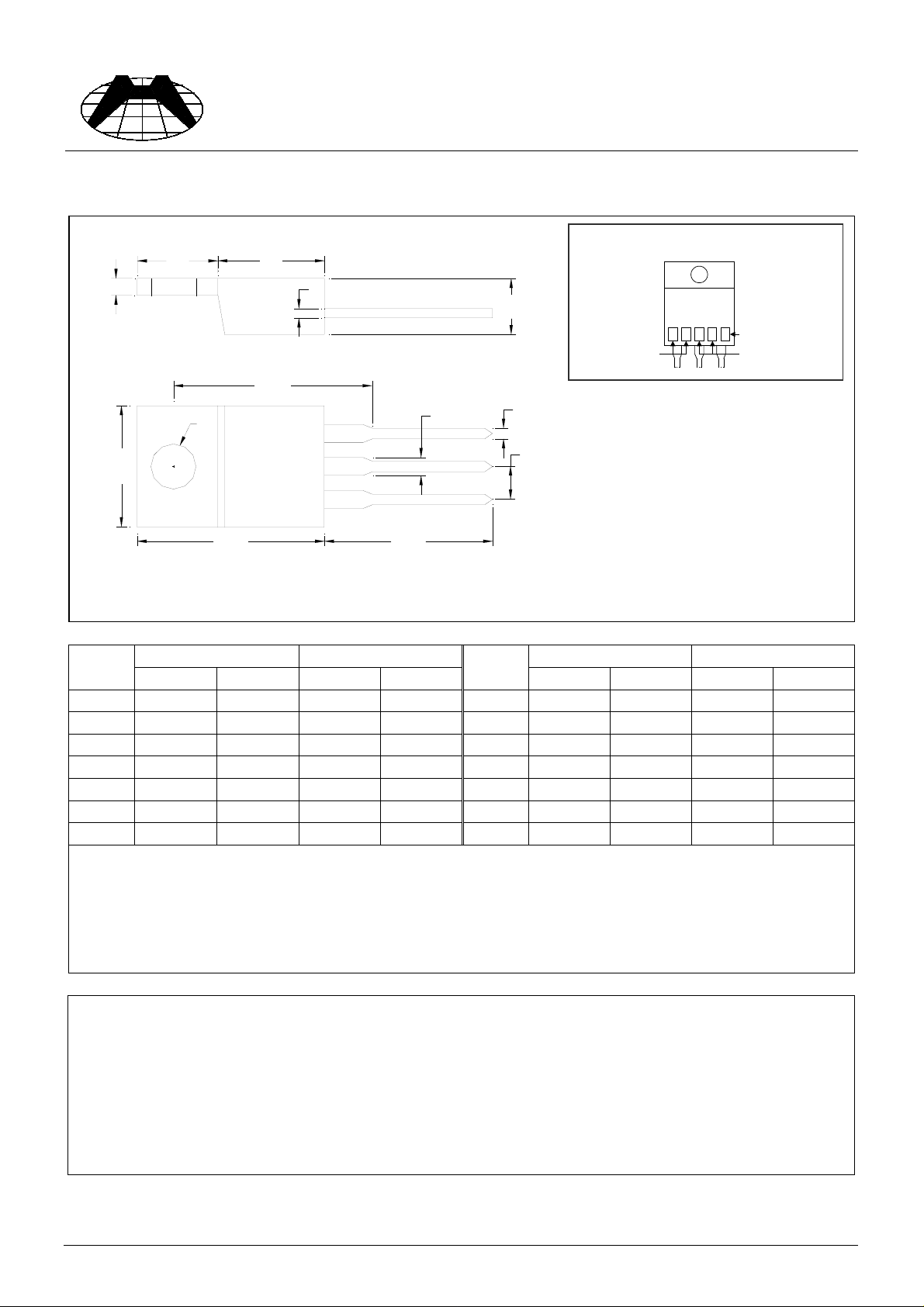

TO-220AB Dimension
A B
D
Spec. No. : HE200112
Issued Date : 1998.07.01
Revised Date : 2001.12.17
Page No. : 4/4
Marking:
E
C
Date Code
HE
7912
Rank
Control Code
H
Style: Pin 1.Vin 2.Ground 3.Vout
4.Ground
G
I
3
M
2
K
N
1
4
O
DIM
*: Typical
Min. Max. Min. Max.
DIM
P
3-Lead TO-220AB Plastic Package
HSMC Package Code: E
Inches Millimeters Inches Millimeters
Min. Max. Min. Max.
A 0.2197 0.2949 5.58 7.49 I - *0.1508 - *3.83
B 0.3299 0.3504 8.38 8.90 K 0.0295 0.0374 0.75 0.95
C 0.1732 0.185 4.40 4.70 M 0.0449 0.0551 1.14 1.40
D 0.0453 0.0547 1.15 1.39 N - *0.1000 - *2.54
E 0.0138 0.0236 0.35 0.60 O 0.5000 0.5618 12.70 14.27
G 0.3803 0.4047 9.66 10.28 P 0.5701 0.6248 14.48 15.87
H-*0.6398 - *16.25
Notes: 1.Dimension and tolerance based on our Spec. dated Sep. 07,1997.
Material:
• Lead: 42 Alloy ; solder plating
• Mold Compound: Epoxy resin family, flammability solid burning class: UL94V-0
2.Controlling dimension: millimeters.
3.Maximum lead thickness includes lead finish thickness, and minimum lead thickness is the minimum thickness of base material.
4.If there is any question with packing specification or packing method, please contact your local HSMC sales office.
Important Notice:
• All rights are reserved. Reproduction in whole or in part is prohibited without the prior written approval of HSMC.
• HSMC reserves the right to make changes to its products without notice.
• HSMC semiconductor products are not warranted to be suitable for use in Life-Support Applications, or systems.
• HSMC assumes no liability for any consequence of customer product design, infringement of patents, or application assistance.
Head Office And Factory:
• Head Office (Hi-Sincerity Microelectronics Corp.): 10F.,No. 61, Sec. 2, Chung-Shan N. Rd. Taipei Taiwan R.O.C.
Tel: 886-2-25212056 Fax: 886-2-25632712, 25368454
• Factory 1: No. 38, Kuang Fu S. Rd., Fu-Kou Hsin-Chu Industrial Park Hsin-Chu Taiwan. R.O.C
Tel: 886-3-5983621~5 Fax: 886-3-5982931
H7912AE, H7912BE HSMC Product Specification
