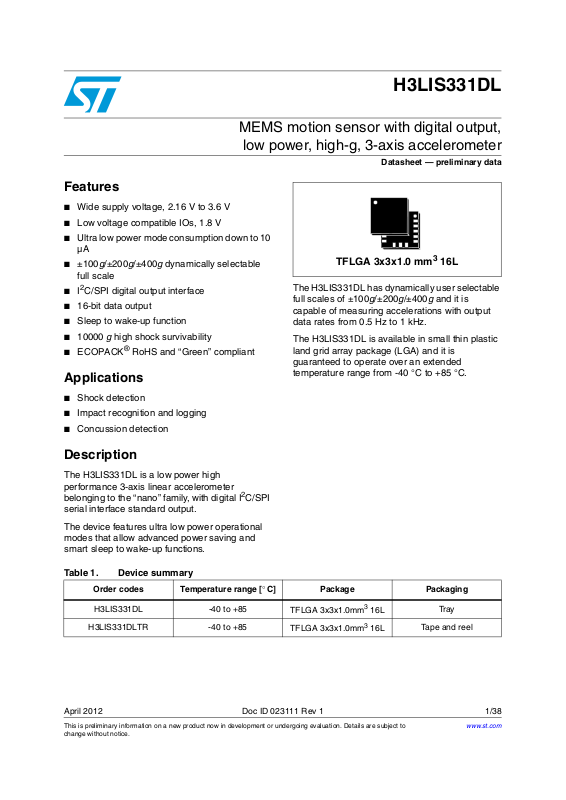

Page 1

MEMS motion sensor with digital output,

TFLGA 3x3x1.0 mm3 16L

low power, high-g, 3-axis accelerometer

Features

■ Wide supply voltage, 2.16 V to 3.6 V

■ Low voltage compatible IOs, 1.8 V

■ Ultra low power mode consumption down to 10

µA

■ ±100g/±200g/±400g dynamically selectable

full scale

■ I

C/SPI digital output interface

■ 16-bit data output

■ Sleep to wake-up function

■ 10000 g high shock survivability

■ ECOPACK

Applications

RoHS and “Green” compliant

H3LIS331DL

Datasheet — preliminary data

The H3LIS331DL has dynamically user selectable full scales of ±100g/±200g/±400g and it is capable of measuring accelerations with output data rates from 0.5 Hz to 1 kHz.

The H3LIS331DL is available in small thin plastic land grid array package (LGA) and it is guaranteed to operate over an extended temperature range from -40 °C to +85 °C.

■ Shock detection

■ Impact recognition and logging

■ Concussion detection

Description

The H3LIS331DL is a low power high performance 3-axis linear accelerometer belonging to the “nano” family, with digital I serial interface standard output.

The device features ultra low power operational modes that allow advanced power saving and smart sleep to wake-up functions.

Table 1. Device summary

Order codes Temperature range [°C] Package Packaging

H3LIS331DL -40 to +85

H3LIS331DLTR -40 to +85

C/SPI

TFLGA 3x3x1.0mm

TFLGA 3x3x1.0mm3 16L

16L

Tr ay

Tape and reel

April 2012 Doc ID 023111 Rev 1 1/38

This is preliminar y information on a new product now in development or undergoing evaluation. Details are subject to change without notice.

www.st.com

Page 2

Contents H3LIS331DL

Contents

1 Block diagram and pin description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

1.1 Block diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

1.2 Pin description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

2 Mechanical and electrical specifications . . . . . . . . . . . . . . . . . . . . . . . . 8

2.1 Mechanical characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

2.2 Electrical characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

2.3 Communication interface characteristics . . . . . . . . . . . . . . . . . . . . . . . . . 10

2.3.1 SPI - serial peripheral interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

2.3.2 I2C - inter IC control interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

2.4 Absolute maximum ratings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

2.5 Terminology . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

2.5.1 Sensitivity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

2.5.2 Zero-g level . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

2.5.3 Sleep to wake-up . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

3 Functionality . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

3.1 Sensing element . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

3.2 IC interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

3.3 Factory calibration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

4 Application hints . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

4.1 Soldering information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

5 Digital interfaces . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

5.1 I2C serial interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

5.1.1 I2C operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

5.2 SPI bus interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

5.2.1 SPI read . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

5.2.2 SPI write . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

5.2.3 SPI read in 3-wire mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

6 Register mapping . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

2/38 Doc ID 023111 Rev 1

Page 3

H3LIS331DL Contents

7 Register description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

7.1 WHO_AM_I (0Fh) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

7.2 CTRL_REG1 (20h) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

7.3 CTRL_REG2 (21h) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

7.4 CTRL_REG3 [Interrupt CTRL register] (22h) . . . . . . . . . . . . . . . . . . . . . . 27

7.5 CTRL_REG4 (23h) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

7.6 CTRL_REG5 (24. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . h) 28

7.7 HP_FILTER_RESET (25h) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

7.8 REFERENCE (26 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . h) 29

7.9 STATUS_REG (27h) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

7.10 OUT_X_L (28h), OUT_X_H (29) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

7.11 OUT_Y_L (2Ah), OUT_Y_H (2Bh) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

7.12 OUT_Z_L (2Ch), OUT_Z_H (2Dh) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

7.13 INT1_CFG (30h) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

7.14 INT1_SRC (31h) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

7.15 INT1_THS (32h) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

7.16 INT1_DURATION (33h) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

7.17 INT2_CFG (34h) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

7.18 INT2_SRC (35h) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

7.19 INT2_THS (36h) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

7.20 INT2_DURATION (37h) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

8 Package information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

9 Revision history . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

Doc ID 023111 Rev 1 3/38

Page 4

List of tables H3LIS331DL

List of tables

Table 1. Device summary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

Table 2. Pin description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Table 3. Mechanical characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Table 4. Electrical characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Table 5. SPI slave timing values. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Table 6. I2C slave timing values. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Table 7. Absolute maximum ratings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Table 8. Serial interface pin description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Table 9. Serial interface pin description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Table 10. SAD+Read/Write patterns . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Table 11. Transfer when master is writing one byte to slave . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Table 12. Transfer when master is writing multiple bytes to slave:. . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Table 13. Transfer when master is receiving (reading) one byte of data from slave: . . . . . . . . . . . . . 18

Table 14. Transfer when master is receiving (reading) multiple bytes of data from slave . . . . . . . . . 18

Table 15. Register address map. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Table 16. WHO_AM_I register . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

Table 17. CTRL_REG1 register . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

Table 18. CTRL_REG1 description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

Table 19. Power mode and low power output data rate configurations . . . . . . . . . . . . . . . . . . . . . . . 25

Table 20. Normal mode output data rate configurations and low-pass cutoff frequencies . . . . . . . . . 25

Table 21. CTRL_REG2 register . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

Table 22. CTRL_REG2 description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

Table 23. High-pass filter mode configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

Table 24. High-pass filter cutoff frequency configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

Table 25. CTRL_REG3 register . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

Table 26. CTRL_REG3 description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

Table 27. Data signal on INT 1 and INT 2 pad . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

Table 28. CTRL_REG4 register . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

Table 29. CTRL_REG4 description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

Table 30. CTRL_REG5 register . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

Table 31. CTRL_REG5 description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

Table 32. Sleep to wake configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

Table 33. REFERENCE register. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

Table 34. REFERENCE description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

Table 35. STATUS_REG register . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

Table 36. STATUS_REG description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

Table 37. INT1_CFG register . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

Table 38. INT1_CFG description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

Table 39. Interrupt 1 source configurations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

Table 40. INT1_SRC register . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

Table 41. INT1_SRC description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

Table 42. INT1_THS register . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

Table 43. INT1_THS description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

Table 44. INT1_DURATION register . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

Table 45. INT2_DURATION description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

Table 46. INT2_CFG register . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

Table 47. INT2_CFG description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

Table 48. Interrupt mode configuration. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

4/38 Doc ID 023111 Rev 1

Page 5

H3LIS331DL List of tables

Table 49. INT2_SRC register . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

Table 50. INT2_SRC description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

Table 51. INT2_THS register . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

Table 52. INT2_THS description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

Table 53. INT2_DURATION register . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

Table 54. INT2_DURATION description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

Table 55. TFLGA 3x3x1.0mm

16L mechanical data. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

Table 56. Document revision history . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

Doc ID 023111 Rev 1 5/38

Page 6

List of figures H3LIS331DL

List of figures

Figure 1. Block diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Figure 2. Pin connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Figure 3. SPI slave timing diagram (2). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Figure 4. I2C slave timing diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

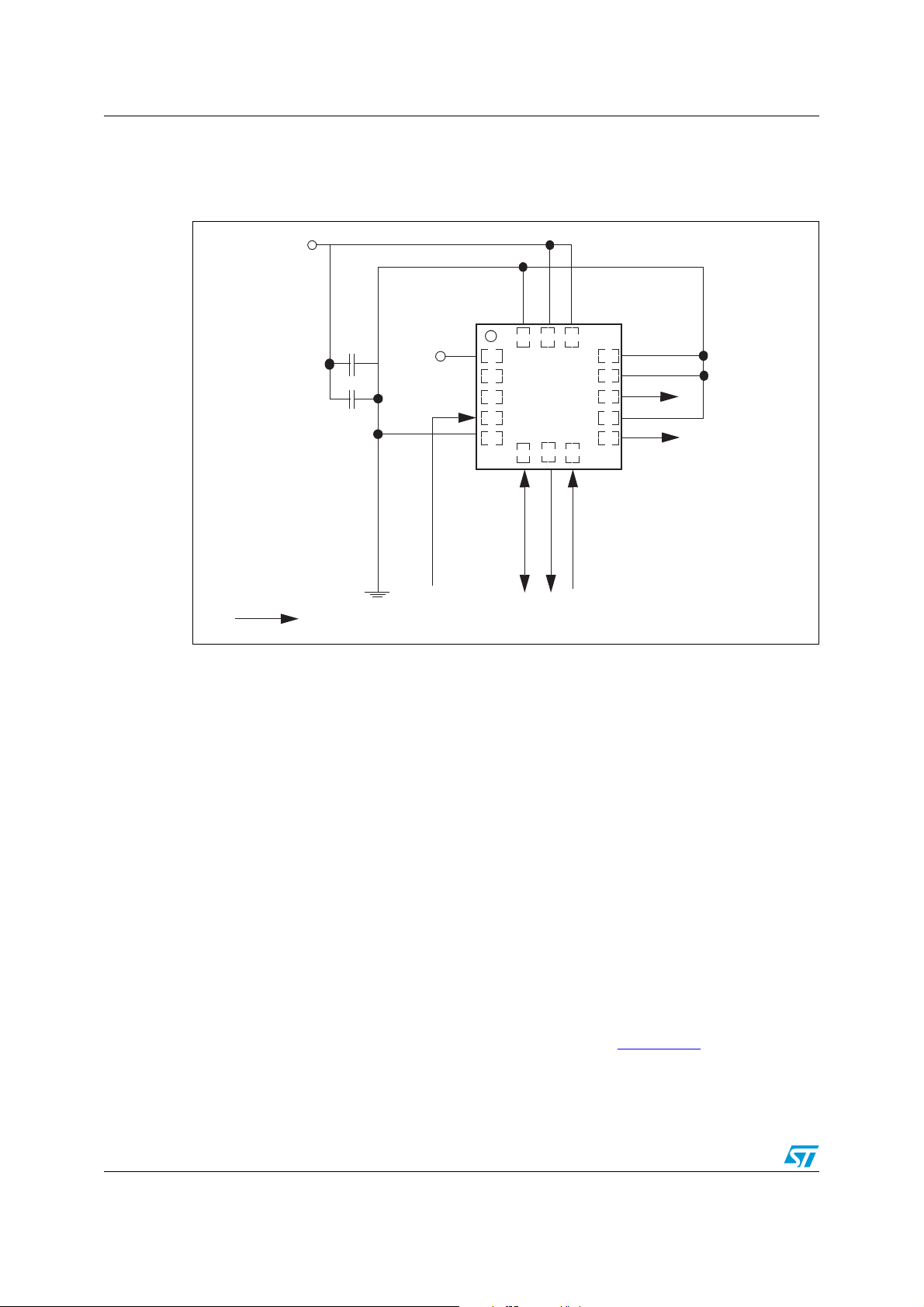

Figure 5. H3LIS331DL electrical connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Figure 6. Read and write protocol . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

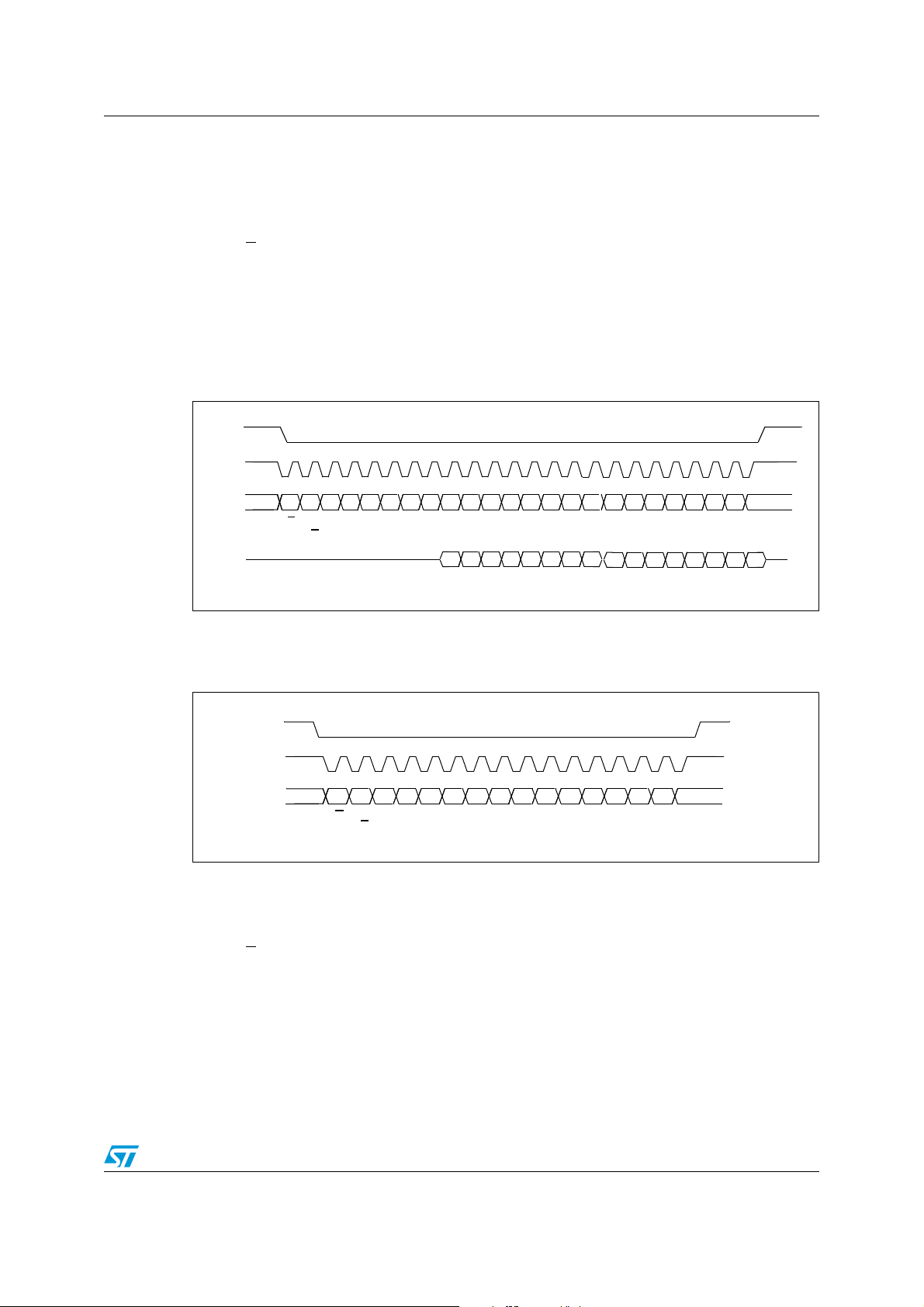

Figure 7. SPI read protocol . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Figure 8. Multiple byte SPI read protocol (2-byte example). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Figure 9. SPI write protocol . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Figure 10. Multiple byte SPI write protocol (2-byte example). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Figure 11. SPI read protocol in 3-wire mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

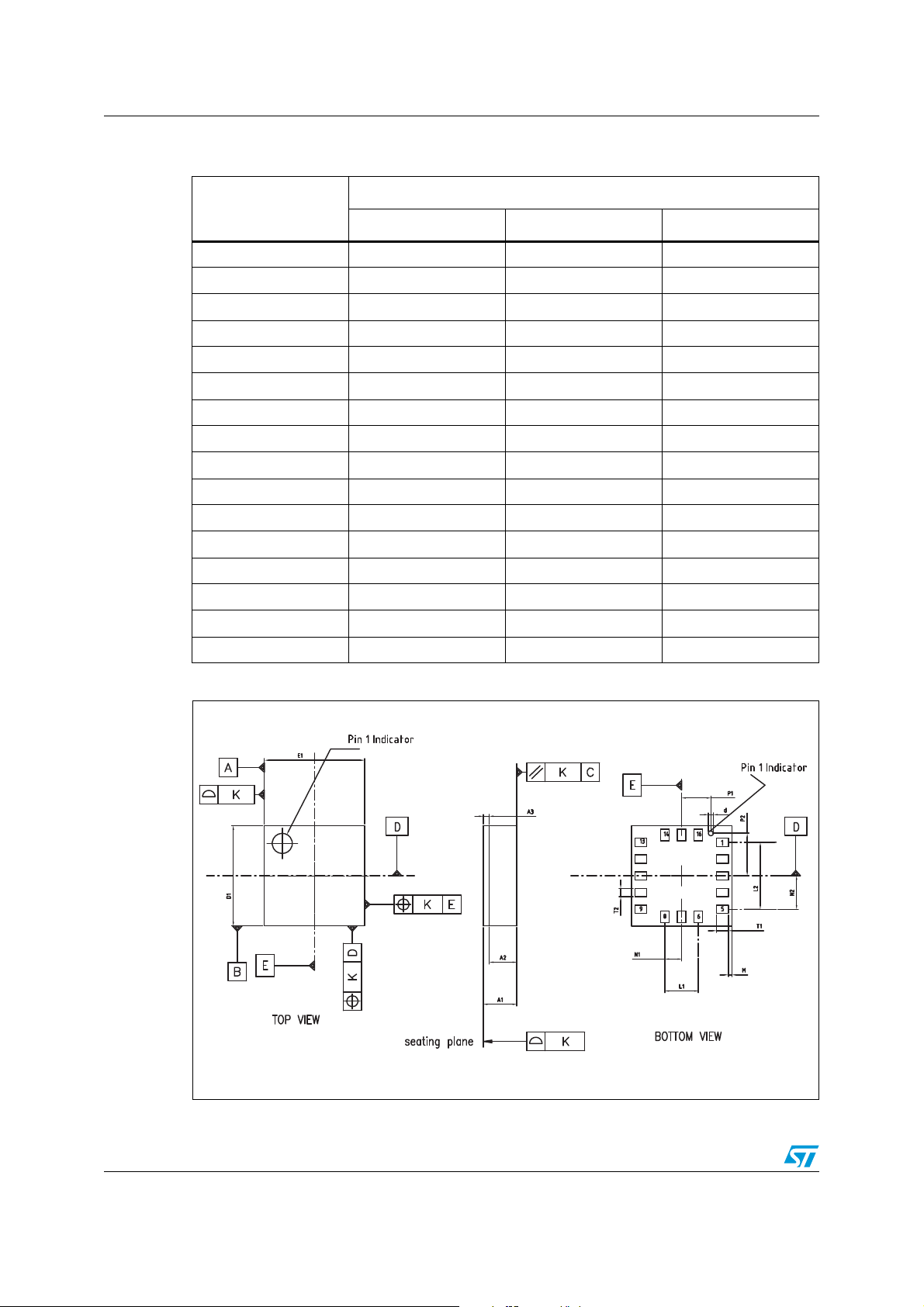

Figure 12. TFLGA 3x3x1.0mm

16L mechanical drawing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

6/38 Doc ID 023111 Rev 1

Page 7

H3LIS331DL Block diagram and pin description

CHARGE

AMPLIFIER

Y+

Z+

Y-

Z-

X+

X-

I2C

SPI

SCL/SPC

SDA/SDO/SDI

SDO/SA0

CONTROL LOGIC

INTERRUPT GEN.

INT 1

CLOCK

TRIMMING

CIRCUITS

REFERENCE

CONTROL LOGIC

A/D

CONVERTER

INT 2

MUX

AM12624V1

(TOP VIEW)

DIRECTION OF THE DETECTABLE ACCELERATIONS

(BOTTOM VIEW)

Pin 1 indicator

AM12625V1

1 Block diagram and pin description

1.1 Block diagram

Figure 1. Block diagram

1.2 Pin description

Figure 2. Pin connection

Doc ID 023111 Rev 1 7/38

Page 8

Block diagram and pin description H3LIS331DL

Table 2. Pin description

Pin# Name Function

1 Vdd_IO Power supply for I/O pins

2 NC Not connected

3 NC Not connected

SCL SPC

5 GND 0 V supply

SDA

SDI

SDO

C serial clock (SCL)

SPI serial port clock (SPC)

C serial data (SDA) SPI serial data input (SDI) 3-wire interface serial data output (SDO)

SDO

SA0

8CS

SPI serial data output (SDO)

C less significant bit of the device address (SA0)

SPI enable

C/SPI mode selection (1: I2C mode; 0: SPI enabled)

9 INT 2 Inertial interrupt 2

10 Reserved Connect to GND

11 INT 1 Inertial interrupt 1

12 GND 0 V supply

13 GND 0 V supply

14 Vdd Power supply

15 Reserved Connect to Vdd

16 GND 0 V supply

8/38 Doc ID 023111 Rev 1

Page 9

H3LIS331DL Mechanical and electrical specifications

2 Mechanical and electrical specifications

2.1 Mechanical characteristics

@ Vdd = 2.5 V, T = 25 °C unless otherwise noted

Table 3. Mechanical characteristics

Symbol Parameter Test conditions Min. Typ.

FS bit set to 00 ±100

FS Measurement range

So Sensitivity

TCSo

Ty Off

TCOff

An Acceleration noise density FS bit set to 00 15

Sensitivity change vs. temperature

Ty p i ca l z e ro accuracy

Zero-g level change vs. temperature

(3),(4)

(2)

g level offset

FS bit set to 01 ±200

FS bit set to 11 ±400

FS bit set to 00 12-bit representation

FS bit set to 01 12-bit representation

FS bit set to 11 12-bit representation

FS bit set to 00 ±0.01 %/°C

FS bit set to 00 ±1

Max. delta from 25 °C ±5 mg/°C

(a)

(1)

Max. Unit

g/digit

195

mg/

NL Non linearity 2 %

Top Operating temperature range -40 +85 °C

Wh Product weight 20 mgram

1. Typical specifications are not guaranteed.

2. Verified by wafer level test and measurement of initial offset and sensitivity.

3. Typical zero-g level offset value after MSL3 preconditioning.

4. Offset can be eliminated by enabling the built-in high-pass filter.

a. The product is factory calibrated at 2.5 V. The operational power supply range is from 2.16 V to 3.6 V. The

product calibration is done at +/-1g.

Doc ID 023111 Rev 1 9/38

Page 10

Mechanical and electrical specifications H3LIS331DL

2.2 Electrical characteristics

@ Vdd = 2.5 V, T = 25 °C unless otherwise noted

Table 4. Electrical characteristics

Symbol Parameter Test conditions Min. Typ.

Vdd Supply voltage 2.16 2.5 3.6 V

Vdd_IO I/O pins supply voltage

(2)

(b)

(1)

Max. Unit

1.71 Vdd+0.1 V

Idd

IddLP

IddPdn

VIH

Current consumption in normal mode

Current consumption in low power mode

Current consumption in power-down mode

Digital high level input voltage

300 µA

10 µA

1µA

0.8*Vdd_IO V

VIL Digital low level input voltage 0.2*Vdd_IO V

VOH High level output voltage 0.9*Vdd_IO V

VOL Low level output voltage 0.1*Vdd_IO V

DR bit set to 00 50

ODR

Output data rate in normal mode

DR bit set to 01 100

DR bit set to 10 400

DR bit set to 11 1000

PM bit set to 010 0.5

PM bit set to 011 1

ODR

Output data rate in low power

mode

PM bit set to 100 2

PM bit set to 101 5

PM bit set to 110 10

(4)

(3)

ODR/2 Hz

ODR = 100 Hz 1/ODR+1ms s

BW System bandwidth

Ton Turn-on time

Top Operating temperature range -40 +85

1. Typical specifications are not guaranteed.

2. It is possible to remove Vdd maintaining Vdd_IO without blocking the communication buses; in this condition the measurement chain is powered off.

3. Refer to Table 20 for filter cutoff frequency.

4. Time to obtain valid data after exiting power-down mode.

b. The product is factory calibrated at 2.5 V. The operational power supply range is from 2.16 V to 3.6 V.

10/38 Doc ID 023111 Rev 1

°C

Page 11

H3LIS331DL Mechanical and electrical specifications

2.3 Communication interface characteristics

2.3.1 SPI - serial peripheral interface

Subject to general operating conditions for Vdd and Top.

Table 5. SPI slave timing values

(1)

Val ue

Symbol Parameter

Min. Max.

tc(SPC) SPI clock cycle 100 ns

fc(SPC) SPI clock frequency 10 MHz

tsu(CS) CS setup time 6

th(CS) CS hold time 8

tsu(SI) SDI input setup time 5

th(SI) SDI input hold time 15

tv(SO) SDO valid output time 50

th(SO) SDO output hold time 9

tdis(SO) SDO output disable time 50

Unit

1. Values are guaranteed at 10 MHz clock frequency for SPI with both 4 and 3 wires, based on characterization results, not tested in production.

(2)

Figure 3. SPI slave timing diagram

2. Measurement points are done at 0.2·Vdd_IO and 0.8·Vdd_IO, for both input and output ports.

3. When no communication is on-going, data on CS, SPC, SDI and SDO are driven by internal pull-up resistors.

Doc ID 023111 Rev 1 11/38

Page 12

Mechanical and electrical specifications H3LIS331DL

SDA

SCL

f(SDA)

su(SP)

w(SCLL)

su(SDA)

r(SDA)

su(SR)

h(ST)

w(SCLH)

h(SDA)

r(SCL)tf(SCL)

w(SP:SR)

START

REPEATED

START

STOP

START

2.3.2 I2C - inter IC control interface

Subject to general operating conditions for Vdd and Top.

Table 6. I2C slave timing values

Symbol Parameter

I2C standard mode

(1)

I2C fast mode

Min. Max. Min. Max.

(1)

Unit

(SCL)

w(SCLL)

w(SCLH)

su(SDA)

h(SDA)

r(SDA) tr(SCL)

f(SDA) tf(SCL)

h(ST)

su(SR)

su(SP)

w(SP:SR)

SCL clock frequency 0 100 0 400 KHz

SCL clock low time 4.7 1.3

SCL clock high time 4.0 0.6

SDA setup time 250 100 ns

SDA data hold time 0.01 3.45 0.01 0.9 µs

SDA and SCL rise time 1000 20 + 0.1C

SDA and SCL fall time 300 20 + 0.1C

START condition hold time 4 0.6

Repeated START condition setup time

4.7 0.6

STOP condition setup time 4 0.6

Bus free time between STOP and START condition

4.7 1.3

1. Data based on standard I2C protocol requirement, not tested in production.

2. Cb = total capacitance of one bus line, in pF.

Figure 4. I

C slave timing diagram

(c)

µs

(2)

300

µs

c. Measurement points are done at 0.2·Vdd_IO and 0.8·Vdd_IO, for both ports.

12/38 Doc ID 023111 Rev 1

Page 13

H3LIS331DL Mechanical and electrical specifications

This is a mechanical shock sensitive device, improper handling can cause permanent damage to the part

This is an ESD sensitive device, improper handling can cause permanent damage to the part

2.4 Absolute maximum ratings

Stresses above those listed as “absolute maximum ratings” may cause permanent damage to the device. This is a stress rating only and functional operation of the device under these conditions is not implied. Exposure to maximum rating conditions for extended periods may affect device reliability.

Table 7. Absolute maximum ratings

Symbol Ratings Maximum value Unit

Vdd Supply voltage -0.3 to 4.8 V

Vdd_IO I/O pins supply voltage -0.3 to 4.8 V

Vin

POW

UNP

STG

ESD Electrostatic discharge protection

Input voltage on any control pin (CS, SCL/SPC, SDA/SDI/SDO, SDO/SA0)

Acceleration (any axis, powered, Vdd = 2.5 V)

Acceleration (any axis, unpowered)

Operating temperature range -40 to +85 °C

Storage temperature range -40 to +125 °C

Note: Supply voltage on any pin should never exceed 4.8 V.

-0.3 to Vdd_IO +0.3 V

3000 g for 0.5 ms

10000 g for 0.1 ms

3000 g for 0.5 ms

10000 g for 0.1 ms

4 (HBM) kV

1.5 (CDM) kV

200 (MM) V

Doc ID 023111 Rev 1 13/38

Page 14

Mechanical and electrical specifications H3LIS331DL

2.5 Terminology

2.5.1 Sensitivity

Sensitivity describes the gain of the sensor and can be determined e.g. by applying 1 g acceleration to it. As the sensor can measure DC accelerations this can be done easily by pointing the axis of interest towards the center of the earth, noting the output value, rotating the sensor by 180 degrees (pointing to the sky) and noting the output value again. By doing so, ±1 g acceleration is applied to the sensor. Subtracting the larger output value from the smaller one, and dividing the result by 2, leads to the actual sensitivity of the sensor. This value changes very little over temperature and also time. The sensitivity tolerance describes the range of sensitivities of a large population of sensors.

2.5.2 Zero-g level

Zero-g level offset (TyOff) describes the deviation of an actual output signal from the ideal output signal if no acceleration is present. A sensor in a steady-state on a horizontal surface measures 0 g in X-axis and 0 g in Y-axis whereas the Z-axis measures 1 g. The output is ideally in the middle of the dynamic range of the sensor (content of OUT registers 00h, data expressed as 2’s complement number). A deviation from the ideal value in this case is called Zero-g offset. Offset is, to some extent, a result of stress to the MEMS sensor and therefore can slightly change after mounting the sensor onto a printed circuit board or exposing it to extensive mechanical stress. Offset changes little over temperature, see “Zero-g level change vs. temperature”. The Zero-g level tolerance (TyOff) describes the standard deviation of the range of Zero-g levels of a population of sensors.

2.5.3 Sleep to wake-up

The “sleep to wake-up” function, in conjunction with low power mode, allows to further reduce the system power consumption and develop new smart applications. The H3LIS331DL may be set in a low power operating mode, characterized by lower date rate refreshments. In this way the device, even if sleeping, continues to sense acceleration and generate interrupt requests. When the “sleep to wake-up” function is activated, the H3LIS331DL is able to automatically wake up as soon as the interrupt event has been detected, increasing the output data rate and bandwidth. With this feature the system may be efficiently switched from low power mode to full performance, depending on user-selectable positioning and acceleration events, therefore ensuring power saving and flexibility.

14/38 Doc ID 023111 Rev 1

Page 15

H3LIS331DL Functionality

3 Functionality

The H3LIS331DL is a “nano”, low power, digital output 3-axis linear accelerometer packaged in an LGA package. The complete device includes a sensing element and an IC interface able to take the information from the sensing element and to provide a signal to the external world through an I

3.1 Sensing element

A proprietary process is used to create a surface micro-machined accelerometer. The technology allows suspended silicon structures to be carried out, which are attached to the substrate in a few points called anchors and are free to move in the direction of the sensed acceleration. To be compatible with the traditional packaging techniques, a cap is placed on top of the sensing element to avoid blocking the moving parts during the moulding phase of the plastic encapsulation.

When an acceleration is applied to the sensor the proof mass displaces from its nominal position, causing an imbalance in the capacitive half bridge. This imbalance is measured using charge integration in response to a voltage pulse applied to the capacitor.

At steady-state the nominal value of the capacitors are few pF and when an acceleration is applied the maximum variation of the capacitive load is in the fF range.

C/SPI serial interface.

3.2 IC interface

The complete measurement chain is composed of a low-noise capacitive amplifier which converts the capacitive unbalancing of the MEMS sensor into an analog voltage that is finally available to the user through an analog-to-digital converter.

The acceleration data may be accessed through an I particularly suitable for direct interfacing with a microcontroller.

The H3LIS331DL features a data-ready signal (RDY) which indicates when a new set of measured acceleration data is available, therefore simplifying data synchronization in the digital system that uses the device.

3.3 Factory calibration

The IC interface is factory calibrated for sensitivity (So) and Zero-g level (TyOff).

The trimming values are stored inside the device in a non-volatile memory. Any time the device is turned on, the trimming parameters are downloaded into the registers to be used during the active operation. This allows the device to be used without further calibration.

C/SPI interface, making the device

Doc ID 023111 Rev 1 15/38

Page 16

Application hints H3LIS331DL

10µF

Vdd

100nF

GND

Vdd_IO

SDO/SA0

SDA/SDI/SDO

INT 1

SCL/SPC

Digital signal from/to signal controller.Signal’s levels are defined by proper selection of Vdd_IO

TOP VIEW

1416

INT 2

AM12626V1

4 Application hints

Figure 5. H3LIS331DL electrical connection

The device core is supplied through the Vdd line while the I/O pads are supplied through the Vdd_IO line. Power supply decoupling capacitors (100 nF ceramic, 10 µF aluminum) should be placed as near as possible to pin 14 of the device (common design practice).

All the voltage and ground supplies must be present at the same time to have proper behavior of the IC (refer to Figure 5). It is possible to remove Vdd maintaining Vdd_IO without blocking the communication bus, in this condition the measurement chain is powered off.

The functionality of the device and the measured acceleration data is selectable and accessible through the I

C or SPI interfaces. When using the I2C, CS must be tied high.

The functions, the threshold and the timing of the two interrupt pins (INT 1 and INT 2) can be completely programmed by the user through the I

4.1 Soldering information

The LGA package is compliant with the ECOPACK®, RoHS and “Green” standards. It is qualified for soldering heat resistance according to JEDEC J-STD-020C.

Leave “pin 1 indicator” unconnected during soldering.

Land pattern and soldering recommendations are available at www.st.com

C/SPI interface.

16/38 Doc ID 023111 Rev 1

Page 17

H3LIS331DL Digital interfaces

5 Digital interfaces

The registers embedded inside the H3LIS331DL may be accessed through both the I2C and SPI serial interfaces. The latter may be SW configured to operate either in 3-wire or 4-wire interface mode.

The serial interfaces are mapped onto the same pads. To select/exploit the I CS line must be tied high (i.e. connected to Vdd_IO).

Table 8. Serial interface pin description

Pin name Pin description

C interface, the

SCL SPC

SDA

SDI

SDO

SA0

SDO

SPI enable I2C/SPI mode selection (1: I2C mode; 0: SPI enabled)

I2C serial clock (SCL) SPI serial port clock (SPC)

C serial data (SDA) SPI serial data input (SDI) 3-wire interface serial data output (SDO)

C less significant bit of the device address (SA0) SPI serial data output (SDO)

5.1 I2C serial interface

The H3LIS331DL I2C is a bus slave. The I2C is employed to write data into registers whose content can also be read back.

The relevant I

Table 9. Serial interface pin description

Transmitter The device which sends data to the bus

Receiver The device which receives data from the bus

C terminology is given in the table below.

Term Description

Master

Slave The device addressed by the master

The device which initiates a transfer, generates clock signals and terminates a transfer

There are two signals associated with the I2C bus: the serial clock line (SCL) and the serial data line (SDA). The latter is a bi-directional line used for sending and receiving the data to/from the interface. Both the lines are connected to Vdd_IO through a pull-up resistor embedded inside the H3LIS331DL. When the bus is free both lines are high.

The I

C interface is compliant with fast mode (400 kHz) I2C standards as well as with normal

mode.

Doc ID 023111 Rev 1 17/38

Page 18

Digital interfaces H3LIS331DL

5.1.1 I2C operation

The transaction on the bus is started through a START (ST) signal. A START condition is defined as a high to low transition on the data line while the SCL line is held high. After this has been transmitted by the master, the bus is considered busy. The next byte of data transmitted after the START condition contains the address of the slave in the first 7 bits and the eighth bit tells whether the master is receiving data from the slave or transmitting data to the slave. When an address is sent, each device in the system compares the first seven bits after a START condition with its address. If they match, the device considers itself addressed by the master.

The slave address (SAD) associated to the H3LIS331DL is 001100xb. The SDO/SA0 pad can be used to modify the less significant bit of the device address. If the SA0 pad is connected to the voltage supply, LSB is ‘1’ (address 0011001b) or else, if the SA0 pad is connected to ground, the LSB value is ‘0’ (address 0011000b). This solution allows the connection and addressing of two different accelerometers to the same I

Data transfer with acknowledge is mandatory. The transmitter must release the SDA line during the acknowledge pulse. The receiver must then pull the data line low so that it remains stable low during the high period of the acknowledge clock pulse. A receiver which has been addressed is obliged to generate an acknowledge after each byte of data received.

The I

C embedded inside the H3LIS331DL behaves like a slave device and the following protocol must be adhered to. After the START condition (ST) a slave address is sent, once a slave acknowledge (SAK) has been returned, an 8-bit sub-address (SUB) is transmitted: the 7 LSB represent the actual register address while the MSB enables address auto increment. If the MSB of the SUB field is ‘1’, the SUB (register address) is automatically increased to allow multiple data read/write.

C lines.

The slave address is completed with a Read/Write bit. If the bit is ‘1’ (read), a repeated START (SR) condition must be issued after the two sub-address bytes; if the bit is ‘0’ (write), the master transmits to the slave with the direction unchanged. Ta bl e 1 0 explains how the SAD+Read/Write bit pattern is composed, listing all the possible configurations.

Table 10. SAD+Read/Write patterns

Command SAD[6:1] SAD[0] = SA0 R/W SAD+R/W

Read 001100 0 1 00110001 (31h)

Write 001100 0 0 00110000 (30h)

Read 001100 1 1 00110011 (33h)

Write 001100 1 0 00110010 (32h)

Table 11. Transfer when master is writing one byte to slave

Master ST SAD + W SUB DATA SP

Slave SAK SAK SAK

18/38 Doc ID 023111 Rev 1

Page 19

H3LIS331DL Digital interfaces

Table 12. Transfer when master is writing multiple bytes to slave:

Master ST SAD + W SUB DATA DATA SP

Slave SAK SAK SAK SAK

Table 13. Transfer when master is receiving (reading) one byte of data from slave:

Master ST SAD + W SUB SR SAD + R NMAK SP

Slave SAK SAK SAK DATA

Table 14. Transfer when master is receiving (reading) multiple bytes of data from slave

Master ST SAD+W SUB SR SAD+R MAK MAK NMAK SP

Slave SAK SAK SAK DATA DATA DATA

Data are transmitted in byte format (DATA). Each data transfer contains 8 bits. The number of bytes transferred per transfer is unlimited. Data is transferred with the most significant bit (MSB) first. If a receiver can’t receive another complete byte of data until it has performed some other function, it can hold the clock line SCL low to force the transmitter into a wait state. Data transfer only continues when the receiver is ready for another byte and releases the data line. If a slave receiver doesn’t acknowledge the slave address (i.e. it is not able to receive because it is performing some real-time function) the data line must be left high by the slave. The master can then abort the transfer. A low to high transition on the SDA line while the SCL line is high is defined as a STOP condition. Each data transfer must be terminated by the generation of a STOP (SP) condition.

In order to read multiple bytes, it is necessary to assert the most significant bit of the subaddress field. In other words, SUB(7) must be equal to 1 while SUB(6-0) represents the address of first register to be read.

In the presented communication format MAK is master acknowledge and NMAK is no master acknowledge.

5.2 SPI bus interface

The H3LIS331DL SPI is a bus slave. The SPI allows the writing and reading of the device registers.

The serial interface interacts with the outside world with 4 wires: CS, SPC, SDI and SDO.

Doc ID 023111 Rev 1 19/38

Page 20

Digital interfaces H3LIS331DL

SPC

SDI

SDO

AD5 AD4 AD3 AD2 AD1 AD0

DI7 DI6 DI5 DI4 DI3 DI2 DI1 DI0

DO7 DO6 DO5 DO4 DO3 DO2 DO1 DO0

SPC

SDI

SDO

DO7 DO6 DO5DO4 DO3DO2 DO1 DO0

AD5 AD4 AD3 AD2 AD1 AD0

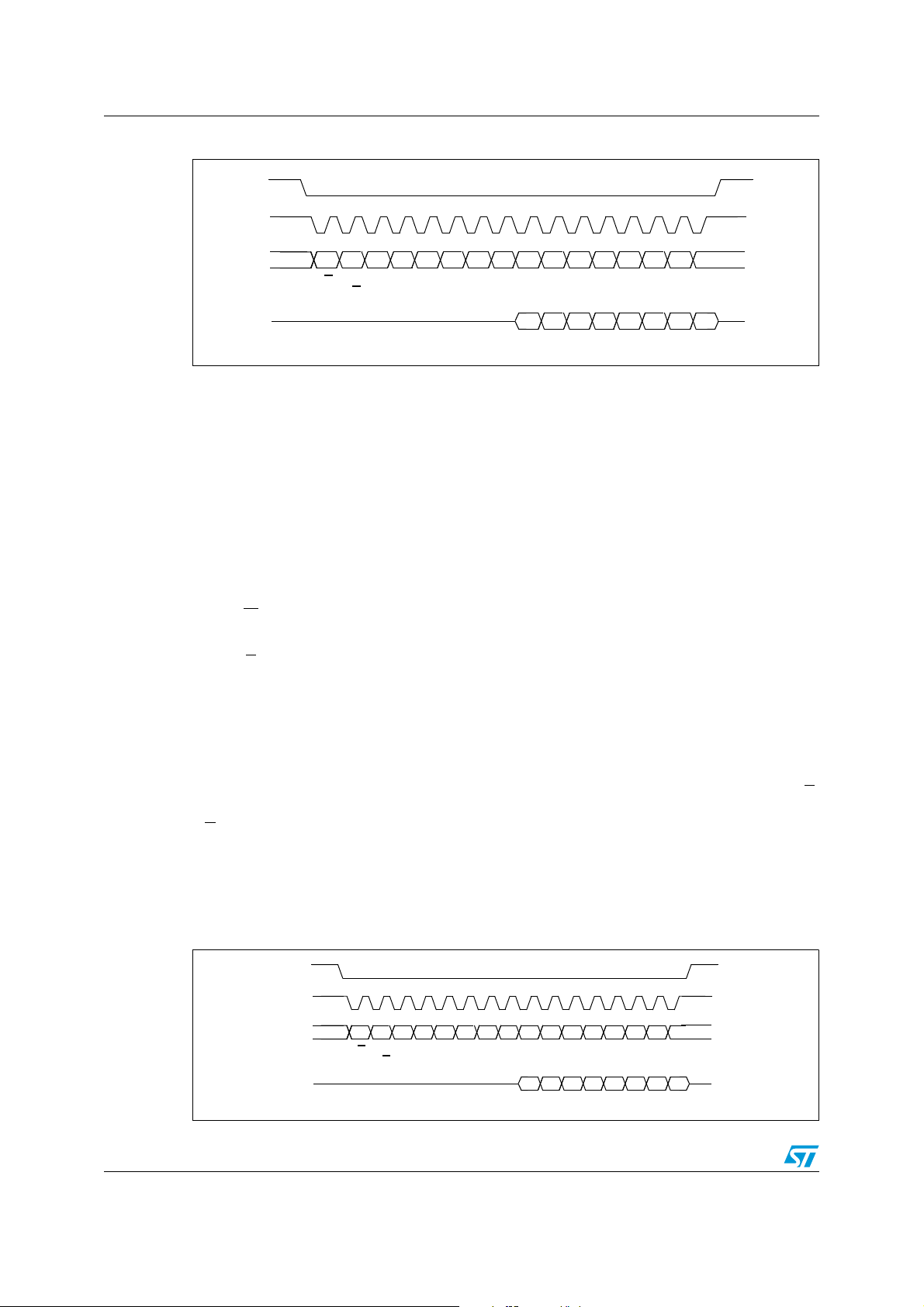

Figure 6. Read and write protocol

CS is the serial port enable and it is controlled by the SPI master. It goes low at the start of

the transmission and goes back high at the end. SPC is the serial port clock and it is controlled by the SPI master. It is stopped high when CS is high (no transmission). SDI and SDO are respectively the serial port data input and output. Those lines are driven at the falling edge of SPC and should be captured at the rising edge of SPC.

Both the read register and write register commands are completed in 16 clock pulses or in multiples of 8 in the case of multiple byte read/write. Bit duration is the time between two falling edges of SPC. The first bit (bit 0) starts at the first falling edge of SPC after the falling edge of CS while the last bit (bit 15, bit 23, ...) starts at the last falling edge of SPC just before the rising edge of CS.

bit 0: RW from the device is read. In the latter case, the chip drives SDO at the start of bit 8.

bit 1: MS When 1, the address is auto incremented in multiple read/write commands.

bit 2-7: address AD(5:0). This is the address field of the indexed register.

bit 8-15: data DI(7:0) (write mode). This is the data that is written into the device (MSB first).

bit 8-15: data DO(7:0) (read mode). This is the data that is read from the device (MSB first).

In multiple read/write commands further blocks of 8 clock periods are added. When the MS bit is ‘0’, the address used to read/write data remains the same for every block. When the MS

bit is ‘1’ the address used to read/write data is increased at every block.

The function and the behavior of SDI and SDO remain unchanged.

5.2.1 SPI read

Figure 7. SPI read protocol

bit. When 0, the data DI(7:0) is written into the device. When 1, the data DO(7:0)

bit. When 0, the address remains unchanged in multiple read/write commands.

20/38 Doc ID 023111 Rev 1

Page 21

H3LIS331DL Digital interfaces

SPC

SDI

SDO

DO7 DO6 DO5 DO4 DO3 DO2 DO1 DO0

AD5 AD4 AD3 AD2 AD1 AD0

DO15 DO14 DO13 DO 12 DO11 DO10 DO9 DO8

SPC

SDI

DI7 DI6 DI5 DI4 DI3 DI2 DI1 DI0

AD5 AD4 AD3 AD2 AD1 AD0MS

The SPI read command is performed with 16 clock pulses. A multiple byte read command is performed adding blocks of 8 clock pulses to the previous one.

bit 0: READ bit. The value is 1.

bit 1: MS

bit. When 0, do not increment the address. When 1, increment the address in a

multiple reading.

bit 2-7: address AD(5:0). This is the address field of the indexed register.

bit 8-15: data DO(7:0) (read mode). This is the data that is read from the device (MSB first).

bit 16-... : data DO(...-8). Further data in multiple byte reading.

Figure 8. Multiple byte SPI read protocol (2-byte example)

5.2.2 SPI write

Figure 9. SPI write protocol

The SPI write command is performed with 16 clock pulses. A multiple byte write command is performed adding blocks of 8 clock pulses to the previous one.

bit 0: WRITE bit. The value is 0.

bit 1: MS

bit. When 0, do not increment the address. When 1, increment the address in a

multiple writing.

bit 2 -7: address AD(5:0). This is the address field of the indexed register.

bit 8-15: data DI(7:0) (write mode). This is the data that is written inside the device (MSB

first).

bit 16-... : data DI(...-8). Further data in multiple byte writing.

Doc ID 023111 Rev 1 21/38

Page 22

Digital interfaces H3LIS331DL

SPC

SDI

AD5 AD4 AD3 AD2 AD1 AD0

DI7 DI6 DI5 DI4 DI3 DI2 DI1 DI0 DI15 DI14 DI13 DI12 DI11 DI10 DI9 DI8

SPC

SDI/O

DO7DO6DO5DO4DO3DO2DO1DO0

AD5 AD4 AD3 AD2 AD1 AD0

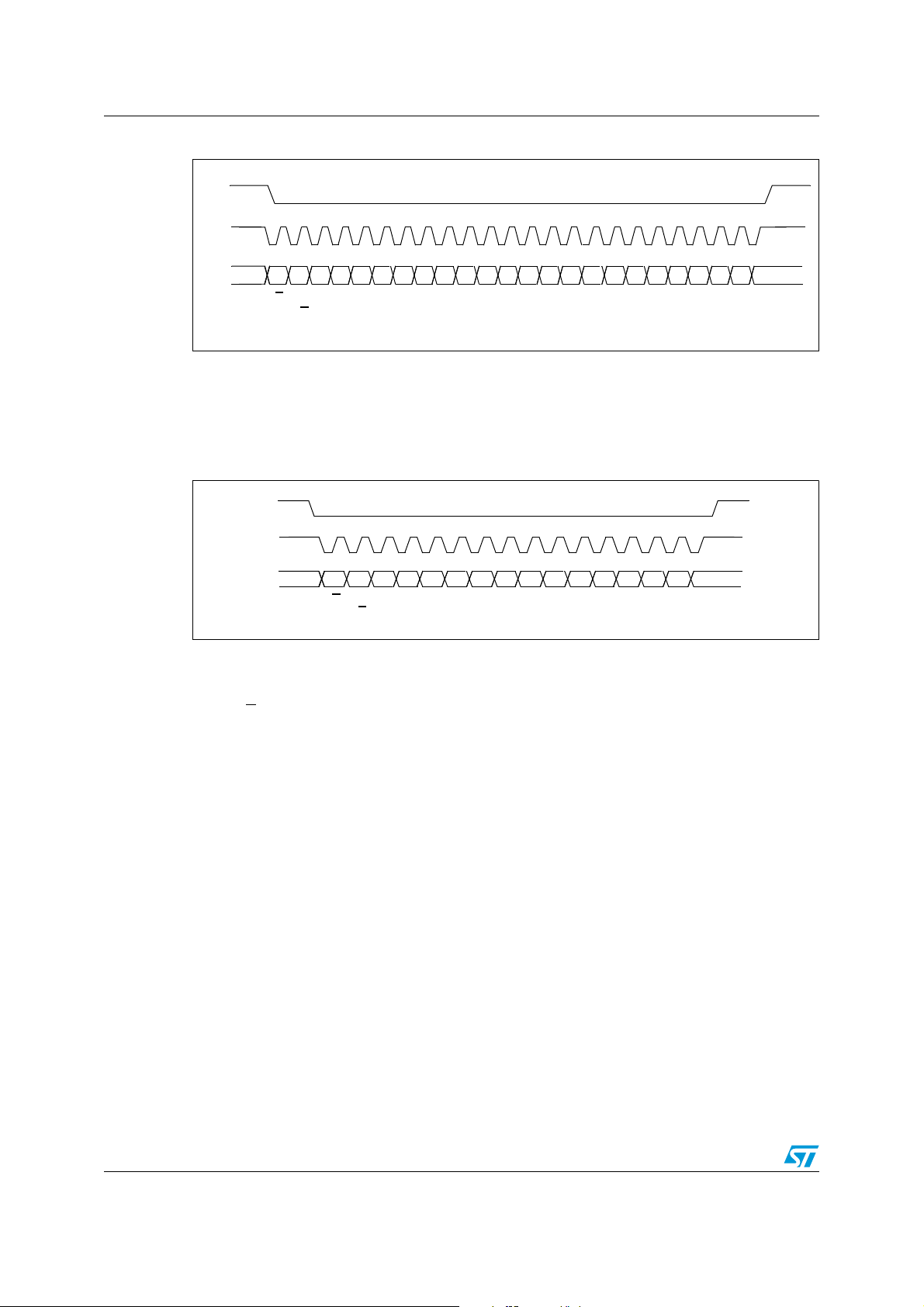

Figure 10. Multiple byte SPI write protocol (2-byte example)

5.2.3 SPI read in 3-wire mode

3-wire mode is entered by setting to ‘1’ bit SIM (SPI serial interface mode selection) in CTRL_REG4.

Figure 11. SPI read protocol in 3-wire mode

The SPI read command is performed with 16 clock pulses:

bit 0: READ bit. The value is 1.

bit 1: MS

bit. When 0, do not increment the address. When 1, increment the address in a

multiple reading.

bit 2-7: address AD(5:0). This is the address field of the indexed register.

bit 8-15: data DO(7:0) (read mode). This is the data that is read from the device (MSB first).

Multiple read command is also available in 3-wire mode.

22/38 Doc ID 023111 Rev 1

Page 23

H3LIS331DL Register mapping

6 Register mapping

Ta bl e 1 5 provides a listing of the 8-bit registers embedded in the device and the related

addresses:

Table 15. Register address map

Name Type

Hex Binary

Reserved (do not modify) 00 - 0E Reserved

WHO_AM_I r 0F 000 1111 00110010 Dummy register

Reserved (do not modify) 10 - 1F Reserved

CTRL_REG1 rw 20 010 0000 00000111

CTRL_REG2 rw 21 010 0001 00000000

CTRL_REG3 rw 22 010 0010 00000000

CTRL_REG4 rw 23 010 0011 00000000

CTRL_REG5 rw 24 010 0100 00000000

Default Comment

HP_FILTER_RESET r 25 010 0101 Dummy register

REFERENCE rw 26 010 0110 00000000

STATUS_REG r 27 010 0111 00000000

OUT_X_L r 28 010 1000 Output

OUT_X_H r 29 010 1001 Output

OUT_Y_L r 2A 010 1010 Output

OUT_Y_H r 2B 010 1011 Output

OUT_Z_L r 2C 010 1100 Output

OUT_Z_H r 2D 010 1101 Output

Reserved (do not modify) 2E - 2F Reserved

INT1_CFG rw 30 011 0000 00000000

INT1_SOURCE r 31 011 0001 00000000

INT1_THS rw 32 011 0010 00000000

INT1_DURATION rw 33 011 0011 00000000

INT2_CFG rw 34 011 0100 00000000

INT2_SOURCE r 35 011 0101 00000000

INT2_THS rw 36 011 0110 00000000

INT2_DURATION rw 37 011 0111 00000000

Reserved (do not modify) 38 - 3F Reserved

Registers marked as Reserved must not be changed as they contain the factory calibration values. Their content is automatically restored when the device is powered up. Writing to those registers may change calibration data and thus lead to improper functioning of the device.

Doc ID 023111 Rev 1 23/38

Page 24

7 Register description

The device contains a set of registers which are used to control its behavior and to retrieve acceleration data. The register address, made of 7 bits, is used to identify them and to write the data through the serial interface.

7.1 WHO_AM_I (0Fh)

Table 16. WHO_AM_I register

00110010

Device identification register.

This register contains the device identifier that for H3LIS331DL is set to 32h.

7.2 CTRL_REG1 (20h)

Table 17. CTRL_REG1 register

PM2 PM1 PM0 DR1 DR0 Zen Yen Xen

Table 18. CTRL_REG1 description

PM2 - PM0

DR1, DR0

Zen

Ye n

Xen

Power mode selection. Default value: 000 (000: power-down; Others: refer to Ta b l e 1 9 )

Data rate selection. Default value: 00 (00:50 Hz; Others: refer to Ta bl e 20 )

Z-axis enable. Default value: 1 (0: Z-axis disabled; 1: Z-axis enabled)

Y-axis enable. Default value: 1 (0: Y-axis disabled; 1: Y-axis enabled)

X-axis enable. Default value: 1 (0: X-axis disabled; 1: X-axis enabled)

The PM bits allow the user to select between power-down and two operating active modes. The device is in power-down mode when the PD bits are set to “000” (default value after boot). Ta bl e 1 9 shows all the possible power mode configurations and respective output data rates. Output data in the low power modes are computed with low-pass filter cutoff frequency defined by DR1, DR0 bits.

The DR bits, in normal mode operation, select the data rate at which acceleration samples are produced. In low power mode they define the output data resolution. Ta b l e 2 0 shows all the possible configurations for DR1 and DR0 bits.

24/38 Doc ID 023111 Rev 1

Page 25

H3LIS331DL Register description

Table 19. Power mode and low power output data rate configurations

PM2 PM1 PM0 Power mode selection

0 0 0 Power-down --

0 0 1 Normal mode ODR

0 1 0 Low power 0.5

0 1 1 Low power 1

1 0 0 Low power 2

1 0 1 Low power 5

1 1 0 Low power 10

Output data rate [Hz]

ODR

Table 20. Normal mode output data rate configurations and low-pass cutoff

frequencies

DR1 DR0

00 50 37

01 100 74

10 400 292

1 1 1000 780

Output data rate [Hz]

ODR

Low-pass filter cutoff

frequency [Hz]

7.3 CTRL_REG2 (21h)

Table 21. CTRL_REG2 register

BOOT HPM1 HPM0 FDS HPen2 HPen1 HPCF1 HPCF0

Table 22. CTRL_REG2 description

BOOT

HPM1, HPM0

FDS

HPen2

Reboot memory content. Default value: 0 (0: normal mode; 1: reboot memory content)

High-pass filter mode selection. Default value: 00 (00: normal mode; Others: refer to Table 23)

Filtered data selection. Default value: 0 (0: internal filter bypassed; 1: data from internal filter sent to output register)

High-pass filter enabled for interrupt 2 source. Default value: 0 (0: filter bypassed; 1: filter enabled)

Doc ID 023111 Rev 1 25/38

Page 26

HPc

------------–

⎝⎠

⎛⎞

2π

------

⋅ln=

6HPc⋅

------------ ----------=

Table 22. CTRL_REG2 description (continued)

HPen1

High-pass filter enabled for interrupt 1 source. Default value: 0 (0: filter bypassed; 1: filter enabled)

HPCF1, HPCF0

High-pass filter cutoff frequency configuration. Default value: 00 (00: HPc=8; 01: HPc=16; 10: HPc=32; 11: HPc=64)

The BOOT bit is used to refresh the content of internal registers stored in the Flash memory block. At the device power-up, the content of the Flash memory block is transferred to the internal registers related to trimming functions in order to permit a good behavior of the device itself. If for any reason the content of trimming registers is changed, it is sufficient to use this bit to restore the correct values. When the BOOT bit is set to ‘1’ the content of the internal Flash is copied inside corresponding internal registers and it is used to calibrate the device. These values are factory trimmed and they are different for every accelerometer. They permit a good behavior of the device and normally they do not have to be changed. At the end of the boot process the BOOT bit is set again to ‘0’.

Table 23. High-pass filter mode configuration

HPM1 HPM0 High-pass filter mode

0 0 Normal mode (reset reading HP_RESET_FILTER)

0 1 Reference signal for filtering

1 0 Normal mode (reset reading HP_RESET_FILTER)

HPCF[1:0]. These bits are used to configure high-pass filter cutoff frequency f

which is

given by:

The equation can be simplified to the following approximated equation:

Table 24. High-pass filter cutoff frequency configuration

[Hz]

HPcoeff2,1

Data rate = 50 Hz

00 1 2 8 20

01 0.5 1 4 10

10 0.25 0.5 2 5

11 0.125 0.25 1 2.5

26/38 Doc ID 023111 Rev 1

ft [Hz]

Data rate = 100 Hz

ft [Hz]

Data rate = 400 Hz

ft [Hz]

Data rate = 1000 Hz

Page 27

H3LIS331DL Register description

7.4 CTRL_REG3 [Interrupt CTRL register] (22h)

Table 25. CTRL_REG3 register

IHL PP_OD LIR2 I2_CFG1 I2_CFG0 LIR1 I1_CFG1 I1_CFG0

Table 26. CTRL_REG3 description

IHL

Interrupt active high, low. Default value: 0 (0: active high; 1: active low)

PP_OD

LIR2

I2_CFG1, I2_CFG0

LIR1

I1_CFG1, I1_CFG0

Push-pull/open drain selection on interrupt pad. Default value 0. (0: push-pull; 1: open drain)

Latch interrupt request on INT2_SRC register, with INT2_SRC register cleared by reading INT2_SRC itself. Default value: 0.

(0: interrupt request not latched; 1: interrupt request latched)

Data signal on INT 2 pad control bits. Default value: 00. (see Ta bl e 27 )

Latch interrupt request on the INT1_SRC register, with the INT1_SRC register cleared by reading the INT1_SRC register. Default value: 0.

(0: interrupt request not latched; 1: interrupt request latched)

Data signal on INT 1 pad control bits. Default value: 00. (see Ta bl e 27 )

Table 27. Data signal on INT 1 and INT 2 pad

I1(2)_CFG1 I1(2)_CFG0 INT 1(2) Pad

0 0 Interrupt 1 (2) source

0 1 Interrupt 1 source OR interrupt 2 source

1 0 Data ready

1 1 Boot running

7.5 CTRL_REG4 (23h)

Table 28. CTRL_REG4 register

BDU BLE FS1 FS0 0n 0 0 SIM

Doc ID 023111 Rev 1 27/38

Page 28

Table 29. CTRL_REG4 description

Block data update. Default value: 0

BDU

(0: continuous update; 1: output registers not updated between MSB and LSB reading)

BLE

FS1, FS0

SIM

Big/little endian data selection. Default value 0. (0: data LSB @ lower address; 1: data MSB @ lower address)

Full scale selection. Default value: 00. (00: ±100 g; 01: ±200 g; 11: ±400 g)

SPI serial interface mode selection. Default value: 0. (0: 4-wire interface; 1: 3-wire interface)

The BDU bit is used to inhibit output register updates between the reading of upper and lower register parts. In default mode (BDU = ‘0’), the lower and upper register parts are updated continuously. If it is not clear whether to read faster than the output data rate, it is recommended to set the BDU bit to ‘1’. In this way, after the reading of the lower (upper) register part, the content of that output registers is not updated until the upper (lower) part is read too. This feature avoids the reading of LSB and MSB related to different samples.

7.6 CTRL_REG5 (24h)

Table 30. CTRL_REG5 register

000000TurnOn1TurnOn0

Table 31. CTRL_REG5 description

TurnOn1, Tu r nO n 0

Turn-on mode selection for sleep to wake function. Default value: 00.

Turn- on bits are used for turning on the sleep to wake function.

Table 32. Sleep to wake configuration

TurnOn1 TurnOn0 Sleep to wake status

0 0 Sleep to wake function is disabled

Turned on: The device is in low power mode (ODR is defined in

Setting TurnOn[1:0] bits to 11, the “sleep to wake” function is enabled. When an interrupt event occurs the device is turned to normal mode, increasing the ODR to the value defined in CTRL_REG1. Although the device is in normal mode, CTRL_REG1 content is not automatically changed to “normal mode” configuration.

28/38 Doc ID 023111 Rev 1

CTRL_REG1)

Page 29

H3LIS331DL Register description

7.7 HP_FILTER_RESET (25h)

Dummy register. Reading at this address zeroes instantaneously the content of the internal high-pass filter. If the high-pass filter is enabled all three axes are instantaneously set to 0 g. This allows the settling time of the high-pass filter to be overcome.

7.8 REFERENCE (26h)

Table 33. REFERENCE register

Ref7 Ref6 Ref5 Ref4 Ref3 Ref2 Ref1 Ref0

Table 34. REFERENCE description

Ref7 - Ref0 Reference value for high-pass filter. Default value: 00h.

This register sets the acceleration value taken as a reference for the high-pass filter output.

When the filter is turned on (at least one of FDS, HPen2, or HPen1 bits is equal to ‘1’) and HPM bits are set to “01”, filter-out is generated taking this value as a reference.

7.9 STATUS_REG (27h)

Table 35. STATUS_REG register

ZYXOR ZOR YOR XOR ZYXDA ZDA YDA XDA

Table 36. STATUS_REG description

X, Y and Z-axis data overrun. Default value: 0

ZYXOR

ZOR

YOR

XOR

ZYXDA X, Y and Z-axis new data available. Default value: 0

(0: no overrun has occurred; 1: new data has overwritten the previous one before it was read)

Z-axis data overrun. Default value: 0 (0: no overrun has occurred; 1: a new data for the Z-axis has overwritten the previous one)

Y-axis data overrun. Default value: 0 (0: no overrun has occurred; 1: a new data for the Y-axis has overwritten the previous one)

X-axis data overrun. Default value: 0 (0: no overrun has occurred; 1: a new data for the X-axis has overwritten the previous one)

(0: a new set of data is not yet available; 1: a new set of data is available)

Doc ID 023111 Rev 1 29/38

Page 30

Table 36. STATUS_REG description (continued)

ZDA Z-axis new data available. Default value: 0

(0: a new data for the Z-axis is not yet available; 1: a new data for the Z-axis is available)

YDA Y-axis new data available. Default value: 0

(0: a new data for the Y-axis is not yet available; 1: a new data for the Y-axis is available)

XDA X-axis new data available. Default value: 0

(0: a new data for the X-axis is not yet available; 1: a new data for the X-axis is available)

7.10 OUT_X_L (28h), OUT_X_H (29)

X-axis acceleration data. The value is expressed as 2’s complement.

7.11 OUT_Y_L (2Ah), OUT_Y_H (2Bh)

Y-axis acceleration data. The value is expressed as 2’s complement.

7.12 OUT_Z_L (2Ch), OUT_Z_H (2Dh)

Z-axis acceleration data. The value is expressed as 2’s complement.

7.13 INT1_CFG (30h)

Table 37. INT1_CFG register

AOI 0 ZHIE ZLIE YHIE YLIE XHIE XLIE

Table 38. INT1_CFG description

AOI

ZHIE

ZLIE

YHIE

AND/OR combination of interrupt events. Default value: 0. (See Ta bl e 39)

Enable interrupt generation on Z high event. Default value: 0 (0: disable interrupt request; 1: enable interrupt request on measured accel. value higher than preset threshold)

Enable interrupt generation on Z low event. Default value: 0 (0: disable interrupt request; 1: enable interrupt request on measured accel. value lower than preset threshold)

Enable interrupt generation on Y high event. Default value: 0 (0: disable interrupt request;

1: enable interrupt request on measured accel. value higher than preset threshold)

Enable interrupt generation on Y low event. Default value: 0

YLIE

30/38 Doc ID 023111 Rev 1

(0: disable interrupt request; 1: enable interrupt request on measured accel. value lower than preset threshold)

Page 31

H3LIS331DL Register description

Table 38. INT1_CFG description (continued)

Enable interrupt generation on X high event. Default value: 0

XHIE

XLIE

(0: disable interrupt request; 1: enable interrupt request on measured accel. value higher than preset threshold)

Enable interrupt generation on X low event. Default value: 0 (0: disable interrupt request;

1: enable interrupt request on measured accel. value lower than preset threshold)

Configuration register for interrupt 1 source.

Table 39. Interrupt 1 source configurations

AOI Interrupt mode

0 OR combination of interrupt events

1 AND combination of interrupt events

7.14 INT1_SRC (31h)

Table 40. INT1_SRC register

0 IA ZHZLYHYLXHXL

Table 41. INT1_SRC description

Interrupt active. Default value: 0 (0: no interrupt has been generated; 1: one or more interrupts have been generated)

Z high. Default value: 0 (0: no interrupt, 1: Z high event has occurred)

Z low. Default value: 0 (0: no interrupt; 1: Z low event has occurred)

Y high. Default value: 0 (0: no interrupt, 1: Y high event has occurred)

Y low. Default value: 0 (0: no interrupt, 1: Y low event has occurred)

X high. Default value: 0 (0: no interrupt, 1: X high event has occurred)

X low. Default value: 0 (0: no interrupt, 1: X low event has occurred)

Interrupt 1 source register. Read only register.

Reading at this address clears the INT1_SRC IA bit (and the interrupt signal on the INT 1 pin) and allows the refreshment of data in the INT1_SRC register if the latched option is chosen.

Doc ID 023111 Rev 1 31/38

Page 32

7.15 INT1_THS (32h)

Table 42. INT1_THS register

0 THS6 THS5 THS4 THS3 THS2 THS1 THS0

Table 43. INT1_THS description

THS6 - THS0 Interrupt 1 threshold. Default value: 000 0000

7.16 INT1_DURATION (33h)

Table 44. INT1_DURATION register

0 D6D5D4D3D2D1D0

Table 45. INT2_DURATION description

D6 - D0 Duration value. Default value: 000 0000

The D6 - D0 bits set the minimum duration of the interrupt 2 event to be recognized. Duration steps and maximum values depend on the ODR chosen.

7.17 INT2_CFG (34h)

Table 46. INT2_CFG register

AOI 0 ZHIE ZLIE YHIE YLIE XHIE XLIE

Table 47. INT2_CFG description

AOI

ZHIE

ZLIE

YHIE

AND/OR combination of interrupt events. Default value: 0. (See Ta bl e 48)

Enable interrupt generation on Z high event. Default value: 0 (0: disable interrupt request; 1: enable interrupt request on measured accel. value higher than preset threshold)

Enable interrupt generation on Z low event. Default value: 0 (0: disable interrupt request; 1: enable interrupt request on measured accel. value lower than preset threshold)

Enable interrupt generation on Y high event. Default value: 0 (0: disable interrupt request;

1: enable interrupt request on measured accel. value higher than preset threshold)

Enable interrupt generation on Y low event. Default value: 0

YLIE

32/38 Doc ID 023111 Rev 1

(0: disable interrupt request; 1: enable interrupt request on measured accel. value lower than preset threshold)

Page 33

H3LIS331DL Register description

Table 47. INT2_CFG description (continued)

Enable interrupt generation on X high event. Default value: 0

XHIE

XLIE

(0: disable interrupt request; 1: enable interrupt request on measured accel. value higher than preset threshold)

Enable interrupt generation on X low event. Default value: 0 (0: disable interrupt request;

1: enable interrupt request on measured accel. value lower than preset threshold)

Configuration register for interrupt 2 source.

Table 48. Interrupt mode configuration

AOI Interrupt mode

0 OR combination of interrupt events

1 AND combination of interrupt events

7.18 INT2_SRC (35h)

Table 49. INT2_SRC register

0 IA ZHZLYHYLXHXL

Table 50. INT2_SRC description

Interrupt active. Default value: 0 (0: no interrupt has been generated; 1: one or more interrupts have been generated)

Z high. Default value: 0 (0: no interrupt, 1: Z high event has occurred)

Z low. Default value: 0 (0: no interrupt; 1: Z low event has occurred)

Y high. Default value: 0 (0: no interrupt, 1: Y high event has occurred)

Y low. Default value: 0 (0: no interrupt, 1: Y low event has occurred)

X high. Default value: 0 (0: no interrupt, 1: X high event has occurred)

X Low. Default value: 0 (0: no interrupt, 1: X low event has occurred)

Interrupt 2 source register. Read only register.

Reading at this address clears the INT2_SRC IA bit (and the interrupt signal on the INT 2 pin) and allows the refreshment of data in the INT2_SRC register if the latched option is chosen.

Doc ID 023111 Rev 1 33/38

Page 34

7.19 INT2_THS (36h)

Table 51. INT2_THS register

0 THS6 THS5 THS4 THS3 THS2 THS1 THS0

Table 52. INT2_THS description

THS6 - THS0 Interrupt 1 threshold. Default value: 000 0000

7.20 INT2_DURATION (37h)

Table 53. INT2_DURATION register

0 D6D5D4D3D2D1D0

Table 54. INT2_DURATION description

D6 - D0 Duration value. Default value: 000 0000

The D6 - D0 bits set the minimum duration of the interrupt 2 event to be recognized. Duration time steps and maximum values depend on the ODR chosen.

34/38 Doc ID 023111 Rev 1

Page 35

H3LIS331DL Package information

8 Package information

In order to meet environmental requirements, ST offers these devices in different grades of ECOPACK specifications, grade definitions and product status are available at: www.st.com. ECOPACK is an ST trademark.

packages, depending on their level of environmental compliance. ECOPACK

Doc ID 023111 Rev 1 35/38

Page 36

Package information H3LIS331DL

7983231_L

Table 55. TFLGA 3x3x1.0mm

Dim.

A1 1

A2 0.785

A3 0.200

D1 2.850 3.000 3.150

E1 2.850 3.000 3.150

L1 1.000 1.060

L2 2.000 2.060

N1 0.500

N2 1.000

M 0.040 0.100 0.160

P1 0.875

P2 1.275

T1 0.290 0.350 0.410

T2 0.190 0.250 0.310

16L mechanical data

Min. Typ. Max.

d0.150

k0.050

Figure 12. TFLGA 3x3x1.0mm3 16L mechanical drawing

36/38 Doc ID 023111 Rev 1

Page 37

H3LIS331DL Revision history

9 Revision history

Table 56. Document revision history

Date Revision Changes

20-Apr-2012 1 Initial release.

Doc ID 023111 Rev 1 37/38

Page 38

H3LIS331DL

Please Read Carefully:

Information in this document is provided solely in connection with ST products. STMicroelectronics NV and its subsidiaries (“ST”) reserve the right to make changes, corrections, modifications or improvements, to this document, and the products and services described herein at any time, without notice.

All ST products are sold pursuant to ST’s terms and conditions of sale.

Purchasers are solely responsible for the choice, selection and use of the ST products and services described herein, and ST assumes no liability whatsoever relating to the choice, selection or use of the ST products and services described herein.

No license, express or implied, by estoppel or otherwise, to any intellectual property rights is granted under this document. If any part of this document refers to any third party products or services it shall not be deemed a license grant by ST for the use of such third party products or services, or any intellectual property contained therein or considered as a warranty covering the use in any manner whatsoever of such third party products or services or any intellectual property contained therein.

UNLESS OTHERWISE SET FORTH IN ST’S TERMS AND CONDITIONS OF SALE ST DISCLAIMS ANY EXPRESS OR IMPLIED WARRANTY WITH RESPECT TO THE USE AND/OR SALE OF ST PRODUCTS INCLUDING WITHOUT LIMITATION IMPLIED WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE (AND THEIR EQUIVALENTS UNDER THE LAWS OF ANY JURISDICTION), OR INFRINGEMENT OF ANY PATENT, COPYRIGHT OR OTHER INTELLECTUAL PROPERTY RIGHT.

UNLESS EXPRESSLY APPROVED IN WRITING BY TWO AUTHORIZED ST REPRESENTATIVES, ST PRODUCTS ARE NOT RECOMMENDED, AUTHORIZED OR WARRANTED FOR USE IN MILITARY, AIR CRAFT, SPACE, LIFE SAVING, OR LIFE SUSTAINING APPLICATIONS, NOR IN PRODUCTS OR SYSTEMS WHERE FAILURE OR MALFUNCTION MAY RESULT IN PERSONAL INJURY, DEATH, OR SEVERE PROPERTY OR ENVIRONMENTAL DAMAGE. ST PRODUCTS WHICH ARE NOT SPECIFIED AS "AUTOMOTIVE GRADE" MAY ONLY BE USED IN AUTOMOTIVE APPLICATIONS AT USER’S OWN RISK.

Resale of ST products with provisions different from the statements and/or technical features set forth in this document shall immediately void any warranty granted by ST for the ST product or service described herein and shall not create or extend in any manner whatsoever, any liability of ST.

ST and the ST logo are trademarks or registered trademarks of ST in various countries.

Information in this document supersedes and replaces all information previously supplied.

The ST logo is a registered trademark of STMicroelectronics. All other names are the property of their respective owners.

STMicroelectronics group of companies

Australia - Belgium - Brazil - Canada - China - Czech Republic - Finland - France - Germany - Hong Kong - India - Israel - Italy - Japan -

Malaysia - Malta - Morocco - Philippines - Singapore - Spain - Sweden - Switzerland - United Kingdom - United States of America

www.st.com

38/38 Doc ID 023111 Rev 1
