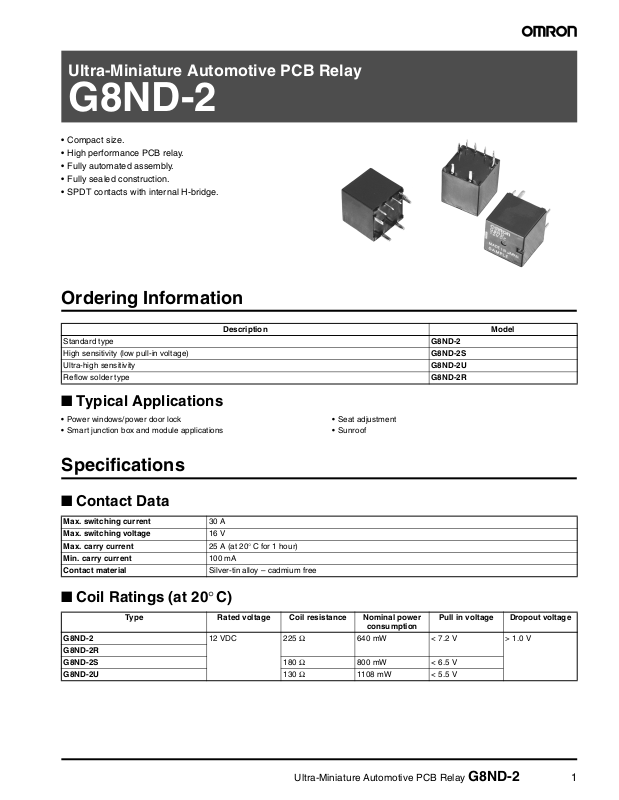

Page 1
Ultra-Miniature Automotive PCB Relay
G8ND-2
• Compact size.
• High performance PCB relay.
• Fully automated assembly.
• Fully sealed construction.
• SPDT contacts with internal H-bridge.
Ordering Information
Description Model
Standard type G8ND-2
High sensitivity (low pull-in voltage) G8ND-2S
Ultra-high sensitivity G8ND-2U
Reflow solder type G8ND-2R
■ Typical Applications
• Power windows/power door lock
• Smart junction box and module applications
• Seat adjustment
• Sunroof
Specifications
■ Contact Data
Max. switching current 30 A
Max. switching voltage 16 V
Max. carry current 25 A (at 20° C for 1 hour)
Min. carry current 100 mA
Contact material Silver-tin alloy – cadmium free
■ Coil Ratings (at 20° C)
Type Rated voltage Coil resistance Nominal power
consumption
G8ND-2 12 VDC 225 Ω 640 mW < 7.2 V > 1.0 V
G8ND-2R
G8ND-2S 180 Ω 800 mW < 6.5 V
G8ND-2U 130 Ω 1108 mW < 5.5 V
Pull in voltage Dropout voltage
Ultra-Miniature Automotive PCB Relay G8ND-2 1
Page 2
Characteristics
Max. initial contact voltage drop/resistance 250 mV @ 10 A/50 mΩ @ 1 A
Operate time 10 ms max. (2.5 ms typical) @ 12V
Release time 10 ms max. (1.2 ms typical) (see Note)
Bounce time Operate 5 ms max. (0.5 ms typical)
Release 10 ms max. (4.0 ms typical)
Switching frequency Mechanical 18,000 operations per hour
Electrical 1,800 operations per hour (under rated loading)
Insulation resistance 100 MΩ min. (@ 500 V DC)
Dielectric strength 1.0 mA max leakage at 500 VAC, 50-60 Hz for 1 minute between coil & contacts
Vibration Mechanical durability
Malfunction durability
Shock Mechanical durability
Malfunction durability
Ambient operating temperature -40°C to 85°C
Humidity 35% to 85% RH
Service life Mechanical 1,000,000 operations min.
Electrical 100,000 operations (load dependant)
Weight 7.5 g (approx.)
Note: External coil suppression will cause a measurable increase in release times and may cause the
relay’s characteristics to fall out of the specifications given here.
and between contacts
10-500 Hz, 45 m/s
10-500 Hz, 45 m/s
1000 m/s
100 m/s
2
2
min.
2
2
Characteristics Reference Data
■ Durability Test Data
Relay Load type Current Cycles tested
G8N /
G8NW /
G8ND
Normalized Coil Resistance vs. Temperature
(20° C reference)
Coil Resistance (%)
Power window motor (locked) 26 A 200,000
Door lock motor 27 A
8A Steady state
Temperature (° C)
130,000
Example: Resistance of 225Ω coil
= 75% of 225Ω at -40° C, or 169Ω
= 100% of 225Ω at 20° C, or 225Ω
= 125% of 225Ω at 85° C, or 281Ω
2 Ultra-Miniature Automotive PCB Relay G8ND-2
Page 3

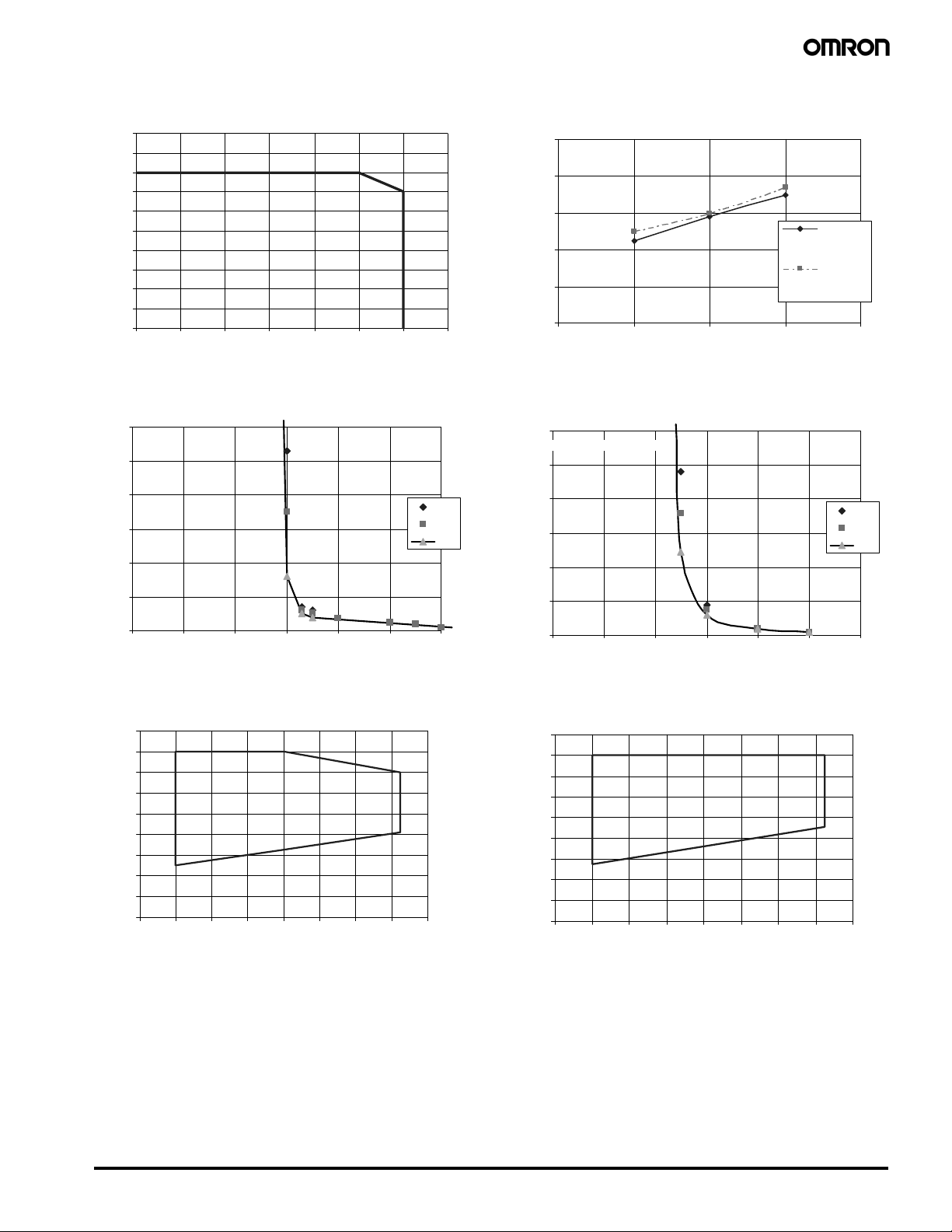

Load Limit Curve
Coil Temperature vs. Applied Voltage
at 20°C (G8N-1, 225Ω coil)
20
18
16
14
12
10
8
6
Switching Voltage (V)
4
2
0
0 5 10 15 20 25 30 35
Switching Current (A)
Overcurrent Energization
(20°C, G8N-1 225Ω coil, 4 samples)
60
No failure at 60 minutes
50
40
30
20
Applying Time (minutes)
10
Max
Avg
Min
100
80
60
40
Coil Temp. Rise (°C)
20
0
10 12 14 16 18
Applied Coil Voltage (V)
Overcurrent Energization
(85°C, G8N-1 225Ω coil, 4 samples)
60
No failure at 60 minutes
50
40
30
20
Applying Time (minutes)
10
0A Contact
Carry
Current
5A Contact
Carry
Current
Max
Avg
Min
0
0102030405060
Contact Carry Current (A)
Operating Voltage Range
(G8N-1, 180Ω coil)
18
16
14
12
10
8
6
Coil Voltage (V)
4
2
0
-60 -40 -20 0 20 40 60 80 100
Temperature (°C)
0
0102030405060
Contact Carry Current (A)
Operating Voltage Range
(G8N-1, 225Ω coil)
18
16
14
12
10
8
6
Coil Voltage (V)
4
2
0
-60 -40 -20 0 20 40 60 80 100
Temperature (°C)
Ultra-Miniature Automotive PCB Relay G8ND-2 3
Page 4

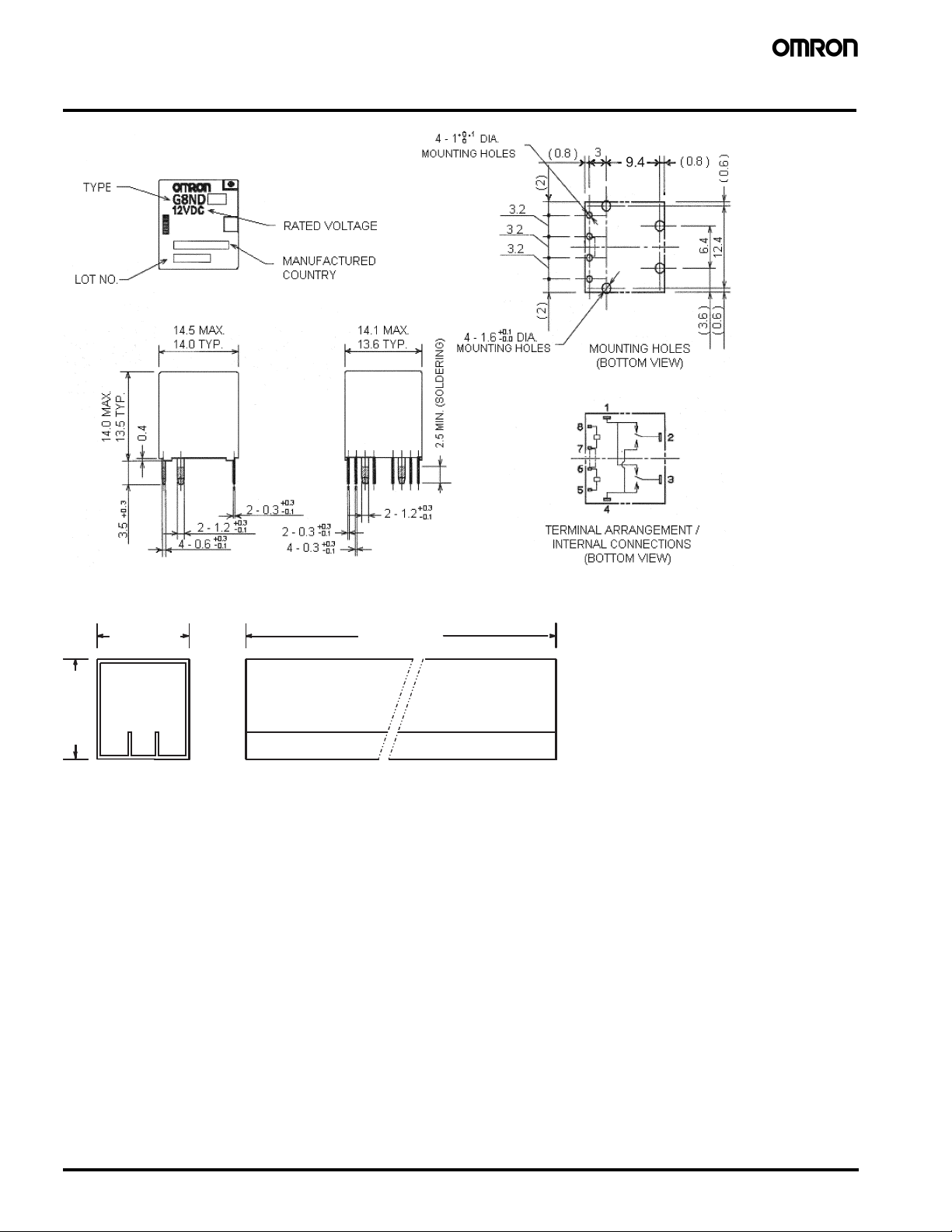

Dimensions
■ Tube Packaging
18.5 mm ref.
20.4 mm ref.
40 relays per tube, 30 tubes per box (1200 relays per box).
Note: 1. For additional information, please contact Omron.
2. Prior to receipt of order, specifications subject to change without notice.
3. This specification sheet is intended to be a guideline for application of this product. The information contained
is believed to be correct. However, it is impossible for Omron to evaluate every possible use. It is the user’s
responsibility to determine product suitability in any application.
4. Omron can meet some special performance characteristics upon request.
5. All data at 20° C unless otherwise noted.
6. If several relays are to be mounted on a single PCB, they must be given at least 3 mm clearance on all sides.
600.0 mm ref.
4 Ultra-Miniature Automotive PCB Relay G8ND-2
