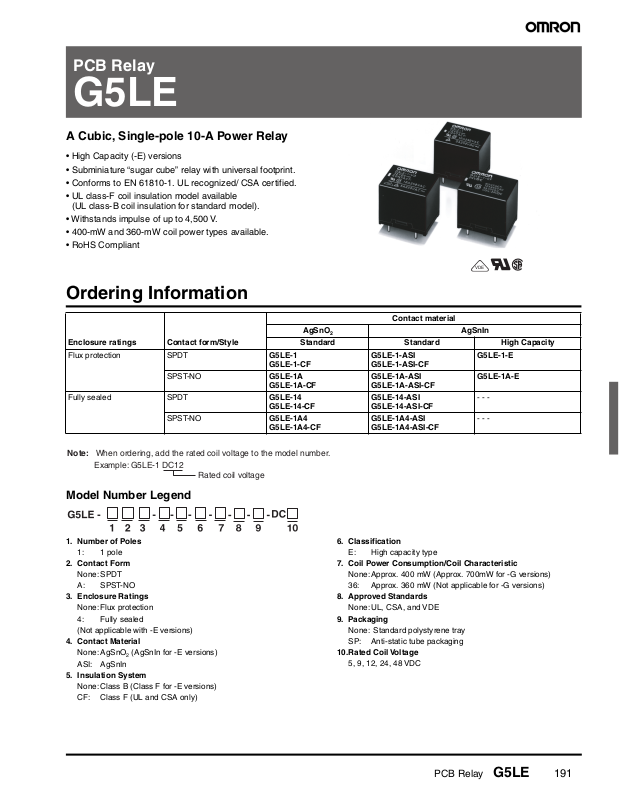

PCB Relay
G5LE
A Cubic, Single-pole 10-A Power Relay
• High Capacity (-E) versions
• Subminiature “sugar cube” relay with universal footprint.
• Conforms to EN 61810-1. UL recognized/ CSA certified.
• UL class-F coil insulation model available
(UL class-B coil insulation for standard model).
• Withstands impulse of up to 4,500 V.
• 400-mW and 360-mW coil power types available.
• RoHS Compliant
Ordering Information
Enclosure ratings Contact form/Style
Flux protection SPDT G5LE-1
G5LE-1-CF
SPST-NO G5LE-1A
G5LE-1A-CF
Fully sealed SPDT G5LE-14
G5LE-14-CF
SPST-NO G5LE-1A4
G5LE-1A4-CF
VDE
RC
X
Contact material
AgSnO
2
Standard Standard High Capacity
G5LE-1-ASI
G5LE-1-ASI-CF
G5LE-1A-ASI
G5LE-1A-ASI-CF
G5LE-14-ASI
G5LE-14-ASI-CF
G5LE-1A4-ASI
G5LE-1A4-ASI-CF
AgSnIn
G5LE-1-E
G5LE-1A-E
---
---
Note: When ordering, add the rated coil voltage to the model number.
Example: G5LE-1 DC12
Rated coil voltage
Model Number Legend
1. Number of Poles
1: 1 pole
2. Contact Form
None: SPDT
A: SPST-NO
3. Enclosure Ratings
None: Flux protection
4: Fully sealed
(Not applicable with -E versions)
4. Contact Material
None: AgSnO2(AgSnIn for -E versions)
ASI: AgSnIn
5. Insulation System
None: Class B (Class F for -E versions)
CF: Class F (UL and CSA only)
6. Classification
E: High capacity type
7. Coil Power Consumption/Coil Characteristic
None: Approx. 400 mW (Approx. 700mW for -G versions)
36: Approx. 360 mW (Not applicable for -G versions)
8. Approved Standards
None: UL, CSA, and VDE
9. Packaging
None: Standard polystyrene tray
SP: Anti-static tube packaging
10.Rated Coil Voltage
5, 9, 12, 24, 48 VDC
PCB Relay G5LE 191
Page 2
Specifications
■ Coil Ratings
400-mW Type
Rated voltage 5 VDC 9 VDC 12 VDC 24 VDC 48 VDC
Rated current 79.4 mA 45 mA 33.3 mA 16.7 mA 8.33 mA
Coil resistance 63 Ω 200 Ω 360 Ω 1,440 Ω 5,760 Ω
Must operate voltage 75% max. of rated voltage (max.)
Must release voltage 10% min. of rated voltage (min.)
Max. voltage 130% of rated voltage at 85°C, 170% of rated voltage at 23°C
Power consumption Approx. 400 mW
Note: The rated current and coil resistance are measured at a coil temperature of 23°C with a tolerance of ±10%.
360-mW Type
Rated voltage 5 VDC 9 VDC 12 VDC 24 VDC 48 VDC
Rated current 72 mA 40 mA 30 mA 15 mA 7.5 mA
Coil resistance 70 Ω 225 Ω 400 Ω 1,600 Ω 6,400 Ω
Must operate voltage 75% max. of rated voltage (max.)
Must release voltage 10% min. of rated voltage (min.)
Max. voltage 130% of rated voltage at 85°C, 170% of rated voltage at 23°C
Power consumption Approx. 360 mW
Note: The rated current and coil resistance are measured at a coil temperature of 23°C with a tolerance of ±10%.
■ Contact Ratings
Standard G5LE-E
Load Resistive load (cosφ =1)
Rated load
Contact Material
Rated carry current
Max. switching voltage
Max. switching current
Max. switching power
Minimum Permissible Load (See note) 100 mA at 5 VDC
Note: Reference value-Plevel:λ60=0.1x10–6operations
10Aat120VAC;8Aat30VDC
10A at 240VAC (12 and 24 VDC coil)
AgSnO2(AgSnIn optional) AgSnIn
10 A 16A
250 VAC, 125 VDC
(30 VDC when UL/CSA standard is applied)
AC: 10 A; DC: 8 A AC: 16A
1,200 VA, 240 W 4,000VA
16A at 250VAC
250VAC
192 PCB Relay G5LE
Page 3
■ Characteristics
Contact resistance 100 mΩ max.
Operate time 10 ms max.
Release time 5 ms max.
Bounce Time Operate: Approx. 0.6ms
Release: Approx. 7.2ms
Max. switching frequency Mechanical: 18,000 operations/hr
Electrical: 1,800 operations/hr at rated load
Insulation resistance 100 MΩ min. (at 500 VDC)
Dielectric strength 2,000 VAC, 50/60 Hz for 1 min between coil and contacts
Impulse withstand voltage 4,500 V (1.2 x 50 μs) between coil and contacts
Insulation
Distance
Tracking Resistance (CTI) 250 V
Vibration resistance Destruction: 10 to 55 to 10 Hz, 0.75-mm single amplitude (1.5-mm double amplitude)
Shock resistance
Endurance Mechanical: 10,000,000 operations min. (at 18,000 operations/hr)
Ambient temperature Operating: −40°Cto85°C (with no icing)
Ambient humidity Operating: 5% to 85%
Weight Approx. 12 g
Creepage (Typ) 3.3 mm
Clearance (Typ) 2.7 mm
750 VAC, 50/60 Hz for 1 min between contacts of same polarity
Malfunction: 10 to 55 to 10 Hz, 0.75-mm single amplitude (1.5-mm double amplitude)
Destruction: 1,000 m/s
Malfunction: 100 m/s
Electrical: 100,000 operations min. (at 1,800 operations/hr) for standard type
36,000 operations min. (10A at 250VAC)
100,000 operations min. (at 1,800 operations/hr), 12A 250 VAC) - applicable for
G5LE-1-E,NO contact only
2
2
■ Approved Standards
UL Recognized (File No. E41643)
CSA Certified (File No. LR34815)
Model Coil rating Contact rating
G5LE 3 to 48 VDC
(Standard)
5to24VDC
(-E versions)
EN 61810-1, EN 60255, IEC (VDE TUV Reg No. R9151267, VDE Reg No. 6850UG)
Model Coil rating Contact rating
G5LE Approx. 400 mW
10 A, 250 VAC (general use), 6,000 cycles, 40°C (excluding -G type)
10 A, 125 VAC (general use), 100,000 cycles, 40°C (excluding -E, -G types)
8 A, 30 VDC (resistive load), 6,000 cycles, 40°C (excluding -E, -G types)
125 VA, 125 VAC, pilot duty, 100,000 cycles, 105°C (excluding -G type)
NO:
13 A, 120 VAC, resistive, 100,000 cycles, 85°C (AgSnO2& -E types, only)
1/2 hp, 125 VAC, 100,000 cycles, 40°C (excluding -G type)
1/3 hp, 125 VAC, 30,000 cycles, 70°C (AgSnO
400W-T (3.3A), 120 VAC, tungsten, 100,000 cycles (AgSnO2type only, excluding -E, -G types)
TV-5, 120 VAC, 40°C (-ASI type only, excluding -E, -G types)
12 A, 250 VAC, general use, 100,000 cycles, 1s=on, 1s=off, 105°C (-E type only)
TV-8,120 VAC, 25,000 cycles, 40°C (-E type only)
10 A, 35 VDC, resistive, 100,000 cycles, 1s=on, 1s=off, 40°C (-G type only)
NC:
12 A, 250 VAC, general use, 30,000 cycles, 1s=on, 9s=off, 40°C (-E type only)
10 A, 35 VDC, resistive, 50,000 cycles, 5s=on, 5s=off, 40°C (-G type only)
1/8 hp, 120 VAC, 50,00 cycles, 40°C (AgSnO
3, 5, 6, 9, 12, 24, 48 VDC
Approx. 360 mW
5, 6, 12, 24, 48 VDC
10A, 250VAC (resistive load, 50,000 cycles at 85°C)
5A, 30VDC
2.5 A, 250 VAC (cosφ = 0.4)
type only, excluding -E, -G types)
2
type only, excluding -E, -G types)
2
PCB Relay G5LE 193
Page 4
Engineering Data
Switching current (A)
0.3
0.5
0.7
1
3
5
7
10
0103050125
250
500
1,000
Switching Voltage (V)
DC resistive
load
AC r esisti ve
load
Life expectanc y (x10
3
operations)
10
30
5070100
300
500
700
1,000
3,000
5,000
246810120
30VDC
resisti ve load
120VAC
resisti ve load
0
100
120
140
160
180
200
-252030405060708090
100
23
Switching temperature (°C)
Life expectancy (x10
3
operations)
Switching current (A)
10
30
50
70
100
300
500
700
1,000
3,000
5,000
246810120
14
16
0
100
120
140
160
180
200
-252030405060708090
100
23
Switching temperature (°C)
Switching current (A)
Switching voltage (V)
1,000
AC resistive
load (for -E)
0.5
1
5
10
12
14
16
0103050125
250
500
8
For standard type
Max. Switching Capacity
For suffix -E
Max. Switching Capacity
Life Expectancy
30VDC
inductive
(L/R=7ms)
12 0 V A C
CosØ=0.4
(see note)
inductive
Switching current (A)
Note: Same curve as for 250-VAC
resistive load
Life Expectancy
Ambient Temp. Vs. Max. Voltage
Maximum Voltage (%)
Note: The maximum coil voltage refers
to the maximum value in a varying
range of operating power voltage,
not a continuous voltage.
Ambient Temp. Vs. Max. Voltage
35 VDC
resistive load
250 VAC
resistive load
G5LE-1-E
Maximum voltage (%)
Note: The maximum coil voltage refers
to the maximum value in a varying
range of operating power voltage,
not a continuous voltage.
194 PCB Relay G5LE
Page 5
Dimensions
Note: 1. All units are in millimeters unless otherwise indicated.
2. Orientation marks are indicated as follows:
G5LE-1
G5LE-1A
Terminal
Arrangement/Internal
Connections (Bottom View)
SPDT
Mounting Holes
(Bottom View)
Tolerance: ±0.1 mm
unless specified
SPDT
+0.2
Five, 1.3 dia. holes
0
G5LE-14
G5LE-1A4
19.0 max.
(18.5)*
3.5
0.5
22.5 max.
(21.6)*
0.2 1
22.5 max.
(21.6)*
*Average value
16.5 max.
(15.6)*
1.2 0.4
16.5 max.
(15.6)*
3
2
1
5
4
Terminal
Arrangement/Internal
Connections (Bottom View)
SPST-NO
3
2
1
5
(2.55)
12.2
2(2.55)
Mounting Holes
(Bottom View)
Tolerance: ±0.1 mm
unless specified
SPST-NO
2
(5.75)
Four, 1.3 dia. holes
12.2
(5.75)
+0.2
(2.25)
12
(2.25)
0
(2.25)
12
(2.25)
19.0 max.
(18.5)*
3.5
0.5
0.2 1 1.2 0.4
*Average value
PCB Relay G5LE 195
Page 6
All sales are subject to Omron Electronic Components LLC standard terms and conditions of sale, which
can be found at http://www.components.omron.com/components/web/webfiles.nsf/sales_terms.html
ALL DIMENSIONS SHOWN ARE IN MILLIMETERS.
To convert millimeters into inches, multiply by 0.03937. To convert grams into ounces, multiply by 0.03527.
OMRON ELECTRONIC
COMPONENTS LLC
55 E. Commerce Drive, Suite B
Schaumburg, IL 60173
847-882-2288
Cat. No. X301-E-1d
PCB Relay G5LE
OMRON ON-LINE
Global - http://www.omron.com
USA - http://www.components.omron.com
08/13 Specifications subject to change without notice
Printed in USA
