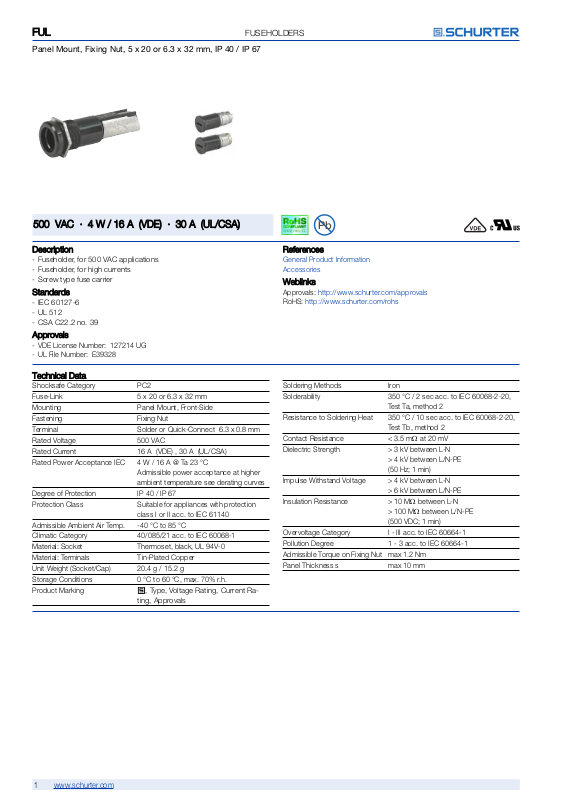

Page 1
FFUUL
L
FUSEHOLDERS
Panel Mount, Fixing Nut, 5 x 20 or 6.3 x 32 mm, IP 40 / IP 67
550000VVAACC··44WW//1166AA((VVDDEE))··3300AA((UULL//CCSSAA)
DDeessccrriippttiioon
- Fuseholder, for 500 VAC applications
- Fuseholder, for high currents
- Screw type fuse carrier
SSttaannddaarrdds
- IEC 60127-6
- UL 512
- CSA C22.2 no. 39
AApppprroovvaalls
- VDE License Number: 127214 UG
- UL File Number: E39328
TTeecchhnniiccaall DDaatta
Shocksafe Category PC2
Fuse-Link 5 x 20 or 6.3 x 32 mm
Mounting Panel Mount, Front-Side
Fastening Fixing Nut
Terminal Solder or Quick-Connect 6.3 x 0.8 mm
Rated Voltage 500 VAC
Rated Current 16 A (VDE) , 30 A (UL/CSA)
Rated Power Acceptance IEC 4 W / 16 A @ Ta 23 °C
Degree of Protection IP 40 / IP 67
Protection Class Suitable for appliances with protection
Admissible Ambient Air Temp. -40 °C to 85 °C
Climatic Category 40/085/21 acc. to IEC 60068-1
Material: Socket Thermoset, black, UL 94V-0
Material: Terminals Tin-Plated Copper
Unit Weight (Socket/Cap) 20.4 g / 15.2 g
Storage Conditions 0 °C to 60 °C, max. 70% r.h.
Product Marking
n
s
s
a
Admissible power acceptance at higher
ambient temperature see derating curves
class I or II acc. to IEC 61140
, Type, Voltage Rating, Current Ra-
ting, Approvals
)
RReeffeerreennccees
General Product Information
Accessories
WWeebblliinnkks
Approvals: http://www.schurter.com/approvals
RoHS: http://www.schurter.com/rohs
Soldering Methods Iron
Solderability 350 °C / 2 sec acc. to IEC 60068-2-20,
Resistance to Soldering Heat 350 °C / 10 sec acc. to IEC 60068-2-20,
Contact Resistance < 3.5 mΩ at 20 mV
Dielectric Strength > 3 kV between L-N
Impulse W
Insulation Resistance > 10 MΩ between L-N
Overvoltage Category I - III acc. to IEC 60664-1
Pollution Degr
Admissible Torque on Fixing Nut max 1.2 Nm
Panel Thickness s max 10 mm
s
s
ithstand Voltage
ee
Test Ta, method 2
Test Tb, method 2
> 4 kV between L/N-PE
(50 Hz; 1 min)
kV between L-N
> 4
kV between L/N-PE
> 6
> 100 MΩ between L/N-PE
(500 VDC; 1 min)
1 - 3 acc. to IEC 60664-1
1
.schurter.com
www
Page 2
FFUUL
4 max. 10
M18.5x2/2
8.5
63
SW 22
1.8
ø 22
±0.5
19 18.7
±
0.1
17.8
-0.1
0
0 20 40 60 80 100
0.5
0.0
I = < < I
n
I = 0.7 I
n
I = 1.0 I
n
4.0
1.5
1.0
2.0
3.0
2.5
3.5
L
FUSEHOLDERS
DDiimmeennssiioonns
s
Variant 0031.2307 and 0031.2308
DDeerraattiinngg CCuurrvvees
s
in Watt
Length 62.9 mm
Mounting holes
Admissible Power Acceptance
Ambient Air Temperature Ta °C
VVaarriiaanntts
s
OOrrddeerr NNuummbbeerr HHoollddeerr CCaapp FFuussee--LLiinnkk TTeerrmmiinnaall DDeeggrreeee ooff PPrrootteecc--
ttiioonn
0031.2307
0031.2308
l
l
5 x 20 or 6.3 x 32mm Solder IP 40
5 x 20 or 6.3 x 32mm Quick-Connect 6.3 x 0.8 mm IP 40
0031.2321 Slot Knob 6.3 x 32mm IP 40
0031.2323 Slot Knob 5 x 20mm IP 40
0031.2303
0031.2304
l
l
5 x 20 or 6.3 x 32mm Solder IP 67
5 x 20 or 6.3 x 32mm Quick-Connect
6.3 x 0.8 mm
IP 67
0031.2320 Slot Knob 6.3 x 32mm IP 67
0031.2322 Slot Knob 5 x 20mm IP 67
PPaacckkaaggiinngg UUnniitt
Bulk (25 pcs.)
2
.schurter.com
www
