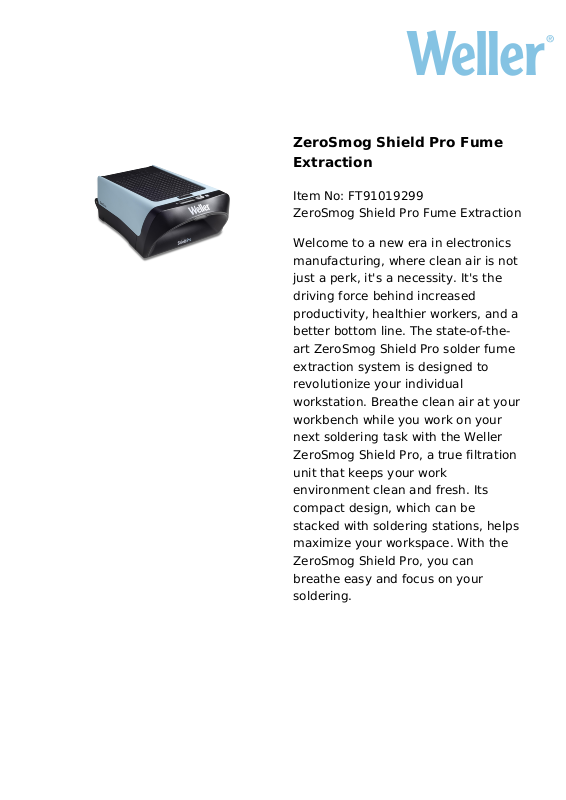

Page 1
ZeroSmog Shield Pro Fume
Extraction
Item No: FT91019299
ZeroSmog Shield Pro Fume Extraction
Welcome to a new era in electronics
manufacturing, where clean air is not
just a perk, it's a necessity. It's the
driving force behind increased
productivity, healthier workers, and a
better bottom line. The state-of-theart ZeroSmog Shield Pro solder fume
extraction system is designed to
revolutionize your individual
workstation. Breathe clean air at your
workbench while you work on your
next soldering task with the Weller
ZeroSmog Shield Pro, a true filtration
unit that keeps your work
environment clean and fresh. Its
compact design, which can be
stacked with soldering stations, helps
maximize your workspace. With the
ZeroSmog Shield Pro, you can
breathe easy and focus on your
soldering.
Page 2
KEY FEATURES
Efficient particle and gas filtration, odour removal for single workbench
Powerful blower with adjustable extraction power
Stackable with soldering stations of all brands (max. footprint 13 cm x 18 cm)
Connectable to various Weller soldering stations
Easy to move around
Easy filter change
Filter status indication (green/red light)
Illuminated work area
Low noise level of 50dB (59dB at full speed)
Antistatic housing (ESD safe)
TECHNICAL DATA
Dimensions L x W x H 270 x 212 x 110 mm 10.6 x 8.3 x 4.3 In
Capacity (m³/h) 32
ESD Safe Yes
Maximum Vacuum 490 Pa
Maximum Volume 59 dB(A)
Power 20 W
UPC 037103375964
Voltage 100- 240 V, 50/60 Hz
