Page 1
FLI7540
S/PDIF
x6
L/R
in
x1
SIF
in
DVB-CI,
DVB-CI+
MII/RMII
I2S out
3.1
USB 2.0
HDMI 1 HDMI 2 HDMI 3
HP
out
DDR2/3
CTL 16 bit
ST-Bus INTERCONNECT
USB 2.0
PHY
Ethernet
10/100/1G
MAC
EMI
NAND Flash
Serial Flash
UARTs x3
+ SPI
SSC x6
(I2C)IRRx
GP
ADC
x1
GP I/O
PWM x4
FDMA
Audio
PCM/SPDIF
Players/Readers
Analog Video Decoder
With 3DComb
MPEG-2/H.264/
VC1/DiVX/AVS
Video Decoder
Transport
Front-End
Transport
Stream
Demux
ST40-300
450 MHz
OS21
HDMI Rx
w/ HDCP
Macro
block to
Raster
AFE with 14 inputs,
x4 Video ADCs, 3 outputs
Main
Compositor
GDP 1 & 2
Main Video Processing
HDMI
Audio
14 Analog
Video Inputs
Display or
Video / GFX
LVDS (TTL) Out
Double Wide
Gamma
HDMI
3:1 Mux Phy
2D/3D
GFX
VCR/AUX Scaler
Flash
Card I/F
MMC/SD
GDP3
Security
System
USB 2.0
Host Ctrl
Y/C + CVBS
Analog Video Out
x3
L/R
out
DDR2/3
1066 Mbps
512 MB-2 Gb
Sharpening
Filters
ACM 3D and
ACC 3
Enhancer
3x3 Matrix
Blend
CLUTs
Audio DSP
ST231
450 MHz
Audio DSP
ST231
450 MHz
8
HDMI Rx
w/ HDCP
HDMI 4
HDMI
Audio
Graphic
Engine
(Blitter)
ST40-300
450 MHz
Linux
L2 Cache
FDMA
DDR2/3
CTL 32 bit
DDR2/3
1066 Mbps
512 MB-2 Gb
16
32
PIP Scaler
DVB-T/C
USB 2.0
USB 2.0
PHY
USB 2.0
Host Ctrl
PCIe
PCIe
x1
HDMI
Video
HDMI
Video
WW Analog
Audio Demod
x2 ADC, x6 DACs
Video Input Select
Mux
Clock
Generator
REF Clock
Aux. Compositor
Analog SD Video Encoder
x2 Video DACs
TS_In1
TS_In2
Tuner
TS
in/out
CI

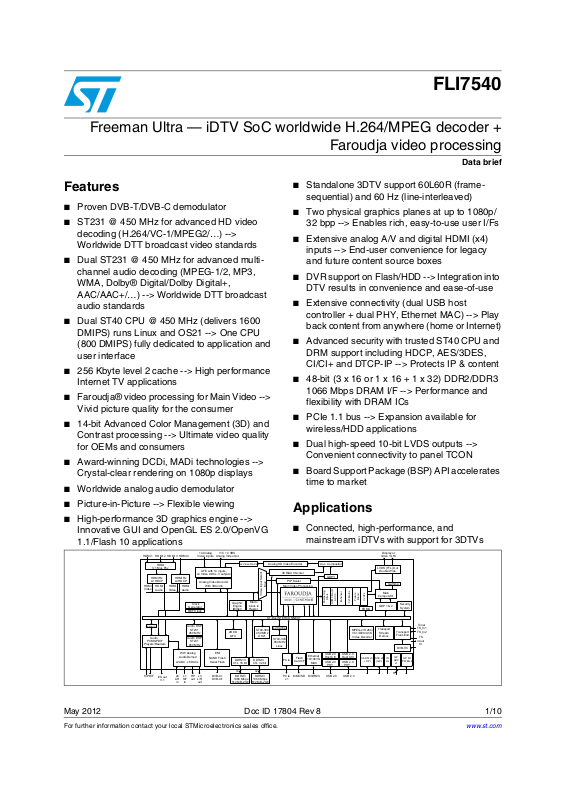

Freeman Ultra — iDTV SoC worldwide H.264/MPEG decoder +
Faroudja video processing
Data brief
Features
■ Proven DVB-T/DVB-C demodulator
■ ST231 @ 450 MHz for advanced HD video
decoding (H.264/VC-1/MPEG2/…) -->
Worldwide DTT broadcast video standards
■ Dual ST231 @ 450 MHz for advanced multi-
channel audio decoding (MPEG-1/2, MP3,
WMA, Dolby® Digital/Dolby Digital+,
AAC/AAC+/…) --> Worldwide DTT broadcast
audio standards
■ Dual ST40 CPU @ 450 MHz (delivers 1600
DMIPS) runs Linux and OS21 --> One CPU
(800 DMIPS) fully dedicated to application and
user interface
■ 256 Kbyte level 2 cache --> High performance
Internet TV applications
■ Faroudja® video processing for Main Video -->
Vivid picture quality for the consumer
■ 14-bit Advanced Color Management (3D) and
Contrast processing --> Ultimate video quality
for OEMs and consumers
■ Award-winning DCDi, MADi technologies -->
Crystal-clear rendering on 1080p displays
■ Worldwide analog audio demodulator
■ Picture-in-Picture --> Flexible viewing
■ High-performance 3D graphics engine -->
Innovative GUI and OpenGL ES 2.0/OpenVG
1.1/Flash 10 applications
■ Standalone 3DTV support 60L60R (frame-
sequential) and 60 Hz (line-interleaved)
■ Two physical graphics planes at up to 1080p/
32 bpp --> Enables rich, easy-to-use user I/Fs
■ Extensive analog A/V and digital HDMI (x4)
inputs --> End-user convenience for legacy
and future content source boxes
■ DVR support on Flash/HDD --> Integration into
DTV results in convenience and ease-of-use
■ Extensive connectivity (dual USB host
controller + dual PHY, Ethernet MAC) --> Play
back content from anywhere (home or Internet)
■ Advanced security with trusted ST40 CPU and
DRM support including HDCP, AES/3DES,
CI/CI+ and DTCP-IP --> Protects IP & content
■ 48-bit (3 x 16 or 1 x 16 + 1 x 32) DDR2/DDR3
1066 Mbps DRAM I/F --> Performance and
flexibility with DRAM ICs
■ PCIe 1.1 bus --> Expansion available for
wireless/HDD applications
■ Dual high-speed 10-bit LVDS outputs -->
Convenient connectivity to panel TCON
■ Board Support Package (BSP) API accelerates
time to market
Applications
■ Connected, high-performance, and
mainstream iDTVs with support for 3DTVs
May 2012 Doc ID 17804 Rev 8 1/10
For further information contact your local STMicroelectronics sales office.
www.st.com
10
Page 2
Description FLI7540
1 Description
The FLI7540 is a revolutionary new iDTV SoC that integrates two highly successful, marketproven subsystems: STi710x digital/front-end processing and multi-format audio/video
decoding from the STB market, and Faroudja video/back-end processing from the TV
market. The FLI7540 is a high-performance, state-of-the-art SoC that can power
DTT/cable/satellite/IPTV iDTV designs for worldwide deployment. From the software
compatibility extending from the mature STi710x STAPI layer to the extensive video
processing, tuning, and tools from Faroudja Labs, the FLI7540 is the ideal solution for
addressing the next generation of iDTV design requirements.
The FLI7540 is the first in a family of scalable in performance and software compatible SoCs
that address mainstream and performance segments of the iDTV market.
The FLI7540 implements the latest generation of Faroudja Video Optimized technologies,
which allow a high degree of customization for TV OEMs. Key technology improvements in
this area include 14-bit color and contrast processing, upgraded sharpness, upgraded
temporal noise reduction, and new MPEG noise reduction.
The FLI7540, with high performance CPU, A/V decode, graphics engine, and extensive
network interface capability, enables TVs to deliver rich applications for convenient access
to multimedia content, both from within the home, as well as from the web.
Along with a high performance, dedicated CPU for customer applications, the FLI7540 is
equipped with 256 Kbyte of level 2 cache to deliver the smoothest experience of Internet TV
applications. In addition, FLI7540 accelerates 3D graphics with an industry-leading GPU for
OpenGL 2.0 and Flash 10 graphics and user interfaces.
ST's strong and extensive relationships with popular web and Internet TV service providers
give TV OEMs a fast ramp-up to deliver compelling value-add content to the living room.
2/10 Doc ID 17804 Rev 8
Page 3
FLI7540 Main features
2 Main features
The FLI7540 is a new, advanced decoding SoC targeted at next generation iDTVs (DTT, as
well as with combinations of cable/satellite/IPTV). It integrates in a single IC, proven DVBT+C demodulator, multi-stream transport demux, CPU, multi-format audio/video decode,
Faroudja video processing, 3D GPU for graphics and display, advanced security,
peripherals, audio/video ADCs/DACs, Digital A/V inputs/outputs, 4x HDMI switch, dual USB
controllers and PHYs, Ethernet MAC, and glueless SD/MMC card interface.
2.1 Audio/video decoding
● Latest generation “Delta” Video Decoder with ST231 programmable CPU core:
– MPEG4-Part 2, RealVideo, MPEG2, H.264, VC-1, HD or SD
– AVS HD decoding
– DivX, XviD, H.263 decoding
– Dual SD Decoding, PIP & Mosaic capable
● Advanced de-blocking and de-ringing of decoded H.264/MPEG2/MPEG4-
P2/RealVideo HD/SD sources based on ST's Digital Source Enhancer (DSE)
technology with 2D analysis window and Texture Adaptive Filter
● Dual ST231 @ 450 MHz for advanced multi-channel audio decoding (MPEG-1/2, MP3,
WMA, Dolby Digital/Dolby Digital+, AAC/AAC+). Concurrent audio description
decoding. Dolby Digital+ and AAC+ transcoding to Dolby Digital/DTS. In addition,
generous headroom remains for OEM post-processing algorithm implementation.
2.2 Graphics and display
● Main and PIP video display pipelines
– 10-bit arbitrary high-quality H & V scaling (linear and non-linear) with sample rate
conversion/filtering and sharpness
– 14-bit color/contrast processing
– 10-bit temporal/space noise reduction
– DCDi diagonal deinterlacing and scaling
● Main video display pipeline
– 10-bit Motion Adaptive Deinterlacing (MADi)
● Independent Main and PIP display compositions (video/graphics mixing)
● Pass-through display for graphics, Main video or PIP video output concurrently with
Main and PIP compositions (VCRO)
● Strong 3D GPU for full HD performance of OpenGL ES 2.0, OpenVG 1.1, and Flash 10
applications
● Two physical graphics planes at up to 1080p/32 bpp resolution for Main display
composition, plus a dedicated graphics plane for SD monitor/TV output
● Link list based 2D and high-performance 3D graphics blitter. Up to 200 Mpixels/sec with
destination alpha blending. Capable of 3D user interface effects.
Doc ID 17804 Rev 8 3/10
Page 4
Main features FLI7540
● HD display capture and down-conversion for concurrent HD and SD output of the main
composition
● LVDS output of separate Main, and PIP with graphics
2.3 3DTV/3D video
3D video is the ultimate entertainment experience to have at home. Bringing 3D to TV is
about supporting the proper connectivity to 3D sources and FLI7540 supports all the
connectivity options that are required.
● Supports 3D mandatory formats defined in HDMI 1.4b specification
● Supports Deep Color with mandatory 3D timings up to 12 bpc
● FLI7540 paired with FLI25xx improves 3D playback by increasing the frame rate per
eye, leading to the highest quality 3D TV possible through the following key advantages
– Improved 3D handling with 240 Hz output
– High-quality 3D video that can be used in conjunction with Faroudja’s Motion
Corrected Temporal Interpolation (MCTi™)
– With FLI25xx’s superior 240 Hz processing, the 3D video will be much brighter
and have significantly less “ghosting” artifacts
– Backlight scanning supported for motion blur reduction
– Improved artifact reduction with separate handling of Main video, and PIP plus
graphics
– Automatic detection of OSD from sources like STB
– Support for 3D OSD
– iDP Tx – Simpler and cheaper versus LVDS
Table 1. 3D video formats supported
Input format Output to FLI25xx
720p @ 50/60 Hz (frame packed)
1080p @ 24 Hz (frame packed)
1080p @ 24 Hz (top-bottom half vertical
resolution)
720p @ 50/60 Hz (side-by-side half horizontal
resolution)
720p @ 50/60 Hz (top-bottom half vertical
resolution)
1080i @ 50/60 Hz (side-by-side half horizontal
resolution)
1080p @ 50/60 Hz (side-by-side half horizontal
resolution)
1080p @ 50/60 Hz (top-bottom half vertical
resolution)
4/10 Doc ID 17804 Rev 8
720p @ 100/120 Hz (frame sequential)/60 Hz
(line-interleaved)
1080p @ 48 Hz (frame sequential)/60 Hz (lineinterleaved)
1080p @ 48 Hz (top-bottom half vertical
resolution)
720p @ 50/60 Hz (side-by-side half horizontal
resolution)
720p @ 50/60 Hz (top-bottom half vertical
resolution)
1080p @ 50/60 Hz (side-by-side half horizontal
resolution)
1080p @ 50/60 Hz (side-by-side half horizontal
resolution)
1080p @ 50/60 Hz (top-bottom half vertical
resolution)
Page 5
FLI7540 Main features
2.4 Legacy audio/video interfaces
● 1+3-inputs of HDMI into two receivers, with HDCP supporting HD and SD video
formats up to 1080p60 (222.75 MHz). HDMI receivers are compliant to v1.4b
specification and support deep color formats, enhanced colorimetry (xvYCC and gamut
metadata reception) and Picture-in-Picture. They also support audio reception in HDMI
layout 0 and HDMI layout 1 formats.
● PAL/NTSC/SECAM analog video decoder
● PAL/NTSC/SECAM digital video encoder
● Two 10-bit DACs for S-Video/composite analog video output (SD formats up to
480i/576i)
● Six pairs of L/R audio inputs multiplexed into one pair of 16-bit stereo ADC for digitizing
● Three pairs of L/R audio outputs and one pair of L/R headphone outputs generated
from three pairs of 24-bit stereo DACs
● Programmable bypass option for any six pairs of L/R audio inputs to any three pairs of
L/R audio outputs
● 3.1-channel Audio PCM Output Interface
● SPDIF input and output
2.5 Transport
● Dual transport stream inputs (two parallel)
● Glueless interface to DVB-CI/DVB-CI+ modules
● Multi-stream transport stream de-multiplexing, dual-tuner DVR, watch/record capable
2.6 Processors and memory
● High-performance dual ST40 CPUs for applications and real-time control
– ST40@450 MHz, dual-issue, applications CPU, 32KI, 32KD caches deliver > 800
DMIPs
● 256 Kbyte level 2 cache for accelerated performance, especially web applications
● 48-bit (3 x 16 or 1 x 16 + 1 x 32) DDR2/DDR3 Local Memory Interface (LMI), up to
1066 Mbps
● Supports NAND Flash and Quad Speed Serial Flash
– SLC NAND controller supports 1-bit ECC
– 8 Gb SLC NAND is supported
– MLC NAND is not supported
● Dual multi-channel, flexible DMA controllers
2.7 Connectivity
● Dual USB 2.0 host controllers, with two PHY
● Integrated 10/100/1G Ethernet MAC/MII/RMII, SD/MMC
● PCIe 1.1 bus available for host bus expansion for wireless/HDD applications
Doc ID 17804 Rev 8 5/10
Page 6
Main features FLI7540
2.8 DVR
● DVR supported, with HDD attachment through USB or Flash drive
● DVB-T+C/3DES/AES/Multi-2/ARC4 descrambling and support for Hash functions
2.9 Security
● Advanced security management with secure boot and trusted processor
● Broadcast stream encryption management (CI/CI+) and DVR data re-encryption
● Fully supports DRMs, including HDCP, WMDRM, DTCP-IP
● Rovi™ copy protection support
2.10 TV SoC peripherals
● Two UA R Ts
● Six SSCs for I2C/SPI master/slave interfaces (four of them shared with other IO)
● GPIO banks with alternate functions
● Infrared receiver
● Four PWMs
● HDMI CEC
● Low bandwidth ADC for chassis control
2.11 Tools
ST provides an extensive array of video and audio quality tuning tools, called “ST Media
Tools.” These tools not only provide unprecedented access to low-level operation of the
audio/video pipelines, but also deliver this flexibility in an easy-to-use fashion.
2.12 Package
● FPGBA 35 mm x 35 mm, 956 balls, R34x34, Pitch 1.0 mm, Ball 0.6 mm
6/10 Doc ID 17804 Rev 8
Page 7
FLI7540 Application overview
4x
HDMI
Inputs
Dual YPbPr
Multiple
CVBS / YC
Dual SCART
RGB
UART Links + LBADC
Front panel switches
External coms interface (e.g. hotel TVs)
Debug / code update
I2S /
Analog
48-bit I/F*
Loudspeaker
L/R Out
Headphones
Out
SPDIF In
NAND
Dual USB Ctrl +
2 PHY
DisplayPort
DIF, CVBS
10/100/
1G MAC
RJ45
FLI7540
ATV / DTV SoC
Media Processor
Connected TV
2D/3D Graphics
STA33x
Digital Amp
Hybrid
Tuner
SDIO
32-bit
PCIe
Bridge
eSATA/
SATA
FLI25xx
MCTi (MBR+MJR)
LED BL Dimming
Enhanced Connectivity
Host
I/F
2x HS LVDS
10-bit
WiFi/
Bluetooth
Module
HDDHDD
DDR2/3
PCIe
SPDIF Out
*3x16-bit or 1x16+1x32-bit
configuration options available
DDR2/3
3 Application overview

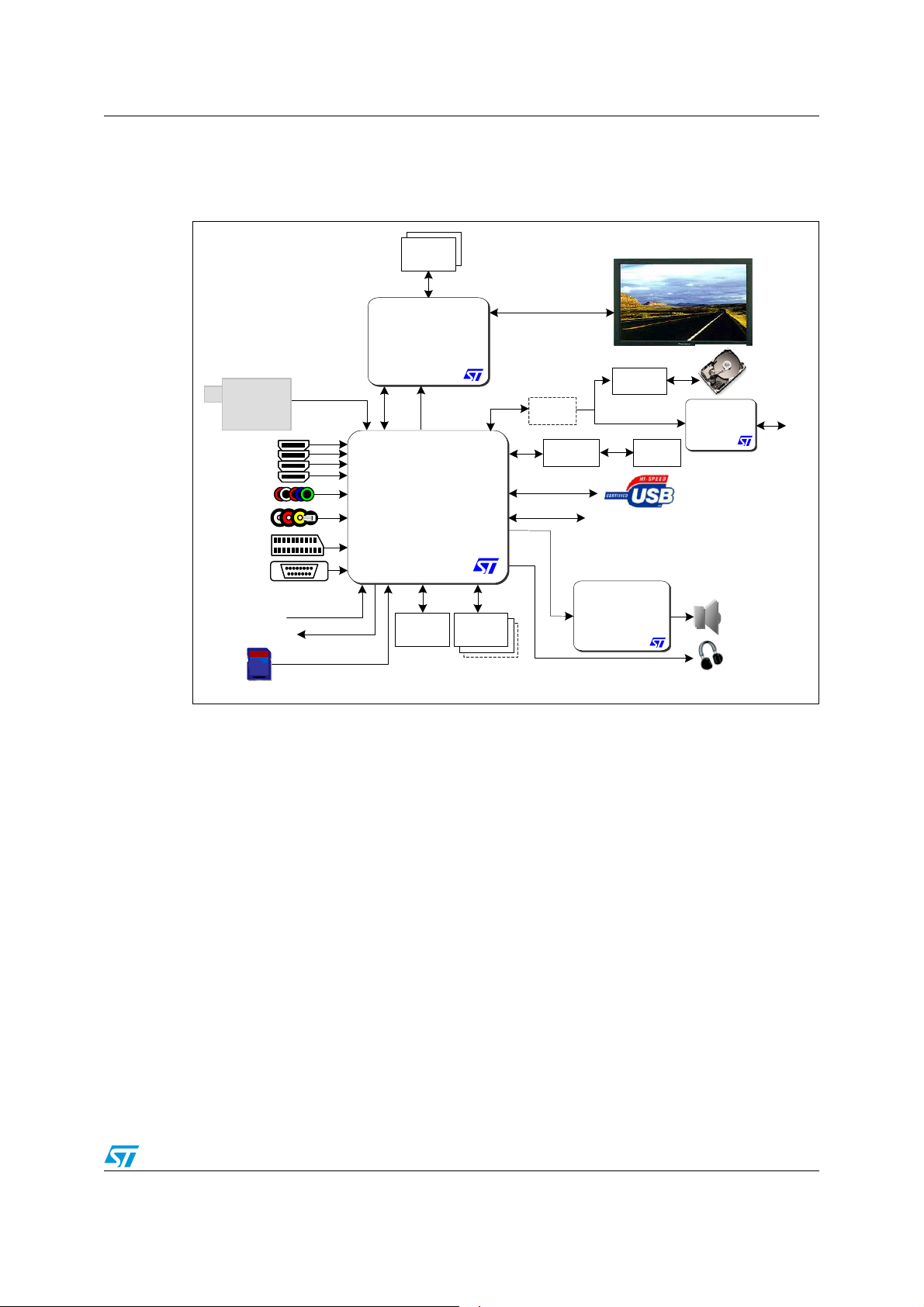

Figure 1. EU/US DTT + cable iDTV application
Doc ID 17804 Rev 8 7/10
Page 8
Ordering information FLI7540
4 Ordering information
b
Table 2. Order codes
Part number Description
FLI7540
FPBGA 35 x 35 mm
In order to meet environmental requirements, ST offers these devices in different grades of
ECOPACK® packages, depending on their level of environmental compliance. ECOPACK®
specifications, grade definitions and product status are available at: www.st.com
.
ECOPACK® is an ST trademark.
8/10 Doc ID 17804 Rev 8
Page 9
FLI7540 Revision history
5 Revision history
Table 3. Document revision history
Date Revision Changes
13-Aug-2010 1 Initial release.
15-Oct-2010 2
15-Nov-2010 3 Updated sec 2.9, removed Dwight Cavendish support
03-Mar-2011 4
12-Apr-2011 5
08-Jun-2011 6 Changed ST40 CPU bullet on cover page to 1600 DMIPS
08-Sep-2011 7
23-May-2012 8
Updated Table 1, 3D video formats supported
Changed Figure 1, Hybrid tuner output
Updated sec 2.2 Graphics and display; Main and PIP video display
pipelines
Changed audio/IS2 output to 3.1-channel in block diagram and
section 2.4 Legacy audio/video interfaces
Added 3D line-interleaved feature to cover and Table 1, 3D video
formats supported
Updated section 2.6, NAND Flash support
Updated section 2.10, changed to two UARTs
Updated the following: Block diagram; sec 2.4, audio
inputs/outputs; removed MCARD references; changed to HDMI
1.4b support
Doc ID 17804 Rev 8 9/10
Page 10
FLI7540
Please Read Carefully:
Information in this document is provided solely in connection with ST products. STMicroelectronics NV and its subsidiaries (“ST”) reserve the
right to make changes, corrections, modifications or improvements, to this document, and the products and services described herein at any
time, without notice.
All ST products are sold pursuant to ST’s terms and conditions of sale.
Purchasers are solely responsible for the choice, selection and use of the ST products and services described herein, and ST assumes no
liability whatsoever relating to the choice, selection or use of the ST products and services described herein.
No license, express or implied, by estoppel or otherwise, to any intellectual property rights is granted under this document. If any part of this
document refers to any third party products or services it shall not be deemed a license grant by ST for the use of such third party products
or services, or any intellectual property contained therein or considered as a warranty covering the use in any manner whatsoever of such
third party products or services or any intellectual property contained therein.
UNLESS OTHERWISE SET FORTH IN ST’S TERMS AND CONDITIONS OF SALE ST DISCLAIMS ANY EXPRESS OR IMPLIED
WARRANTY WITH RESPECT TO THE USE AND/OR SALE OF ST PRODUCTS INCLUDING WITHOUT LIMITATION IMPLIED
WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE (AND THEIR EQUIVALENTS UNDER THE LAWS
OF ANY JURISDICTION), OR INFRINGEMENT OF ANY PATENT, COPYRIGHT OR OTHER INTELLECTUAL PROPERTY RIGHT.
UNLESS EXPRESSLY APPROVED IN WRITING BY TWO AUTHORIZED ST REPRESENTATIVES, ST PRODUCTS ARE NOT
RECOMMENDED, AUTHORIZED OR WARRANTED FOR USE IN MILITARY, AIR CRAFT, SPACE, LIFE SAVING, OR LIFE SUSTAINING
APPLICATIONS, NOR IN PRODUCTS OR SYSTEMS WHERE FAILURE OR MALFUNCTION MAY RESULT IN PERSONAL INJURY,
DEATH, OR SEVERE PROPERTY OR ENVIRONMENTAL DAMAGE. ST PRODUCTS WHICH ARE NOT SPECIFIED AS "AUTOMOTIVE
GRADE" MAY ONLY BE USED IN AUTOMOTIVE APPLICATIONS AT USER’S OWN RISK.
Resale of ST products with provisions different from the statements and/or technical features set forth in this document shall immediately void
any warranty granted by ST for the ST product or service described herein and shall not create or extend in any manner whatsoever, any
liability of ST.
ST and the ST logo are trademarks or registered trademarks of ST in various countries.
Information in this document supersedes and replaces all information previously supplied.
The ST logo is a registered trademark of STMicroelectronics. All other names are the property of their respective owners.
© 2012 STMicroelectronics - All rights reserved
STMicroelectronics group of companies
Australia - Belgium - Brazil - Canada - China - Czech Republic - Finland - France - Germany - Hong Kong - India - Israel - Italy - Japan -
Malaysia - Malta - Morocco - Philippines - Singapore - Spain - Sweden - Switzerland - United Kingdom - United States of America
www.st.com
10/10 Doc ID 17804 Rev 8
Loading...
