Page 1
FLI7510
S/PDIF
x6
L/R
in
x1
SIF
in
DVB-CI,
DVB-CI+
MII/RMII
I2S
out
3.1
USB 2.0
HDMI 1 HDMI 2 HDMI 3
HP
out
ST-Bus INTERCONNECT
USB 2.0
PHY
Ethernet
10/100
MAC
EMI
NAND Flash
Serial Flash
ST40-300
450 MHz
Linux
UARTs x3
+ SPI
SSC x3
(I2C)
IR
Rx
GP
ADC
x1
GP I/O
PWM x4
FDMA
Audio
PCM/SPDIF
Players/Readers
MPEG-2/H.264/
VC1/DiVX/AVS
Video Decoder
Transport
Front-End
Transport
Stream
Demux
ST40-300
450 MHz
OS21
HDMI Rx
w/ HDCP
Macro
block to
Raster
Main
Compositor
GDP 1 & 2
Main Video Processing
HDMI
Video
21 Analog
Video Inputs
HDMI
3:1 Mux Phy
2D GFX
Blitter
Aux
I2S
VCR/AUX Scaler
SD/MMC
Card
Reader
SD Card
GDP3
Security
System
USB 2.0
Host Ctrl
Y/C + / CVBS
Analog Video Out
x3
L/R
out
Sharpening
Filters
ACM 3D and
ACC 3
Enhancer
3x3 Matrix
Blend
CLUTs
Audio DSP
ST231
450 MHz
Audio DSP
ST231
450 MHz
8
DDR2/3
CTL 16 bit
DDR2/3
1066 Mbps
512 MB-2 Gb
DDR2/3
CTL 16 bit
DDR2/3
1066 Mbps
512 MB-2 Gb
16
16
WW Analog
Audio Demod
x2 ADC, x6 DACs
TS_In1
TS
in/out
CI
TS_In2
Tuner
Aux. Compositor
Analog SD Video Encoder
x2 Video DACs
Video Input Select
Mux
Analog Video Decoder
With 3D Comb
AFE with 21 inputs,
x4 Video ADCs, 3 outputs
Clock
Generator
REF Clock
HDMI
Audio
Video / GFX
LVDS Out
Quad Wide
Gamma

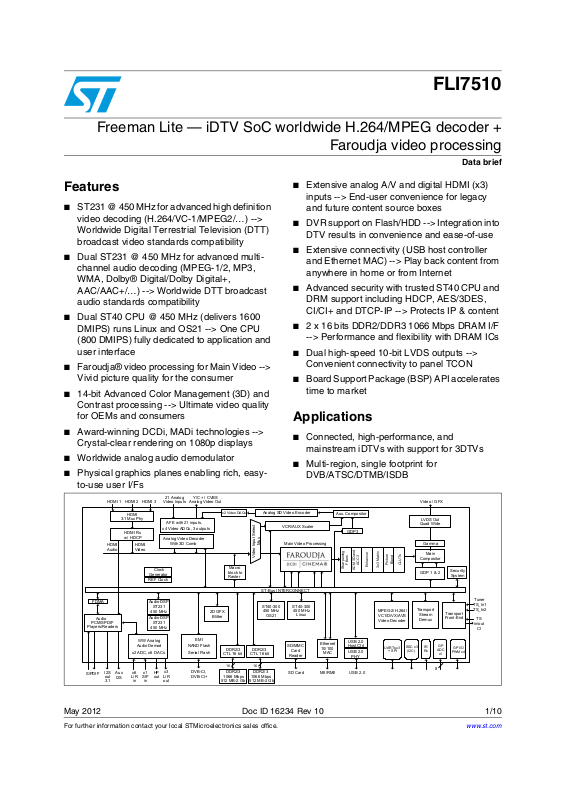

Freeman Lite — iDTV SoC worldwide H.264/MPEG decoder +
Faroudja video processing
Data brief
Features
■ ST231 @ 450 MHz for advanced high definition
video decoding (H.264/VC-1/MPEG2/…) -->
Worldwide Digital Terrestrial Television (DTT)
broadcast video standards compatibility
■ Dual ST231 @ 450 MHz for advanced multi-
channel audio decoding (MPEG-1/2, MP3,
WMA, Dolby® Digital/Dolby Digital+,
AAC/AAC+/…) --> Worldwide DTT broadcast
audio standards compatibility
■ Dual ST40 CPU @ 450 MHz (delivers 1600
DMIPS) runs Linux and OS21 --> One CPU
(800 DMIPS) fully dedicated to application and
user interface
■ Faroudja® video processing for Main Video -->
Vivid picture quality for the consumer
■ 14-bit Advanced Color Management (3D) and
Contrast processing --> Ultimate video quality
for OEMs and consumers
■ Award-winning DCDi, MADi technologies -->
Crystal-clear rendering on 1080p displays
■ Worldwide analog audio demodulator
■ Physical graphics planes enabling rich, easy-
to-use user I/Fs
■ Extensive analog A/V and digital HDMI (x3)
inputs --> End-user convenience for legacy
and future content source boxes
■ DVR support on Flash/HDD --> Integration into
DTV results in convenience and ease-of-use
■ Extensive connectivity (USB host controller
and Ethernet MAC) --> Play back content from
anywhere in home or from Internet
■ Advanced security with trusted ST40 CPU and
DRM support including HDCP, AES/3DES,
CI/CI+ and DTCP-IP --> Protects IP & content
■ 2 x 16 bits DDR2/DDR3 1066 Mbps DRAM I/F
--> Performance and flexibility with DRAM ICs
■ Dual high-speed 10-bit LVDS outputs -->
Convenient connectivity to panel TCON
■ Board Support Package (BSP) API accelerates
time to market
Applications
■ Connected, high-performance, and
mainstream iDTVs with support for 3DTVs
■ Multi-region, single footprint for
DVB/ATSC/DTMB/ISDB
May 2012 Doc ID 16234 Rev 10 1/10
For further information contact your local STMicroelectronics sales office.
www.st.com
10
Page 2
Description FLI7510
1 Description
The FLI7510 is a revolutionary new iDTV SoC that integrates two highly successful, marketproven subsystems: STi710x digital/front-end processing and multi-format audio/video
decoding from the STB market, and Faroudja video/back-end processing from the TV
market. The FLI7510 is a high-performance, state-of-the-art SoC that can power
DTT/cable/satellite/IPTV iDTV designs for worldwide deployment. From the software
compatibility extending from the mature STi710x STAPI layer to the extensive video
processing, tuning, and tools from Faroudja Labs, the FLI7510 is the ideal solution for
addressing the next generation of iDTV design requirements.
The FLI7510 is the first in a family of scalable in performance and software compatible SoCs
that address mainstream and performance segments of the iDTV market.
The FLI7510 implements the latest generation of Faroudja Video Optimized technologies,
which allow a high degree of customization for TV OEMs. Key technology improvements in
this area include 14-bit color and contrast processing, upgraded sharpness, upgraded
temporal noise reduction, and new MPEG noise reduction.
The FLI7510, with high performance CPU, A/V decode, graphics engine, and extensive
network interface capability, enables TVs to deliver rich applications for convenient access
to multimedia content, both from within the home, as well as from the web.
2/10 Doc ID 16234 Rev 10
Page 3
FLI7510 Main features
2 Main features
The FLI7510 is a new, advanced decoding SoC targeted at next generation iDTVs (DTT, as
well as with combinations of cable/satellite/IPTV). It integrates in a single IC, multi-stream
transport demux, CPU, multi-format audio/video decode, Faroudja video processing,
graphics and display, advanced security, peripherals, audio/video ADCs/DACs, Digital A/V
inputs/outputs, 3x HDMI switch, USB port, Ethernet MAC, and glueless SD/MMC card
interface.
2.1 Audio/video decoding
● Latest generation “Delta” Video Decoder with ST231 programmable CPU core:
– MPEG2, H.264, VC-1, HD or SD
– AVS HD decoding
– DivX, XviD, H.263 decoding
● Advanced de-blocking and de-ringing of decoded H.264/MPEG2 HD/SD sources
based on ST's Digital Source Enhancer (DSE) technology with 2D analysis window and
Texture Adaptive Filter
● Dual ST231 @ 450 MHz for advanced multi-channel audio decoding (MPEG-1/2, MP3,
WMA, Dolby Digital/Dolby Digital+, AAC/AAC+). Concurrent audio description
decoding. Dolby Digital+ and AAC+ transcoding to Dolby Digital/DTS. In addition,
generous headroom remains for OEM post-processing algorithm implementation.
2.2 Graphics and display
● Main video display pipelines: high-quality H & V reformatting/resizing with sample rate
conversion/filtering. Motion adaptive spatial and temporal de-interlacing for 480p/576p
and 1080p60 progressive output
– 14-bit color/contrast processing
– 10-bit temporal/space noise reduction
– DCDi diagonal processing
– 10-bit Motion Adaptive Deinterlacing (MADi)
– 10-bit arbitrary scaling, Sharpness (linear and non-linear)
● Independent Main display compositions (Video/Graphics mixing)
● Pass-through display for graphics, Main video output concurrently with Main
compositions (VCRO)
● Physical graphics planes for Main display composition. Options include:
– One graphics plane at up to 1280 x 720p/32 bpp @ 60 Hz
– One graphics plane at up to 1920 x 1080p/16 bpp resolution @ 60 Hz
– Two graphics planes at up to 1920 x 1080p/8 bpp @ 60 Hz and 960 x 540/32 bpp
@ 60 Hz
Doc ID 16234 Rev 10 3/10
Page 4
Main features FLI7510
● Dedicated graphics plane for SD monitor/TV output
● Link list based 2D graphics blitter. Up to 200 Mpixels/sec with destination alpha
blending. Capable of 3D-like user interface effects.
● HD display capture and down-conversion for concurrent HD and SD output of the main
composition
2.3 3DTV/3D video
3D video is the ultimate entertainment experience to have at home. Bringing 3D to TV is
about supporting the proper connectivity to 3D sources and FLI7510 supports all the
connectivity options that are required.
● Supports 3D mandatory formats defined in HDMI 1.4b specification
● Supports Deep Color with mandatory 3D timings up to 12 bpc
● FLI7510 can be used with an enhancement device to support 1080p 240 Hz output to
boost the quality of 3D playback by increasing the frame rate per eye
Table 1. 3D video formats supported
Input format Output to enhancement device (1080p-240 Hz)
720p @ 50/60 Hz (frame packed) 720p @ 100/120 Hz (frame sequential)
1080p @ 24 Hz (frame packed) 1080p @ 48 Hz (frame sequential)
1080p @ 24 Hz (top-bottom half vertical
resolution)
720p @ 50/60 Hz (side-by-side half horizontal
resolution)
720p @ 50/60 Hz (top-bottom half vertical
resolution)
1080i @ 50/60 Hz (side-by-side half horizontal
resolution)
1080p @ 50/60 Hz (side-by-side half horizontal
resolution)
1080p @ 50/60 Hz (top-bottom half vertical
resolution)
2.4 Legacy audio/video interfaces
● 3-inputs of HDMI into a single receiver, with HDCP supporting HD and SD video
formats up to 1080p60 (222.75 MHz). HDMI receiver is compliant to v1.4b specification
and supports deep color formats, enhanced colorimetry (xvYCC and gamut metadata
reception). Supports audio reception in HDMI layout 0 and HDMI layout 1 formats.
● PAL/NTSC/SECAM analog video decoder
● PAL/NTSC/SECAM digital video encoder
● Two 10-bit DACs for S-Video/composite analog video output (SD formats up to
480i/576i)
1080p @ 48 Hz (top-bottom half vertical
resolution), or
1080p @ 48 Hz (frame sequential)
720p @ 50/60 Hz (side-by-side half horizontal
resolution)
720p @ 50/60 Hz (top-bottom half vertical
resolution)
1080p @ 50/60 Hz (side-by-side half horizontal
resolution)
1080p @ 50/60 Hz (side-by-side half horizontal
resolution)
1080p @ 50/60 Hz (top-bottom half vertical
resolution)
4/10 Doc ID 16234 Rev 10
Page 5
FLI7510 Main features
● Six pairs of L/R audio inputs multiplexed into one pair of 16-bit stereo ADC for digitizing
● Three pairs of L/R audio outputs and one pair of L/R headphone outputs generated
from three pairs of 24-bit stereo DACs
● Programmable bypass option for any six pairs of L/R audio inputs to any three pairs of
L/R audio outputs
● 3.1-channel Audio PCM Output Interface
● SPDIF input and output
● SCART input and output
2.5 Transport
● Dual transport stream inputs
● Multi-stream transport stream de-multiplexing, dual-tuner DVR, watch/record capable
● Glueless interface to DVB-CI/DVB-CI+ modules
2.6 Processors and memory
● High-performance dual ST40 CPUs for applications and real-time control
– ST40@450 MHz, dual-issue, applications CPU, 32KI, 32KD caches deliver > 800
DMIPs
● 2 x 16-bit DDR2/DDR3 Local Memory Interface (LMI), up to 1066 Mbps
● Support for NAND Flash and Quad Speed Serial Flash
● Dual multi-channel, flexible DMA controllers
2.7 Connectivity
● USB 2.0 host interface, with one PHY
● Integrated 10/100 Ethernet MAC/MII/RMII
● SD/MMC card interface
2.8 DVR
● DVR support, with HDD attachment through USB or Flash drive
● DVB/3DES/AES/Multi-2/ARC4 descrambling and support for Hash functions
2.9 Security
● Advanced security management with secure boot and trusted processor
● Broadcast stream encryption management (CI/CI+) and DVR data re-encryption
● Fully supports DRMs, including HDCP, WMDRM, DTCP-IP
● Rovi™ copy protection support
Doc ID 16234 Rev 10 5/10
Page 6
Main features FLI7510
2.10 TV SoC peripherals
● Three UARTs
● Three SSC/I2C
● GPIO banks with alternate functions
● Infrared receiver
● Four PWMs
● HDMI CEC
● Low bandwidth ADC for chassis control
2.11 Package
● FPGBA 35 mm x 35 mm, 956 balls, R34x34, Pitch 1.0 mm, Ball 0.6 mm
6/10 Doc ID 16234 Rev 10
Page 7

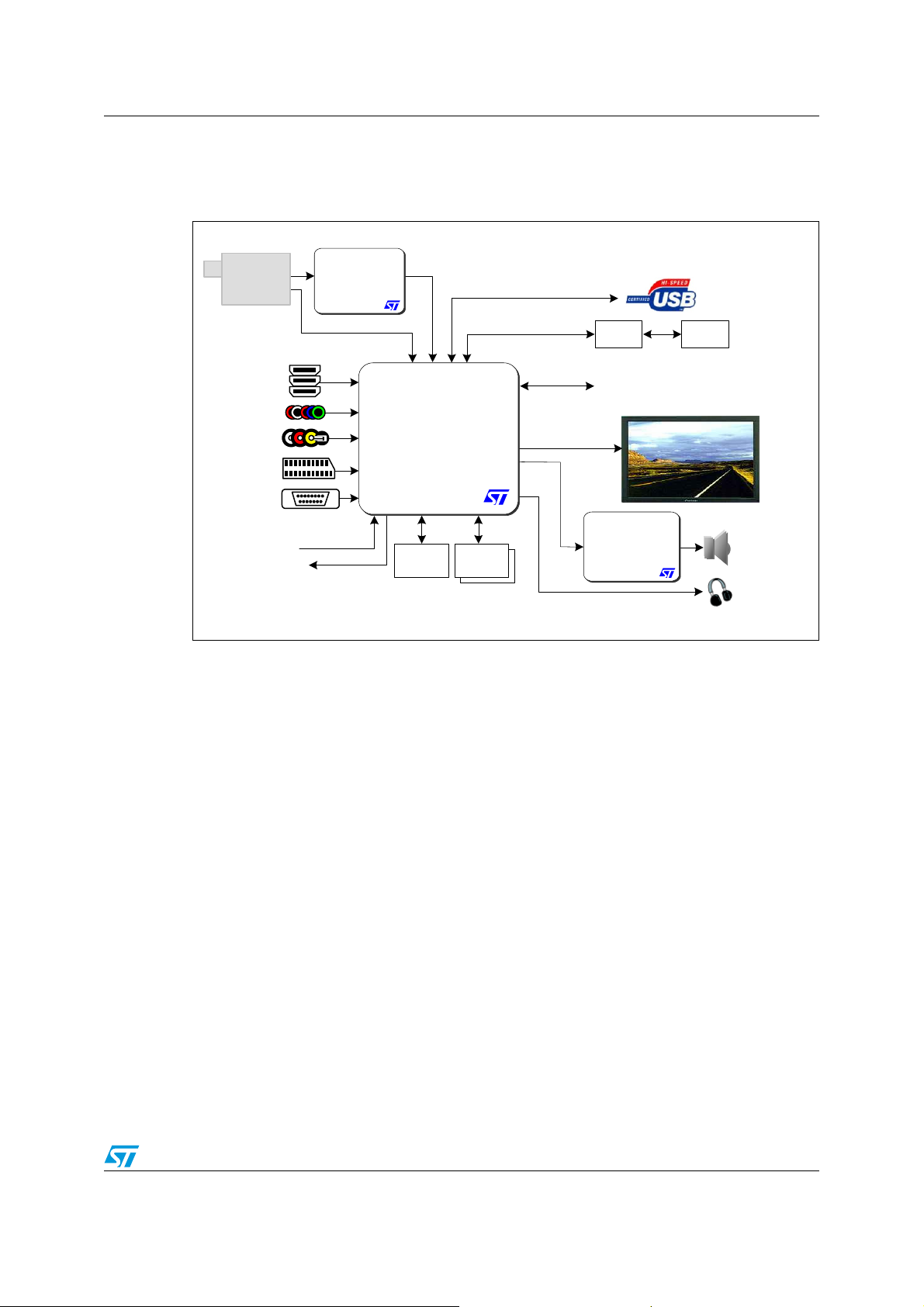

FLI7510 Application overview
3x
HDMI
Inputs
YPbPr
Multiple
CVBS / YC
Dual SCART
RGB
UART Links + LBADC
Front panel switches
External coms interface (e.g. hotel TVs)
Debug / code update
I2S /
Analog
IF TS
2x16-bit
Loudspeaker
L/R Out
Headphones
Out
SPDIF In
NAND
USB Ctrl + 1
PHY embedded
2 x LVDS
CVBS
DDR2/3
10/100
MAC
RJ45
FLI7510
ATV / DTV
H.264 SoC
STA33x
Digital Amp
STV03xx
ATSC / DVB-T/C
/ QAM
Hybrid
Tuner
SPDIF Out
3 Application overview
Figure 1. EU/US DTT + cable iDTV application
Doc ID 16234 Rev 10 7/10
Page 8
Ordering information FLI7510
4 Ordering information
Table 2. Order codes
Part number Description
FLI7510
FPBGA 35 x 35 mm
In order to meet environmental requirements, ST offers these devices in different grades of
ECOPACK® packages, depending on their level of environmental compliance. ECOPACK®
specifications, grade definitions and product status are available at: www.st.com
.
ECOPACK® is an ST trademark.
8/10 Doc ID 16234 Rev 10
Page 9
FLI7510 Revision history
5 Revision history
Table 3. Document revision history
Date Revision Changes
08-Dec-2009 1 Initial release.
10-Mar-2010 2 Added support for 3DTV
Updated Table 1 supported formats for HDMI 1.4a
17-May-2010 3
28-May-2010 4
13-Jul-2010 5
13-Aug-2010 6 Moved Freeman Lite to first description line on cover page
14-Oct-2010 7 Updated Table 1, 3D video formats supported
15-Nov-2010 8 Updated sec 2.9, removed Dwight Cavendish support
08-Jun-2011 9 Changed ST40 CPU bullet on cover page to 1600 DMIPS
23-May-2012 10
Minor updates to section 2.4: Changed section heading, added
576i to 10-bit DACs, moved Rovi copy protection to section 2.9
Updated cover page figure and Section 2.10 TV SoC
peripherals (Smart Card references provisionally removed)
Added Freeman Lite to cover page title
Updated sec 2.2 physical graphics planes
Updated sec 2.3 3DTV/3D video intro paragraph
Updated the following: Block diagram; sec 2.1; changed to AVS
HD decoding; sec 2.4, audio inputs/outputs; removed MCARD
references; changed to HDMI 1.4b support
Doc ID 16234 Rev 10 9/10
Page 10
FLI7510
Please Read Carefully:
Information in this document is provided solely in connection with ST products. STMicroelectronics NV and its subsidiaries (“ST”) reserve the
right to make changes, corrections, modifications or improvements, to this document, and the products and services described herein at any
time, without notice.
All ST products are sold pursuant to ST’s terms and conditions of sale.
Purchasers are solely responsible for the choice, selection and use of the ST products and services described herein, and ST assumes no
liability whatsoever relating to the choice, selection or use of the ST products and services described herein.
No license, express or implied, by estoppel or otherwise, to any intellectual property rights is granted under this document. If any part of this
document refers to any third party products or services it shall not be deemed a license grant by ST for the use of such third party products
or services, or any intellectual property contained therein or considered as a warranty covering the use in any manner whatsoever of such
third party products or services or any intellectual property contained therein.
UNLESS OTHERWISE SET FORTH IN ST’S TERMS AND CONDITIONS OF SALE ST DISCLAIMS ANY EXPRESS OR IMPLIED
WARRANTY WITH RESPECT TO THE USE AND/OR SALE OF ST PRODUCTS INCLUDING WITHOUT LIMITATION IMPLIED
WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE (AND THEIR EQUIVALENTS UNDER THE LAWS
OF ANY JURISDICTION), OR INFRINGEMENT OF ANY PATENT, COPYRIGHT OR OTHER INTELLECTUAL PROPERTY RIGHT.
UNLESS EXPRESSLY APPROVED IN WRITING BY TWO AUTHORIZED ST REPRESENTATIVES, ST PRODUCTS ARE NOT
RECOMMENDED, AUTHORIZED OR WARRANTED FOR USE IN MILITARY, AIR CRAFT, SPACE, LIFE SAVING, OR LIFE SUSTAINING
APPLICATIONS, NOR IN PRODUCTS OR SYSTEMS WHERE FAILURE OR MALFUNCTION MAY RESULT IN PERSONAL INJURY,
DEATH, OR SEVERE PROPERTY OR ENVIRONMENTAL DAMAGE. ST PRODUCTS WHICH ARE NOT SPECIFIED AS "AUTOMOTIVE
GRADE" MAY ONLY BE USED IN AUTOMOTIVE APPLICATIONS AT USER’S OWN RISK.
Resale of ST products with provisions different from the statements and/or technical features set forth in this document shall immediately void
any warranty granted by ST for the ST product or service described herein and shall not create or extend in any manner whatsoever, any
liability of ST.
ST and the ST logo are trademarks or registered trademarks of ST in various countries.
Information in this document supersedes and replaces all information previously supplied.
The ST logo is a registered trademark of STMicroelectronics. All other names are the property of their respective owners.
© 2012 STMicroelectronics - All rights reserved
STMicroelectronics group of companies
Australia - Belgium - Brazil - Canada - China - Czech Republic - Finland - France - Germany - Hong Kong - India - Israel - Italy - Japan -
Malaysia - Malta - Morocco - Philippines - Singapore - Spain - Sweden - Switzerland - United Kingdom - United States of America
www.st.com
10/10 Doc ID 16234 Rev 10
Loading...
