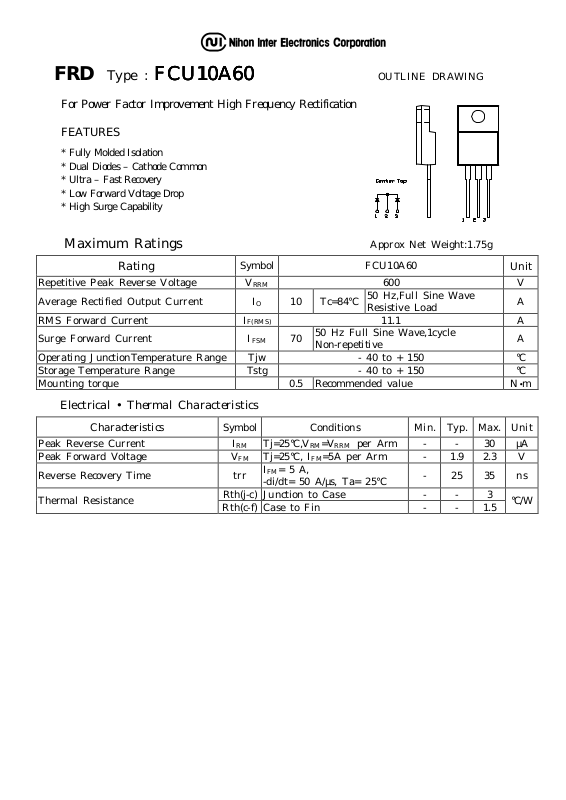

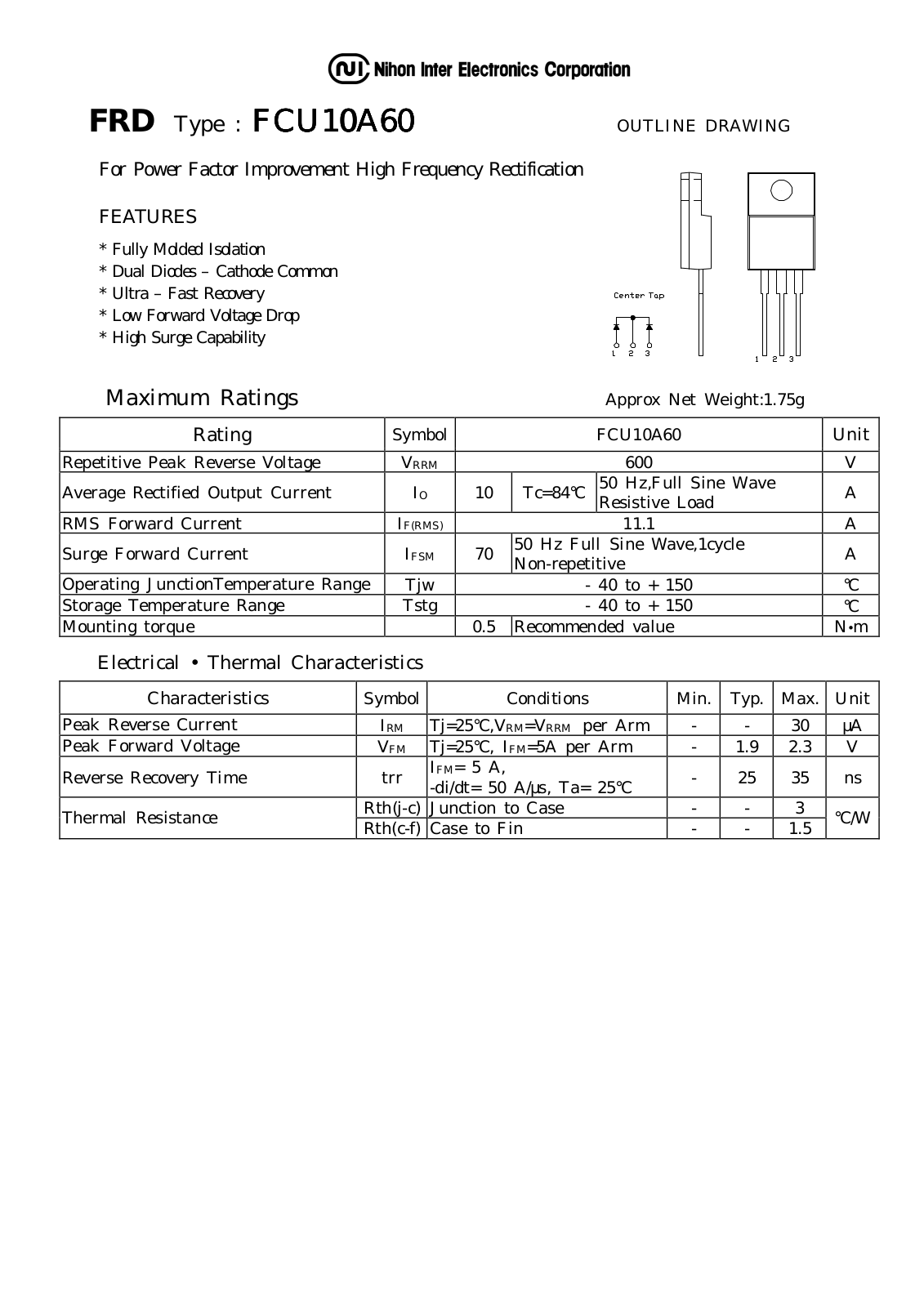

FRD Type : FCU10A60
For Power Factor Improvement High Frequency Rectificatio
FEATURES
* Fully Molded Isolation
* Dual Diodes – Cathode Common
* Ultra – Fast Recovery
* Low Forward Voltage Drop
* High Surge Capability
Maximum Ratings Approx Net Weight:1.75g
Repetitive Peak Reverse Voltage V
Average Rectified Output Current IO 10
RMS Forward Current I
Surge Forward Current I
Operating JunctionTemperature Range
Storage Temperature Range
Mounting torque 0.5 Recommended value N•m
Rating
FCU10A60 OUTLINE DRAWING
FCU10A60 FCU10A60
Symbol FCU10A60
600 V
RRM
Tc=84°C
11.1 A
F(RMS)
70
FSM
Tjw - 40 to + 150
Tstg - 40 to + 150
50 Hz Full Sine Wave,1cycle
Non-repetitive
50 Hz,Full Sine Wave
Resistive Load
Unit
A
A
°C
°C
Electrical • Thermal Characteristics
Characteristics
Peak Reverse Current
Peak Forward Voltage
Reverse Recovery Time trr
Thermal Resistance
Symbol Conditions Min. Typ. Max. Unit
I
RM
V
FM
Rth(j-c) Junction to Case - - 3
Rth(c-f) Case to Fin - - 1.5
Tj=25°C,V
Tj=25°C, I
= 5 A,
I
FM
-di/dt= 50 A/µs, Ta= 25°C
RM=VRRM
=5A per Arm
FM
per Arm
- - 30
- 1.9 2.3 V
- 25 35 ns
µA
°C/W
Page 2

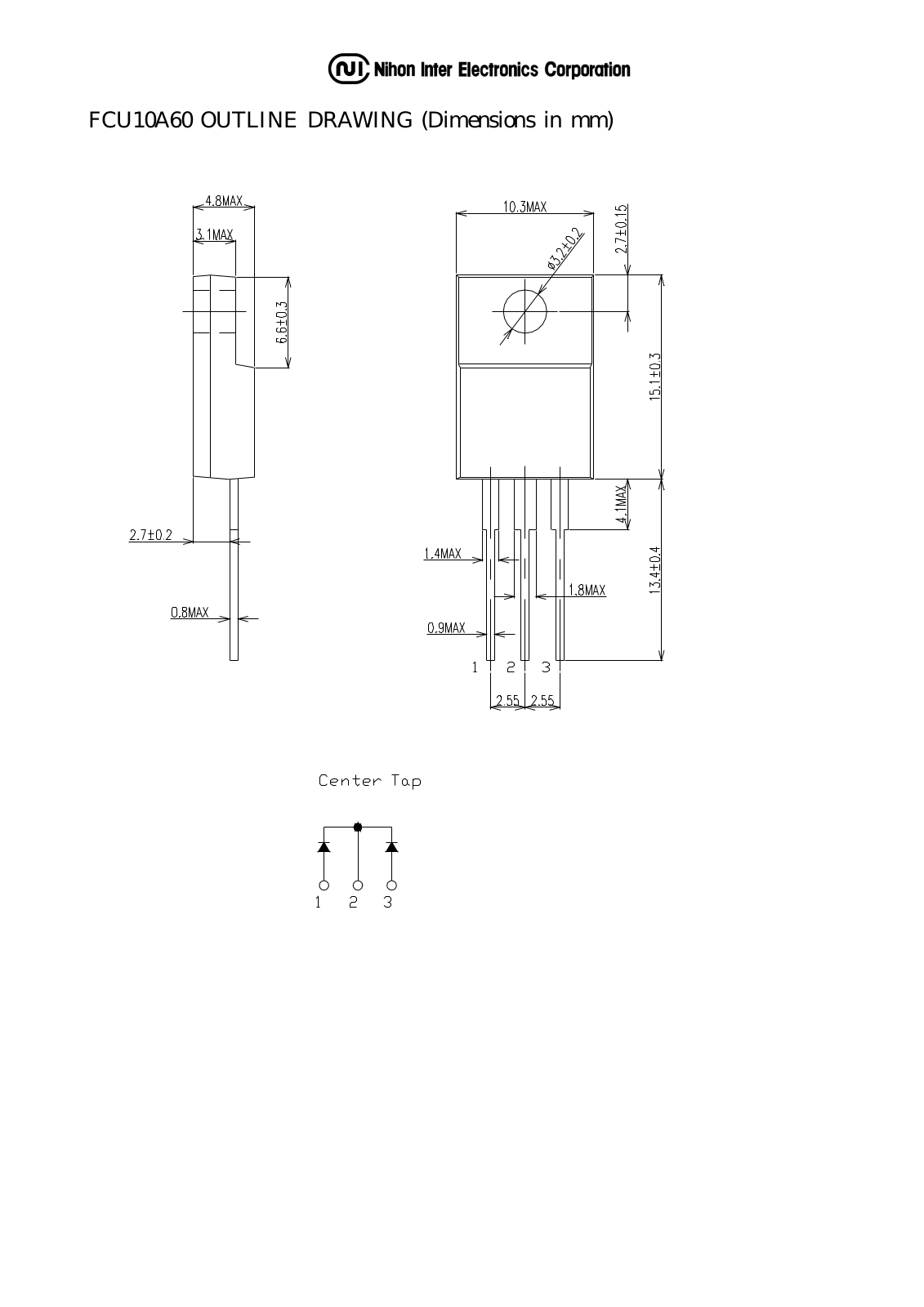

FCU10A60 OUTLINE DRAWING (Dimensions in mm)
