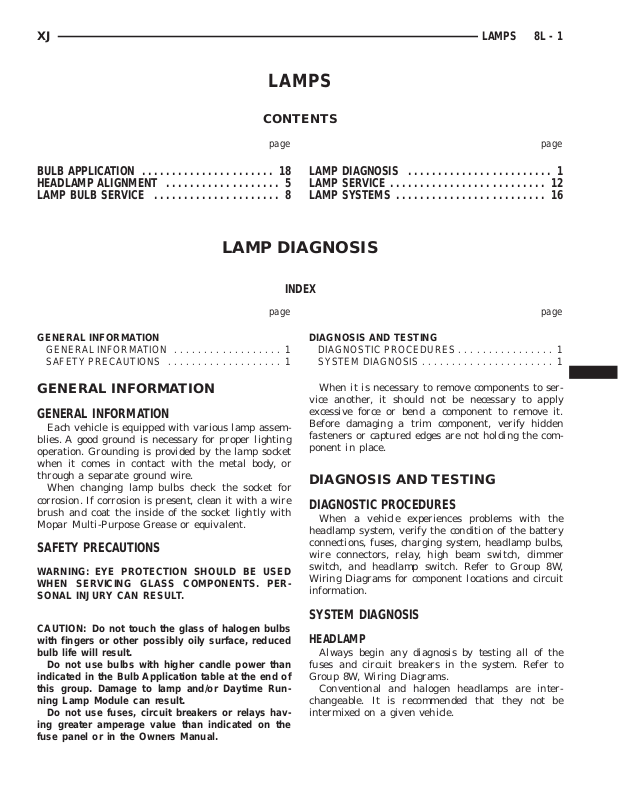

XJ LAMPS 8L - 1
LAMPS
CONTENTS
page page
BULB APPLICATION ...................... 18
HEADLAMP ALIGNMENT ................... 5
LAMP BULB SERVICE ..................... 8
LAMP DIAGNOSIS
INDEX
page page
GENERAL INFORMATION
GENERAL INFORMATION .................. 1
SAFETY PRECAUTIONS ................... 1
GENERAL INFORMATION
GENERAL INFORMATION
Each vehicle is equipped with various lamp assemblies. A good ground is necessary for proper lighting
operation. Grounding is provided by the lamp socket
when it comes in contact with the metal body, or
through a separate ground wire.
When changing lamp bulbs check the socket for
corrosion. If corrosion is present, clean it with a wire
brush and coat the inside of the socket lightly with
Mopar Multi-Purpose Grease or equivalent.
SAFETY PRECAUTIONS
WARNING: EYE PROTECTION SHOULD BE USED
WHEN SERVICING GLASS COMPONENTS. PERSONAL INJURY CAN RESULT.
LAMP DIAGNOSIS ........................ 1
LAMP SERVICE .......................... 12
LAMP SYSTEMS ......................... 16
DIAGNOSIS AND TESTING
DIAGNOSTIC PROCEDURES ................ 1
SYSTEM DIAGNOSIS ...................... 1
When it is necessary to remove components to service another, it should not be necessary to apply
excessive force or bend a component to remove it.
Before damaging a trim component, verify hidden
fasteners or captured edges are not holding the component in place.
DIAGNOSIS AND TESTING
DIAGNOSTIC PROCEDURES
When a vehicle experiences problems with the
headlamp system, verify the condition of the battery
connections, fuses, charging system, headlamp bulbs,
wire connectors, relay, high beam switch, dimmer
switch, and headlamp switch. Refer to Group 8W,
Wiring Diagrams for component locations and circuit
information.
CAUTION: Do not touch the glass of halogen bulbs
with fingers or other possibly oily surface, reduced
bulb life will result.
Do not use bulbs with higher candle power than
indicated in the Bulb Application table at the end of
this group. Damage to lamp and/or Daytime Running Lamp Module can result.
Do not use fuses, circuit breakers or relays having greater amperage value than indicated on the
fuse panel or in the Owners Manual.
SYSTEM DIAGNOSIS
HEADLAMP
Always begin any diagnosis by testing all of the
fuses and circuit breakers in the system. Refer to
Group 8W, Wiring Diagrams.
Conventional and halogen headlamps are interchangeable. It is recommended that they not be
intermixed on a given vehicle.
Page 2
8L - 2 LAMPS XJ
DIAGNOSIS AND TESTING (Continued)
CONDITION POSSIBLE CAUSES CORRECTION
HEADLAMPS ARE DIM
WITH ENGINE IDLING
OR IGNITION TURNED
OFF
HEADLAMP BULBS BURN
OUT
FREQUENTLY 2. Loose or corroded terminals or
HEADLAMPS ARE DIM
WITH ENGINE RUNNING
ABOVE IDLE* 2. Poor lighting circuit Z1-ground. 2. Test for voltage drop across Z1-ground
1. Loose or corroded battery cables. 1. Clean and secure battery cable clamps
and posts.
2. Loose or worn generator drive
belt.
3. Charging system output too low. 3. Test and repair charging system, refer to
4. Battery has insufficient charge. 4. Test battery state-of-charge, refer to
5. Battery is sulfated or shorted. 5. Load test battery, refer to Group 8A.
6. Poor lighting circuit Z1-ground. 6. Test for voltage drop across Z1-ground
7. Both headlamp bulbs defective. 7. Replace both headlamp bulbs.
1. Charging system output too high. 1. Test and repair charging system, refer to
splices in circuit.
1. Charging system output too low. 1. Test and repair charging system, refer to
3. High resistance in headlamp
circuit.
4. Both headlamp bulbs defective. 4. Replace both headlamp bulbs.
2. Adjust or replace generator drive belt.
Group 8A,
Group 8A.
locations, refer to Group 8W.
Group 8A.
2. Inspect and repair all connectors and
splices, refer to Group 8W.
Group 8A.
locations, refer to Group 8W.
3. Test amperage draw of headlamp circuit.
HEADLAMPS FLASH
RANDOMLY
HEADLAMPS DO NOT
ILLUMINATE
*Canada vehicles must have lamps ON.
1. Poor lighting circuit Z1-ground. 1. Test for voltage drop across Z1-ground
2. High resistance in headlamp
circuit.
3. Faulty headlamp switch. 3. Replace headlamp switch.
4. Loose or corroded terminals or
splices in circuit.
1. No voltage to headlamps. 1. Repair open headlamp circuit, refer to
2. No Z1-ground at headlamps. 2. Repair circuit ground, refer to Group 8W.
3. Faulty headlamp switch. 3. Replace headlamp switch.
4. Faulty headlamp dimmer
(multi-function) switch.
5. Broken connector terminal or wire
splice in headlamp circuit.
locations, refer to Group 8W.
2. Test amperage draw of headlamp circuit.
Should not exceed 30 amps.
4. Inspect and repair all connectors and
splices, refer to Group 8W.
Group 8W.
4. Replace multi-function switch.
5. Repair connector terminal or wire splice.
Page 3
XJ LAMPS 8L - 3
DIAGNOSIS AND TESTING (Continued)
FOG LAMP
CONDITION POSSIBLE CAUSES CORRECTION
FOG LAMPS ARE DIM
WITH ENGINE IDLING OR
IGNITION TURNED OFF.
FOG LAMP BULBS BURN
OUT FREQUENTLY
FOG LAMPS ARE DIM
WITH ENGINE RUNNING
ABOVE IDLE
1. Loose or corroded battery cables. 1. Clean and secure battery cable clamps
and posts.
2. Loose or worn generator drive
belt.
3. Charging system output too low. 3. Test and repair charging system. Refer to
4. Battery has insufficient charge. 4. Test battery state-of -charge. Refer to
5. Battery is sulfated or shorted. 5. Load test battery. Refer to Group 8A.
6. Poor lighting circuit Z1-ground. 6. Test for voltage drop across Z1-ground
1. Charging system output too high. 1. Test and repair charging system. Refer to
2. Loose or corroded terminals or
splices in circuit.
1. Charging system output too low. 1. Test and repair charging system. Refer to
2. Poor lighting circuit Z1-ground. 2. Test for voltage drop across Z1-ground
3. High resistance in fog lamp circuit. 3. Test amperage draw of fog lamp circuit.
2. Adjust or replace generator drive belt.
Group 8A,
Group 8A.
locations. Refer to Group 8W.
Group 8A.
2. Inspect and repair all connectors and
splices. Refer to Group 8W.
Group 8A.
locations. Refer to Group 8W.
FOG LAMPS FLASH
RANDOMLY
FOG LAMPS DO NOT
ILLUMINATE
1. Poor lighting circuit Z1-ground. 1. Test for voltage drop across Z1-ground
locations. Refer to Group 8W.
2. High resistance in fog lamp circuit. 2. Test amperage draw of fog lamp circuit.
3. Faulty fog lamp switch. 3. Replace fog lamp switch.
4. Loose or corroded terminals or
splices in circuit.
1. Blown fuse for fog lamp. 1. Replace fuse. Refer to Group 8W.
2. No Z1-ground at fog lamps. 2. Repair circuit ground. Refer to Group
3. Faulty fog lamp switch. 3. Replace fog lamp switch.
4. Broken connector terminal or wire
splice in fog lamp circuit.
5. Defective or burned out bulb. 5. Replace bulb.
4. Inspect and repair all connectors and
splices. Refer to Group 8W.
8W.
4. Repair connector terminal or wire splice.
Page 4
8L - 4 LAMPS XJ
DIAGNOSIS AND TESTING (Continued)
HEADLAMP DELAY MODULE
DELAY FUNCTION INOPERATIVE
(1) Ensure headlamps operate before proceeding.
(2) Remove, inspect and test the HDLP delay 10
amp fuse in junction box. Replace if defective.
(3) With the key off and the connector disconnected, measure the resistance from the delay module connector, terminal 4 to vehicle body ground. The
ohmmeter should indicate zero ohms. If not, repair
the open circuit in the wire harness to vehicle body
ground.
(4) With the key on measure the voltage between
the delay module connector, terminal 8 and vehicle
body ground. The voltmeter should indicate battery
voltage. If not, repair the open circuit in the wire
harness from ignition switch to HDLP delay module.
(5) Turn headlamps on and measure voltage at
delay module connector, terminal 6. The voltmeter
should indicate battery voltage. If not repair open circuit between L2 and HDLP delay module.
(6) Measure the voltage between the delay module
connector, terminal 2 and vehicle body ground. The
voltmeter should indicate battery voltage. If not,
repair the open circuit in the wire harness to the
HDLP fuse in the PDC.
(7) If steps 1 through 6 prove out good, replace
headlamp delay module.
Page 5
XJ LAMPS 8L - 5
HEADLAMP ALIGNMENT
INDEX
page page
GENERAL INFORMATION
HEADLAMP ALIGNMENT ................... 5
SERVICE PROCEDURES
FOG LAMP ADJUSTMENT .................. 6
HEADLAMP ADJUSTMENT ................. 6
GENERAL INFORMATION
HEADLAMP ALIGNMENT
Headlamps can be aligned using the screen method
provided in this section. Alignment Tool C-4466-A or
equivalent can also be used. Refer to instructions
provided with the tool for proper procedures.
SERVICE PROCEDURES
LAMP ALIGNMENT SCREEN PREPARATION
(1) Position vehicle on a level surface perpendicular to a flat wall 7.62 meters (25 ft) away from front
of headlamp lens (Fig. 1).
LAMP ALIGNMENT SCREEN PREPARATION .... 5
VEHICLE PREPARATION FOR HEADLAMP
ALIGNMENT ........................... 6
SPECIAL TOOLS
HEADLAMP ALIGNMENT ................... 7
(2) If necessary, tape a line on the floor 7.62
meters (25 ft) away from and parallel to the wall.
(3) Measure from the floor up 1.27 meters (5 ft)
and tape a line on the wall at the centerline of the
vehicle. Sight along the centerline of the vehicle
(from rear of vehicle forward) to verify accuracy of
the line placement.
(4) Rock vehicle side-to-side three times to allow
suspension to stabilize.
(5) Jounce front suspension three times by pushing
downward on front bumper and releasing.
(6) Measure the distance from the center of headlamp lens to the floor. Transfer measurement to the
alignment screen (with tape). Use this line for
up/down adjustment reference.

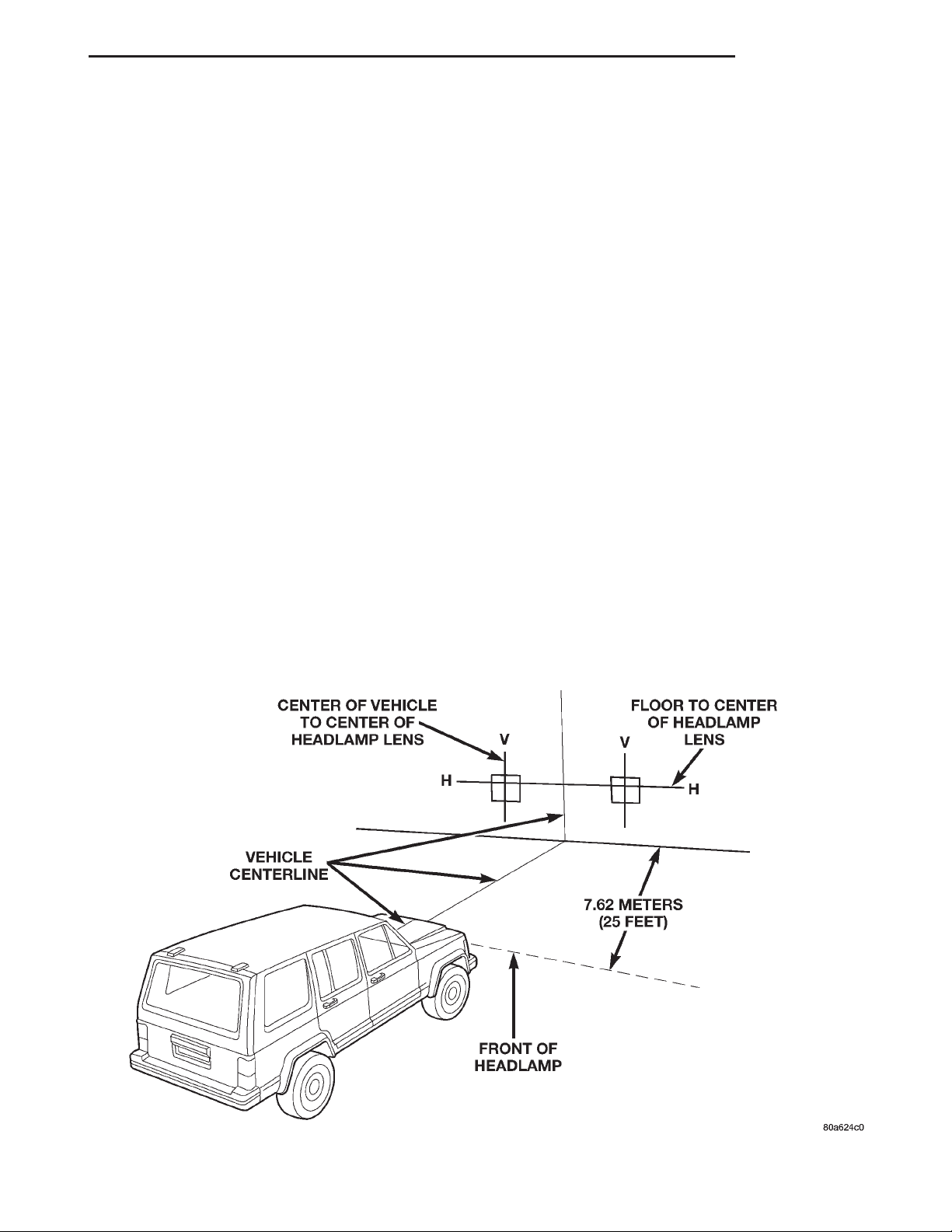

Fig. 1 Headlamp Alignment Screen—Typical
Page 6
8L - 6 LAMPS XJ
SERVICE PROCEDURES (Continued)
(7) Measure distance from the centerline of the
vehicle to the center of each headlamp being aligned.
Transfer measurements to screen (with tape) to each
side of vehicle centerline. Use these lines for left/
right adjustment reference.
VEHICLE PREPARATION FOR HEADLAMP ALIGNMENT
(1) Verify headlamp dimmer switch and high beam
indicator operation.
(2) Correct defective components that could hinder
proper headlamp alignment.
(3) Verify proper tire inflation.
(4) Clean headlamp lenses.
(5) Verify that luggage area is not heavily loaded.
(6) Fuel tank should be FULL. Add 2.94 kg (6.5
lbs.) of weight over the fuel tank for each estimated
gallon of missing fuel.
HEADLAMP ADJUSTMENT
Headlamps can be aligned using the screen
method. The Headlamp Alignment Tool C-4466-A or
equivalent can also be used. Refer to instructions
provided with the tool for proper procedures.
A properly aimed low beam will project the top
edge of the beam intensity pattern on the screen
from 25 mm (1 in.) above to 75 mm (3 in.) below
headlamp centerline. The side-to-side left edge of the
beam intensity pattern should be from 50 mm (2 in.)
left to 50 mm (2 in.) right of headlamp centerline
(Fig. 2).
(1) Remove screws and both headlamp bezels.
(2) Clean front of the headlamps.
(3) Place headlamps on LOW beam.
(4) Cover front of the headlamp that is not being
adjusted.
(5) Turn vertical adjustment screw (Fig. 3) until
the headlamp beam pattern on screen/wall is similar
to the pattern depicted in the alignment screen figure.
within the headlamp the alignment screen target
(Fig. 2).
(8) Cover front of headlamp that has been adjusted
and adjust the other headlamp beam as instructed
above.
(9) Install headlamp bezels. Tighten the screws
securely.

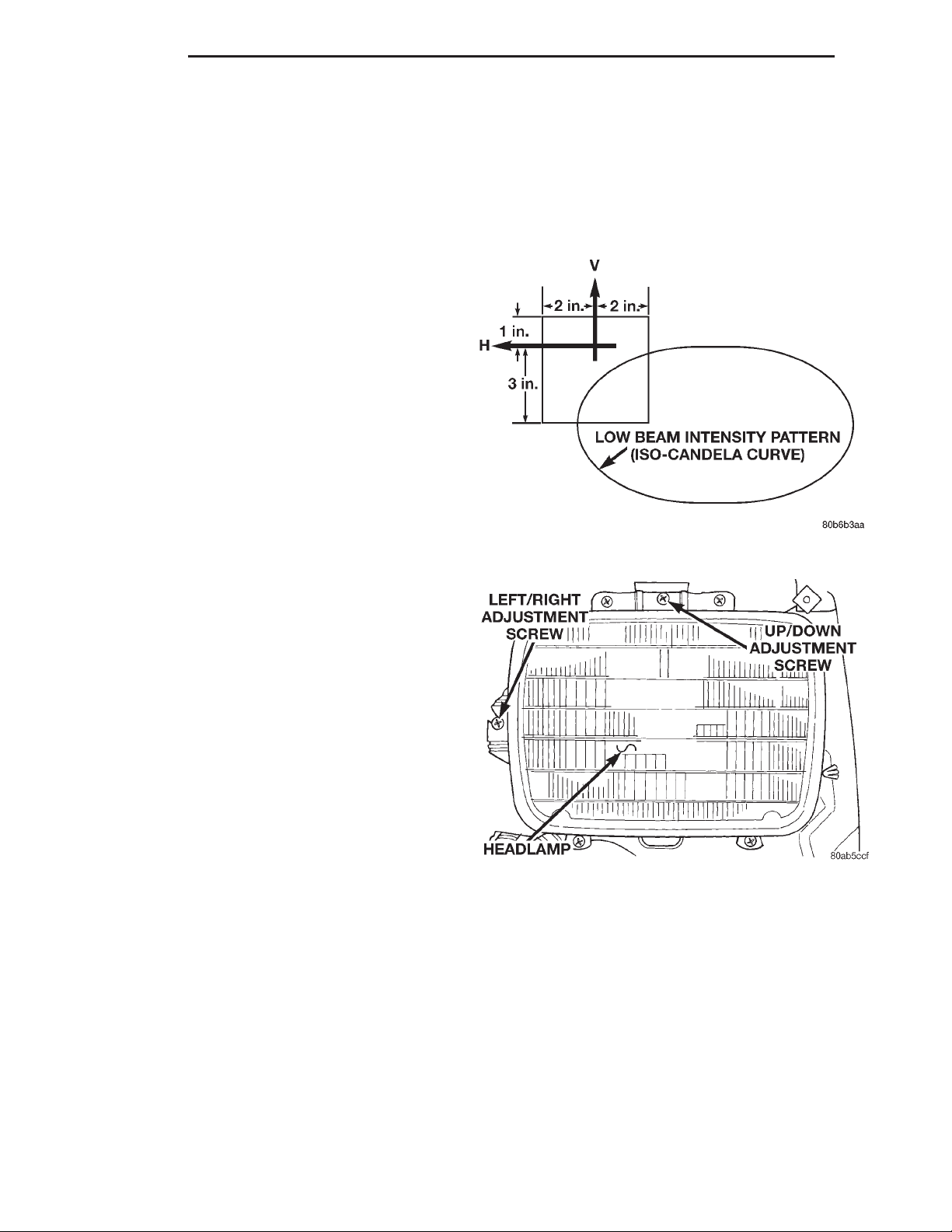

Fig. 2 Headlamp Alignment Screen Target
NOTE: When using a headlamp aiming screen,
adjust the headlamps so that:
• The left edge of the beam intensity pattern is
positioned within 50 mm (2 in.) left to 50 mm (2 in.)
right of the vertical centerline (Fig. 2).
• The top edge of the beam intensity pattern is
positioned within 25 mm (1 in.) above or 75 mm (3
in.) below the headlamp horizontal centerline (Fig.
2).
(6) Cover front of the headlamp and adjust the
other headlamp beam as instructed below.
(7) Rotate the adjustment screws until the beam
intensity pattern on the aiming screen/wall is aligned
Fig. 3 Headlamp Beam Adjustment Screws
FOG LAMP ADJUSTMENT

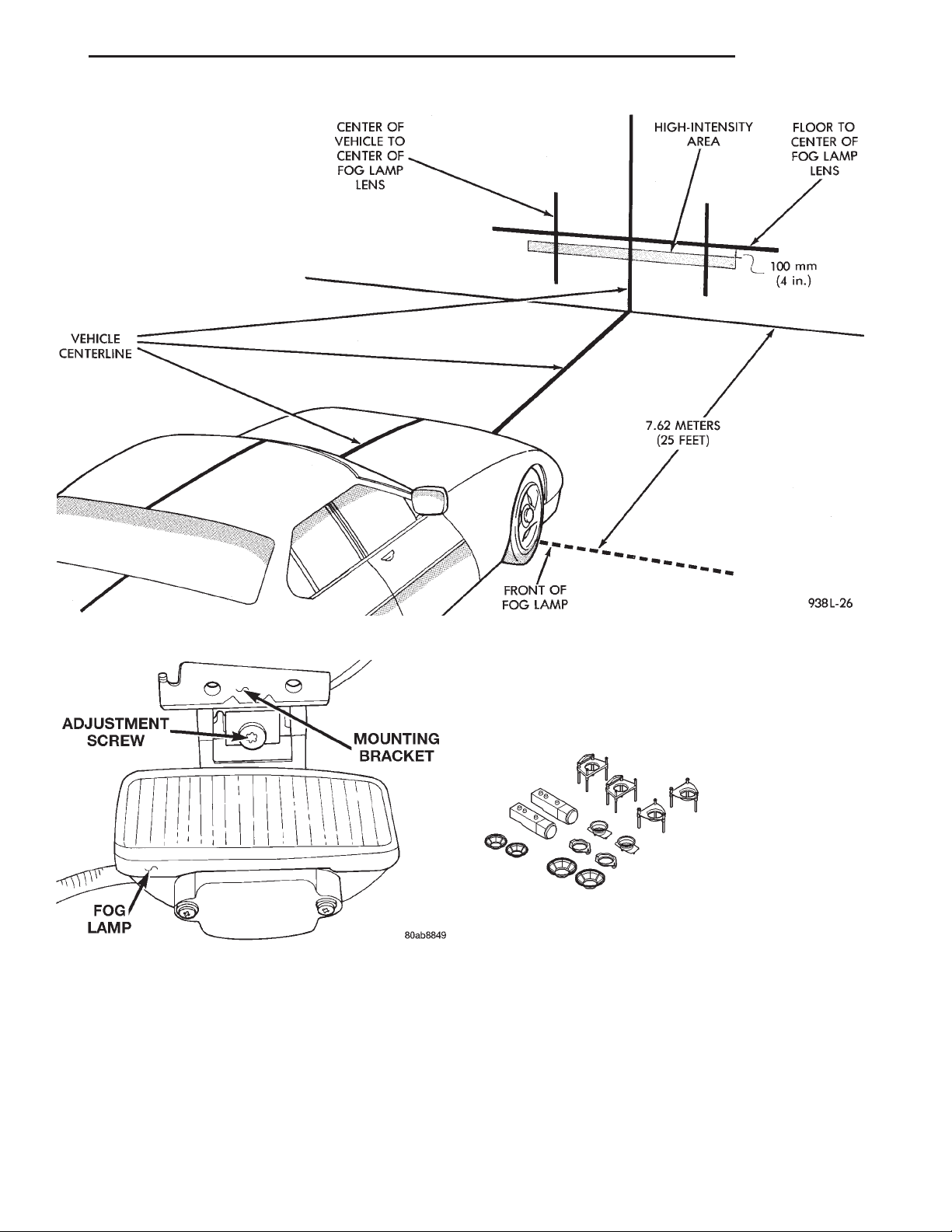

Prepare an alignment screen. A properly aligned
fog lamp will project a pattern on the alignment
screen 100 mm (4 in.) below the fog lamp centerline
and straight ahead (Fig. 4).
Rotate the adjustment screw to adjust beam height
(Fig. 5).
Page 7
XJ LAMPS 8L - 7
SERVICE PROCEDURES (Continued)
Fig. 4 Fog Lamp Alignment —Typical
Fig. 5 Fog Lamp Adjustment
SPECIAL TOOLS
HEADLAMP ALIGNMENT
Headlamp Aiming Kit C-4466–A
Page 8
8L - 8 LAMPS XJ
LAMP BULB SERVICE
INDEX
page page
REMOVAL AND INSTALLATION
BACK-UP/REAR TURN SIGNAL/TAIL LAMP
BULB ................................ 9
CARGO LAMP BULB ..................... 10
CENTER HIGH MOUNTED STOP LAMP
(CHMSL) BULB ........................ 10
FOG LAMP BULB ......................... 8
REMOVAL AND INSTALLATION
HEADLAMP BULB
REMOVAL
(1) Remove the screws attaching the bezel to the
grille opening panel (Fig. 1).
(2) Remove screws attaching the retaining ring to
the headlamp canister.
(3) Disconnect the headlamp bulb wire harness
connector.
(4) Separate the sealed beam from the vehicle.
FRONT PARK/TURN SIGNAL LAMP BULB ......8
HEADLAMP BULB ........................ 8
LICENSE PLATE LAMP BULB ............... 9
MAP READING LAMP BULB ................ 10
SIDE MARKER LAMP BULB ................. 9
UNDERHOOD LAMP BULB ................ 10
VISOR VANITY LAMP BULB ................11
FOG LAMP BULB
REMOVAL

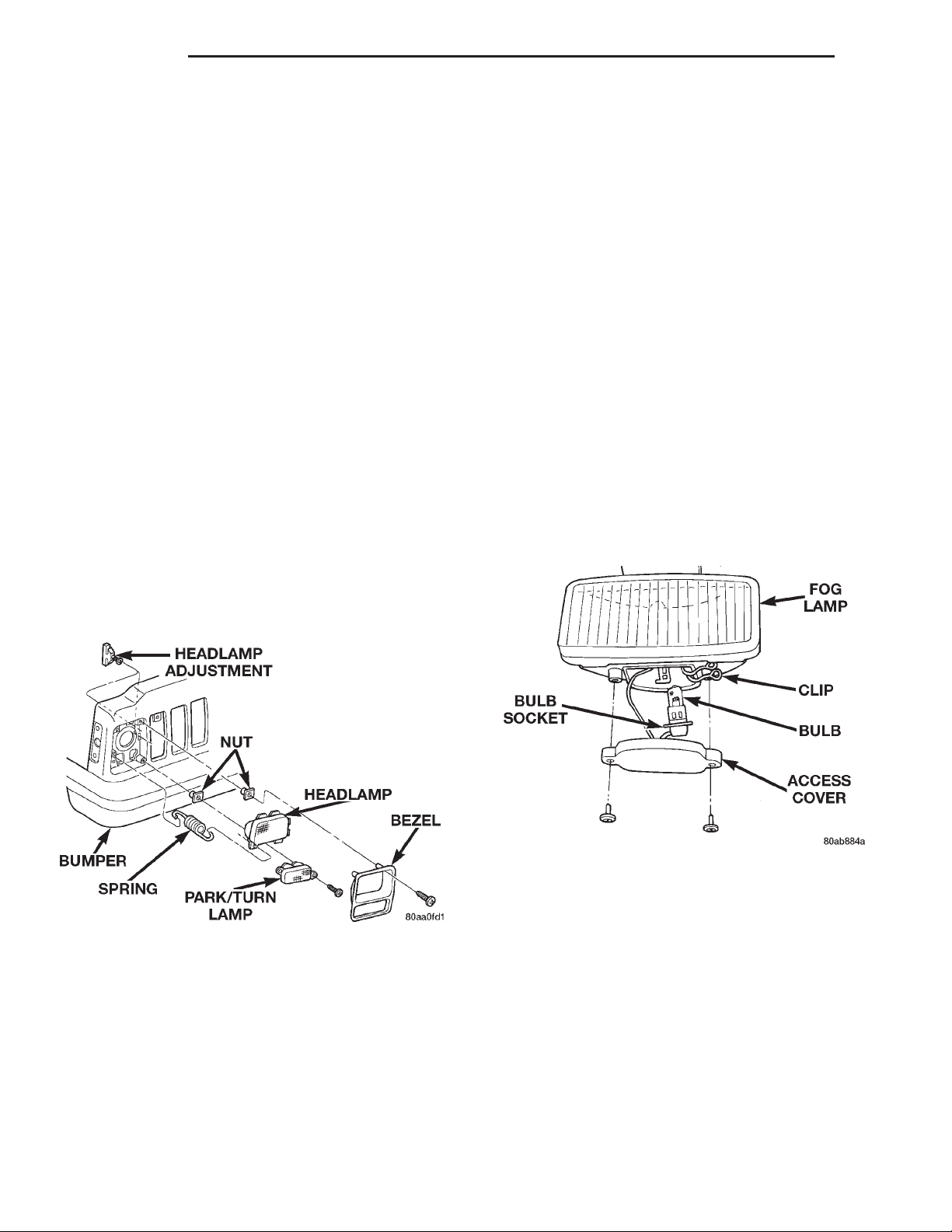

(1) Remove the screws attaching the access cover
to the bottom of the fog lamp (Fig. 2).
(2) Remove spring clip securing bulb to fog lamp.
(3) Disconnect wire connectors at bulb.
(4) Remove bulb element from fog lamp.

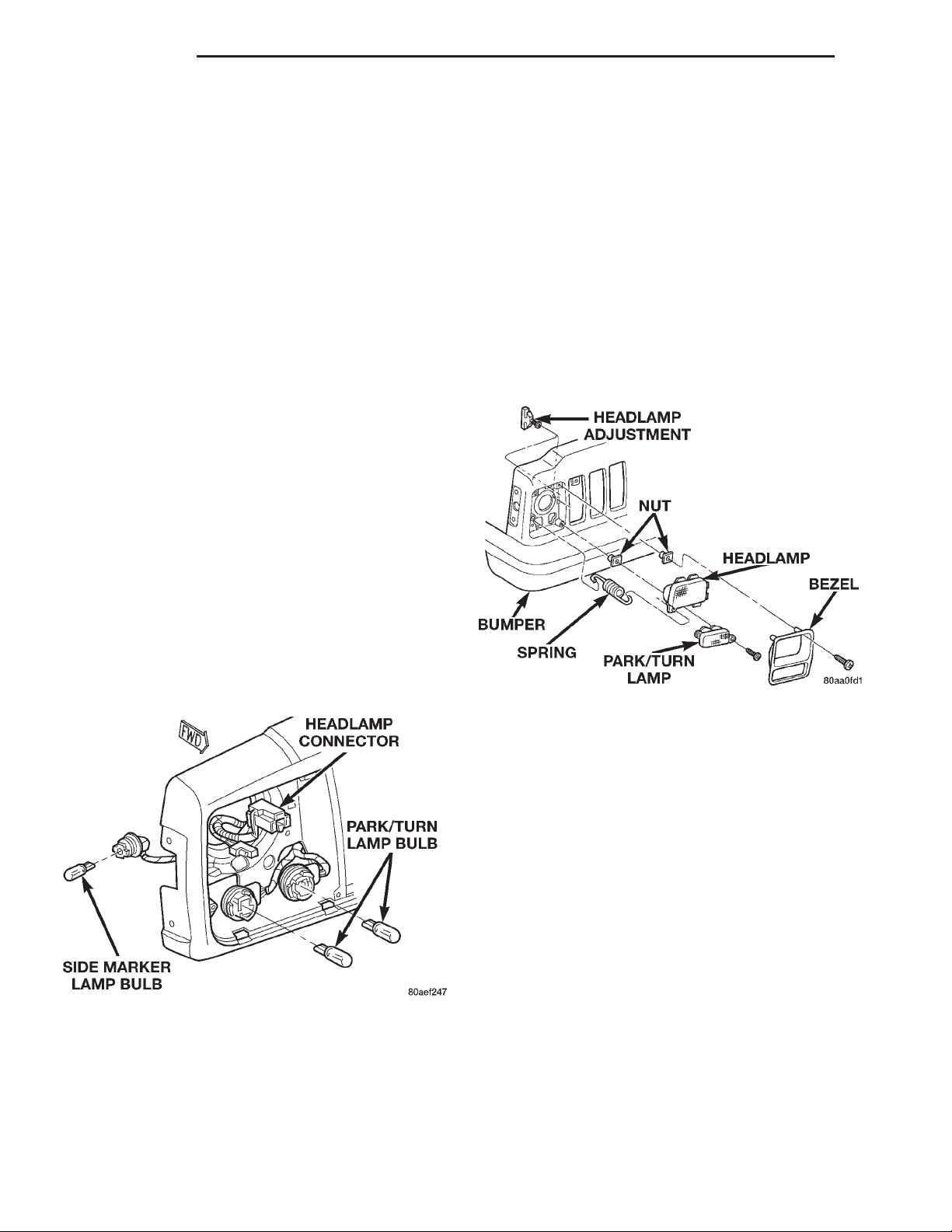

Fig. 1 Headlamp Bezel
INSTALLATION
(1) Connect wire harness connector.
(2) Position bulb in canister.
(3) Position retaining ring on sealed beam and
install screws.
(4) Install headlamp bezel.
Fig. 2 Fog Lamp Components
INSTALLATION
CAUTION: Do not touch the bulb glass with fingers
or other oily surfaces. Reduced bulb life will result.
(1) Position bulb element in fog lamp.
(2) Connect wire connectors at bulb.
(3) Install spring clip securing bulb to fog lamp.
(4) Install screws attaching the access cover to the
bottom of the fog lamp.
FRONT PARK/TURN SIGNAL LAMP BULB
REMOVAL
(1) Remove headlamp bezel.
Page 9
XJ LAMPS 8L - 9
REMOVAL AND INSTALLATION (Continued)
(2) Remove screws attaching park/turn signal
lamp housing to grille opening panel.
(3) Rotate bulb socket one-third turn counter-clock-
wise and remove it from lamp housing (Fig. 3).
(4) Pull bulb from socket.
Fig. 3 Park/Turn Signal Lamp Bulb
INSTALLATION
(1) Install bulb in socket.
(2) Install socket in lamp housing.
(3) Install park/turn signal lamp housing.
(4) Install headlamp bezel.
INSTALLATION
(1) Install bulb in socket.
(2) Install bulb and socket in back of side marker
lamp housing.
(3) Install side marker lamp housing.
BACK-UP/REAR TURN SIGNAL/TAIL LAMP BULB
REMOVAL
(1) Remove tail lamp housing.
(2) Rotate bulb socket one-third turn counter-clock-
wise and remove bulb socket from lamp housing (Fig.
5).
(3) Pull bulb from socket.
SIDE MARKER LAMP BULB
REMOVAL
(1) Remove screws attaching side marker lamp
housing.
(2) Rotate bulb socket counter-clockwise and pull
from back side of lamp housing (Fig. 4).
(3) Pull bulb from socket.

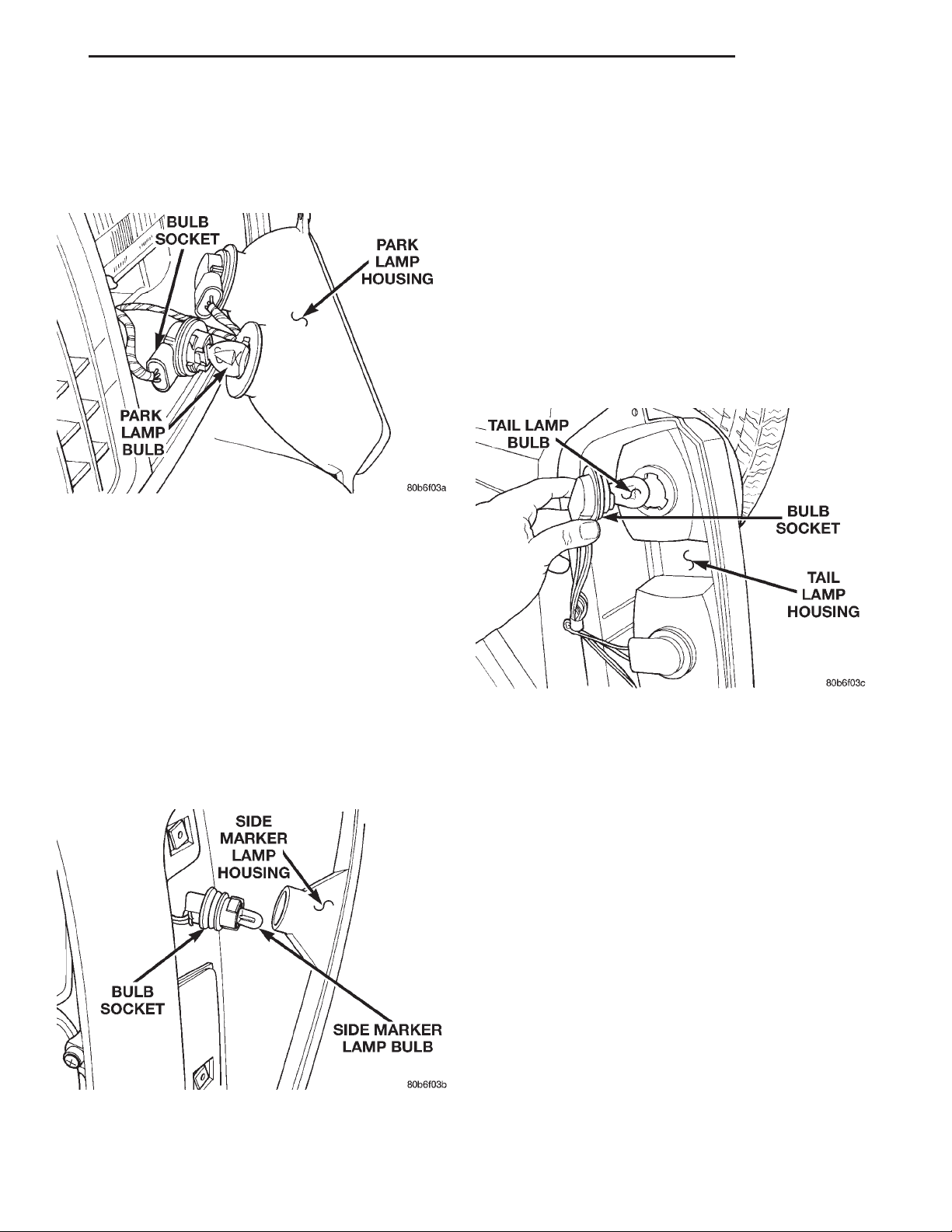

Fig. 5 Bulb Socket Removal
INSTALLATION
(1) Install bulb in socket.
(2) Install bulb and socket in lamp housing.
(3) Install lamp housing.
LICENSE PLATE LAMP BULB
REMOVAL
(1) Remove screws attaching license plate lamp
housing to liftgate.
(2) Rotate bulb socket counter-clockwise and
remove bulb socket from lamp housing.
(3) Pull bulb from socket.
INSTALLATION
(1) Install bulb in lamp socket.
(2) Install bulb socket in lamp housing.
(3) Install screws attaching license plate lamp to
liftgate.
Fig. 4 Side Marker Lamp
Page 10
8L - 10 LAMPS XJ
REMOVAL AND INSTALLATION (Continued)
CENTER HIGH MOUNTED STOP LAMP (CHMSL) BULB
REMOVAL
(1) Remove the screws attaching the lamp housing
to the liftgate.
(2) Rotate bulb socket 1/4 turn counter-clockwise
and pull from housing (Fig. 6).
(3) Pull bulb from socket.

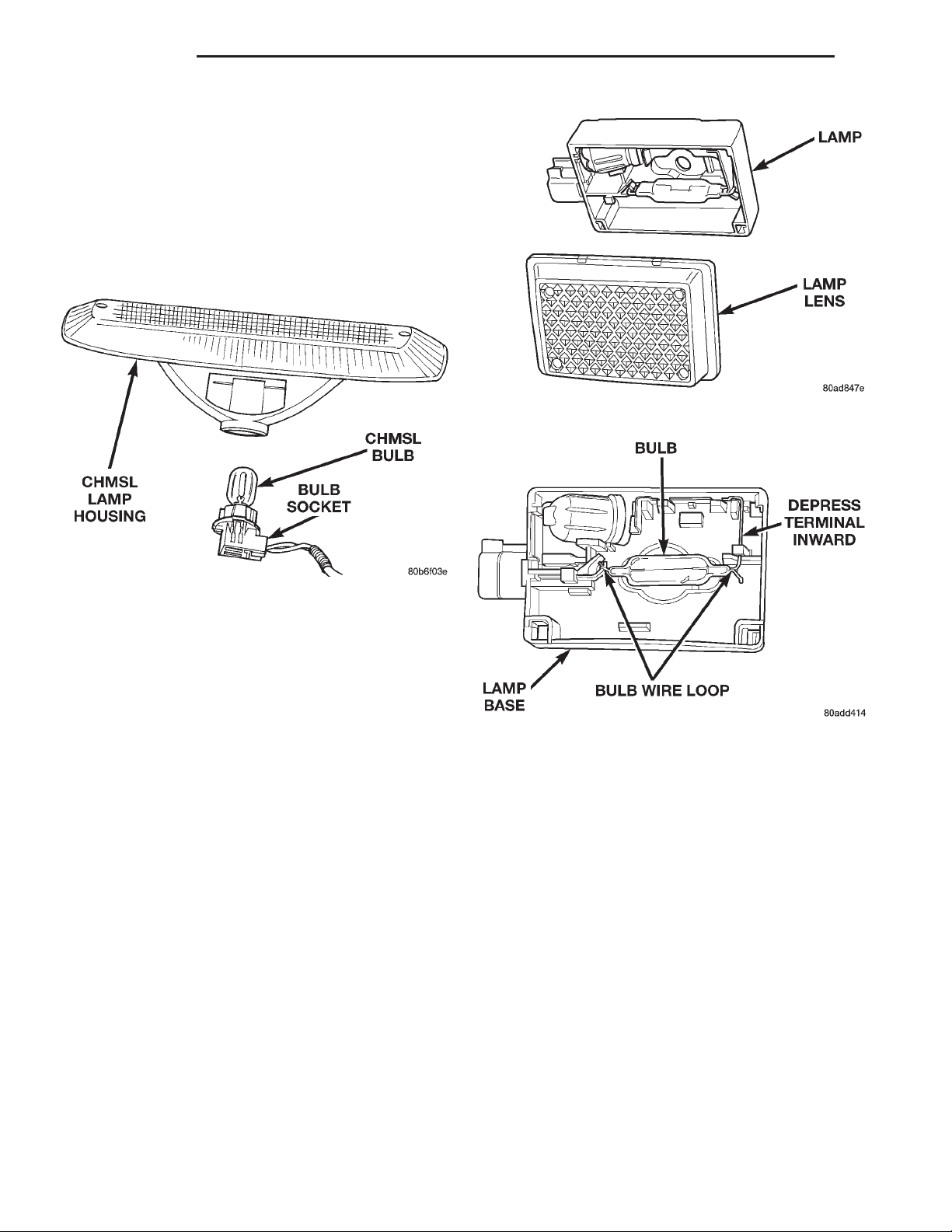

Fig. 7 Underhood Lamp Lens
Fig. 6 CHMSL Bulb
INSTALLATION
(1) Push bulb into socket.
(2) Position socket in lamp and rotate 1/4 turn
clockwise.
(3) Install screws attaching lamp housing to the
liftgate.
UNDERHOOD LAMP BULB
REMOVAL
(1) Insert a small flat blade in the access slot
between the lamp base and lamp lens.
(2) Pry the lamp lens upward and remove the
lamp lens (Fig. 7).
(3) Depress the bulb terminal inward (Fig. 8) to
release the bulb.
INSTALLATION
(1) Engage the replacement bulb wire loop to the
terminal closest to the lamp base wire connector.
(2) Depress the opposite terminal inward and
engage the remaining bulb wire loop.
(3) Position the lamp lens on the lamp base and
press into place.
Fig. 8 Underhood Lamp Bulb
CARGO LAMP BULB
REMOVAL
(1) Insert a small flat blade into the access slots
(Fig. 9).
(2) Carefully pry the lens from the lamp.
(3) Grasp bulb and pull from lamp.
INSTALLATION
(1) Position bulb in lamp and snap into place.
(2) Position the lens at the lamp housing and force
it upward into the housing until the mounting tabs
are seated on the lamp mounting pins.
MAP READING LAMP BULB
REMOVAL
(1) Insert a flat blade screwdriver in slot at front
of lens (Fig. 10).
(2) Rotate the screwdriver until lens snaps out of
the housing.
Page 11
XJ LAMPS 8L - 11
REMOVAL AND INSTALLATION (Continued)

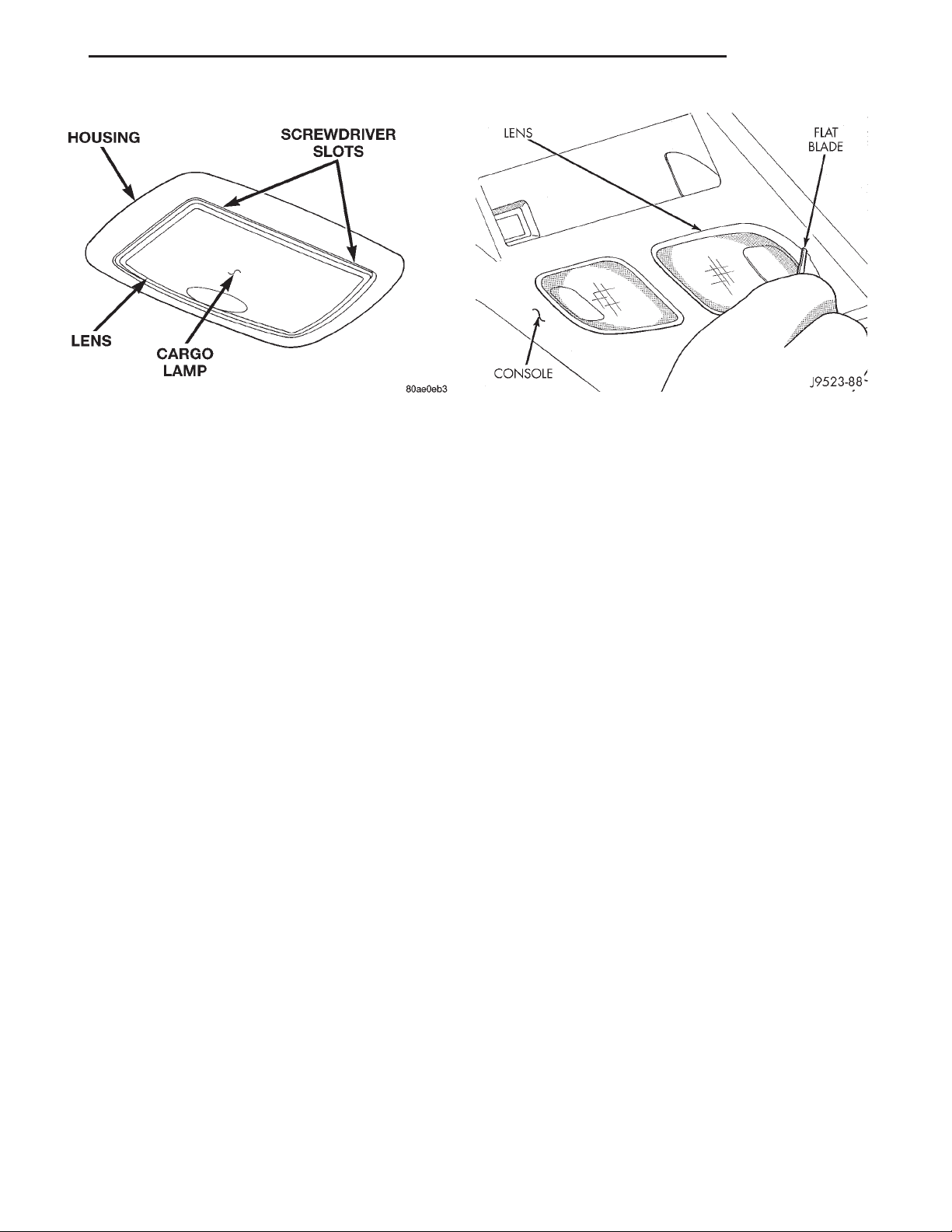

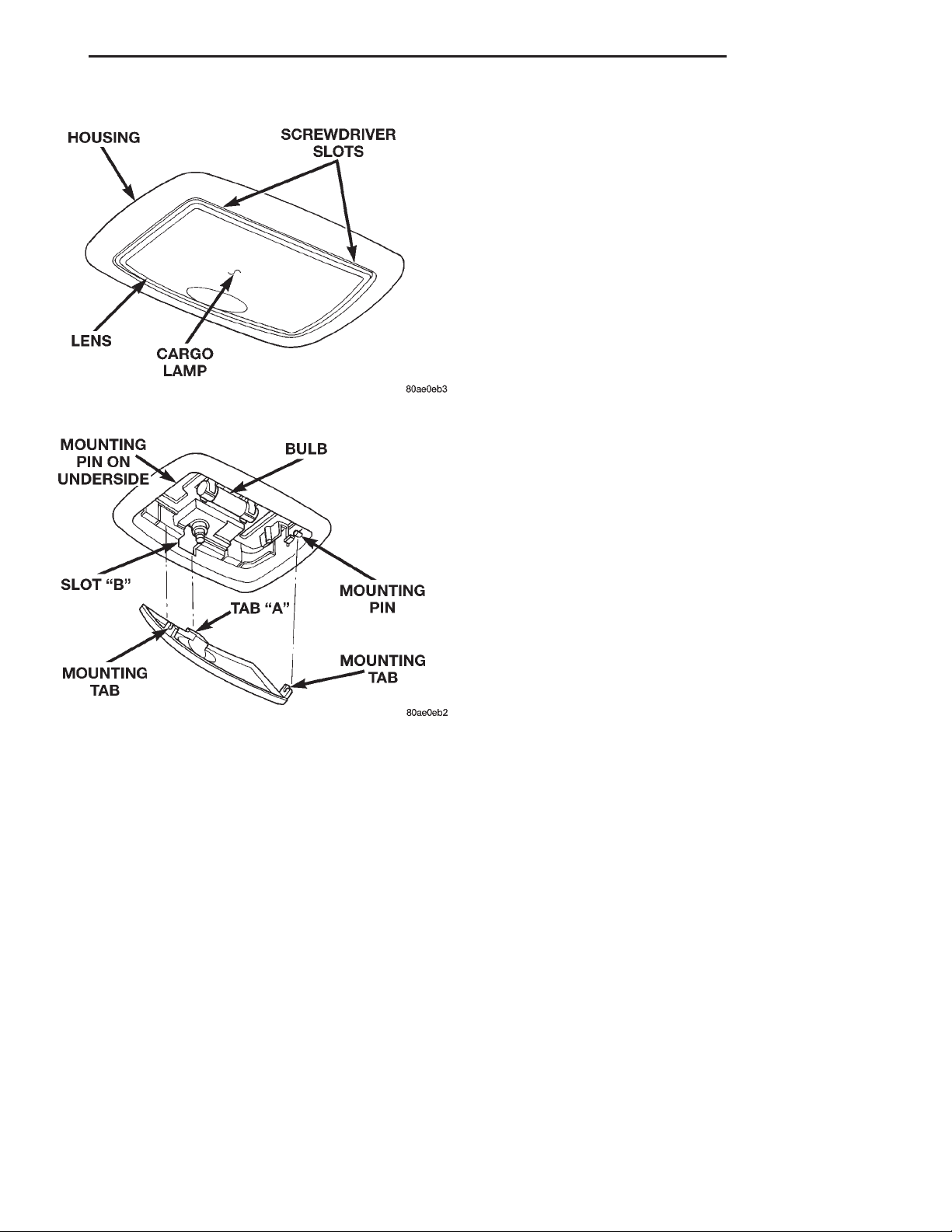

Fig. 9 Cargo Lamp Lens
(3) Remove lens from housing.
(4) Remove bulb from terminals.
INSTALLATION
(1) Insert bulb into reading lamp terminals.
(2) Replace lens by holding lens level and pushing
rearward into housing.
(3) Push lens up to snap into housing.
VISOR VANITY LAMP BULB
REMOVAL
(1) Using a small flat blade, carefully pry each cor-
ner of lens outward from lamp.
Fig. 10 Reading Lamp Bulb
(2) Separate lens from lamp.
(3) Grasp bulb and pull outward.
INSTALLATION
(1) Position bulb in socket and push into place.
(2) Position lens on lamp and snap into place.
Page 12
8L - 12 LAMPS XJ
LAMP SERVICE
INDEX
page page
REMOVAL AND INSTALLATION
BACK-UP/REAR TURN SIGNAL/TAIL LAMP ....13
CARGO LAMP .......................... 14
CENTER HIGH MOUNTED STOP LAMP
(CHMSL) .............................14
FOG LAMP ............................. 12
FRONT PARK/TURN SIGNAL LAMP ..........13
REMOVAL AND INSTALLATION
HEADLAMP
REMOVAL
(1) Remove the screws attaching the bezel to the
grille opening panel
(2) Remove the screws attaching the retaining ring
to the headlamp bucket.
(3) Disconnect the headlamp bulb wire harness
connector (Fig. 1).
(4) Separate the bulb from the vehicle.
(5) Remove the spring attaching the headlamp
bucket to the grille opening panel (Fig. 2).
(6) Slide the headlamp bucket downward to disen-
gage it from the headlamp adjusting screws.
HEADLAMP ............................ 12
LICENSE PLATE LAMP ................... 14
MAP/READING LAMP ..................... 15
SIDE MARKER LAMP ..................... 13
UNDERHOOD LAMP .....................14
VISOR VANITY LAMP ..................... 15
Fig. 2 Headlamp
(2) Install the spring attaching the headlamp
bucket to the grille opening panel.
(3) Connect the wire harness connector.
(4) Position the bulb in the bucket.
(5) Position retaining ring on the headlamp bulb
and install screws.
(6) Install the headlamp bezel.
Fig. 1 Headlamp Connector
INSTALLATION
(1) Position the headlamp bucket in the grille
opening panel and slide the headlamp bucket upward
to engage it with the headlamp adjusting screws.
FOG LAMP
REMOVAL
(1) Disconnect the fog lamp wire harness connec-
tor.

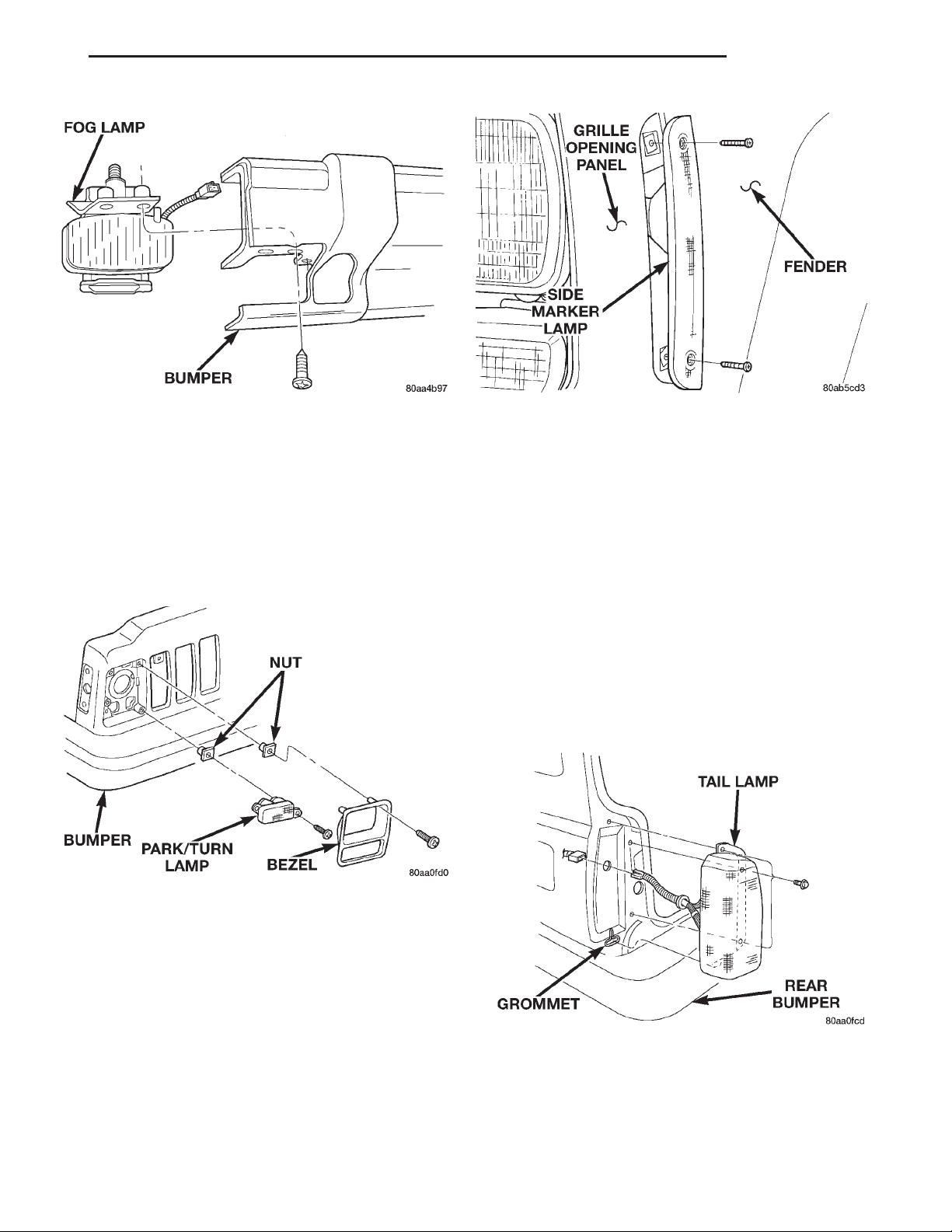

(2) Remove the screws attaching the fog lamp to
the support (Fig. 3).
(3) Separate the fog lamp from the vehicle.
INSTALLATION
(1) Position the fog lamp in the support bracket
and install the screws.
(2) Connect the fog lamp wire harness connector.
Page 13
XJ LAMPS 8L - 13
REMOVAL AND INSTALLATION (Continued)
Fig. 3 Fog Lamp
FRONT PARK/TURN SIGNAL LAMP
REMOVAL
(1) Remove the headlamp bezel.
(2) Remove the screws attaching the park/turn signal lamp housing to the grille opening panel (Fig. 4).
(3) Remove the bulb sockets and separate from the
vehicle.
Fig. 5 Side Marker Lamp
INSTALLATION
(1) Install bulb and socket in back of side marker
lamp.
(2) Install side marker lamp in grille opening
panel.
BACK-UP/REAR TURN SIGNAL/TAIL LAMP
REMOVAL
(1) Open the liftgate.
(2) Remove the bolts attaching the tail lamp hous-
ing to the quarter panel (Fig. 6).
(3) Grasp the lamp and pull to disengage it from
the grommet at the base of the lamp.
(4) Rotate the bulb sockets one-third turn and
remove the bulb sockets from the lamp housing.
Fig. 4 Park/Turn Signal Lamp
INSTALLATION
(1) Install bulbs and sockets in the lamp housing.
(2) Position the park/turn signal lamp housing on
the grille opening panel and install the screws.
(3) Install the headlamp bezel.
SIDE MARKER LAMP
REMOVAL
(1) Remove screws attaching side marker lamp
lens to grille opening panel (Fig. 5).
(2) Remove bulb and socket from back side of
lamp.
Fig. 6 Tail Lamp
INSTALLATION
(1) Install the bulb and sockets in the lamp hous-
ing.
(2) Position the lamp housing in the quarter panel
and push to engage the grommet.
Page 14
8L - 14 LAMPS XJ
REMOVAL AND INSTALLATION (Continued)
(3) Install the lamp housing screws. Tighten the
screws securely.
(4) Install the bolts attaching the tail lamp housing to the quarter panel.
(5) Close the liftgate.
CENTER HIGH MOUNTED STOP LAMP (CHMSL)
REMOVAL
(1) Remove the screws attaching the CHMSL to
the liftgate (Fig. 7).
(2) Disconnect the wire harness connector.
(3) Separate the CHMSL from the vehicle.
ON/OFF functions each time the hood is opened and
closed.
REMOVAL
(1) Disconnect the wire harness connector from the
lamp.
(2) Remove lamp lens.
(3) Remove bulb.
(4) Remove screw attaching underhood lamp to the
inner hood panel.
(5) Separate underhood lamp from vehicle.

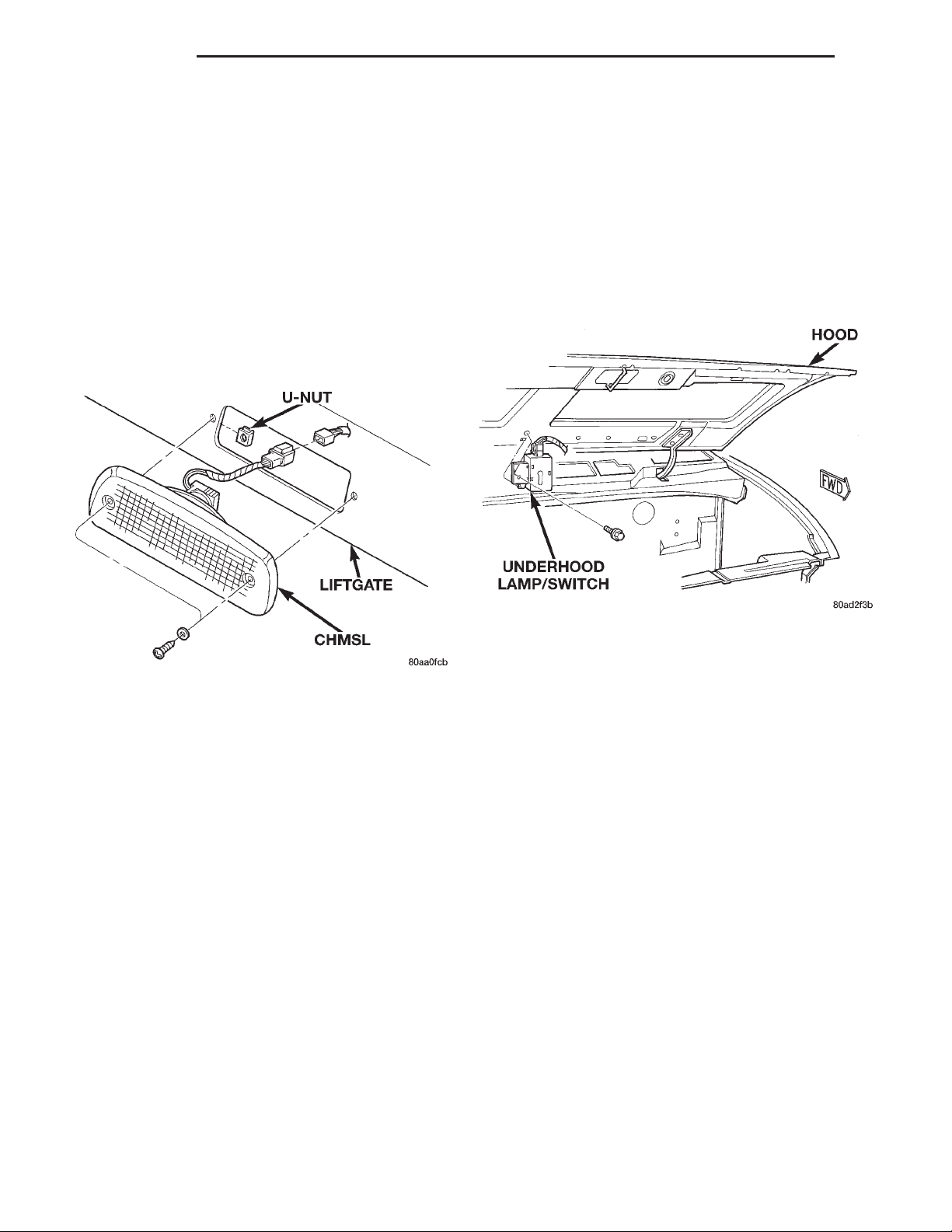

Fig. 7 Center High Mounted Stop lamp
INSTALLATION
(1) Connect the wire harness connector.
(2) Position the CHMSL on the liftgate.
(3) Install the screws attaching the CHMSL to the
liftgate.
LICENSE PLATE LAMP
REMOVAL
(1) Remove screws attaching the license plate
lamp to the liftgate.
(2) Remove the bulb from the lamp socket.
INSTALLATION
(1) Install bulb in the lamp socket.
(2) Position the license plate lamp on the liftgate
and install screws.
UNDERHOOD LAMP
The underhood lamp is installed on the hood inner
panel. The lamp illuminates when the hood is
opened. A switch that is integral with the lamp base
controls the operation. The switch provides automatic
Fig. 8 Underhood Lamp
INSTALLATION
(1) Position underhood lamp on hood inner panel.
Ensure anti-rotation tab is positioned in slot on hood
inner panel.
(2) Install the attaching screw through the lamp
and into the hood panel (Fig. 8). Tighten the screw
securely.
(3) Fold lamp housing over and firmly press onto
base to snap into place.
(4) Connect the wire harness connector to the
lamp.
CARGO LAMP
REMOVAL
(1) Insert a small flat blade into the access slots
(Fig. 9).
(2) Carefully pry the lens from the lamp.
(3) Disengage the lens mounting tabs from the
lamp mounting pins (Fig. 10).
(4) Remove the fasteners attaching the lamp to the
roof.
(5) Remove the lamp housing from the headliner
cavity.
(6) Disconnect the wire harness connector.
Page 15
XJ LAMPS 8L - 15
REMOVAL AND INSTALLATION (Continued)
(2) Connect the wire harness connector.
(3) Install the fasteners attaching the lamp to the
roof.
(4) Position the lens at the lamp housing and force
it upward into the housing until the mounting tabs
are seated on the lamp mounting pins.
MAP/READING LAMP
The map/reading lamp can be serviced by removing
the overhead console. Refer to Group 8C, Overhead
Console for removal/installation procedures.
VISOR VANITY LAMP
REMOVAL
(1) Fold down sunvisor.
Fig. 9 Cargo Lamp
(2) Starting at the base of the lamp assembly and
working right-to-left, use a small flat blade, carefully
pry lamp from visor.
(3) Disconnect visor lamp wire connector and
remove from vehicle.
Fig. 10 Cargo Lamp Lens
INSTALLATION
(1) Position the dome lamp housing at the head-
liner cavity.
INSTALLATION
(1) Position visor lamp at visor and connect visor
lamp wire connector.
(2) Position visor lamp in visor and press into
place.
Page 16
8L - 16 LAMPS XJ
LAMP SYSTEMS
INDEX
page page
GENERAL INFORMATION
DAYTIME RUNNING LAMP MODULE ......... 16
SENTINEL HEADLAMP DELAY MODULE ......16
GENERAL INFORMATION
SENTINEL HEADLAMP DELAY MODULE
The Headlamp Module delays the de-activation of
the headlamps for 45 6 15 seconds after the ignition
switch is turned OFF. The driver engages the module
by turning the ignition switch OFF, then turning the
headlamps OFF.
DAYTIME RUNNING LAMP MODULE
The Daytime Running Lights (Headlamps) System
is installed on vehicles manufactured for sale in Canada only. The headlamps are illuminated when the
ignition switch is turned to the ON position and the
vehicle is put into motion. The DRL module receives
a vehicle-moving signal from the vehicle speed sensor. This provides a constant headlamps-on condition as long as the vehicle is moving. The lamps are
illuminated at approximately 30 percent of normal
intensity.
REMOVAL AND INSTALLATION
DAYTIME RUNNING LAMP MODULE ......... 17
SENTINEL HEADLAMP DELAY MODULE ......16
REMOVAL AND INSTALLATION
SENTINEL HEADLAMP DELAY MODULE
REMOVAL
(1) Remove the knee blocker.
(2) Remove the screw that attaches the module to
the inside of the instrument panel (Fig. 1).
(3) Disconnect the wire harness connector and
remove the module from the instrument panel.

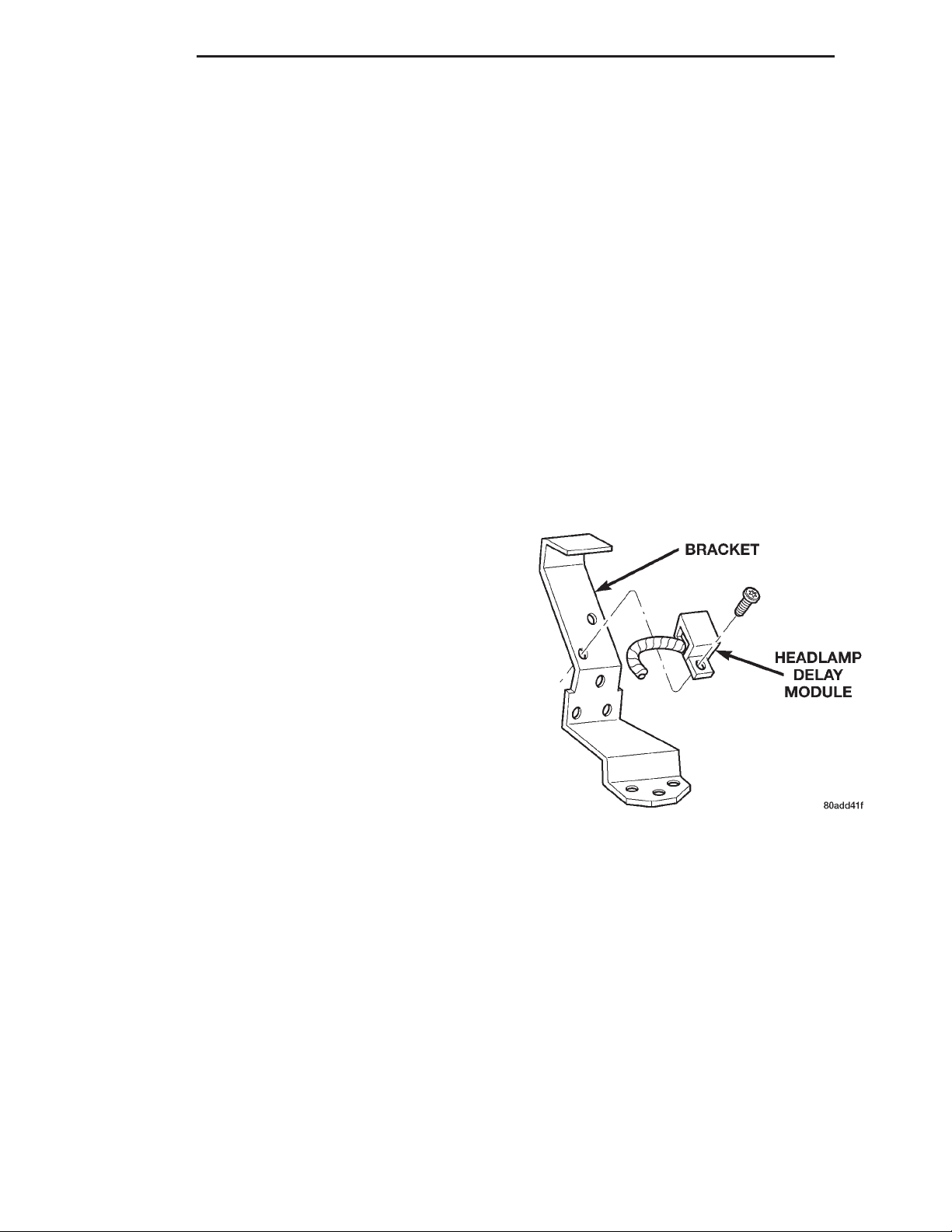

Fig. 1 Headlamp Delay Module
INSTALLATION
(1) Position the module inside the I/P and connect
the wire harness connector to the module.
(2) Install the screw that attaches the module to
the inside of the instrument panel.
(3) Install the knee blocker.
Page 17
XJ LAMPS 8L - 17
REMOVAL AND INSTALLATION (Continued)
DAYTIME RUNNING LAMP MODULE
REMOVAL
The Daytime Running Lights (DRL) module is
located on the right fender inner panel adjacent to
the dash panel (Fig. 2).
(1) Disconnect the wire harness connector from the
module.
(2) Remove the screws that attach the module to
the fender inner panel.
(3) Remove the module from the fender inner
panel.
INSTALLATION
(1) Position the module on the right fender inner
panel.
(2) Install the attaching screws. Tighten the
screws securely.
(3) Connect the wire harness connector to the mod-
ule.

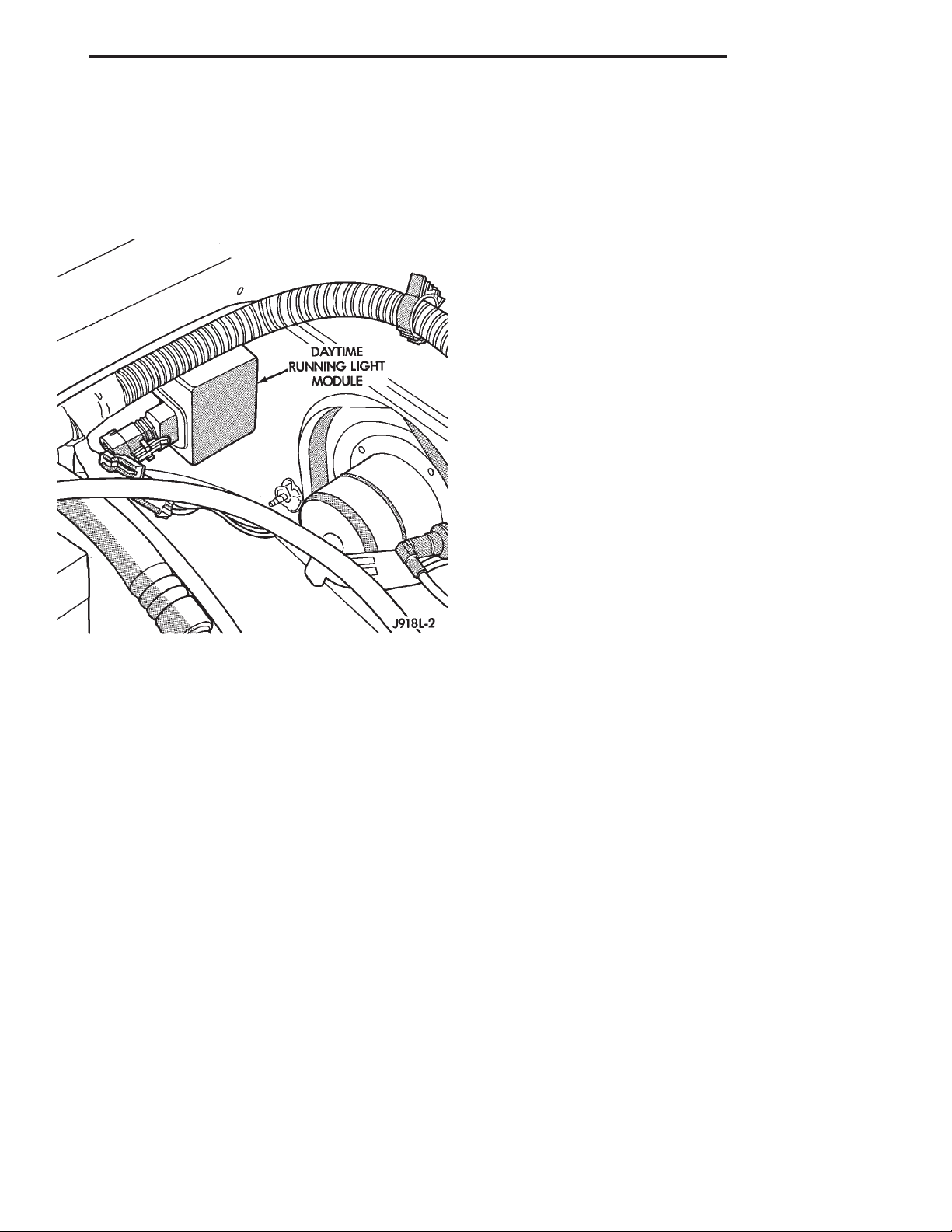

Fig. 2 Daytime Running Lamp Module
Page 18
8L - 18 LAMPS XJ
BULB APPLICATION
INDEX
page page
SPECIFICATIONS
EXTERIOR LAMPS ....................... 18
SPECIFICATIONS
EXTERIOR LAMPS
CAUTION: Do not use bulbs that have a higher candle power than the bulb listed in the Bulb Application Table. Damage to lamp can result. Do not touch
halogen bulbs with fingers or other oily surfaces.
Bulb life will be reduced.
The following Bulb Application Table lists the lamp
title on the left side of the column and trade number
or part number on the right.
LAMP BULB
Back-up ..............................3157
Center High Mounted Stoplamp ............921
Fog lamp ...............................H3
Front Side Marker .......................168
Headlamp/Sealed Beam .................H6054
License Plate ...........................168
Park/Turn Signal .......................3157
Tail/Stop ..............................3157
Rear Turn Signal .......................3157
INTERIOR LAMPS
CAUTION: Do not use bulbs that have a higher candle power than the bulb listed in the Bulb Application Table. Damage to lamp can result.
Service procedures for most of the lamps in the
instrument panel, Instrument cluster and switches
are located in Group 8E, Instrument Panel and
Gauges. Some components have lamps that can only
be serviced by an Authorized Service Center (ASC)
after the component is removed from the vehicle.
The following Bulb Application Tables lists the
lamp title on the left side of the column and trade
number or part number on the right.
INTERIOR LAMPS ....................... 18
LAMP BULB
Cargo .................................561
Dome .................................561
Dome/Reading ..........................906
Overhead Console .......................912
Under Hood ............................105
Vanity Mirror ............................74
Underpanel Courtesy .....................168
INDICATOR LAMPS
LAMP BULB
A/C Control .............................74
Airbag .................................74
Anti-lock Brake ..........................74
Brake Warning...........................74
Check Engine ............................74
Check Gauges ...........................74
Cigar Lighter ............................53
Coolant Temp High ......................194
Cruise .................................74
Fasten Seat Belts .........................74
Four Wheel Drive ........................74
Generator ..............................194
Heater Control ...........................74
High Beam ..............................74
Illumination ............................103
Low Fuel ...............................74
Low Oil Pressure ........................194
Low Washer Fluid ........................74
Radio ................................ASC
Security ................................74
Transfer Case ...........................658
Transmission Floor Shift ..................658
Turn Signal .............................74
Upshift .................................74
Loading...
