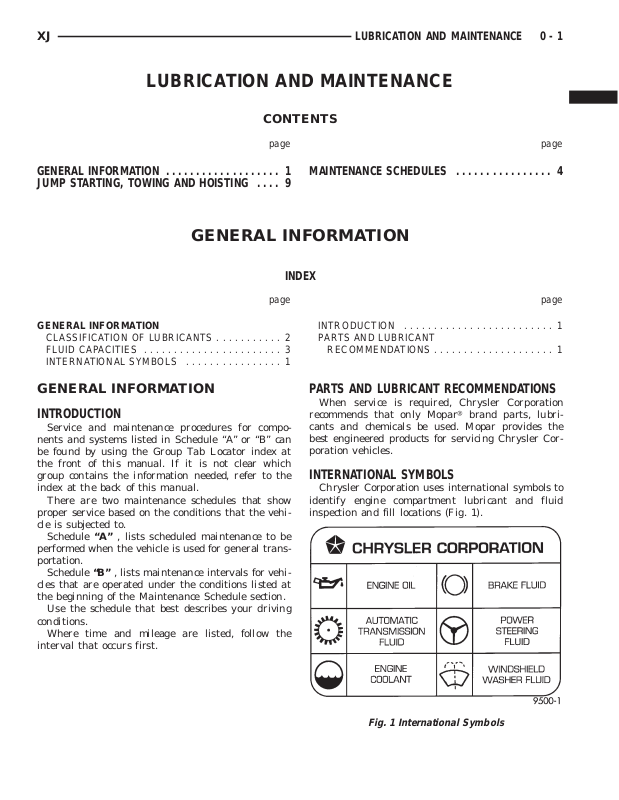

XJ LUBRICATION AND MAINTENANCE 0 - 1
LUBRICATION AND MAINTENANCE
CONTENTS
page page
GENERAL INFORMATION ................... 1
JUMP STARTING, TOWING AND HOISTING .... 9
GENERAL INFORMATION
INDEX
page page
GENERAL INFORMATION
CLASSIFICATION OF LUBRICANTS ........... 2
FLUID CAPACITIES ....................... 3
INTERNATIONAL SYMBOLS ................ 1
GENERAL INFORMATION
INTRODUCTION
Service and maintenance procedures for components and systems listed in Schedule “A” or “B” can
be found by using the Group Tab Locator index at
the front of this manual. If it is not clear which
group contains the information needed, refer to the
index at the back of this manual.
There are two maintenance schedules that show
proper service based on the conditions that the vehicle is subjected to.
Schedule “A” , lists scheduled maintenance to be
performed when the vehicle is used for general transportation.
Schedule “B” , lists maintenance intervals for vehicles that are operated under the conditions listed at
the beginning of the Maintenance Schedule section.
Use the schedule that best describes your driving
conditions.
Where time and mileage are listed, follow the
interval that occurs first.
MAINTENANCE SCHEDULES ................ 4
INTRODUCTION .........................1
PARTS AND LUBRICANT
RECOMMENDATIONS .................... 1
PARTS AND LUBRICANT RECOMMENDATIONS
When service is required, Chrysler Corporation
recommends that only Mopart brand parts, lubricants and chemicals be used. Mopar provides the
best engineered products for servicing Chrysler Corporation vehicles.
INTERNATIONAL SYMBOLS
Chrysler Corporation uses international symbols to
identify engine compartment lubricant and fluid

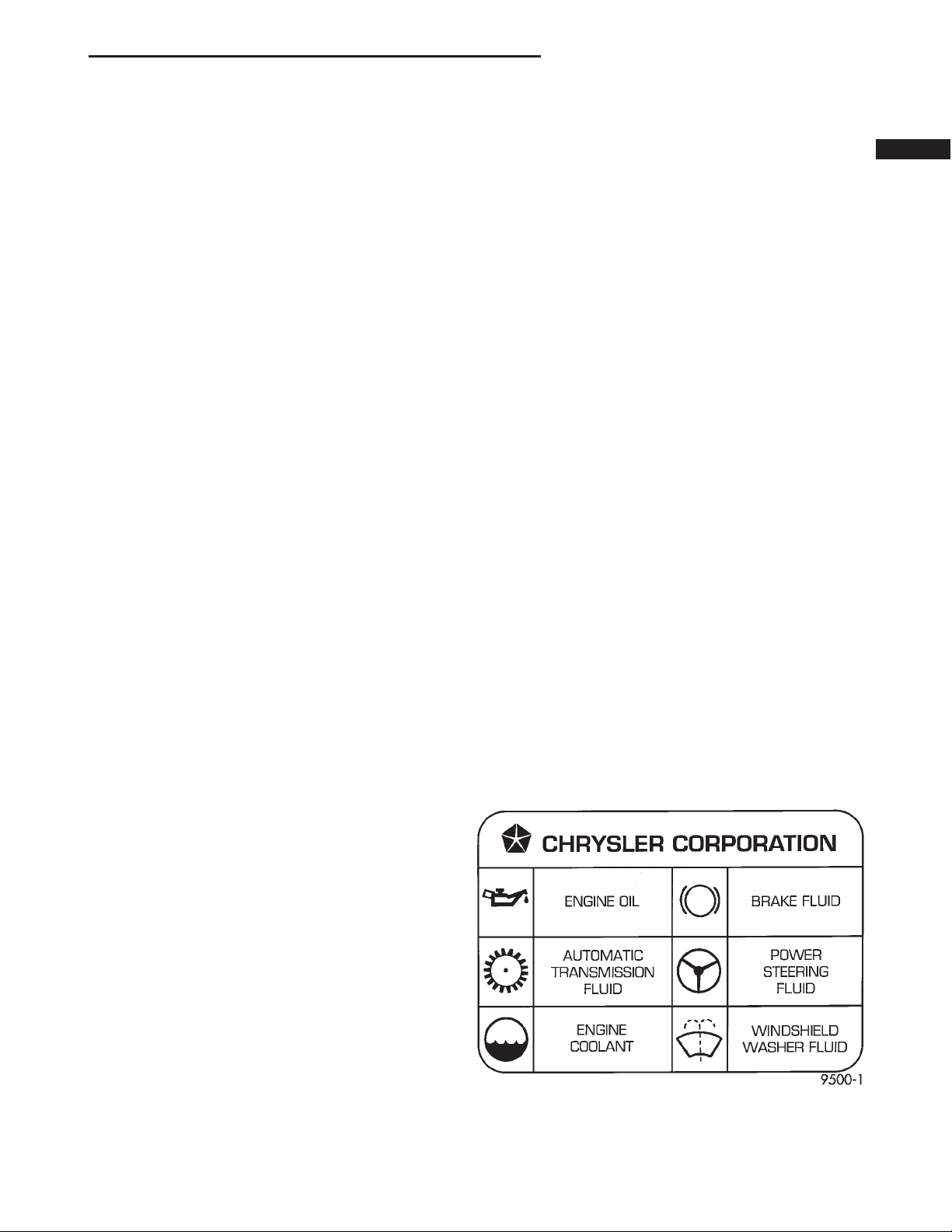

inspection and fill locations (Fig. 1).
Fig. 1 International Symbols
Page 2
0 - 2 LUBRICATION AND MAINTENANCE XJ
GENERAL INFORMATION (Continued)
CLASSIFICATION OF LUBRICANTS
Only lubricants bearing designations defined by
the following organization should be used to service a
Chrysler Corporation vehicle.
• Society of Automotive Engineers (SAE)
• American Petroleum Institute (API) (Fig. 2)
• National Lubricating Grease Institute (NLGI)
(Fig. 3)
ENGINE OIL
SAE VISCOSITY RATING INDICATES ENGINE OIL VISCOSITY
An SAE viscosity grade is used to specify the viscosity of engine oil. SAE 30 specifies a single viscosity engine oil. Engine oils also have multiple
viscosities. These are specified with a dual SAE viscosity grade which indicates the cold-to-hot temperature viscosity range.
• SAE 30 = single grade engine oil.
• SAE 10W-30 = multiple grade engine oil.
Chrysler Corporation only recommends multiple
grade engine oils.
API QUALITY CLASSIFICATION
This symbol (Fig. 2) on the front of an oil container
means that the oil has been certified by the American Petroleum Institute (API) to meet all the lubrication requirements specified by Chrysler
Corporation.
Refer to Group 9, Engine for gasoline engine oil
specification.
GEAR LUBRICANTS
SAE ratings also apply to multiple grade gear
lubricants. In addition, API classification defines the
lubricants usage.
LUBRICANTS AND GREASES
Lubricating grease is rated for quality and usage
by the NLGI. All approved products have the NLGI

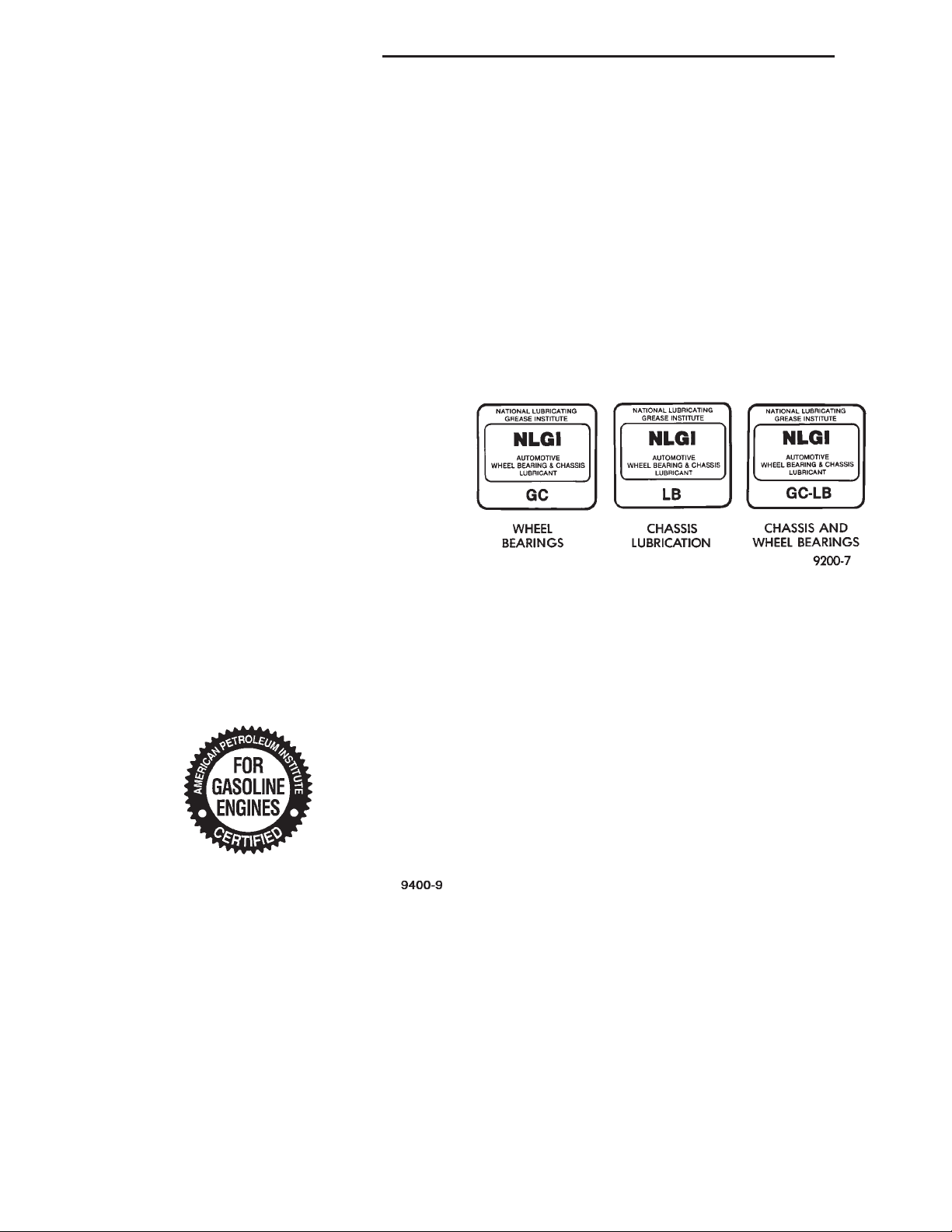

symbol (Fig. 3) on the label. At the bottom NLGI
symbol is the usage and quality identification letters.
Wheel bearing lubricant is identified by the letter
“G”. Chassis lubricant is identified by the latter “L”.
The letter following the usage letter indicates the
quality of the lubricant. The following symbols indicate the highest quality.
Fig. 3 NLGI Symbol
Fig. 2 API Symbol
Page 3
XJ LUBRICATION AND MAINTENANCE 0 - 3
GENERAL INFORMATION (Continued)
FLUID CAPACITIES
FUEL TANK
All.........................76.4 L (20.2 gal.)
ENGINE OIL
2.5L ..........................3.8L(4.0 qts.)
4.0L ..........................5.7L(6.0 qts.)
COOLING SYSTEM
2.5L .........................9.5L(10qts.)*
4.0L ........................11.4L(12qts.)**
*Includes 2.2 L (2.3 qts) for coolant recovery reser-
voir.
**Includes 0.9 L (1.0 qt) for coolant recovery reser-
voir.
AUTOMATIC TRANSMISSION
Dry fill capacity*
AW4 ........................7.8L(16.5 pts.)
30RH .......................4.67 L (9.86pts.)
*Depending on type and size of internal cooler,
length and inside diameter of cooler lines, or use of
an auxiliary cooler, these figures may vary. Refer to
Group 21, Transmission for proper fluid fill procedure.
MANUAL TRANSMISSION
AX5 (4X2) .....................3.5L(3.7 qts.)
AX5 (4X4) .....................3.3L(3.5 qts.)
AX15 (4X2) ...................3.15 L (3.3 qts.)
AX15 (4X4) ...................3.15 L (3.3 qts.)
TRANSFER CASE
SELEC-TRAC 242 ..............1.3L(2.85 pts.)
COMMAND-TRAC 231 ...........1.0L(2.2 pts.)
FRONT AXLE
181–FBI ....................1.48 L (3.13 pts.)
REAR AXLE
194–RBI ....................1.66 L (3.5 pts.*)
8-1/4 .......................2.08 L (4.4 pts.**)
* When equipped with TRAC-LOK, include 3.5
ounces of Friction Modifier Additive.
** When equipped with TRAC-LOK, include 4
ounces of Friction Modifier Additive.
POWER STEERING
Power steering fluid capacities are dependent on
engine/chassis options as well as steering gear/cooler
options. Depending on type and size of internal
cooler, length and inside diameter of cooler lines, or
use of an auxiliary cooler, these capacities may vary.
Refer to Section 19 of the service manual for proper
fill and bleed procedures.
Page 4
0 - 4 LUBRICATION AND MAINTENANCE XJ
MAINTENANCE SCHEDULES
INDEX
page
GENERAL INFORMATION
MAINTENANCE SCHEDULES ............... 4
GENERAL INFORMATION
MAINTENANCE SCHEDULES
There are two maintenance schedules that show
proper service for the Cherokee.
First is Schedule “A” . It lists all the scheduled
maintenance to be performed under “normal” operating conditions.
Second is Schedule “B” . It is a schedule for vehicles that are operated under these conditions:
• Frequent short trips driving less than 5 miles (8
km)
• Frequent driving in dusty conditions
• Frequent trailer towing
• Extensive idling
• More than 50% of driving is at sustained high
speeds during hot weather, above 90°F (32°C)
• Off-road driving
• Desert operation
Use the schedule that best describes the driving
conditions.
Where time and mileage are listed, follow the
interval that occurs first.
At Each Stop For Fuel
• Check engine oil level, add as required.
• Check windshield washer solvent and add if
required.
Once A Month
• Check tire pressure and look for unusual wear
or damage.
• Inspect battery and clean and tighten terminals
as required. Check electrolyte level and add water as
needed.
• Check fluid levels of coolant reservoir, power
steering, brake master cylinder, and transmission
and add as needed.
• Check all lights and all other electrical items for
correct operation.
At Each Oil Change
• Inspect exhaust system.
• Inspect brake hoses.
• Rotate the tires at each oil change interval
shown on Schedule “A” (7,500 miles) or every other
interval shown on Schedule “B” (6,000 miles).
• Check coolant level, hoses, and clamps.
• After completion of off-road operation, the
underside of the vehicle should be thoroughly
inspected. Examine threaded fasteners for looseness.
EMISSION CONTROL SYSTEM MAINTENANCE
The scheduled emission maintenance listed in bold
type on the Maintenance Schedules, must be done at
the mileage specified to assure the continued proper
functioning of the emission control system. These,
and all other maintenance services included in this
manual, should be done to provide the best vehicle
performance and reliability. More frequent maintenance may be needed for vehicles in severe operating
conditions such as dusty areas and very short trip
driving.
FLUID FILL LOCATIONS AND LUBRICATION POINTS
The fluid fill/check locations and lubrication points
are located in each applicable group.
SCHEDULE “A”
7,500 Miles (12 000 km) or at 6 months
• Change engine oil.
• Replace engine oil filter.
• Lubricate steering linkage (4x4 only).
15,000 Miles (24 000 km) or at 12 months
• Change engine oil.
• Replace engine oil filter.
• Lubricate steering linkage.
• Lubricate steering and suspension ball joints.
22,500 Miles (36 000 km) or at 18 months
• Change engine oil.
• Replace engine oil filter.
• Inspect brake linings.
• Lubricate steering linkage (4x4 only).
Page 5
XJ LUBRICATION AND MAINTENANCE 0 - 5
GENERAL INFORMATION (Continued)
30,000 Miles (48 000 km) or at 24 months
• Change engine oil.
• Replace engine oil filter.
• Replace air cleaner element.
• Replace spark plugs.
• Inspect drive belt, adjust tension as necessary.
• Lubricate steering linkage.
• Drain and refill automatic transmission fluid.
• Drain and refill transfer case fluid.
• Lubricate steering and suspension ball joints.
37,500 Miles (60 000 km) or at 30 months
• Change engine oil.
• Replace engine oil filter.
• Lubricate steering linkage (4x4 only).
• Drain and refill manual transmission fluid.
45,000 Miles (72 000 km) or at 36 months
• Change engine oil.
• Replace engine oil filter.
• Lubricate steering linkage.
• Inspect brake linings.
• Flush and replace engine coolant at 36 months,
regardless of mileage.
• Lubricate steering and suspension ball joints.
• Flush and replace engine coolant if it has been
30,000 miles (48 000 km) or 24 months since last
change.
• Lubricate steering and suspension ball joints.
• Drain and refill manual transmission fluid.
82,500 Miles (133 000 km) or at 66 months
• Change engine oil.
• Replace engine oil filter.
• Flush and replace engine coolant if it has been
30,000 miles (48 000 km) or 24 months since last
change.
• Lubricate steering linkage (4x4 only).
90,000 Miles (144 000 km) or at 72 months
• Change engine oil.
• Replace engine oil filter.
• Replace engine air cleaner element.
• Replace spark plugs.
• Inspect drive belt, adjust tension as necessary.
• Lubricate steering linkage.
• Drain and refill automatic transmission fluid.
• Drain and refill transfer case fluid.
• Inspect brake linings.
• Lubricate steering and suspension ball joints.
52,500 Miles (84 000 km) or at 42 months
• Change engine oil.
• Replace engine oil filter.
• Flush and replace engine coolant if not done at
36 months.
• Lubricate steering linkage (4x4 only).
60,000 Miles (96 000 km) or at 48 months
• Change engine oil.
• Replace engine oil filter.
• Replace engine air cleaner element.
• Replace ignition cables.
• Replace spark plugs.
• Inspect drive belt, adjust tension as necessary.
• Lubricate steering linkage.
• Drain and refill automatic transmission fluid.
• Drain and refill transfer case fluid.
• Lubricate steering and suspension ball joints.
67,500 Miles (108 000 km) or at 54 months
• Change engine oil.
• Replace engine oil filter.
• Inspect brake linings.
• Lubricate steering linkage (4x4 only).
75,000 Miles (120 000 km) or at 60 months
• Change engine oil.
• Replace engine oil filter.
• Lubricate steering linkage.
97,500 Miles (156 000 km) or at 78 months
• Change engine oil.
• Replace engine oil filter.
• Lubricate steering linkage (4x4 only).
105,000 Miles (168 000 km) or at 84 months
• Change engine oil.
• Replace engine oil filter.
• Lubricate steering linkage.
• Flush and replace engine coolant if it has been
30,000 miles (48 000 km) or 24 months since last
change.
• Lubricate steering and suspension ball joints.
112,500 Miles (180 000 km) or at 90 months
• Change engine oil.
• Replace engine oil filter.
• Inspect brake linings.
• Flush and replace engine coolant if it has been
30,000 miles (48 000 km) or 24 months since last
change.
• Lubricate steering linkage (4x4 only).
• Drain and refill manual transmission fluid.
120,000 Miles (192 000 km) or at 96 months
• Change engine oil.
• Replace engine oil filter.
• Replace engine air cleaner element.
• Replace ignition cables.
• Replace spark plugs.
• Inspect drive belt, adjust tension as necessary.
Page 6
0 - 6 LUBRICATION AND MAINTENANCE XJ
GENERAL INFORMATION (Continued)
• Lubricate steering linkage.
• Drain and refill automatic transmission fluid.
• Drain and refill transfer case fluid.
• Lubricate steering and suspension ball joints.
Important: Inspection and service should also be
performed any time a malfunction is observed or suspected.
SCHEDULE “B”
3,000 Miles (5 000 km)
• Change engine oil.
• Replace engine oil filter.
• Lubricate steering linkage.
6,000 Miles (10 000 km)
• Change engine oil.
• Replace engine oil filter.
• Lubricate steering linkage.
• Lubricate steering and suspension ball joints.
9,000 Miles (14 000 km)
• Change engine oil.
• Replace engine oil filter.
• Lubricate steering linkage.
• Lubricate steering linkage.
• Drain and refill automatic transmission fluid.
• Drain and refill front and rear axles.‡
• Inspect brake linings.
• Lubricate steering and suspension ball joints.
27,000 Miles (43 000 km)
• Change engine oil.
• Replace engine oil filter.
• Lubricate steering linkage.
30,000 Miles (48 000 km)
• Change engine oil.
• Replace engine oil filter.
• Replace engine air cleaner element.
• Replace spark plugs.
• Inspect drive belt, adjust tension as necessary.
• Lubricate steering linkage.
• Drain and refill transfer case fluid.
• Lubricate steering and suspension ball joints.
33,000 Miles (53 000 km)
• Change engine oil.
• Replace engine oil filter.
• Lubricate steering linkage.
12,000 Miles (19 000 km)
• Change engine oil.
• Replace engine oil filter.
• Lubricate steering linkage.
• Drain and refill automatic transmission fluid.
• Drain and refill front and rear axles.‡
• Inspect brake linings.
• Lubricate steering and suspension ball joints.
15,000 Miles (24 000 km)
• Change engine oil.
• Replace engine oil filter.
• Inspect engine air cleaner element, replace
as necessary.
• Lubricate steering linkage.
18,000 Miles (29 000 km)
• Change engine oil.
• Replace engine oil filter.
• Lubricate steering linkage.
• Lubricate steering and suspension ball joints.
• Drain and refill manual transmission fluid.
21,000 Miles (34 000 km)
• Change engine oil.
• Replace engine oil filter.
• Lubricate steering linkage.
36,000 Miles (58 000 km)
• Change engine oil.
• Replace engine oil filter.
• Lubricate steering linkage.
• Drain and refill automatic transmission fluid.
• Drain and refill front and rear axles.‡
• Inspect brake linings.
• Lubricate steering and suspension ball joints.
• Drain and refill manual transmission fluid.
39,000 Miles (62 000 km)
• Change engine oil.
• Replace engine oil filter.
• Lubricate steering linkage.
42,000 Miles (67 000 km)
• Change engine oil.
• Replace engine oil filter.
• Lubricate steering linkage.
• Lubricate steering and suspension ball joints.
45,000 Miles (72 000 km)
• Change engine oil.
• Replace engine oil filter.
• Inspect engine air cleaner element, replace
as necessary.
• Lubricate steering linkage.
24,000 Miles (38 000 km)
• Change engine oil.
• Replace engine oil filter.
48,000 Miles (77 000 km)
• Change engine oil.
• Replace engine oil filter.
Page 7
XJ LUBRICATION AND MAINTENANCE 0 - 7
GENERAL INFORMATION (Continued)
• Lubricate steering linkage.
• Drain and refill automatic transmission fluid.
• Drain and refill front and rear axles.‡
• Inspect brake linings.
• Lubricate steering and suspension ball joints.
51,000 Miles (82 000 km)
• Change engine oil.
• Replace engine oil filter.
• Flush and replace engine coolant.
• Lubricate steering linkage.
54,000 Miles (86 000 km)
• Change engine oil.
• Replace engine oil filter.
• Lubricate steering linkage.
• Lubricate steering and suspension ball joints.
• Drain and refill manual transmission fluid.
57,000 Miles (91 000 km)
• Change engine oil.
• Replace engine oil filter.
• Lubricate steering linkage.
60,000 Miles (96 000 km)
• Change engine oil.
• Replace engine oil filter.
• Replace engine air cleaner element.
• Replace ignition cables.
• Replace spark plugs.
• Inspect drive belt, adjust tension as necessary.
• Lubricate steering linkage.
• Drain and refill automatic transmission fluid.
• Drain and refill transfer case fluid.
• Drain and refill front and rear axles.‡
• Inspect brake linings.
• Lubricate steering and suspension ball joints.
63,000 Miles (101 000 km)
• Change engine oil.
• Replace engine oil filter.
• Lubricate steering linkage.
66,000 Miles (106 000 km)
• Change engine oil.
• Replace engine oil filter.
• Lubricate steering linkage.
• Lubricate steering and suspension ball joints.
69,000 Miles (110 000 km)
• Change engine oil.
• Replace engine oil filter.
• Lubricate steering linkage.
72,000 Miles (115 000 km)
• Change engine oil.
• Replace engine oil filter.
• Lubricate steering linkage.
• Drain and refill automatic transmission fluid.
• Drain and refill front and rear axles.‡
• Inspect brake linings.
• Lubricate steering and suspension ball joints.
• Drain and refill manual transmission fluid.
75,000 Miles (120 000 km)
• Change engine oil.
• Replace engine oil filter.
• Inspect engine air cleaner element, replace
as necessary.
• Lubricate steering linkage.
78,000 Miles (125 000 km)
• Change engine oil.
• Replace engine oil filter.
• Lubricate steering linkage.
• Lubricate steering and suspension ball joints.
81,000 Miles (134 000 km)
• Change engine oil.
• Replace engine oil filter.
• Flush and replace engine coolant if it has been
30,000 miles (48 000 km) since last change.
• Lubricate steering linkage.
84,000 Miles (134 000 km)
• Change engine oil.
• Replace engine oil filter.
• Lubricate steering linkage.
• Drain and refill automatic transmission fluid.
• Drain and refill front and rear axles.‡
• Inspect brake linings.
• Lubricate steering and suspension ball joints.
87,000 Miles (139 000 km)
• Change engine oil.
• Replace engine oil filter.
• Lubricate steering linkage.
90,000 Miles (144 000 km)
• Change engine oil.
• Replace engine oil filter.
• Replace engine air cleaner element.
• Replace spark plugs.
• Inspect drive belt, adjust tension as necessary.
• Lubricate steering linkage.
• Drain and refill transfer case fluid.
• Lubricate steering and suspension ball joints.
• Drain and refill manual transmission fluid.
93,000 Miles (149 000 km)
• Change engine oil.
• Replace engine oil filter.
• Lubricate steering linkage.
Page 8
0 - 8 LUBRICATION AND MAINTENANCE XJ
GENERAL INFORMATION (Continued)
96,000 Miles (154 000 km)
• Change engine oil.
• Replace engine oil filter.
• Lubricate steering linkage.
• Drain and refill automatic transmission fluid.
• Drain and refill front and rear axles.‡
• Inspect brake linings.
• Lubricate steering and suspension ball joints.
99,000 Miles (158 000 km)
• Change engine oil.
• Replace engine oil filter.
• Lubricate steering linkage.
102,000 Miles (163 000 km)
• Change engine oil.
• Replace engine oil filter.
• Lubricate steering linkage.
• Lubricate steering and suspension ball joints.
105,000 Miles (168 000 km)
• Change engine oil.
• Replace engine oil filter.
• Inspect engine air cleaner element, replace
as necessary.
• Lubricate steering linkage.
108,000 Miles (173 000 km)
• Change engine oil.
• Replace engine oil filter.
• Lubricate steering linkage.
• Drain and refill automatic transmission fluid.
• Drain and refill front and rear axles.‡
• Inspect brake linings.
• Lubricate steering and suspension ball joints.
• Drain and refill manual transmission fluid.
111,000 Miles (178 000 km)
• Change engine oil.
• Replace engine oil filter.
• Flush and replace engine coolant if it has been
30,000 miles (48 000 km) since last change.
• Lubricate steering linkage.
114,000 Miles (182 000 km)
• Change engine oil.
• Replace engine oil filter.
• Lubricate steering linkage.
• Lubricate steering and suspension ball joints.
117,000 Miles (187 000 km)
• Change engine oil.
• Replace engine oil filter.
• Lubricate steering linkage.
120,000 Miles (192 000 km)
• Change engine oil.
• Replace engine oil filter.
• Replace engine air cleaner element.
• Replace ignition cables.
• Replace spark plugs.
• Inspect drive belt, adjust tension as necessary.
• Lubricate steering linkage.
• Drain and refill automatic transmission fluid.
• Drain and refill transfer case fluid.
• Drain and refill front and rear axles.‡
• Inspect brake linings.
• Lubricate steering and suspension ball joints.
‡Off-highway operation, trailer towing, taxi, limousine, bus, snow plowing, or other types of commercial
service or prolonged operation with heavy loading,
especially in hot weather, require front and rear axle
service indicated witha‡inSchedule “B”. Perform
these services if the vehicle is usually operated under
these conditions.
Important: Inspection and service should also be
performed any time a malfunction is observed or suspected.
Page 9
XJ LUBRICATION AND MAINTENANCE 0 - 9
JUMP STARTING, TOWING AND HOISTING
INDEX
page page
SERVICE PROCEDURES
EMERGENCY TOW HOOKS ................ 11
FOUR-WHEEL-DRIVE VEHICLE TOWING ...... 11
HOISTING RECOMMENDATIONS ............11
SERVICE PROCEDURES
JUMP STARTING PROCEDURE
WARNING: REVIEW ALL SAFETY PRECAUTIONS
AND WARNINGS IN GROUP 8A, BATTERY/STARTING/CHARGING SYSTEMS DIAGNOSTICS. DO NOT
JUMP START A FROZEN BATTERY, PERSONAL
INJURY CAN RESULT. DO NOT JUMP START WHEN
MAINTENANCE FREE BATTERY INDICATOR DOT IS
YELLOW OR BRIGHT COLOR. DO NOT JUMP
START A VEHICLE WHEN THE BATTERY FLUID IS
BELOW THE TOP OF LEAD PLATES. DO NOT
ALLOW JUMPER CABLE CLAMPS TO TOUCH
EACH OTHER WHEN CONNECTED TO A BOOSTER
SOURCE. DO NOT USE OPEN FLAME NEAR BATTERY. REMOVE METALLIC JEWELRY WORN ON
HANDS OR WRISTS TO AVOID INJURY BY ACCIDENTAL ARCING OF BATTERY CURRENT. WHEN
USING A HIGH OUTPUT BOOSTING DEVICE, DO
NOT ALLOW BATTERY VOLTAGE TO EXCEED 16
VOLTS. REFER TO INSTRUCTIONS PROVIDED
WITH DEVICE BEING USED.
JUMP STARTING PROCEDURE .............. 9
TOWING RECOMMENDATIONS .............10
TWO-WHEEL-DRIVE VEHICLE TOWING ...... 10
(2) When using another vehicle as a booster
source, turn off all accessories, place gear selector in
park or neutral, set park brake and operate engine at
1200 rpm.
(3) On disabled vehicle, place gear selector in park
or neutral and set park brake. Turn off all accessories.

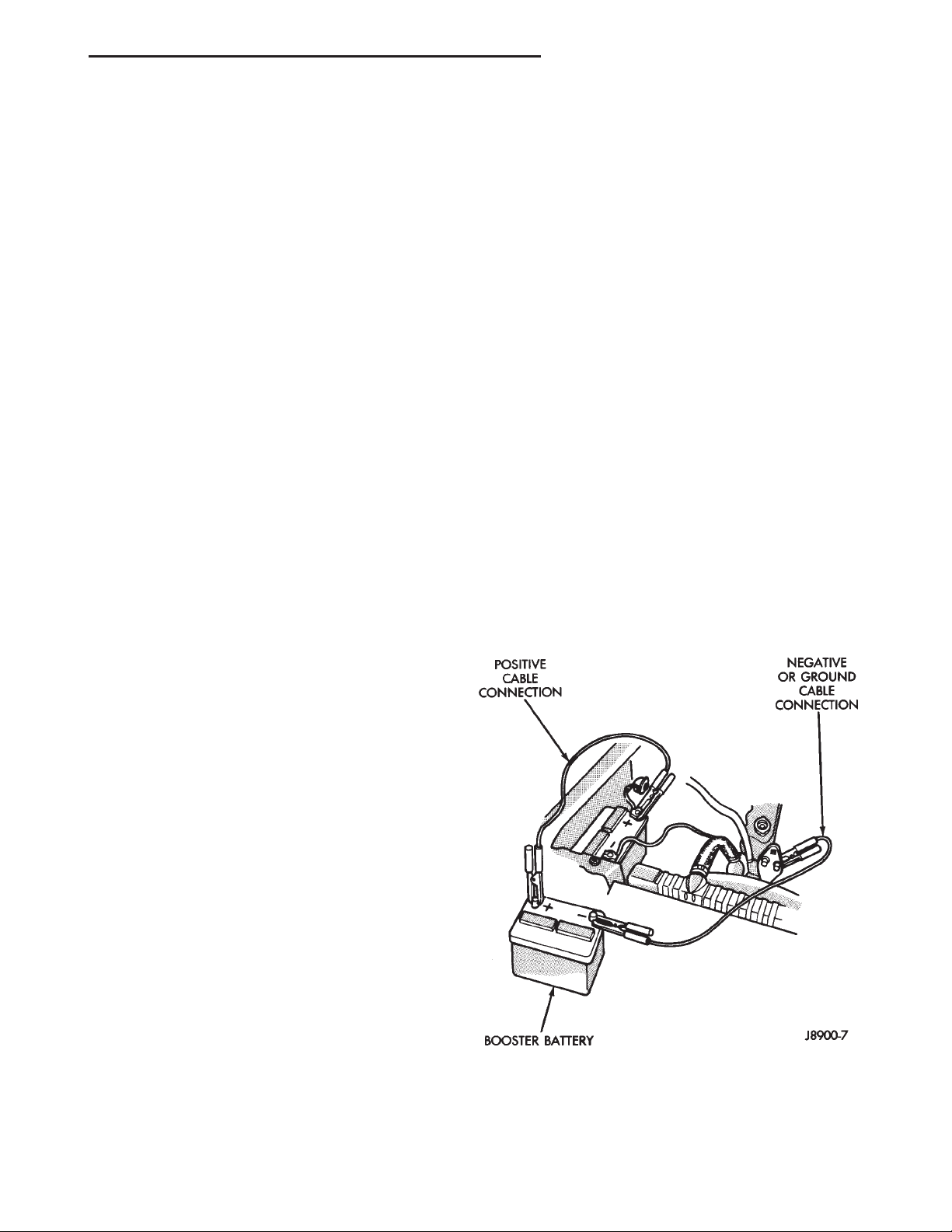

(4) Connect jumper cables to booster battery. RED
clamp to positive terminal (+). BLACK clamp to negative terminal (-). DO NOT allow clamps at opposite
end of cables to touch, electrical arc will result.
Review all warnings in this procedure.
(5) On disabled vehicle, connect RED jumper cable
clamp to positive (+) terminal. Connect BLACK
jumper cable clamp to engine ground as close to the
ground cable attaching point as possible (Fig. 1).
CAUTION: When using another vehicle as a
booster, do not allow vehicles to touch. Electrical
systems can be damaged on either vehicle.
TO JUMP START A DISABLED VEHICLE:
(1) Raise hood on disabled vehicle and visually
inspect engine compartment for:
• Battery cable clamp condition, clean if necessary.
• Frozen battery.
• Yellow or bright color test indicator, if equipped.
• Low battery fluid level.
• Generator drive belt condition and tension.
• Fuel fumes or leakage, correct if necessary.
CAUTION: If the cause of starting problem on disabled vehicle is severe, damage to booster vehicle
charging system can result.
Fig. 1 Jumper Cable Connections—Typical
CAUTION: Do not crank starter motor on disabled
vehicle for more than 15 seconds, starter will overheat and could fail.
Page 10
0 - 10 LUBRICATION AND MAINTENANCE XJ
SERVICE PROCEDURES (Continued)
(6) Allow battery in disabled vehicle to charge to
at least 12.4 volts (75% charge) before attempting to
start engine. If engine does not start within 15 seconds, stop cranking engine and allow starter to cool
(15 min.), before cranking again.
DISCONNECT CABLE CLAMPS AS FOLLOWS:
• Disconnect BLACK cable clamp from engine
ground on disabled vehicle.
• When using a Booster vehicle, disconnect
BLACK cable clamp from battery negative terminal.
Disconnect RED cable clamp from battery positive
terminal.
• Disconnect RED cable clamp from battery positive terminal on disabled vehicle.
TOWING RECOMMENDATIONS
A vehicle equipped with an SAE approved Wheellift towing device can be used to tow all Cherokee
vehicles (Fig. 2). When towing a 4WD vehicle, use
tow dollies under the opposite end of the vehicle. A
vehicle with a flat-bed device can also be used to
transport a disabled vehicle.
• Do not allow passengers to ride in a vehicle
being towed.
• Always observe state and local laws regarding
towing regulations.
• Do not tow a vehicle in a manner that could
jeopardize the safety of the operator, pedestrians or
other motorists.
• Do not attach tow chains, T-hooks, J-hooks, or a
tow sling to a bumper, steering linkage, drive shafts
or a non-reinforced frame hole.
GROUND CLEARANCE
CAUTION: If vehicle is towed with wheels removed,
install lug nuts to retain brake drums.
A towed vehicle should be raised until lifted wheels
are a minimum 100 mm (4 in) from the ground. Be
sure there is adequate ground clearance at the opposite end of the vehicle, especially when towing over
rough terrain or steep rises in the road. If necessary,
remove the wheels from the lifted end of the vehicle
and lower the vehicle closer to the ground, to
increase the ground clearance at the opposite end of
the vehicle. Install lug nuts on wheel attaching studs
to retain brake drums.
Fig. 2 Tow Vehicles With Approved Equipment
NOTE: A vehicle equipped with a SAE approved
sling type towing device can be used to tow a Cherokee with the rear end lifted, provided the Cherokee
is not equipped with a factory installed trailer tow
package. Damage to the harness connector bracket
may result from sling contact.
SAFETY PRECAUTIONS
• Secure loose and protruding parts.
• Always use a safety chain system that is inde-
pendent of the lifting and towing equipment.
• Do not allow towing equipment to contact the
disabled vehicle’s fuel tank.
• Do not allow anyone under the disabled vehicle
while it is lifted by the towing device.
FLAT-BED TOWING RAMP ANGLE
If a vehicle with flat-bed towing equipment is used,
the approach ramp angle should not exceed 15
degrees.
TWO-WHEEL-DRIVE VEHICLE TOWING
TOWING-REAR END LIFTED (SLING-TYPE)
WARNING: WHEN TOWING A DISABLED VEHICLE
AND THE DRIVE WHEELS ARE SECURED IN A
WHEEL LIFT OR TOW DOLLIES, ENSURE THE
TRANSMISSION IS IN THE PARK POSITION (AUTOMATIC TRANSMISSION) OR A FORWARD DRIVE
GEAR (MANUAL TRANSMISSION).
CAUTION: Do not use steering column lock to
secure steering wheel during towing operation.
2WD XJ vehicles can be towed with the front
wheels on the surface for extended distances at
speeds not exceeding 48 km/h (30 mph). If the vehicle
is equipped with a factory installed trailer tow package, use a SAE approved wheel lift device.
(1) Attach J-hooks around the axle shaft tube outboard of the shock absorber.
(2) Place the sling crossbar under and forward of
the bumper.
(3) Attach safety chains around the frame rails.
Page 11
XJ LUBRICATION AND MAINTENANCE 0 - 11
SERVICE PROCEDURES (Continued)
(4) Turn the ignition switch to the OFF position to
unlock the steering wheel.
(5) Secure steering wheel in the straight ahead
position with a clamp device designed for towing.
(6) Verify that steering components are in good
condition.
(7) Shift the transmission to NEUTRAL.
TOWING-REAR END LIFTED (WHEEL LIFT)
(1) Raise front of vehicle off ground and install tow
dollies under front wheels.
(2) Attach wheel lift to rear wheels.
(3) Place transmission in neutral.
(4) Raise vehicle to towing height.
(5) Place transmission in park (automatic trans-
mission) or fist gear (manual transmission).
TOWING-FRONT END LIFTED
To prevent damage to front fascia components, use
only a Wheel-Lift type towing device or Flat-Bed
hauling equipment.
If using the wheel-lift towing method:
(1) Raise rear of vehicle off ground and install tow
dollies under rear wheels.
(2) Attach wheel lift to front wheels.
(3) Place transmission in neutral.
(4) Raise vehicle to towing height.
(5) Place transmission in park (automatic transmission) or fist gear (manual transmission).
FOUR-WHEEL-DRIVE VEHICLE TOWING
Chrysler Corporation recommends that a 4WD
vehicle be transported on a flat bed device. A wheel
lift or sling type device can be used provided all
wheels are lifted off the ground using tow dollies.
If the vehicle is equipped with a factory installed
trailer tow package, use a SAE approved wheel lift
device.
(6) Secure steering wheel in the straight ahead
position with a clamp device designed for towing.
(7) Shift transfer case to neutral.
TOWING-REAR END LIFTED (WHEEL LIFT)
(1) Raise front of vehicle off ground and install tow
dollies under front wheels.
(2) Attach wheel lift to rear wheels.
(3) Place transmission in neutral.
(4) Raise vehicle to towing height.
(5) Place transmission in park (automatic trans-
mission) or first gear (manual transmission).
TOWING-FRONT END LIFTED
To prevent damage to front fascia components, use
only a Wheel-Lift type towing device or Flat-Bed
hauling equipment.
(1) Raise the rear of the vehicle off the ground and
install tow dollies under rear wheels.
(2) Attach wheel lift to front wheels.
(3) Place transmission in neutral.
(4) Raise vehicle to towing height.
(5) Place transmission in park (automatic transmission) or first gear (manual transmission).
EMERGENCY TOW HOOKS
WARNING: REMAIN AT A SAFE DISTANCE FROM A
VEHICLE THAT IS BEING TOWED VIA ITS TOW
HOOKS. THE TOW STRAPS/CHAINS COULD BREAK
AND CAUSE SERIOUS INJURY.
Some Jeep vehicles are equipped with front and
rear emergency tow hooks. The tow hooks should be
used for EMERGENCY purposes only.
CAUTION: DO NOT use emergency tow hooks for
tow truck hook-up or highway towing.
WARNING: WHEN TOWING A DISABLED VEHICLE
AND THE DRIVE WHEELS ARE SECURED IN A
WHEEL LIFT OR TOW DOLLIES, ENSURE THE
TRANSMISSION IS IN THE PARK POSITION (AUTOMATIC TRANSMISSION) OR A FORWARD DRIVE
GEAR (MANUAL TRANSMISSION).
TOWING-REAR END LIFTED (SLING TYPE)
(1) Raise front of vehicle off ground and install tow
dollies under front wheels.
(2) Attach J-hooks around rear axle shaft tube out-
board of shock absorber.
(3) Place sling crossbar under and forward of
bumper.
(4) Attach safety chains around frame rails.
(5) Turn ignition switch to OFF position to unlock
steering wheel.
HOISTING RECOMMENDATIONS
Refer to the Owner’s Manual for emergency vehicle
lifting procedures.
FLOOR JACK
When properly positioned, a floor jack can be used
to lift a Jeep vehicle (Fig. 3) and (Fig. 4). Support the
vehicle in the raised position with jack stands at the
front and rear ends of the frame rails.
CAUTION: Do not attempt to lift a Jeep vehicle with
a floor jack positioned under:
• An axle tube.
• A body side sill.
• A steering linkage component.
• A drive shaft.
Page 12
0 - 12 LUBRICATION AND MAINTENANCE XJ
SERVICE PROCEDURES (Continued)

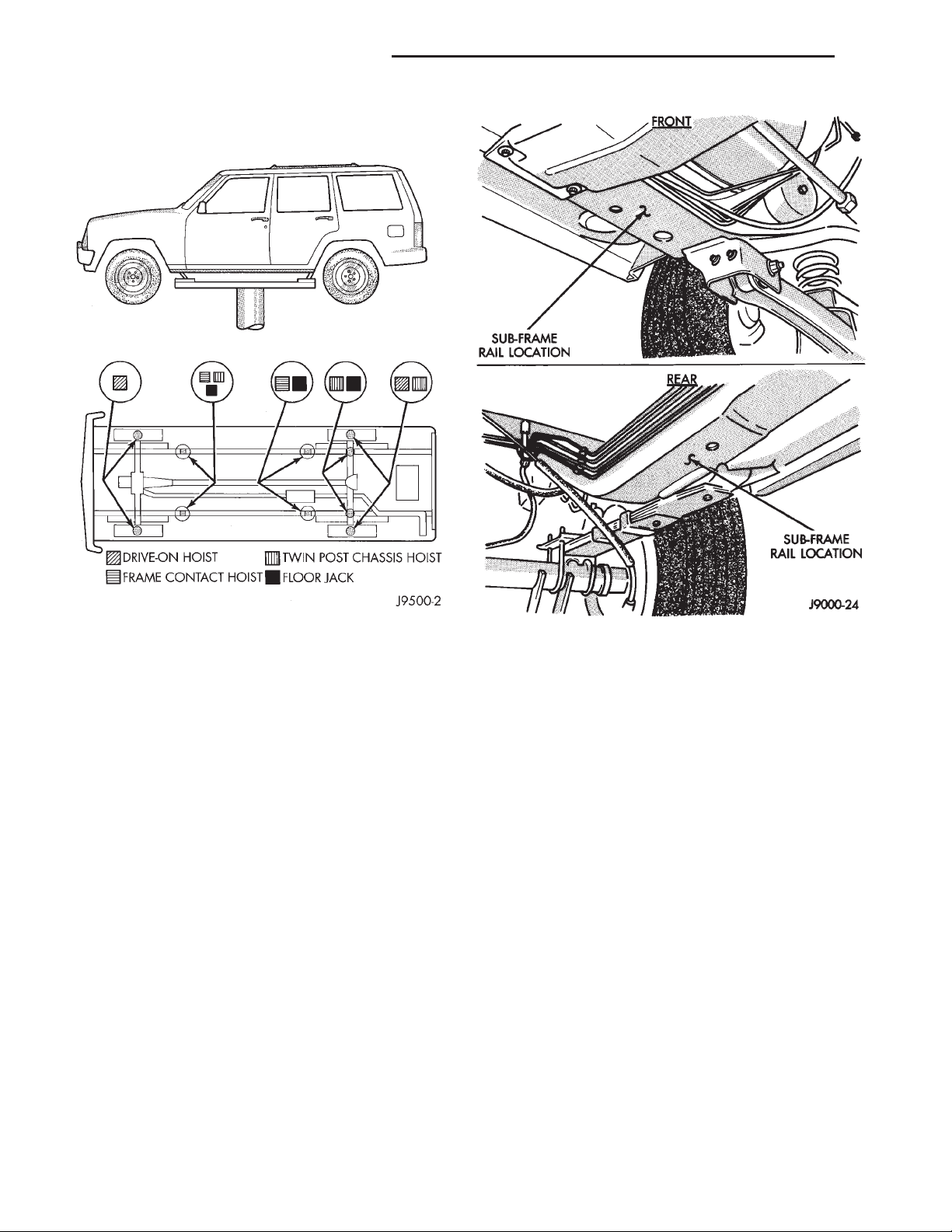

Fig. 3 Vehicle Lifting Locations
• The engine or transmission oil pan.
• The fuel tank.
• A front suspension arm.
NOTE: Use the correct sub-frame rail or frame rail
lifting locations only.
HOIST
A vehicle can be lifted with:
• A single-post, frame-contact hoist.
• A twin-post, chassis hoist.
• A ramp-type, drive-on hoist.
NOTE: When a frame-contact type hoist is used,
verify that the lifting pads are positioned properly.
Fig. 4 Correct Vehicle Lifting Locations
WARNING: THE HOISTING AND JACK LIFTING
POINTS PROVIDED ARE FOR A COMPLETE VEHICLE. WHEN A CHASSIS OR DRIVETRAIN COMPONENT IS REMOVED FROM A VEHICLE, THE
CENTER OF GRAVITY IS ALTERED MAKING SOME
HOISTING CONDITIONS UNSTABLE. PROPERLY
SUPPORT OR SECURE VEHICLE TO HOISTING
DEVICE WHEN THESE CONDITIONS EXIST.
Loading...
