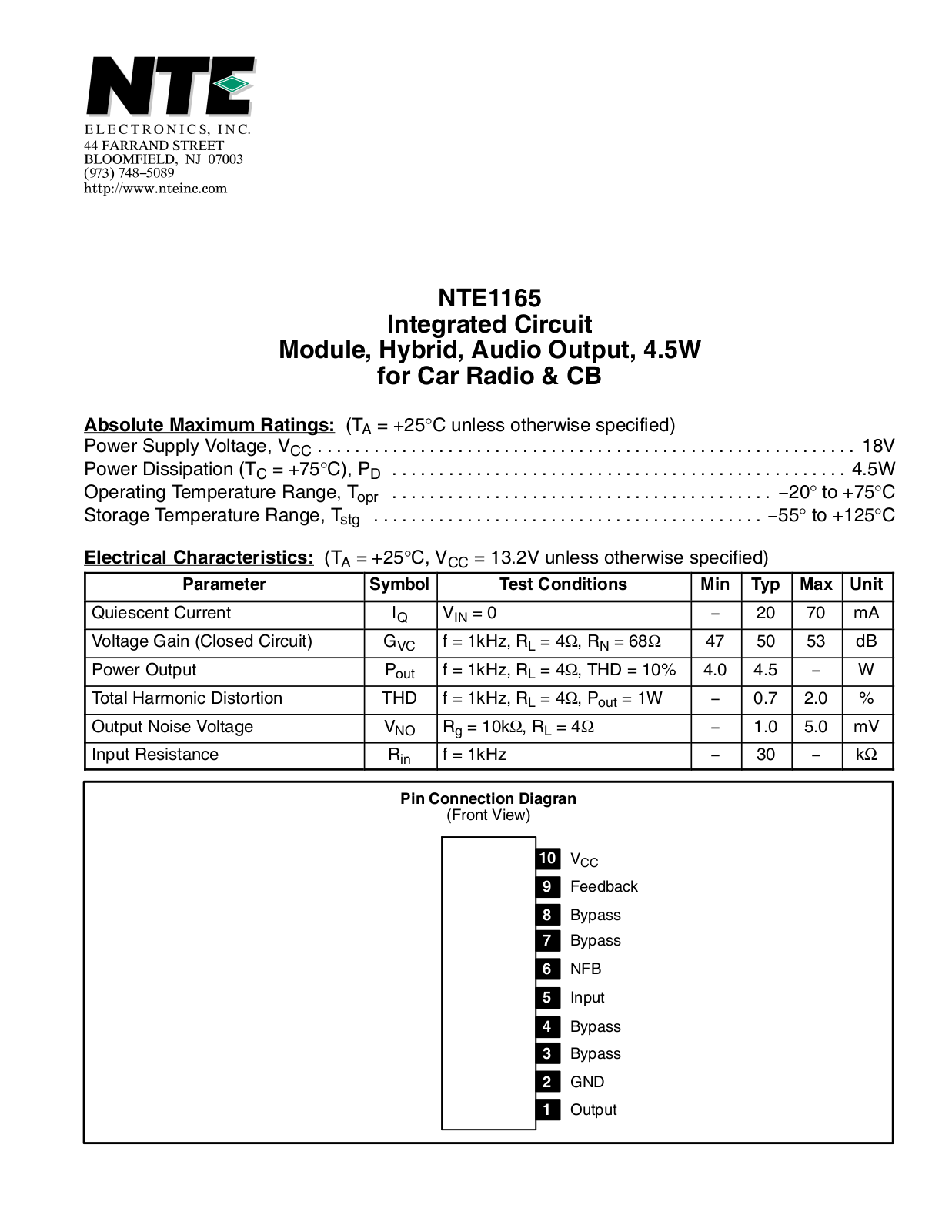

NTE1165
Integrated Circuit
Module, Hybrid, Audio Output, 4.5W
for Car Radio & CB
Absolute Maximum Ratings: (TA = +25°C unless otherwise specified)
Power Supply Voltage, V
Power Dissipation (TC = +75°C), P
Operating Temperature Range, T
Storage Temperature Range, T
Electrical Characteristics: (TA = +25°C, VCC = 13.2V unless otherwise specified)
Parameter Symbol Test Conditions Min Typ Max Unit
CC
D
opr
stg
18V. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
4.5W. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
−20° to +75°C. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
−55° to +125°C. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Quiescent Current I
Voltage Gain (Closed Circuit) G
Power Output P
VIN = 0 − 20 70 mA
Q
f = 1kHz, RL = 4Ω, RN = 68Ω 47 50 53 dB
VC
f = 1kHz, RL = 4Ω, THD = 10% 4.0 4.5 − W
out
Total Harmonic Distortion THD f = 1kHz, RL = 4Ω, P
Output Noise Voltage V
Input Resistance R
NO
Rg = 10kΩ, RL = 4Ω − 1.0 5.0 mV
f = 1kHz − 30 − kΩ
in
Pin Connection Diagran
(Front View)
10
V
CC
Feedback
9
8
Bypass
Bypass
7
NFB
6
Input
5
Bypass
4
Bypass
3
= 1W − 0.7 2.0 %
out
2
1
GND
Output
Page 2

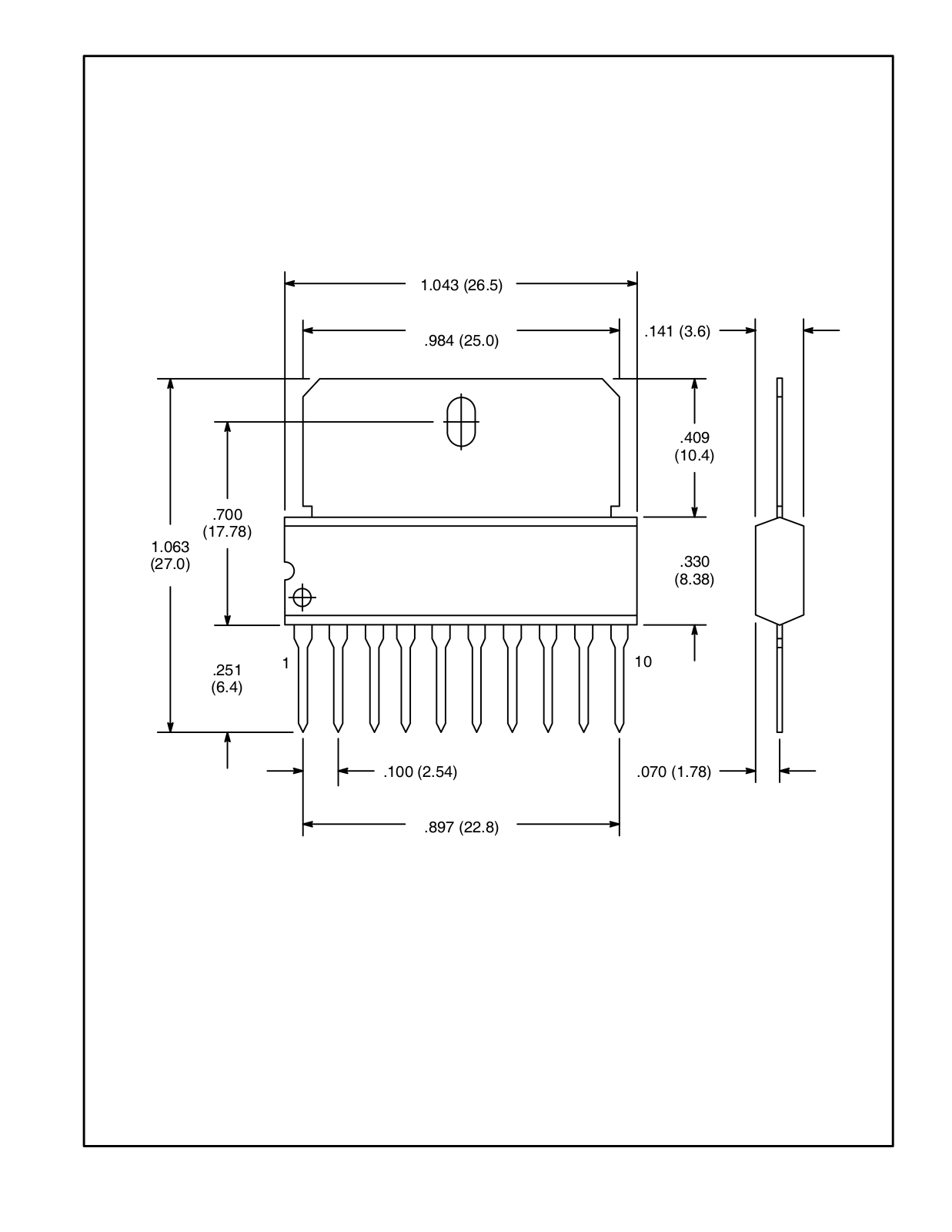

1.043 (26.5)
1.063
(27.0)
.700
(17.78)
.251
(6.4)
.984 (25.0)
1
.100 (2.54) .070 (1.78)
.141 (3.6)
.409
(10.4)
.330
(8.38)
10
.897 (22.8)
