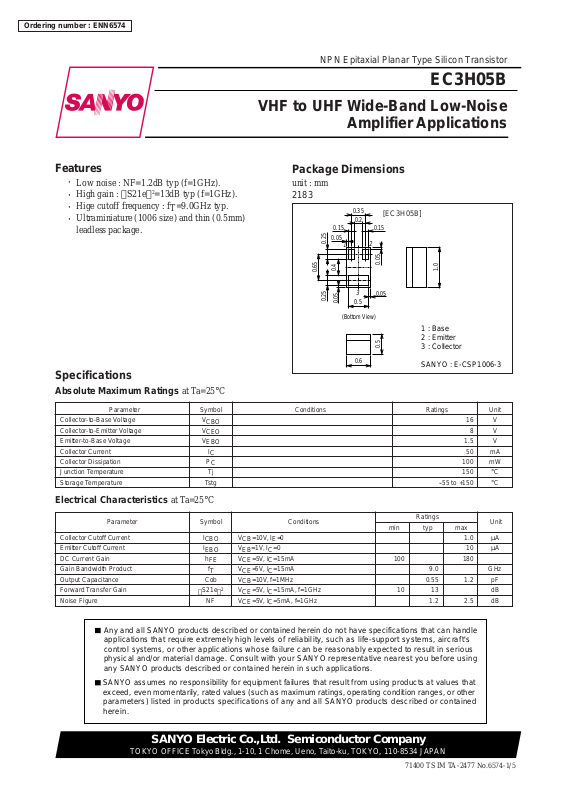

Ordering number : ENN6574
EC3H05B
NPN Epitaxial Planar Type Silicon Transistor
EC3H05B
VHF to UHF Wide-Band Low-Noise
Amplifier Applications
Features
•
Low noise : NF=1.2dB typ (f=1GHz).
• High gain : S21e
• Hige cutoff frequency : f
• Ultraminiature (1006 size) and thin (0.5mm)
leadless package.
2
=13dB typ (f=1GHz).
=9.0GHz typ.
T
Package Dimensions
unit : mm
2183
0.25
0.65
0.25
0.35
0.2
0.15
0.05
1
0.4
0.05
0.5
(Bottom View)
3
[EC3H05B]
0.15
2
0.05
0.05
1.0
1 : Base
2 : Emitter
0.5
0.6
3 : Collector
SANYO : E-CSP1006-3
Specifications
Absolute Maximum Ratings at T a=25°C
Parameter Symbol Conditions Ratings Unit
Collector-to-Base Voltage V
Collector-to-Emitter Voltage V
Emitter-to-Base Voltage V
Collector Current I
Collector Dissipation P
Junction T emperature Tj 150 °C
Storage T emperature T stg --55 to +150 °C
CBO
CEO
EBO
C
C
16 V
8V
1.5 V
50 mA
100 mW
Electrical Characteristics at Ta=25°C
Parameter Symbol Conditions
Collector Cutoff Current I
Emitter Cutoff Current I
DC Current Gain h
Gain Bandwidth Product f
Output Capacitance Cob VCB=10V , f=1MHz 0.55 1.2 pF
Forward Transfer Gain
Noise Figure NF VCE=5V, IC=5mA, f=1GHz 1.2 2.5 dB
CBO
EBO
FE
S21e
VCB=10V, IE=0 1.0 µA
VEB=1V, IC=0 10 µA
VCE=5V, IC=15mA 100 180
VCE=5V, IC=15mA 9.0 GHz
T
2
VCE=5V, IC=15mA, f=1GHz 10 13 dB
Any and all SANYO products described or contained herein do not have specifications that can handle
applications that require extremely high levels of reliability, such as life-support systems, aircraft's
control systems, or other applications whose failure can be reasonably expected to result in serious
physical and/or material damage. Consult with your SANYO representative nearest you before using
any SANYO products described or contained herein in such applications.
SANYO assumes no responsibility for equipment failures that result from using products at values that
exceed, even momentarily, rated values (such as maximum ratings, operating condition ranges, or other
parameters) listed in products specifications of any and all SANYO products described or contained
herein.
Ratings
min typ max
SANYO Electric Co.,Ltd. Semiconductor Company
TOKYO OFFICE Tokyo Bldg., 1-10, 1 Chome, Ueno, Taito-ku, TOKYO, 110-8534 JAPAN
71400 TS IM TA-2477
No.6574-1/5
Unit
Page 2
EC3H05B
Type No. Indication (Top view) Electrical Connection (Top view)
Polarity mark (Top)
E
This product adopts a
high-frequency process.
Please be careful when
handling it beause it is
susceptible to static
electricity.
3
2
100
FE
7
5
3
2
DC Current Gain, h
10
7
5
5
3
2
1.0
Collector Current, IC -- mA
hFE -- I
Cob -- V
Base
Emitter
Base
C
VCE=5V
10 100
32573257357
IT01370
CB
f=1MHz
Polarity mark (Top)
Emitter
Collector
*Electrodes : on the bottom
Collector
2
10
-- GHz
7
T
5
3
2
1.0
Gain-Bandwidth Product, f
7
5
7235723 57
1.0
5
3
2
f
-- I
T
C
10
Collector Current, IC -- mA
Cre -- V
CB
VCE=5V
IT01371
f=1MHz
-- dB
2
Output Capacitance, Cob -- pF
Forward Transfer Gain, S21e
1.0
7
5
3
2
0.1
16
VCE=5V
f=1GHz
14
12
10
8
6
4
2
0
53257 32577
325
73257 327
Collector-to-Base Voltage, V
1.0
S21e2 -- I
1.0
Collector Current, IC -- mA
1.0
7
5
3
2
Reverse Transfer Capacitance, Cre -- pF
CB --
C
100.1
V
IT01372
0.1
10
325
73257 327
1.0
Collector-to-Base Voltage, V
NF -- I
C
CB --
100.1
V
IT01373
VCE=5V
f=1GHz
8
dB
--
6
4
Noise Figure, NF
2
0
10
IT01374
1.0
3232
57 57
Collector Current, IC -- mA
10
IT01375
No.6574-2/5
Page 3
EC3H05B
P
-- Ta
120
100
-- mW
80
C
60
40
20
Collector Dissipation, P
0
2006040 80 100 140120 160
Ambient Temperature, Ta -- °C
S Parameters (Common emitter)
VCE=1V, IC=1mA, ZO=50Ω
Freq(MHz)
100 0.964 --14.7 3.332 168.4 0.039 80.6 0.987 --7.4
200 0.944 --28.5 3.286 157.5 0.075 71.2 0.960 --14.4
400 0.886 --54.5 2.977 138.4 0.132 55.9 0.879 --26.3
600 0.819 --76.8 2.529 122.1 0.168 44.4 0.789 --35.6
800 0.766 --94.6 2.223 109.1 0.190 35.9 0.714 --42.2
1000 0.737 --108.1 2.010 98.2 0.200 29.6 0.663 --47.1
1200 0.701 --120.2 1.742 89.2 0.206 24.8 0.620 --51.7
1400 0.681 --129.2 1.593 81.6 0.204 21.3 0.591 --54.9
1600 0.672 --136.9 1.474 74.1 0.203 19.3 0.577 --58.5
1800 0.663 --144.5 1.337 67.3 0.198 18.3 0.567 --62.2
2000 0.653 --150.6 1.234 61.6 0.193 17.9 0.560 --65.5
C
IT01376
S
11
∠S
S
11
21
∠S
S
21
12
∠S
S
12
22
∠S
22
VCE=1V, IC=3mA, ZO=50Ω
Freq(MHz)
S
11
∠S
S
11
21
∠S
S
21
12
∠S
S
12
22
100 0.908 --23.1 8.754 162.7 0.038 76.1 0.955 --14.7
200 0.849 --46.3 7.966 147.9 0.068 63.6 0.864 --28.1
400 0.745 --81.4 6.727 123.5 0.106 48.5 0.693 --44.0
600 0.673 --104.6 5.005 110.1 0.120 40.6 0.541 --55.0
800 0.625 --122.4 3.985 99.4 0.126 37.2 0.439 --62.2
1000 0.586 --137.2 3.419 90.7 0.136 34.7 0.409 --64.8
1200 0.581 --143.8 2.929 83.9 0.142 34.4 0.377 --67.5
1400 0.573 --149.7 2.561 78.1 0.151 33.5 0.371 --69.0
1600 0.566 --155.6 2.250 72.9 0.152 36.3 0.338 --72.9
1800 0.555 --161.3 2.024 68.1 0.154 38.3 0.322 --76.4
2000 0.546 --167.2 1.856 63.3 0.161 41.9 0.300 --79.5
VCE=1V, IC=10mA, ZO=50Ω
Freq(MHz)
S
11
∠S
S
11
21
∠S
S
21
12
∠S
S
12
22
100 0.726 --50.3 20.231 149.3 0.032 65.0 0.847 --30.5
200 0.647 --85.2 15.627 128.7 0.051 54.0 0.653 --50.4
400 0.570 --124.4 9.732 107.4 0.067 46.6 0.411 --71.5
600 0.545 --142.7 6.844 96.7 0.079 47.9 0.302 --81.4
800 0.534 --153.7 5.269 89.1 0.090 50.1 0.249 --87.9
1000 0.527 --160.6 4.282 83.4 0.102 51.6 0.217 --93.1
1200 0.522 --166.5 3.635 78.3 0.115 54.2 0.198 --96.8
1400 0.518 --171.1 3.134 74.0 0.127 56.1 0.186 --100.1
1600 0.514 --174.9 2.769 70.1 0.141 56.3 0.178 --102.5
1800 0.512 --177.9 2.493 66.1 0.154 57.7 0.172 --106.1
2000 0.511 178.9 2.269 62.3 0.168 57.9 0.165 --107.6
∠S
∠S
22
22
No.6574-3/5
Page 4
EC3H05B
VCE=5V, IC=1mA, ZO=50Ω
Freq(MHz)
100 0.967 --13.1 3.456 169.7 0.030 81.1 0.991 --5.8
200 0.952 --25.5 3.377 159.9 0.058 73.7 0.971 --11.4
400 0.902 --49.2 3.116 142.5 0.104 59.9 0.909 --21.1
600 0.840 --70.2 2.696 127.1 0.135 48.5 0.835 --28.9
800 0.787 --87.6 2.359 114.6 0.155 40.4 0.771 --34.7
1000 0.757 --101.1 2.164 103.6 0.164 34.1 0.726 --39.1
1200 0.718 --113.5 1.887 95.0 0.171 29.6 0.685 --43.0
1400 0.696 --122.8 1.742 87.3 0.171 26.1 0.660 --45.8
1600 0.684 --131.2 1.614 79.7 0.169 24.2 0.645 --49.2
1800 0.670 --139.1 1.463 72.9 0.165 23.5 0.634 --52.4
2000 0.658 --145.6 1.350 67.2 0.161 23.5 0.625 --55.4
VCE=5V, IC=5mA, ZO=50Ω
Freq(MHz)
100 0.871 --24.8 13.419 161.4 0.025 75.3 0.951 --13.6
200 0.797 --49.1 11.836 146.1 0.044 65.2 0.856 --25.3
400 0.681 --83.3 9.073 123.5 0.068 51.9 0.670 --38.5
600 0.599 --106.6 6.968 109.5 0.079 46.6 0.540 --44.4
800 0.551 --123.1 5.465 100.3 0.086 46.4 0.455 --47.4
1000 0.516 --135.9 4.585 92.5 0.095 46.9 0.419 --49.0
1200 0.505 --143.2 3.943 86.0 0.100 48.4 0.394 --49.9
1400 0.496 --150.0 3.488 80.5 0.111 49.5 0.385 --51.3
1600 0.490 --155.2 3.054 76.1 0.117 51.6 0.363 --52.7
1800 0.481 --159.9 2.741 71.9 0.125 53.6 0.351 --54.3
2000 0.476 --164.8 2.455 67.4 0.132 55.8 0.340 --55.6
S
11
S
11
∠S
∠S
S
11
11
21
S
21
∠S
∠S
S
21
21
12
S
12
∠S
∠S
S
12
12
22
S
22
∠S
∠S
22
22
VCE=5V, IC=15mA, ZO=50Ω
Freq(MHz)
S
11
∠S
S
11
21
∠S
S
21
12
∠S
S
12
22
100 0.699 --45.3 25.810 150.1 0.021 71.4 0.868 --23.7
200 0.602 --79.0 19.948 129.9 0.034 58.2 0.684 --38.1
400 0.506 --117.1 12.414 109.1 0.048 54.0 0.457 --48.4
600 0.469 --136.6 8.786 98.5 0.058 54.9 0.358 --50.1
800 0.455 --148.1 6.747 91.3 0.069 59.3 0.304 --50.5
1000 0.447 --155.8 5.482 85.8 0.081 60.8 0.277 --50.9
1200 0.440 --161.4 4.643 80.9 0.092 63.0 0.262 --51.2
1400 0.437 --166.2 4.009 76.8 0.103 63.9 0.253 --51.9
1600 0.434 --170.0 3.532 73.0 0.115 65.1 0.248 --53.3
1800 0.431 --172.6 3.163 69.5 0.127 65.7 0.242 --54.7
2000 0.432 --176.0 2.871 65.5 0.140 66.9 0.240 --55.1
∠S
22
No.6574-4/5
Page 5
EC3H05B
Specifications of any and all SANYO products described or contained herein stipulate the performance,
characteristics, and functions of the described products in the independent state, and are not guarantees
of the performance, characteristics, and functions of the described products as mounted in the customer's
products or equipment. To verify symptoms and states that cannot be evaluated in an independent device,
the customer should always evaluate and test devices mounted in the customer's products or equipment.
SANYO Electric Co., Ltd. strives to supply high-quality high-reliability products. However, any and all
semiconductor products fail with some probability. It is possible that these probabilistic failures could
give rise to accidents or events that could endanger human lives, that could give rise to smoke or fire,
or that could cause damage to other property. When designing equipment, adopt safety measures so
that these kinds of accidents or events cannot occur. Such measures include but are not limited to protective
circuits and error prevention circuits for safe design, redundant design, and structural design.
In the event that any or all SANYO products(including technical data,services) described or
contained herein are controlled under any of applicable local export control laws and regulations,
such products must not be exported without obtaining the export license from the authorities
concerned in accordance with the above law.
No part of this publication may be reproduced or transmitted in any form or by any means, electronic or
mechanical, including photocopying and recording, or any information storage or retrieval system,
or otherwise, without the prior written permission of SANYO Electric Co. , Ltd.
Any and all information described or contained herein are subject to change without notice due to
product/technology improvement, etc. When designing equipment, refer to the "Delivery Specification"
for the SANYO product that you intend to use.
Information (including circuit diagrams and circuit parameters) herein is for example only ; it is not
guaranteed for volume production. SANYO believes information herein is accurate and reliable, but
no guarantees are made or implied regarding its use or any infringements of intellectual property rights
or other rights of third parties.
This catalog provides information as of July, 2000. Specifications and information herein are subject
to change without notice.
No.6574-5/5
