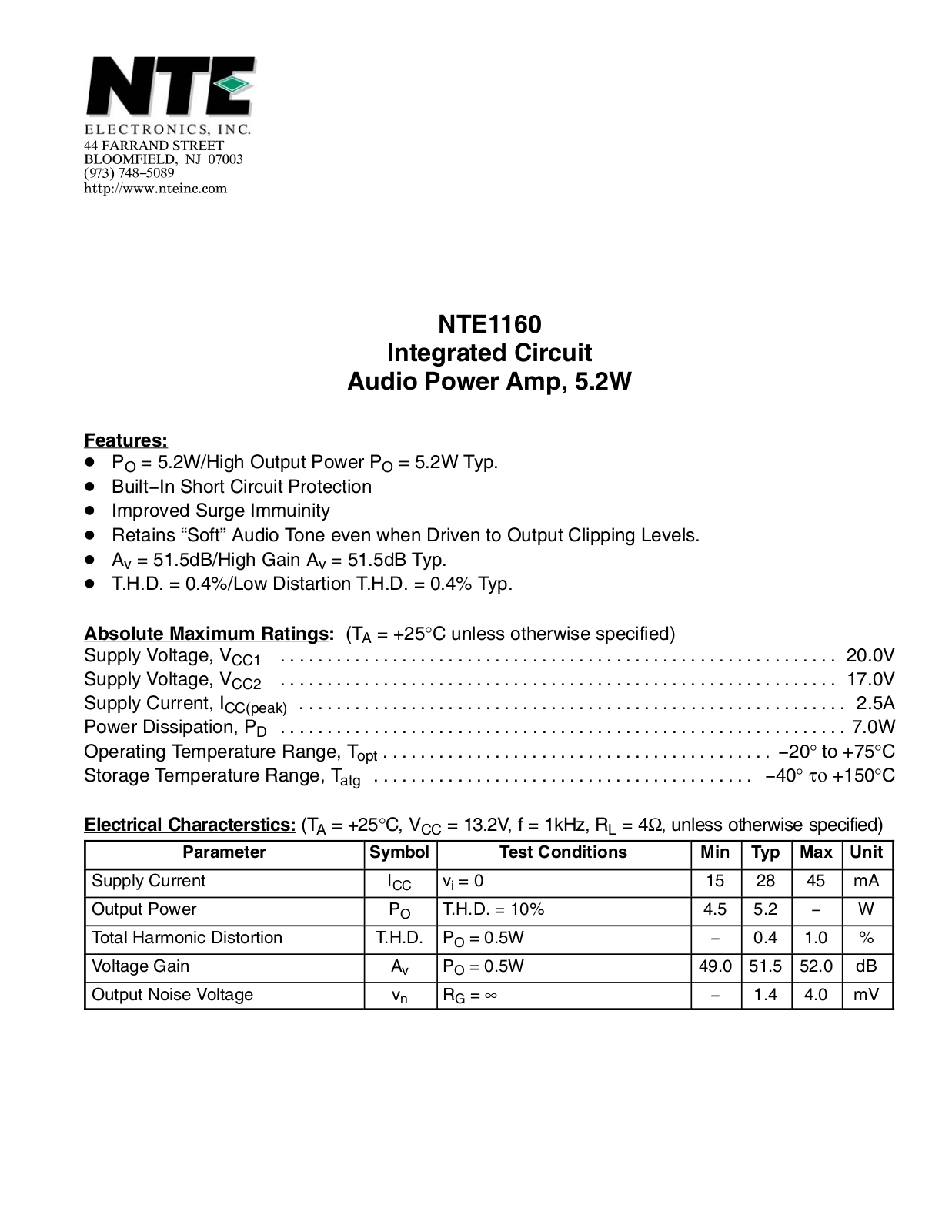

NTE1160
Integrated Circuit
Audio Power Amp, 5.2W
Features:
D PO = 5.2W/High Output Power PO = 5.2W Typ.
D Built−In Short Circuit Protection
D Improved Surge Immuinity
D Retains “Soft” Audio Tone even when Driven to Output Clipping Levels.
D Av = 51.5dB/High Gain Av = 51.5dB Typ.
D T.H.D. = 0.4%/Low Distartion T.H.D. = 0.4% Typ.
Absolute Maximum Ratings: (TA = +25°C unless otherwise specified)
Supply Voltage, V
Supply Voltage, V
Supply Current, I
Power Dissipation, P
Operating Temperature Range, T
Storage Temperature Range, T
20.0V. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
CC1
17.0V. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
CC2
CC(peak)
2.5A. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
D
opt
−40° το +150°C. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
atg
7.0W. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
−20° to +75°C. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Electrical Characterstics: (TA = +25°C, VCC = 13.2V, f = 1kHz, RL = 4Ω, unless otherwise specified)
Parameter Symbol Test Conditions Min Typ Max Unit
Supply Current I
Output Power P
Total Harmonic Distortion T.H.D. PO = 0.5W − 0.4 1.0 %
Voltage Gain A
Output Noise Voltage v
CC
vi = 0 15 28 45 mA
T.H.D. = 10% 4.5 5.2 − W
O
PO = 0.5W 49.0 51.5 52.0 dB
v
RG = ∞ − 1.4 4.0 mV
n
Page 2
.985 (25.0)

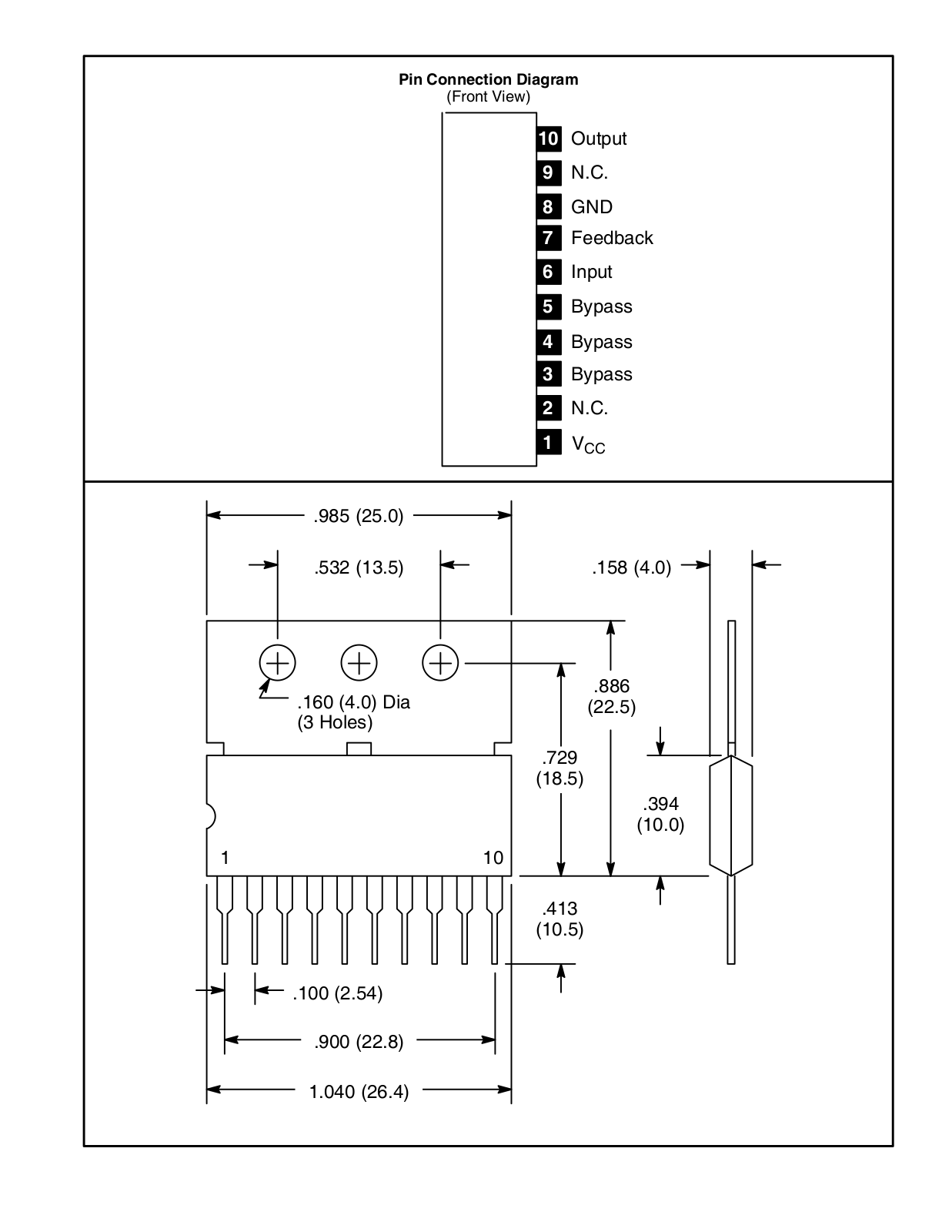

Pin Connection Diagram
(Front View)
9
8
7
6
5
4
3
2
1
Output10
N.C.
GND
Feedback
Input
Bypass
Bypass
Bypass
N.C.
V
CC
.532 (13.5)
.158 (4.0)
.886
.160 (4.0) Dia
(22.5)
(3 Holes)
.729
(18.5)
.394
(10.0)
110
.413
(10.5)
.100 (2.54)
.900 (22.8)
1.040 (26.4)
