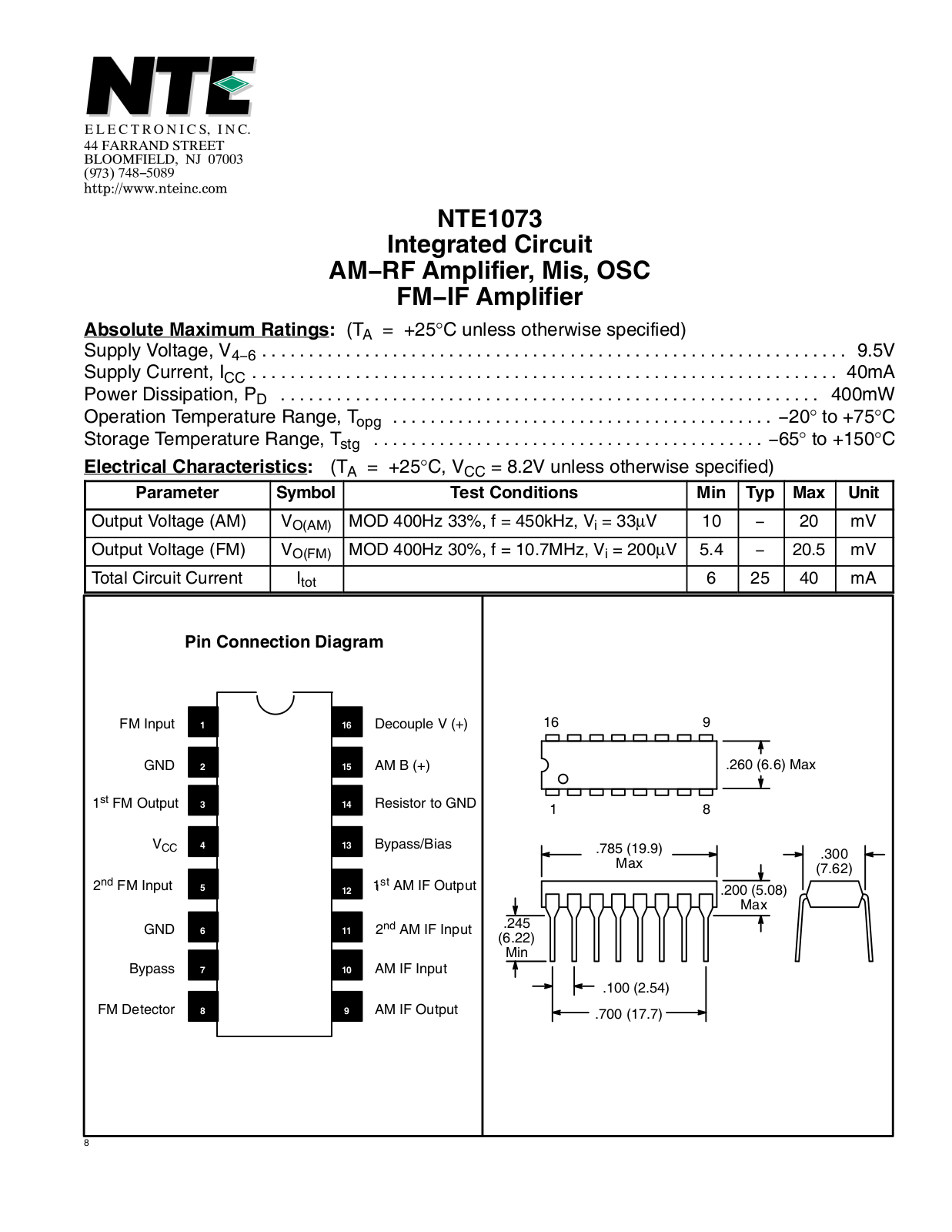

NTE1073
Integrated Circuit
AM−RF Amplifier, Mis, OSC
FM−IF Amplifier
Absolute Maximum Ratings: (TA = +25°C unless otherwise specified)
Supply Voltage, V
Supply Current, I
Power Dissipation, P
Operation Temperature Range, T
Storage Temperature Range, T
Electrical Characteristics
Parameter Symbol Test Conditions Min Typ Max Unit
4−6
CC
D
opg
stg
: (TA = +25°C, VCC = 8.2V unless otherwise specified)
9.5V. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
40mA. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
400mW. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
−20° to +75°C. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
−65° to +150°C. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Output Voltage (AM) V
Output Voltage (FM) V
Total Circuit Current I
Pin Connection Diagram
FM Input
GND
1st FM Output
V
GND
Bypass
FM Detector
CC
1
2
3
4
5
6
7
8
O(AM)
O(FM)
tot
MOD 400Hz 33%, f = 450kHz, Vi = 33µV 10 − 20 mV
MOD 400Hz 30%, f = 10.7MHz, Vi = 200µV 5.4 − 20.5 mV
6 25 40 mA
16
Decouple V (+)
AM B (+)
15
14
Resistor to GND
Bypass/Bias
13
1st AM IF Output2nd FM Input
1
1
12
11
2nd AM IF Input
10
AM IF Input
AM IF Output
9
16 9
18
.785 (19.9)
.245
(6.22)
Min
.100 (2.54)
.700 (17.7)
Max
.260 (6.6) Max
.300
(7.62)
.200 (5.08)
Max
8
