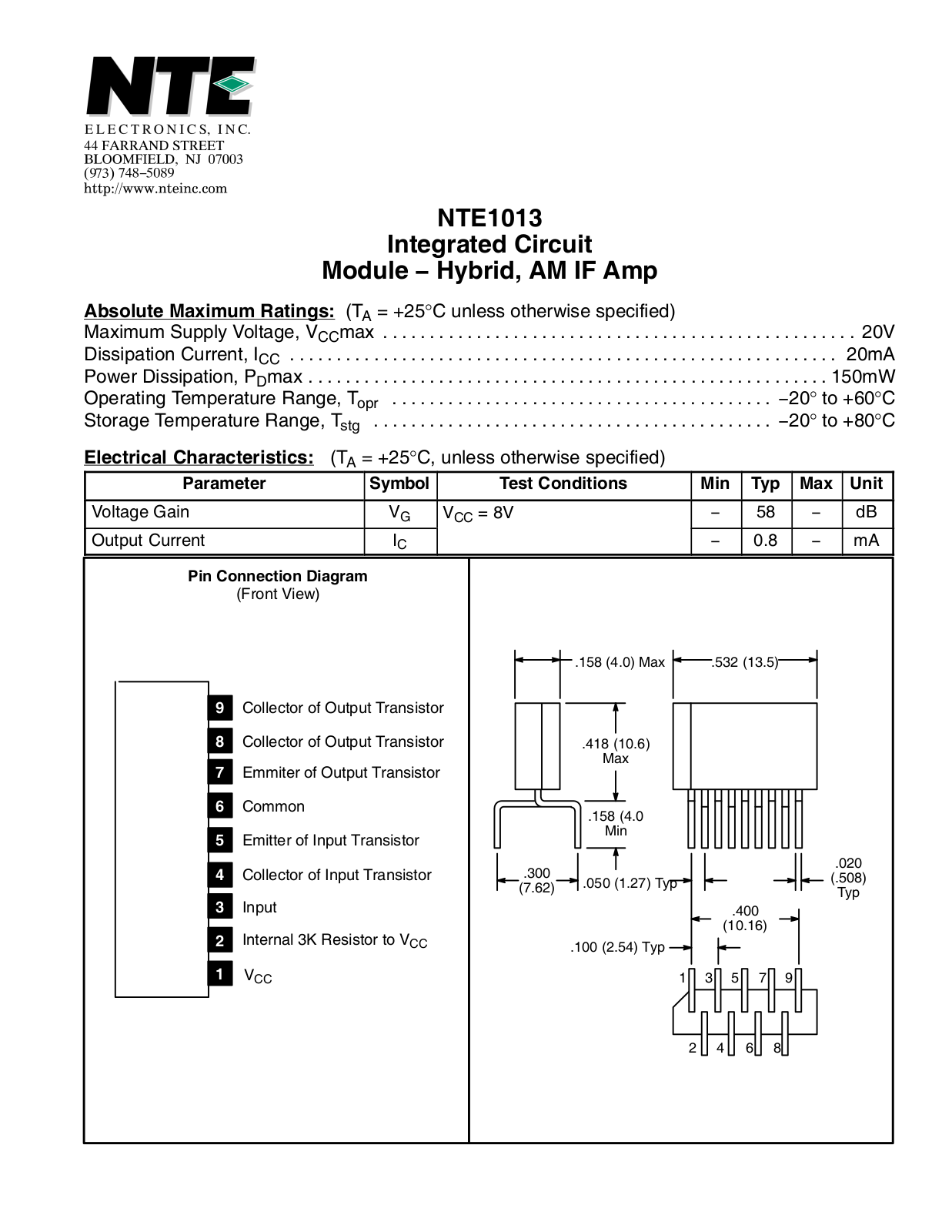

NTE1013
Integrated Circuit
Module − Hybrid, AM IF Amp
Absolute Maximum Ratings: (TA = +25°C unless otherwise specified)
Maximum Supply Voltage, VCCmax 20V. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Dissipation Current, I
Power Dissipation, PDmax 150mW. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Operating Temperature Range, T
Storage Temperature Range, T
Electrical Characteristics: (TA = +25°C, unless otherwise specified)
Parameter Symbol Test Conditions Min Typ Max Unit
CC
stg
opr
−20° to +60°C. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
−20° to +80°C. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
20mA. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Voltage Gain V
Output Current I
Pin Connection Diagram
(Front View)
Collector of Output Transistor
9
Collector of Output Transistor
8
Emmiter of Output Transistor
7
Common
6
Emitter of Input Transistor
5
Collector of Input Transistor
4
Input
3
Internal 3K Resistor to V
2
G
C
CC
VCC = 8V
.300
(7.62)
.158 (4.0) Max
.418 (10.6)
Max
.158 (4.0
Min
.050 (1.27) Typ
.100 (2.54) Typ
− 58 − dB
− 0.8 − mA
.532 (13.5)
.020
(.508)
Typ
.400
(10.16)
1
V
CC
135 79
2468
