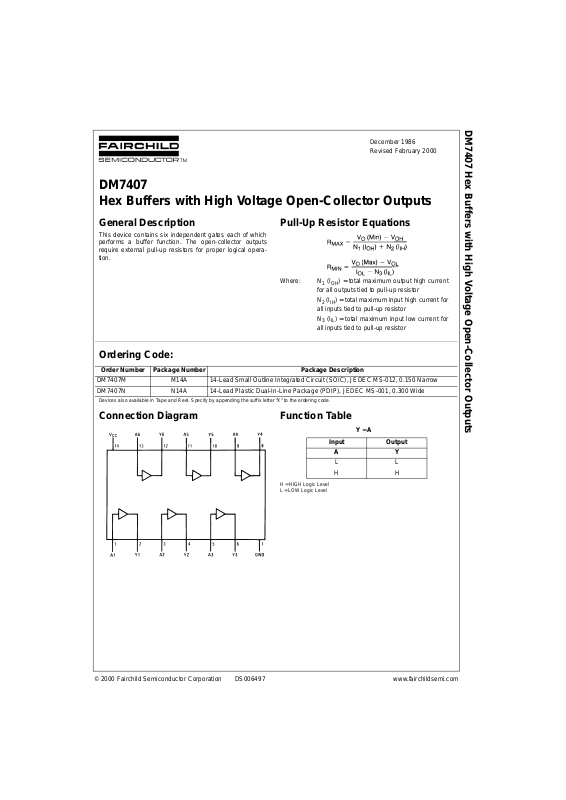

DM7407 Hex Buffers with High Voltage Open-Collector Outputs
DM7407
Hex Buffers with High Voltage Open-Collector Outputs
General Description
This device contain s six independe nt gates eac h of which
performs a buffer function. The open-collector outputs
require external pull-up resi stors for proper logical operation.
Pull-Up Resistor Equations
Where: N1 (IOH) = total maximum output high c urrent
for all outputs tied to pull-up resistor
N
2
(IIH) = total maximum input high current for
all inputs tied to pull-up resistor
N
3
(IIL) = total maximum input low current for
all inputs tied to pull-up resistor
Ordering Code:
Devices also availab le in Tape and Reel. Specify by appending th e s uffix let t er “X” to the ordering code.
Connection Diagram Function Table
Y = A
H = HIGH Logic Level
L = LOW Logic Level
Order Number Package Number Package Description
DM7407M M14A 14-Lead Small Outline Integrated Circuit (SOIC), JEDEC MS-012, 0.150 Narrow
DM7407N N14A 14-Lead Plastic Dual-In-Line Package (PDIP), JEDEC MS-001, 0.300 Wide
Input Output
AY
LL
HH
Page 2
www.fairchildsemi.com 2
DM7407
Absolute Maximum Ratings(Note 1)
Note 1: The “Absolute Maximum Ratings” are those values beyond which
the safety of the dev ice cannot be guaranteed. T he device sh ould not be
operated at these limits. The parametric values defined in the Electrical
Characteristics tables are not guaranteed at the absolute maximum ratings.
The “Recommend ed O peratin g Cond itions” t able w ill defin e the co ndition s
for actual device operation.
Recommended Operating Conditions
Electrical Characteristics
over recommended operating free air temperature range (unless otherwise noted)
Note 2: All typicals are at VCC = 5V, TA = 25°C.
Switching Characteristics
at VCC = 5V and TA = 25°C
Supply Voltage 7V
Input Voltage 5.5V
Output Voltage 30V
Operating Free Air Temperature Range 0°C to +70°C
Storage Temperature Range −65°C to +150°C
Symbol Parameter Min Nom Max Units
V
CC
Supply Voltage 4.75 5 5.25 V
V
IH
High Level Input Voltage 2 V
V
IL
Low Level Input Vo ltage 0.8 V
V
OH
High Level Output Voltage 30 V
I
OL
Low Level Output Current 40 mA
T
A
Free Air Operating Temperature 0 70 °C
Symbol Parameter Conditions Min
Typ
Max Units
(Note 2)
V
I
Input Clamp Voltage VCC = Min, II = −12 mA −1.5 V
I
CEX
HIGH Level VCC = Min, VO = 30V
250 µA
Output Current VIH = Min
V
OL
LOW Level VCC = Min, IOL = Max
0.7
Output Voltage VIL = Max V
IOL = 16 mA, VCC = Min 0.4
I
I
Input Current @ Max Input Voltage VCC = Max, VI = 5.5V 1 mA
I
IH
HIGH Level Input Current VCC = Max, VI = 2.4V 40 µA
I
IL
LOW Level Input Current VCC = Max, VI = 0.4V −1.6 mA
I
CCH
Supply Current with Outputs HIGH VCC = Max 29 41 mA
I
CCL
Supply Current with Outputs LOW VCC = Max 21 30 mA
Symbol Parameter Conditions Min Max Units
t
PLH
Propagation Delay Time CL = 15 pF
10 ns
LOW-to-HIGH Level Output RL = 110Ω
t
PHL
Propagation Delay Time
30 ns
HIGH-to-LOW Level Output
Page 3
3 www.fairchildsemi.com
DM7407

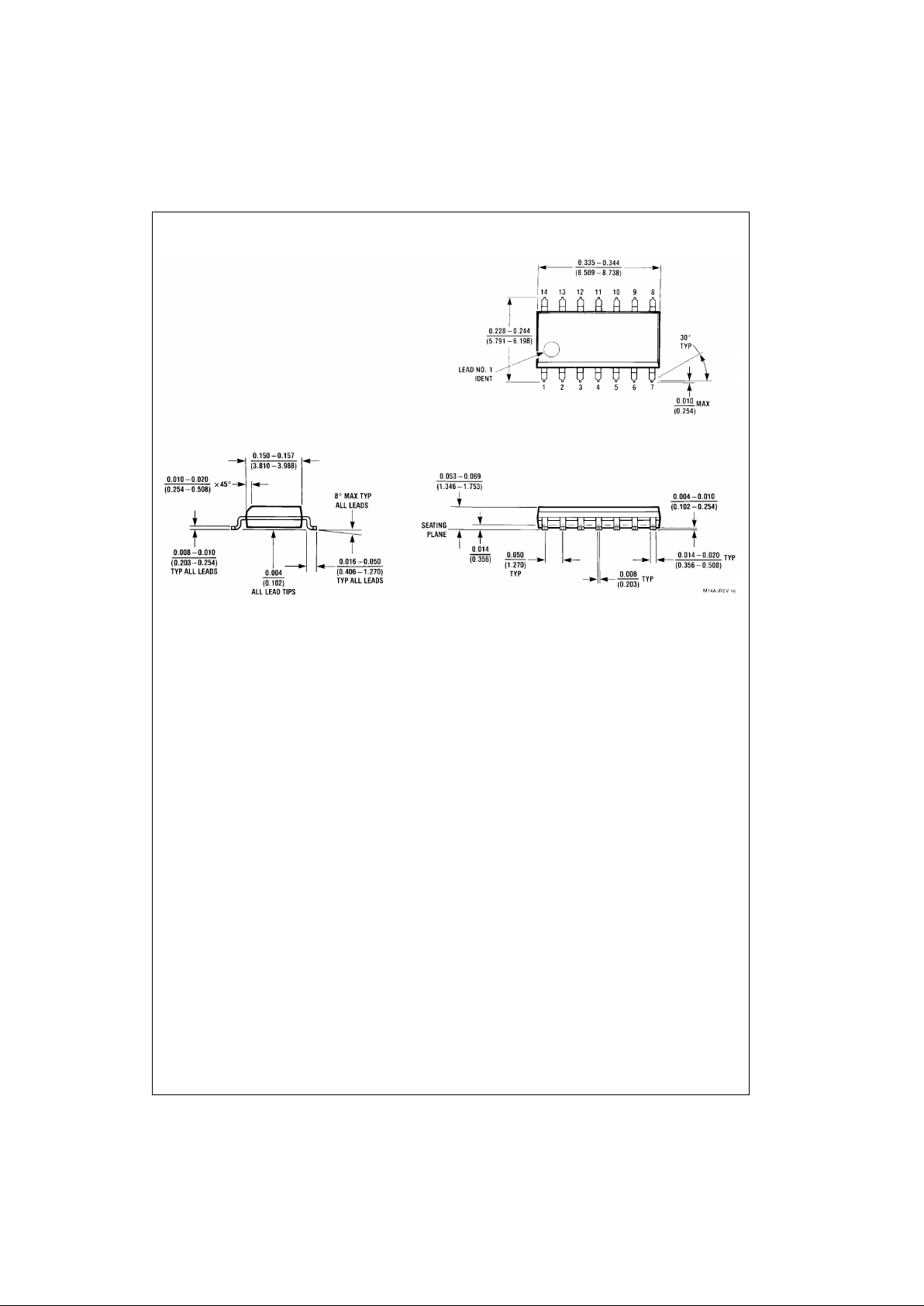

Physical Dimensions inches (millimeters) unless otherwise noted
14-Lead Small Outline Integrated Circuit (SOIC), JEDEC MS-012, 0.150 Narrow
Package Number M14A
Page 4
www.fairchildsemi.com 4
DM7407 Hex Buffers with High Voltage Open-Collector Outputs
Physical Dimensions inches (millimeters) unless otherwise noted (Continued)
14-Lead Plastic Dual-In-Line Package (PDIP), JEDEC MS-001, 0.300 Wide
Package Number N14A
