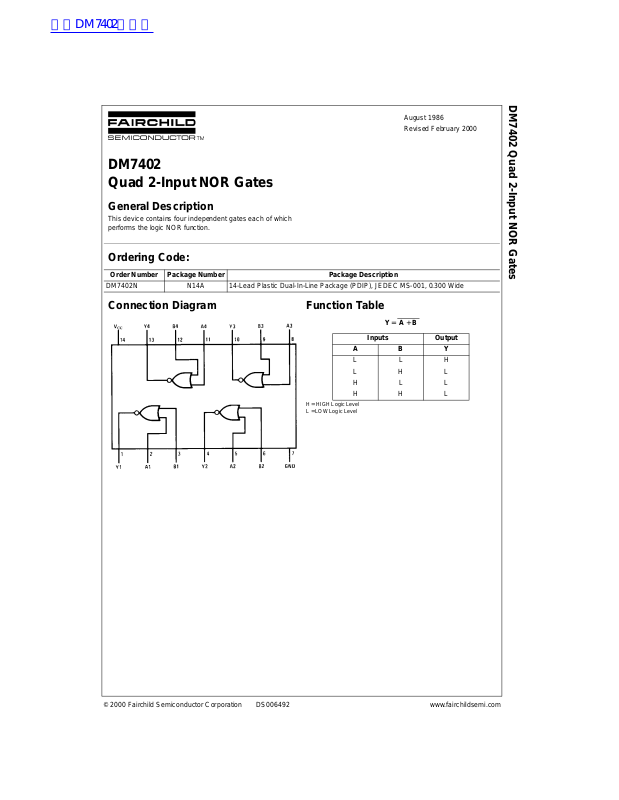

Page 1
查询DM7402供应商
DM7402
Quad 2-Input NOR Gates
General Description
This device contains four independent gates each of which
performs the logic NOR function.
Ordering Code:
Order Number Package Number Package Description
DM7402N N14A 14-Lead Plastic Dual-In-Line Package (PDIP), JEDEC MS-001, 0.300 Wide
Connection Diagram Function Table
H = HIGH Logic Level
L = LOW Logic Level
DM7402 Quad 2-Input NOR Gates
August 1986
Revised February 2000
Y = A + B
Inputs Output
ABY
LLH
LHL
HLL
HHL
© 2000 Fairchild Semiconductor Corporation DS006492 www.fairchildsemi.com
Page 2
Absolute Maximum Ratings(Note 1)
Supply Voltage 7V
DM7402
Input Voltage 5.5V
Operating Free Air Temperature Range 0°C to +70°C
Storage Temperature Range −65°C to +150°C
Note 1: The “Absolute Maximum Ratings” are those values beyond which
the safety of the dev ice cannot be guaranteed. T he device sh ould not be
operated at these limits. The parametric values defined in the Electrical
Characteristics tables are not guaranteed at the absolute maximum ratings.
The “Recommend ed O peratin g Cond itions” t able w ill defin e the c ondit ions
for actual device operation.
Recommended Operating Conditions
Symbol Parameter Min Nom Max Units
V
CC
V
IH
V
IL
I
OH
I
OL
T
A
Supply Voltage 4.75 5 5.25 V
HIGH Level Input Voltage 2 V
LOW Level In put Voltag e 0.8 V
HIGH Level Output Current −0.4 mA
LOW Level Output Current 16 mA
Free Air Oper ating Temperature 0 70 °C
Electrical Characteristics
over recommended operating free air temperature range (unless otherwise noted)
Symbol Parameter Conditions Min
V
I
V
OH
V
OL
I
I
I
IH
I
IL
I
OS
I
CCH
I
CCL
Note 2: All typicals are at VCC = 5V, TA = 25°C.
Note 3: Not more than one output should be shorted at a time.
Input Clamp Voltage VCC = Min, II = −12 mA −1.5 V
HIGH Level VCC = Min, IOH = Max
Output Voltage VIL = Max
LOW Level VCC = Min, IOL = Max
Output Voltage VIH = Min
Input Current @ Max Input Voltage VCC = Max, VI = 5.5V 1 mA
HIGH Level Input Current VCC = Max, VI = 2.4V 40 µA
LOW Level Input Current VCC = Max, VI = 0.4V −1.6 mA
Short Circuit VCC = Max
Output Current (Note 3) −18 −55
Supply Current with Outputs HIGH VCC = Max 8 16 mA
Supply Current with Outputs Low VCC = Max 14 27 mA
2.4 3.4 V
Typ
(Note 2)
0.2 0.4 V
Max Units
mA
Switching Characteristics
at VCC = 5V and TA = 25°C
Symbol Parameter Conditions Min Max Units
t
PLH
t
PHL
www.fairchildsemi.com 2
Propagation Delay Time CL = 15 pF
LOW-to-HIGH Level Output RL = 400Ω
Propagation Delay Time
HIGH-to-LOW Level Output
22 ns
15 ns
Page 3

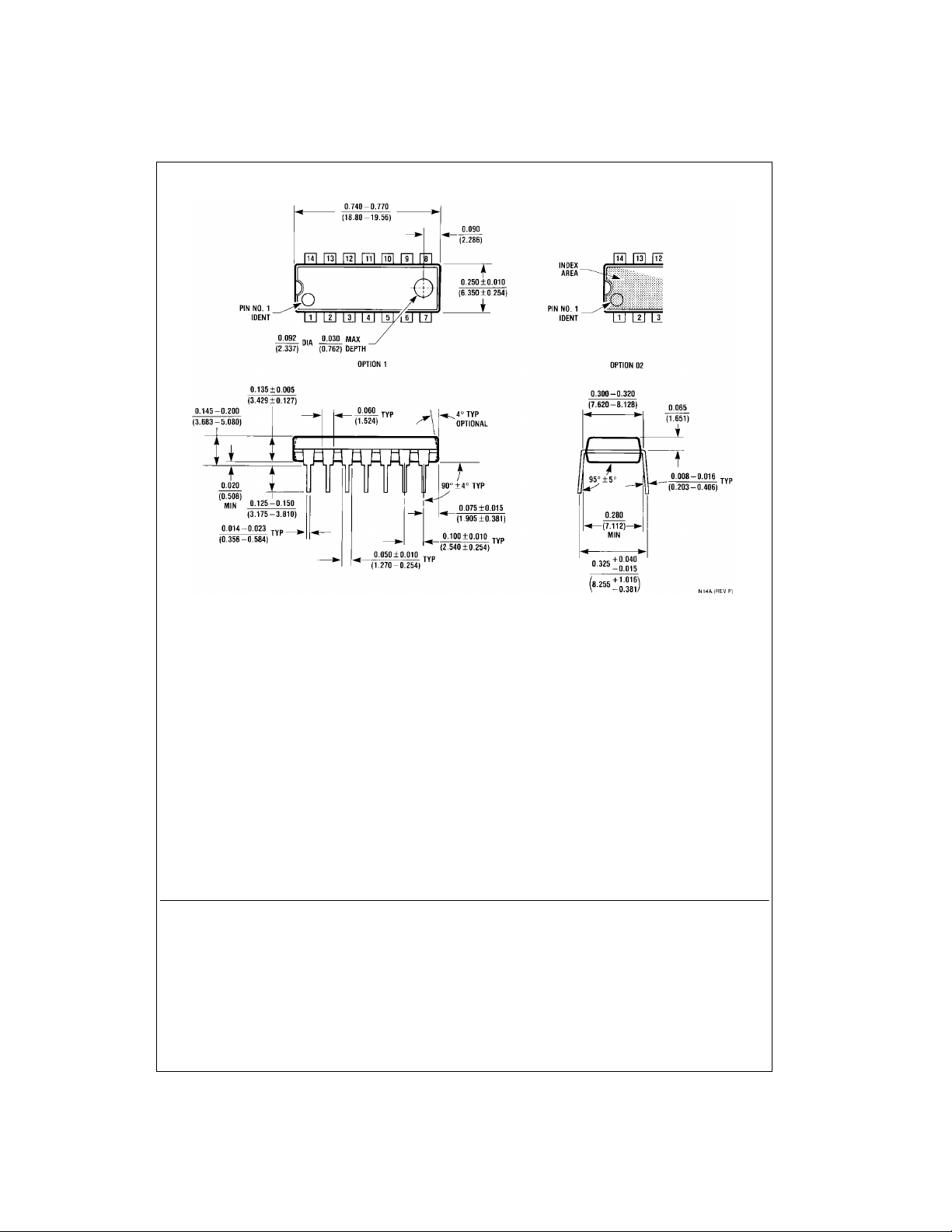

Physical Dimensions inches (millimeters) unless otherwise noted
DM7402 Quad 2-Input NOR Gates
14-Lead Plastic Dual-In-Line Package (PDIP), JEDEC MS-001, 0.300 Wide
Fairchild does not assume any responsibility for use of any circuitry described, no circuit patent license s are implied and
Fairchild reserves the right at any time without notice to change said circuitry and specifications.
LIFE SUPPORT POLICY
FAIRCHILD’S PRODUCTS ARE NOT AUTHORIZED FOR USE AS CRITICAL COMPONENTS IN LIFE SUPPORT
DEVICES OR SYSTEMS WITHOUT THE EXPRESS WRITTEN APPROVAL OF THE PRESIDENT OF FAIRCHILD
SEMICONDUCTOR CORPORATION. As used herein:
1. Life support devices or systems are devices or systems
which, (a) are intended for surgical implant into the
body, or (b) support or sustain life, and (c) whose failure
to perform when properly used in accordance with
instructions for use provide d in the labe l ing, can be re asonably expected to result in a significant injury to the
user.
Package Number N14A
2. A critical componen t in any compo nent o f a lif e supp ort
device or system whose failu re to perform can b e reasonably expected to cause the failure of the life support
device or system, or to affect its safety or effectiveness.
