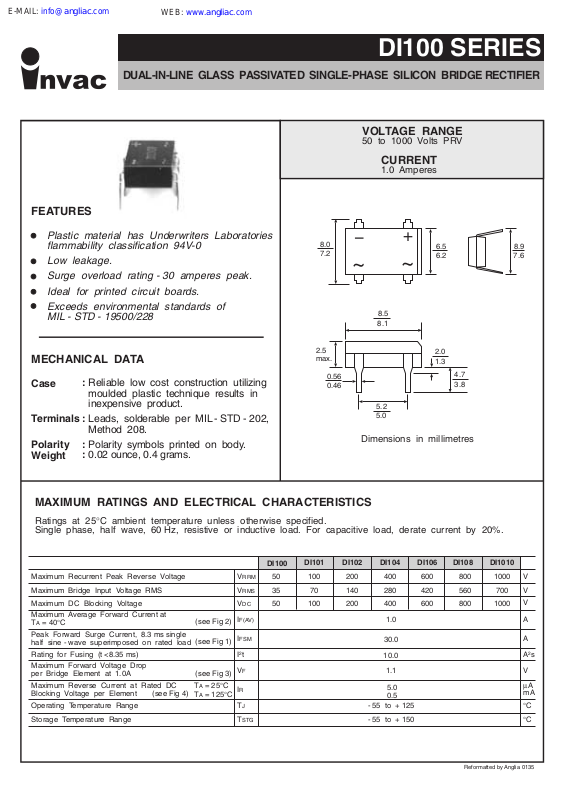

Page 1
FEATURES
E-MAIL: info@angliac.com
WEB: www.angliac.com
DI100 SERIES
DUAL-IN-LINE GLASS PASSIVATED SINGLE-PHASE SILICON BRIDGE RECTIFIER
VOLTAGE RANGE
50 to 1000 Volts PRV
CURRENT
1.0 Amperes
Plastic material has Underwriters Laboratories
flammability classification 94V-0
Low leakage.
8.0
7.2
~
Surge overload rating - 30 amperes peak.
Ideal for printed circuit boards.
Exceeds environmental standards of
MIL - STD - 19500/228
2.5
MECHANICAL DATA
Case
: Reliable low cost construction utilizing
max.
0.56
0.46
: moulded plastic technique results in
: inexpensive product.
Terminals
: Leads, solderable per MIL - STD - 202,
: Method 208.
Polarity
Weight
: Polarity symbols printed on body.
: 0.02 ounce, 0.4 grams.
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
+
6.5
6.2
~
8.5
8.1
2.0
1.3
4.7
3.8
5.2
5.0
Dimensions in millimetres
8.9
7.6
Ratings at 25°C ambient temperature unless otherwise specified.
Single phase, half wave, 60 Hz, resistive or inductive load. For capacitive load, derate current by 20%.
Maximum Recurrent Peak Reverse Voltage
Maximum Bridge Input Voltage RMS
Maximum DC Blocking Voltage
Maximum Average Forward Current at
A
T = 40°C
Peak Forward Surge Current, 8.3 ms single
half sine - wave superimposed on rated load
Rating for Fusing (t <8.35 ms)
Maximum Forward Voltage Drop
per Bridge Element at 1.0A
Maximum Reverse Current at Rated DC
Blocking Voltage per Element
Operating Temperature Range
Storage Temperature Range
(see Fig 4)
(see Fig 2)
(see Fig 1)
(see Fig 3)
T
A = 25°C
T
A = 125°C
RRM
V
VRMS
VDC
F(AV)
IFSM
2
t
I
VF
IR
TJ
TSTG
DI100
DI101 DI102 DI104 DI106 DI108 DI1010
50
35 70 140 280 420 560 700
50
100
100
200
200
400
400
1.0
30.0
10.0
1.1
5.0
0.5
- 55 to + 125
- 55 to + 150
600
600
800
800
Reformatted by Anglia 0135
1000
1000
V
V
V
AI
A
A
V
µA
mA
°C
°C
2
s
Page 2
RATING AND CHARACTERISTIC CURVES
E-MAIL: info@angliac.com
WEB: www.angliac.com
DI100 SERIES
FIG 1 : MAXIMUM NON-REPETITIVE
SURGE CURRENT PER ELEMENT
60
50
40
30
20
PEAK FORWARD SURGE
CURRENT AMPERES
10
0
1 10 100
8.3 ms Single Half Sine Wave
NUMBER OF CYCLES AT 60Hz
FIG. 2 : DERATING CURVE FOR
RECTIFIED OUTPUT CURRENT
1.0
0.5
AVERAGE FORWARD OUTPUT
CURRENT, AMPERES
0
20 40 60 80 100 120 140
Resistive or
Inductive
Load
AMBIENT TEMPERATURE °C
10
1.0
0.1
INSTANTANEOUS FORWARD
CURRENT, AMPERES
.01
FIG 3 : TYPICAL FORWARD
CHARACTERISTICS PER ELEMENT
TA = 25°C
Pulse Width = 200µs
0.4 0.6 0.8 1.0 1.2 1.4
INSTANTANEOUS FORWARD
VOLTAGE, VOLTS
FIG 4 : TYPICAL REVERSE
CHARACTERISTICS PER ELEMENT
10
1.0
0.1
INSTANTANEOUS REVERSE
CURRENT, MICROAMPERES
0.01
T = 100°C
A
T = 25°C
A
20 40 60 80 100 120
PERCENT OF RATED PEAK
REVERSE VOLTAGE
Reformatted by Anglia 0112
