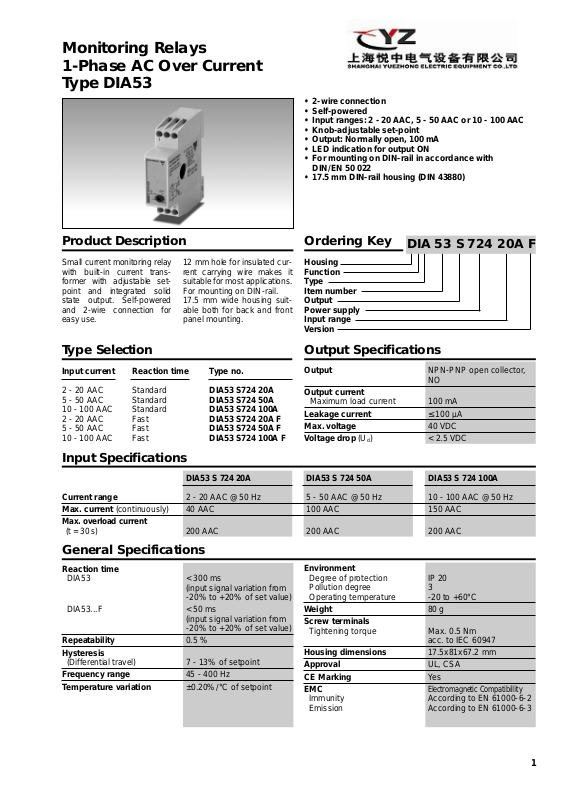

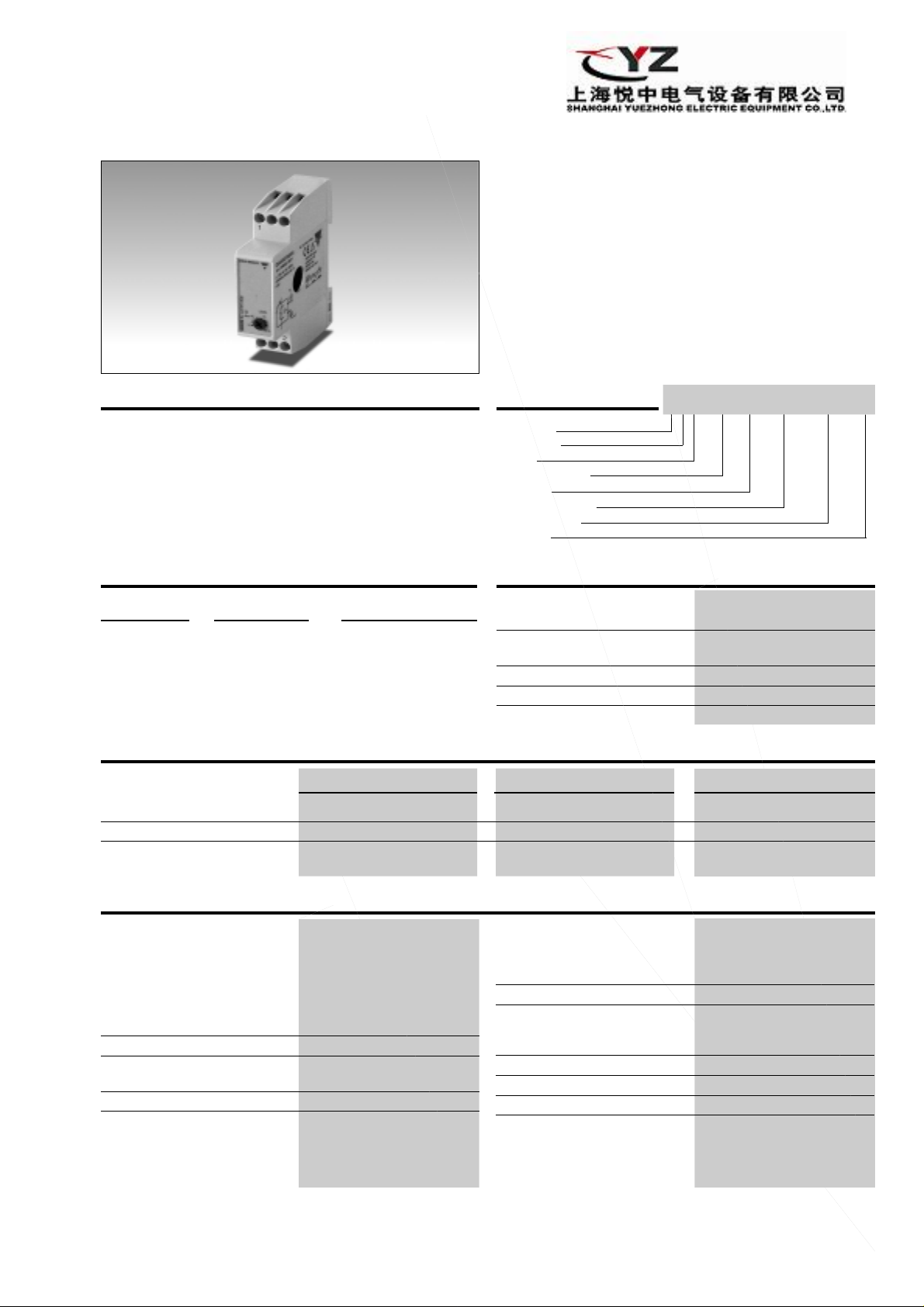

Monitoring Relays
1-Phase AC Over Current
Type DIA53

• 2-wire connection

• Self-powered

• Input ranges: 2 - 20 AAC, 5 - 50 AAC or 10 - 100 AAC

• Knob-adjustable set-point

• Output: Normally open, 100 mA

• LED indication for output ON

• For mounting on DIN-rail in accordance with
DIN/EN 50 022

• 17.5 mm DIN-rail housing (DIN 43880)

Product Description

Small current monitoring relay
with built-in current trans­former with adjustable set­point and integrated solid
state output. Self-powered
and 2-wire connection for
easy use.

12 mm hole for insulated cur­rent carrying wire makes it
suitable for most applications.
For mounting on DIN-rail.

17.5 mm wide housing suit­able both for back and front
panel mounting.

Type Selection

Input current Reaction time Type no.

2 - 20 AAC Standard DIA53 S724 20A
5 - 50 AAC Standard DIA53 S724 50A
10 - 100 AAC Standard DIA53 S724 100A
2 - 20 AAC Fast DIA53 S724 20A F
5 - 50 AAC Fast DIA53 S724 50A F
10 - 100 AAC Fast DIA53 S724 100A F

Ordering Key

Housing
Function
Type
Item number
Output
Power supply
Input range
Version

DIA 53 S 724 20A F

Output Specifications

Output

Output current

Maximum load current 100 mA

Leakage current ≤ 100 µA
Max. voltage 40 VDC
Voltage drop (U

) < 2.5 VDC

d

NPN-PNP open collector,
NO

Input Specifications

DIA53 S 724 20A DIA53 S 724 50A DIA53 S 724 100A

Current range
Max. current (continuously) 40 AAC 100 AAC 150 AAC
Max. overload current

(t = 30 s)

2 - 20 AAC @ 50 Hz 5 - 50 AAC @ 50 Hz 10 - 100 AAC @ 50 Hz

200 AAC 200 AAC 200 AAC

General Specifications

Reaction time

DIA53 < 300 ms

DIA53...F < 50 ms

Repeatability
Hysteresis

(Differential travel) 7 - 13% of setpoint

Frequency range 45 - 400 Hz
Temperature variation ±0.20%/°C of setpoint

(input signal variation from

-20% to +20% of set value)

(input signal variation from

-20% to +20% of set value)

0.5 %

Environment

Degree of protection IP 20
Pollution degree 3
Operating temperature -20 to +60°C

Weight 80 g
Screw terminals

Tightening torque Max. 0.5 Nm

Housing dimensions 17.5x81x67.2 mm
Approval UL, CSA
CE Marking Yes
EMC

Immunity According to EN 61000-6-2
Emission According to EN 61000-6-3

acc. to IEC 60947

Electromagnetic Compatibillity

1

DIA53

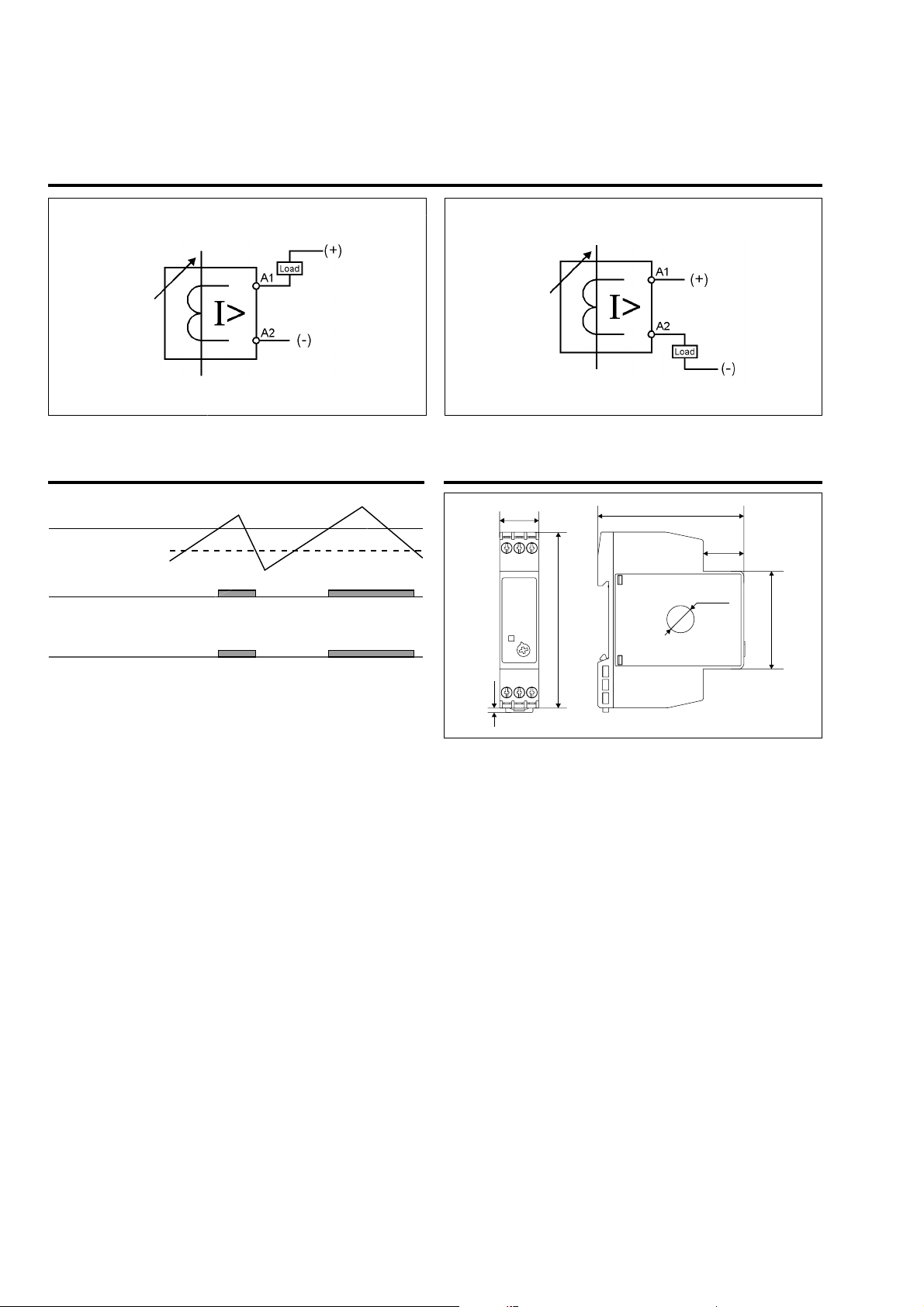

Wiring Diagrams

Operation Diagram

Set level
Hysteresis

Output ON

LED ON

Dimensions

17.5

2

81

67.2

ø

18.7

12

45

2
