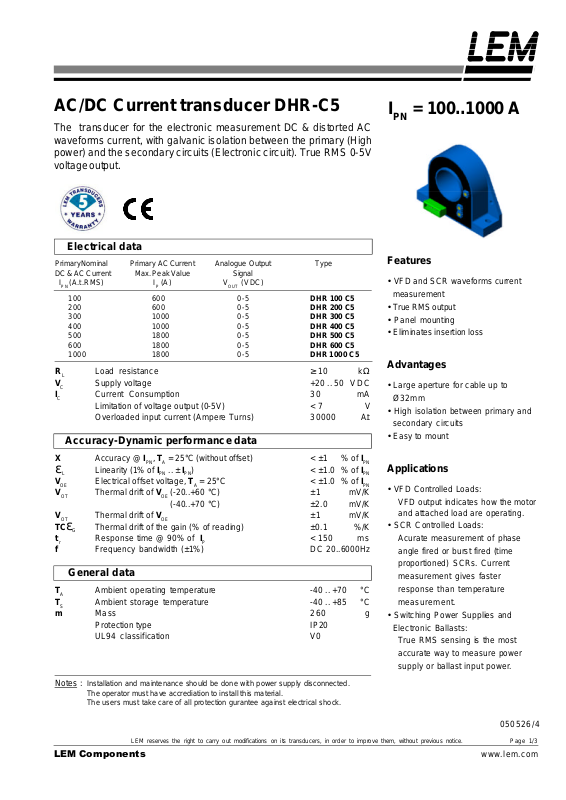

AC/DC Current transducer DHR-C5
The transducer for the electronic measurement DC & distorted AC
waveforms current, with galvanic isolation between the primary (High
power) and the secondary circuits (Electronic circuit). True RMS 0-5V
voltage output.
Electrical data
Primary Nominal Primary AC Current Analogue Output Type
DC & AC Current Max. Peak Value Signal
IPN (A.t.RMS) IP (A) V
100 600 0-5 DHR 100 C5
200 600 0-5 DHR 200 C5
300 1000 0-5 DHR 300 C5
400 1000 0-5 DHR 400 C5
500 1800 0-5 DHR 500 C5
600 1800 0-5 DHR 600 C5
1000 1800 0-5 DHR 1000 C5
R
L
V
C
I
C
Load resistance ≥ 10 kΩ
Supply voltage +20 .. 50 V DC
Current Consumption 30 mA
Limitation of voltage output (0-5V) < 7 V
Overloaded input current (Ampere Turns) 30000 A.t
Accuracy-Dynamic performance data
OUT
(VDC)
IPN = 100..1000 A
Features
• VFD and SCR waveforms current
measurement
• True RMS output
• Panel mounting
• Eliminates insertion loss
Advantages
• Large aperture for cable up to
Ø32mm
• High isolation between primary and
secondary circuits
• Easy to mount
X Accuracy @ IPN, TA = 25°C (without offset) < ±1 % of I
ε
L
V
OE
V
OT
Linearity (1% of IPN .. ± IPN) < ±1.0 % of I
Electrical offset voltage, TA = 25°C < ±1.0 % of I
Thermal drift of VOE(-20..+60 °C) ±1 mV/K
(-40..+70 °C) ±2.0 mV/K
V
OT
TCε
t
r
Thermal drift of V
Thermal drift of the gain (% of reading) ±0.1 %/K
G
Response time @ 90% of I
OE
P
±1 mV/K
< 150 m s
f Frequency bandwidth (±1%) DC 20..6000Hz
PN
Applications
PN
PN
• VFD Controlled Loads:
VFD output indicates how the motor
and attached load are operating.
• SCR Controlled Loads:
Acurate measurement of phase
angle fired or burst fired (time
proportioned) SCRs. Current
General data
T
A
T
S
m Mass 260 g
Ambient operating temperature -40 .. +70 °C
Ambient storage temperature -40 .. +85 °C
Protection type IP20
UL94 classification V0
measurement gives faster
response than temperature
measurement.
• Switching Power Supplies and
Electronic Ballasts:
True RMS sensing is the most
accurate way to measure power
supply or ballast input power.
Notes : Installation and maintenance should be done with power supply disconnected.
The operator must have accrediation to install this material.
The users must take care of all protection gurantee against electrical shock.
050526/4
LEM reserves the right to carry out modifications on its transducers, in order to improve them, without previous notice. Page 1/3
LEM Components www.lem.com
Page 2
Current Transducer DHR-C5
Isolation characteristics
V
b
Rated Voltage 1000 V
with IEC 61010-1 acc. to the 61326 standards and following conditions :
- Single insulation
- Over voltage category CAT III
- Pollution degree PD2
- None uniform field
V
d
R.m.s. voltage for AC insulation test, 50Hz, 1min 5 kV
dCp Creepage distance 11 mm
dCl Clearance distance 11 mm
CTI Comparative tracking index (Group I) 600
Notes :
Output polarity with DC input
Output in V
5
+Ipn-Ipn
0
050526/4
LEM reserves the right to carry out modifications on its transducers, in order to improve them, without previous notice. Page 2/3
LEM Components www.lem.com
Page 3
+24VDC
+24VDC
Dimensions DHR-C5 (in mm. 1 mm = 0.0394 inch)
DHR
(+)
(-)
24 VDC Power
(-)
(+)
70
60
2
3
6.80
5
5
1
2
0
8
.
0
3
6
3
.
4
22.28
0
3
.
0
8
8
.
6
90
25
0
6
.
4
0
7
0
4
0
1
0
5
.
2
7
4
6
Connections
• Wires up to 2 mm ∅
78
Mechanical characteristics
• General tolerance ±1 mm
• Primary aperture ∅ 32.0 mm
• Panel mounting 4 holes ∅ 4.6 mm
• Distance between holes 70.0 mm & 78 mm
(see above dimensions)
Output Connector
1(+) 2(none) 3(out) 4(GND)
For panel mounting, replace M4 screws by new one (not supplied)
with appropriate length to panel´s thickness.
Safety
10k
Load
(Controller, meter etc)
Is
Is
OUT
Ip
Ip
LEM reserves the right to carry out modifications on its transducers, in order to improve them, without previous notice. Page 3/3
OUT
GND
GND
LEM Components www.lem.com
This transducer must be used in electric/electronic equipment
with respect to applicable standards and safety requirements
in accordance with the following manufacturer's operating
instructions.
Caution, risk of electrical shock
When operating the transducer, certain parts of the module can
carry hazardous voltage (eg. primary busbar, power supply).
Ignoring this warning can lead to injury and/or cause serious
damage.
This transducer is a built-in device, whose conducting parts
must be inaccessible after installation.
A protective housing or additional shield could be used.
Main supply must be able to be disconnected.
050526/4
