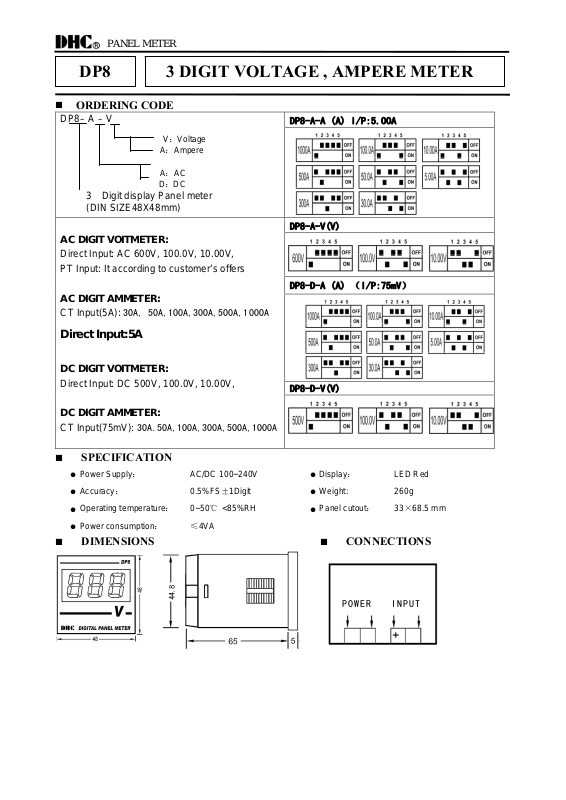

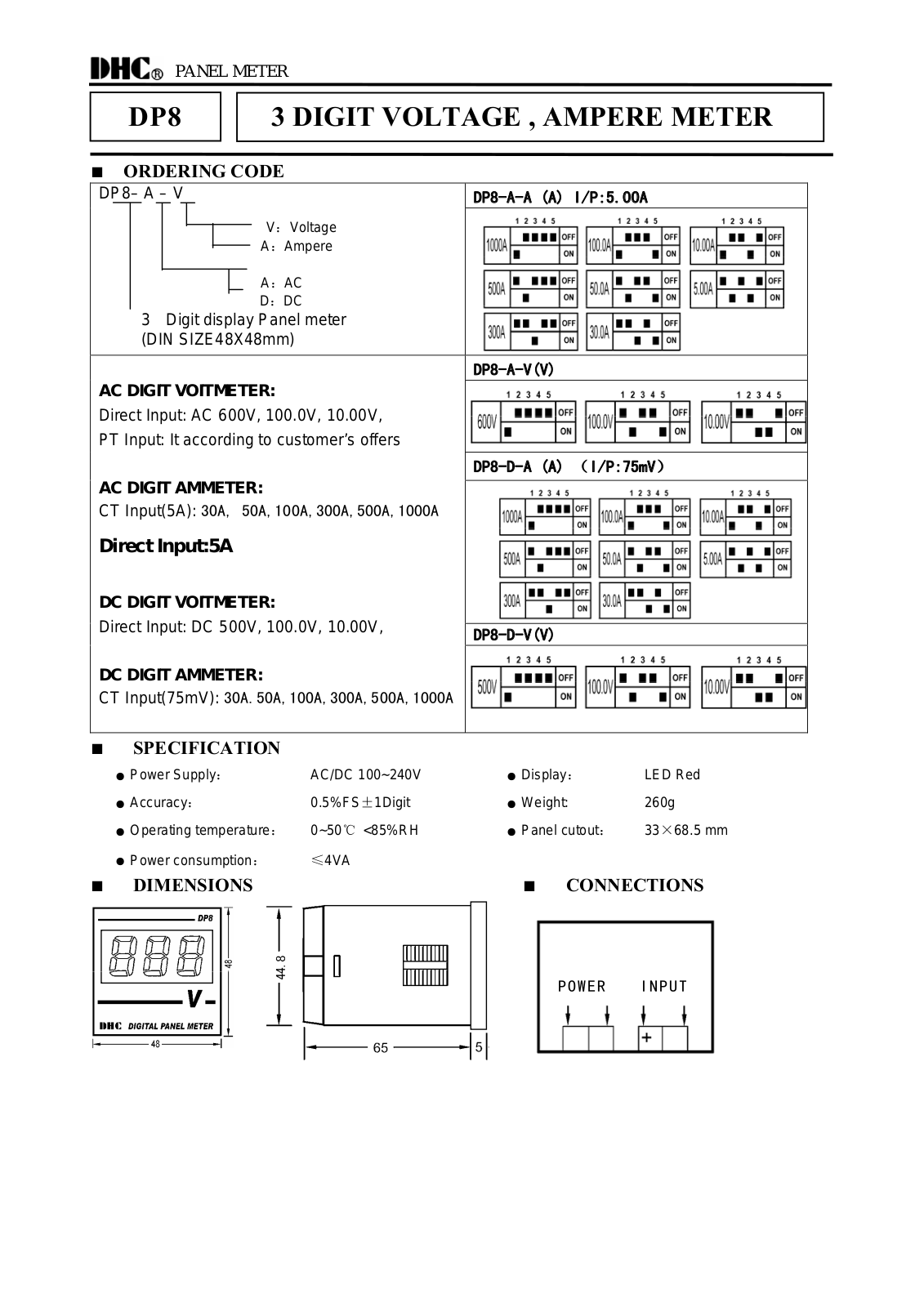

PANEL METER
DP8
■
ORDERING CODE
DP8– A – V
V：Voltage
A：Ampere
A：AC
D：DC
AC DIGIT VOITMETER:
Direct Input: AC 600V, 100.0V, 10.00V,
PT Input: It according to customer’s offers
AC DIGIT AMMETER:
CT Input(5A): 30A, 50A,100A,300A,500A,1000A
3 Digit display Panel meter
(DIN SIZE48X48mm)
3 DIGIT VOLTAGE , AMPERE METER
Direct Input:5A
DP8-A-A (A) I/P:5.00A
DP8-A-V(V)
DP8-D-A (A) （I/P:75mV）
DC DIGIT VOITMETER:
Direct Input: DC 500V, 100.0V, 10.00V,
DC DIGIT AMMETER:
CT Input(75mV): 30A.50A,100A,300A,500A,1000A
DP8-D-V(V)
■ SPECIFICATION
Power Supply：
●
Accuracy： 0.5%FS±1Digit
●
Operating temperature： 0~50℃ <85%RH
●
● Power consumption： ≤4VA
DIMENSIONS ■ CONNECTIONS
■
AC/DC 100~240V
Display：
●
Weight: 260g
●
Panel cutout： 33×68.5 mm
●
LED Red
POWER INPUT
