Datasheet DE2F3KY103MN3AM0 Specification

Reference Specification

Type KY

(Safety standard certified ceramic capacitor)

Product specifications in this catalog are as of Dec. 2016, and are subject to change or
obsolescence without notice.
Please consult the approval sheet before ordering.Please read rating and Cautions first.

Reference only

p

p

CAUTION

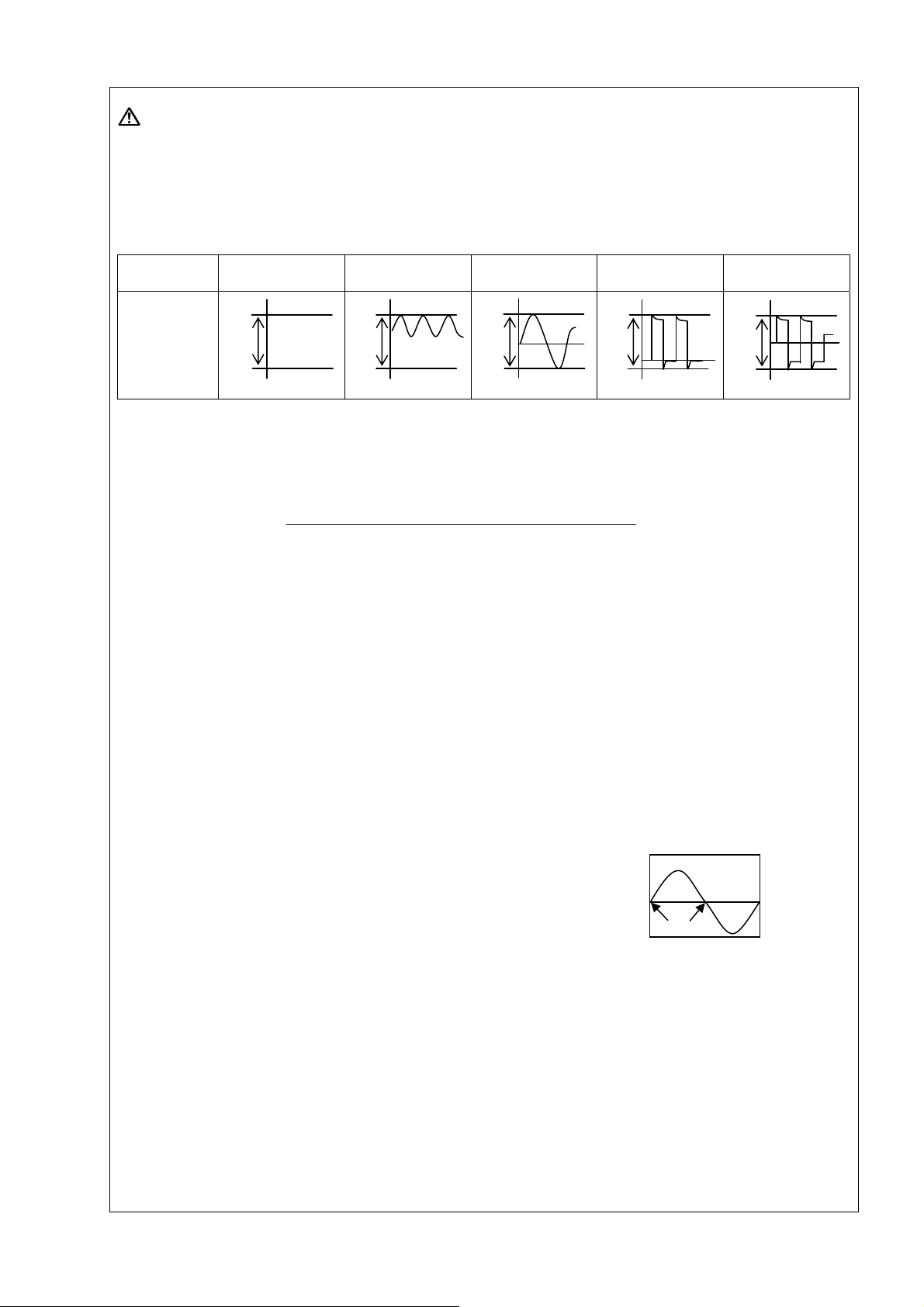

1. OPERATING VOLTAGE

When DC-rated capacitors are to be used in AC or ripple current circuits, be sure to maintain the
Vp-p value of the applied voltage or the Vo-p which contains DC bias within the rated voltage range.
When the voltage is started to apply to the circuit or it is stopped applying, the irregular voltage may
be generated for a transit period because of resonance or switching. Be sure to use a capacitor
within rated voltage containing these irregular voltage.

Voltage DC Voltage DC+AC Voltage AC Voltage

Positional

Measurement

Vo-p

Vo-p

Vp-

2. OPERATING TEMPERATURE AND SELF-GENERATED HEAT

Keep the surface temperature of a capacitor below the upper limit of its rated operating temperature
range. Be sure to take into account the heat generated by the capacitor itself.
When the capacitor is used in a high-frequency current, pulse current or the like, it may have the self­generated heat due to dielectric-loss. Applied voltage should be the load such as self-generated
heat is within 20 C on the condition of atmosphere temperature 25 C.
thermocouple of small thermal capacity-K of 0.1mm and be in the condition where capacitor is not
affected by radiant heat of other components and wind of surroundings. Excessive heat may lead to
deterioration of the capacitor’s characteristics and reliability.(Never attempt to perform measurement
with the cooling fan running. Otherwise, accurate measurement cannot be ensured.)

3. TEST CONDITION FOR WITHSTANDING VOLTAGE

(1) TEST EQUIPMENT

Test equipment for AC withstanding voltage should be used with the performance of the wave similar
to 50/60 Hz sine wave.
If the distorted sine wave or over load exceeding the specified voltage value is applied, the defective
may be caused.

(2) VOLTAGE APPLIED METHOD

When the withstanding voltage is applied, capacitor’s lead or terminal should be firmly connected
to the out-put of the withstanding voltage test equipment, and then the voltage should be raised
from near zero to the test voltage.
If the test voltage without the raise from near zero voltage would be applied directly to capacitor, test
voltage should be applied with the *zero cross. At the end of the test time, the test voltage should be
reduced to near zero, and then capacitor’s lead or terminal should be taken off the out-put of the
withstanding voltage test equipment.
If the test voltage without the raise from near zero voltage would
be applied directly to capacitor, the surge voltage may arise,
and therefore, the defective may be caused.
*ZERO CROSS is the point where voltage sine wave pass 0V.

- See the right figure -

4. FAIL-SAFE

When capacitor would be broken, failure may result in a short circuit. Be sure to provide an
appropriate fail-safe function like a fuse on your product if failure would follow an electric shock,
fire or fume.

5. VIBRATION AND IMPACT

Do not expose a capacitor or its leads to excessive shock or vibration during use.

Pulse

Voltage(1)

Vp-

When measuring, use a

voltage sine wave

0V

zero cross

Voltage(2)

Vp-p

Pulse

EGD08E

1 / 22

Reference only

6. SOLDERING

When soldering this product to a PCB/PWB, do not exceed the solder heat resistance specification of
the capacitor. Subjecting this product to excessive heating could melt the internal junction solder and
may result in thermal shocks that can crack the ceramic element.
When soldering capacitor with a soldering iron, it should be performed in following conditions.

Temperature of iron-tip : 400 C max.
Soldering iron wattage : 50W max.
Soldering time : 3.5s max.

7. BONDING, RESIN MOLDING AND COATING

In case of bonding, molding or coating this product, verify that these processes do not affect the
quality of capacitor by testing the performance of the bonded, molded or coated product in the
intended equipment.
In case of the amount of applications, dryness / hardening conditions of adhesives and molding
resins containing organic solvents (ethyl acetate, methyl ethyl ketone, toluene, etc.) are unsuitable,
the outer coating resin of a capacitor is damaged by the organic solvents and it may result, worst
case, in a short circuit.
The variation in thickness of adhesive, molding resin or coating may cause a outer coating resin
cracking and/or ceramic element cracking of a capacitor in a temperature cycling.

8. TREATMENT AFTER BONDING, RESIN MOLDING AND COATING

When the outer coating is hot (over 100 ℃) after soldering, it becomes soft and fragile.
So please be careful not to give it mechanical stress.

Failure to follow the above cautions may result, worst case, in a short circuit and cause fuming or
partial dispersion when the product is used.

9. OPERATING AND STORAGE ENVIRONMENT

The insulating coating of capacitors does not form a perfect seal; therefore, do not use or store
capacitors in a corrosive atmosphere, especially where chloride gas, sulfide gas, acid, alkali, salt or
the like are present. And avoid exposure to moisture. Before cleaning, bonding, or molding
this product, verify that these processes do not affect product quality by testing the performance of a
cleaned, bonded or molded product in the intended equipment. Store the capacitors where the
temperature and relative humidity do not exceed -10 to 40 C and 15 to 85%.
Use capacitors within 6 months after delivered. Check the solderability after 6 months or more.

10. LIMITATION OF APPLICATIONS

Please contact us before using our products for the applications listed below which require especially
high reliability for the prevention of defects which might directly cause damage to the third party’s life,
body or property.

1. Aircraft equipment

2. Aerospace equipment

3. Undersea equipment

4. Power plant control equipment

5. Medical equipment

6. Transportation equipment (vehicles, trains, ships, etc.)

7. Traffic signal equipment

8. Disaster prevention / crime prevention equipment

9. Data-processing equipment exerting influence on public

10. Application of similar complexity and/or reliability requirements to the applications listed

in the above.

EGD08E

2 / 22

Reference only

NOTICE

1. CLEANING (ULTRASONIC CLEANING)

To perform ultrasonic cleaning, observe the following conditions.
Rinse bath capacity : Output of 20 watts per liter or less.
Rinsing time : 5 min maximum.
Do not vibrate the PCB/PWB directly.
Excessive ultrasonic cleaning may lead to fatigue destruction of the lead wires.

2. CAPACITANCE CHANGE OF CAPACITORS

 Class 1 capacitors

Capacitance might change a little depending on a surrounding temperature or an applied voltage.
Please contact us if you use for the strict time constant circuit.

 Class 2 and 3 capacitors

Class 2 and 3 capacitors like temperature characteristic B, E and F have an aging characteristic,
whereby the capacitor continually decreases its capacitance slightly if the capacitor leaves for a long
time. Moreover, capacitance might change greatly depending on a surrounding temperature or an
applied voltage. So, it is not likely to be able to use for the time constant circuit.
Please contact us if you need a detail information.

3. PERFORMANCE CHECK BY EQUIPMENT

Before using a capacitor, check that there is no problem in the equipment's performance and the
specifications.
Generally speaking, CLASS 2 ceramic capacitors have voltage dependence characteristics and
temperature dependence characteristics in capacitance. So, the capacitance value may change
depending on the operating condition in a equipment. Therefore, be sure to confirm the apparatus
performance of receiving influence in a capacitance value change of a capacitor, such as leakage
current and noise suppression characteristic.
Moreover, check the surge-proof ability of a capacitor in the equipment, if needed, because the surge
voltage may exceed specific value by the inductance of the circuit.

NOTE

1.Please make sure that your product has been evaluated in view of your specifications with our
product being mounted to your product.

2.You are requested not to use our product deviating from this specification.

EGD08E

3 / 22

Reference only

1. Application
This specification is applied to following safety standard certified ceramic capacitor Type KY.
Type KY is Safety Standard Certified disc ceramic capacitor of Class X1,Y2.
Do not use these products in any automotive power train or safety equipment including battery chargers
for electric vehicles and plug-in hybrids.

Approval standard and certified number

Standard number *Certified number

UL UL60384-14 E37921

CSA CSA E60384-14 1283280

VDE IEC60384-14, EN60384-14 40006273

EN60065 (8.8,14.2),

BSI

SEMKO

DEMKO D-05317

FIMKO FI 29603

NEMKO P16221234

ESTI 15.0076

NSW IEC60384-14, AS3250 6824

IEC60384-14,

EN60384-14

IEC60384-14,

EN60384-14

KM37901

1612608

AC Rated volt.

V(r.m.s.)

X1:250
Y2:250

CQC GB/T6346.14 CQC06001017447

*Above Certified number may be changed on account of the revision of standards and
the renewal of certification.

2. Rating

2-1. Operating temperature range

-40  +125C

(-25  +125C is certified in safety certificates except UL and VDE.)

2-2. Part number configuration

ex.) DE2
Product Temperature Type Capacitance Capacitance Lead Packing Individual
code characteristic name tolerance code style code specification

 Product code
DE2 denotes class X1,Y2.

Temperature characteristic

Please confirm detailed specification on  Specification and test methods .

 Type name
This denotes safety certified type name Type KY.

E3 KY 472 M A2 B M01F .

Code Temperature characteristic

1X SL
B3 B
E3 E
F3 F

ETKY04F

4 / 22

Reference only

 Capacitance
The first two digits denote significant figures ; the last digit denotes the multiplier of 10 in pF.
ex.) In case of 472.
4710

 Capacitance tolerance
Please refer to  Part number list .

 Lead code

Code Lead style

A
B

J

N

 Please refer to  Part number list .

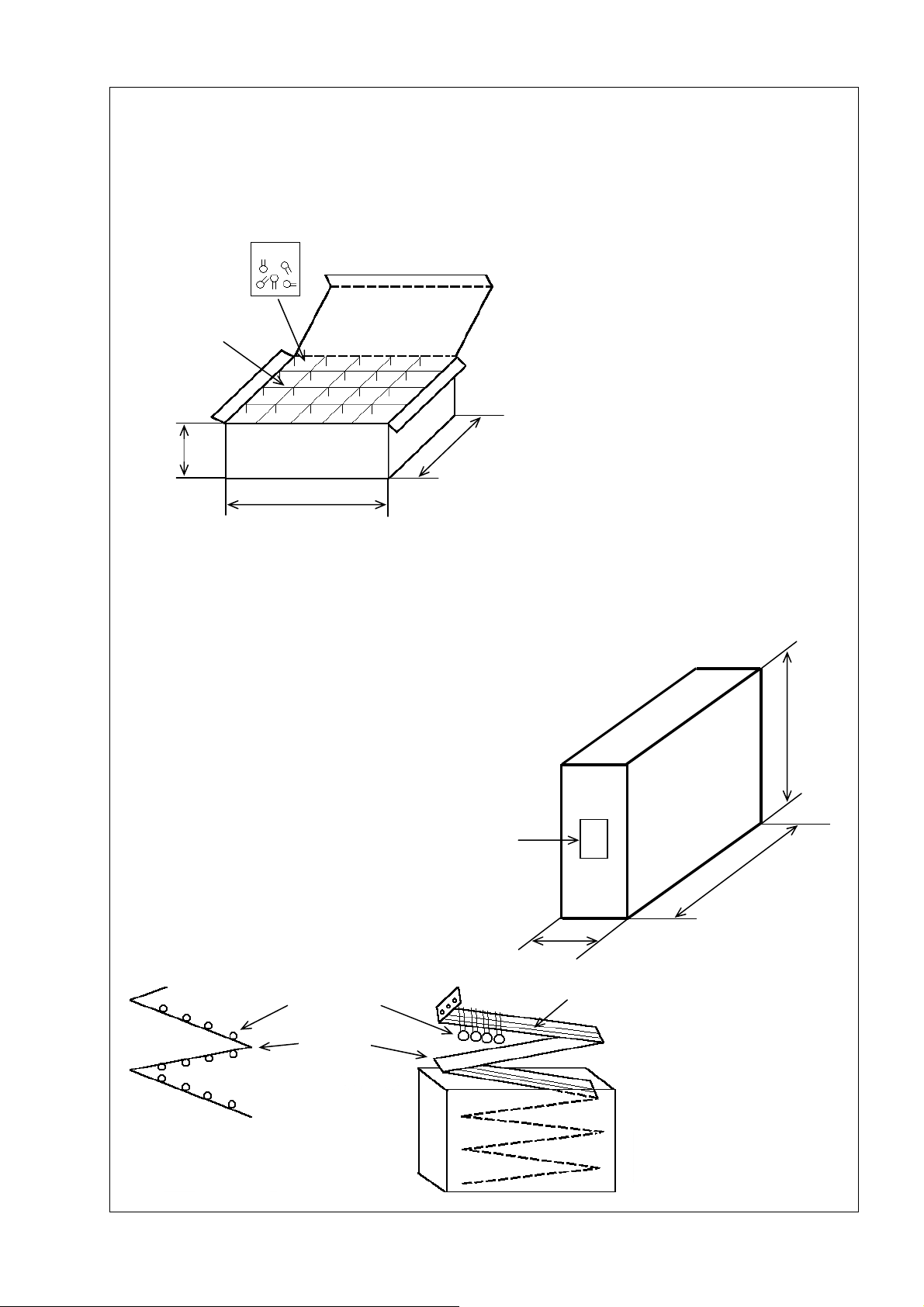

 Packing style code

Code Packing type

B Bulk type
A Ammo pack taping type

 Individual specification
In case part number cannot be identified without ‘individual specification’ , it is added at
the end of part number.

Code Specification

M01F

M02F

Note) Murata part numbers might be changed depending on lead code or any other changes.
Therefore, please specify only the type name(KY) and capacitance of products in the
parts list when it is required for applying safety standard of electric equipment.

2

= 4700pF

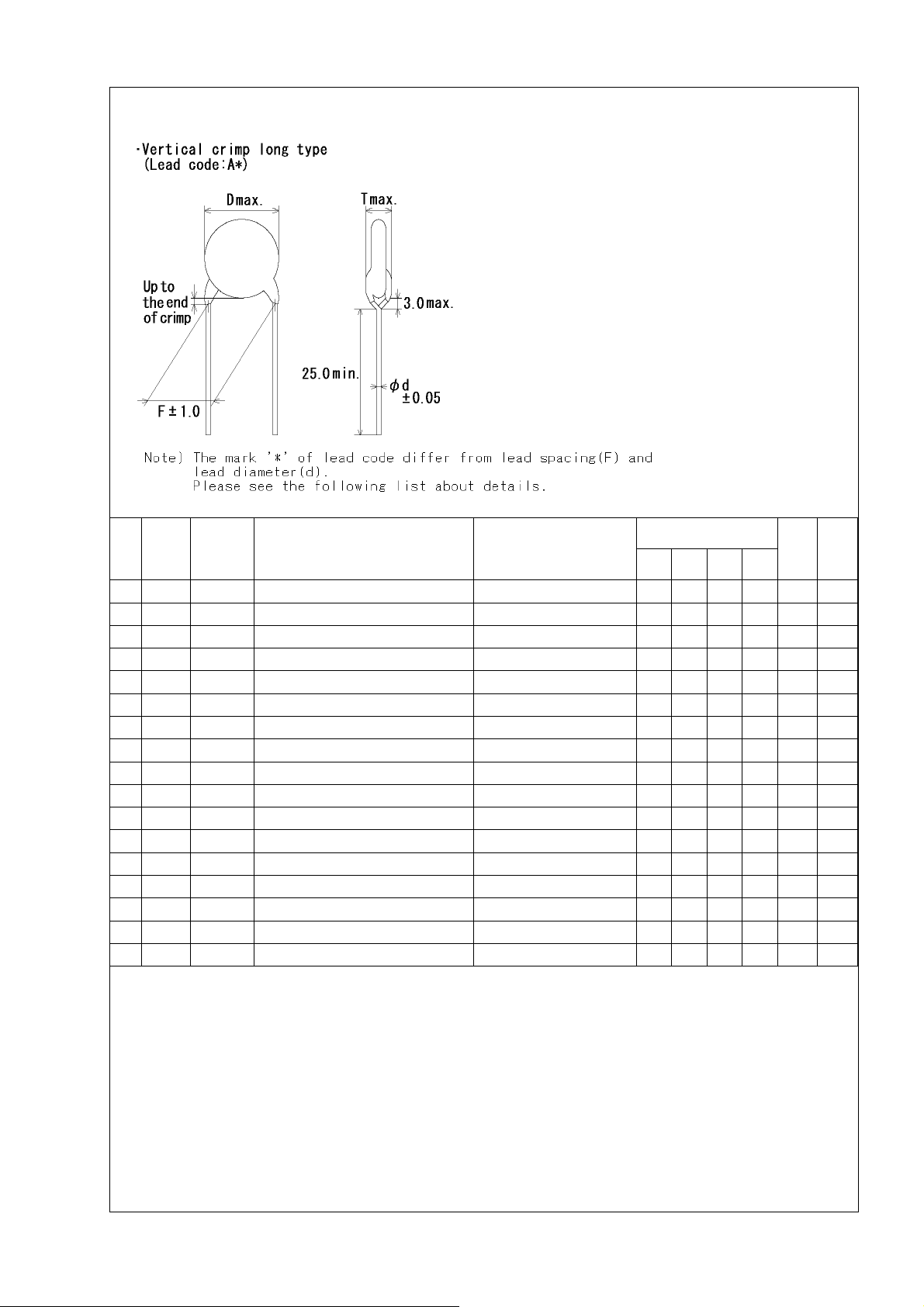

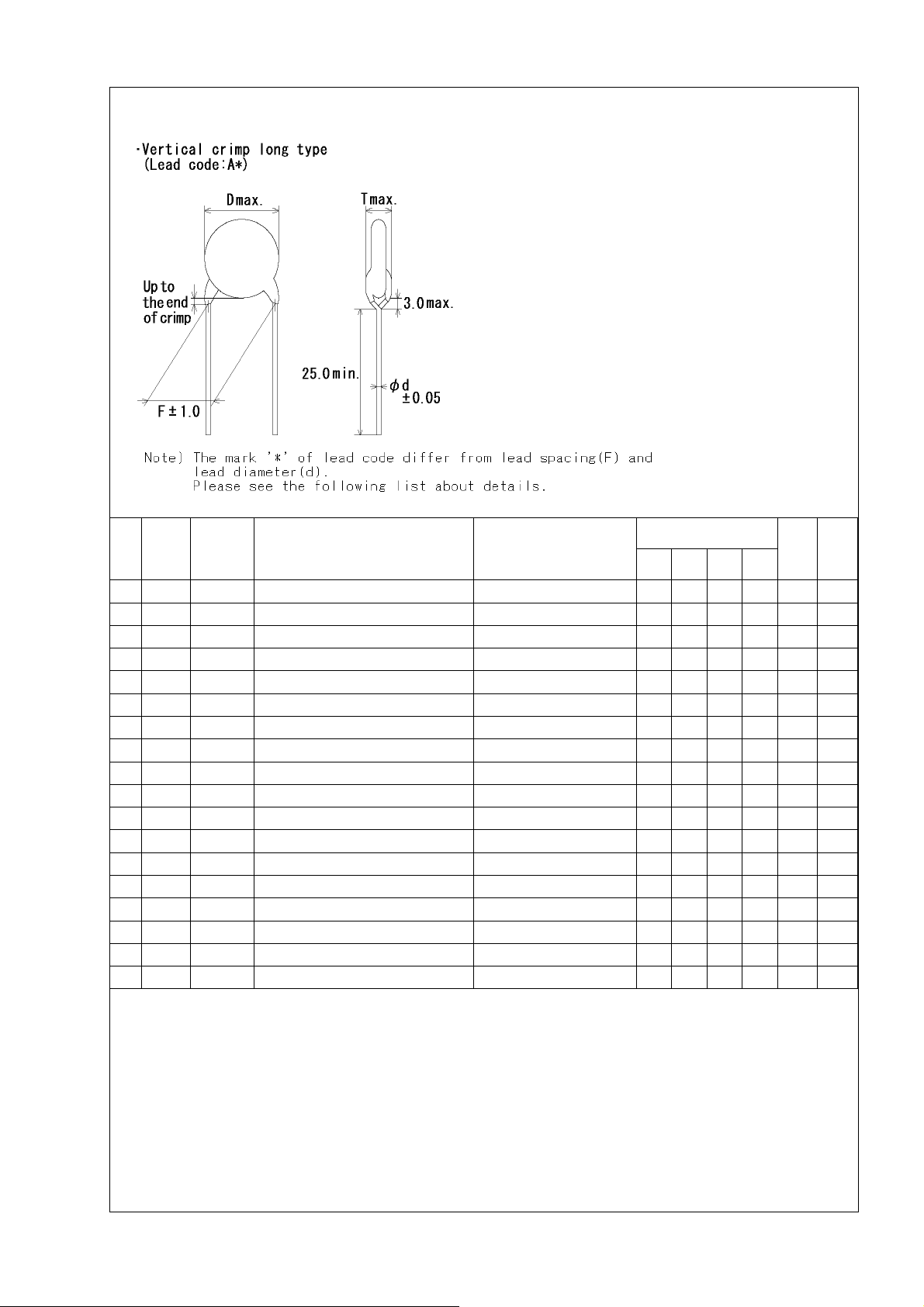

Vertical crimp long type

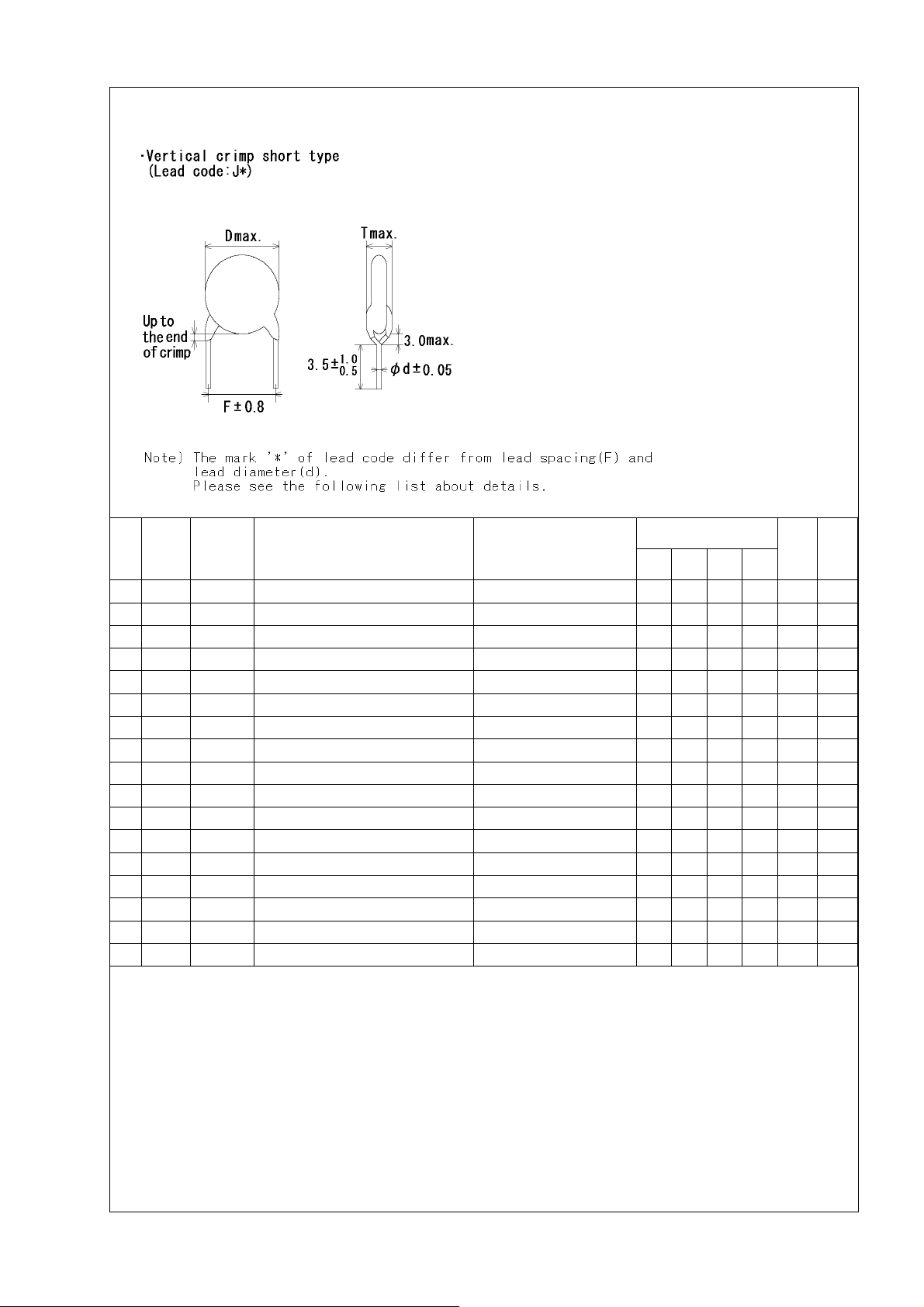

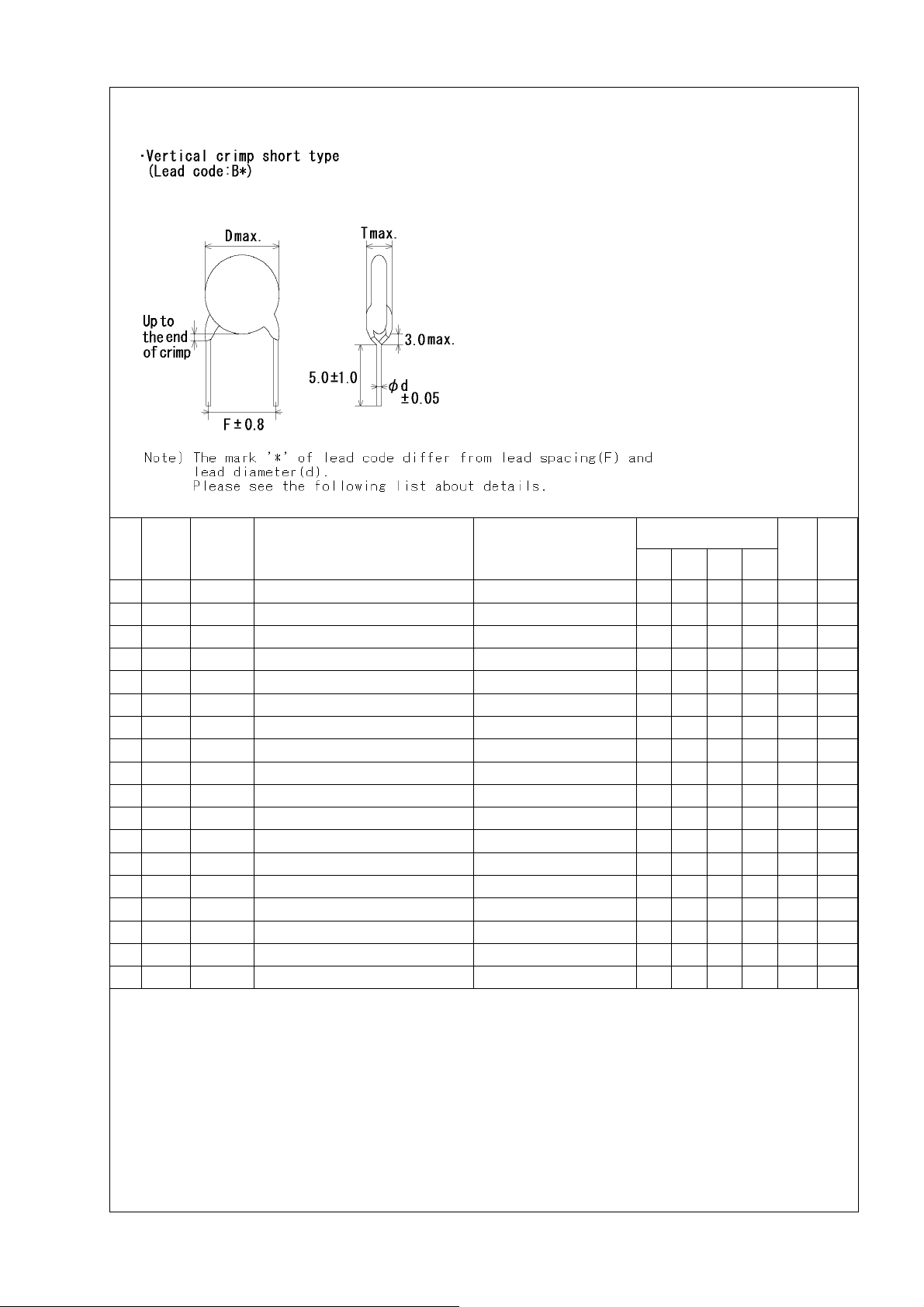

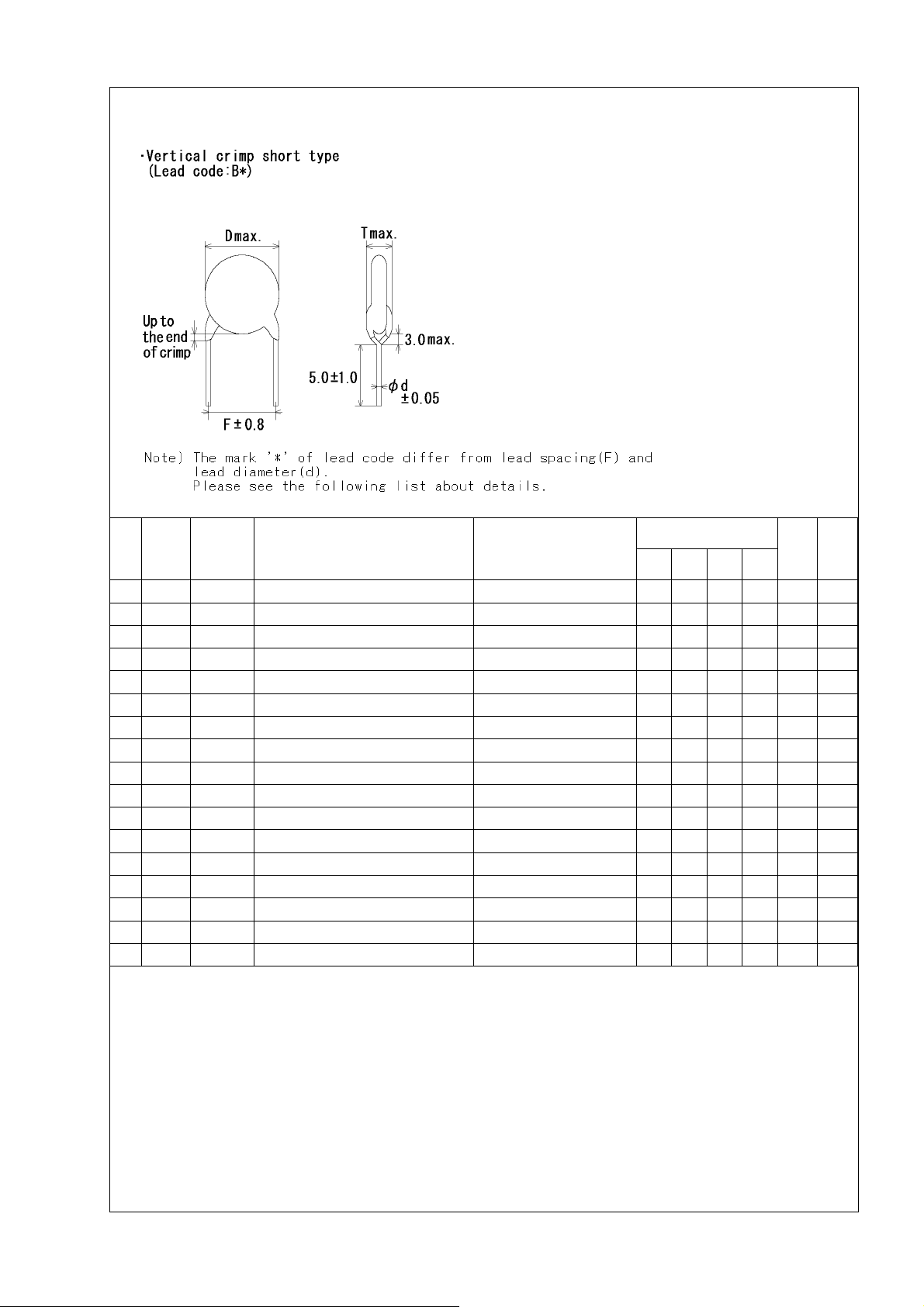

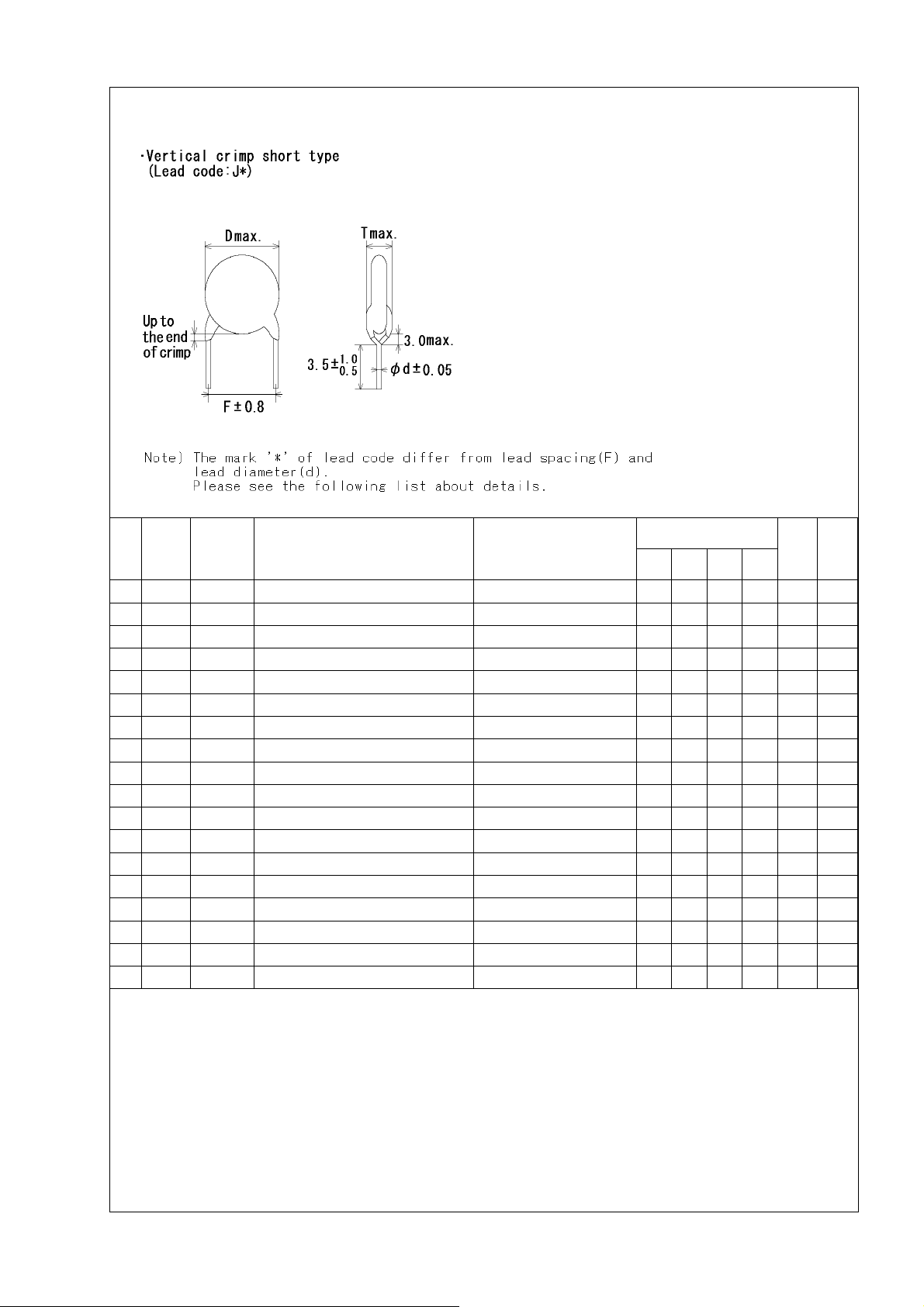

Vertical crimp short type

Lead Length：5mm
Lead Length：3.5mm

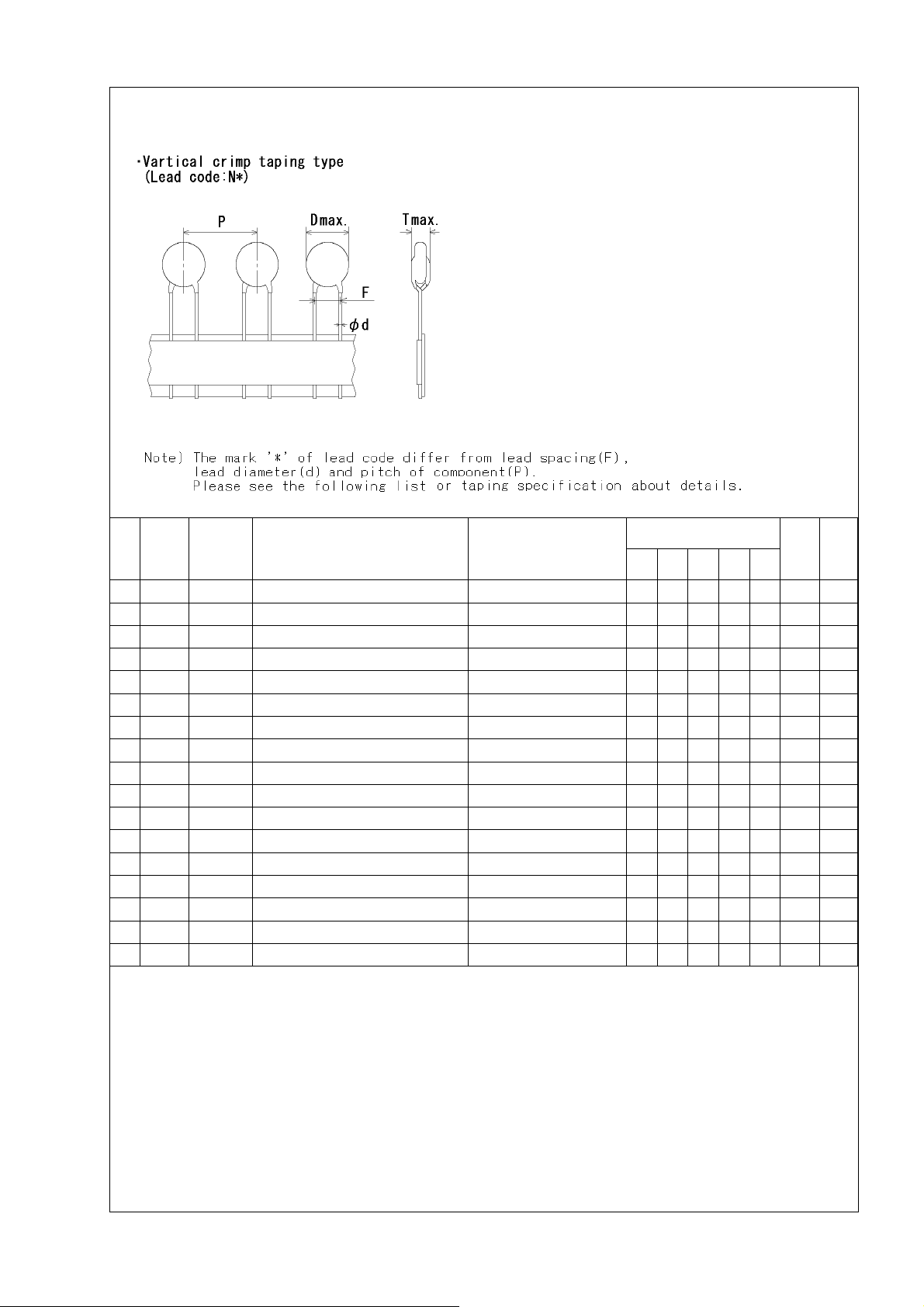

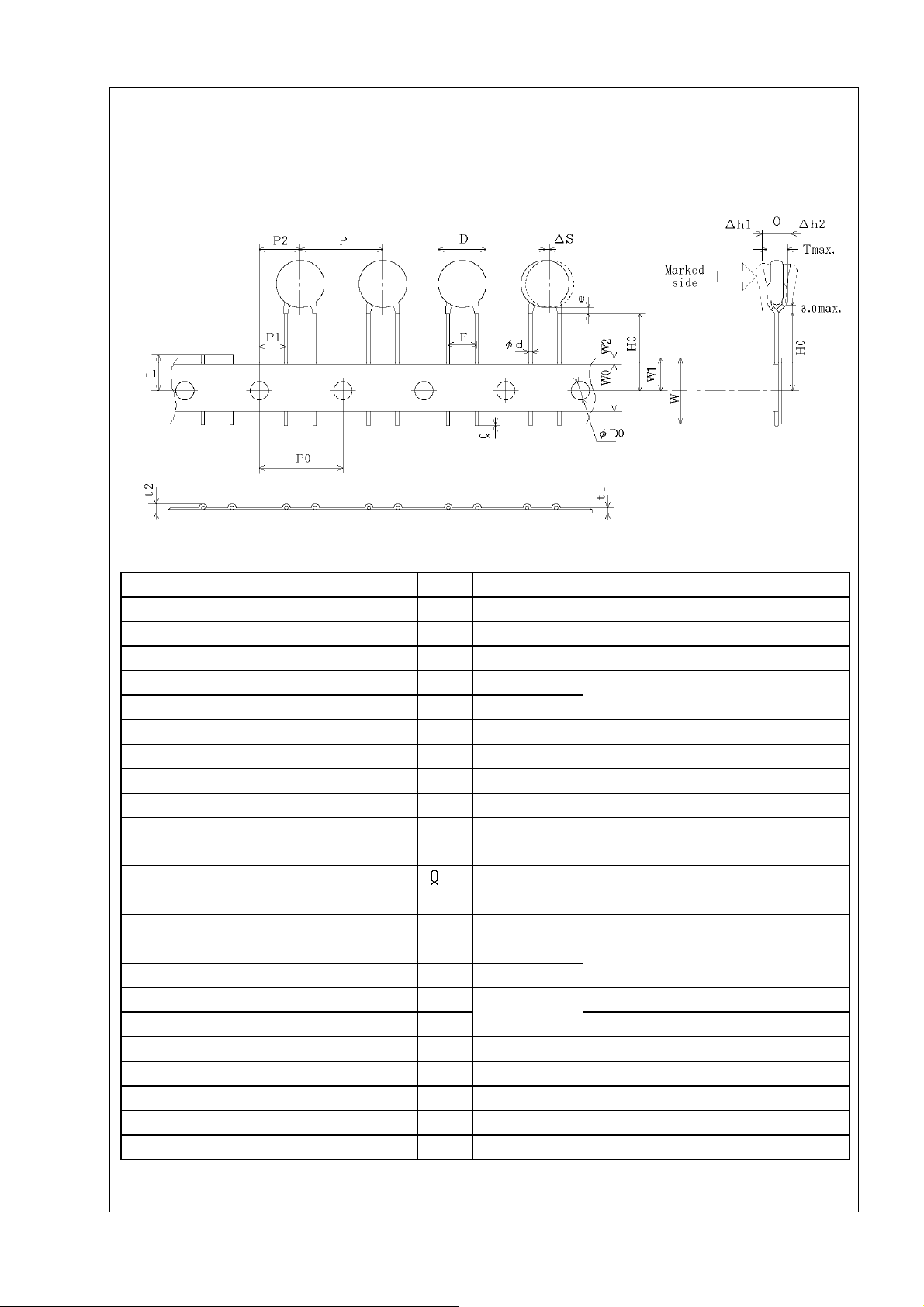

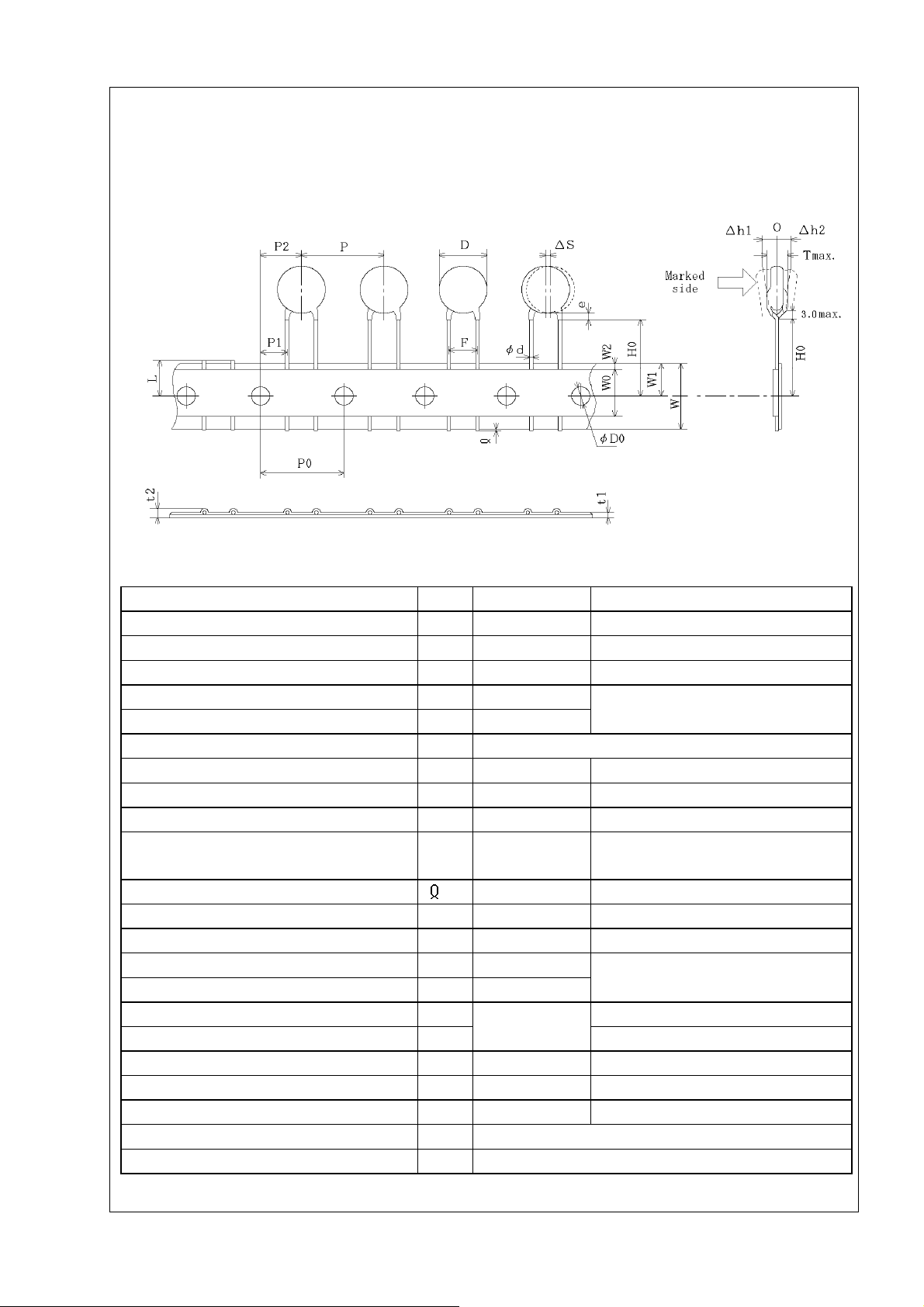

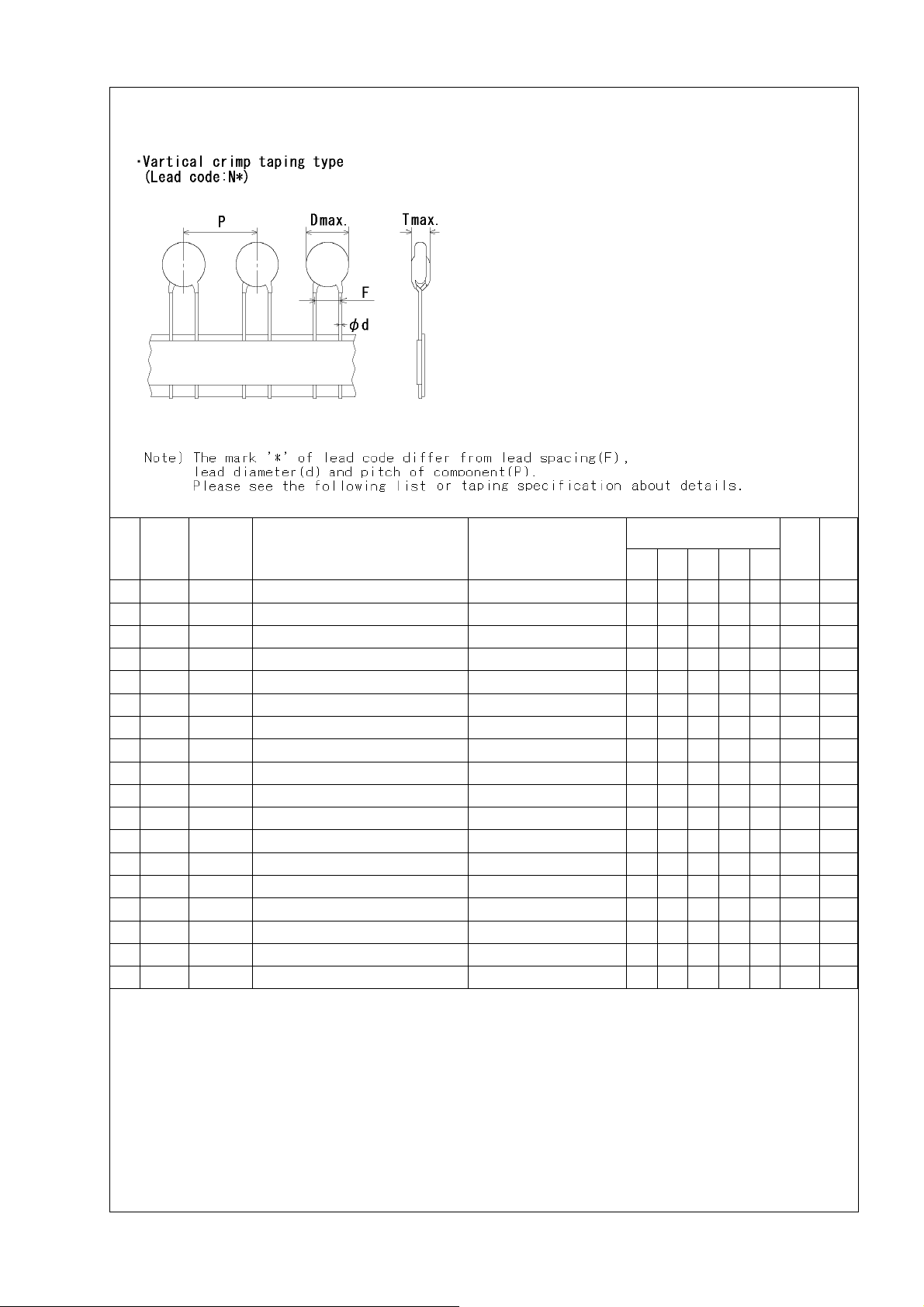

Vertical crimp taping type

Guarantee of dielectric strength
between lead wires:
AC2000V(r.m.s.)

Guarantee of dielectric strength
between lead wires:
AC2600V(r.m.s.)

‣Simplicity marking
‣Halogen Free

Br ≤ 900ppm, Cl ≤ 900ppm
Br + Cl ≤ 1500ppm
‣CP wire

ETKY04F

5 / 22

Reference only

3. Marking

Nominal capacitance : Actual value(under 100pF)
3 digit system(100pF and over)
Capacitance tolerance : Code
Type name : KY

Rated voltage mark : 250~
Class code : X1Y2

Halogen Free mark :
Manufacturing year : Letter code(The last digit of A.D. year.)

Manufacturing month : Code
Feb./Mar.  2 Aug./Sep.  8
Apr./May  4 Oct./Nov.  O

Jun./Jul.  6 Dec./Jan.  D

Company name code : (Made in Thailand)

(Example)

472M

KY250~

X1Y2 …

5D … .

8D

ETKY04F

6 / 22

4. Part number list

Reference only

Cap.

T. C.

(pF)

SL 10

SL 15

SL 22

SL 33

SL 47

SL 68

B 100

B 150

B 220

B 330

B 470

B 680

E 1000

E 1500

E 2200

E 3300

E 4700

Cap.

tol.

±5%

±5%

±5%

±5%

±5%

±5%

±10%

±10%

±10%

±10%

±10%

±10%

±20%

±20%

±20%

±20%

±20%

Customer Part Number Murata Part Number

DE21XKY100JA2BM01F 8.0 5.0 5.0 0.6 A2 250

DE21XKY150JA2BM01F 8.0 5.0 5.0 0.6 A2 250

DE21XKY220JA2BM01F 8.0 5.0 5.0 0.6 A2 250

DE21XKY330JA2BM01F 8.0 5.0 5.0 0.6 A2 250

DE21XKY470JA2BM01F 8.0 5.0 5.0 0.6 A2 250

DE21XKY680JA2BM01F 8.0 5.0 5.0 0.6 A2 250

DE2B3KY101KA2BM01F 7.0 5.0 5.0 0.6 A2 500

DE2B3KY151KA2BM01F 7.0 5.0 5.0 0.6 A2 500

DE2B3KY221KA2BM01F 7.0 5.0 5.0 0.6 A2 500

DE2B3KY331KA2BM01F 7.0 5.0 5.0 0.6 A2 500

DE2B3KY471KA2BM01F 7.0 5.0 5.0 0.6 A2 500

DE2B3KY681KA2BM01F 8.0 5.0 5.0 0.6 A2 250

DE2E3KY102MA2BM01F 7.0 5.0 5.0 0.6 A2 500

DE2E3KY152MA2BM01F 7.0 5.0 5.0 0.6 A2 500

DE2E3KY222MA2BM01F 8.0 5.0 5.0 0.6 A2 250

DE2E3KY332MA2BM01F 9.0 5.0 5.0 0.6 A2 250

DE2E3KY472MA2BM01F 10.0 5.0 5.0 0.6 A2 250

Dimension (mm)

D T F d

Unit : mm

Pack

Lead

qty.

code

(pcs)

7 / 22

Reference only

Cap.

T. C.

(pF)

SL 10

SL 15

SL 22

SL 33

SL 47

SL 68

B 100

B 150

B 220

B 330

B 470

B 680

E 1000

E 1500

E 2200

E 3300

E 4700

F 10000

Cap.

tol.

±5%

±5%

±5%

±5%

±5%

±5%

±10%

±10%

±10%

±10%

±10%

±10%

±20%

±20%

±20%

±20%

±20%

±20%

Customer Part Number Murata Part Number

DE21XKY100JA3BM02F 8.0 5.0 7.5 0.6 A3 250

DE21XKY150JA3BM02F 8.0 5.0 7.5 0.6 A3 250

DE21XKY220JA3BM02F 8.0 5.0 7.5 0.6 A3 250

DE21XKY330JA3BM02F 8.0 5.0 7.5 0.6 A3 250

DE21XKY470JA3BM02F 8.0 5.0 7.5 0.6 A3 250

DE21XKY680JA3BM02F 8.0 5.0 7.5 0.6 A3 250

DE2B3KY101KA3BM02F 7.0 5.0 7.5 0.6 A3 250

DE2B3KY151KA3BM02F 7.0 5.0 7.5 0.6 A3 250

DE2B3KY221KA3BM02F 7.0 5.0 7.5 0.6 A3 250

DE2B3KY331KA3BM02F 7.0 5.0 7.5 0.6 A3 250

DE2B3KY471KA3BM02F 7.0 5.0 7.5 0.6 A3 250

DE2B3KY681KA3BM02F 8.0 5.0 7.5 0.6 A3 250

DE2E3KY102MA3BM02F 7.0 5.0 7.5 0.6 A3 250

DE2E3KY152MA3BM02F 7.0 5.0 7.5 0.6 A3 250

DE2E3KY222MA3BM02F 8.0 5.0 7.5 0.6 A3 250

DE2E3KY332MA3BM02F 9.0 5.0 7.5 0.6 A3 250

DE2E3KY472MA3BM02F 10.0 5.0 7.5 0.6 A3 250

DE2F3KY103MA3BM02F 14.0 5.0 7.5 0.6 A3 200

Dimension (mm)

D T F d

Unit : mm

Pack

Lead

qty.

code

(pcs)

8 / 22

Reference only

Cap.

T. C.

(pF)

SL 10

SL 15

SL 22

SL 33

SL 47

SL 68

B 100

B 150

B 220

B 330

B 470

B 680

E 1000

E 1500

E 2200

E 3300

E 4700

Cap.

tol.

±5%

±5%

±5%

±5%

±5%

±5%

±10%

±10%

±10%

±10%

±10%

±10%

±20%

±20%

±20%

±20%

±20%

Customer Part Number Murata Part Number

DE21XKY100JB2BM01F 8.0 5.0 5.0 0.6 B2 500

DE21XKY150JB2BM01F 8.0 5.0 5.0 0.6 B2 500

DE21XKY220JB2BM01F 8.0 5.0 5.0 0.6 B2 500

DE21XKY330JB2BM01F 8.0 5.0 5.0 0.6 B2 500

DE21XKY470JB2BM01F 8.0 5.0 5.0 0.6 B2 500

DE21XKY680JB2BM01F 8.0 5.0 5.0 0.6 B2 500

DE2B3KY101KB2BM01F 7.0 5.0 5.0 0.6 B2 500

DE2B3KY151KB2BM01F 7.0 5.0 5.0 0.6 B2 500

DE2B3KY221KB2BM01F 7.0 5.0 5.0 0.6 B2 500

DE2B3KY331KB2BM01F 7.0 5.0 5.0 0.6 B2 500

DE2B3KY471KB2BM01F 7.0 5.0 5.0 0.6 B2 500

DE2B3KY681KB2BM01F 8.0 5.0 5.0 0.6 B2 500

DE2E3KY102MB2BM01F 7.0 5.0 5.0 0.6 B2 500

DE2E3KY152MB2BM01F 7.0 5.0 5.0 0.6 B2 500

DE2E3KY222MB2BM01F 8.0 5.0 5.0 0.6 B2 500

DE2E3KY332MB2BM01F 9.0 5.0 5.0 0.6 B2 500

DE2E3KY472MB2BM01F 10.0 5.0 5.0 0.6 B2 500

Dimension (mm)

D T F d

Unit : mm

Pack

Lead

qty.

code

(pcs)

9 / 22

Reference only

Cap.

T. C.

(pF)

SL 10

SL 15

SL 22

SL 33

SL 47

SL 68

B 100

B 150

B 220

B 330

B 470

B 680

E 1000

E 1500

E 2200

E 3300

E 4700

F 10000

Cap.

tol.

±5%

±5%

±5%

±5%

±5%

±5%

±10%

±10%

±10%

±10%

±10%

±10%

±20%

±20%

±20%

±20%

±20%

±20%

Customer Part Number Murata Part Number

DE21XKY100JB3BM02F 8.0 5.0 7.5 0.6 B3 500

DE21XKY150JB3BM02F 8.0 5.0 7.5 0.6 B3 500

DE21XKY220JB3BM02F 8.0 5.0 7.5 0.6 B3 500

DE21XKY330JB3BM02F 8.0 5.0 7.5 0.6 B3 500

DE21XKY470JB3BM02F 8.0 5.0 7.5 0.6 B3 500

DE21XKY680JB3BM02F 8.0 5.0 7.5 0.6 B3 500

DE2B3KY101KB3BM02F 7.0 5.0 7.5 0.6 B3 500

DE2B3KY151KB3BM02F 7.0 5.0 7.5 0.6 B3 500

DE2B3KY221KB3BM02F 7.0 5.0 7.5 0.6 B3 500

DE2B3KY331KB3BM02F 7.0 5.0 7.5 0.6 B3 500

DE2B3KY471KB3BM02F 7.0 5.0 7.5 0.6 B3 500

DE2B3KY681KB3BM02F 8.0 5.0 7.5 0.6 B3 500

DE2E3KY102MB3BM02F 7.0 5.0 7.5 0.6 B3 500

DE2E3KY152MB3BM02F 7.0 5.0 7.5 0.6 B3 500

DE2E3KY222MB3BM02F 8.0 5.0 7.5 0.6 B3 500

DE2E3KY332MB3BM02F 9.0 5.0 7.5 0.6 B3 500

DE2E3KY472MB3BM02F 10.0 5.0 7.5 0.6 B3 500

DE2F3KY103MB3BM02F 14.0 5.0 7.5 0.6 B3 250

Dimension (mm)

D T F d

Unit : mm

Pack

Lead

qty.

code

(pcs)

10 / 22

Reference only

Cap.

T. C.

(pF)

SL 10

SL 15

SL 22

SL 33

SL 47

SL 68

B 100

B 150

B 220

B 330

B 470

B 680

E 1000

E 1500

E 2200

E 3300

E 4700

Cap.

tol.

±5%

±5%

±5%

±5%

±5%

±5%

±10%

±10%

±10%

±10%

±10%

±10%

±20%

±20%

±20%

±20%

±20%

Customer Part Number Murata Part Number

DE21XKY100JJ2BM01F 8.0 5.0 5.0 0.6 J2 500

DE21XKY150JJ2BM01F 8.0 5.0 5.0 0.6 J2 500

DE21XKY220JJ2BM01F 8.0 5.0 5.0 0.6 J2 500

DE21XKY330JJ2BM01F 8.0 5.0 5.0 0.6 J2 500

DE21XKY470JJ2BM01F 8.0 5.0 5.0 0.6 J2 500

DE21XKY680JJ2BM01F 8.0 5.0 5.0 0.6 J2 500

DE2B3KY101KJ2BM01F 7.0 5.0 5.0 0.6 J2 500

DE2B3KY151KJ2BM01F 7.0 5.0 5.0 0.6 J2 500

DE2B3KY221KJ2BM01F 7.0 5.0 5.0 0.6 J2 500

DE2B3KY331KJ2BM01F 7.0 5.0 5.0 0.6 J2 500

DE2B3KY471KJ2BM01F 7.0 5.0 5.0 0.6 J2 500

DE2B3KY681KJ2BM01F 8.0 5.0 5.0 0.6 J2 500

DE2E3KY102MJ2BM01F 7.0 5.0 5.0 0.6 J2 500

DE2E3KY152MJ2BM01F 7.0 5.0 5.0 0.6 J2 500

DE2E3KY222MJ2BM01F 8.0 5.0 5.0 0.6 J2 500

DE2E3KY332MJ2BM01F 9.0 5.0 5.0 0.6 J2 500

DE2E3KY472MJ2BM01F 10.0 5.0 5.0 0.6 J2 500

Dimension (mm)

D T F d

Unit : mm

Pack

Lead

qty.

code

(pcs)

11 / 22

Reference only

Cap.

T. C.

(pF)

SL 10

SL 15

SL 22

SL 33

SL 47

SL 68

B 100

B 150

B 220

B 330

B 470

B 680

E 1000

E 1500

E 2200

E 3300

E 4700

F 10000

Cap.

tol.

±5%

±5%

±5%

±5%

±5%

±5%

±10%

±10%

±10%

±10%

±10%

±10%

±20%

±20%

±20%

±20%

±20%

±20%

Customer Part Number Murata Part Number

DE21XKY100JJ3BM02F 8.0 5.0 7.5 0.6 J3 500

DE21XKY150JJ3BM02F 8.0 5.0 7.5 0.6 J3 500

DE21XKY220JJ3BM02F 8.0 5.0 7.5 0.6 J3 500

DE21XKY330JJ3BM02F 8.0 5.0 7.5 0.6 J3 500

DE21XKY470JJ3BM02F 8.0 5.0 7.5 0.6 J3 500

DE21XKY680JJ3BM02F 8.0 5.0 7.5 0.6 J3 500

DE2B3KY101KJ3BM02F 7.0 5.0 7.5 0.6 J3 500

DE2B3KY151KJ3BM02F 7.0 5.0 7.5 0.6 J3 500

DE2B3KY221KJ3BM02F 7.0 5.0 7.5 0.6 J3 500

DE2B3KY331KJ3BM02F 7.0 5.0 7.5 0.6 J3 500

DE2B3KY471KJ3BM02F 7.0 5.0 7.5 0.6 J3 500

DE2B3KY681KJ3BM02F 8.0 5.0 7.5 0.6 J3 500

DE2E3KY102MJ3BM02F 7.0 5.0 7.5 0.6 J3 500

DE2E3KY152MJ3BM02F 7.0 5.0 7.5 0.6 J3 500

DE2E3KY222MJ3BM02F 8.0 5.0 7.5 0.6 J3 500

DE2E3KY332MJ3BM02F 9.0 5.0 7.5 0.6 J3 500

DE2E3KY472MJ3BM02F 10.0 5.0 7.5 0.6 J3 500

DE2F3KY103MJ3BM02F 14.0 5.0 7.5 0.6 J3 250

Dimension (mm)

D T F d

Unit : mm

Pack

Lead

qty.

code

(pcs)

12 / 22

Reference only

Cap.

T. C.

(pF)

SL 10

SL 15

SL 22

SL 33

SL 47

SL 68

B 100

B 150

B 220

B 330

B 470

B 680

E 1000

E 1500

E 2200

E 3300

E 4700

Cap.

tol.

±5%

±5%

±5%

±5%

±5%

±5%

±10%

±10%

±10%

±10%

±10%

±10%

±20%

±20%

±20%

±20%

±20%

Customer Part Number Murata Part Number

DE21XKY100JN2AM01F 8.0 5.0 5.0 0.6 12.7 N2 1000

DE21XKY150JN2AM01F 8.0 5.0 5.0 0.6 12.7 N2 1000

DE21XKY220JN2AM01F 8.0 5.0 5.0 0.6 12.7 N2 1000

DE21XKY330JN2AM01F 8.0 5.0 5.0 0.6 12.7 N2 1000

DE21XKY470JN2AM01F 8.0 5.0 5.0 0.6 12.7 N2 1000

DE21XKY680JN2AM01F 8.0 5.0 5.0 0.6 12.7 N2 1000

DE2B3KY101KN2AM01F 7.0 5.0 5.0 0.6 12.7 N2 1000

DE2B3KY151KN2AM01F 7.0 5.0 5.0 0.6 12.7 N2 1000

DE2B3KY221KN2AM01F 7.0 5.0 5.0 0.6 12.7 N2 1000

DE2B3KY331KN2AM01F 7.0 5.0 5.0 0.6 12.7 N2 1000

DE2B3KY471KN2AM01F 7.0 5.0 5.0 0.6 12.7 N2 1000

DE2B3KY681KN2AM01F 8.0 5.0 5.0 0.6 12.7 N2 1000

DE2E3KY102MN2AM01F 7.0 5.0 5.0 0.6 12.7 N2 1000

DE2E3KY152MN2AM01F 7.0 5.0 5.0 0.6 12.7 N2 1000

DE2E3KY222MN2AM01F 8.0 5.0 5.0 0.6 12.7 N2 1000

DE2E3KY332MN2AM01F 9.0 5.0 5.0 0.6 12.7 N2 1000

DE2E3KY472MN2AM01F 10.0 5.0 5.0 0.6 12.7 N2 1000

Dimension (mm)

DT F d P

Unit : mm

Pack

Lead

qty.

code

(pcs)

13 / 22

Reference only

Cap.

T. C.

(pF)

SL 10

SL 15

SL 22

SL 33

SL 47

SL 68

B 100

B 150

B 220

B 330

B 470

B 680

E 1000

E 1500

E 2200

E 3300

E 4700

F 10000

Cap.

tol.

±5%

±5%

±5%

±5%

±5%

±5%

±10%

±10%

±10%

±10%

±10%

±10%

±20%

±20%

±20%

±20%

±20%

±20%

Customer Part Number Murata Part Number

DE21XKY100JN3AM02F 8.0 5.0 7.5 0.6 15.0 N3 900

DE21XKY150JN3AM02F 8.0 5.0 7.5 0.6 15.0 N3 900

DE21XKY220JN3AM02F 8.0 5.0 7.5 0.6 15.0 N3 900

DE21XKY330JN3AM02F 8.0 5.0 7.5 0.6 15.0 N3 900

DE21XKY470JN3AM02F 8.0 5.0 7.5 0.6 15.0 N3 900

DE21XKY680JN3AM02F 8.0 5.0 7.5 0.6 15.0 N3 900

DE2B3KY101KN3AM02F 7.0 5.0 7.5 0.6 15.0 N3 900

DE2B3KY151KN3AM02F 7.0 5.0 7.5 0.6 15.0 N3 900

DE2B3KY221KN3AM02F 7.0 5.0 7.5 0.6 15.0 N3 900

DE2B3KY331KN3AM02F 7.0 5.0 7.5 0.6 15.0 N3 900

DE2B3KY471KN3AM02F 7.0 5.0 7.5 0.6 15.0 N3 900

DE2B3KY681KN3AM02F 8.0 5.0 7.5 0.6 15.0 N3 900

DE2E3KY102MN3AM02F 7.0 5.0 7.5 0.6 15.0 N3 900

DE2E3KY152MN3AM02F 7.0 5.0 7.5 0.6 15.0 N3 900

DE2E3KY222MN3AM02F 8.0 5.0 7.5 0.6 15.0 N3 900

DE2E3KY332MN3AM02F 9.0 5.0 7.5 0.6 15.0 N3 900

DE2E3KY472MN3AM02F 10.0 5.0 7.5 0.6 15.0 N3 900

DE2F3KY103MN3AM02F 14.0 5.0 7.5 0.6 15.0 N3 900

Dimension (mm)

DT F d P

Unit : mm

Pack

Lead

qty.

code

(pcs)

14 / 22

Reference only

A

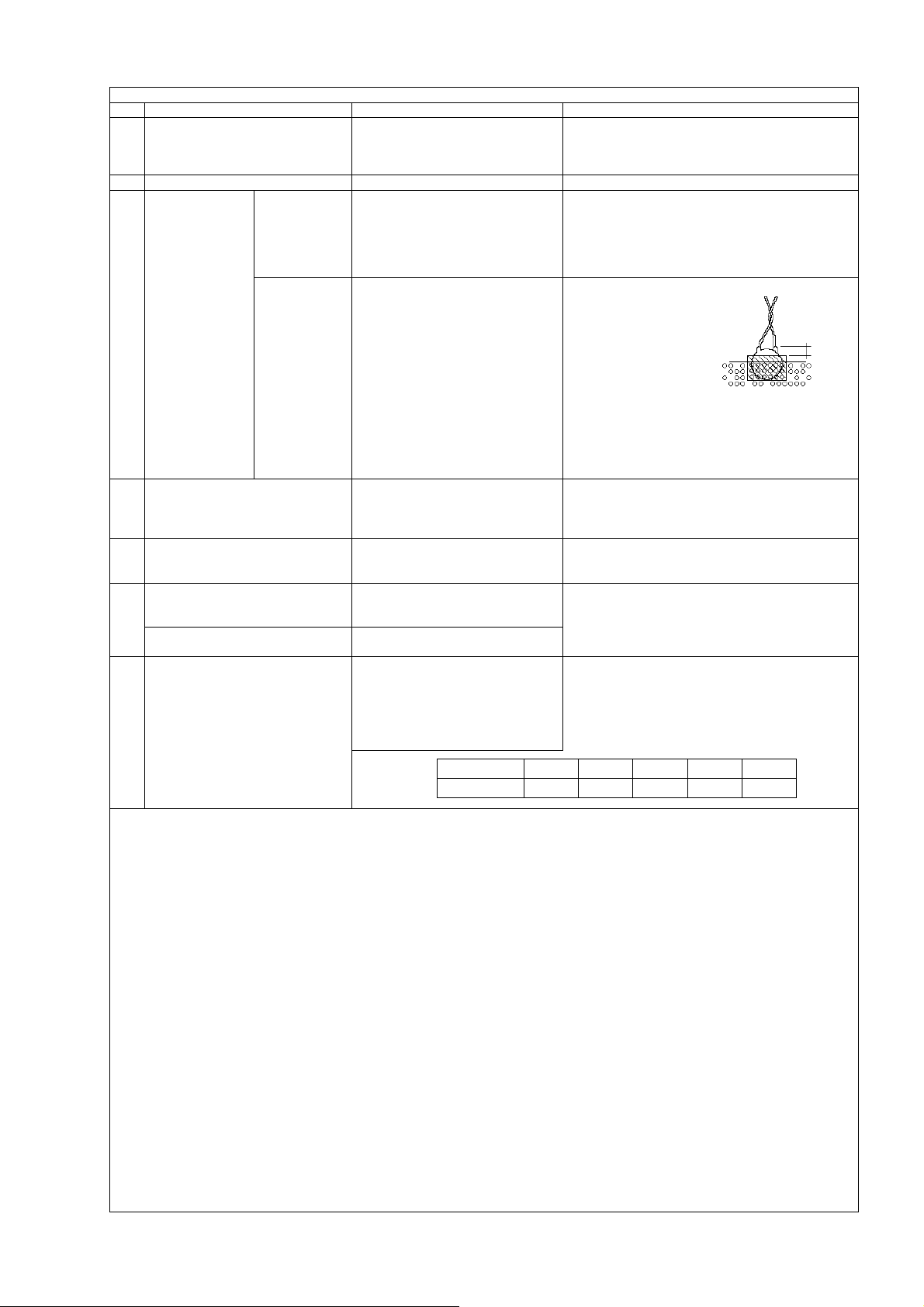

5. Specification and test methods
No. Item Specification Test method

1 Appearance and dimensions No marked defect on appearance

form and dimensions.
Please refer to [Part number list].

2 Marking To be easily legible. The capacitor should be inspected by naked eyes.
3 Dielectric

strength

Between lead
wires

Body

No failure. The capacitor should not be damaged when

No failure. First, the terminals of the capacitor should be

insulation

4 Insulation Resistance (I.R.)

10000M min.

5 Capacitance Within specified tolerance.

6 Q Char. SL :

400+20C*

2

min.(30pF under)

1000min. (30pF min.)

Dissipation Factor (D.F.) Char. B, E : 2.5% max.

Char. F : 5.0% max.

7 Temperature characteristic

Char. SL : +350 to –1000 ppm/C
(Temp. range : +20 to +85C )
Char. B : Within 10 %
Char. E : Within +20/-55%
Char. F : Within +30/-80%
(Temp. range : -25 to +85C )

2

‘’C’’ expresses nominal capacitance value(pF)

*

Step 1 2 3 4 5

Te mp . (C) 202-252202 852 202

The capacitor should be inspected by naked eyes
for visible evidence of defect.
Dimensions should be measured with slide
calipers.

AC2000V(r.m.s.) [in case of individual specification
:M01] or AC2600V(r.m.s.) [in case of individual
specification:M02] <50/60Hz> is applied between
the lead wires for 60 s.
(Charge/Discharge current  50mA.)

connected together.
Then, a metal foil should
be closely wrapped around
the body of the capacitor
to the distance of
about 3 to 4mm
from each terminal.

Metal
foil

3 to 4 mm

Metal
balls

Then, the capacitor should be inserted into a
container filled with metal balls of about 1mm
diameter. Finally, AC2600V (r.m.s.)<50/60Hz> is
applied for 60 s between the capacitor lead wires
and metal balls.
(Charge/Discharge current  50mA.)
The insulation resistance should be measured
with DC50050V within 605 s of charging.
The voltage should be applied to the capacitor
through a resistor of 1M.

The capacitance should be measured at 20C with
10.1kHz(Char. SL :

10.1MHz) and AC5V(r.m.s.)

max..
The dissipation factor and Q should be measured
at 20C with 10.1kHz(Char. SL : 10.1MHz) and
AC5V(r.m.s.) max..

The capacitance measurement should be made at
each step specified in Table.

bout

ESKY03C

15 / 22

Reference only

No. Item Specification Test method

8 Active flammability The cheese-cloth should not be on

9 Robustness of

terminations

10 Vibration

resistance

11 Solderability of leads Lead wire should be soldered with

2

"C" expresses nominal capacitance value(pF)

*

Tensile Lead wire should not cut off.

Bending With the termination in its normal position, the

Appearance No marked defect. The capacitor should be firmly soldered to the
Capacitance Within the specified tolerance.
Q Char. SL :

D.F. Char. B, E : 2.5% max.

fire.

Capacitor should not be broken.

2

400+20C*
1000min. (30pF min.)

Char. F : 5.0% max.

uniformly coated on the axial
direction over 3/4 of the
circumferential direction.

min.(30pF under)

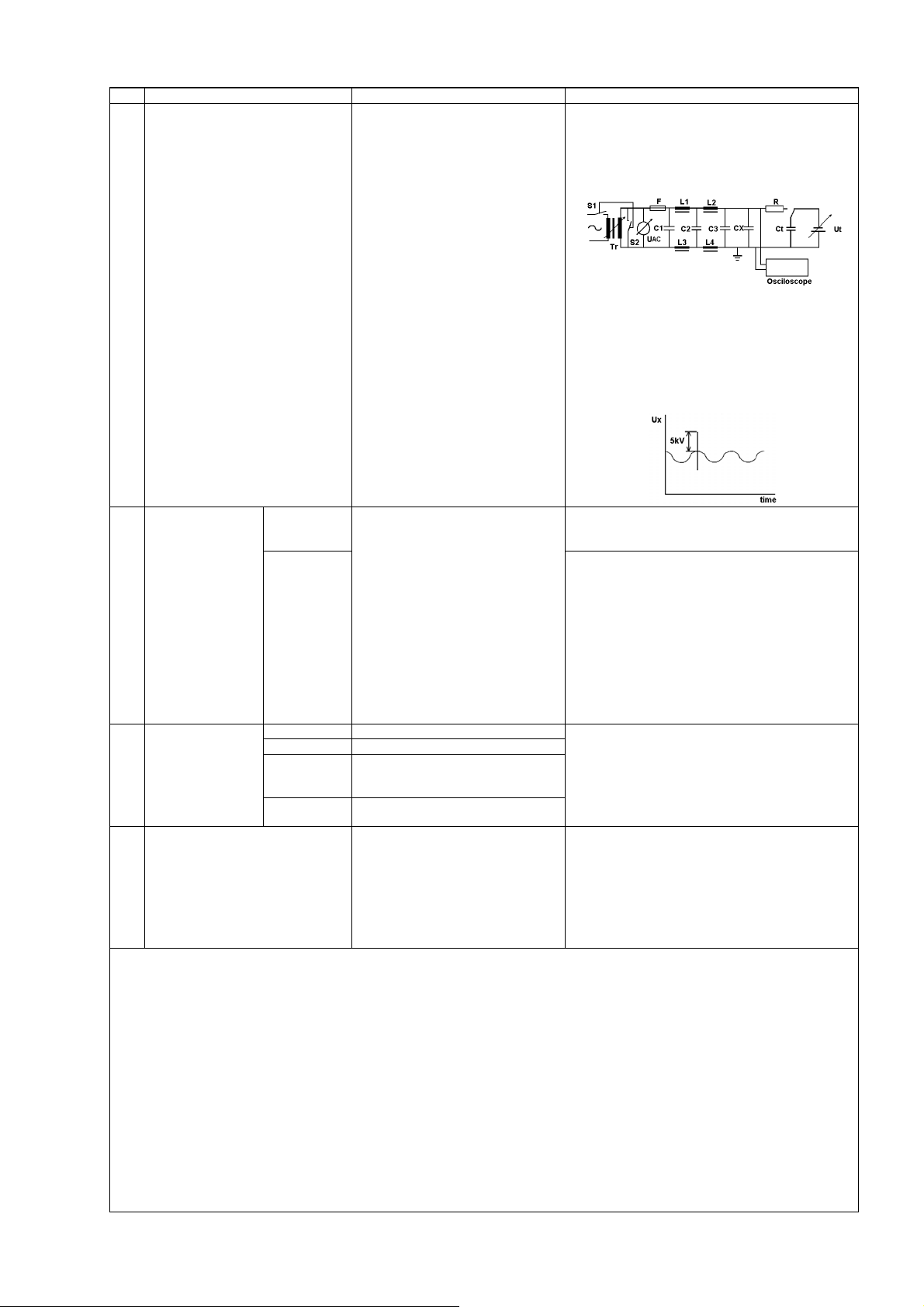

The capacitors should be individually wrapped in
at least one but more than two complete layers of
cheese-cloth. The capacitor should be subjected
to 20 discharges. The interval between successive
discharges should be 5 s. The UAc should be
maintained for 2min after the last discharge.

C1,2 : 1F10%, C3 : 0.033F5% 10kV
L1 to L4 : 1.5mH20% 16A Rod core choke
R : 1002%, Ct : 3F5% 10kV
UAc : UR 5% UR : Rated working voltage
Cx : Capacitor under test
F : Fuse, Rated 10A
Ut : Voltage applied to Ct

Fix the body of capacitor, apply a tensile weight
gradually to each lead wire in the radial direction of
capacitor up to 10N and keep it for 101 s.

capacitor is held by its body in such a manner that
the axis of the termination is vertical; a mass
applying a force of 5N is then suspended from the
end of the termination.
The body of the capacitor is then inclined,
within a period of 2 to 3 s, through an angle of
about 90 in the vertical plane and then
returned to its initial position over the same period
of time; this operation constitutes one bend.
One bend immediately followed by a second bend
in the opposite direction.

supporting lead wire and vibration which is 10 to
55Hz in the vibration frequency range,1.5mm in
total amplitude, and about 1min in the rate of
vibration change from 10Hz to 55Hz and back to
10Hz is applied for a total of 6 h; 2 h each in
3 mutually perpendicular directions.

The lead wire of a capacitor should be dipped into
a ethanol solution of 25wt% rosin and then into
molten solder for 20.5 s. In both cases the depth
of dipping is up to about 1.5 to 2.0mm from the
root of lead wires.
Temp. of solder :
245±5°C Lead Free Solder (Sn-3Ag-0.5Cu)
235±5°C H63 Eutectic Solder

ESKY03C

16 / 22

Reference only

No. Item Specification Test method

12 Soldering effect

(Non-preheat)

13 Soldering effect

(On-preheat)

14 Flame test The capacitor flame discontinue

15 Passive flammability The burning time should not be

*1 "room condition" Temperature: 15 to 35C, Relative humidity: 45 to 75%, Atmospheric pressure: 86 to 106kPa

Appearance No marked defect.
Capacitance

Within 10%

change
I.R.
Dielectric

1000M min.
Per item 3

strength

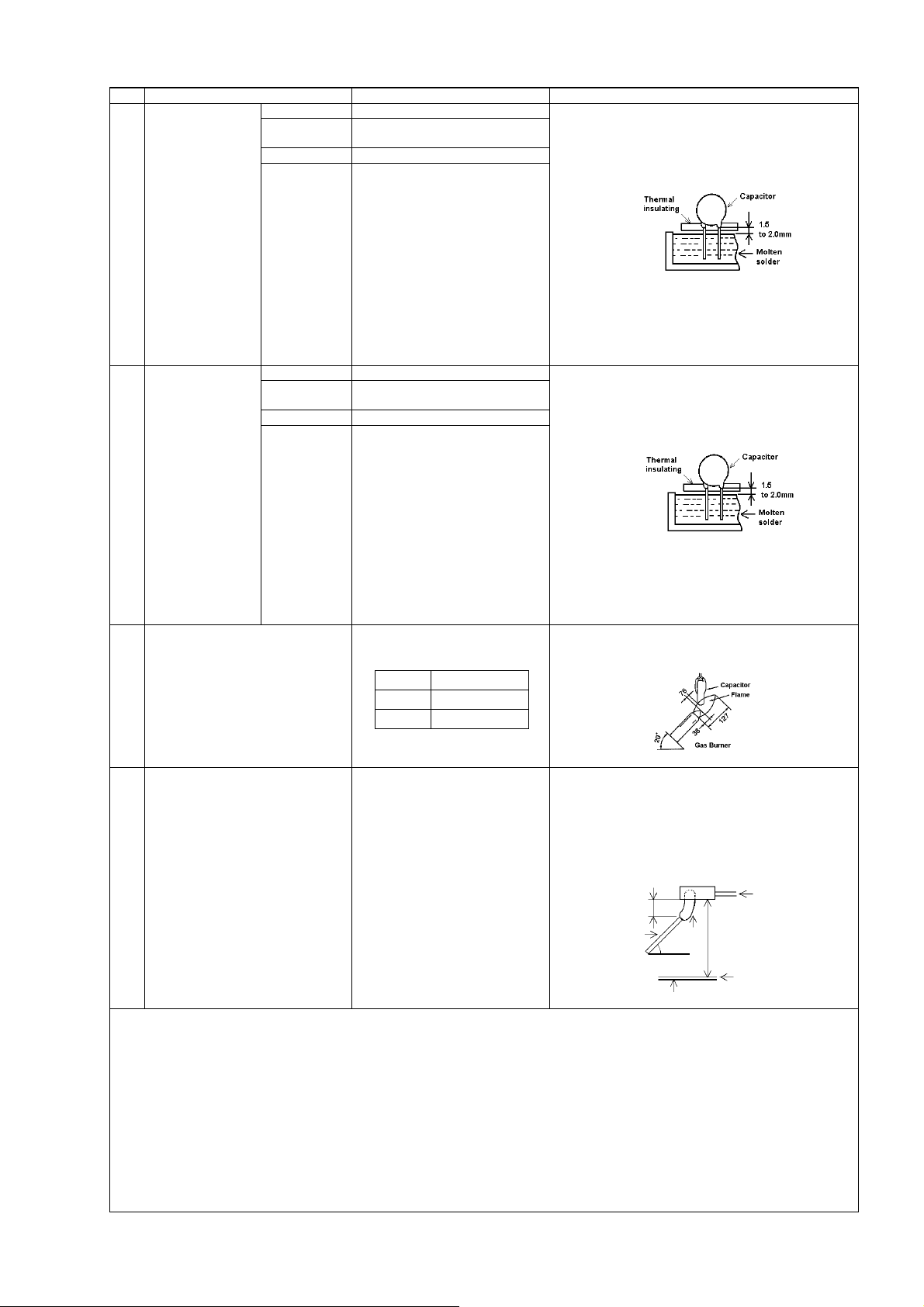

Solder temperature: 35010C or 2605C
Immersion time : 3.50.5 s

(In case of 2605C : 101 s)

The depth of immersion is up to about

1.5 to 2.0mm from the root of lead wires.

Pre-treatment : Capacitor should be stored at
852C for 1 h, then placed at
*

1

room condition for 242 h
before initial measurements.
Post-treatment : Capacitor should be stored for 1
to 2 h at *

1

room condition.
Appearance No marked defect. First the capacitor should be stored at 120+0/-5°C
Capacitance
change
I.R.
Dielectric
strength

Within 10%

1000M min.
Per item 3

for 60+0/-5 s.
Then, as in figure, the lead wires should be
immersed solder of 260+0/-5°C up to 1.5 to 2.0mm
from the root of terminal for 7.5+0/-1 s.

Pre-treatment : Capacitor should be stored at
852C for 1 h, then placed at
*

1

room condition for 242 h
before initial measurements.
Post-treatment : Capacitor should be stored for 1 to
2 h at *

1

room condition.

The capacitor should be subjected to applied

as follows.

flame for 15 s. and then removed for 15 s until 5
cycle.

Cycle Time

1 to 4 30 s max.

5 60 s max.

The capacitor under test should be held in the flame

exceeded the time 30 s.
The tissue paper should not
ignite.

in the position which best promotes burning.
Time of exposure to flame is for 30 s.

Length of flame : 121mm
Gas burner : Length 35mm min.
Inside Dia. 0.50.1mm
Outside Dia. 0.9mm max.
Gas : Butane gas Purity 95% min.

About 8mm

Gas burner

Flame

45

Capacitor

2005mm

About 10mm thick board

Tissue

ESKY03C

17 / 22

Reference only

No. Item Specification Test method

16 Humidity

(Under steady
state)

17 Humidity loading Appearance No marked defect.

18 Life Appearance No marked defect. Impulse voltage

19 Temperature and

immersion cycle

*1 "room condition" Temperature: 15 to 35C, Relative humidity: 45 to 75%, Atmospheric pressure: 86 to 106kPa

2

"C" expresses nominal capacitance value(pF)

*

Appearance No marked defect.
Capacitance
change

Char. SL : Within 5%
Char. B : Within 10%
Char. E, F : Within 15%

Q Char. SL :

275+5/2C*

2

min.(30pF under)

Set the capacitor for 50012 h at 402C in 90 to
95% relative humidity.

Post-treatment : Capacitor should be stored for 1

to 2 h at *

1

room condition.

350min. (30pF min.)

D.F. Char. B, E : 5.0% max.

Char. F : 7.5% max.
I.R.
Dielectric

3000M min.

Per item 3
strength

Apply the rated voltage for 50012 h at 402C in
Capacitance
change

Char. SL : Within 5%
Char. B : Within 10%
Char. E, F : Within 15%

Q Char. SL :

275+5/2C*

2

min.(30pF under)

90 to 95% relative humidity.

Post-treatment : Capacitor should be stored for 1

to 2 h at *

1

room condition.

350min. (30pF min.)

D.F. Char. B, E : 5.0% max.

Char. F : 7.5% max.
I.R.
Dielectric

3000M min.

Per item 3
strength

Capacitance
change
I.R.

Dielectric
strength

Within 20%

3000M min.

Per item 3

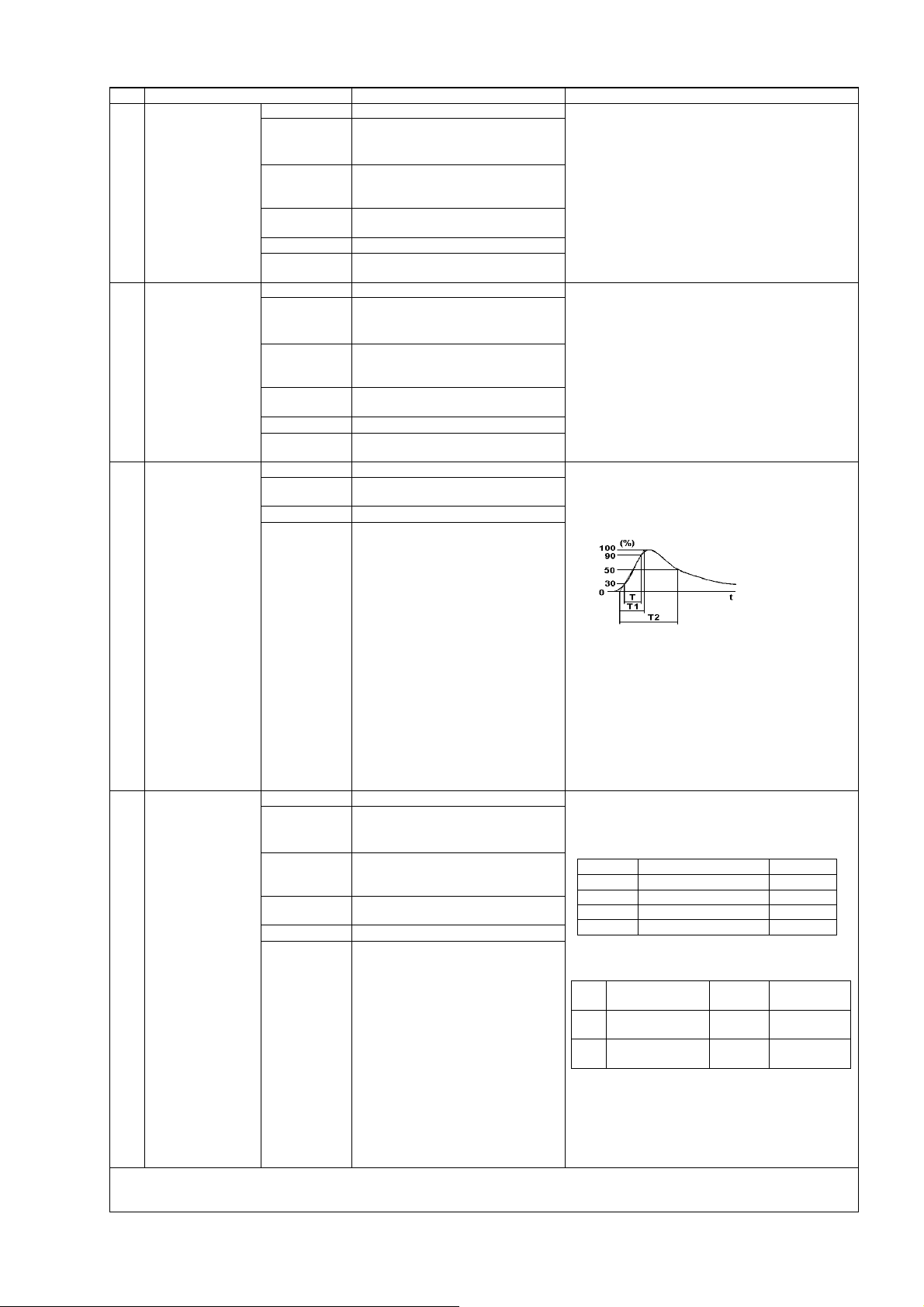

Each individual capacitor should be subjected to
a 5kV impulses for three times. Then the
capacitors are applied to life test.

Front time (T1) = 1.2μs=1.67T
Time to half-value (T2) = 50μs

The capacitors are placed in a circulating air oven
for a period of 1000 h.
The air in the oven is maintained at a temperature
of 125+2/-0 C, and relative humidity of 50% max..
Throughout the test, the capacitors are subjected
to a AC425V(r.m.s.)<50/60Hz> alternating voltage
of mains frequency, except that once each hour
the voltage is increased to AC1000V(r.m.s.)
for 0.1 s.
Post-treatment : Capacitor should be stored for 1
to 2 h at *

1

room condition.
Appearance No marked defect. The capacitor should be subjected to
Capacitance

change

Char. SL : Within 5%
Char. B : Within 10%
Char. E, F: Within 20%

Q Char. SL :

275+5/2C*

2

min.(30pF under)

350min. (30pF min.)

D.F. Char. B, E : 5.0% max.

Char. F : 7.5% max.
I.R.
Dielectric

3000M min.

Per item 3
strength

5 temperature cycles, then consecutively to
2 immersion cycles.

<Temperature cycle>

Step

1 -40+0/-3 30 min
2 Room temp. 3 min
3 +125+3/-0 30 min
4 Room temp. 3 min

<Immersion cycle>

Step

1 +65+5/-0 15 min

2

Temperature(C)

Cycle time : 5 cycle

Temperature(C)

03

Time

15 min

Cycle time : 2 cycle

Pre-treatment : Capacitor should be stored at
852C for 1 h, then placed at
*
Post-treatment : Capacitor should be stored for
242 h at *

1

room condition for 242 h.

1

room condition.

Time

Immersion

water

Clean

water

Salt

water

ESKY03C

18 / 22

Reference only

6.Packing specification

Bulk type (Packing style code : B)
The number of packing = Packing quantity  n
The size of packing case and packing way

Polyethylene bag

Partition

125 max.

340 max.

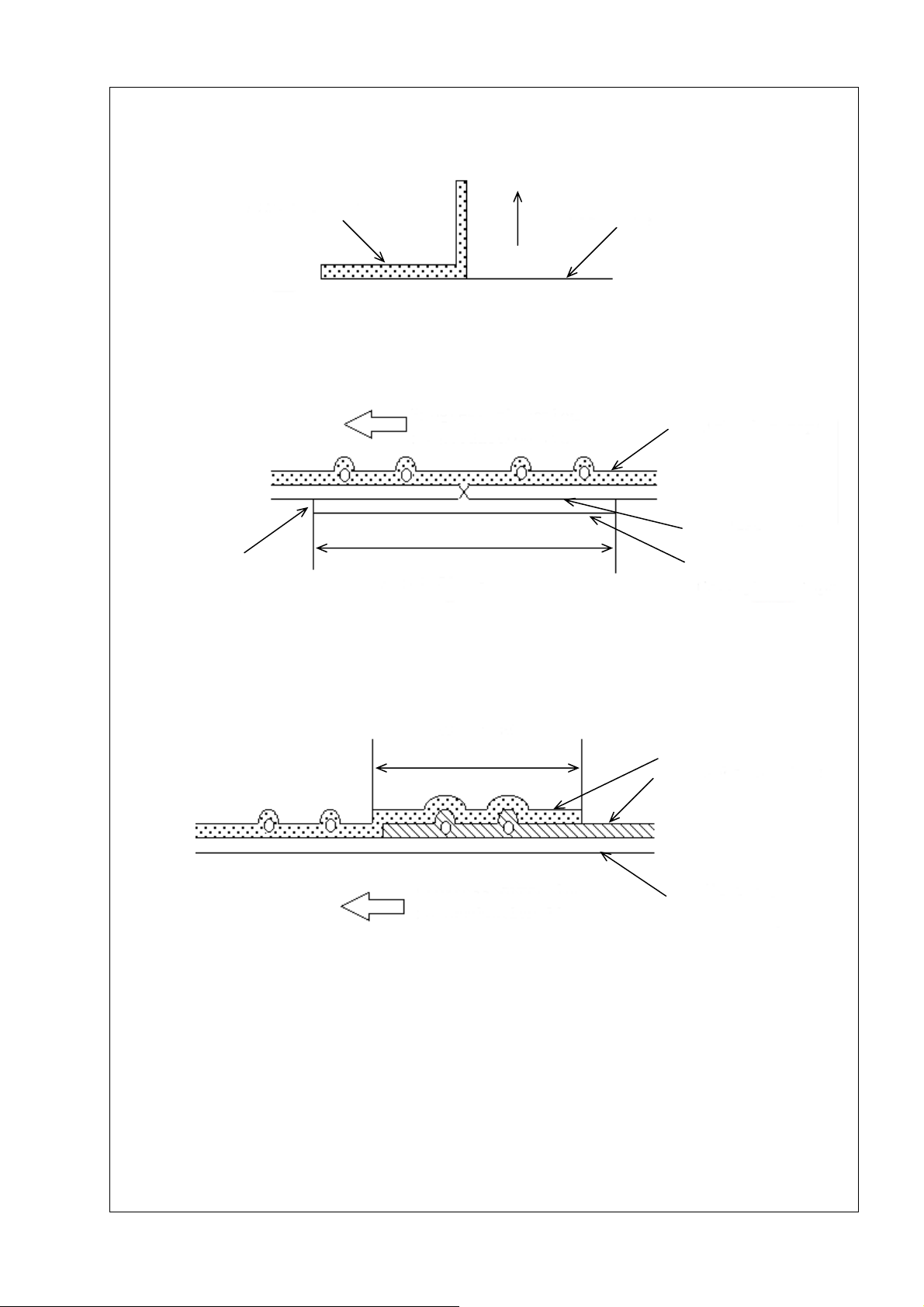

Ammo pack taping type (Packing style code : A)

 The tape with capacitors is packed zigzag into a case.
 When body of the capacitor is piled on other body under it.
 There should be 3 pitches and over without capacitors in leader and trailer.

The size of packing case and packing way

270 max.

Unit : mm

1 : Please refer to [Part number list].
2 : Standard n = 20 (bag)

Note)

The outer package and the number of
outer packing be changed by the order
getting amount.

1

2

240 max.

EKBCDE01

Capacitor

Base tape

Hold down
tape upper

Position of label

19 / 22

60 max.

340 max.

Unit : mm

Hold down tape

Reference only

7. Taping specification
7-1. Dimension of capacitors on tape
Vertical crimp taping type < Lead code : N2 >
Pitch of component 12.7mm / Lead spacing 5.0mm



Item Code Dimensions Remarks

Pitch of component

Pitch of sprocket hole

Lead spacing

Length from hole center to component center

Length from hole center to lead

Body diameter

Deviation along tape, left or right

Carrier tape width

Position of sprocket hole

Lead distance between reference and bottom

planes

Protrusion length

Diameter of sprocket hole

Lead diameter

Total tape thickness

Total thickness, tape and lead wire

Deviation across tape, front

Deviation across tape, rear

Portion to cut in case of defect

Hold down tape width

Hold down tape position

Coating extension on lead

Body thickness

P 12.71.0

P0 12.70.3

0.8

F 5.0

0.2

P2 6.351.3

P1 3.850.7

D

Please refer to [Part number list ].

S 01.0

Deviation of progress direction

They include deviation by lead bend .

W 18.00.5

W1 9.00.5

H0 18.0

2.0
0

Deviation of tape width direction

0.51.0

D0 4.00.1

d 0.600.05

t1 0.60.3

t2 1.5 max.

h1

h2

L 11.0

1.0 max.

0

1.0

They include hold down tape thickness.

W0 11.5 min.

W2 1.51.5

e

T

Up to the end of crimp

Please refer to [Part number list ].

Unit : mm

ETP1N201A

20 / 22

Reference only

Vertical crimp taping type < Lead code : N3 >
Pitch of component 15.0mm / Lead spacing 7.5mm

Item Code Dimensions Remarks

Pitch of component

Pitch of sprocket hole

Lead spacing

Length from hole center to component center

Length from hole center to lead

Body diameter

Deviation along tape, left or right

Carrier tape width

Position of sprocket hole

Lead distance between reference and bottom

planes

Protrusion length

Diameter of sprocket hole

Lead diameter

Total tape thickness

Total thickness, tape and lead wire

Deviation across tape, front

Deviation across tape, rear

Portion to cut in case of defect

Hold down tape width

Hold down tape position

Coating extension on lead

Body thickness

P 15.02.0

P0 15.00.3

F 7.51.0

P2 7.51.5

P1 3.751.0

D

Please refer to [ Part number list ].

S 02.0

Deviation of progress direction

They include deviation by lead bend .

W 18.00.5

W1 9.00.5

H0 18.0

2.0
0

Deviation of tape width direction

0.51.0

D0 4.00.1

d 0.600.05

t1 0.60.3

t2 1.5 max.

h1

h2

L 11.0

2.0 max.

0

1.0

They include hold down tape thickness.

W0 11.5 min.

W2 1.51.5

e

T

Up to the end of crimp

Please refer to [ Part number list ].

Unit : mm

ETP1N301A

21 / 22

A

7-2. Splicing way of tape

1) Adhesive force of tape is over 3N at test condition as below.

Hold down tape

2) Splicing of tape

a) When base tape is spliced

Base tape should be spliced by cellophane tape.
(Total tape thickness should be less than 1.05mm.)

No lifting for the direction of
progressing

b) When hold down tape is spliced

Hold down tape should be spliced with overlapping.
(Total tape thickness should be less than 1.05mm.)

ape are spliced

Base tape and adhesive tape should be spliced with splicing tape.

c) When both tape are spliced

Base tape and hold down tape should be spliced with splicing tape.

3 ) Missing components

There should be no consecutive missing of more than three components.
The number of missing components should be not more than 0.5% of

total components that should be present in a Ammo pack.

Reference only

W

Progress direction
in production line

bout 30 to 50

20 to 60

Progress direction
in production line

Base tape

Hold down tape

Base tape

Cellophane tape

Unit : mm

Hold down tape

Base tape

Unit : mm

ETP2D03

22 / 22

EU RoHS and Halogen Free

This products of the following crresponds to EU RoHS and Halogen Free　

(1) RoHS

　EU RoHs 2011/65/EC compliance　

maximum concentration values tolerated by weight in homogeneous materials
　・1000 ppm maximum Lead
　・1000 ppm maximum Mercury
　・100 ppm maximum Cadmium
　・1000 ppm maximum Hexavalent chromium
　・1000 ppm maximum Polybrominated biphenyls (PBB)
　・1000 ppm maximum Polybrominated diphenyl ethers (PBDE)

(2) Halogen-Free

Appendix

The Inte
　of Halogen-Free (IEC 61249-2-21) compliance

・900 ppm maximum chlorine
　・900 ppm maximum bromine
　・1500 ppm maximum total chlorine and bromine

rnational Electrochemical Commission’s (IEC) Definition
