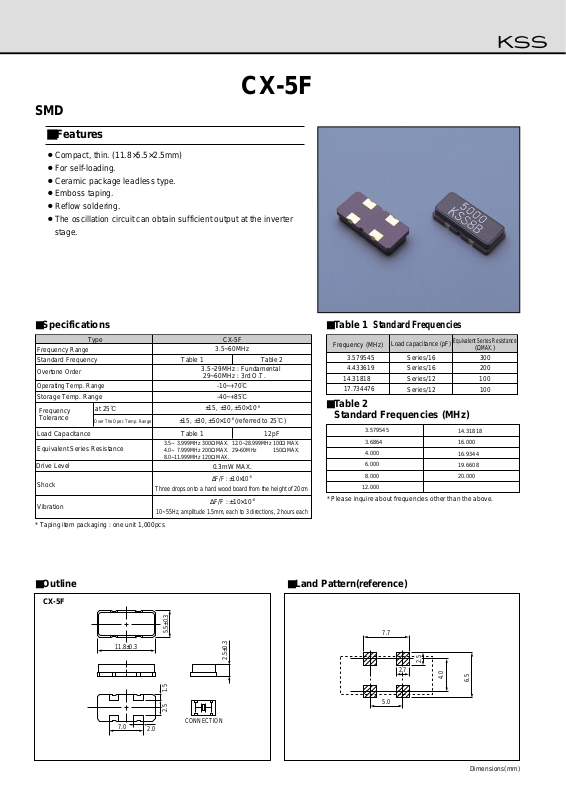

CX-5F
SMD
■Features
¡Compact, thin. (11.8×5.5×2.5mm)
¡For self-loading.
¡Ceramic package leadless type.
¡Emboss taping.
¡Reflow soldering.
¡The oscillation circuit can obtain sufficient output at the inverter
stage.
■Specifications ■Table 1
Standard Frequencies
■Table 2
Standard Frequencies (MHz)
■Outline ■Land Pattern(reference)
Type CX-5F
Table 2
12pF
Standard Frequency
-10~+70:
Operating Temp. Range
Overtone Order
-40~+85:Storage Temp. Range
Frequency
Tolerance
at 25:
Over The Oper. Temp. Range
Equivalent Series Resistance
Load Capacitance
Shock
Vibration
∆F/F : ±10×10
-6
Three drops onto a hard wood board from the height of 20cm
∆F/F : ±10×10
-6
10~55Hz, amplitude 1.5mm, each to 3 directions, 2 hours each
* Taping item packaging : one unit 1,000pcs
Frequency
Range
3.5~60MHz
3.5~29MHz : Fundamental
29~60MHz : 3rd O.T.
3.5~ 3.999MHz 300Ω MAX. 12.0~28.999MHz 100Ω MAX.
4.0~ 7.999MHz 200Ω MAX. 29~60MHz 150Ω MAX.
8.0~11.999MHz 120Ω MAX.
Drive Level
0.3mW MAX.
Table 1
Table 1
±15, ±30, ±50×10
-6
±15, ±30, ±50×10
-6
(referred to 25:)
300
200
100
100
3.579545
4.433619
Equivalent Series Resistance
(
ΩMAX.
)
Frequency (MHz)
Load capacitance (pF)
14.31818
17.734476
Series/16
Series/16
Series/12
Series/12
3.579545
3.6864
4.000
6.000
8.000
12.000
14.31818
16.000
16.9344
19.6608
20.000
* Please inquire about frequencies other than the above.
Dimensions(mm)
CX-5F
11.8±0.3
7.0
2.0
5.5±0.3
2.5 1.5
CONNECTION
2.5±0.3
7.7
2.5
2.7
5.0
4.0
6.5
