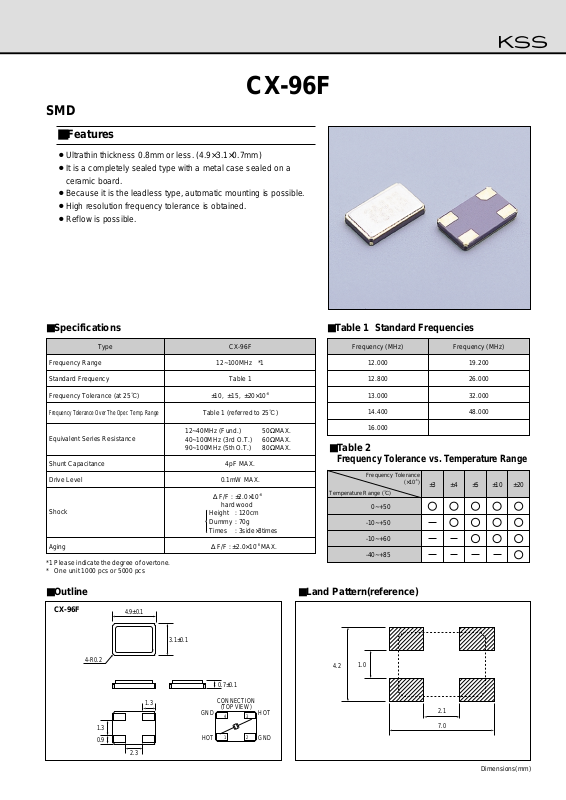

Page 1
CX-96F
SMD
■Features
¡Ultrathin thickness 0.8mm or less. (4.9×3.1×0.7mm)
¡It is a completely sealed type with a metal case sealed on a
ceramic board.
¡Because it is the leadless type, automatic mounting is possible.
¡High resolution frequency tolerance is obtained.
¡Reflow is possible.
■Specifications
■Outline ■Land Pattern(reference)
Type
Frequency Range
Standard Frequency
Frequency Tolerance (at 25:)
Frequency Tolerance Over The Oper. Temp. Range
Equivalent Series Resistance
Shunt Capacitance
Drive Level
Aging
Shock
12~100MHz *1
Table 1
±10, ±15, ±20×10
-6
12~40MHz (Fund.)
40~100MHz (3rd O.T.)
90~100MHz (5th O.T.)
4pF MAX.
0.1mW MAX.
∆ F/F : ±2.0×10
-6
MAX.
∆ F/F : ±2.0×10
-6
CX-96F
Table 1 (referred to 25:)
50ΩMAX.
60ΩMAX.
80ΩMAX.
Height
Dummy
Times
: 120cm
: 70g
: 3side×3times
hard wood
*1 Please indicate the degree of overtone.
* One unit 1000 pcs or 5000 pcs
4.9±0.1
3.1±0.1
CONNECTION
(TOP VIEW)
0.7±0.1
1.3
12
43
2.3
1.3
0.9
4-R0.2
GND
HOT
HOT
GND
7.0
1.0
4.2
2.1
CX-96F
Dimensions(mm)
■Table 1
Standard Frequencies
Frequency (MHz) Frequency (MHz)
12.000
12.800
13.000
14.400
16.000
19.200
26.000
32.000
48.000
■Table 2
Frequency Tolerance vs. Temperature Range
±3
Temperature Range (:)
0~+50
-10~+50
-10~+60
-40~+85
Frequency Tolerance
(×10
-6
)
±4 ±5 ±10 ±20
