CD4014BC 8-Stage Static Shift Register

© 1999 Fairchild Semiconductor Corporation DS005947.prf www.fairchildsemi.com

CD4014BC
8-Stage Static Shift Register

General Description

The CD4014BC is an 8-stage parallel input/serial output
shift register. A parallel/serial cont rol input enabl es individ­ual JAM inputs to each of 8 stages. Q outputs are available
from the sixth, seventh and eighth stages. All ou tputs have
equal source and sink current capabilities and conform to

standard “B” series output drive.
When the parallel/serial control input is in the logical “0”

state, data is serially shifted into the register synchronously
with the positive transition of the clock. When the parallel/
serial control input is in the logical “1” state, data is jammed
into each stage of the register synchronously with the posi­tive transition of the clock.

All inputs are protected against static discharge with diodes
to V

DD

and VSS.

Features

■ Wide supply voltage range: 3.0V to 15V

■ High noise immunity: 0.45 V

DD

(typ.)

■ Low power TTL compatibility: Fan out of 2 driving 74L
or 1 driving 74LS

■ 5V–10V–15V parametric ratings

■ Symmetrical output characteristics

■ Maximum input leakage:

1 µA at 15V over full temperature range

Ordering Code:

Devices also available in Tape and Reel. Specify by appending the suffix letter “x” to the ordering code.

Connection Diagram

Pin Assignments for DIP

Top View

Truth Table

X = Don't care case
No Change

Note 1: Level change

Order Number Package Number Package Description

CD4014BCM M16A 16-Lead Small Outline Integrated Circuit (SOIC), JEDEC MS-012, 0.150” Narrow
CD4014BCN N16E 16-Lead Plastic Dual-In-Line Package (PDIP), JEDEC MS-100, 0.300” Wide

CL

(Note 1)

Serial

Input

Parallel/

Serial

Control

PI 1 PI n

Q1

(Internal)

Q

n



X 10000



X 11010



X 10101



X 11111



00XX0Q

n−1



10XX1Q

n−1



XXXXQ1Q

n

www.fairchildsemi.com 2

CD4014BC

Logic Diagram

3 www.fairchildsemi.com

CD4014BC

Absolute Maximum Ratings(Note 2)

(Note 3)

Recommended Operating
Conditions

(Note 3)

Note 2: “Absolute Maximum Rat ings” are tho se values beyond which the
safety of the device cannot be guaranteed. Ex c ept for “Operating Tempera­ture Range” they are not mea nt to imply that the devices sh ould be oper­ated at these limits. The table of “Electrical Characteristics” provides
conditions for actual device o peration.

Note 3: V

SS

= 0V unless otherw is e s pecified.

DC Electrical Characteristics (Note 3)

Note 4: IOL and IOH are tested one output at a ti m e.

Supply Voltage (VDD) −0.5V to +18V
Input Voltage (V

IN

) −0.5 to VDD + 0.5V

Storage Temperature Range (T

S

) −65°C to +150°C

Power Dissipation (P

D

)
Dual-In-Line 700 mW
Small Outline 500 mW

Lead Temperature (T

L

)
(Soldering, 10 seconds ) 260°C

Supply Voltage (V

DD

) 3.0V to 15V

Input Voltage (V

IN

) 0 to V

DD

Operating Temperature Range (TA) −40°C to +85°C

Symbol Parameter Conditions

−40°C +25°C +85°C

Units

Min Max Min Typ Max Min Max

I

DD

Quiescent Device VDD = 5V, VIN = VDD or V

SS

20 0.1 20 150 µA

Current VDD = 10V, VIN = VDD or V

SS

40 0.2 40 300 µA

VDD = 15V, VIN = VDD or V

SS

80 0.3 80 600 µA

V

OL

LOW Level VDD = 5V 0.05 0 0.05 0.05 V
Output Voltage VDD = 10V |IO| < 1 µA 0.05 0 0.05 0.05 V

VDD = 15V 0.05 0 0.05 0.05 V

V

OH

HIGH Level VDD = 5V 4.95 4.95 5 4.95 V
Output Voltage VDD = 10V |IO| < 1 µA 9.95 9.95 10 9.95 V

VDD = 15V 14.95 14.95 15 14.95 V

V

IL

LOW Level VDD = 5V, VO = 0.5V or 4.5V 1.5 2 1.5 1.5 V
Input Voltage VDD = 10V, VO = 1.0V or 9.0V 3.0 4 3.0 3.0 V

VDD = 15V, VO = 1.5V or 13.5V 4.0 6 4.0 4.0 V

V

IH

HIGH Level VDD = 5V, VO = 0.5V or 4.5V 3.5 3.5 3 3.5 V
Input Voltage VDD = 10V, VO = 1.0V or 9.0V 7.0 7.0 6 7.0 V

VDD = 15V, VO = 1.5V or 13.5V 11.0 11.0 9 11.0 V

I

OL

LOW Level Output VDD = 5V, VO = 0.4V 0.52 0.44 0.88 0.36 mA
Current (Note 4) VDD = 10V, VO = 0.5V 1.3 1.1 2.2 0.9 mA

VDD = 15V, VO = 1.5V 3.6 3.0 8 2.4 mA

I

OH

HIGH Level Output VDD = 5V, VO = 4.6V −0.52 −0.44 −0.88 −0.36 mA
Current (Note 4) VDD = 10V, VO = 9.5V −1.3 −1.1 −2.2 −0.90 mA

VDD = 15V, VO = 13.5V −3.6 −3.0 −8 −2.4 mA

I

IN

Input Current VDD = 15V, VIN = 0V −0.3 −10−5−0.3 −1.0 µA

VDD = 15V, VIN = 15V 0.3 10

−5

0.3 1.0 µA

www.fairchildsemi.com 4

CD4014BC

AC Electrical Charac teristics (Note 5)

TA = 25°C, input tr, tf = 20 ns, CL = 50 pF, RL = 200 kΩ

Note 5: AC Parameters are guara nt eed by DC correlated testing.
Note 6: If more than one unit is cascaded t

rCL

should be made less than or equal to the fixed propagation delay of the out put of the driving stage for the esti­mated capacitive load.
Note 7: Setup times are measured with referen c e to c lock and a fixed hold time (t

H

) as specified.

Note 8: C

PD

determines the n o load AC power consumption of any CMOS device. For complete exp lanation, see 74C family characteristics application note

AN-90.

Symbol Parameter Conditions Min Typ Max Units

t

PHL

, t

PLH

Propagation Delay Time VDD = 5V 200 320 ns

VDD = 10V 80 160 ns
VDD = 15V 60 120 ns

t

THL

, t

TLH

Transition Time VDD = 5V 100 200 ns

VDD = 10V 50 100 ns
VDD = 15V 40 80 ns

f

CL

Maximum Clock VDD = 5V 2.8 4 MHz
Input Frequency VDD = 10V 6 12 MHz

VDD = 15V 8 16 MHz

t

W

Minimum Clo ck VDD = 5V 90 180 ns
Pulse Width VDD = 10V 40 80 ns

VDD = 15V 25 50 ns

t

rCL

, t

fCL

Clock Rise and VDD = 5V 15 µs
Fall Time (Note 6) VDD = 10V 15 µs

VDD = 15V 15 µs

t

S

Minimum Set-Up Time VDD = 5V 60 120 ns
(Note 7) Serial Input VDD = 10V 40 80 ns
tH ≥ 200 ns VDD = 15V 30 60 ns
Parallel Inputs VDD = 5V 80 160 ns
tH ≥ 200 ns VDD = 10V 40 80 ns

VDD = 15V 30 60 ns
Parallel/Serial Control VDD = 5V 100 200 ns
tH ≥ 200 ns VDD = 10V 50 100 ns

VDD = 15V 40 80 ns

t

H

Minimum Hol d Time VDD = 5V 0 ns
Serial In, Parallel In, tS ≥ 400 ns VDD = 10V 10 ns
Parallel/Serial Control VDD = 15V 15 ns

C

I

Average Input Capacitance Any Input 5 7.5 pF
(Note 8)

C

PD

Power Dissipation Capacitance 110 pF
(Note 8)

5 www.fairchildsemi.com

CD4014BC

Typical Perf ormance Characteristics

www.fairchildsemi.com 6

CD4014BC

Physical Dimensions inches (millimeters) unless otherwise noted

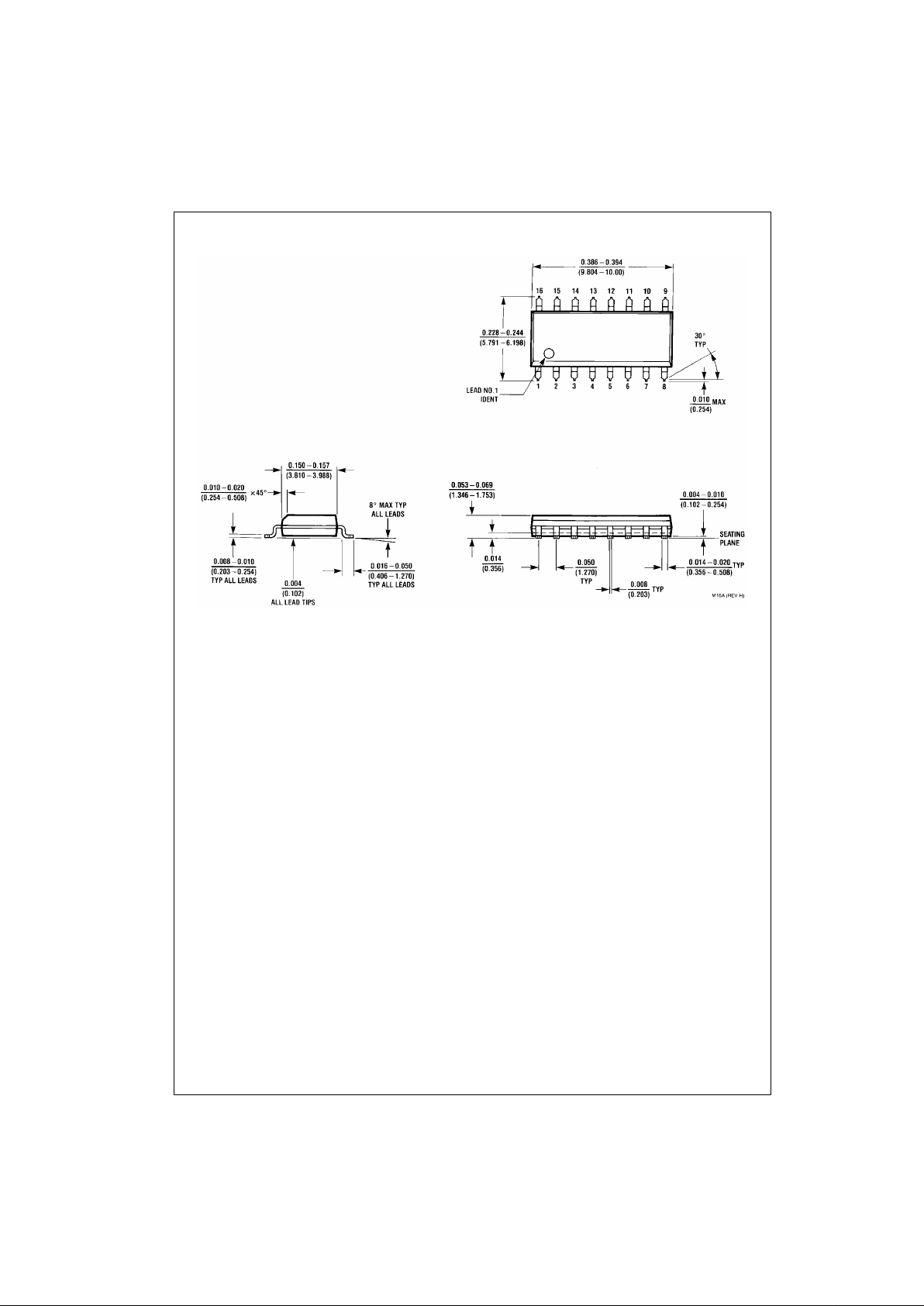

16-Lead Small Outline Integrated Circuit (SOIC), JEDEC MS-012, 0.150” Narrow

Package Number M16A
