INTEGRATED CIRCUITS

CBTS3384

10-bit bus switch with 5-bit output enables
and Schottky undershoot protection

Product data
Supersedes data of 2001 Feb 13

Philips
Semiconductors

2002 Dec 13

Philips Semiconductors Product data

CBTS3384

10-bit bus switch with 5-bit output enables
and Schottky undershoot protection

2

2002 Dec 13

FEATURES

• 5 Ω switch connection between two ports

• TTL compatible control input and output levels

• Undershoot protection included to prevent shoot through level

changes

• Latch-up protection exceeds 500 mA per JESD78

• ESD protection exceeds 2000 V HBM per JESD22-A114,

200 V MM per JESD22-A115 and 1000 V CDM per JESD22-C101

DESCRIPTION

The CBTS3384 provides ten bits of high-speed TTL-compatible bus
switching. The low on-state resistance of the switch allows
connections to be made with minimal propagation delay.

The CBTS3384 device is organized as two 5-bit bus switches with
separate output-enable (OE

) inputs. When OE is LOW, the switch is

on and port A is connected to B. When OE

is HIGH, the switch is

open and high-impedance state exists between the two ports.
The CBTS3384 is characterized for operation from -40 to +85 °C.

PIN CONFIGURATION

SA00502

1
2
3
4
5
6
7
8
9

10

11

12

24
23
22
21
20
19

18
17
16
15
14
13

1B1
1A1
1A2
1B2
1B3
1A3
1A4
1B4
1B5
1A5

GND

1OE

Vcc
2B5
2A5
2A4
2B4

2B3
2A3
2A2
2B2
2B1
2A1
2OE

PIN DESCRIPTION

PIN NUMBER SYMBOL NAME AND FUNCTION

1, 13 1OE, 2OE Output enables

3, 4, 7, 8, 11 1A1-1A5 Inputs

14, 17, 18, 21, 22 2A1-2A5 Inputs

2, 5, 6, 9, 10 1B1-1B5 Outputs

15, 16, 19, 20, 23 2B1-2B5 Outputs

12 GND Ground (0 V)
24 V

CC

Positive supply voltage

QUICK REFERENCE DATA

SYMBOL PARAMETER

CONDITIONS

T

amb

= 25 °C; GND = 0 V

TYPICAL UNIT

t

PLH

t

PHL

Propagation delay
An to Yn

CL = 50 pF; VCC = 5 V 250 ps

C

IN

Input capacitance VI = 0 V or V

CC

4 pF

C

OUT

Output capacitance Outputs disabled; VO = 0 V or V

CC

10 pF

I

CCZ

Total supply current Outputs disabled; VCC = 5.5 V 3 µA

ORDERING INFORMATION

PACKAGES TEMPERATURE RANGE ORDER CODE DWG NUMBER

24-Pin Plastic SO -40 to +85 °C CBTS3384D SOT137-1
24-Pin Plastic SSOP -40 to +85 °C CBTS3384DB SOT340-1
24-Pin Plastic SSOP (QSOP) -40 to +85 °C CBTS3384DK SOT556-1
24-Pin Plastic TSSOP -40 to +85 °C CBTS3384PW SOT355-1

Standard packing quantities and other packaging data is available at www.philipslogic.com/packaging.

Philips Semiconductors Product data

CBTS3384

10-bit bus switch with 5-bit output enables
and Schottky undershoot protection

2002 Dec 13

3

LOGIC SYMBOL

1A1

1A5

2A1

2A5

1B1

1B5

2B1

2B5

3

11

2

10

14

22

15

23

SA00504

13

1

2OE

1OE

FUNCTION TABLE

INPUTS OUTPUTS

1OE 2OE 1A, 1B 2A, 2B

L L 1A = 1B 2A= 2B

L H 1A = 1B Z
H L Z 2A = 2B
H H Z Z

H = High voltage level
L = Low voltage level
Z = High impedance “off” state

ABSOLUTE MAXIMUM RATINGS

1, 2

SYMBOL

PARAMETER CONDITIONS RATING UNIT

V

CC

DC supply voltage -0.5 to +7.0 V

I

IK

DC input diode current -50 mA

V

I

DC input voltage

3

-1.2 to +7.0 V

I

SW

DC output diode current VO < 0 ±128 mA

T

stg

Storage temperature range -65 to +150 °C

NOTES:

1. Stresses beyond those listed may cause permanent damage to the device. These are stress ratings only and functional operation of the
device at these or any other conditions beyond those indicated under “recommended operating conditions” is not implied. Exposure to
absolute-maximum-rated conditions for extended periods may affect device reliability.

2. The performance capability of a high-performance integrated circuit in conjunction with its thermal environment can create junction
temperatures which are detrimental to reliability. The maximum junction temperature of this integrated circuit should not exceed 150°C.

3. The input and output voltage ratings may be exceeded if the input and output current ratings are observed.

RECOMMENDED OPERATING CONDITIONS

LIMITS

SYMBOL PARAMETER

Min Max

UNIT

V

CC

DC supply voltage 4.5 5.5 V

V

IH

High-level input voltage 2.0 V

V

IL

Low-level Input voltage 0.8 V

T

amb

Operating free-air temperature range -40 +85 °C

Philips Semiconductors Product data

CBTS3384

10-bit bus switch with 5-bit output enables
and Schottky undershoot protection

2002 Dec 13

4

DC ELECTRICAL CHARACTERISTICS

LIMITS

SYMBOL PARAMETER TEST CONDITIONS

T

amb

= -40 to +85 °C

UNIT

Min Typ1Max

V

IK

Input clamp voltage VCC = 4.5 V; II = -18 mA — — -1.2 V

I

I

Input leakage current VCC = 5.5 V; VI = GND or 5.5 V — — ±1 µA

I

CC

Quiescent supply current

2

VCC = 5.5 V; IO = 0, VI = VCC or GND — — 3 µA

∆I

CC

Additional supply current per input pin

2

VCC = 5.5 V, one input at 3.4 V, other inputs at V

CC

or GND

— — 2.5 mA

C

I

Control pins VI= 3.0 V or 0 — 4 — pF

C

I(OFF)

Power-off leakage current VO = 3.0 V or 0, OE = V

CC

— 10 — pF

VCC = 4.5 V; VI = 0 V; II = 64 mA — 5 7

r

on

3

On-resistance

VCC = 4.5 V; VI = 0 V; II = 30 mA — 5 7

Ω

on

VCC = 4.5 V; VI = 2.4 V; II = -15 mA — 10 15

V

P

Pass voltage VI= VCC = 5.0 V; IO = -100 µA 3.4 3.6 3.9 V

I

UCP

Undershoot static current protection VCC = 5.0 V, IB = 400 µA; OE = 5.0 V; VB ≥ 3.0 V — 8 — mA

NOTES:

1. All typical values are at V

CC

= 5 V, T

amb

= 25 °C.

2. This is the increase in supply current for each input that is at the specified TTL voltage level rather than VCC or GND.

3. Measured by the voltage drop between the A and the B terminals at the indicated current through the switch. On-state resistance is
determined by the lowest voltage of the two (A or B) terminals.

AC CHARACTERISTICS

GND = 0 V; tR; CL = 50 pF

LIMITS

SYMBOL PARAMETER

FROM TO

VCC = +5.0 V ±0.5 V

UNIT

(INPUT) (OUTPUT)

Min Max

t

pd

Propagation delay

1

A or B B or A — 0.25 ns

t

en

Output enable time
to High and Low level

OE A or B 1.0 5.7 ns

t

dis

Output disable time
from High and Low level

OE A or B 1.0 5.2 ns

NOTE:

1. This parameter is warranted but not production tested. The propagation delay is based on the RC time constant of the typical on-state
resistance of the switch and a load capacitance of 50 pF, when driven by an ideal voltage source (zero output impedance).

LIMITS

SYMBOL PARAMETER DESCRIPTION

-40 to +85° C

VCC = 5 V, ±0.5 V

UNIT

MIN. MEAN MAX.

t

PD

Propagation delay (see Note 1) — — 250 pS

t

PZH

Output enable time to High level 1.6 3.4 5.6 nS

t

PHZ

Output enable time from High level 1.7 3.3 5.5 nS

t

PZL

Output enable time to Low level 2.3 4 6 nS

t

PLZ

Output enable time from Low level 2.5 4.5 6.6 nS

NOTE:

1. This parameter is warranted but not production tested. The propagation delay is based on the RC time constant of the typical on-state
resistance of the switch and a load capacitance of 50 pF, when driven by an ideal voltage source (zero output impedance); at +25 °C.

Philips Semiconductors Product data

CBTS3384

10-bit bus switch with 5-bit output enables
and Schottky undershoot protection

2002 Dec 13

5

AC WAVEFORMS

VM = 1.5 V, VIN = GND to 3.0 V

INPUT

1.5 V

OUTPUT

t

PLH

t

PHL

SA00028

1.5 V

1.5 V 1.5 V

3 V

0 V

V

OH

V

OL

Waveform 1. Input (An) to Output (Yn) Propagation Delays

Output Control

(Low-level

enabling )

1.5 V

t

PZH

t

PHZ

V

OH

V

OL

t

PZL

t

PLZ

3.5 V

0 V

V

OL

+ 0.3 V

V

OH

- 0.3 V

SA00029

1.5 V

1.5 V 1.5 V

0 V

3 V

Output

Waveform 1

S1 at 7 V

(see Note)

Note:

Waveform 1 is for an output with internal conditions such that
the output is low except when disabled by the output control.

Waveform 2 is for an output with internal conditions such that
the output is high except when disabled by the output control.

Output

Waveform 2

S1 at Open

(see Note)

Waveform 2. 3-State Output Enable and Disable Times

TEST CIRCUIT AND WAVEFORMS

C

L

= 50 pF

500 Ω

Load Circuit

DEFINITIONS

C

L

= Load capacitance includes jig and probe capacitance;

see AC CHARACTERISTICS for value.

TEST S1

t

pd

open

t

PLZ/tPZL

7 V

t

PHZ/tPZH

open

SA00012

500 Ω

From Output
Under Test

S1

7 V

Open

GND

NOTES:

1. All input pulses are supplied by generators having the following
characteristics: PRR ≤ 10 MHz, Z

O

= 50 Ω, tr ≤ 2.5 ns, tf ≤ 2.5 ns.

2. The outputs are measured one at a time with one transition per
measurement.

Philips Semiconductors Product data

CBTS3384

10-bit bus switch with 5-bit output enables
and Schottky undershoot protection

2002 Dec 13

6

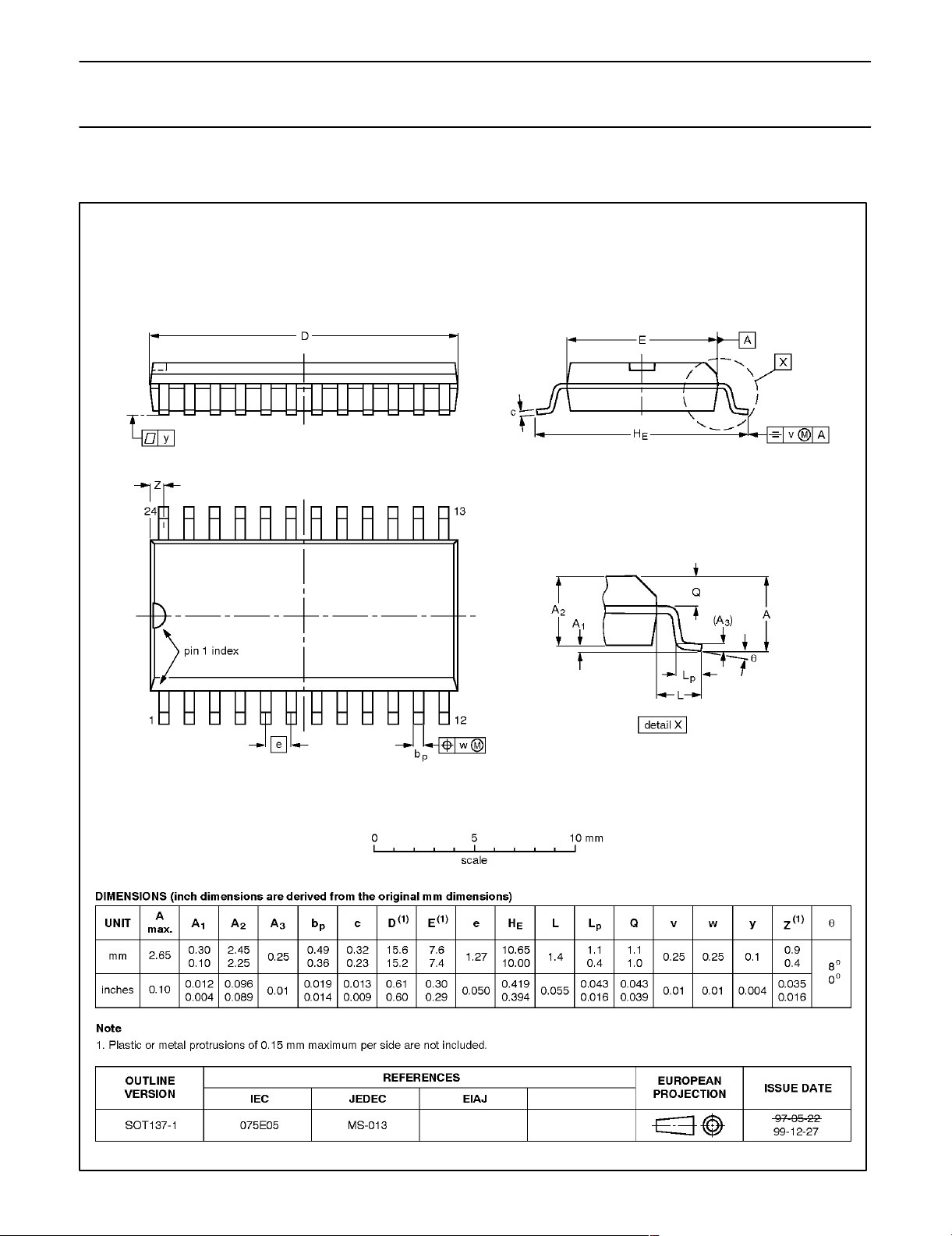

SO24: plastic small outline package; 24 leads; body width 7.5 mm SOT137-1

Philips Semiconductors Product data

CBTS3384

10-bit bus switch with 5-bit output enables
and Schottky undershoot protection

2002 Dec 13

7

SSOP24: plastic shrink small outline package; 24 leads; body width 5.3 mm SOT340-1

Philips Semiconductors Product data

CBTS3384

10-bit bus switch with 5-bit output enables
and Schottky undershoot protection

2002 Dec 13

8

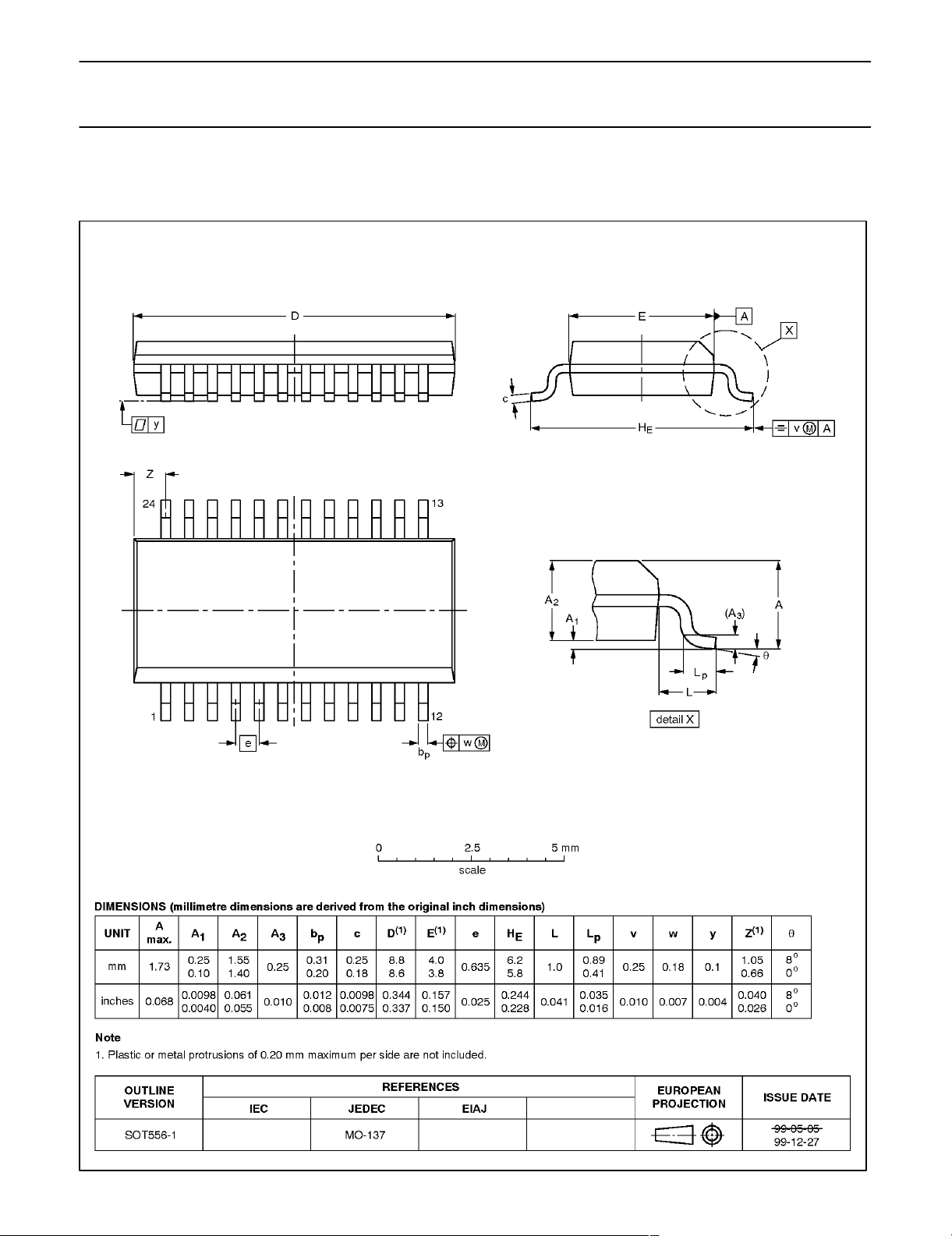

SSOP24: plastic shrink small outline package; 24 leads;
body width 3.9 mm; lead pitch 0.635 mm SOT556-1

Philips Semiconductors Product data

CBTS3384

10-bit bus switch with 5-bit output enables
and Schottky undershoot protection

2002 Dec 13

9

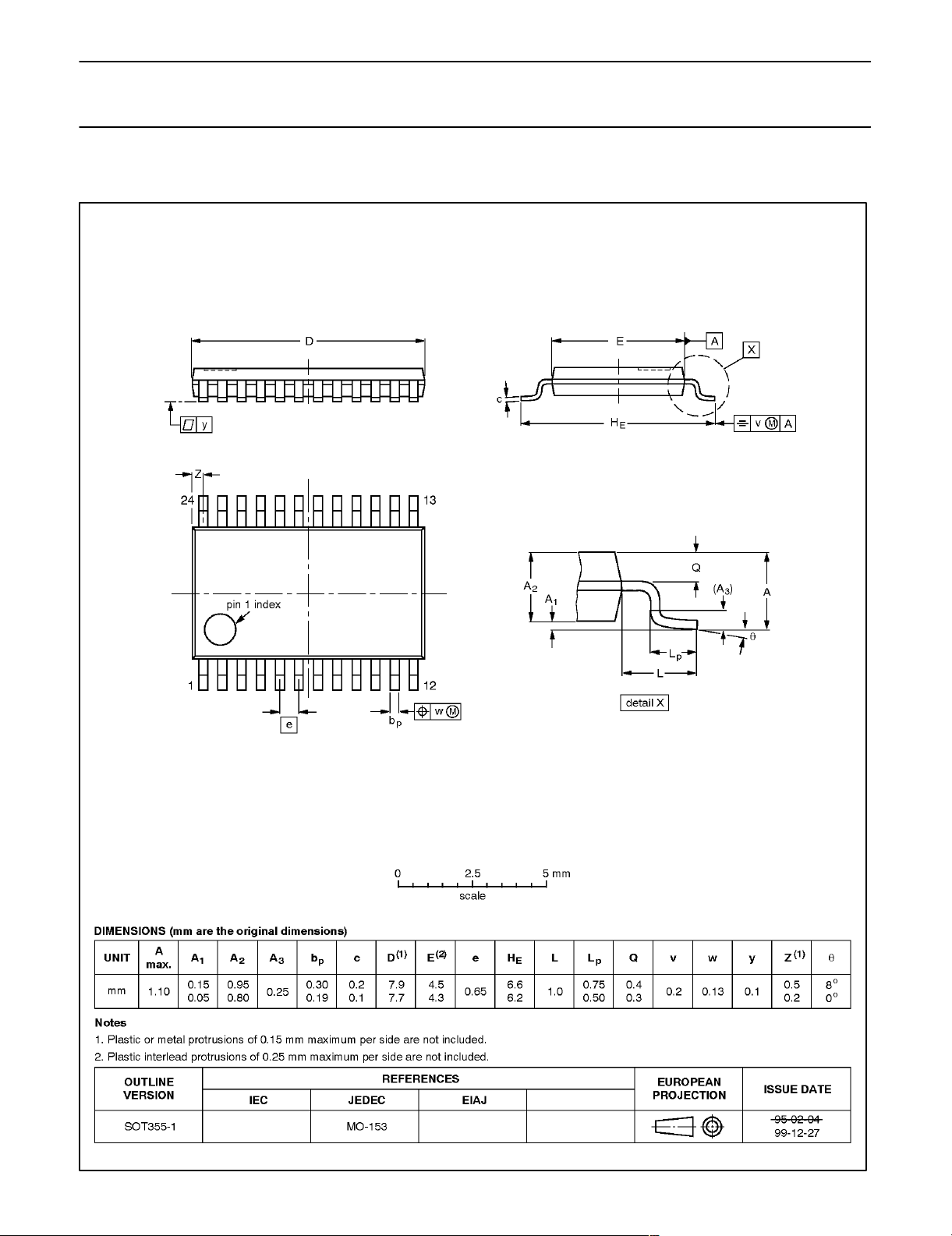

TSSOP24: plastic thin shrink small outline package; 24 leads; body width 4.4 mm SOT355-1

Philips Semiconductors Product data

CBTS3384

10-bit bus switch with 5-bit output enables
and Schottky undershoot protection

2002 Dec 13

10

REVISION HISTORY

Rev

Date Description

_2 20021213 Product data (9397 750 09249); ECN 853-2238 27501 of 20 December 2001.

Modifications:

• New package release.

_1 20010213 Product data (9397 750 08073); ECN 853-2238 25635 of 13 February 2001.

Philips Semiconductors Product data

CBTS3384

10-bit bus switch with 5-bit output enables
and Schottky undershoot protection

2002 Dec 13

11

Definitions

Short-form specification — The data in a short-form specification is extracted from a full data sheet with the same type number and title. For detailed information see

the relevant data sheet or data handbook.
Limiting values definition — Limiting values given are in accordance with the Absolute Maximum Rating System (IEC 60134). Stress above one or more of the limiting

values may cause permanent damage to the device. These are stress ratings only and operation of the device at these or at any other conditions above those given
in the Characteristics sections of the specification is not implied. Exposure to limiting values for extended periods may affect device reliability.

Application information — Applications that are described herein for any of these products are for illustrative purposes only. Philips Semiconductors make no
representation or warranty that such applications will be suitable for the specified use without further testing or modification.

Disclaimers

Life support — These products are not designed for use in life support appliances, devices, or systems where malfunction of these products can reasonably be

expected to result in personal injury. Philips Semiconductors customers using or selling these products for use in such applications do so at their own risk and agree
to fully indemnify Philips Semiconductors for any damages resulting from such application.

Right to make changes — Philips Semiconductors reserves the right to make changes in the products—including circuits, standard cells, and/or software—described
or contained herein in order to improve design and/or performance. When the product is in full production (status ‘Production’), relevant changes will be communicated
via a Customer Product/Process Change Notification (CPCN). Philips Semiconductors assumes no responsibility or liability for the use of any of these products, conveys
no license or title under any patent, copyright, or mask work right to these products, and makes no representations or warranties that these products are free from patent,
copyright, or mask work right infringement, unless otherwise specified.

Contact information

For additional information please visit
http://www.semiconductors.philips.com. Fax: [phone]

For sales offices addresses send e-mail to:
[e-mail].

 Koninklijke Philips Electronics N.V. 2002

All rights reserved. Printed in U.S.A.

Date of release: 12-02

Document order number: 9397 750 09249

Philips
Semiconductors

Data sheet status

[1]

Objective data

Preliminary data

Product data

Product
status

[2] [3]

Development

Qualification

Production

Definitions

This data sheet contains data from the objective specification for product development.
Philips Semiconductors reserves the right to change the specification in any manner without notice.

This data sheet contains data from the preliminary specification. Supplementary data will be published
at a later date. Philips Semiconductors reserves the right to change the specification without notice, in
order to improve the design and supply the best possible product.

This data sheet contains data from the product specification. Philips Semiconductors reserves the
right to make changes at any time in order to improve the design, manufacturing and supply. Relevant
changes will be communicated via a Customer Product/Process Change Notification (CPCN).

Data sheet status

[1] Please consult the most recently issued data sheet before initiating or completing a design.
[2] The product status of the device(s) described in this data sheet may have changed since this data sheet was published. The latest information is available on the Internet at URL

http://www.semiconductors.philips.com.

[3] For data sheets describing multiple type numbers, the highest-level product status determines the data sheet status.

Level

I

II

III
