INTEGRATED CIRCUITS

CBTS3253

Dual 1-of-4 FET multiplexer/demultiplexer
with Schottky diode clamping

Product data 2002 Nov 06

Philips
Semiconductors

Philips Semiconductors Product data

CBTS3253

Dual 1-of-4 FET multiplexer/demultiplexer
with Schottky diode clamping

2

2002 Nov 06

FEATURES

•5 Ω switch connection between two ports

•TTL-compatible input levels

•Schottky diodes on I/O clamp undershoot

•Minimal propagation delay through the switch

•ESD protection exceeds 2000 V HBM per JESD22-A114,

200 V MM per JESD22-A115 and 1000 V CDM per JESD22-C101

•Latch-up testing is done to JESDEC Standard JESD78 which

exceeds 100 mA

DESCRIPTION

The CBTS3253 is a dual 1-of-4 high-speed TTL-compatible FET
multiplexer/demultiplexer. The low on resistance of the switch allows
inputs to be connected to outputs without adding propagation delay
or generating additional ground bounce noise.

1OE

, 2OE, S0, and S1 select the appropriate B output for the

A-input data.
Internal Schottky diode provides I/O undershoot protection
The CBTS3253 is characterized for operation from –40 to +85°C.

PIN CONFIGURATION

1
2
3
4
5
6
7
89

10

11

12

13

14

15

16

1B4
1B3
1B2
1B1

1A

1OE

GND

V

CC

S0

SA00574

S1

2OE

2B4
2B3
2B2
2B1
2A

PIN DESCRIPTION

PIN NUMBER SYMBOL NAME AND FUNCTION

1 1OE Output enable
2 S1 Select-control input

3, 4, 5, 6 1B[1–4] B outputs

7 1A A input
8 GND Ground (0 V)
9 2A A input

10, 11, 12, 13 2B[1–4] Select-control input

14 S0 Select-control input
15 2OE Output enable
16 V

CC

Positive supply voltage

ORDERING INFORMATION

PACKAGES TEMPERATURE RANGE ORDER CODE TOPSIDE MARK DWG NUMBER

16-pin plastic SO –40 to 85 °C CBTS3253D CBTS3257 SOT109-1
16-pin plastic SSOP –40 to 85 °C CBTS3253DB CS3253 SOT338-1
16-pin plastic SSOP (QSOP) –40 to 85 °C CBTS3253DS CBS3253 SOT519-1
16-pin plastic TSSOP –40 to 85 °C CBTS3253PW CBS3253 SOT403-1

Standard packing quantities and other packaging data is available at www.philipslogic.com/packaging.

Philips Semiconductors Product data

CBTS3253

Dual 1-of-4 FET multiplexer/demultiplexer
with Schottky diode clamping

2002 Nov 06

3

LOGIC DIAGRAM (positive logic)

SA00637

1A

1B1

1B2

1B3

1B4

2B1

2B2

2B3

2B4

SW

SW

SW

SW

SW

SW

SW

SW

2A

7

S0

S1

1OE

2OE

9

14

2

1

15

6

5

4

3

10

11

12

13

FUNCTION TABLE

INPUTS

OE1 OE2 S1 S0

FUNCTION

H X X X Disconnect 1A
X H X X Disconnect 2A

L L L L 1A to 1B1 and 2A to 2B1
L L L H 1A to 1B2 and 2A to 2B2
L L H L 1A to 1B3 and 2A to 2B3
L L H H 1A to 1B4 and 2A to 2B4

Philips Semiconductors Product data

CBTS3253

Dual 1-of-4 FET multiplexer/demultiplexer
with Schottky diode clamping

2002 Nov 06

4

ABSOLUTE MAXIMUM RATINGS

1

SYMBOL

PARAMETER CONDITIONS RATING UNIT

V

CC

DC supply voltage –0.5 to +7.0 V

V

I

DC input voltage

2

–0.5 to +7.0 V

Continuous channel current 128 mA

I

K

Input clamp current V

I/O

< 0 –50 mA

T

stg

Storage temperature range –65 to +150 °C

NOTES:

1. Stresses beyond those listed may cause permanent damage to the device. These are stress ratings only and functional operation of the
device at these or any other conditions beyond those indicated under “recommended operating conditions” is not implied. Exposure to
absolute-maximum-rated conditions for extended periods may affect device reliability.

2. The input and output negative-voltage ratings may be exceeded if the input and output clamp-current ratings are observed.

3. The package thermal impedance is calculated in accordance with JESD 51-7.

RECOMMENDED OPERATING CONDITIONS

LIMITS

SYMBOL PARAMETER

MIN MAX

UNIT

V

CC

DC supply voltage 4.5 5.5 V

V

IH

High-level input voltage 2 — V

V

IL

Low-level Input voltage — 0.8 V

T

amb

Operating free-air temperature range –40 +85 °C

NOTE:

1. All unused control inputs of the device must be held at V

CC

or GND to ensure proper device operation.

DC ELECTRICAL CHARACTERISTICS

LIMITS

SYMBOL PARAMETER TEST CONDITIONS T

amb

= –40 to +85 °C UNIT

MIN TYP

1

MAX

A or B inputs — — –0.8

V

IK

Input clamp voltage

Control inputs

VCC = 4.5 V; II = –18 mA

— — –1.2

V

V

P

Pass voltage VI = VCC = 5.5 V; I/O = –100 µA 3.4 3.6 3.9 V

I

I

Input leakage current VCC = 5.5 V; VI = 5.5 or GND — — ±1 µA

I

CC

Quiescent supply current VCC = 5.5 V; IO = 0, VI = VCC or GND — — 3 µA

∆I

CC

Control inputs

2

VCC = 5.5 V, one input at 3.4 V,
other inputs at V

CC

or GND

— — 2.5 mA

C

I

Control pins VI= 3 V or 0 — 4.5 — pF
Power-off leakage

A port VO = 3 V or 0; OE = V

CC

— 24.6 —

C

IO(OFF)

Power-off leakage
current

B port VO = 3 V or 0; OE = V

CC

— 7.6 —

pF

VI = 0 V; II = 64 mA — 5 7

r

on

3

On-resistance VCC = 4.5 V

VI = 0 V; II = 30 mA — 5 7

Ω

on CC

VI = 2.4 V; II = –15 mA — 10 15

NOTES:

1. All typical values are at V

CC

= 5 V, T

amb

= 25 °C.

2. This is the increase in supply current for each input that is at the specified TTL voltage level rather than VCC or GND

3. Measured by the voltage drop between the A and the B terminals at the indicated current through the switch.
On-state resistance is determined by the lowest voltage of the two (A or B) terminals.

Philips Semiconductors Product data

CBTS3253

Dual 1-of-4 FET multiplexer/demultiplexer
with Schottky diode clamping

2002 Nov 06

5

AC CHARACTERISTICS

T

amb

= –40 to +85 °C; CL = 50 pF

LIMITS

SYMBOL PARAMETER FROM (INPUT)

TO

VCC = +5.0 V ±0.5 V

UNIT

(OUTPUT)

MIN MAX

A or B B or A — 0.25

t

pd

Propagation delay

1

S A or B 1.2 6.2

ns

Output enable time

S 1.3 6.3

t

en

Output enable time
to High and Low level

OE

A or B

1.4 6.4

ns

Output disable time

S 1.1 7.2

t

dis

Output disable time
from High and Low level

OE

A or B

1.0 7

ns

NOTE:

1. The propagation delay is the calculated RC time constant of the typical on-state resistance of the switch and the specified load capacitance,
when driven by an ideal voltage source (zero output impedance).

Philips Semiconductors Product data

CBTS3253

Dual 1-of-4 FET multiplexer/demultiplexer
with Schottky diode clamping

2002 Nov 06

6

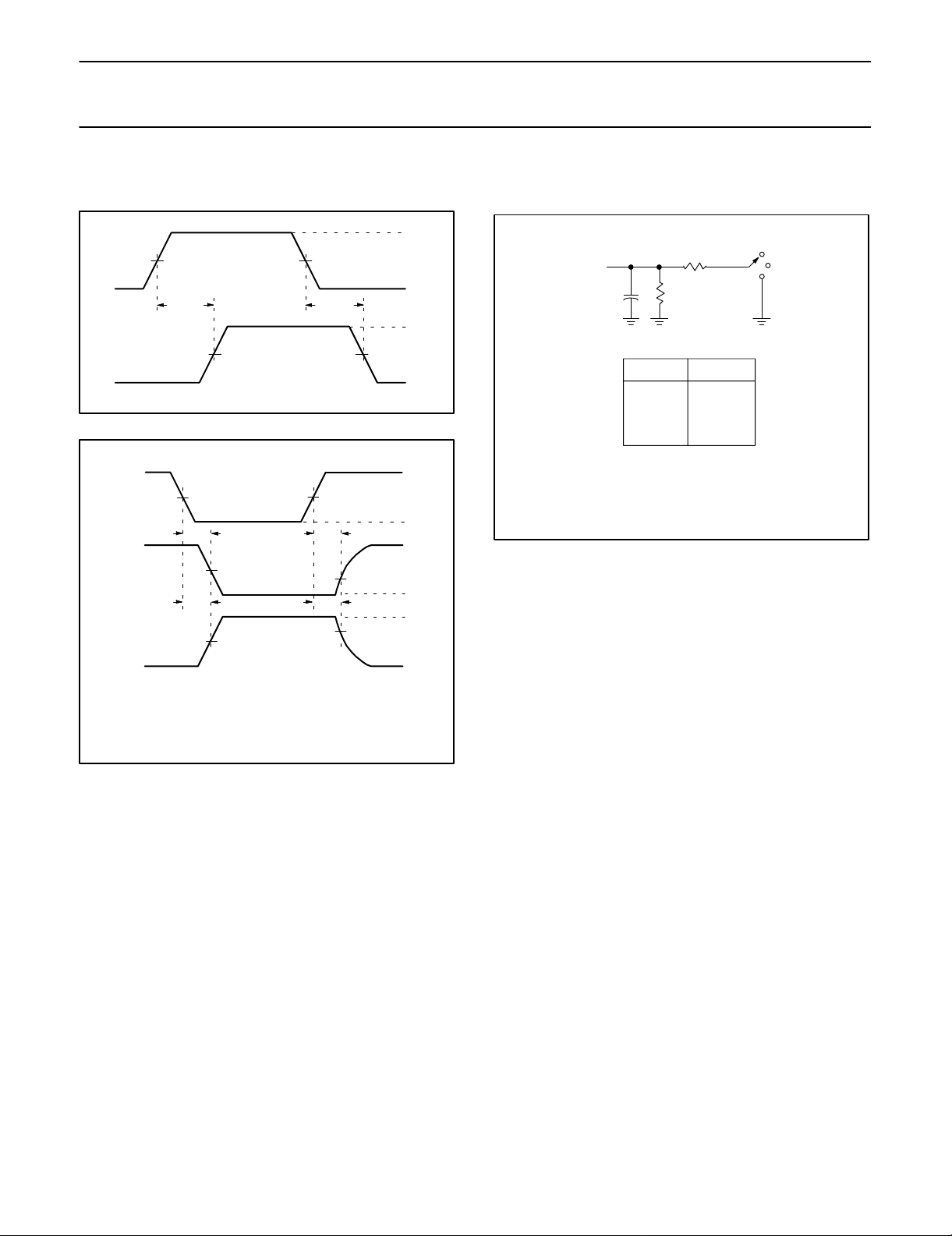

AC WAVEFORMS

VM = 1.5 V, VIN = GND to 3.0 V

INPUT

1.5 V

OUTPUT

t

PLH

t

PHL

1.5 V

1.5 V 1.5 V

3 V

0 V

V

OH

V

OL

SA00591

Waveform 1. Pulse duration

Output

Control

(Low-level

enabling)

1.5 V

t

PZH

t

PHZ

V

OH

V

OL

t

PZL

t

PLZ

3.5 V

0 V

V

OL

+ 0.3V

V

OH

– 0.3V

1.5 V

1.5 V

3 V

Output

Waveform 1

S1 at 4.3 V

(see Note)

Note:

Waveform 1 is for an output with internal conditions such that
the output is low except when disabled by the output control.

Waveform 2 is for an output with internal conditions such that
the output is high except when disabled by the output control.

Output

Waveform 2

S1 at Open

(see Note)

0 V

SA00592

1.5 V

Waveform 2. 3-State Output Enable and Disable Times

NOTES:

1. t

PLZ

and t

PHZ

are the same as t

dis

.

2. t

PZL

and t

PZH

are the same as ten.

3. t

PLH

and t

PHL

are the same as tpd.

TEST CIRCUIT AND WAVEFORMS

CL = 50 pF

Load Circuit

DEFINITIONS

C

L

= Load capacitance includes jig and probe capacitance;

see AC CHARACTERISTICS for value.

TEST S1

t

pd

open

t

PLZ/tPZL

7 V

t

PHZ/tPZH

open

SA00590

From Output
Under Test

S1

7 V

Open

GND

500 Ω

500 Ω

NOTES:

1. All input pulses are supplied by generators having the following
characteristics: PRR ≤ 10 MHz, Z

O

= 50 Ω, tr ≤ 2.5 ns, tf ≤ 2.5 ns.

2. The outputs are measured one at a time with one transition per
measurement.

Philips Semiconductors Product data

CBTS3253

Dual 1-of-4 FET multiplexer/demultiplexer
with Schottky diode clamping

2002 Nov 06

7

SO16: plastic small outline package; 16 leads; body width 3.9 mm SOT109-1

Philips Semiconductors Product data

CBTS3253

Dual 1-of-4 FET multiplexer/demultiplexer
with Schottky diode clamping

2002 Nov 06

8

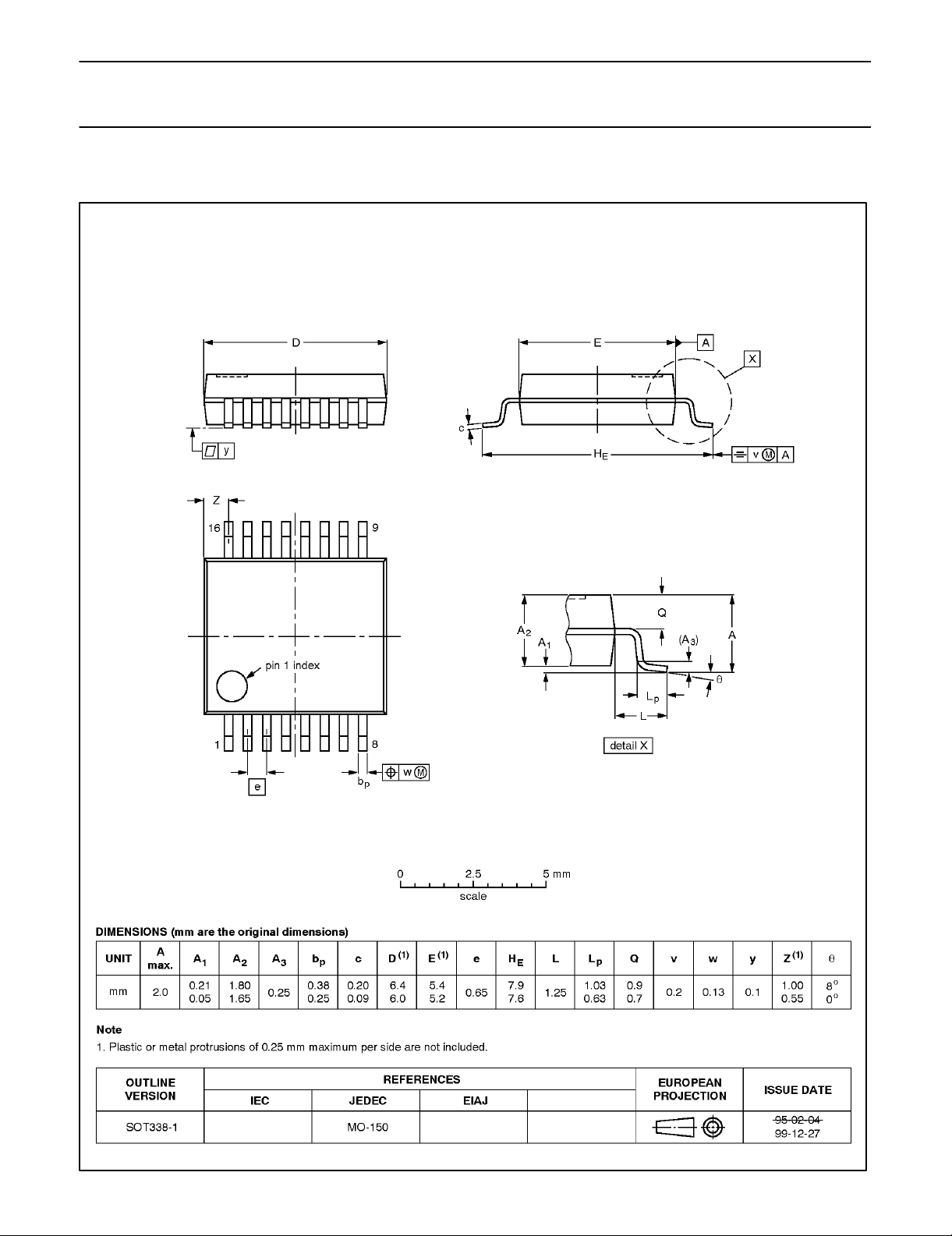

SSOP16: plastic shrink small outline package; 16 leads; body width 5.3 mm SOT338-1

Philips Semiconductors Product data

CBTS3253

Dual 1-of-4 FET multiplexer/demultiplexer
with Schottky diode clamping

2002 Nov 06

9

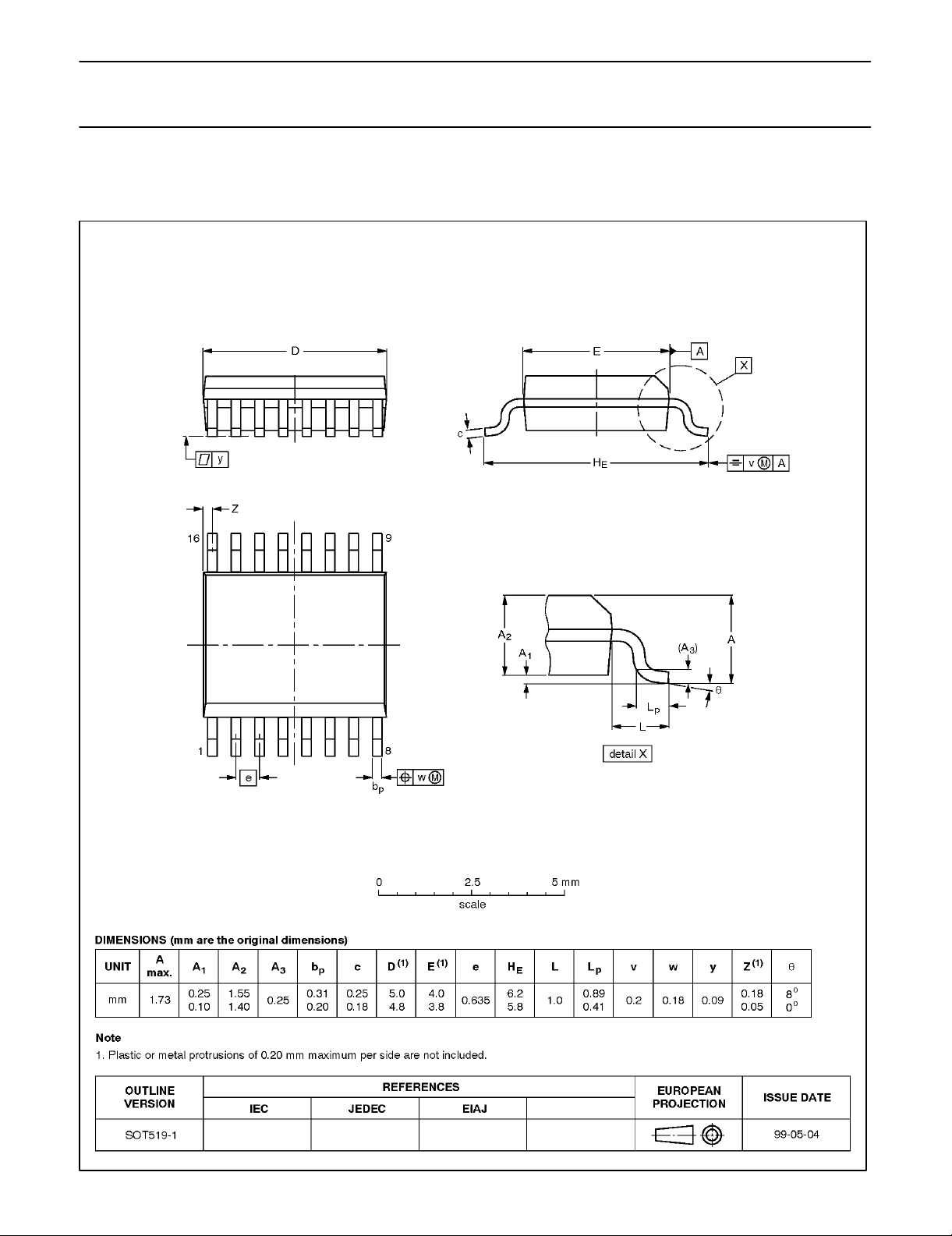

SSOP16: plastic shrink small outline package; 16 leads;
body width 3.9 mm; lead pitch 0.635 mm SOT519-1

Philips Semiconductors Product data

CBTS3253

Dual 1-of-4 FET multiplexer/demultiplexer
with Schottky diode clamping

2002 Nov 06

10

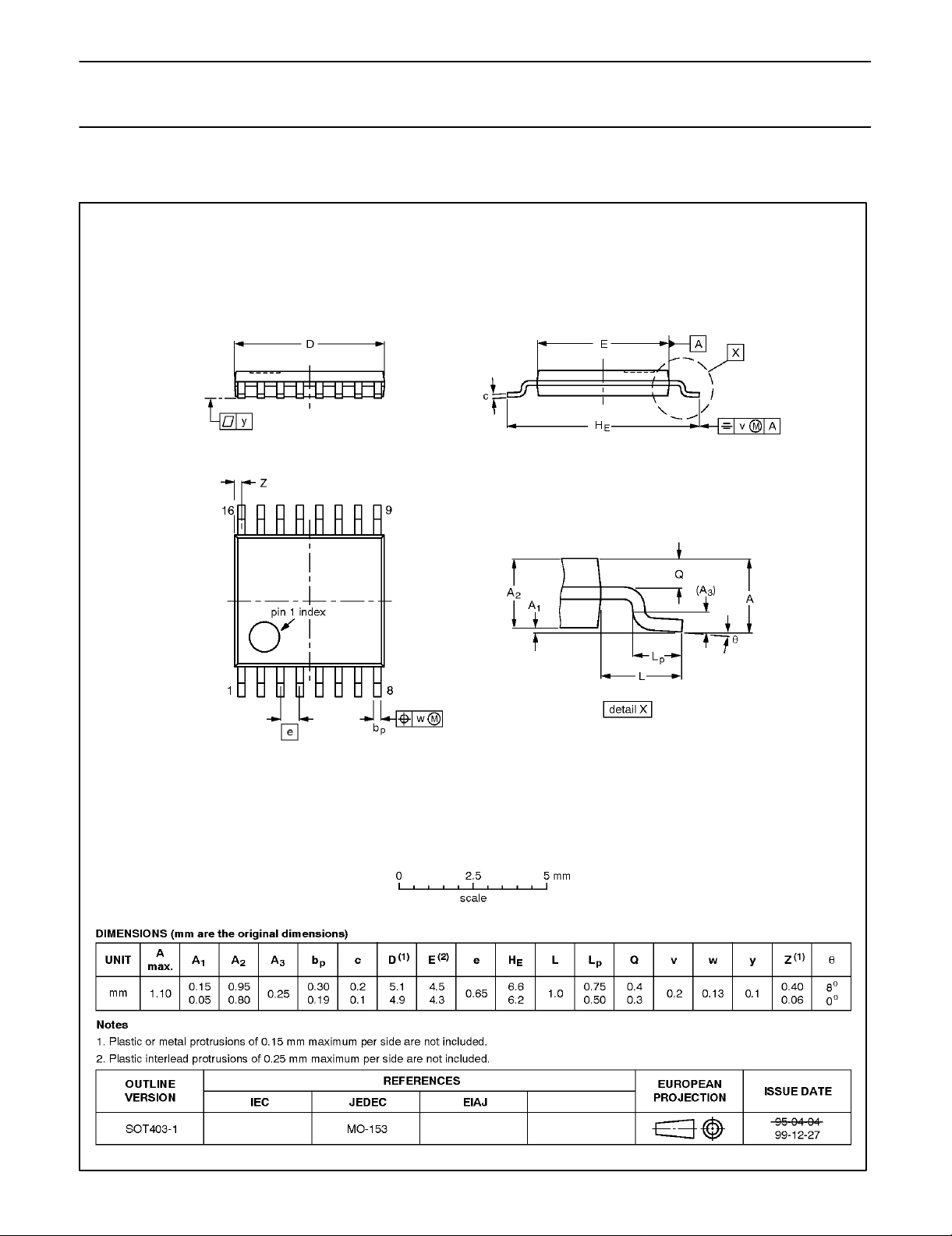

TSSOP16: plastic thin shrink small outline package; 16 leads; body width 4.4 mm SOT403-1

Philips Semiconductors Product data

CBTS3253

Dual 1-of-4 FET multiplexer/demultiplexer
with Schottky diode clamping

2002 Nov 06

11

REVISION HISTORY

Rev

Date Description

_1 2002 Nov 06 Product data (9397 750 10665); initial version

Engineering Change Notice: 853–2390 29065 (2002 Oct 15)

Philips Semiconductors Product data

CBTS3253

Dual 1-of-4 FET multiplexer/demultiplexer
with Schottky diode clamping

2002 Nov 06

12

Definitions

Short-form specification — The data in a short-form specification is extracted from a full data sheet with the same type number and title. For detailed information see

the relevant data sheet or data handbook.
Limiting values definition — Limiting values given are in accordance with the Absolute Maximum Rating System (IEC 60134). Stress above one or more of the limiting

values may cause permanent damage to the device. These are stress ratings only and operation of the device at these or at any other conditions above those given
in the Characteristics sections of the specification is not implied. Exposure to limiting values for extended periods may affect device reliability.

Application information — Applications that are described herein for any of these products are for illustrative purposes only. Philips Semiconductors make no
representation or warranty that such applications will be suitable for the specified use without further testing or modification.

Disclaimers

Life support — These products are not designed for use in life support appliances, devices, or systems where malfunction of these products can reasonably be

expected to result in personal injury. Philips Semiconductors customers using or selling these products for use in such applications do so at their own risk and agree
to fully indemnify Philips Semiconductors for any damages resulting from such application.

Right to make changes — Philips Semiconductors reserves the right to make changes in the products—including circuits, standard cells, and/or software—described
or contained herein in order to improve design and/or performance. When the product is in full production (status ‘Production’), relevant changes will be communicated
via a Customer Product/Process Change Notification (CPCN). Philips Semiconductors assumes no responsibility or liability for the use of any of these products, conveys
no license or title under any patent, copyright, or mask work right to these products, and makes no representations or warranties that these products are free from patent,
copyright, or mask work right infringement, unless otherwise specified.

Contact information

For additional information please visit
http://www.semiconductors.philips.com. Fax: [phone]

For sales offices addresses send e-mail to:
[e-mail].

 Koninklijke Philips Electronics N.V. 2002

All rights reserved. Printed in U.S.A.

Date of release: 11-02

Document order number: 9397 750 10665

Philips
Semiconductors

Data sheet status

[1]

Objective data

Preliminary data

Product data

Product
status

[2] [3]

Development

Qualification

Production

Definitions

This data sheet contains data from the objective specification for product development.
Philips Semiconductors reserves the right to change the specification in any manner without notice.

This data sheet contains data from the preliminary specification. Supplementary data will be published
at a later date. Philips Semiconductors reserves the right to change the specification without notice, in
order to improve the design and supply the best possible product.

This data sheet contains data from the product specification. Philips Semiconductors reserves the
right to make changes at any time in order to improve the design, manufacturing and supply. Relevant
changes will be communicated via a Customer Product/Process Change Notification (CPCN).

Data sheet status

[1] Please consult the most recently issued data sheet before initiating or completing a design.
[2] The product status of the device(s) described in this data sheet may have changed since this data sheet was published. The latest information is available on the Internet at URL

http://www.semiconductors.philips.com.

[3] For data sheets describing multiple type numbers, the highest-level product status determines the data sheet status.

Level

I

II

III
