INTEGRATED CIRCUITS

CBT16292

12-bit 1-of-2 multiplexer/demultiplexer with internal pulldown resistors

Product specification

 

1999 Sep 13

Page 2

Philips Semiconductors Product specification

12-bit 1-of-2 multiplexer/demultiplexer with internal pulldown resistors

FEA TURES

•6 Ω switch connection between two ports

•TTL compatible control input levels

•Break-before-make feature

•Internal 500 Ω pulldown resistors to ground

•Latch-up protection exceeds 500 mA per JESD78

•ESD protection exceeds 2000 V HBM per JESD22-A114,

200 V MM per JESD22-A115 and 1000 V CDM per JESD22-C101

DESCRIPTION

The CBT16292 is a 12-bit 1-of-2 high-speed TTL-compatible multiplexer/demultiplexer. The low on-state resistance of the switch of the switch allows connections to be made with minimal propagation delay.

When the select (S) input is low, port A is connected to port B1 and R

is connected to port B2. When S is high, port A is connected to

INT

port B2 and R The CBT162292 is characterized for operation from –40°C to +85°C.

is connected to port B1.

INT

CBT16292

PIN DESCRIPTION

PIN NUMBER SYMBOL NAME AND FUNCTION

3, 5, 7, 10, 12, 14, 16, 20, 22, 24, 26, 28, 55,

2, 4, 6, 9, 11, 13, 15,

18, 21, 23, 25, 27

54, 53 1B1, 1B2 Outputs 52, 51 2B1, 2B2 Outputs 50, 48 3B1, 3B2 Outputs 49, 48 4B1, 4B2 Outputs 45, 44 5B1, 5B2 Outputs 43, 42 6B1, 6B2 Outputs 41, 40 7B1, 7B2 Outputs 39, 37 8B1, 8B2 Outputs 36, 35 9B1, 9B2 Outputs 34, 33 10B1, 10B2 Outputs 32, 31 11B1, 11B2 Outputs 30, 29 12B1, 12B2 Outputs

8, 19, 38, 49 GND Ground (0V)

17 V

NC No internal connection

1A-12A Inputs

Positive supply voltage

QUICK REFERENCE DATA

SYMBOL PARAMETER

PLH

PHL

OUT

Propagation delay nA to nBx

Input capacitance – control VI = 0 V or V Output capacitance Outputs disabled; VCC = 0 V; VO = 3 V or 0 V 6 pF

CL = 50 pF; VCC = 5 V 0.25 ns

CONDITIONS

= 25°C; GND = 0V

amb

TYPICAL UNIT

4 pF

ORDERING INFORMATION

PACKAGES TEMPERATURE RANGE ORDER CODE DWG NUMBER

56-Pin Plastic TSSOP Type II –40°C to +85°C CBT16292 DGG SOT364-1

1999 Sep 13 853–2167 22327

Page 3

Philips Semiconductors Product specification

12-bit 1-of-2 multiplexer/demultiplexer with internal pulldown resistors

PIN CONFIGURATION

1B1

1B2

2B1

2B2

3B1

GND

3B2

4B1

4B2

5B1

5B2

6B1

6B2

7B1

7B2

8B1

GND

8B2

9B1

9B2

10B1

10B2

11B1

11B2

12B1

12B2

SA00538

GND

10A

11A

12A

3 4

5 6

7 8 9

10 11

12 13

14 15

16 17

18 19 20

21 22 23 24 25 26 27 28

CBT16292

LOGIC SYMBOL

254

12A

FUNCTION TABLE

INPUT

L A port = B1 port

H A port = B2 port

H = High voltage level L = Low voltage level

INT

FUNCTION

= B2 port

INT

= B1 port

INT

SA00529

1B1

1B2

12B1

12B2

1999 Sep 13

Page 4

Philips Semiconductors Product specification

SYMBOL

PARAMETER

UNIT

12-bit 1-of-2 multiplexer/demultiplexer with internal pulldown resistors

ABSOLUTE MAXIMUM RATINGS

SYMBOL

stg

DC supply voltage –0.5 to +7.0 V DC input diode current VI < 0 –50 mA

DC input voltage

DC continuous channel current VO = 0 V to V Storage temperature range –65 to 150 °C

θjA Plastic thin shrink small outline package (TSSOP) 97 °C/W

NOTES:

1. Stresses beyond those listed may cause permanent damage to the device. These are stress ratings only and functional operation of the device at these or any other conditions beyond those indicated under “recommended operating conditions” is not implied. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability .

2. The performance capability of a high-performance integrated circuit in conjunction with its thermal environment can create ju nction temperatures which are detrimental to reliability. The maximum junction temperature of this integrated circuit should not exceed 150°C.

3. The input and output voltage ratings may be exceeded if the input and output current ratings are observed.

RECOMMENDED OPERATING CONDITIONS

amb

DC supply voltage 4.0 5.5 V High-level input voltage 2.0 V

Low-level Input voltage 0.8 V

Operating free-air temperature range –40 +85 °C

1, 2

PARAMETER CONDITIONS RATING UNIT

LIMITS

Min Max

CBT16292

–0.5 to +7.0 V

±128 mA

DC ELECTRICAL CHARACTERISTICS

SYMBOL P ARAMETER TEST CONDITIONS T

∆I

IO(OFF)

Input clamp voltage VCC = 4.5 V; II = –18 mA –1.2 V

Input leakage current VCC = 5.5 V; VI = GND or V

Quiescent supply current VCC = 5.5 V; IO = 0, VI = VCC or GND 3 µA Additional supply current per

control input pin Control pins VI= 3 V or 0 4 pF

VCC = 5.5 V, one input at 3.4 V, other inputs at VCC or GND

Power-off leakage current VO = 3 V or 0, VCC = 0 V 6 pF

VCC = 4.5 V; VI = 0 V; II = 64 mA 8 12.5 Ω

VCC = 4.5 V; VI = 0 V; II = 30 mA 8 11 Ω VCC = 4.5 V; VI = 2.4 V; II = –15 mA 13 16 Ω

NOTES:

1. All typical values are at V

2. This is the increase in supply current for each input that is at the specified TTL voltage level rather than V

= 5 V, T

amb

= 25°C

3. Measured by the voltage drop between the A and the B terminals at the indicated current through the switch. On-state resistance is determined by the lowest voltage of the two (A or B) terminals.

= –40°C to +85°C UNIT

amb

Min Typ

LIMITS

or GND

Max

±5 µA

2.5 mA

1999 Sep 13

Page 5

Philips Semiconductors Product specification

SYMBOL

PARAMETER

FROM (INPUT)

TO (OUTPUT)

UNIT

12-bit 1-of-2 multiplexer/demultiplexer with internal pulldown resistors

AC CHARACTERISTICS

GND = 0 V; tR = t

dis

bbm2

NOTE:

1. This parameter is warranted but not production tested. The propagation delay is based on the RC time constant of the typical on-state resistance of the switch and a load capacitance of 50 pF, when driven by an ideal voltage source (zero output impedance).

2. Time interval between break and make measured at the same operating point (V

AC WAVEFORMS

VM = 1.5 V, VIN = GND to 3.0 V

INPUT

≤ 2.5 ns; CL = 50 pF

VCC = 5.0V ±0.5V

Min Max

Propagation delay Output enable time

to High and Low level Output disable time

from High and Low level

A or B B or A 0.4 ns

S A or B 1.5 5.8 ns

S A or B 1.5 4.5 ns

Break-before-make time A nB1 or nB2 0 2 ns

and temperature).

TEST CIRCUIT AND WAVEFORMS

1.5V

PLH

1.5V

3 V

0 V

PHL

From Output Under Test

= 50 pF

500 Ω

Load Circuit

CBT16292

7 V

Open

GND

1.5V 1.5V

OUTPUT

SA00028

Waveform 1. Input (An) to Output (Yn) Propagation Delays

Output Control

(Low-level

enabling

Output

Waveform 1

S1 at 7 V

(see Note)

Output

Waveform 2

S1 at Open

(see Note)

1.5 V 1.5 V

PHZ

PLZ

PZL

1.2 V

PZH

1.2 V

Note:

Waveform 1 is for an output with internal conditions such that the output is low except when disabled by the output control.

Waveform 2 is for an output with internal conditions such that the output is high except when disabled by the output control.

2.3V

+ 0.3V

V V

– 0.3V

SA00530

Waveform 2. 3-State Output Enable and Disable Times

TEST S1

DEFINITIONS

= Load capacitance includes jig and probe capacitance;

see AC CHARACTERISTICS for value.

PLZ/tPZL

PHZ/tPZH

open

7 V

open

SA00012

1999 Sep 13

Page 6

Philips Semiconductors Product specification

12-bit 1-of-2 multiplexer/demultiplexer with internal pulldown resistors

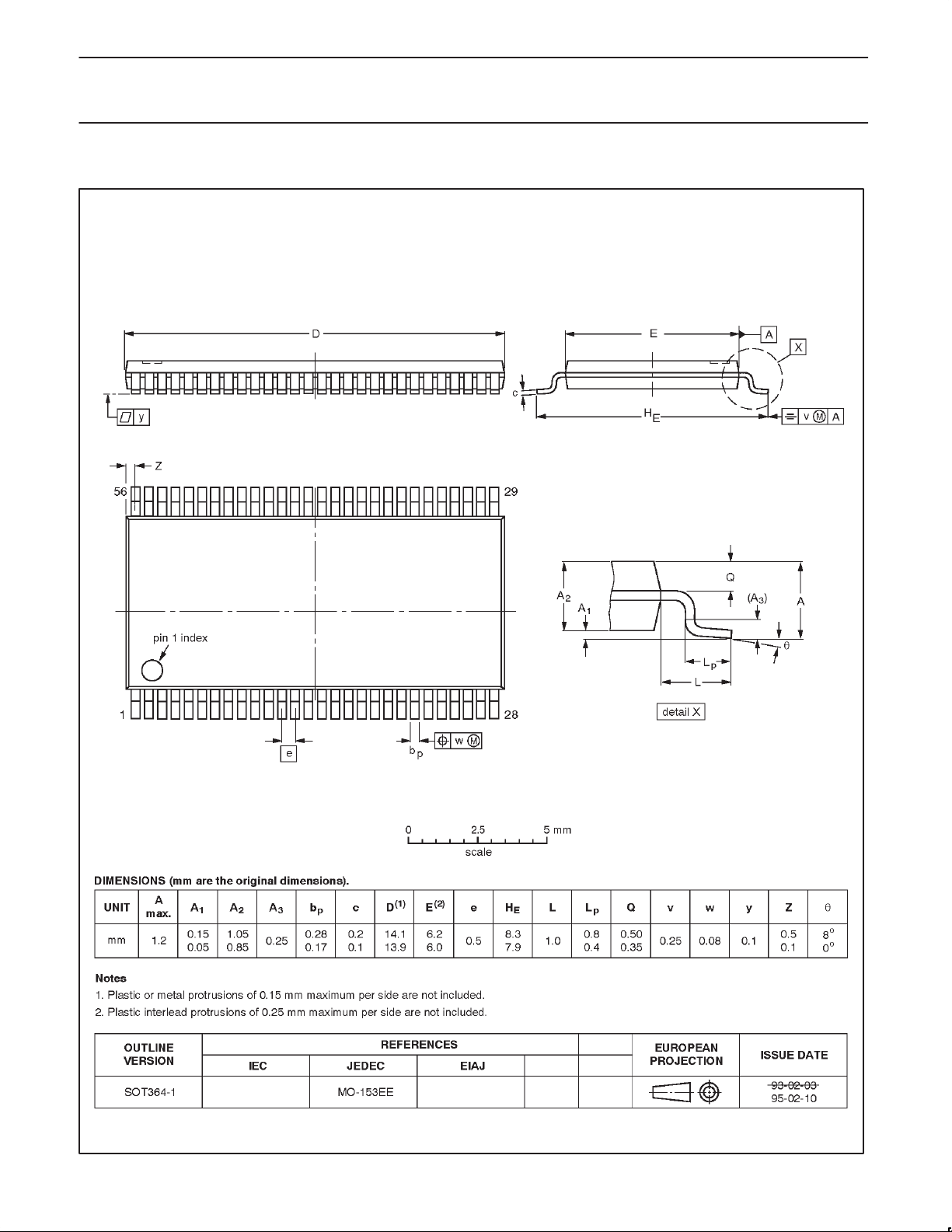

TSSOP56: plastic thin shrink small outline package; 56 leads; body width 6.1mm SOT364-1

CBT16292

1999 Sep 13

Page 7

Philips Semiconductors Product specification

12-bit 1-of-2 multiplexer/demultiplexer with internal pulldown resistors

CBT16292

NOTES

1999 Sep 13

Page 8

Philips Semiconductors Product specification

12-bit 1-of-2 multiplexer/demultiplexer with internal pulldown resistors

Data sheet status

Objective specification

Preliminary specification

Product specification

Product status

Development

Qualification

Production

Definition

This data sheet contains the design target or goal specifications for product development. Specification may change in any manner without notice.

This data sheet contains preliminary data, and supplementary data will be published at a later date. Philips Semiconductors reserves the right to make changes at any time without notice in order to improve design and supply the best possible product.

This data sheet contains final specifications. Philips Semiconductors reserves the right to make changes at any time without notice in order to improve design and supply the best possible product.

[1]

CBT16292

[1] Please consult the most recently issued datasheet before initiating or completing a design.

Definitions

Short-form specification — The data in a short-form specification is extracted from a full data sheet with the same type number and title. For

detailed information see the relevant data sheet or data handbook. Limiting values definition — Limiting values given are in accordance with the Absolute Maximum Rating System (IEC 134). Stress above one

or more of the limiting values may cause permanent damage to the device. These are stress ratings only and operation of the device at these or at any other conditions above those given in the Characteristics sections of the specification is not implied. Exposure to limiting values for extended periods may affect device reliability.

Application information — Applications that are described herein for any of these products are for illustrative purposes only. Philips Semiconductors make no representation or warranty that such applications will be suitable for the specified use without further testing or modification.

Disclaimers

Life support — These products are not designed for use in life support appliances, devices or systems where malfunction of these products can

reasonably be expected to result in personal injury . Philips Semiconductors customers using or selling these products for use in such applications do so at their own risk and agree to fully indemnify Philips Semiconductors for any damages resulting from such application.

Right to make changes — Philips Semiconductors reserves the right to make changes, without notice, in the products, including circuits, standard cells, and/or software, described or contained herein in order to improve design and/or performance. Philips Semiconductors assumes no responsibility or liability for the use of any of these products, conveys no license or title under any patent, copyright, or mask work right to these products, and makes no representations or warranties that these products are free from patent, copyright, or mask work right infringement, unless otherwise specified.

Philips Semiconductors 811 East Arques Avenue P.O. Box 3409 Sunnyvale, California 94088–3409 Telephone 800-234-7381

 Copyright Philips Electronics North America Corporation 1999

Date of release: 09-99

Document order number: 9397-750-06415

 
